for Profile 30, Angle Connectors 45°
Filter products
–

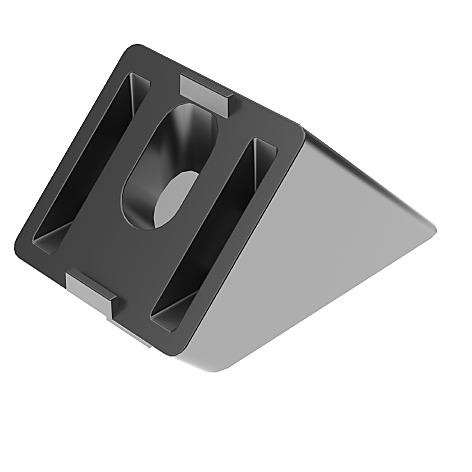

Angle Connector 30, 45°
€0.00*
Color:
-
|
Slot N (mm):
8
|
Surface:
Plain
|
for Screw:
M8
Color:Alu colorDelivery Countries:WorldwideDescription:To mount a profile as bracing at a 45° angle without miter cutMaterial:Aluminum die-castSpecials:Other surfaces, other colors on requestSurface:Plain / powder coatedZolltarifnummer:76169910990

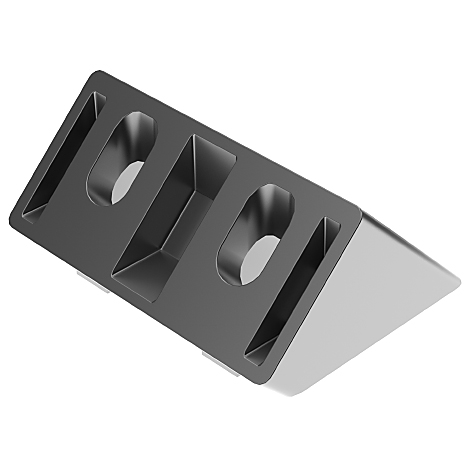

Angle Connector 60 x 30, 45°
€0.00*
Color:
Alu color
|
Slot N (mm):
8
|
Surface:
Powder coated
|
for Screw:
M8
Color:Alu colorDelivery Countries:WorldwideDescription:To mount a profile as bracing at a 45° angle without miter cutMaterial:Aluminum die-castSpecials:Other surfaces, other colors on requestSurface:Plain / powder coatedZolltarifnummer:76169910990

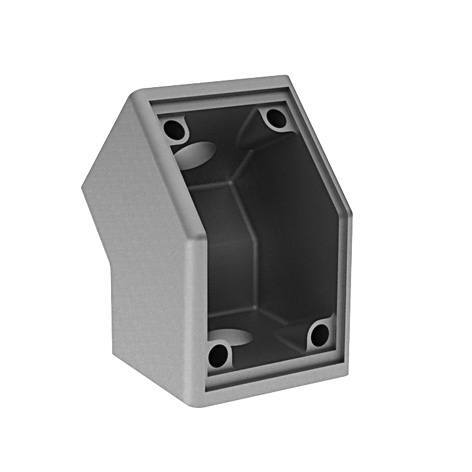

Angle Connector B 30, 45°
€0.00*
Color:
Alu color
|
Slot N (mm):
8 / 10
|
Surface:
Powder coated
|
Version:
Cover cap: alu color
Assembly Set:2 self-forming screws S8 x 25 - hexalobular socket T40 , 1 socket head screw - DIN EN ISO 4762 (DIN 912) - M6 x 12, 1 washer DIN EN ISO 7089 (DIN 125) - Form A, 1 hammer nut M6 - slot 8, 1 socket head screw - DIN EN ISO 4762 (DIN 912) - M8 x 16, 1 hammer nut M8 - slot 10Color:Centering pieces: Black Cover caps: Black / alu colorDelivery Countries:WorldwideDescription:To mount a profile as bracing at a 45° angle without miter cutMaterial:Angle connector: Aluminum die-cast Centering pieces: Plastic PA, glass fiber reinforced Cover caps: Plastic PA, glass fiber reinforced Assembly set: SteelSpecials:Other surfaces, other colors on requestSurface:Angle connector: Plain / Powder coated Assembly set: Zinc plated
