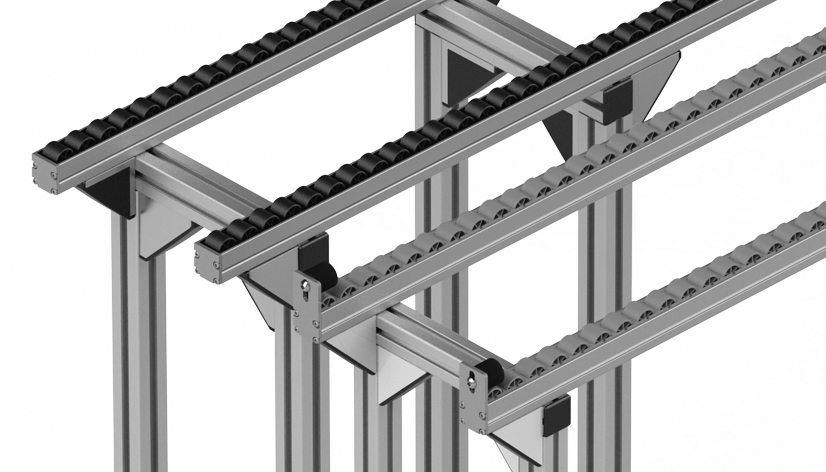

Roller Tracks

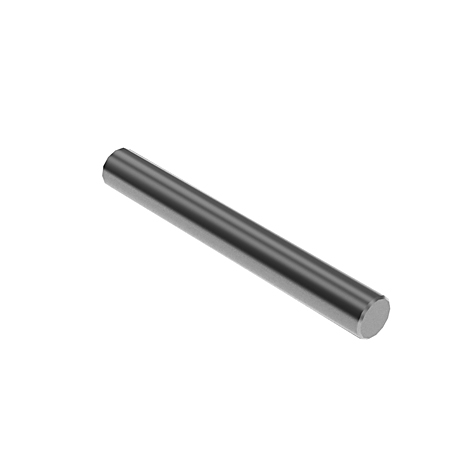

Axle for AL Roller Tracks
€0.00*
ESD:
ESD
Delivery Countries:WorldwideDescription:To insert roller R28, roller H26, or roller R9 into the suitable cages for roller tracks ALMaterial:SteelSpecials:Other materials, other surfaces on requestSurface:Zinc platedTip:Compatible Rollers see 062RR2891, 062RH2691, 062RR991; Compatible Cages see 062ACR2891.50, 062ACH2691.50, 062ACR991.50;Zolltarifnummer:73182900900

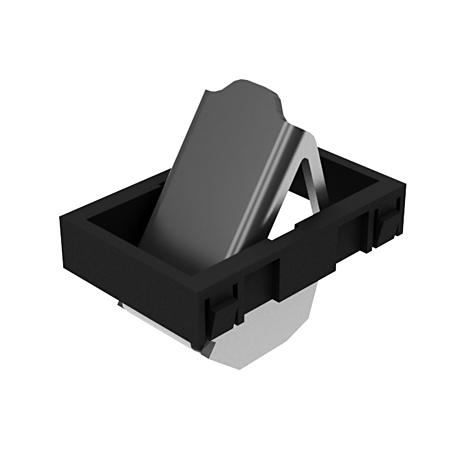

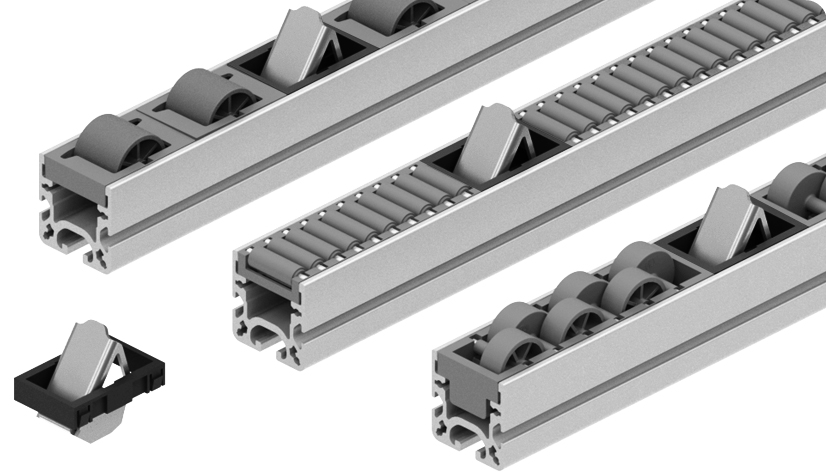

Backstop Unit AL
€0.00*
ESD:
ESD
Color:Cage: BlackDelivery Countries:WorldwideDescription:A preassembled backstop unit for roller track profiles AL, prevents goods from moving backwards onthe AL roller track profileMaterial:Backstop: Steel Axle: Steel Cage: Plastic PA, carbon fiber reinforcedSpecials:Other materials, other surfaces, other colors on requestSurface:Backstop: Zinc plated Axle: Zinc platedZolltarifnummer:73269098900

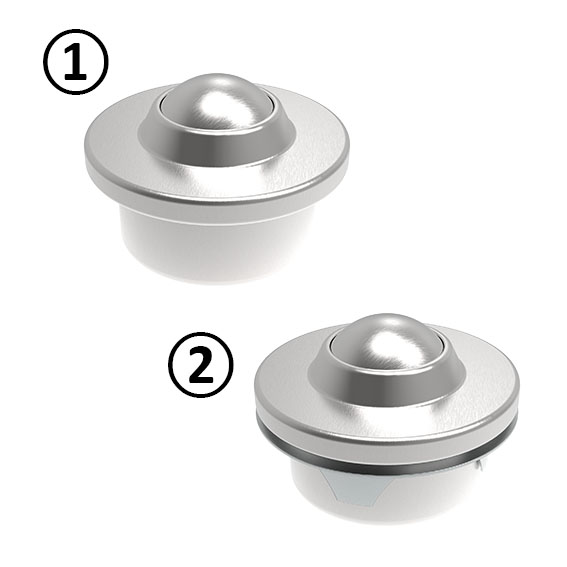

Ball Insert D24
€0.00*
ESD:
ESD
|
Fig.:
②
|
Max. Load (N):
-
|
Version:
Steel ball, with Housing Attachment Clip
Delivery Countries:WorldwideDescription:Low-wear, low friction ball caster for flexible movements in two directions, for example at track switches and material locks; for roller tracks AL, can also be used in panels, e.g. on table tops; version with attachement clip prevents rotation of the ball housingMaterial:Ball: Steel, stainless steel Ball housing: Steel Housing Attachment Clip: SteelSpecials:Other materials, other surfaces on requestSurface:Ball steel: Chrome plated / Ball stainless steel: Plain Ball housing: Chrome plated Housing Attachment Clip: Zinc platedTip:Compatible Cage for Ball / Bush Insert D24 see 062ACD2491ESD.50;Zolltarifnummer:83022000900

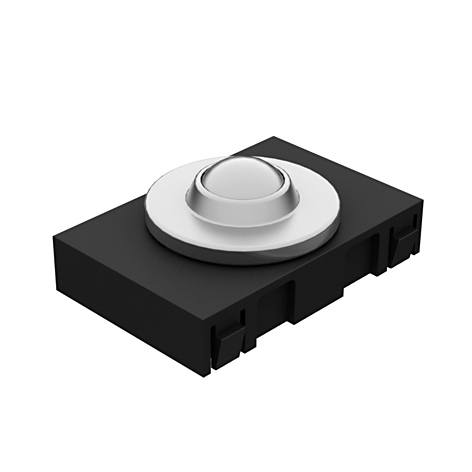

Ball Unit
€0.00*
ESD:
-
|
Version:
Stainless steel ball
Color:Cage: BlackDelivery Countries:WorldwideDescription:A preassembled ball unit for roller track profiles AL, with low-wear, low friction ball caster for flexible movements in two directions, for example at track switches and material locksMaterial:Ball: Steel, stainless steel Ball chassis: Steel Cage: Plastic PA, carbon fiber reinforcedSpecials:Other materials, other surfaces on requestSurface:Ball steel: Chrome plated / Ball stainless steel: Plain Ball housing: Chrome plated Housing Attachment Clip: Zinc platedTip:Brush unit consisting of: – Ball insert, see 062AQ; – Cage for ball insert, see 062ACD2491ESD.50; Compatible Slide Rail AL see 062AS91ESD.2000;

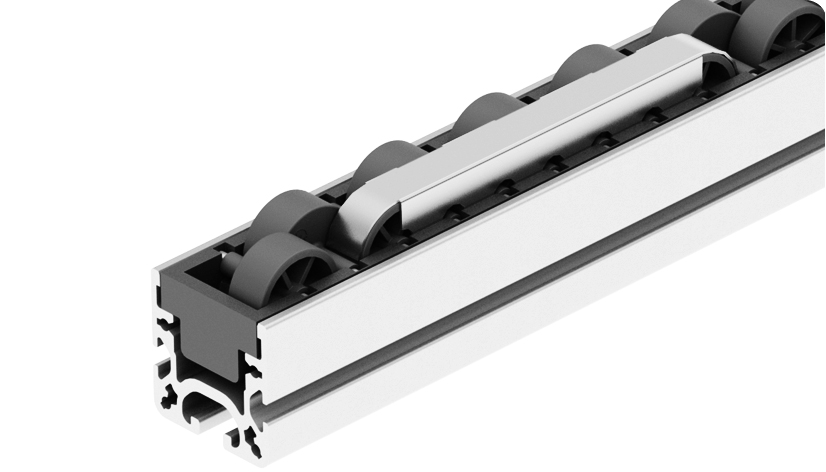

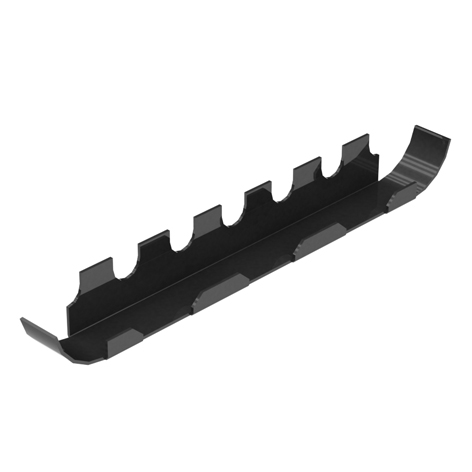

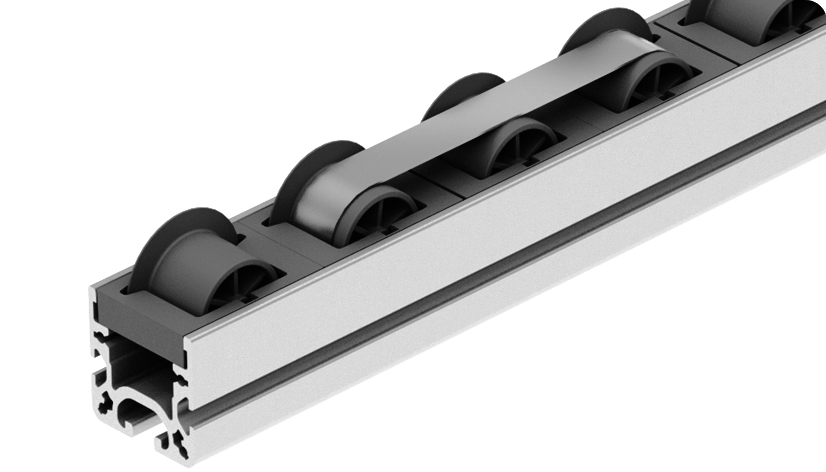

Brake H26
€0.00*
ESD:
ESD
Delivery Countries:WorldwideDescription:A clip-on for 4 rollers H26; brakes workpieces and goods, in particular heavier ones, smoothly to give them the correct operating speedMaterial:Stainless steelSpecials:Other materials, other surfaces on requestSurface:PlainTip:Compatible Roller Element see 062AER991.50; Compatible Rollers see 062RR991;Zolltarifnummer:73269098900

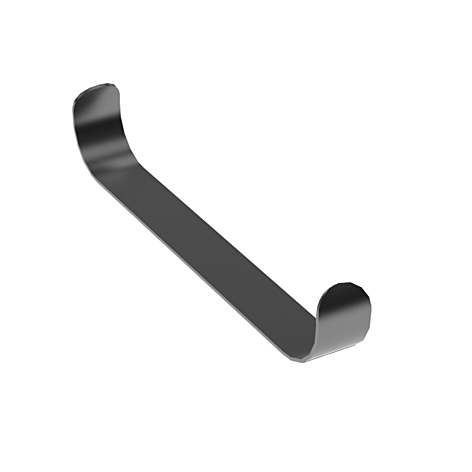

Brake R28
€0.00*
ESD:
ESD
Delivery Countries:WorldwideDescription:A clip-on for 3 rollers R28; brakes workpieces and goods, in particular heavier ones, smoothly to give them the correct operating speedMaterial:Stainless steelSpecials:Other materials, other surfaces on requestSurface:PlainTip:Compatible Roller Element R28 see 062AER2891.50; Compatible Rollers R28 see 062RR2891;Zolltarifnummer:73269098900

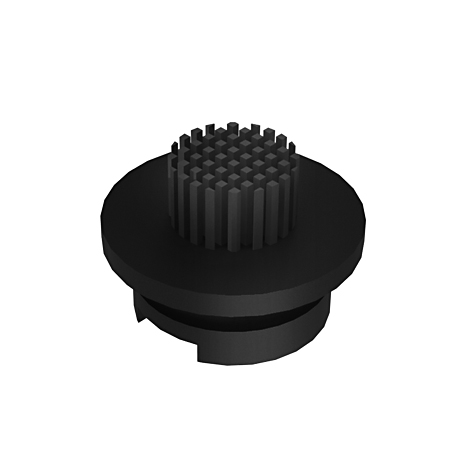

Brush Insert D24
€0.00*
ESD:
ESD
Color:Fibers: Black Brush head: BlackDelivery Countries:WorldwideDescription:With elastic brush fibers, allowing a gentle, material-protective sliding of scratch sensitive goods in two directions; for roller tracks AL, can also be used in panels,e.g. on table surfacesMaterial:Fibers: Plastic PA, ESD electrostatical discharging Brush head: Plastic PP, ESD electrostatical dischargingSpecials:Other materials, other fiber heights on requestTip:Compatible Cage for Ball / Bush Insert D24 see 062ACD2491ESD.50;Zolltarifnummer:96035000000

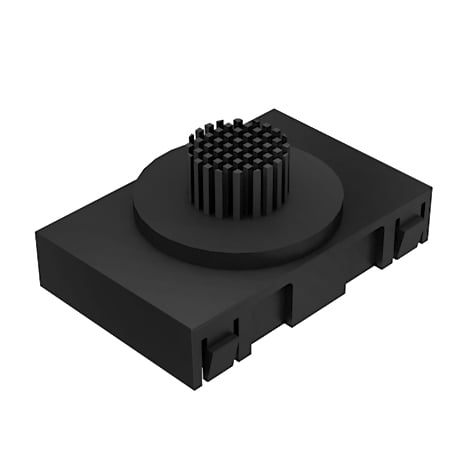

Brush Unit
€0.00*
ESD:
ESD
Color:BlackDelivery Countries:WorldwideDescription:A preassembled brush unit for roller track profiles AL, with elastic brush fibers, allowing a gentle, material-protective sliding of scratch sensitive goods in two directionsMaterial:Fibers: Plastic PA, ESD electrostatical discharging Brush head: Plastic PP, ESD electrostatical discharging Cage: Plastic PA, carbon fibre reinforced Specials:Other materials, other fibre heights on requestTip:Brush unit consisting of: – Ball insert, see 062ABKESD; – Cage for ball insert, see 062ACD2491ESD.50; Compatible Slide Rail AL see 062AS91ESD.2000;Zolltarifnummer:96035000000

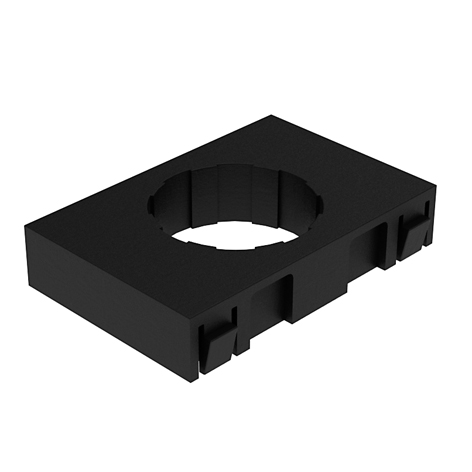

Cage for Ball / Brush Insert D24
€0.00*
ESD:
ESD
Color:BlackDelivery Countries:WorldwideDescription:A sturdy cage for roller track profiles AL, to support a D24 ball or brush insertMaterial:Plastic PA, carbon fiber reinforcedSpecials:Other materials, other colors on requestTip:Compatible Ball Insert see 062AQ; Compatible Brush Insert see 062ABKESD;Zolltarifnummer:39269097900

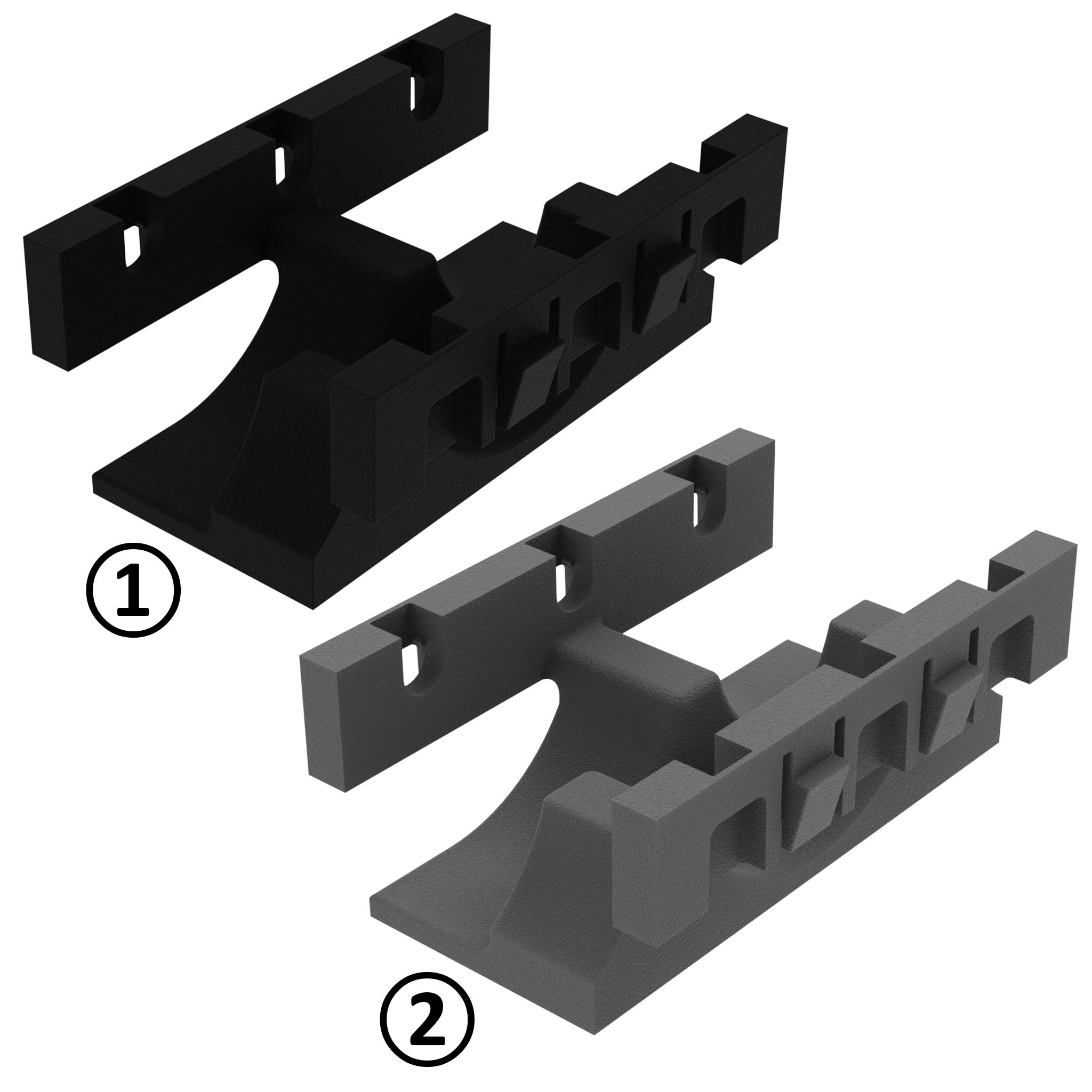

Cage for Rollers H26
€0.00*
Color:
Black
|
ESD:
-
Color:Black, grayDelivery Countries:WorldwideDescription:A sturdy cage for roller track profiles AL, to support 3 rollers H26 by means of axles;Material:Standard version: Plastic PA, glass fiber reinforced ESD electrostatical discharging version: Plastic PA, carbon fiber reinforcedSpecials:Other materials, other colors on requestTip:Compatible Rollers H26 see 062RH2691; Compatible Axle see 062AXM; Compatible End Piece see 062ACEH2691.10Zolltarifnummer:39269097900

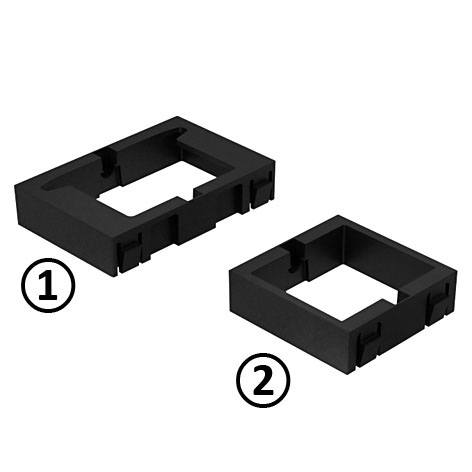

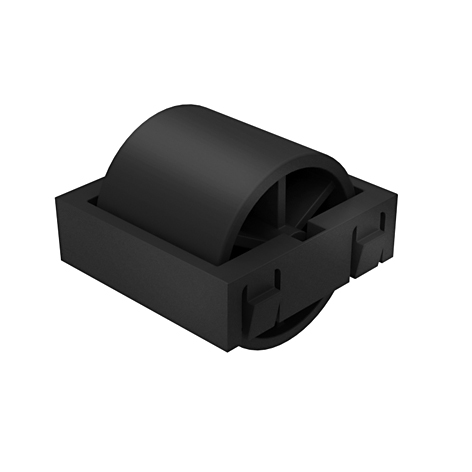

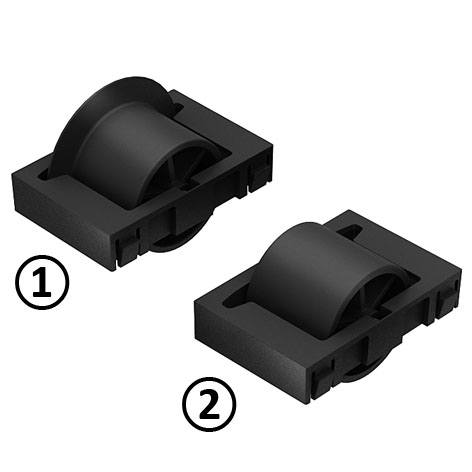

Cage for Rollers R28
€0.00*
Color:
Black
|
ESD:
-
|
Fig.:
②
|
Version:
L33
Color:Black, grayDelivery Countries:WorldwideDescription:A sturdy cage for roller track profiles AL, to support a roller R28 by means of an axle cage L50 also suitable for roller R28 with flangeMaterial:Standard version: Plastic PA, glass fiber reinforced ESD electrostatical discharging version: Plastic PA, carbon fiber reinforcedSpecials:Other materials, other colors on requestTip:Compatible Rollers see 062RR2891; Compatible Axle see 062AXM;Zolltarifnummer:39269097900

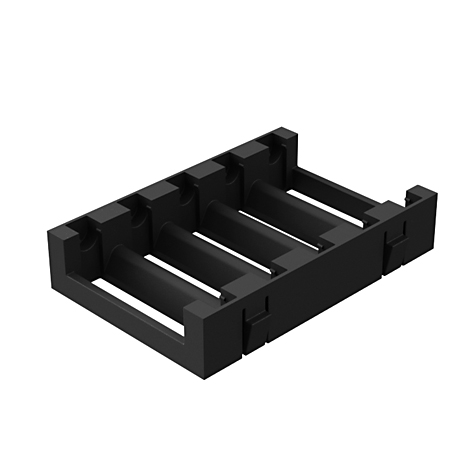

Cage for Rollers R9
€0.00*
Color:
Black
|
ESD:
-
Color:Black, grayDelivery Countries:WorldwideDescription:A sturdy cage for roller track profiles AL, tosupport 5 rollers R9 by means of axlesMaterial:Standard version: Plastic PA, glass fiber reinforced ESD electrostatical discharging version: Plastic PA, carbon fiber reinforcedSpecials:Other materials, other colors on requestTip:Compatible Rollers see 062RR991; Compatible Axle see 062AXM;Zolltarifnummer:39269097900

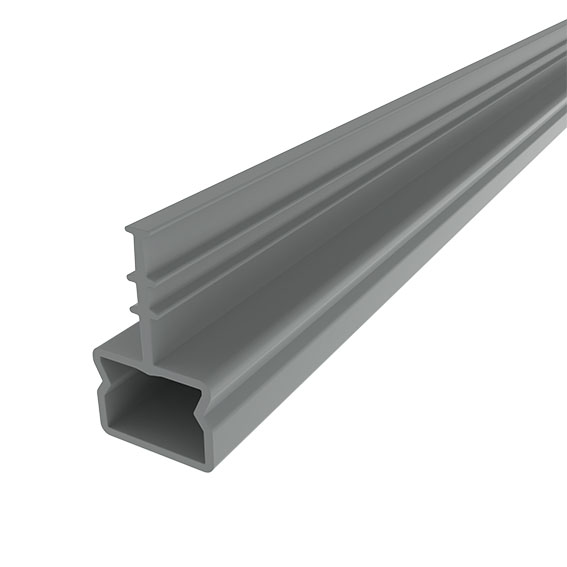

Central Guide XST
€0.00*
Color:
Black
|
ESD:
-
Color:Black, grayDelivery Countries:WorldwideDescription:For a safe guiding and positioning in flexible conveyor facilities, guiding rails provide for an adequate work height for the product supplyMaterial:Standard version: Plastic PVC ESD electrostatical discharging version: Plastic PVC, carbon fiber reinforcedSpecials:Other colors on requestTip:Compatible Brackets for XST Roller Tracks see 062MHD28M, 062MHD30M and 062XHD40MZolltarifnummer:39162000990

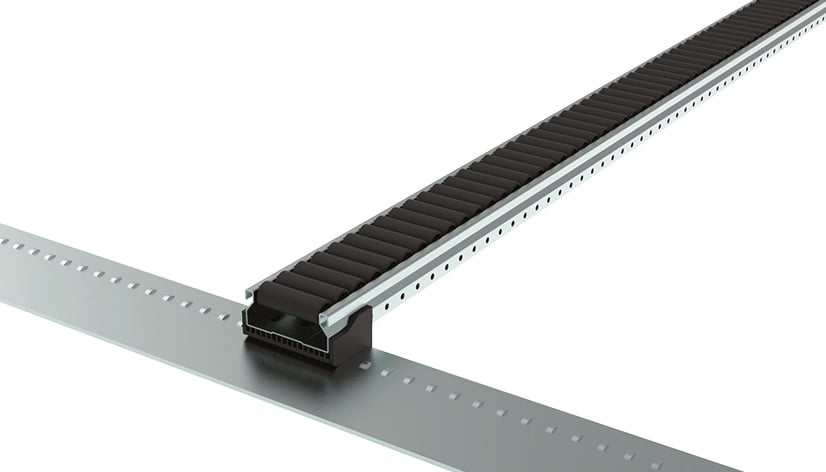

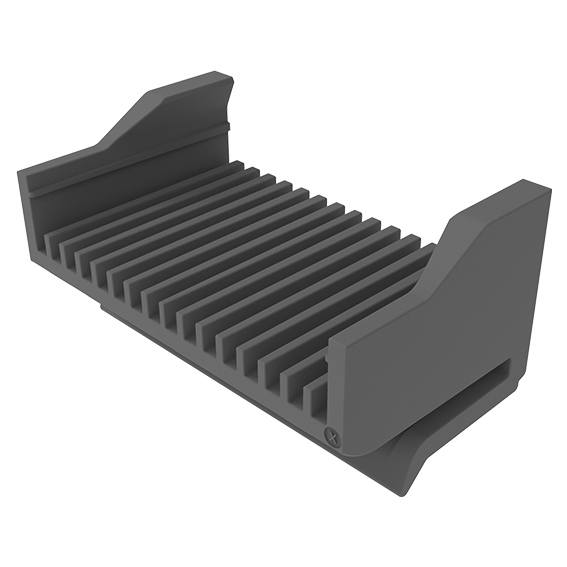

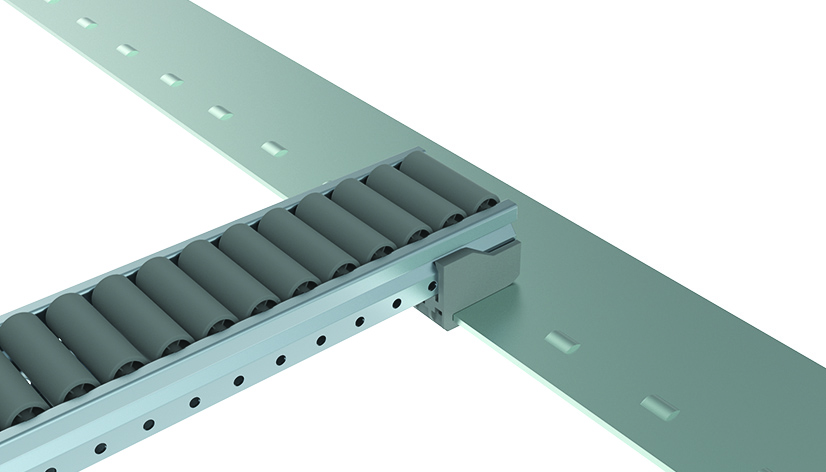

Docking Clip I 60x24
€0.00*
A (mm):
3.0 (max. 4.0)
|
Color:
Gray ≈ RAL 7042
Color:GrayDelivery Countries:WorldwideDescription:For quick plug-in of roller tracks I 60x24 in the lateral connectors of flow beds of live storage shelvings, channel width can be adjusted horizontally in stepsMaterial:Plastic PASpecials:Other colors on requestZolltarifnummer:39269097900

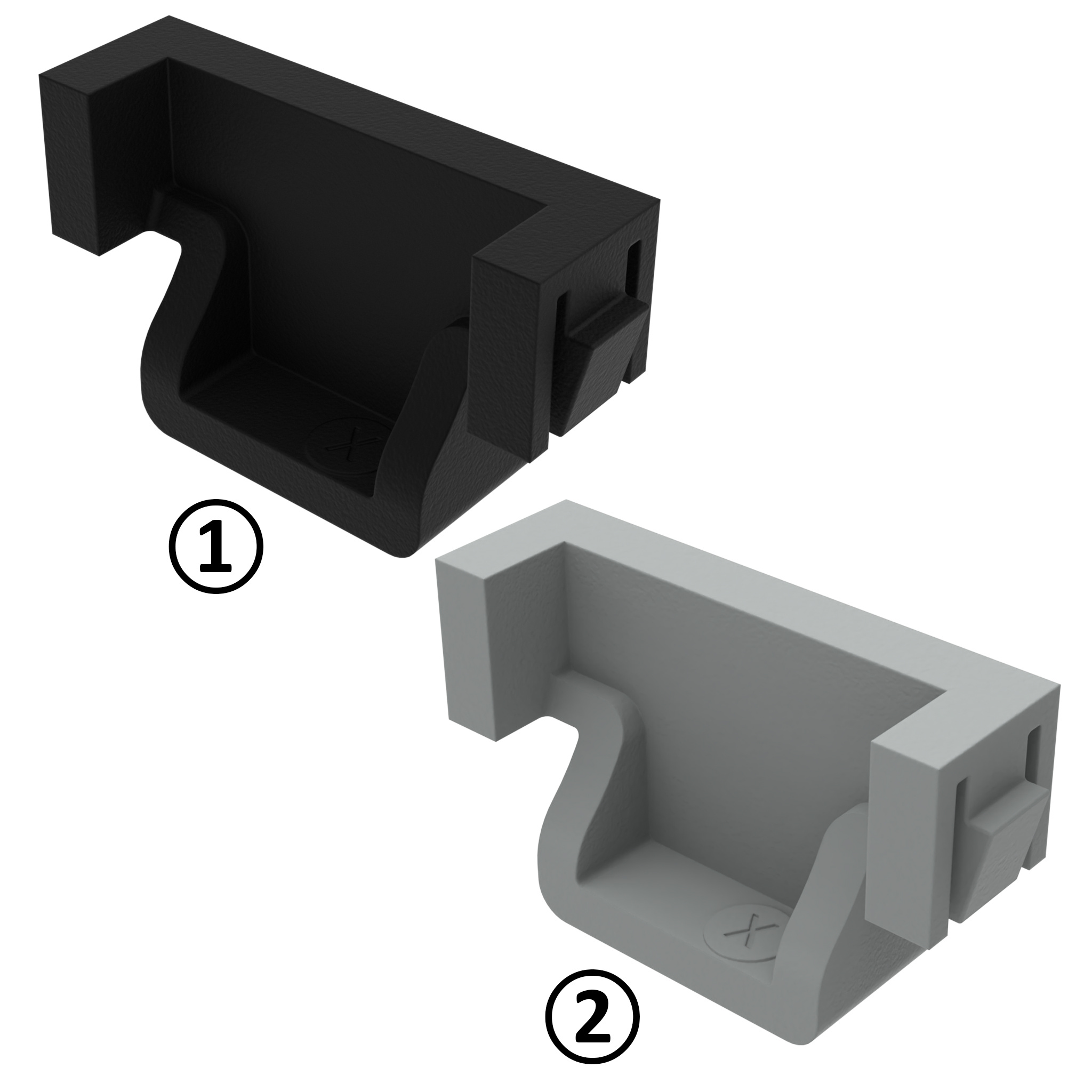

End Piece for Cage-Rollers H26
€0.00*
Color:
Black
|
ESD:
-
|
Fig.:
①
Color:Black, grayDelivery Countries:WorldwideDescription:Provides a neat finish at the end of the profileMaterial:Standard version: Plastic PA, glass fiber reinforced ESD electrostatical discharging version: Plastic PA, carbon fiber reinforcedSpecials:Other materials, other colors on requestTip:Compatible Cage for Rollers H26 see 062ACH2691.50 Compatible Roller Unit H26 see 062AEH2691.50Zolltarifnummer:39269097900

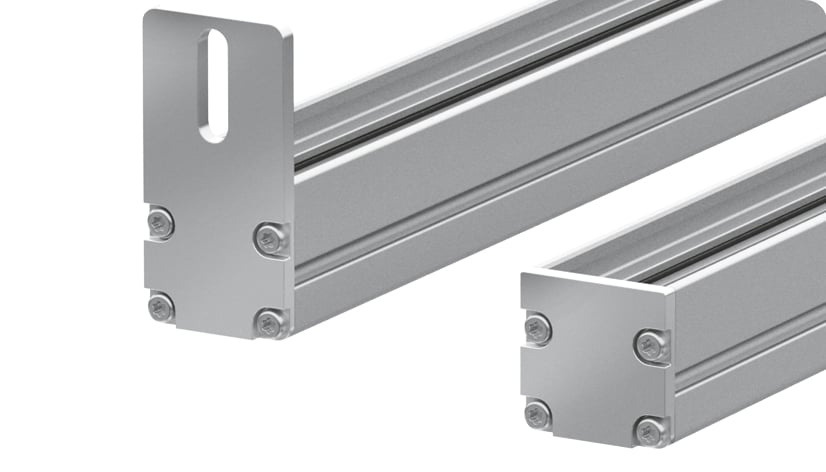

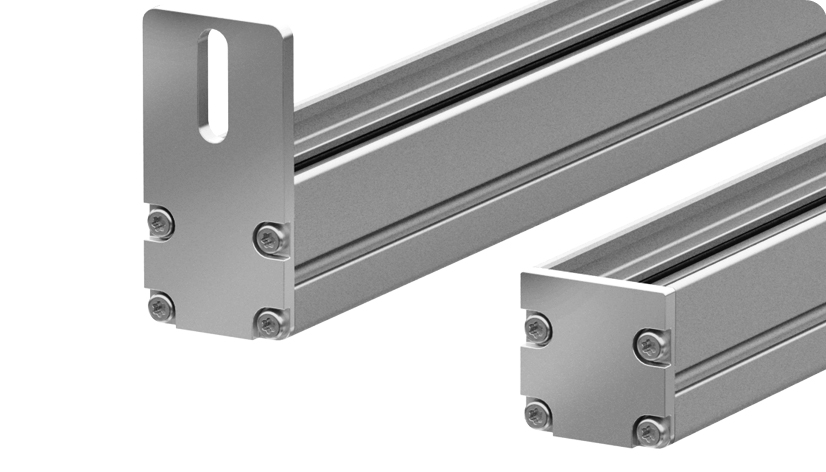

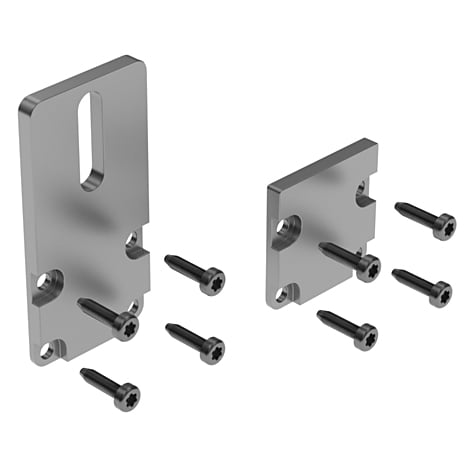

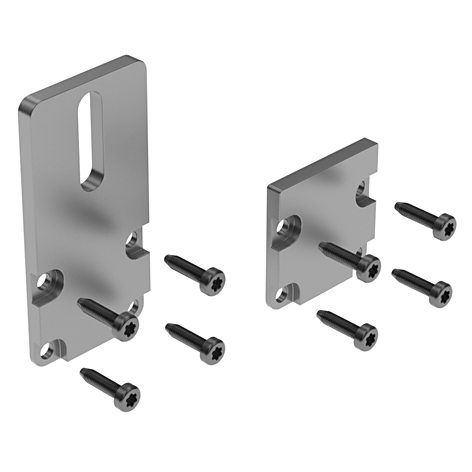

End Plate AL
€0.00*
H (mm):
40
|
Version:
Without end stop, with assembly set
Assembly Set:4 self-drilling screws DIN 7504 Form N - 3.9 x 16Delivery Countries:WorldwideDescription:To close the end face of AL roller track profiles, preventig inserts from slipping out, additionally the long version has an end stop (optionally, a buffer stop can be added)Material:SteelSpecials:Other surfaces, other colors on requestSurface:Zinc platedTip:Compatible Buffer Stop see 051DC553030FM08;Zolltarifnummer:73259990900

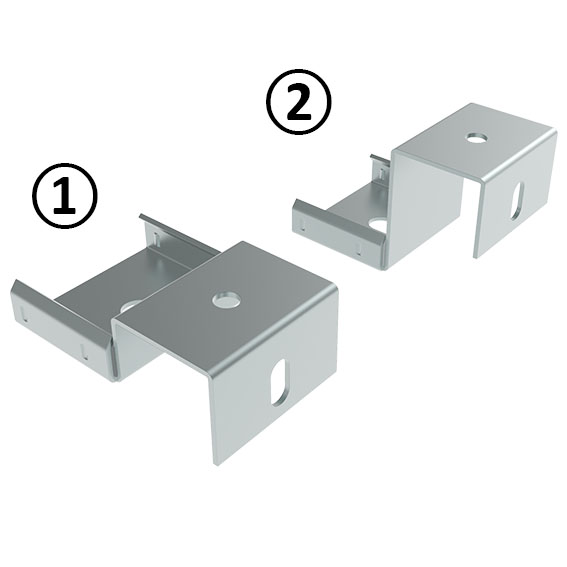

Holding Bracket I 60x24 40
€0.00*
Fig.:
②
|
Version:
With end stop
Delivery Countries:WorldwideDescription:To mount roller tracks I 60x24 40 to profiles 40 mmMaterial:SteelSpecials:Other surfaces, other colors on requestSurface:Zinc platedZolltarifnummer:73269098900

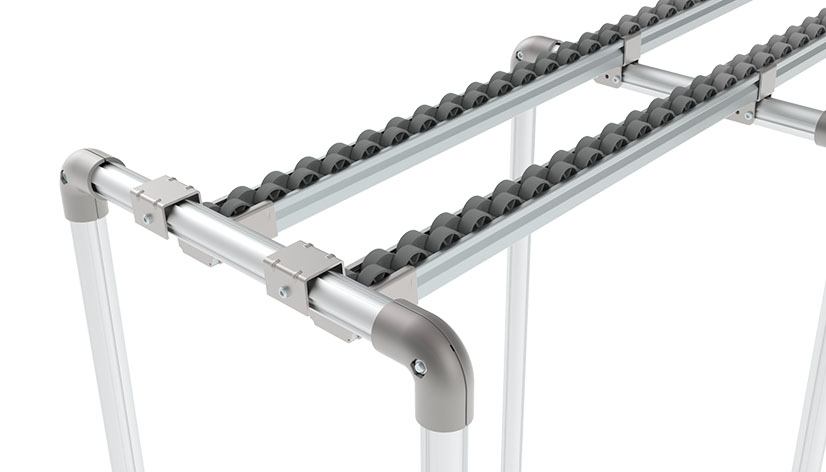

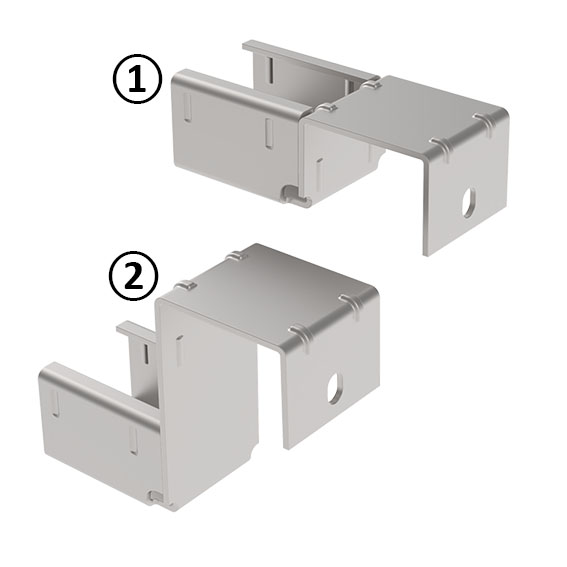

Holding Bracket XST 40
€0.00*
Fig.:
②
|
Version:
With end stop
Delivery Countries:WorldwideDescription:To mount roller tracks XST and guiding rails XST central to profiles 40 mm, preventing inserts from slipping outMaterial:SteelSurface:Zinc platedZolltarifnummer:73269098900

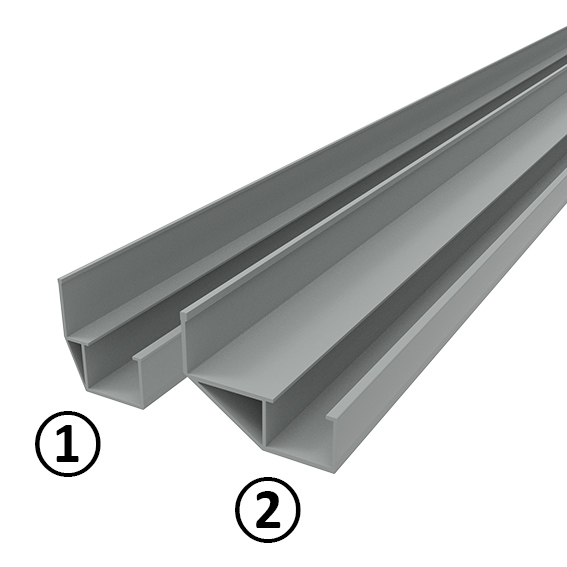

Lateral Guide XST
€0.00*
Color:
Black
|
ESD:
-
|
Fig.:
②
|
Version:
Lateral 63.5
Color:Black, grayDelivery Countries:WorldwideDescription:For a safe guiding and positioning in flexible conveyor facilities, guiding rails provide for an adequate work height for the product supplyMaterial:Standard version: Plastic PVC ESD electrostatical discharging version: Plastic PVC, carbon fiber reinforcedSpecials:Other colors on requestZolltarifnummer:39162000990

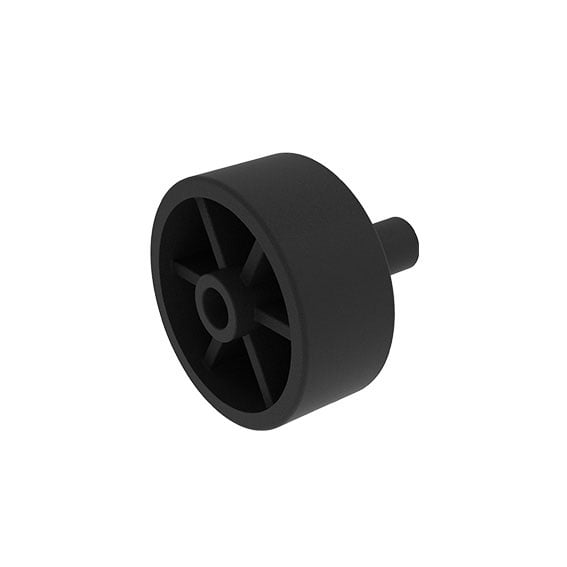

Roller H26
€0.00*
Color:
Black
|
ESD:
ESD
Color:Black, yellow, red, green, grayDelivery Countries:WorldwideDescription:A resilient and smooth running half roller for roller tracks AL, short center distancedue to staggered roller layout, quickly replaceableMaterial:Standard version: # Plastic PA, glass ball reinforced ESD electrostatical discharging version: Plastic PA, carbon fibre reinforcedSpecials:Other materials, other colors on requestTip:Compatible Axle see 062AXM; Compatible Cage see 062ACH2691.50; Compatible Brake see 062RBH26E;Zolltarifnummer:39269097900

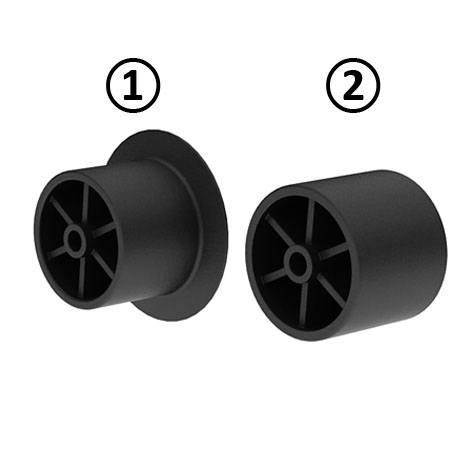

Roller R28 for Roller Units
€0.00*
Color:
Yellow ≈ RAL 1003
|
ESD:
-
|
Fig.:
②
|
Version:
Without flange
Color:Black, yellow, red, green, grayDelivery Countries:WorldwideDescription:A resilient and smooth running roller forAL roller tracks, optionally without or withflange as lateral guiding, quickly replaceableMaterial:Standard version: Plastic PA, glass ball reinforced ESD electrostatical discharging version: Plastic PA, carbon fiber reinforcedSpecials:Other materials, other colors on requestTip:Compatible Axle see 062AXM; Compatible Cage see 062ACR2891.50; Compatible Brake R 28 see 062RBR28E;Zolltarifnummer:39269097900
Roller R9 for Roller Units
€0.00*
Color:
Gray ≈ RAL 7042
|
ESD:
-
Color:Black, yellow, red, green, grayDelivery Countries:WorldwideDescription:A compact roller for roller tracks AL, very small center distance and maximum number of axles for minimum vibrations and reduced point load on the goods, quickly replaceableMaterial:Standard version: Plastic PA, glass ball reinforced ESD electrostatical discharging version: Plastic PA, carbon fiber reinforcedSpecials:Other materials, other colors on requestTip:Compatible Axle see 062AXM; Compatible Cage see 062ACR991.50;Zolltarifnummer:39269097900

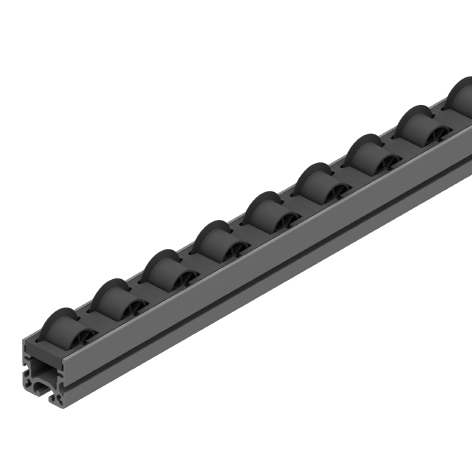

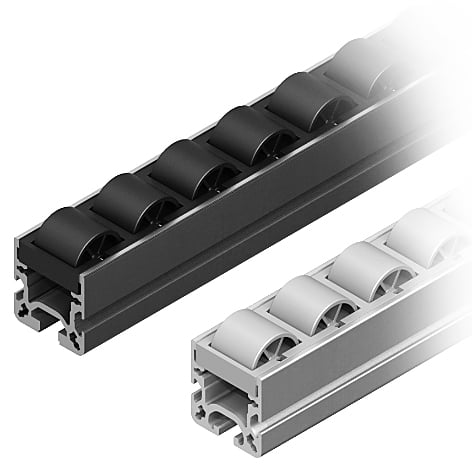

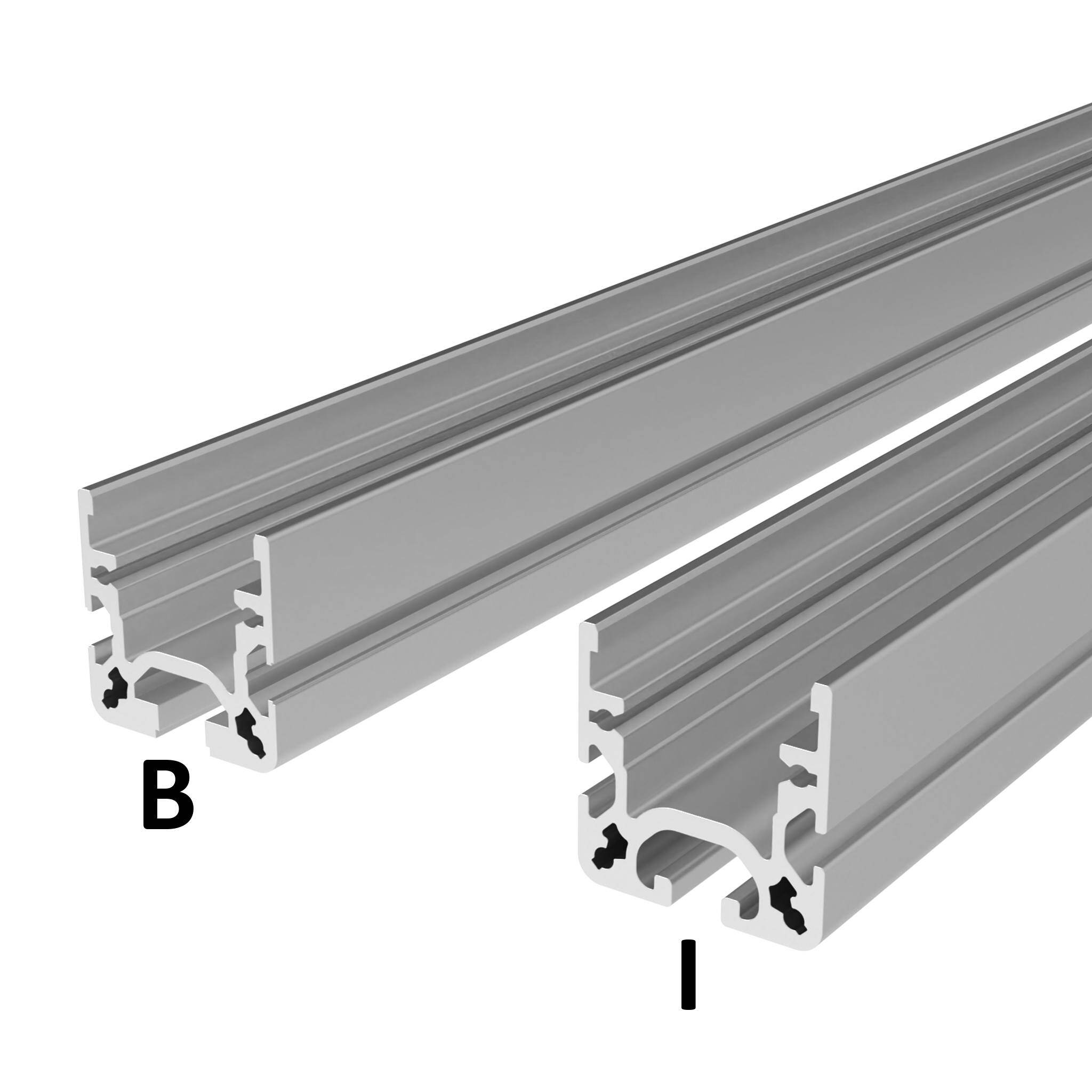

Roller Track AL R28
€0.00*
Color of Cage:
Black
|
Color of Roller:
Black
|
ESD:
-
|
Max. Load (N):
150
|
Profile:
B
|
Version:
Without flange (axle distance 50 mm)
Color:Standard roller / cage: See table ESD electrostatical discharging roller / cage: See tableDelivery Countries:WorldwideDescription:Resilent and smooth running roller track AL R28, quickly replaceableMaterial:Roller track profile AL: Aluminum Standard roller: Plastic PA, glass ball reinforced ESD electrostatical discharging roller: Plastic PA, carbon fiber reinforced Standard cage: Plastic PA, glass fiber reinforced ESD electrostatical discharging cage: Plastic PA, carbon fiber reinforced Axle: SteelSpecials:Other materials, other colors, other lengths on requestSurface:Roller track profile AL, standard version: Anodized Roller track profile AL, ESD electrostatical discharging version: Anodized and processed ESD electrostatical discharging Axle: Zinc platedZolltarifnummer:84283920000

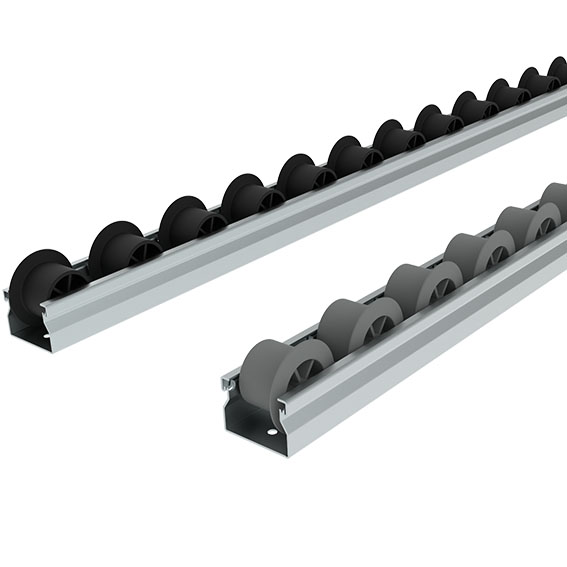

Roller Track AL R28 with Flange
€0.00*
Color of Cage:
Black
|
Color of Roller:
Black
|
Max. Load (N):
150
|
Profile:
I
|
Version:
With flange (axle distance 50 mm)
Color:Standard roller / cage: See table ESD electrostatical discharging roller / cage: See tableDelivery Countries:WorldwideDescription:Resilent and smooth running roller track AL R28, quickly replaceable, with flange as lateral guidingMaterial:Roller track profile AL: Aluminum Standard roller: Plastic PA, glass ball reinforced ESD electrostatical discharging roller: Plastic PA, carbon fiber reinforced Standard cage: Plastic PA, glass fiber reinforced ESD electrostatical discharging cage: Plastic PA, carbon fiber reinforced Axle: SteelSpecials:Other materials, other colors, other lengths on requestSurface:Roller track profile AL, standard version: Anodized Roller track profile AL, ESD electrostatical discharging version: Anodized and processed ESD electrostatical discharging Axle: Zinc platedZolltarifnummer:84283920000
