Floor Brackets

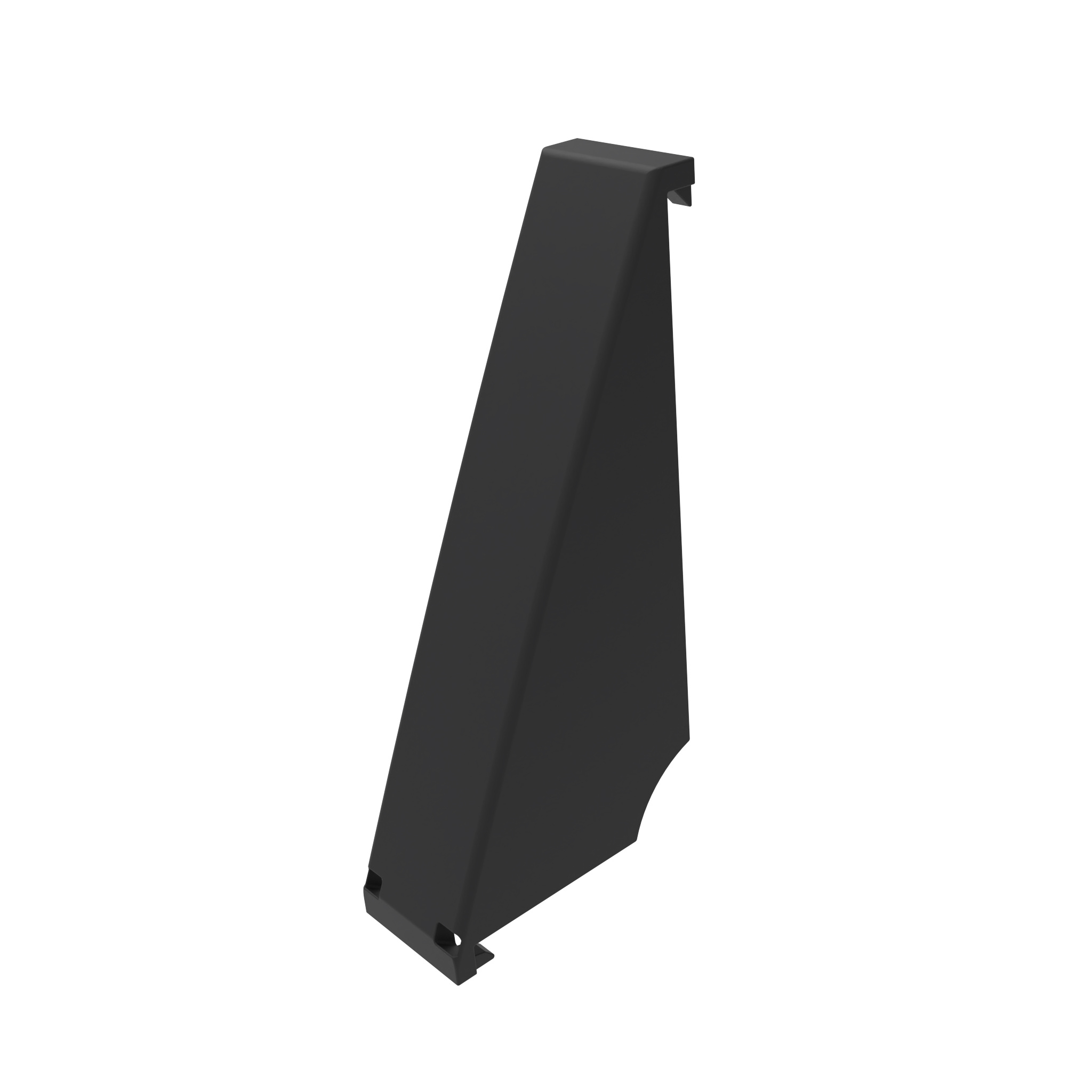

Cover Cap for Floor Bracket AL 30
€0.00*
Color:BlackDelivery Countries:WorldwideDescription:To cover the open side of the connection angleMaterial:Plastic PA, glass fiber reinforcedSpecials:Other colors on requestTip:Compatible Floor Bracket AL 30 see 093W1171L

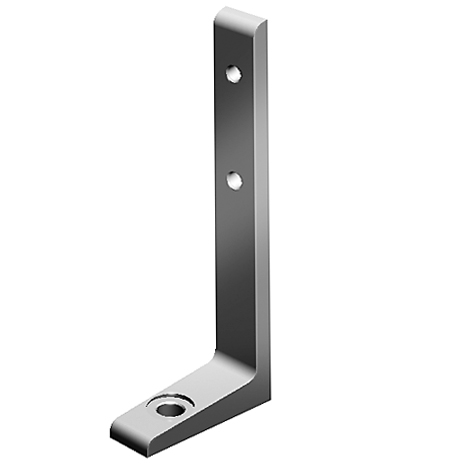

Floor Bracket AL 140, 1 Slot Version
€0.00*
B (mm):
36.0
|
Grid:
40
|
ØD (mm):
9.0
|
ØD1 (mm):
13.5
|
ØD2 (mm):
28.0
Delivery Countries:WorldwideDescription:To securely fix aluminum profiles to the floorMaterial:AluminumSurface:Anodized

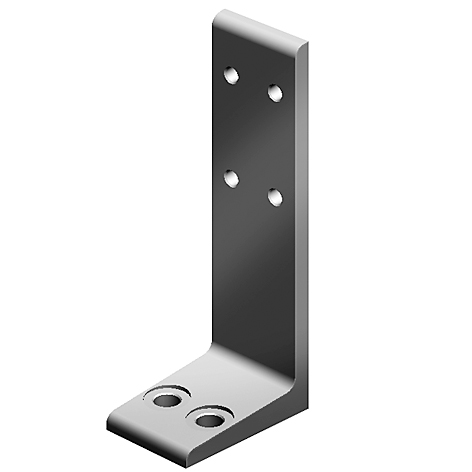

Floor Bracket AL 140, 2 Slots Version
€0.00*
A (mm):
30.0
|
B (mm):
57.0
|
Grid:
30
|
ØD (mm):
7.0
|
ØD1 (mm):
-
|
ØD2 (mm):
22.0
Delivery Countries:WorldwideDescription:To securely fix aluminum profiles to the floorMaterial:AluminumSurface:Anodized

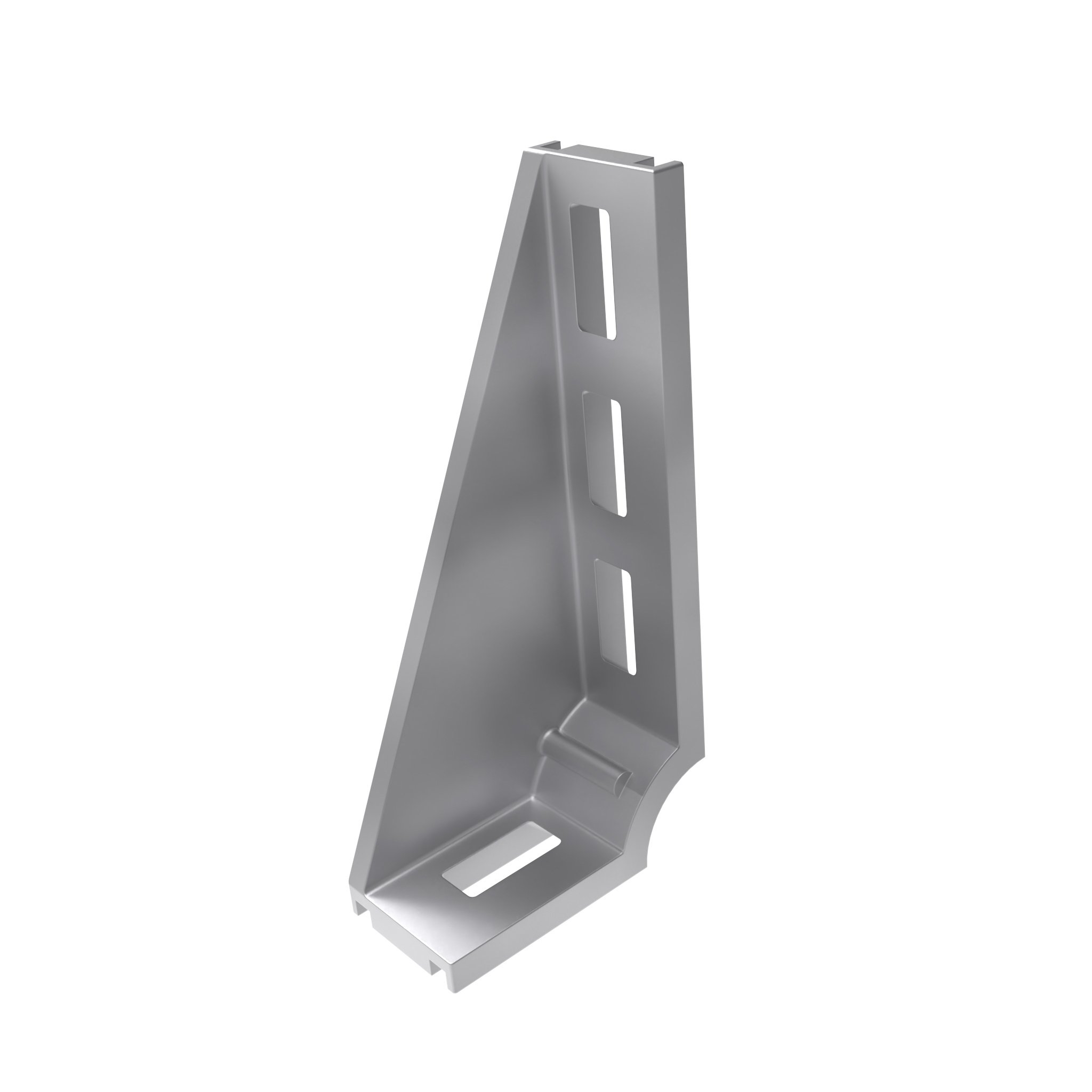

Floor Bracket AL 30
€0.00*
Slot N (mm):
-
Delivery Countries:WorldwideDescription:To securely fix aluminum profiles to the floor, can also be used to connect two aluminum profiles at right angleMaterial:Aluminum die-castSpecials:Other surfaces, other colors on requestSurface:Floor bracket: PlainTip:Compatible Centering Piece Widening Slot 8 to Slot 10 see 093W02 Compatible Cover Cap see 093WA1171L

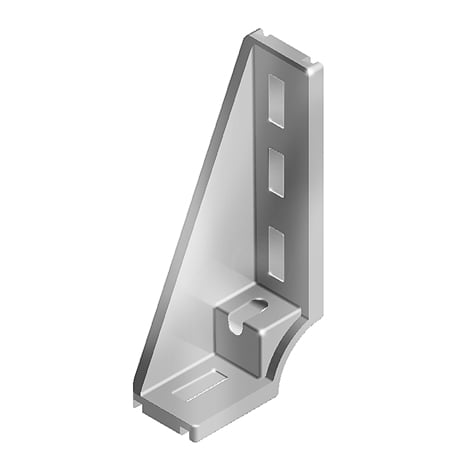

Floor Bracket AL 45
€0.00*
Slot N (mm):
10
Delivery Countries:WorldwideDescription:To securely fix aluminum profiles to the floor, can also be used to connect two aluminum profiles at right angleMaterial:Aluminum die-castSpecials:Other surfaces, other colors on requestSurface:Plain

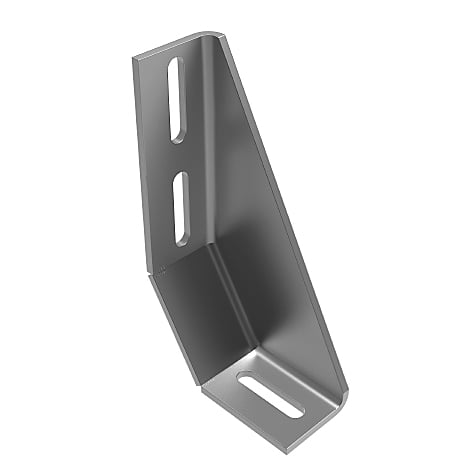

Floor Bracket ST 160
€0.00*
Color:
-
|
Surface:
Zinc plated
Color:Black, -Delivery Countries:WorldwideDescription:To securely fix aluminum profiles to the floorMaterial:SteelSpecials:Other surfaces, other colors on requestSurface:Zinc plated / powder coated

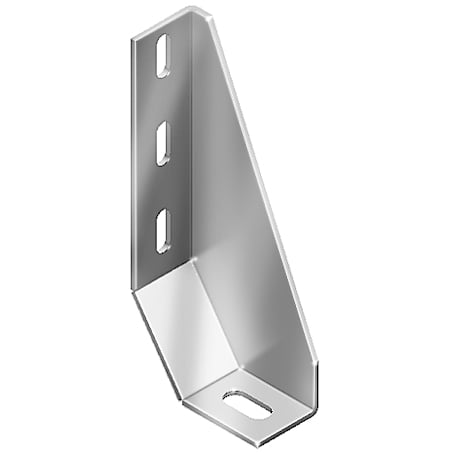

Floor Bracket ST 200
€0.00*
Color:
-
|
Surface:
Zinc plated
Color:Black, -Delivery Countries:WorldwideDescription:To securely fix aluminum profiles to the floorMaterial:SteelSpecials:Other surfaces, other colors on requestSurface:Zinc plated / powder coated

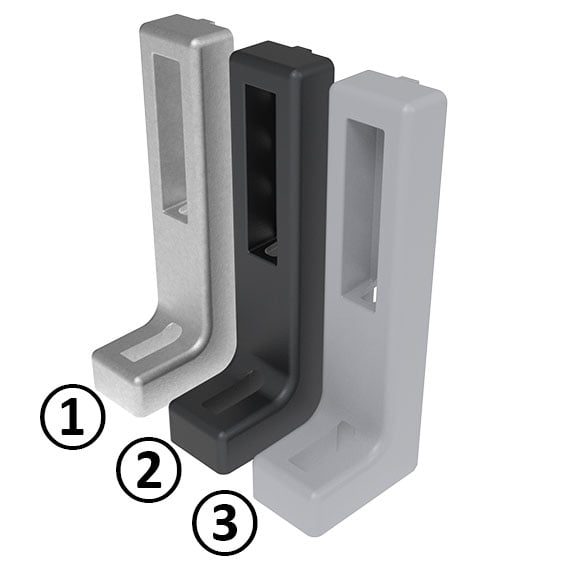

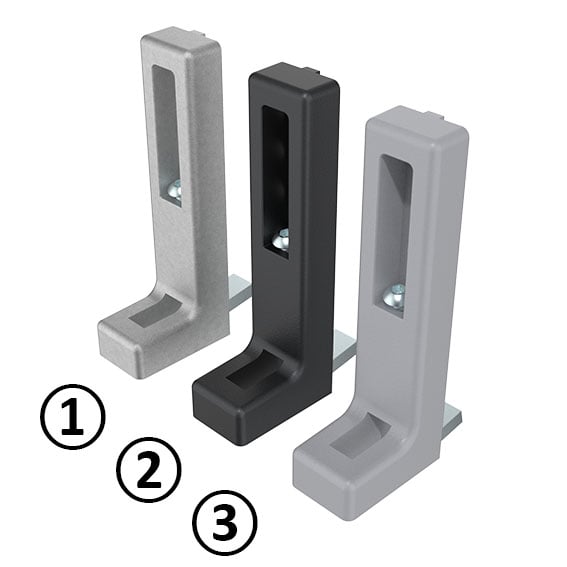

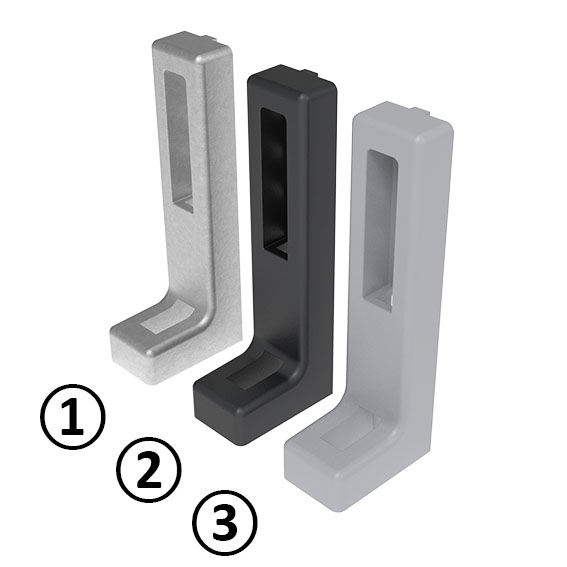

Floor Bracket ZN 120
€0.00*
Color:
-
|
Fig.:
①
|
Slot N (mm):
6
|
Surface:
Plain
Assembly Set:1 floor bracket 120, 1 T-slot nut - Nut 6 - M6, 1 screw DIN EN ISO 7380 (DIN 34805) - M6 x 60Color:Black, alu color, -Delivery Countries:WorldwideDescription:To securely fix aluminum profiles to the floorMaterial:Floor bracket: Zinc die-cast Assembly set: SteelSpecials:Other surfaces, other colors on requestSurface:Floor bracket: Plain / powder coated Assembly set: Zinc plated
Floor Bracket ZN 120, Adjustable (Set)
€0.00*
Color:
Black
|
Fig.:
②
|
Lifting Height (mm):
52.0
|
Slot N (mm):
6
|
Surface:
Powder coated
Assembly Set:1 floor bracket 120, adjustable (set), 1 T-slot nut - Nut 6 - M6, 1 screw DIN EN ISO 7380 (DIN 34805) - M6 x 60Color:Black, alu color, -Delivery Countries:WorldwideDescription:To fix aluminum profiles to the floor vertically adjustable; with adjustment screw and threaded plateMaterial:Floor bracket: Zinc die-cast Assembly set: SteelSet:1 floor bracket 120, 1 adjusting screw, 1 adjusting plateSpecials:Other surfaces, other colors on requestSurface:Floor bracket: Plain / powder coated Assembly set: Zinc plated
Floor Bracket ZN 160
€0.00*
Color:
Alu color
|
Fig.:
③
|
Slot N (mm):
8
|
Surface:
Powder coated
Assembly Set:1 floor bracket 160, 1 T-slot nut - Nut 8 - M8, 1 screw DIN EN ISO 7380 (DIN 34805) - M8 x 80Color:Black, alu color, -Delivery Countries:WorldwideDescription:To securely fix aluminum profiles to the floorMaterial:Floor bracket: Zinc die-cast Assembly set: SteelSpecials:Other surfaces, other colors on requestSurface:Floor bracket: Plain / powder coated Assembly set: Zinc plated
Floor Bracket ZN 160, Adjustable (Set)
€0.00*
Color:
Black
|
Fig.:
②
|
Lifting Height (mm):
72.0
|
Slot N (mm):
10
|
Surface:
Powder coated
Assembly Set:1 floor bracket 160, adjustable (set), 1 T-slot nut - Nut 8 - M8, 1 screw DIN EN ISO 7380 (DIN 34805) - M8 x 80Color:Black, alu color, -Delivery Countries:WorldwideDescription:To fix aluminum profiles to the floor vertically adjustable; with adjustment screw and threaded plateMaterial:Floor bracket: Zinc die-cast Assembly set: SteelSet:1 floor bracket 160, 1 adjusting screw, 1 adjusting plateSpecials:Other surfaces, other colors on requestSurface:Floor bracket: Plain / powder coated Assembly set: Zinc plated
