D30, Tubular Frame Components
T-Connector Plate D30 (Set)
Delivery Countries:WorldwideDescription:To connect a tubular frame profile with Ø 30 mm outer diameter with an aluminum profile at right angles; Screw connetion to the core hole M6 of the tubular frame profile Ø 30 mm or to the threaded sleeve AL D30 M6 for tubular frame profilesMaterial:SteelSet 1:1 T-connector plate, 2 T-slot nuts - slot 6 - M6, 2 screws DIN EN ISO 10642 (DIN 7991) - M6 x 12, 1 screw DIN EN ISO 10642 (DIN 7991) - M6 x 20Set 2:1 T-connector plate, 1 double T-slot nut - slot 8 - 2x M6, 2 screws DIN EN ISO 10642 (DIN 7991) - M6 x 14, 1 screw DIN EN ISO 10642 (DIN 7991) - M6 x 20Surface:Zinc plated

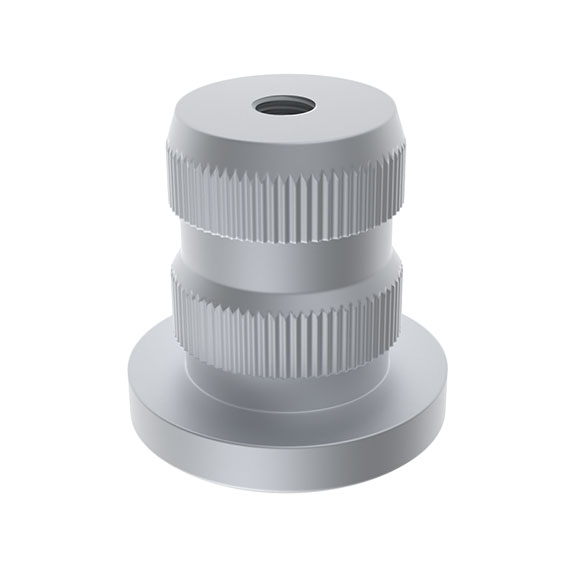

Threaded Sleeve AL D30
Delivery Countries:WorldwideDescription:To fix leveling feet or casters to the front of tubular frame profiles with Ø 30 mm outer diameterMaterial:Aluminum

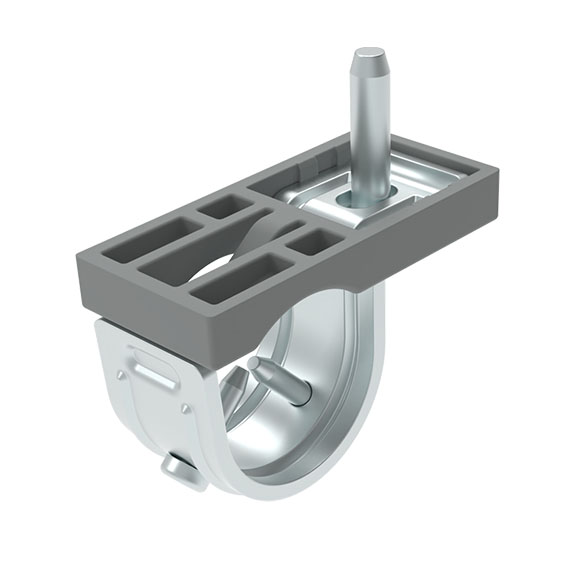

Top Clamp D30 (Set)
Color:Spacer: Gray ≈ RAL 7042Delivery Countries:WorldwideDescription:To mount wooden table tops or chipboards on a frame of tubular frame profiles with Ø 30 mm outer diameterMaterial:Clamp: Steel Spacer: Plastic PA, glass fiber reinforced Screws: SteelSet:1 clamp 1 spacer 1 wood screw 6 x 25 2 self-drilling screws DIN EN ISO 15481 (DIN 7504) - 3.9 x 16Surface:Clamp: Zinc plated Screws: Zinc plated

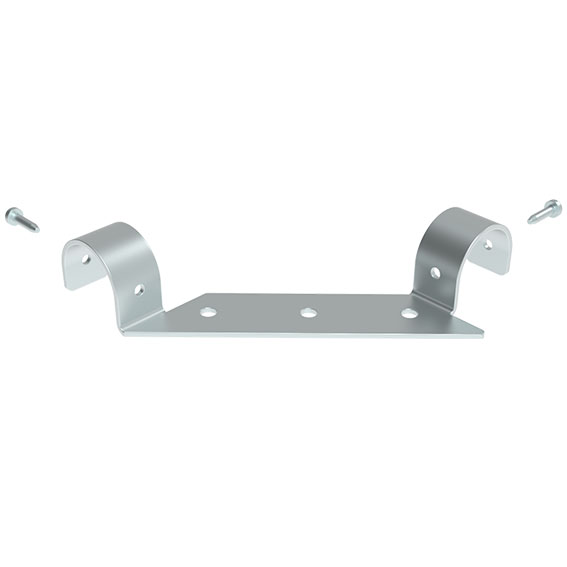

Top Corner Suspension D30 (Set)
Delivery Countries:WorldwideDescription:For putting in plates, shelf boards or work piece carriers horizontally on tubular frame profiles with Ø 30 mm outer diameter; With holes to screw on tubular frame profile and plateMaterial:Top corner suspension: Steel Screws: SteelSet:1 top corner suspension 2 self-drilling screws DIN EN ISO 15481 (DIN 7504) - 3.9 x 16Surface:Top corner suspension: Zinc plated; Screws: Zinc platedTip:Please note for cutting table tops to size: Tubular Frame Connectors D30 require a 5 mm gap all the way around

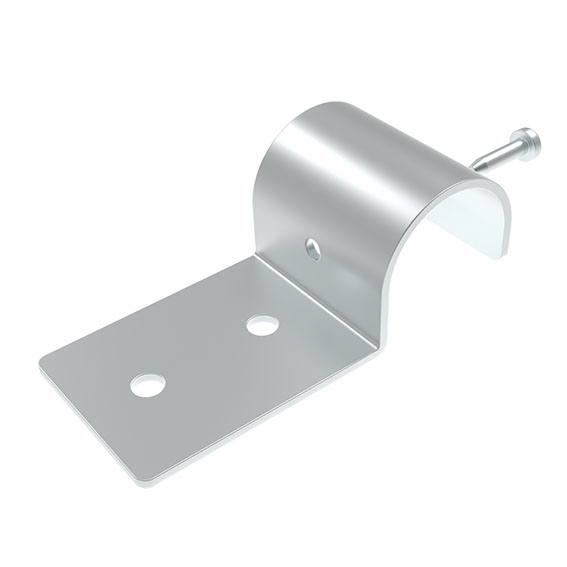

Top Suspension D30 (Set)
Delivery Countries:WorldwideDescription:To mount table tops or shelf boards within a frame of tubular frame profiles with Ø 30 mm outer diameterMaterial:SteelSet:1 top suspension D30 1 self-drilling screws DIN EN ISO 15481 (DIN 7504) - 3.9 x 16Surface:Zinc plated
Variable Holding Bracket AL D30
Assembly Set:1 self-drilling screw DIN EN ISO 15481 (DIN 7504) - 3.9 x 16 1 washer DIN EN ISO 7089 (DIN 125) 1 T-slot nut slot 8 - M5 1 screw DIN EN ISO 4762 (DIN 912) - M5 x 14Assembly Set 2:2 self-drilling screw DIN EN ISO 15481 (DIN 7504) - 3.9 x 16 1 washer DIN EN ISO 7089 (DIN 125) 1 T-slot nut slot 8 - M5 1 screw DIN EN ISO 4762 (DIN 912) - M5 x 14Delivery Countries:WorldwideDescription:Transition between roller track profiles with varying inclination, to mount roller track profiles AL at different angles to tubular frame profiles with Ø 30 mm outer diameter, preventing inserts from slipping outMaterial:SteelSurface:Zinc plated

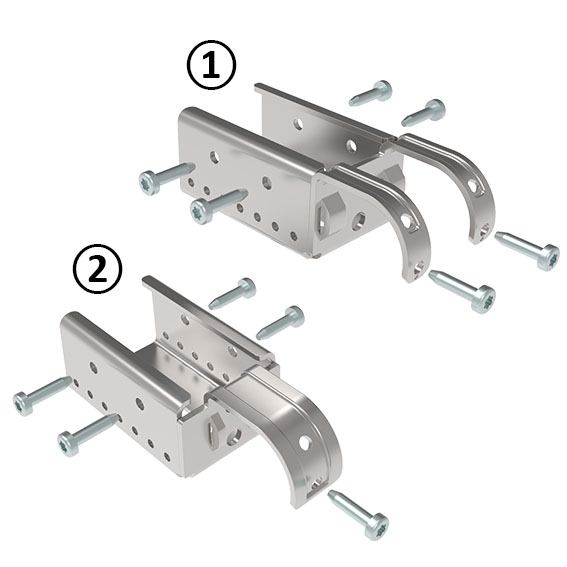

Variable Holding Bracket XST D30
Delivery Countries:WorldwideDescription:Transition between roller track profiles with varying inclination, to mount roller track profiles XST and guiding rails XST central at different angles to tubular frame profiles with Ø 30 mm outer diameter, preventing inserts from slipping outFastening:with 5 or 6 self-drilling screws DIN EN ISO 15481 (DIN 7504) - 3.9 x 16Material:SteelSpecials:Other surfaces, other colors on requestSurface:Zinc plated

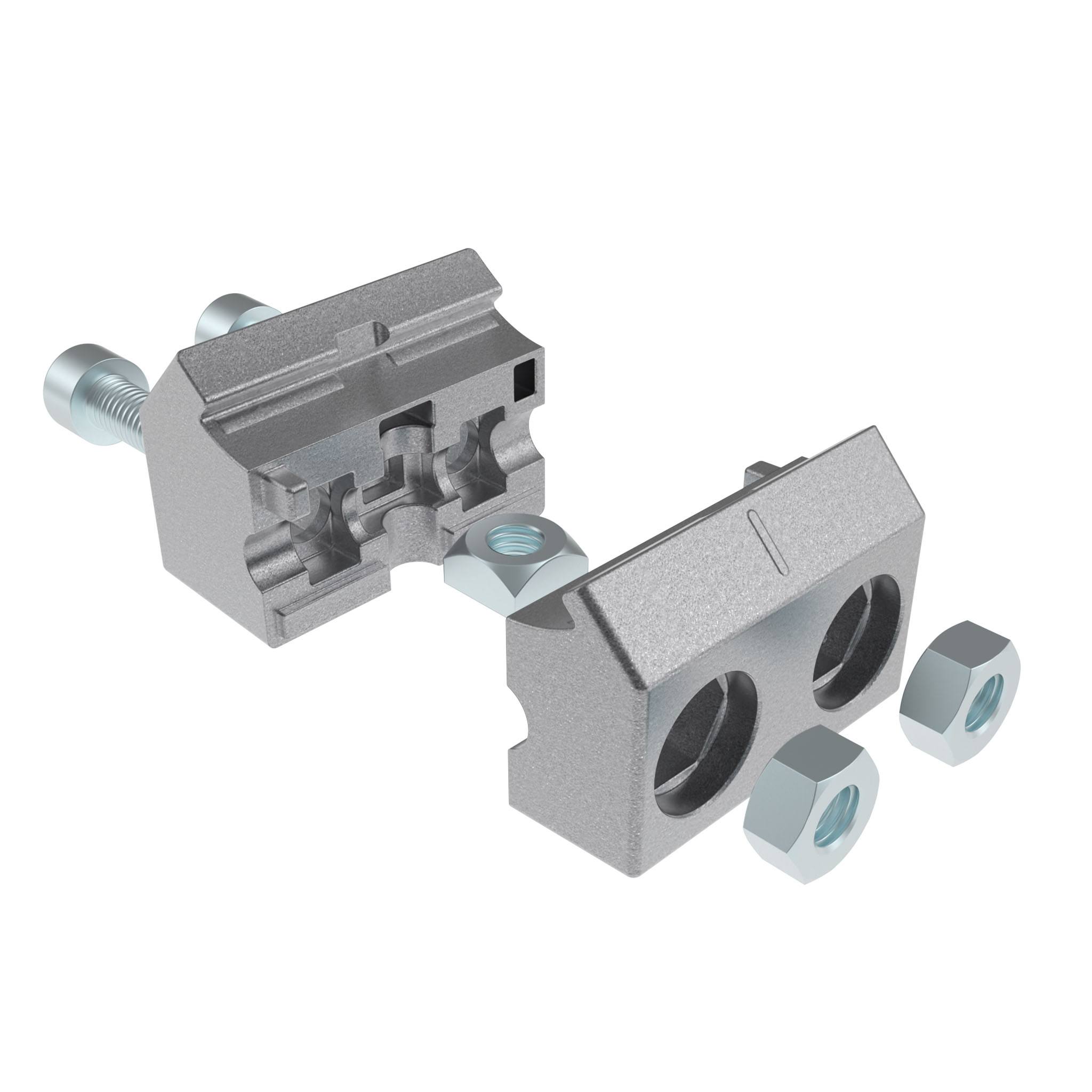

Vario Block AL D30
Delivery Countries:WorldwideDescription:To attach panels firmly to tubular frame profiles with Ø 30 mm outer diameter; ESD electrostatical dischargingMaterial:Vario block AL: Aluminum die-cast Assembly set: SteelSet:1 vario block AL - 2-part, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 20, 1 square nut DIN 557 - M6 2 self-locking nuts DIN EN ISO 4032 (DIN 934) - M6Specials:Other surfaces, other colors on requestSurface:Assembly set: Zinc platedTip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC07
