T-Nuts and T-Bolts

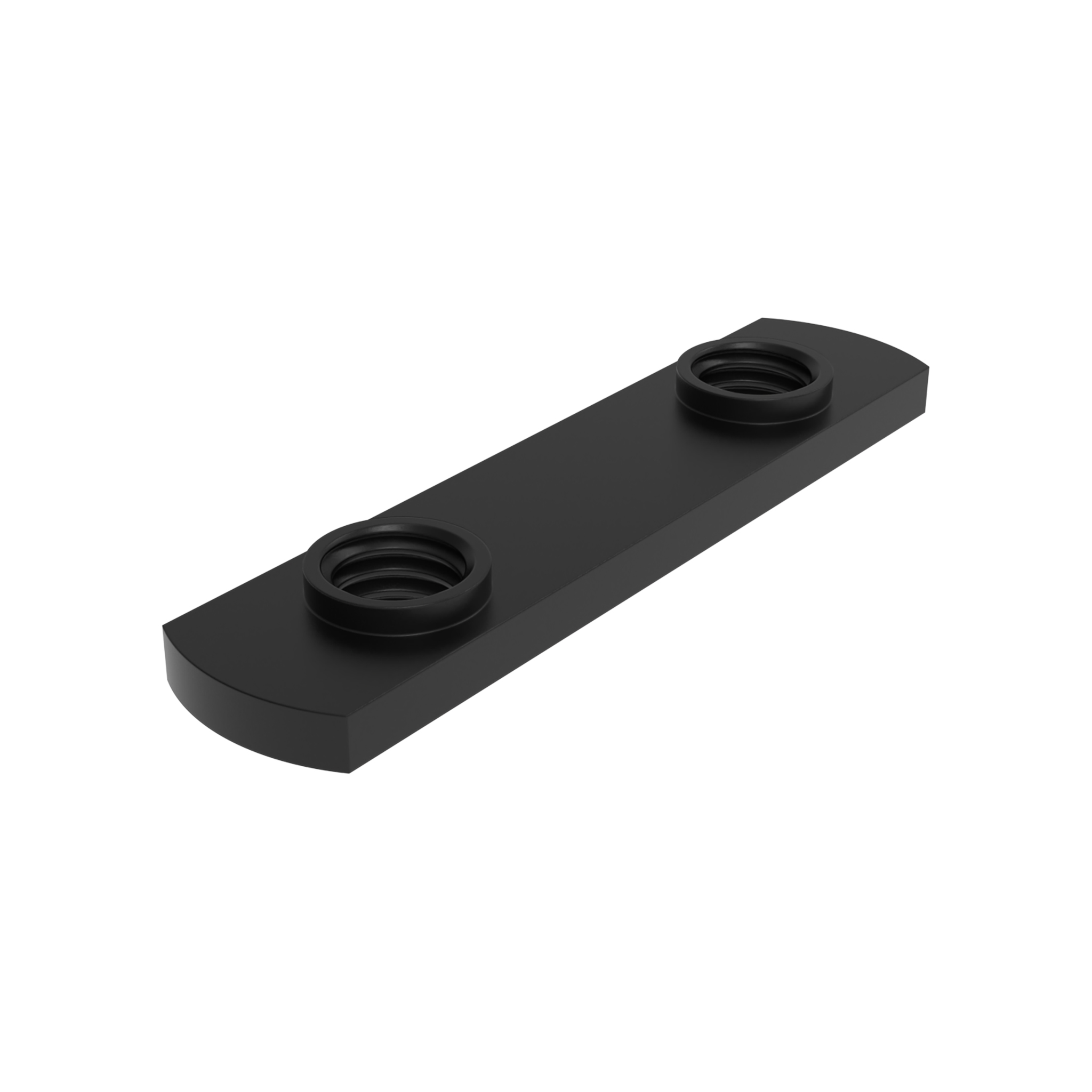

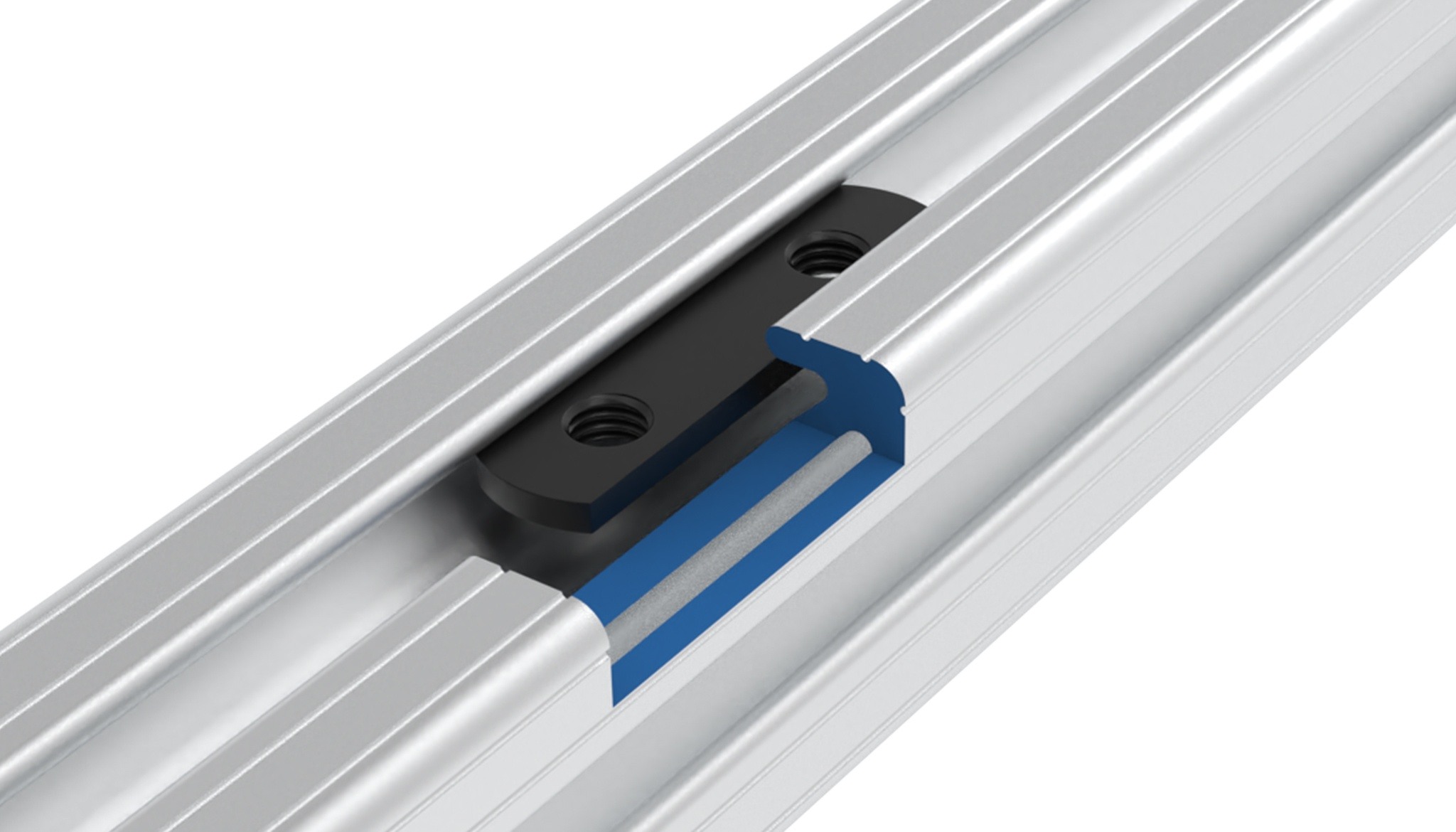

ECO Double T-nut
€0.00*
A (mm):
30.0
|
B (mm):
15.0
|
Grid:
30
|
H (mm):
4.5
|
L (mm):
50.0
|
M:
M6
|
Material:
Steel
|
Slot N (mm):
6
|
h (mm):
1.5
Color:BlackDelivery Countries:North AmericaDescription:To fasten components to profilesMaterial:SteelSurface:Zinc platedTip:Compatible ECO Connection Plate AL see 093EVA2551S et sq.

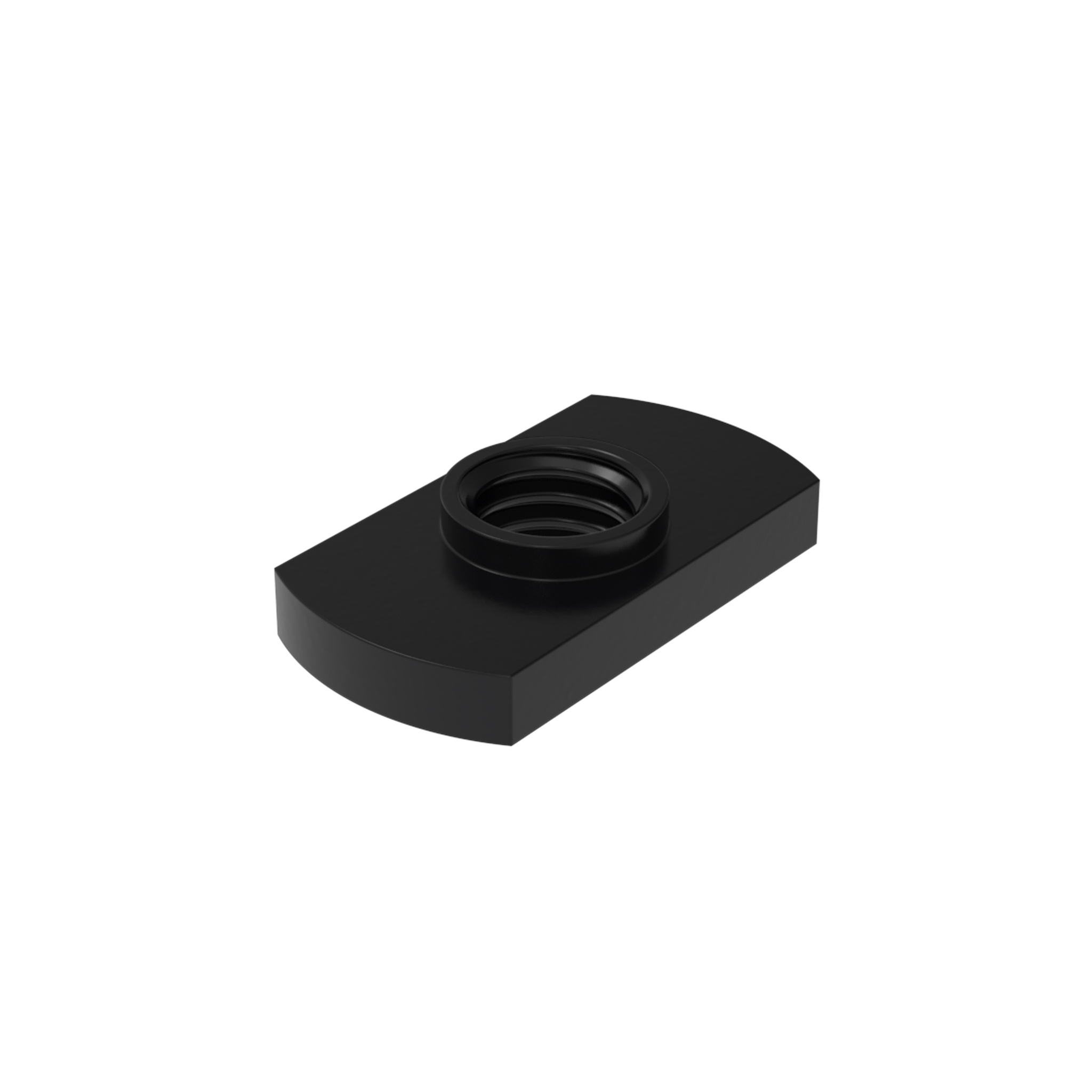

ECO T-nut Style A Centric
€0.00*
B (mm):
16.0
|
Grid:
40
|
H (mm):
5.0
|
L (mm):
28.0
|
M:
M8
|
Material:
Steel
|
Slot N (mm):
8
|
h (mm):
1.5
Color:BlackDelivery Countries:North AmericaDescription:To fasten components to profilesMaterial:SteelSurface:Zinc platedTip:Compatible ECO Connection Plate AL see 093EVA2551S et sq.Zolltarifnummer:73181692900

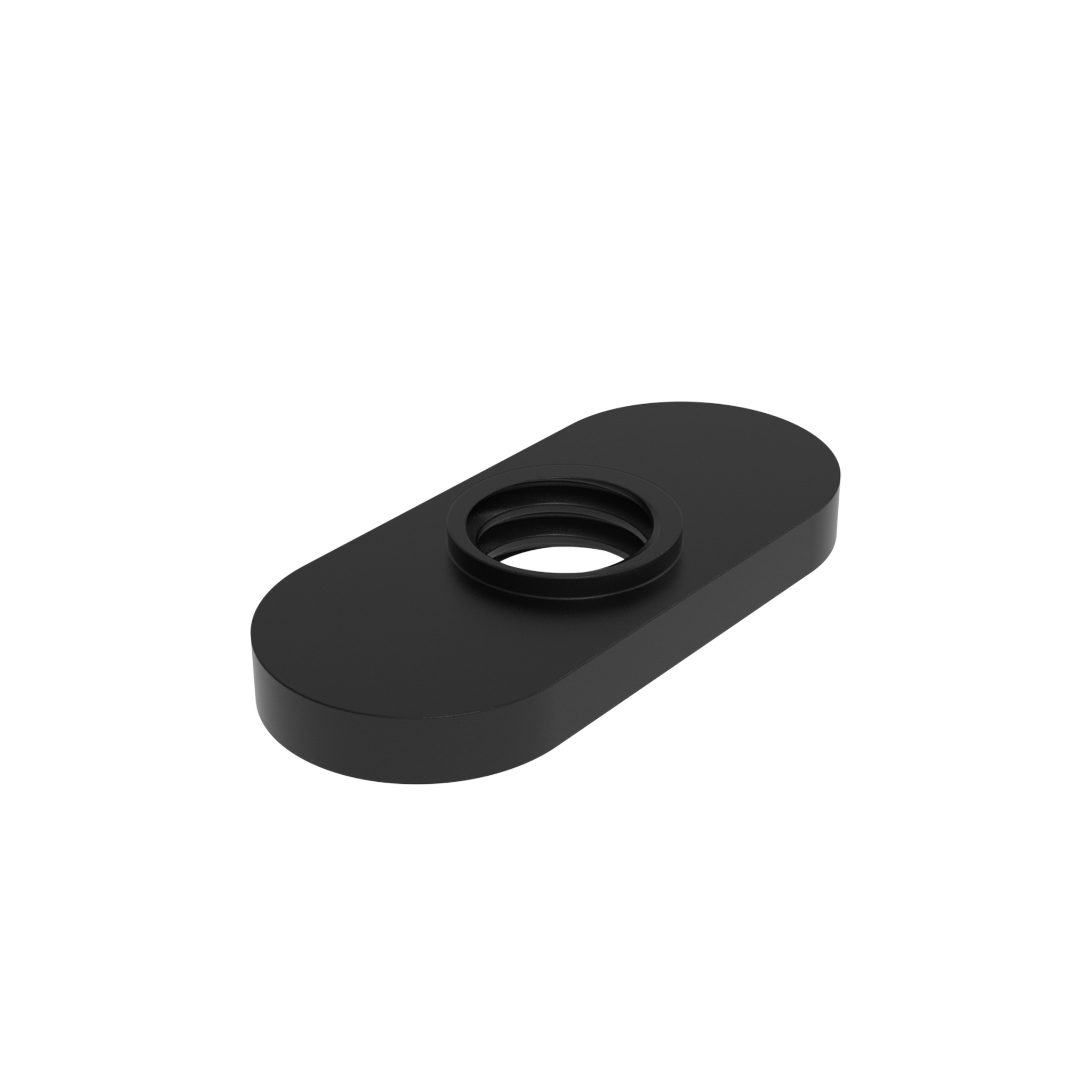

ECO T-nut Style B Centric
€0.00*
B (mm):
11.0 (0.43")
|
Grid:
25.4 (1")
|
H (mm):
3.4 (0.13")
|
L (mm):
25.0 (0.98")
|
M:
1/4-20 UNC
|
Material:
Steel
|
Slot N (mm):
6.5 (0.256")
|
h (mm):
1.0 (0.03")
Color:BlackDelivery Countries:North AmericaDescription:To fasten components to profilesMaterial:SteelSurface:Zinc platedTip:Compatible ECO Connection Plate AL see 093EVA2551S et sq.Zolltarifnummer:73181692900

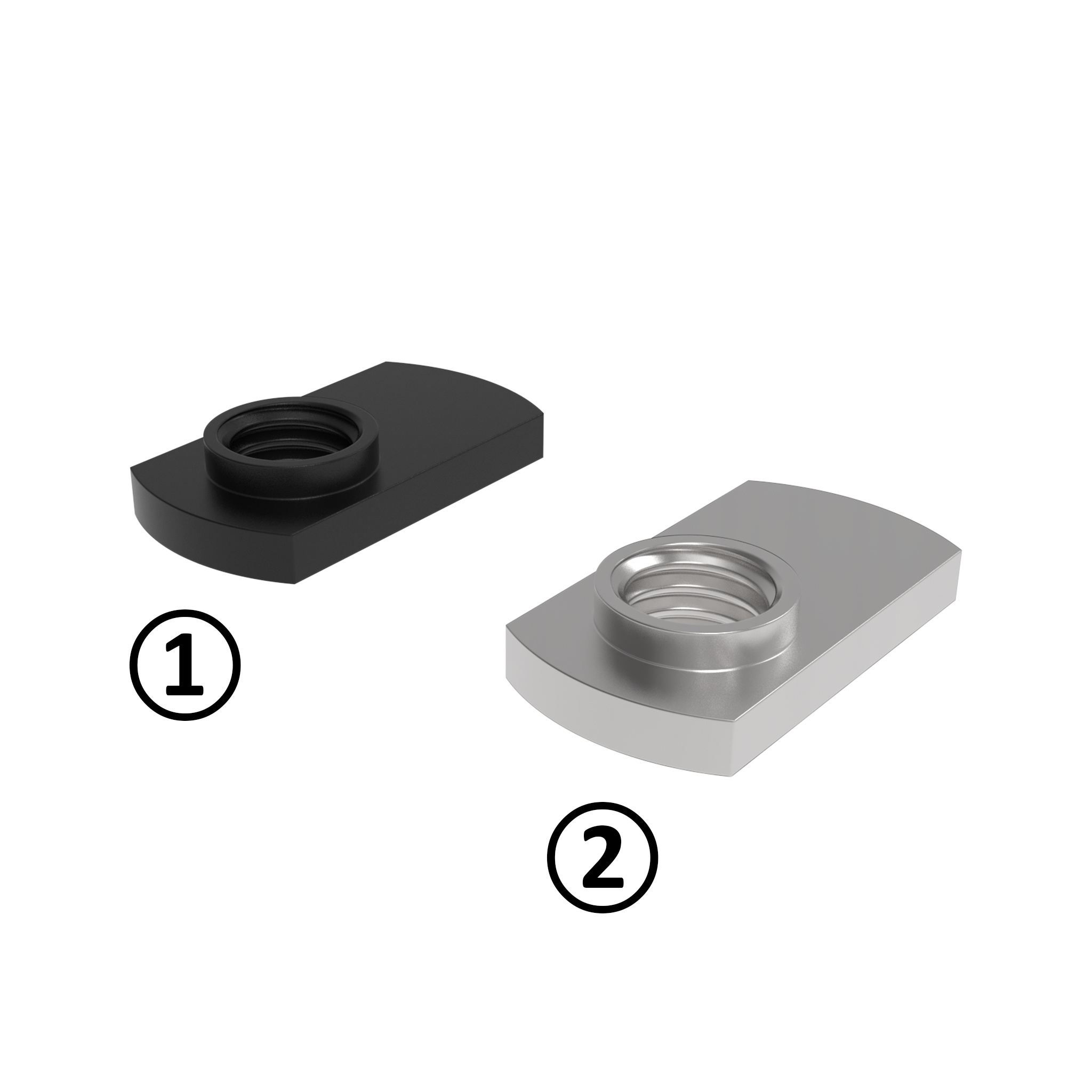

ECO T-nut Style C Eccentric
€0.00*
B (mm):
15.0
|
F (mm):
8.0
|
Fig.:
②
|
Grid:
30
|
H (mm):
4.5
|
L (mm):
20.5
|
M:
M6
|
Material:
Stainless steel
|
Slot N (mm):
6
|
h (mm):
1.5
Color:Black, -Delivery Countries:North AmericaDescription:To fasten components to profilesMaterial:Steel / stainless steel SS304Surface:Zinc plated / plainTip:Compatible ECO Connection Plate AL see 093EVA2551S et sq.Zolltarifnummer:73181595890

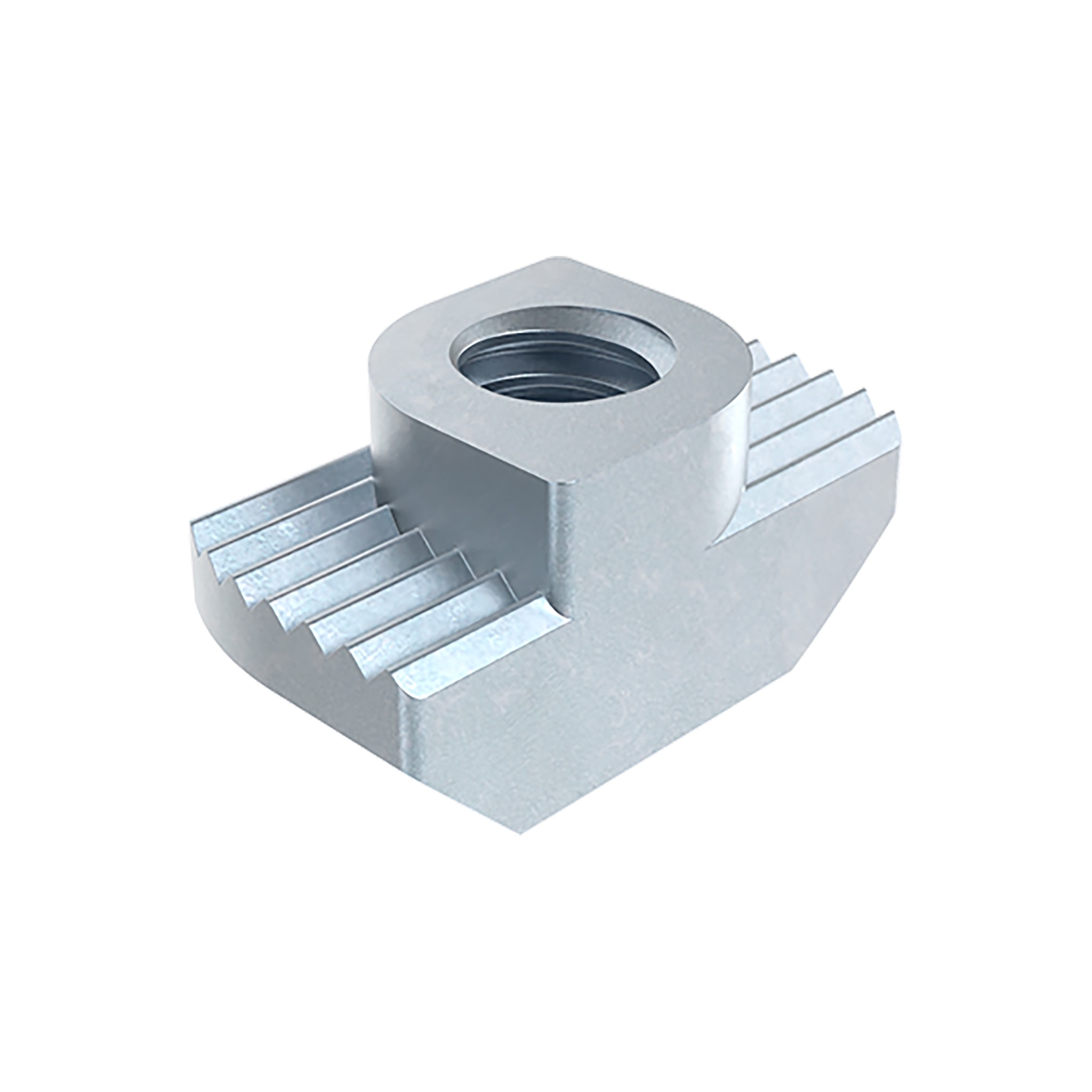

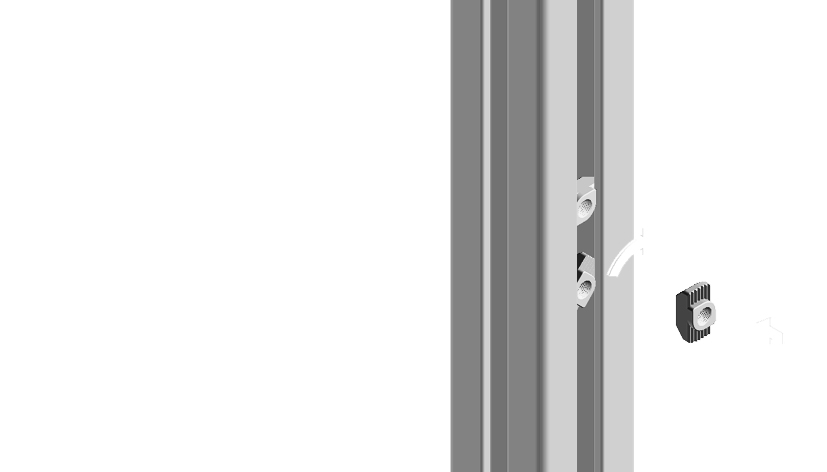

Hammer Nut Slot 10
€0.00*
H (mm):
3.0
|
M:
1/4-20 UNC
|
Material:
Steel
|
Profile:
B
|
Version:
-
|
h (mm):
5.8
Delivery Countries:WorldwideDescription:To fasten components to profiles, breakes the anodized coat of the profile - thus ensuring a safe, ESD electrostatic discharging connectionMaterial:Steel / stainless steelSpecials:Turning help: Dented thread, thread pitch error or polyamide thread locking dot on request Surface: Zinc-nickel plated or with zinc lamellar plating on requestSurface:Zinc plated / plain

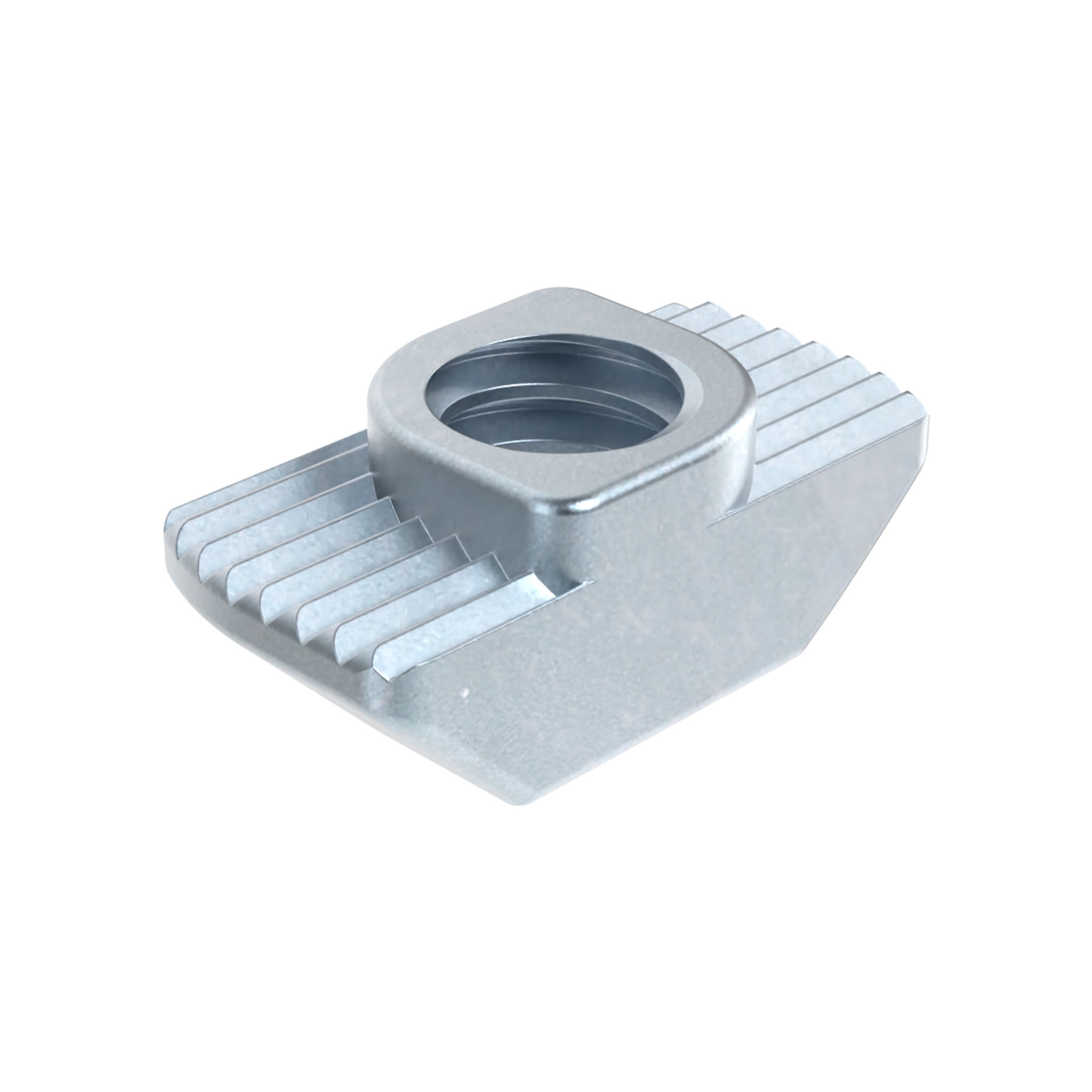

Hammer Nut Slot 8, Step Height 1.5/3.0 mm
€0.00*
H (mm):
1.5
|
M:
1/4-20 UNC
|
Material:
Steel
|
Profile:
B
|
Slot N (mm):
-
Delivery Countries:WorldwideDescription:To fasten components to profiles, breakes the anodized coat of the profile - thus ensuring a safe, ESD electrostatic discharging connectionMaterial:Steel / stainless steel SS304Specials:Turning help: Dented thread, thread pitch error or polyamide thread locking dot on request Surface: With dry film lubrication, zinc-nickel plated or with zinc lamellar plating on requestSurface:Zinc plated / plain

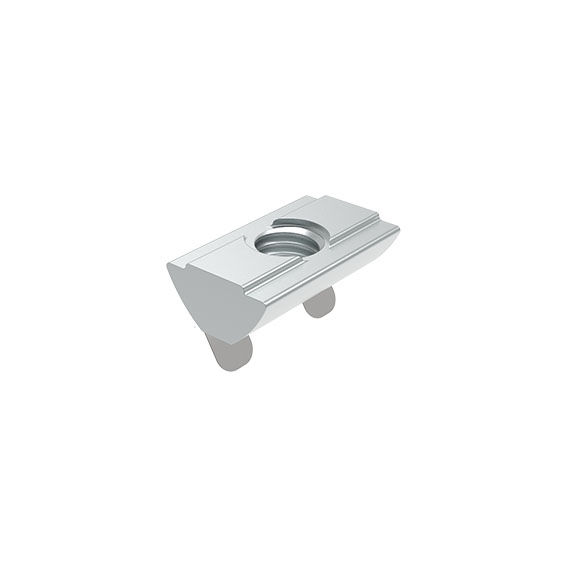

Roll-in T-slot Nut 13.5 x 7.2 mm with Spring Leaf
€0.00*
M:
M8
Delivery Countries:WorldwideDescription:Self-aligning roll-in T-slot nut with spring leafMaterial:SteelSpecials:ESD electrostatical discharging, different lengths with multiple threads in different sizes available on requestSurface:Zinc platedZolltarifnummer:73181900900

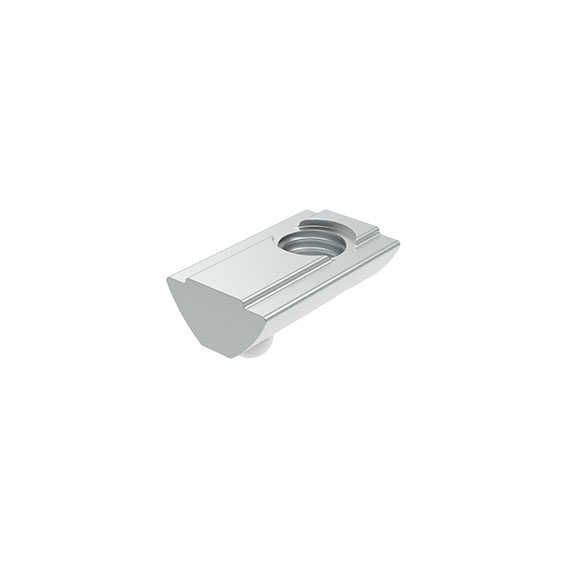

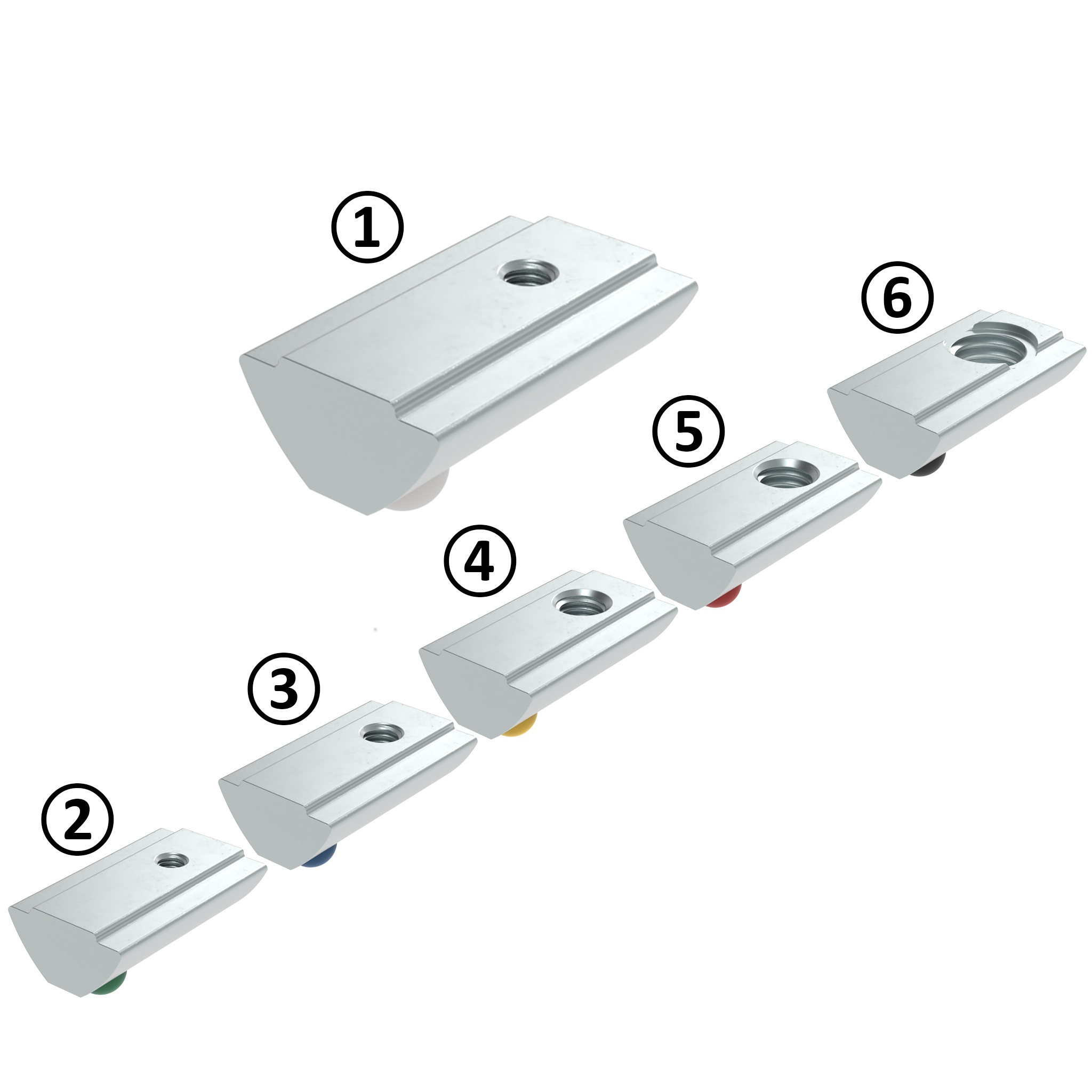

Roll-in T-slot Nut 13.5 x 7.2 mm with Spring Loaded Ball
€0.00*
ESD:
-
|
M:
M6
|
Material:
Stainless steel
|
Profile:
I
Delivery Countries:WorldwideDescription:Self-aligning roll-in T-slot nut with spring loaded ballMaterial:Steel / stainless steel SS304 / SS303 Specials:ESD electrostatical discharging, different lengths with multiple threads in different sizes available on requestSurface:Zinc plated / plainZolltarifnummer:73181900900
Roll-in T-slot Nut 13.7 x 7.0 mm with Spring Loaded Ball
€0.00*
ESD:
-
|
M:
1/4-20 UNC
|
Material:
Stainless steel
|
Profile:
I
Delivery Countries:WorldwideDescription:Roll-in T-slot nut with spring loaded ballMaterial:Steel / stainless steel SS304 / SS303 Specials:ESD electrostatical discharging, different lengths with multiple threads in different sizes available on requestSurface:Zinc plated / plainZolltarifnummer:73181900900
Roll-in T-slot Nut 14.0 x 5.2 mm
€0.00*
M:
10-32 UNF
|
Profile:
B
Delivery Countries:WorldwideDescription:Self-aligning roll-in T-slot nutMaterial:SteelSpecials:ESD electrostatical discharging, different lengths with multiple threads in different sizes available on requestSurface:Zinc platedTip:Compatible Spring see 096FN08Zolltarifnummer:73181692900

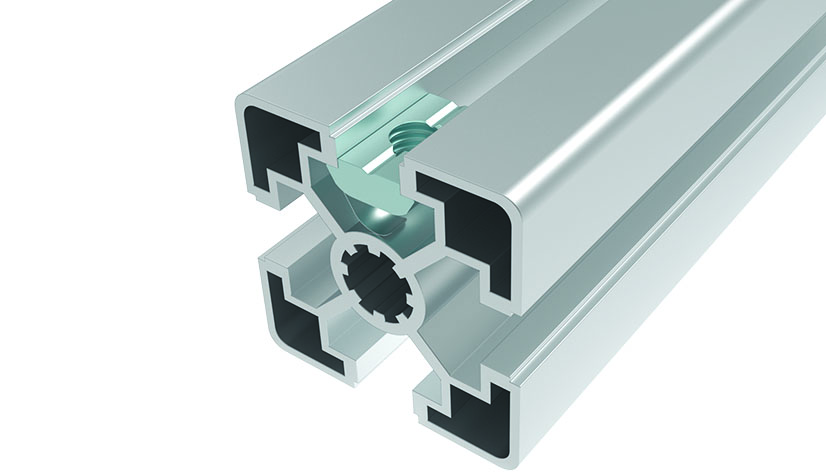

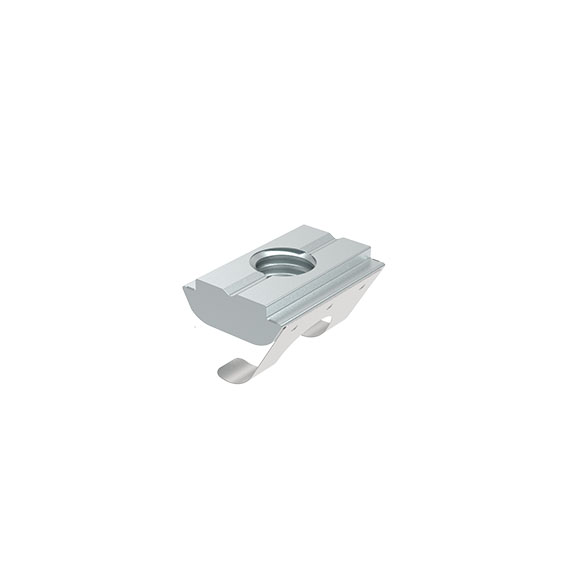

Roll-in T-slot Nut 14.0 x 5.2 mm with Spring Leaf
€0.00*
M:
1/4-20 UNC
|
Profile:
B
Delivery Countries:WorldwideDescription:Self-aligning roll-in T-slot nut with spring leaf, ESD electrostatical dischargingMaterial:SteelSpecials:Different lengths with multiple threads in different sizes available on requestSurface:Zinc platedZolltarifnummer:73181900900
