Product Portrait


Modular LED-Lamps and Power Strips F Line

FATH LED Lamps and Power Strips F Line: The modular system for lighting and electricity in the workplace

With FATH LED Lamps and Power Strips F Line, you can provide light and power at assembly workstations in a single integrated unit – safely, flexibly and when you need it. The lighting and power supply modules are available in different versions, can be easily connected to one another and universally installed on frames, panels and metal or wooden elements. The I8 profile slot on the rear makes them particularly well-suited for mounting on aluminum profile systems.

Power supply is an important aspect of workplace planning. It should be provided on the same surface or at the same height as the tabletop. The wiring should be stowed safely and protected from damage. This can be easily achieved with FATH Power Strips F Line – without long cables and with practical connections that can be easily installed in the frame.

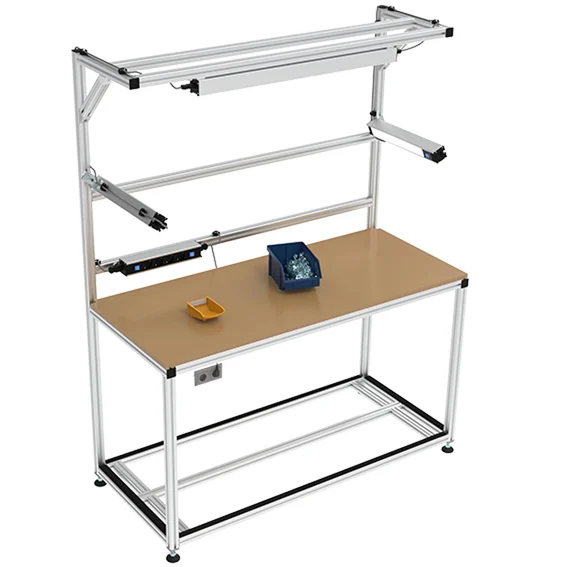

The LED lamps can be used as a top lamp or side lamp. Wider and facing workstations can also be equipped with an ideal arrangement of multiple lamps in series. You can flexibly combine the short version (16 watts) with the longer version (40 watts). The lamps can be connected directly to the mains thanks to the integrated control gear. On request, there is the option to dim several lights at the same time.

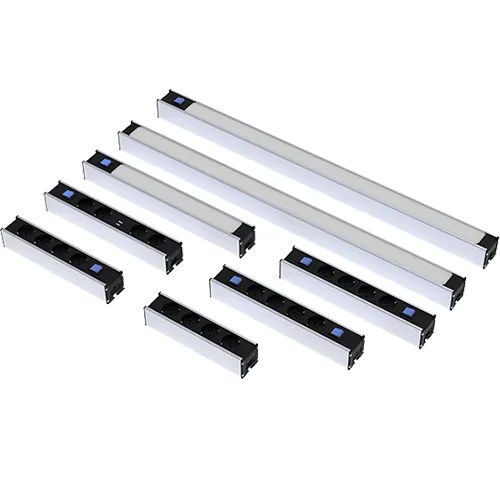

Icon-Plus-white.svg?ts=1743167971 HIGHLIGHTS

  • Remote dimming and remote switching
  • Connect modules in series as needed
  • Flexible lighting for every visual task
  • Safe and space-saving light and power supply
  • Tool-free one-handed adjustment with FATH Friction Joints
  • ESD variants available
  • Made in Germany

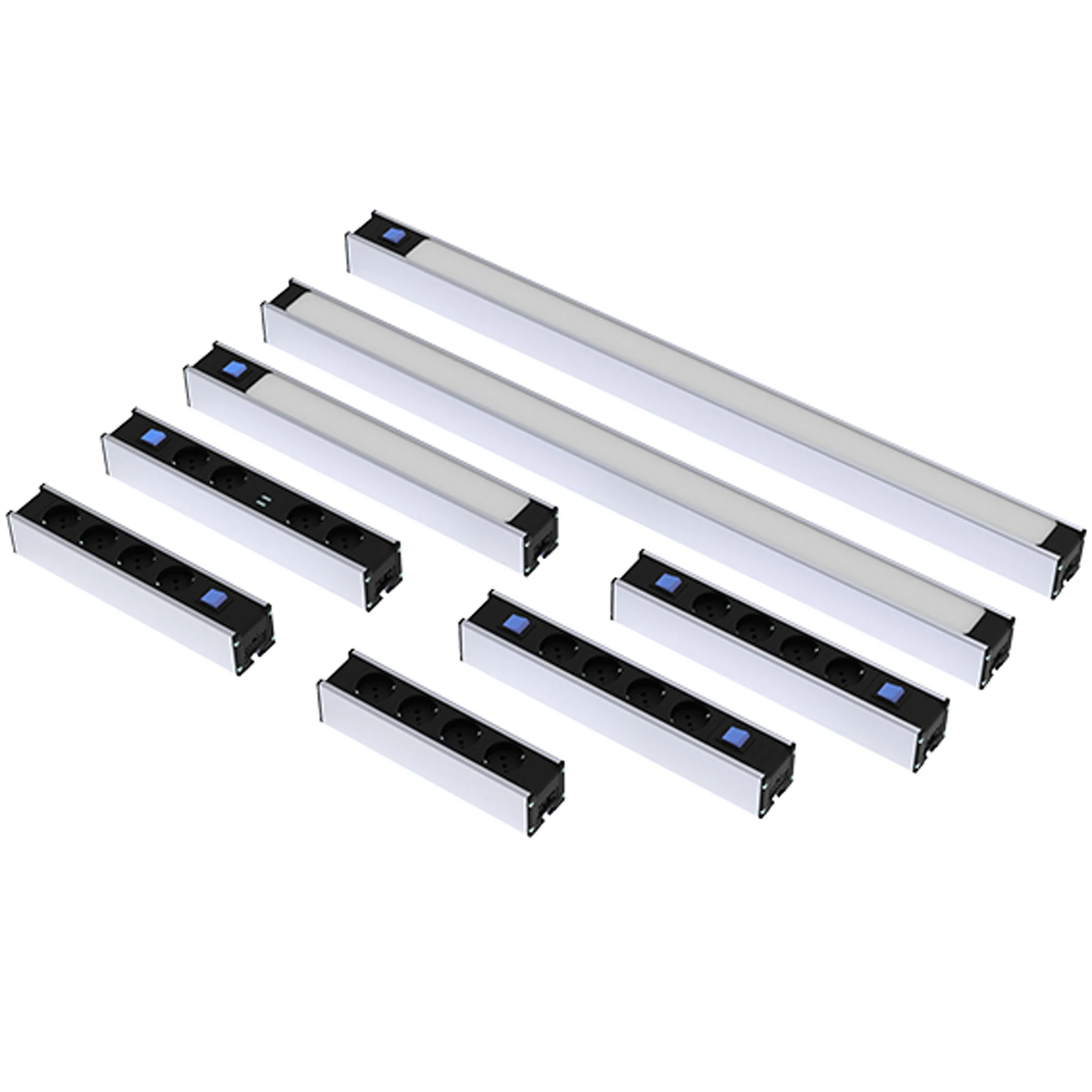

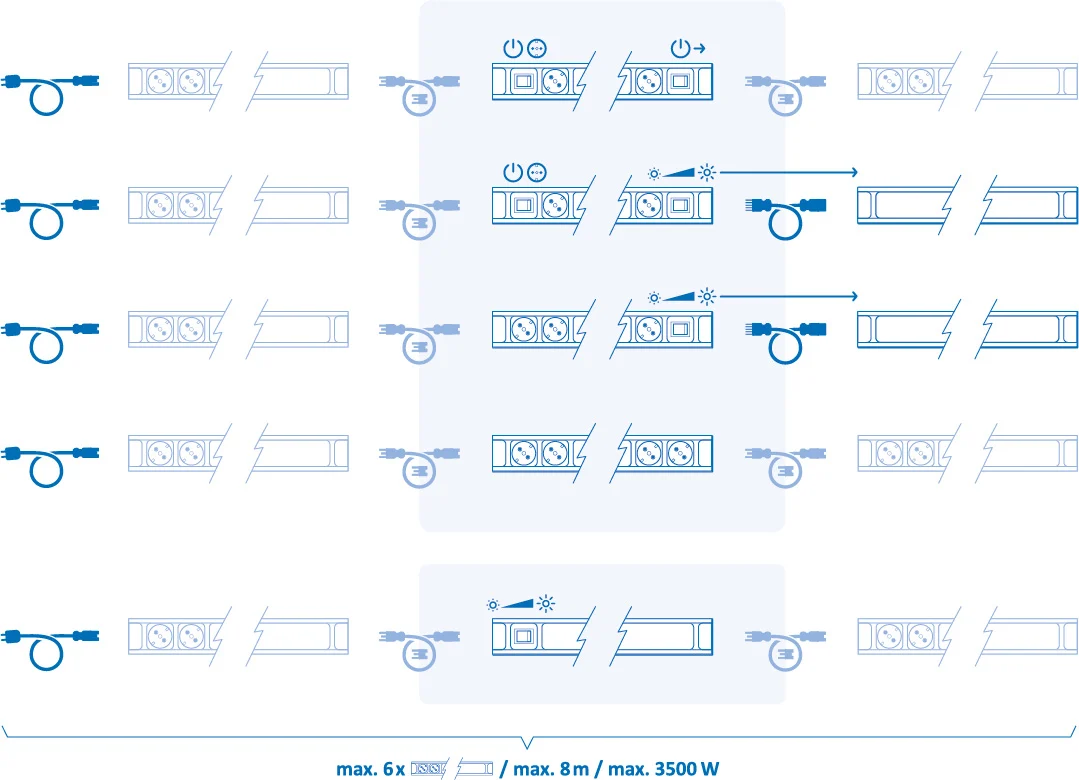

Modular concept: Units can be used separately or in combination – total output of up to 3500 watts

Combine FATH LED Lamps and Power Strips F Line as your workplace requires – an elegant, space-saving solution. All modules have a compact external dimension of 60 x 60 mm. You can connect up to six modules in series and reach a total length of up to eight meters, including cables. The connection cables are available in various standard lengths. Your modular solution for light and power offers a total output of up to 3500 watts for your LED lights and work tools connected to the power strip.

Directly dimmable LED lamp

In the directly dimmable variant of the LED lamp, the on/off function as well as the dimming are controlled using the dimming button on the input side of the lamp. The last light intensity setting is saved and automatically retrieved the next time the device is switched on.

High light quality and energy-saving operation

Thanks to the conical prism disc, FATH LED Lamps provide the workstation with a uniform, glare- and flicker-free luminous flux in workplace-friendly neutral white. They consume significantly less electricity than conventional lights and are virtually maintenance-free thanks to the long service life of up to 100,000 hours for modern LEDs.

Remote switching via the power strip

If you connect a FATH Power Strip to an LED lamp, you can remotely switch off the lamp using the large switch on the power strip. The power to the outlets can be disconnected by the switch but will still continue to flow through to the LED lamp. Even though the outlets are deactivated, the light supply is not affected. If several lights are connected in series on a single power strip, all the lights can be switched on and off with a single click of the switch. If directly dimmable LED lights are used, each light is dimmed as needed.

Convenient remote dimming via the power strip

If the LED lamp is connected to a FATH Power Strip that has a dimming button at the output, the light intensity can be adjusted by pressing the dimming button. Each employee can easily adjust the required light intensity for each visual task – regardless of their height and work position. The on/off function for the LED lamp is integrated in the dimming button. One particularly clever feature: In this variant, the dimming strength is stored in the lighting electronics and controlled via a signal from the power strip.

Multiple assembly tables

If two assembly workstations are to be supplied with power and light during production, you can, for example, equip both workstations with one LED lamp each and two power strips and connect all six modules with cables. The power is then supplied from one side in series. For example, if you use two 40-watt LED lamps, a total of 3,420 watts of power remains for the outlets. With the FATH solution for light and electricity, two facing work tables can be supplied compactly and at the same time with enough outlets for the power consumers.

USB for media use at the workplace

FATH Power Strips F Line are also available in a version with an integrated USB port. This means, for example, that tablets for providing information can be operated or charged directly via SMART-IC on the permanently installed power infrastructure – without a power supply unit.

Would you like to learn more about the FATH LED-Lamps and Power Strips?

Click here to discover the various lighting options.


Go to Lighting

VERSIONS

ESD variants: Light and power for ESD-compliant workstations

Standard modules without ESD protection in clear anodized aluminum with blue illuminated switch or dimming button.

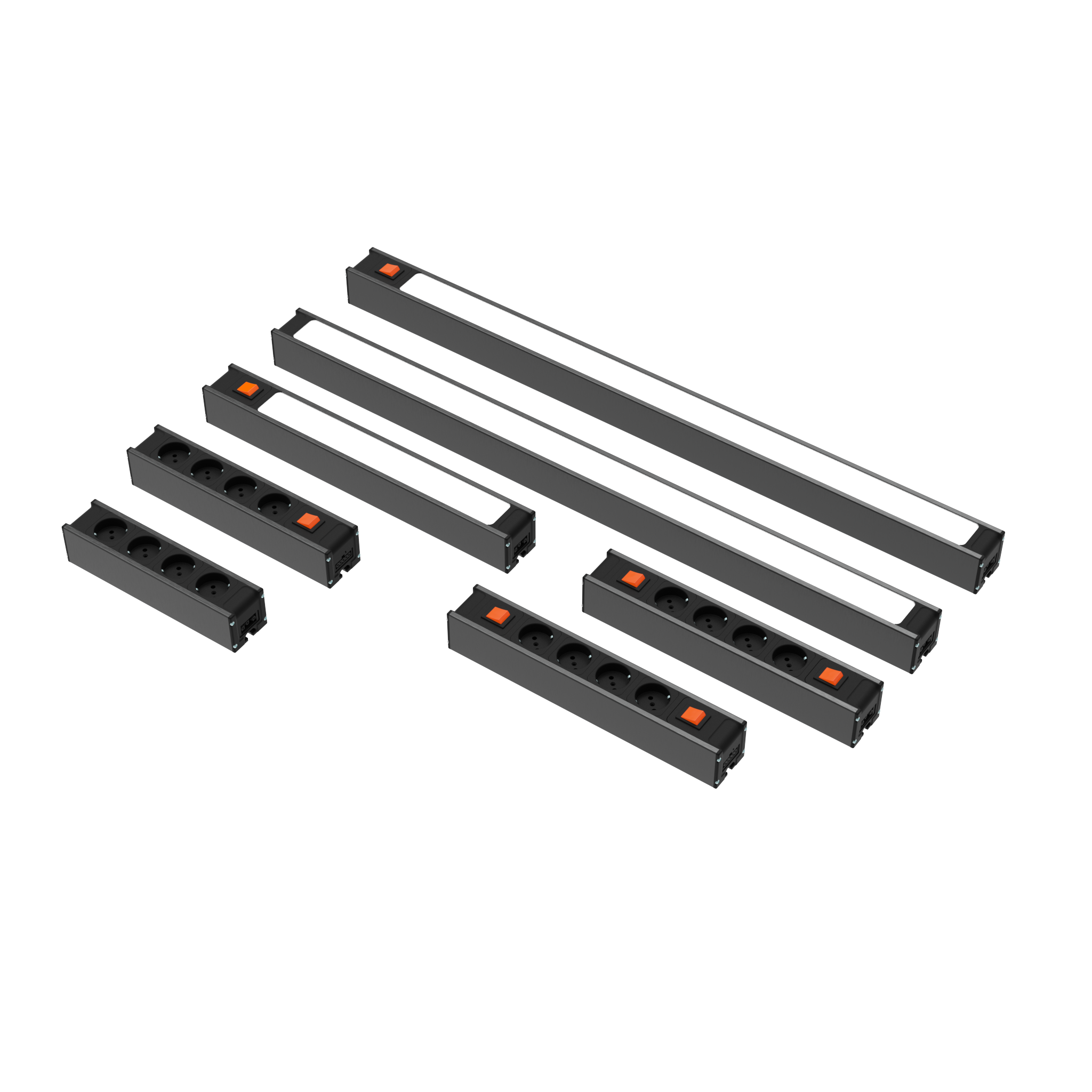

Black F Line modules in ESD design with illuminated switch or dimming button in signal orange.

Skip product gallery

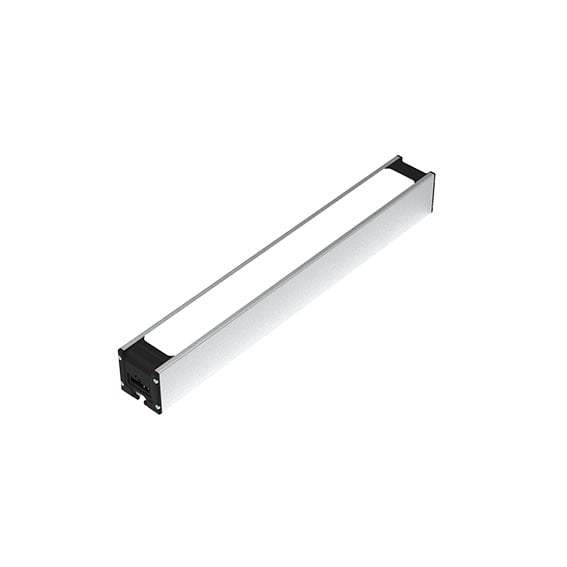

LED Lamp Module F Line 476 Dimmable
ESD: ESD | Profile: I | Slot N (mm): 8
Color:Housing standard version: - Housing ESD electrostatical discharging version: Black End caps: Black Diffusing screen: Transparent Dimmer button standard version: Blue Dimmer button ESD electrostatical discharging version: OrangeDelivery Countries:WorldwideDescription:Remote dimmable LED Lamp for power and light supply at work stations Input side only compatible with power strip Modul F Line with dimmable exit On the backside with slot 8 for mounting on aluminum profilesMaterial:Housing: Aluminum End caps: Plastic PA, carbon fibre reinforced Diffusing screen: Polycarbonate Dimmer button: Plastic ABS/PASpecials:Other lengths, other colors on requestSurface:Housing standard version: Anodized Housing ESD electrostatical discharging version: Powder coatedTip:Compatible Power Strip Module F Line 370 4x, with Switch and Dimmer Button, for Series Connection see 6SBEU24DI.370 Compatible Connection Cable GST15i5 for 5-pole input connector see 6SACP5J516B.2000 Compatible Connection Cable GST18i3 for 3-pole output connector see 6SACP3J316B.2000 Compatible Connection Coupling GST18i3 for 3-pole output connector see 6SAKP3J316BS01 Compatible Cover Cap GST18i3 for 3-pole output connector see 063SGF3S01 Compatible Direct Connector I, slot 8 see 099DC084040N08 Compatible Direct Connector I / B, Slot 8 / 10 see 099DC084045N10Tip 2:Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules Connected load max. 3500 wattsZolltarifnummer:94054239900

€0.00*
LED Lamp Module F Line 953 Dimmable, with Button
Color:Housing standard version: - Housing ESD electrostatical discharging version: Black End caps: Black Diffusing screen: Transparent Dimmer button standard version: Blue Dimmer button ESD electrostatical discharging version: OrangeDelivery Countries:WorldwideDescription:LED Lamp with dimmer button for power and light supply at work stations On the backside with slot 8 for mounting on aluminum profilesMaterial:Housing: Aluminum End caps: Plastic PA, carbon fibre reinforced Diffusing screen: Polycarbonate Dimmer button: Plastic ABS/PASpecials:Other lengths, other colors on requestSurface:Housing standard version: Anodized Housing ESD electrostatical discharging version: Powder coatedTip:Compatible Power Strip see 6SBEU04I.264 Compatible Main Power Cable see 6SAME4J316B.2000 Compatible Connection Cable see 6ACP5J516B.2000 Compatible Cover Cap for 3 pole female connector see 063SGF3S01 Compatible Direct Connector I, Slot 8 see 099DC084040N08 Compatible Direct Connector I / B, Slot 8 / 10 see 099DC084045N10Tip 2:Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules Connected load max. 3500 wattsZolltarifnummer:94054239900

€0.00*

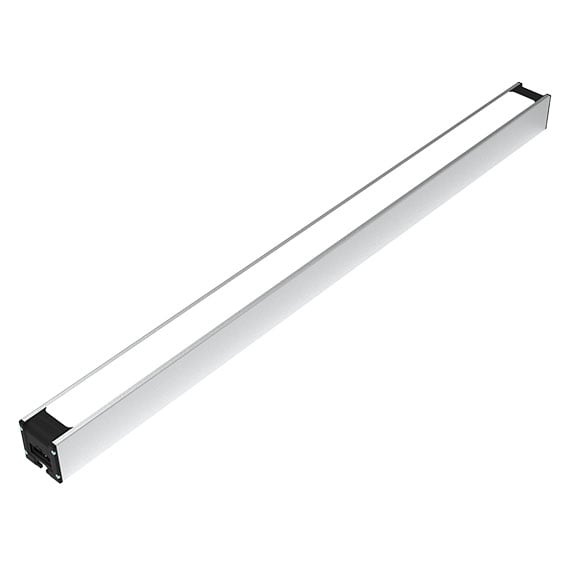

LED Lamp Module F Line 953 Dimmable
ESD: - | Profile: I | Slot N (mm): 8
Color:Housing standard version: - Housing ESD electrostatical discharging version: Black End caps: Black Diffusing screen: Transparent Dimmer button standard version: Blue Dimmer button ESD electrostatical discharging version: OrangeDelivery Countries:WorldwideDescription:Remote dimmable LED Lamp for power and light supply at work stations Input side only compatible with power strip Modul F Line with dimmable exit On the backside with slot 8 for mounting on aluminum profilesMaterial:Housing: Aluminum End caps: Plastic PA, carbon fibre reinforced Diffusing screen: Polycarbonate Dimmer button: Plastic ABS/PASpecials:Other lengths, other colors on requestSurface:Housing standard version: Anodized Housing ESD electrostatical discharging version: Powder coatedTip:Compatible Power Strip Module F Line 370 4x, with Switch and Dimmer Button, for Series Connection see 6SBEU24DI.370 Compatible Connection Cable GST15i5 for 5-pole input connector see 6SACP5J516B.2000 Compatible Connection Cable GST18i3 for 3-pole output connector see 6SACP3J316B.2000 Compatible Connection Coupling GST18i3 for 3-pole output connector see 6SAKP3J316BS01 Compatible Cover Cap GST18i3 for 3-pole output connector see 063SGF3S01 Compatible Direct Connector I, slot 8 see 099DC084040N08 Compatible Direct Connector I / B, Slot 8 / 10 see 099DC084045N10Tip 2:Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules Connected load max. 3500 wattsZolltarifnummer:94054239900

€0.00*
LED Lamp Module F Line 953 Dimmable
ESD: ESD | Profile: I | Slot N (mm): 8
Color:Housing standard version: - Housing ESD electrostatical discharging version: Black End caps: Black Diffusing screen: Transparent Dimmer button standard version: Blue Dimmer button ESD electrostatical discharging version: OrangeDelivery Countries:WorldwideDescription:Remote dimmable LED Lamp for power and light supply at work stations Input side only compatible with power strip Modul F Line with dimmable exit On the backside with slot 8 for mounting on aluminum profilesMaterial:Housing: Aluminum End caps: Plastic PA, carbon fibre reinforced Diffusing screen: Polycarbonate Dimmer button: Plastic ABS/PASpecials:Other lengths, other colors on requestSurface:Housing standard version: Anodized Housing ESD electrostatical discharging version: Powder coatedTip:Compatible Power Strip Module F Line 370 4x, with Switch and Dimmer Button, for Series Connection see 6SBEU24DI.370 Compatible Connection Cable GST15i5 for 5-pole input connector see 6SACP5J516B.2000 Compatible Connection Cable GST18i3 for 3-pole output connector see 6SACP3J316B.2000 Compatible Connection Coupling GST18i3 for 3-pole output connector see 6SAKP3J316BS01 Compatible Cover Cap GST18i3 for 3-pole output connector see 063SGF3S01 Compatible Direct Connector I, slot 8 see 099DC084040N08 Compatible Direct Connector I / B, Slot 8 / 10 see 099DC084045N10Tip 2:Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules Connected load max. 3500 wattsZolltarifnummer:94054239900

€0.00*
LED Lamp Module F Line 476 Dimmable
ESD: - | Profile: I | Slot N (mm): 8
Color:Housing standard version: - Housing ESD electrostatical discharging version: Black End caps: Black Diffusing screen: Transparent Dimmer button standard version: Blue Dimmer button ESD electrostatical discharging version: OrangeDelivery Countries:WorldwideDescription:Remote dimmable LED Lamp for power and light supply at work stations Input side only compatible with power strip Modul F Line with dimmable exit On the backside with slot 8 for mounting on aluminum profilesMaterial:Housing: Aluminum End caps: Plastic PA, carbon fibre reinforced Diffusing screen: Polycarbonate Dimmer button: Plastic ABS/PASpecials:Other lengths, other colors on requestSurface:Housing standard version: Anodized Housing ESD electrostatical discharging version: Powder coatedTip:Compatible Power Strip Module F Line 370 4x, with Switch and Dimmer Button, for Series Connection see 6SBEU24DI.370 Compatible Connection Cable GST15i5 for 5-pole input connector see 6SACP5J516B.2000 Compatible Connection Cable GST18i3 for 3-pole output connector see 6SACP3J316B.2000 Compatible Connection Coupling GST18i3 for 3-pole output connector see 6SAKP3J316BS01 Compatible Cover Cap GST18i3 for 3-pole output connector see 063SGF3S01 Compatible Direct Connector I, slot 8 see 099DC084040N08 Compatible Direct Connector I / B, Slot 8 / 10 see 099DC084045N10Tip 2:Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules Connected load max. 3500 wattsZolltarifnummer:94054239900

€0.00*

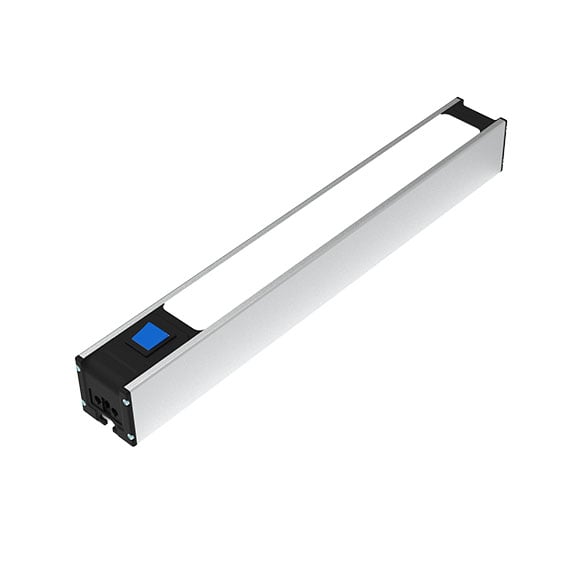

LED Lamp Module F Line 476 Dimmable, with Button
ESD: ESD | Profile: I | Slot N (mm): 8
Color:Housing standard version: - Housing ESD electrostatical discharging version: Black End caps: Black Diffusing screen: Transparent Dimmer button standard version: Blue Dimmer button ESD electrostatical discharging version: OrangeDelivery Countries:WorldwideDescription:LED Lamp with dimmer button for power and light supply at work stations On the backside with slot 8 for mounting on aluminum profilesMaterial:Housing: Aluminum End caps: Plastic PA, carbon fibre reinforced Diffusing screen: Polycarbonate Dimmer button: Plastic ABS/PASpecials:Other lengths, other colors on requestSurface:Housing standard version: Anodized Housing ESD electrostatical discharging version: Powder coatedTip:Compatible Power Strip Module F Line 264 4xEU see 6SBEU24DI.370 Compatible Main Power Cable EU GST18i3 for 3-pole output connector see 6SAME4J316B.2000 Compatible Connection Cable GST18i3 for 3-pole output connector see 6SACP3J316B.2000 Compatible Connection Coupling GST18i3 for 3-pole output connector see 6SAKP3J316BS01 Compatible Cover Cap GST18i3 for 3-pole output connector see 063SGF3S01 Compatible Direct Connector I, slot 8 see 099DC084040N08 Compatible Direct Connector I / B, Slot 8 / 10 see 099DC084045N10Tip 2:Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules Connected load max. 3500 wattsZolltarifnummer:94054239900

€0.00*
LED Lamp Module F Line 476 Dimmable, with Button
Color:Housing standard version: - Housing ESD electrostatical discharging version: Black End caps: Black Diffusing screen: Transparent Dimmer button standard version: Blue Dimmer button ESD electrostatical discharging version: OrangeDelivery Countries:WorldwideDescription:LED Lamp with dimmer button for power and light supply at work stations On the backside with slot 8 for mounting on aluminum profilesMaterial:Housing: Aluminum End caps: Plastic PA, carbon fibre reinforced Diffusing screen: Polycarbonate Dimmer button: Plastic ABS/PASpecials:Other lengths, other colors on requestSurface:Housing standard version: Anodized Housing ESD electrostatical discharging version: Powder coatedTip:Compatible Power Strip Module F Line 264 4xEU see 6SBEU24DI.370 Compatible Main Power Cable EU GST18i3 for 3-pole output connector see 6SAME4J316B.2000 Compatible Connection Cable GST18i3 for 3-pole output connector see 6SACP3J316B.2000 Compatible Connection Coupling GST18i3 for 3-pole output connector see 6SAKP3J316BS01 Compatible Cover Cap GST18i3 for 3-pole output connector see 063SGF3S01 Compatible Direct Connector I, slot 8 see 099DC084040N08 Compatible Direct Connector I / B, Slot 8 / 10 see 099DC084045N10Tip 2:Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules Connected load max. 3500 wattsZolltarifnummer:94054239900

€0.00*
LED Lamp Module F Line 476 Dimmable
Color:Housing standard version: - Housing ESD electrostatical discharging version: Black End caps: Black Diffusing screen: Transparent Dimmer button standard version: Blue Dimmer button ESD electrostatical discharging version: OrangeDelivery Countries:WorldwideDescription:Remote dimmable LED Lamp for power and light supply at work stations Input side only compatible with power strip Modul F Line with dimmable exit On the backside with slot 8 for mounting on aluminum profilesMaterial:Housing: Aluminum End caps: Plastic PA, carbon fibre reinforced Diffusing screen: Polycarbonate Dimmer button: Plastic ABS/PASpecials:Other lengths, other colors on requestSurface:Housing standard version: Anodized Housing ESD electrostatical discharging version: Powder coatedTip:Compatible Power Strip Module F Line 370 4x, with Switch and Dimmer Button, for Series Connection see 6SBEU24DI.370 Compatible Connection Cable GST15i5 for 5-pole input connector see 6SACP5J516B.2000 Compatible Connection Cable GST18i3 for 3-pole output connector see 6SACP3J316B.2000 Compatible Connection Coupling GST18i3 for 3-pole output connector see 6SAKP3J316BS01 Compatible Cover Cap GST18i3 for 3-pole output connector see 063SGF3S01 Compatible Direct Connector I, slot 8 see 099DC084040N08 Compatible Direct Connector I / B, Slot 8 / 10 see 099DC084045N10Tip 2:Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules Connected load max. 3500 wattsZolltarifnummer:94054239900

€0.00*
LED Lamp Module F Line 953 Dimmable, with Button
ESD: ESD | Profile: I | Slot N (mm): 8
Color:Housing standard version: - Housing ESD electrostatical discharging version: Black End caps: Black Diffusing screen: Transparent Dimmer button standard version: Blue Dimmer button ESD electrostatical discharging version: OrangeDelivery Countries:WorldwideDescription:LED Lamp with dimmer button for power and light supply at work stations On the backside with slot 8 for mounting on aluminum profilesMaterial:Housing: Aluminum End caps: Plastic PA, carbon fibre reinforced Diffusing screen: Polycarbonate Dimmer button: Plastic ABS/PASpecials:Other lengths, other colors on requestSurface:Housing standard version: Anodized Housing ESD electrostatical discharging version: Powder coatedTip:Compatible Power Strip see 6SBEU04I.264 Compatible Main Power Cable see 6SAME4J316B.2000 Compatible Connection Cable see 6ACP5J516B.2000 Compatible Cover Cap for 3 pole female connector see 063SGF3S01 Compatible Direct Connector I, Slot 8 see 099DC084040N08 Compatible Direct Connector I / B, Slot 8 / 10 see 099DC084045N10Tip 2:Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules Connected load max. 3500 wattsZolltarifnummer:94054239900

€0.00*
LED Lamp Module F Line 476 Dimmable, with Button
ESD: - | Profile: I | Slot N (mm): 8
Color:Housing standard version: - Housing ESD electrostatical discharging version: Black End caps: Black Diffusing screen: Transparent Dimmer button standard version: Blue Dimmer button ESD electrostatical discharging version: OrangeDelivery Countries:WorldwideDescription:LED Lamp with dimmer button for power and light supply at work stations On the backside with slot 8 for mounting on aluminum profilesMaterial:Housing: Aluminum End caps: Plastic PA, carbon fibre reinforced Diffusing screen: Polycarbonate Dimmer button: Plastic ABS/PASpecials:Other lengths, other colors on requestSurface:Housing standard version: Anodized Housing ESD electrostatical discharging version: Powder coatedTip:Compatible Power Strip Module F Line 264 4xEU see 6SBEU24DI.370 Compatible Main Power Cable EU GST18i3 for 3-pole output connector see 6SAME4J316B.2000 Compatible Connection Cable GST18i3 for 3-pole output connector see 6SACP3J316B.2000 Compatible Connection Coupling GST18i3 for 3-pole output connector see 6SAKP3J316BS01 Compatible Cover Cap GST18i3 for 3-pole output connector see 063SGF3S01 Compatible Direct Connector I, slot 8 see 099DC084040N08 Compatible Direct Connector I / B, Slot 8 / 10 see 099DC084045N10Tip 2:Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules Connected load max. 3500 wattsZolltarifnummer:94054239900

€0.00*

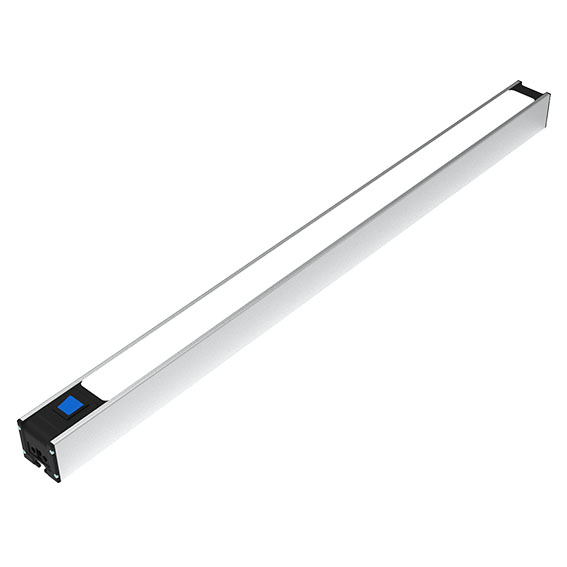

LED Lamp Module F Line 953 Dimmable, with Button
ESD: - | Profile: I | Slot N (mm): 8
Color:Housing standard version: - Housing ESD electrostatical discharging version: Black End caps: Black Diffusing screen: Transparent Dimmer button standard version: Blue Dimmer button ESD electrostatical discharging version: OrangeDelivery Countries:WorldwideDescription:LED Lamp with dimmer button for power and light supply at work stations On the backside with slot 8 for mounting on aluminum profilesMaterial:Housing: Aluminum End caps: Plastic PA, carbon fibre reinforced Diffusing screen: Polycarbonate Dimmer button: Plastic ABS/PASpecials:Other lengths, other colors on requestSurface:Housing standard version: Anodized Housing ESD electrostatical discharging version: Powder coatedTip:Compatible Power Strip see 6SBEU04I.264 Compatible Main Power Cable see 6SAME4J316B.2000 Compatible Connection Cable see 6ACP5J516B.2000 Compatible Cover Cap for 3 pole female connector see 063SGF3S01 Compatible Direct Connector I, Slot 8 see 099DC084040N08 Compatible Direct Connector I / B, Slot 8 / 10 see 099DC084045N10Tip 2:Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules Connected load max. 3500 wattsZolltarifnummer:94054239900

€0.00*

CAD Downloads


TO DOWNLOAD

Flexible installation with a wide range of accessories

The modules for light and power can be attached to almost any stable support using the slot on the back. Many different installation elements are available: direct connectors, T-connector plates, steel brackets, track connectors and friction joints. All types of installation are designed for fixed installation of the modules in order to ensure safe operation.

Skip product gallery

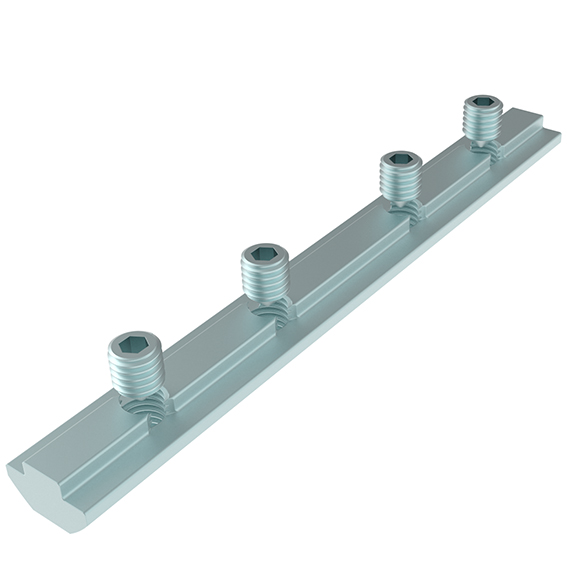

Connecting Strip 140 I, Slot 8 (Set)
L (mm): 140.0 | M: M8 | Profile: I | Slot N (mm): 8
Delivery Countries:WorldwideDescription:End-to-end connection of two aluminum profiles without machiningMaterial:SteelSet:1 connecting strip 140 - slot 8 4 screws DIN 914 - M8 x 10Surface:Zinc platedZolltarifnummer:73181900900

€0.00*

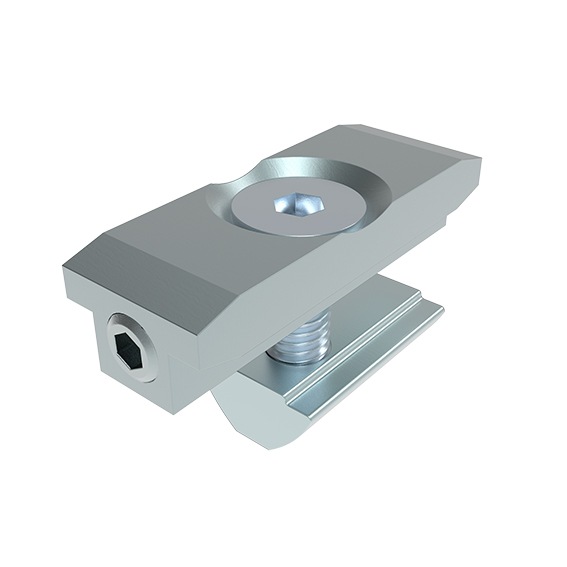

Direct Connector I, Slot 8
Profile: I | Slot N (mm): 8
Delivery Countries:WorldwideDescription:To cross or parallely connect two aluminum profiles; assembly without machiningMaterial:SteelSurface:Zinc platedZolltarifnummer:73269098900

€0.00*

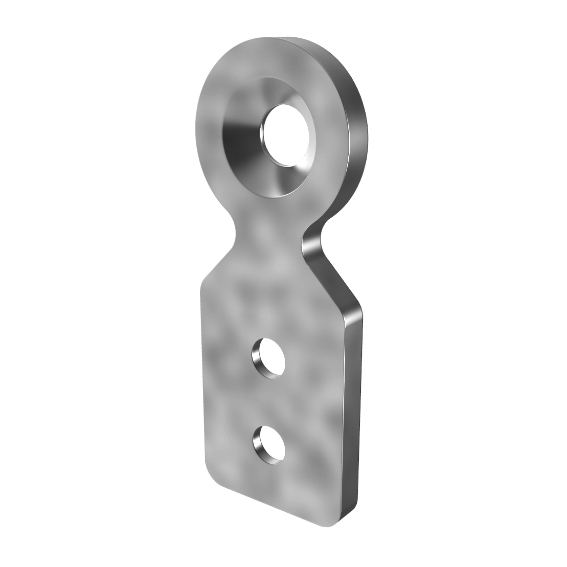

T-connector Plate D28
Delivery Countries:WorldwideDescription:To connect a tubular frame profile with Ø 28 mm outer diameter with an aluminum profile at right angles; screw connetion to the core hole of the Ø 28 mm profile or to the threaded sleeve for D28 M8 for Ø 28 mm tubular profilesMaterial:SteelSurface:Zinc platedTip:Compatible Threaded Sleeve D28 M8 see 099RV28AS02Zolltarifnummer:73269098900

€0.00*

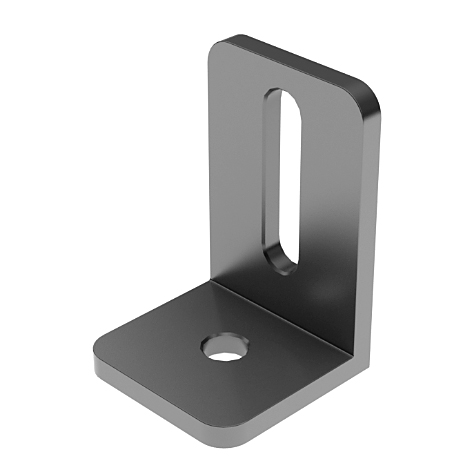

Steel Connection Angle 40 EH
A (mm): 30.0 | B (mm): 20.0 | C (mm): 5.0 | L (mm): 60.0
Delivery Countries:WorldwideDescription:To connect two aluminum profiles at right anglesMaterial:SteelSpecials:Other surfaces on requestSurface:Zinc platedZolltarifnummer:73269098900

€0.00*
Steel Connection Angle 40 EH
A (mm): 50.0 | B (mm): 16.0 | C (mm): 6.0 | L (mm): 80.0
Delivery Countries:WorldwideDescription:To connect two aluminum profiles at right anglesMaterial:SteelSpecials:Other surfaces on requestSurface:Zinc platedZolltarifnummer:73269098900

€0.00*

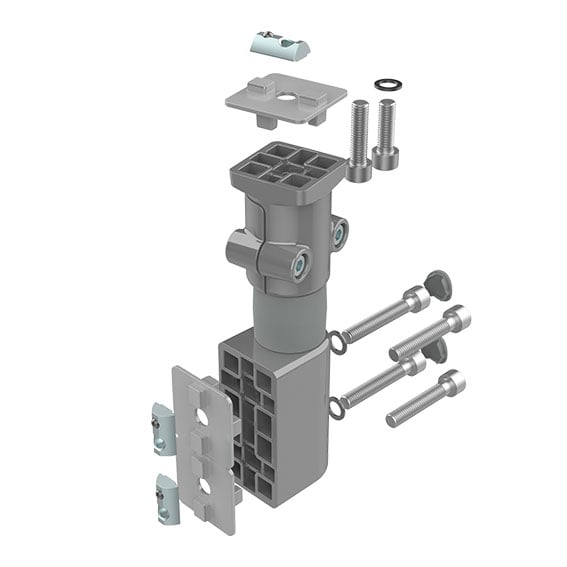

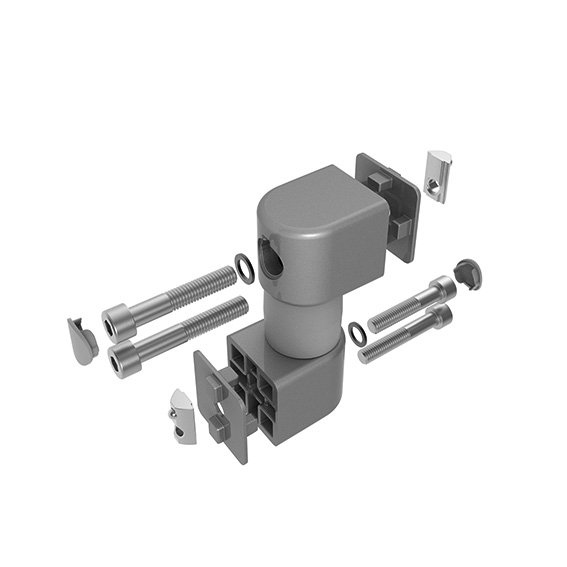

Friction Joint I40L for System Arm (Set)
Color:Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorDelivery Countries:WorldwideDescription:Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°; Friction joint can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSet:1 friction joint 2 cover caps 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut) 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole) 2 washers 8-FSt 2 centering plates 2 T-slot nuts - slot 8 - M8Surface:Housing: Powder coated Centering plates: Powder coated Screws: Zinc plated Washers: Zinc plated T-slot nuts: Zinc platedZolltarifnummer:76169990990

€0.00*
Friction Joint I80L for System Arm (Set)
B (mm): 40 | L x B (mm): 80 x 40 | MAmax (Nm): 75.0 | Profile: I | R (mm): 4.0 | Slot N (mm): 8 | W (Nm): 9.0
Color:Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorDelivery Countries:WorldwideDescription:Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°; Friction joint can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSet:1 friction joint 3 cover caps 3 screws DIN 912 - M8 x 45 (for T-slot nut) 3 screws DIN 912 - M8 x 50 (for core hole) 3 washers 8-FSt 3 centering plates 3 T-slot nuts - slot 8 - M8Surface:Housing: Powder coated Centering plates: Powder coated Screws: Zinc plated Washers: Zinc plated T-slot nuts: Zinc platedZolltarifnummer:76169990990

€0.00*
Anschluss-Friktionsgelenk I40L für Systemarm (Set)
B (mm): 40 | MAmax (Nm): 45.0 | Profile: I | R (mm): 4.0 | Slot N (mm): 8 | W (Nm): 15.0
Color:Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorDelivery Countries:WorldwideDescription:Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°; End side can be attached lateral or transverse on the profile slot, friction axis is positioned at right angles to the profile; Friction joint side can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSet:1 end friction joint 1 cover cap, 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 25 (for T-slot nut end side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 30 (for core hole end side), 2 washers 8-FSt, 2 centering plates, 2 T-slot nuts - slot 8 - M8Surface:Housing: Powder coated Centering plates: Powder coated Screws: Zinc plated Washers: Zinc plated T-slot nuts: Zinc platedZolltarifnummer:76169990990

€0.00*

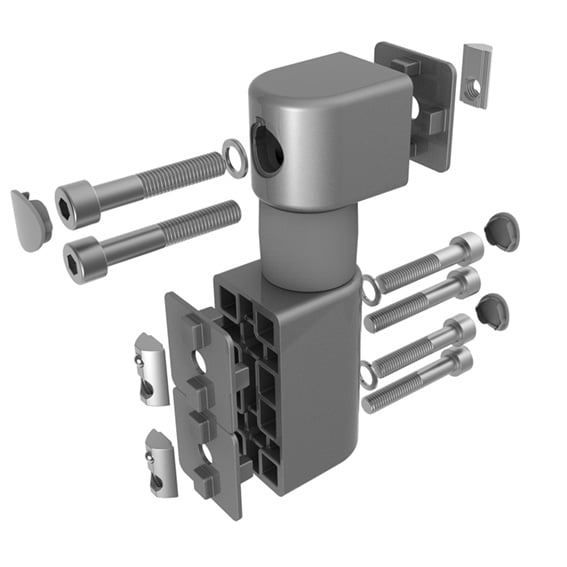

End Friction Joint I80L for System Arm (Set)
L x B (mm): 80 x 40 | MAmax (Nm): 70.0 | Profile: I | R (mm): 4.0 | Slot N (mm): 8 | W (Nm): 3.0
Color:Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorDelivery Countries:WorldwideDescription:Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°; End side can be attached lateral or transverse on the profile slot, friction axis is positioned at right angles to the profile; Friction joint side can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSet:1 end friction joint 2 cover caps, 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 25 (for T-slot nut end side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 30 (for core hole end side), 3 washers 8-FSt, 3 centering plates, 3 T-slot nuts - slot 8 - M8Surface:Housing: Powder coated Centering plates: Powder coated Screws: Zinc plated Washers: Zinc plated T-slot nuts: Zinc platedZolltarifnummer:76169990990

€0.00*
Anschluss-Friktionsgelenk I40L für Systemarm (Set)
B (mm): 40 | MAmax (Nm): 45.0 | Profile: I | R (mm): 4.0 | Slot N (mm): 8 | W (Nm): 3.0
Color:Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorDelivery Countries:WorldwideDescription:Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°; End side can be attached lateral or transverse on the profile slot, friction axis is positioned at right angles to the profile; Friction joint side can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSet:1 end friction joint 1 cover cap, 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 25 (for T-slot nut end side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 30 (for core hole end side), 2 washers 8-FSt, 2 centering plates, 2 T-slot nuts - slot 8 - M8Surface:Housing: Powder coated Centering plates: Powder coated Screws: Zinc plated Washers: Zinc plated T-slot nuts: Zinc platedZolltarifnummer:76169990990

€0.00*
Anschluss-Friktionsgelenk I40L für Systemarm (Set)
B (mm): 40 | MAmax (Nm): 45.0 | Profile: I | R (mm): 4.0 | Slot N (mm): 8 | W (Nm): 6.0
Color:Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorDelivery Countries:WorldwideDescription:Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°; End side can be attached lateral or transverse on the profile slot, friction axis is positioned at right angles to the profile; Friction joint side can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSet:1 end friction joint 1 cover cap, 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 25 (for T-slot nut end side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 30 (for core hole end side), 2 washers 8-FSt, 2 centering plates, 2 T-slot nuts - slot 8 - M8Surface:Housing: Powder coated Centering plates: Powder coated Screws: Zinc plated Washers: Zinc plated T-slot nuts: Zinc platedZolltarifnummer:76169990990

€0.00*

Safe installation of the F Line system

Electrical connections of the F Line system modules are made using practical accessories. If you need a greater distance between the modules, the system can be configured with connection cables of different lengths. You can connect individual modules for light and power directly to each other by using a connection coupling. All FATH LED Lamps and Power Strips F Line are equipped with three or five-pin receptacles. Unused sockets are covered with plastic end caps, which can be ordered if required. Numerous solutions for optimal cable attachment are available for the safe and compact cabling of your light and power system.

Pure flexibility: FATH LED Lamps F Line combined with FATH Friction Joints

You can achieve highly flexible lighting using FATH LED Lamps in combinaton with FATH Friction Joints. The employee can easily adjust and turn the LED lamp at any time as needed – without tools or screws. The friction keeps the lamp securely in the desired position.


Check out FATH Friction Joints
