Brackets for Roller Tracks XST

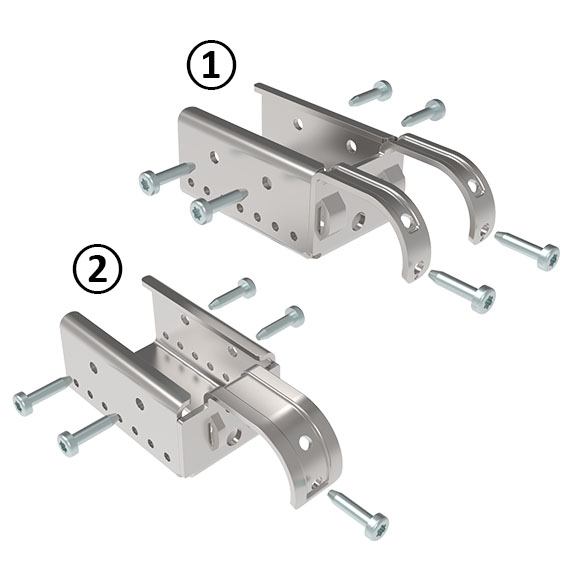

Holding Bracket XST 40
€0.00*
Fig.:
②
|
Version:
With end stop
Delivery Countries:WorldwideDescription:To mount roller tracks XST and guiding rails XST central to profiles 40 mm, preventing inserts from slipping outMaterial:SteelSurface:Zinc plated
Holding Bracket XST D28
€0.00*
Fig.:
②
|
Version:
With end stop
Delivery Countries:WorldwideDescription:To mount roller tracks XST and guiding rails XST central to tubular frame profiles with Ø 28 mm outer diameter, preventing inserts from slipping outMaterial:SteelSpecials:Other surfaces, other colors on requestSurface:Zinc plated
Holding Bracket XST D30
€0.00*
Fig.:
①
|
H (mm):
30.8
|
Version:
Without end stop
Assembly Set:6 self-drilling screws DIN 7504 Form N - 3.9 x 16Delivery Countries:WorldwideDescription:To mount roller tracks XST and guiding rails XST central to tubular frame profiles with Ø 30 mm outer diameter, preventing inserts from slipping outMaterial:SteelSpecials:Other surfaces, other colors on requestSurface:Zinc plated
Mounting Bracket XST D28
€0.00*
Assembly Set:2 self-drilling screws DIN 7504 Form N - 3.9 x 16Delivery Countries:WorldwideDescription:To mount and support an roller track XST or a guiding rail XST central on a crossing tubular frame profile with Ø 28 mm outer diameterMaterial:SteelSpecials:Other surfaces, other colors on requestSurface:Zinc plated
Mounting Bracket XST D30
€0.00*
Assembly Set:4 self-drilling screws DIN 7504 Form N - 3,9 x 16Delivery Countries:WorldwideDescription:To mount and support an roller track XST or a guiding rail XST central on a crossing tubular frame profile with Ø 30 mm outer diameterMaterial:SteelSpecials:Other surfaces, other colors on requestSurface:Zinc plated
Variable Holding Bracket XST D28
€0.00*
Fig.:
①
|
Version:
Typ M
Delivery Countries:WorldwideDescription:Transition between roller tracks with varying inclination, to mount roller tracks XST and guiding rails XST central, at different angles, to tubular frame profiles with Ø 28 mm outer diameter, preventing inserts from slipping outMaterial:SteelSpecials:Other surfaces, other colors on requestSurface:Zinc plated
Variable Holding Bracket XST D30
€0.00*
Fig.:
①
|
Version:
Typ F
Delivery Countries:WorldwideDescription:Transition between roller track profiles with varying inclination, to mount roller track profiles XST and guiding rails XST central at different angles to tubular frame profiles with Ø 30 mm outer diameter, preventing inserts from slipping outMaterial:SteelSpecials:Other surfaces, other colors on requestSurface:Zinc plated
