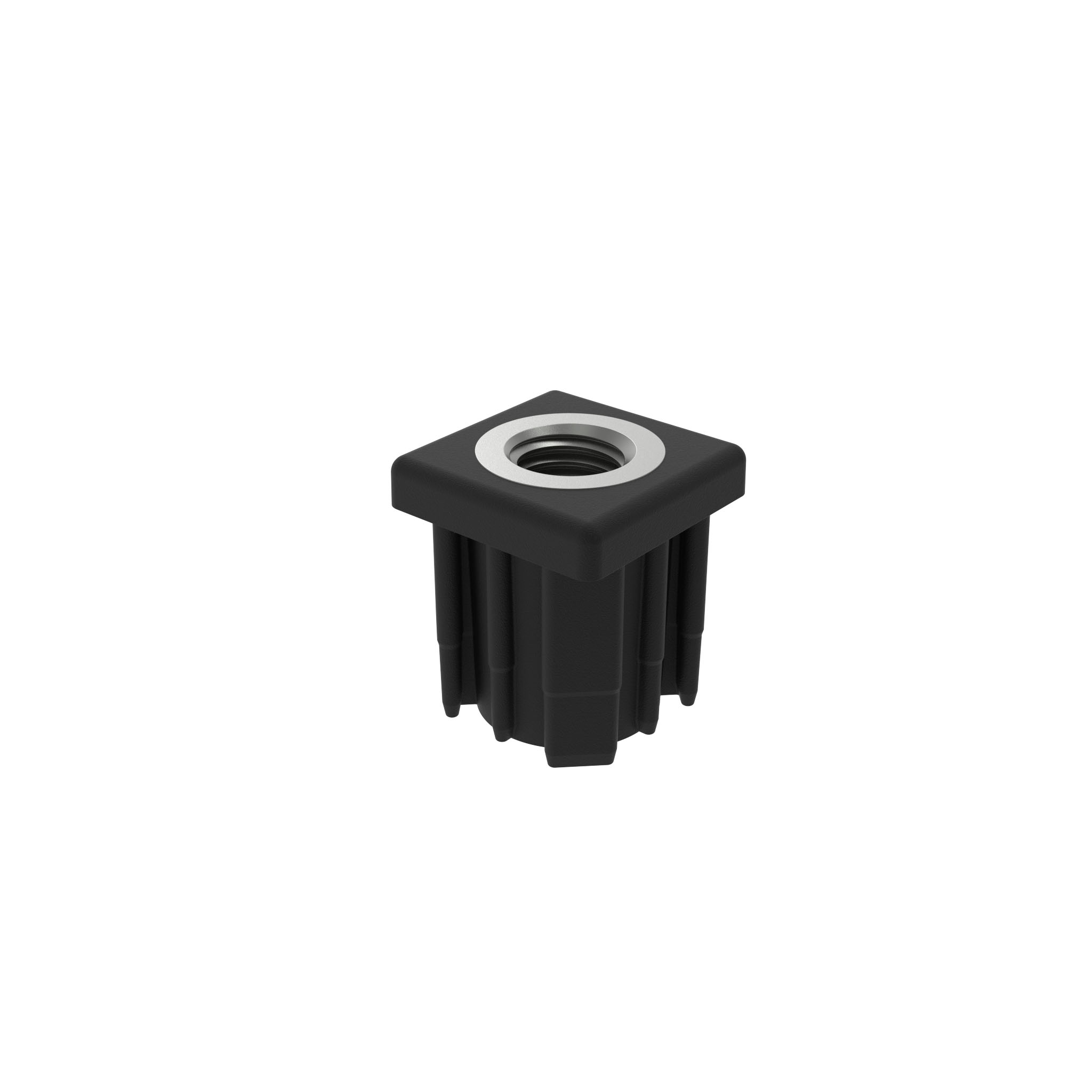

Threaded Bush for Square Tubes 30 x 30

Product information "Threaded Bush for Square Tubes 30 x 30"

Color:
Black

Delivery Countries:
Worldwide

Description:
To fit leveling feet to square, non-threaded tubes

Material:
Bush: Plastic PA, glass fiber reinforced
Threaded insert: Nickel plated brass

Specials:
ESD electrostatical discharging, other sizes, other colors on request

(ECLASS 6.0):	23111190
(ECLASS 7.0):	23111190
(ECLASS 8.0):	23111190
(ECLASS 9.0):	23111190
(ECLASS 10.0):	23111190
(ECLASS 11.0):	23111190
(ECLASS 12.0):	23111190
(ECLASS 13.0):	23111190
Customs Tariff Number Export:	39269097
ERP Number:	104920
Model:	Plastic PA, with brass threaded insert
Pack Quantity:	10 pieces
Weight (g):	48.0
Zolltarifnummer:	39269097900

Variants

Product ID	Version	S (mm)	Fmax (N)	L (mm)	B (mm)	b (mm)	Square Tube (mm)	M
098V301508	30 x 30, R3	27	4900	33	30	27.5	30 x 30 x 1.5
098V301510	30 x 30, R3	27	4900	33	30	27.5	30 x 30 x 1.5	M10
098V301512	30 x 30, R3	27	4900	33	30	27.5	30 x 30 x 1.5	M12
098V301514	30 x 30, R3	27	4900	33	30	27.5	30 x 30 x 1.5	M14
098V301516	30 x 30, R3	27	4900	33	30	27.5	30 x 30 x 1.5	M16
098V302008	30 x 30, R3	27	4900	33	30	26.5	30 x 30 x 2.0
098V302010	30 x 30, R3	27	4900	33	30	26.5	30 x 30 x 2.0	M10
098V302012	30 x 30, R3	27	4900	33	30	26.5	30 x 30 x 2.0	M12
098V302014	30 x 30, R3	27	4900	33	30	26.5	30 x 30 x 2.0	M14
098V302016	30 x 30, R3	27	4900	33	30	26.5	30 x 30 x 2.0	M16
