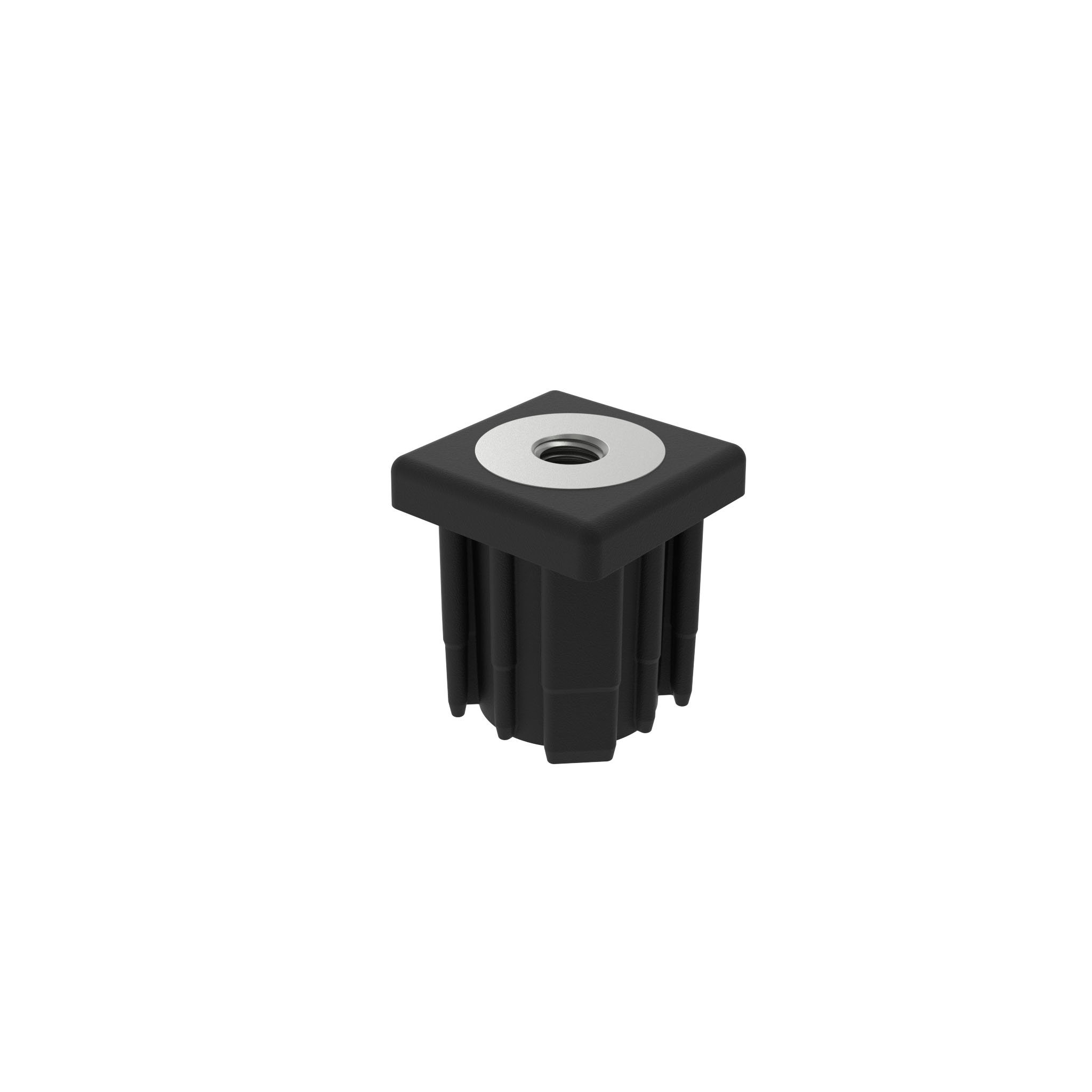

Threaded Bush for Square Tubes 30 x 30

Product information "Threaded Bush for Square Tubes 30 x 30"

Color:
Black

Delivery Countries:
Worldwide

Description:
To fit leveling feet to square, non-threaded tubes

Material:
Bush: Plastic PA, glass fiber reinforced
Threaded insert: Nickel plated brass

Specials:
ESD electrostatical discharging, other sizes, other colors on request

Pack Quantity:	10 pieces
Model:	Plastic PA, with brass threaded insert
Weight (g):	68.0
ECLASS 6.0:	23111190
ECLASS 7.0:	23111190
ECLASS 8.0:	23111190
ECLASS 9.0:	23111190
ECLASS 10.0:	23111190
ECLASS 11.0:	23111190
ECLASS 12.0:	23111190
ECLASS 13.0:	23111190
Zolltarifnummer:	39269097900
Customs Tariff Number Export:	39269097
ERP Number:	104926

Variants

Part #	Fmax (N)	Version	B (mm)	L (mm)	M	S (mm)	b (mm)	Square Tube (mm)
098V301508	4900	30 x 30, R3	30	33	-	27	27.5	30 x 30 x 1.5
098V301510	4900	30 x 30, R3	30	33	M10	27	27.5	30 x 30 x 1.5
098V301512	4900	30 x 30, R3	30	33	M12	27	27.5	30 x 30 x 1.5
098V301514	4900	30 x 30, R3	30	33	M14	27	27.5	30 x 30 x 1.5
098V301516	4900	30 x 30, R3	30	33	M16	27	27.5	30 x 30 x 1.5
098V302008	4900	30 x 30, R3	30	33	-	27	26.5	30 x 30 x 2.0
098V302010	4900	30 x 30, R3	30	33	M10	27	26.5	30 x 30 x 2.0
098V302012	4900	30 x 30, R3	30	33	M12	27	26.5	30 x 30 x 2.0
098V302014	4900	30 x 30, R3	30	33	M14	27	26.5	30 x 30 x 2.0
098V302016	4900	30 x 30, R3	30	33	M16	27	26.5	30 x 30 x 2.0
