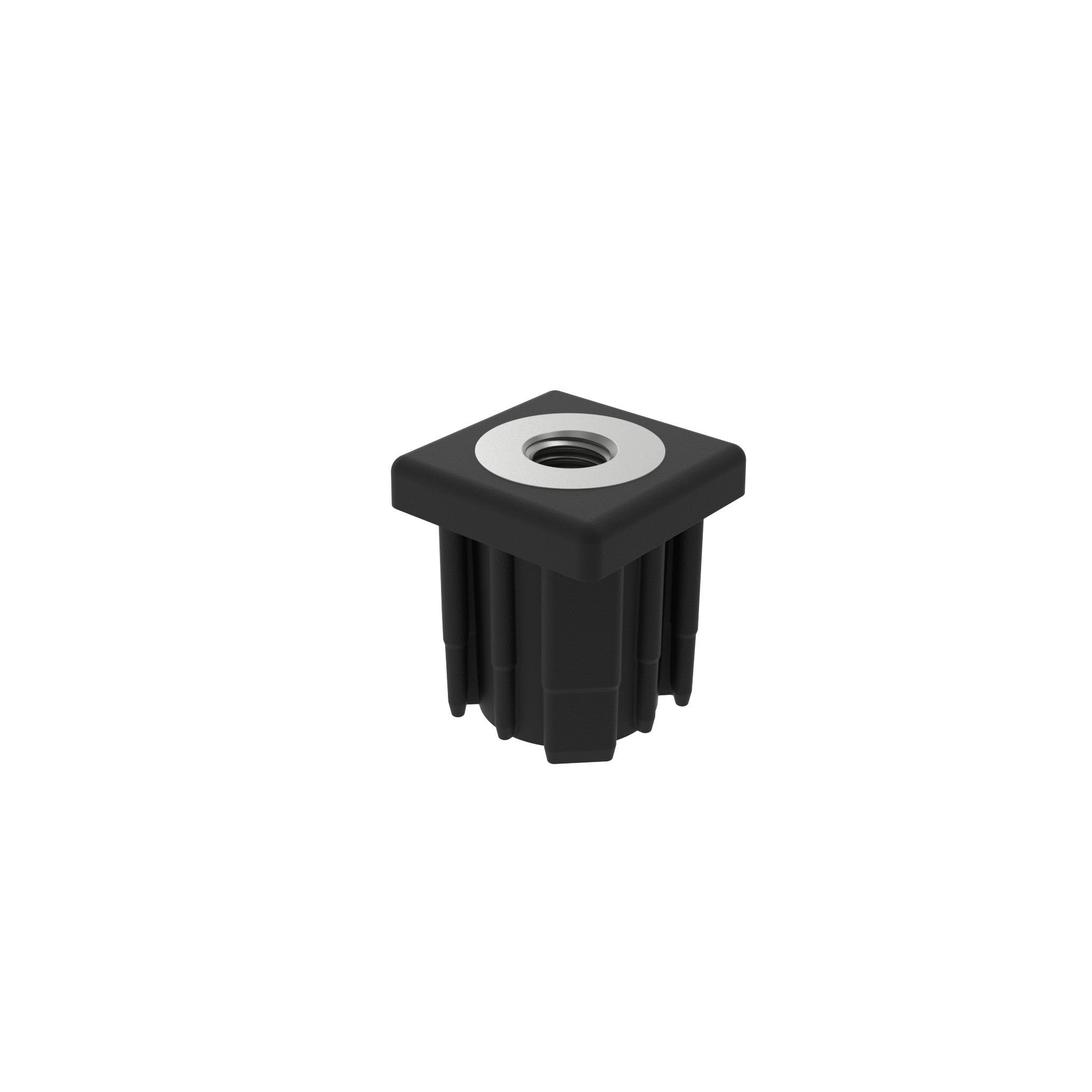

Threaded Bush for Square Tubes 30 x 30

Product information "Threaded Bush for Square Tubes 30 x 30"

Color:
Black

Delivery Countries:
Worldwide

Description:

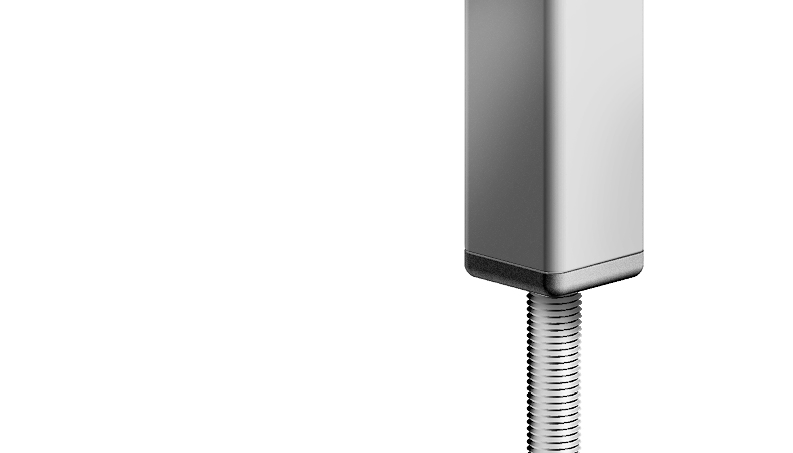

To fit leveling feet to square, non-threaded tubes

Material:
Bush: Plastic PA, glass fiber reinforced
Threaded insert: Nickel plated brass

Specials:
ESD electrostatical discharging, other sizes, other colors on request

Zolltarifnummer:
39269097900
(ECLASS 6.0): 23111190
(ECLASS 7.0): 23111190
(ECLASS 8.0): 23111190
(ECLASS 9.0): 23111190
(ECLASS 10.0): 23111190
(ECLASS 11.0): 23111190
(ECLASS 12.0): 23111190
(ECLASS 13.0): 23111190
Model: Plastic PA, with brass threaded insert
Pack Quantity: 10 pieces
Weight (g): 63.0

Variants

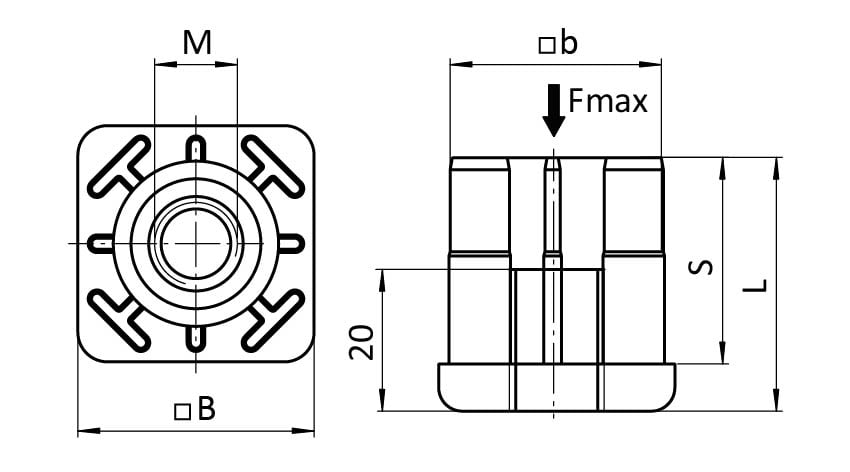

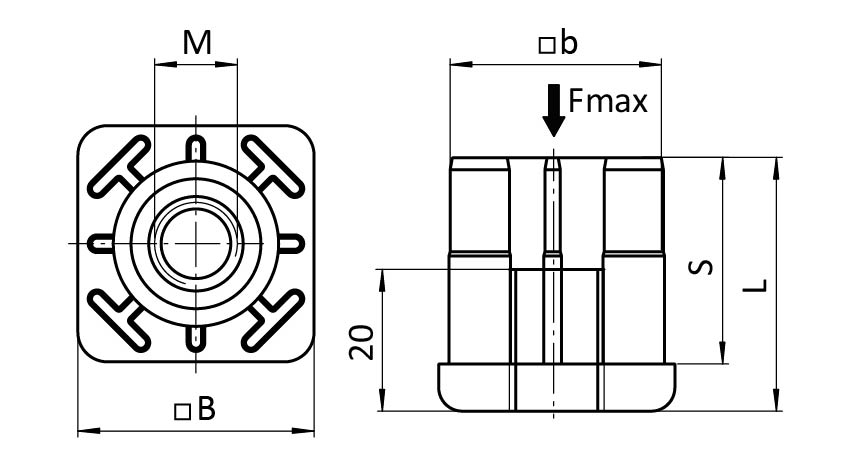

Product ID Version S (mm) Fmax (N) L (mm) B (mm) b (mm) Square Tube (mm) M
098V301508 30 x 30, R3 27 4900 33 30 27.5 30 x 30 x 1.5
098V301510 30 x 30, R3 27 4900 33 30 27.5 30 x 30 x 1.5 M10
098V301512 30 x 30, R3 27 4900 33 30 27.5 30 x 30 x 1.5 M12
098V301514 30 x 30, R3 27 4900 33 30 27.5 30 x 30 x 1.5 M14
098V301516 30 x 30, R3 27 4900 33 30 27.5 30 x 30 x 1.5 M16
098V302008 30 x 30, R3 27 4900 33 30 26.5 30 x 30 x 2.0
098V302010 30 x 30, R3 27 4900 33 30 26.5 30 x 30 x 2.0 M10
098V302012 30 x 30, R3 27 4900 33 30 26.5 30 x 30 x 2.0 M12
098V302014 30 x 30, R3 27 4900 33 30 26.5 30 x 30 x 2.0 M14
098V302016 30 x 30, R3 27 4900 33 30 26.5 30 x 30 x 2.0 M16
