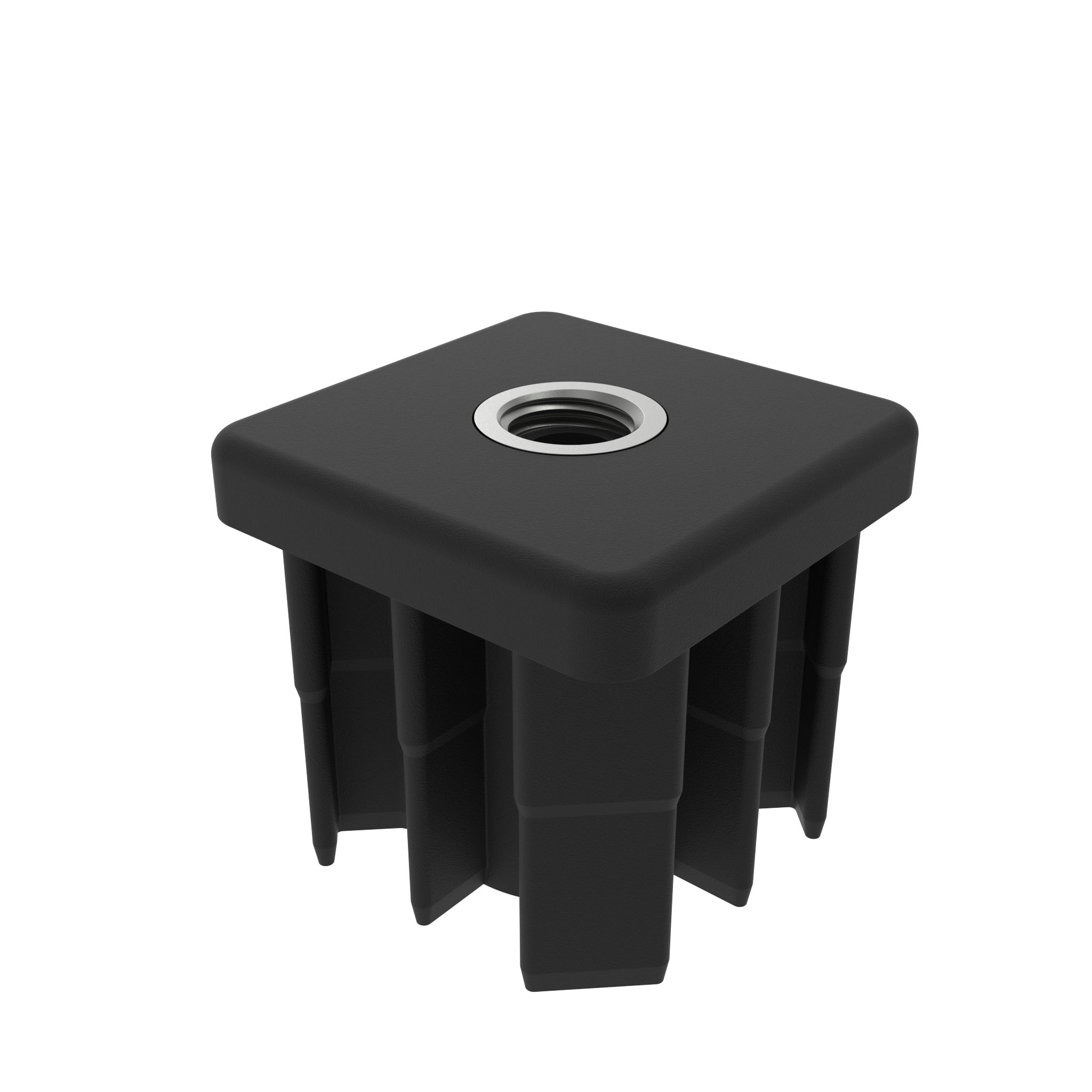

Threaded Bush for Square Tubes 60 x 60

Product information "Threaded Bush for Square Tubes 60 x 60"

Color:
Black

Delivery Countries:
Worldwide

Description:
To fit leveling feet to square, non-threaded tubes

Material:
Bush: Plastic PA, glass fiber reinforced
Threaded insert: Nickel plated brass

Specials:
ESD electrostatical discharging, other sizes, other colors on request

Model:	Plastic PA, with brass threaded insert
Pack Quantity:	10 pieces
Customs Tariff Number Export:	39269097
Weight (g):	136.0
(ECLASS 6.0):	23111190
(ECLASS 7.0):	23111190
(ECLASS 8.0):	23111190
(ECLASS 9.0):	23111190
(ECLASS 10.0):	23111190
(ECLASS 11.0):	23111190
(ECLASS 12.0):	23111190
(ECLASS 13.0):	23111190
ERP Number:	105049
Zolltarifnummer:	39269097900

Variants

Part #	Version	Fmax (N)	B (mm)	b (mm)	L (mm)	M	S (mm)	Square Tube (mm)
098V602010	60 x 60, R7	11770	60	56.5	55	M10	45	60 x 60 x 2.0
098V602012	60 x 60, R7	11770	60	56.5	55	M12	45	60 x 60 x 2.0
098V602014	60 x 60, R7	11770	60	56.5	55	M14	45	60 x 60 x 2.0
098V602016	60 x 60, R7	11770	60	56.5	55	M16	45	60 x 60 x 2.0
098V602020	60 x 60, R7	11770	60	56.5	55	M20	45	60 x 60 x 2.0
098V603010	60 x 60, R7	11770	60	54.5	55	M10	45	60 x 60 x 3.0
098V603012	60 x 60, R7	11770	60	54.5	55	M12	45	60 x 60 x 3.0
098V603014	60 x 60, R7	11770	60	54.5	55	M14	45	60 x 60 x 3.0
098V603016	60 x 60, R7	11770	60	54.5	55	M16	45	60 x 60 x 3.0
098V603020	60 x 60, R7	11770	60	54.5	55	M20	45	60 x 60 x 3.0
098V604010	60 x 60, R7	11770	60	52.5	55	M10	45	60 x 60 x 4.0
098V604012	60 x 60, R7	11770	60	52.5	55	M12	45	60 x 60 x 4.0
098V604014	60 x 60, R7	11770	60	52.5	55	M14	45	60 x 60 x 4.0
098V604016	60 x 60, R7	11770	60	52.5	55	M16	45	60 x 60 x 4.0
098V604020	60 x 60, R7	11770	60	52.5	55	M20	45	60 x 60 x 4.0
