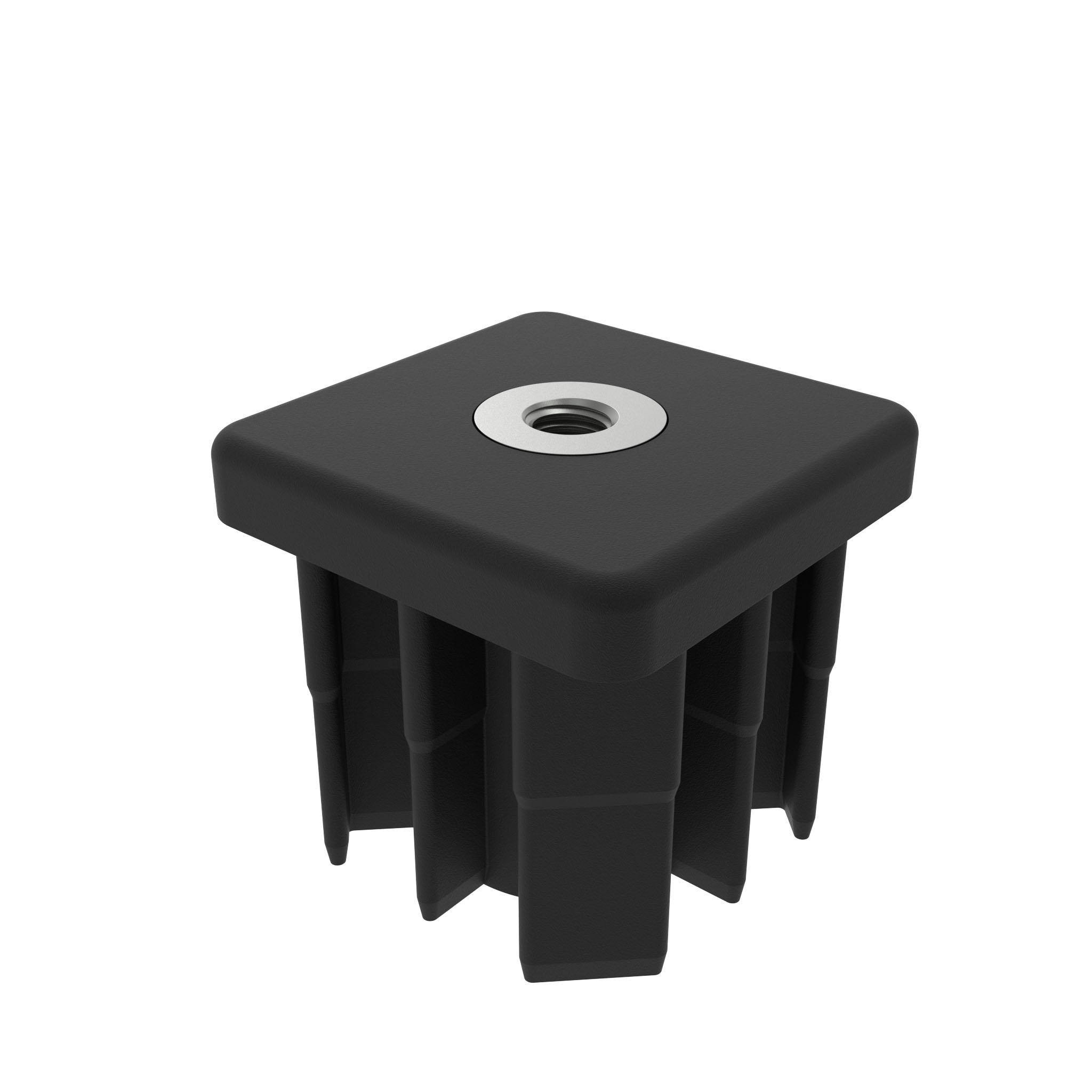

Threaded Bush for Square Tubes 60 x 60

Product information "Threaded Bush for Square Tubes 60 x 60"

Color:
Black

Delivery Countries:
Worldwide

Description:
To fit leveling feet to square, non-threaded tubes

Material:
Bush: Plastic PA, glass fiber reinforced
Threaded insert: Nickel plated brass

Specials:
ESD electrostatical discharging, other sizes, other colors on request

(ECLASS 6.0):	23111190
(ECLASS 7.0):	23111190
(ECLASS 8.0):	23111190
(ECLASS 9.0):	23111190
(ECLASS 10.0):	23111190
(ECLASS 11.0):	23111190
(ECLASS 12.0):	23111190
(ECLASS 13.0):	23111190
Customs Tariff Number Export:	39269097
ERP Number:	105053
Model:	Plastic PA, with brass threaded insert
Pack Quantity:	10 pieces
Weight (g):	147.0
Zolltarifnummer:	39269097900

Variants

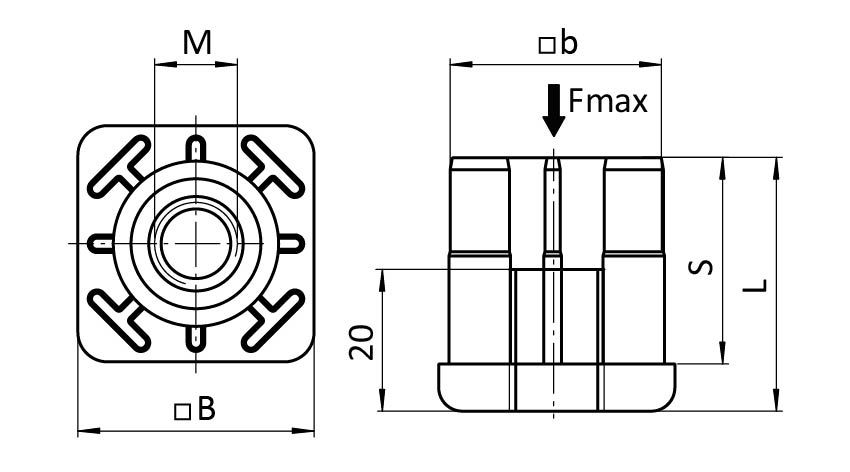

Product ID	S (mm)	Fmax (N)	L (mm)	Version	B (mm)	M	Square Tube (mm)	b (mm)
098V602010	45	11770	55	60 x 60, R7	60	M10	60 x 60 x 2.0	56.5
098V602012	45	11770	55	60 x 60, R7	60	M12	60 x 60 x 2.0	56.5
098V602014	45	11770	55	60 x 60, R7	60	M14	60 x 60 x 2.0	56.5
098V602016	45	11770	55	60 x 60, R7	60	M16	60 x 60 x 2.0	56.5
098V602020	45	11770	55	60 x 60, R7	60	M20	60 x 60 x 2.0	56.5
098V603010	45	11770	55	60 x 60, R7	60	M10	60 x 60 x 3.0	54.5
098V603012	45	11770	55	60 x 60, R7	60	M12	60 x 60 x 3.0	54.5
098V603014	45	11770	55	60 x 60, R7	60	M14	60 x 60 x 3.0	54.5
098V603016	45	11770	55	60 x 60, R7	60	M16	60 x 60 x 3.0	54.5
098V603020	45	11770	55	60 x 60, R7	60	M20	60 x 60 x 3.0	54.5
098V604010	45	11770	55	60 x 60, R7	60	M10	60 x 60 x 4.0	52.5
098V604012	45	11770	55	60 x 60, R7	60	M12	60 x 60 x 4.0	52.5
098V604014	45	11770	55	60 x 60, R7	60	M14	60 x 60 x 4.0	52.5
098V604016	45	11770	55	60 x 60, R7	60	M16	60 x 60 x 4.0	52.5
098V604020	45	11770	55	60 x 60, R7	60	M20	60 x 60 x 4.0	52.5
