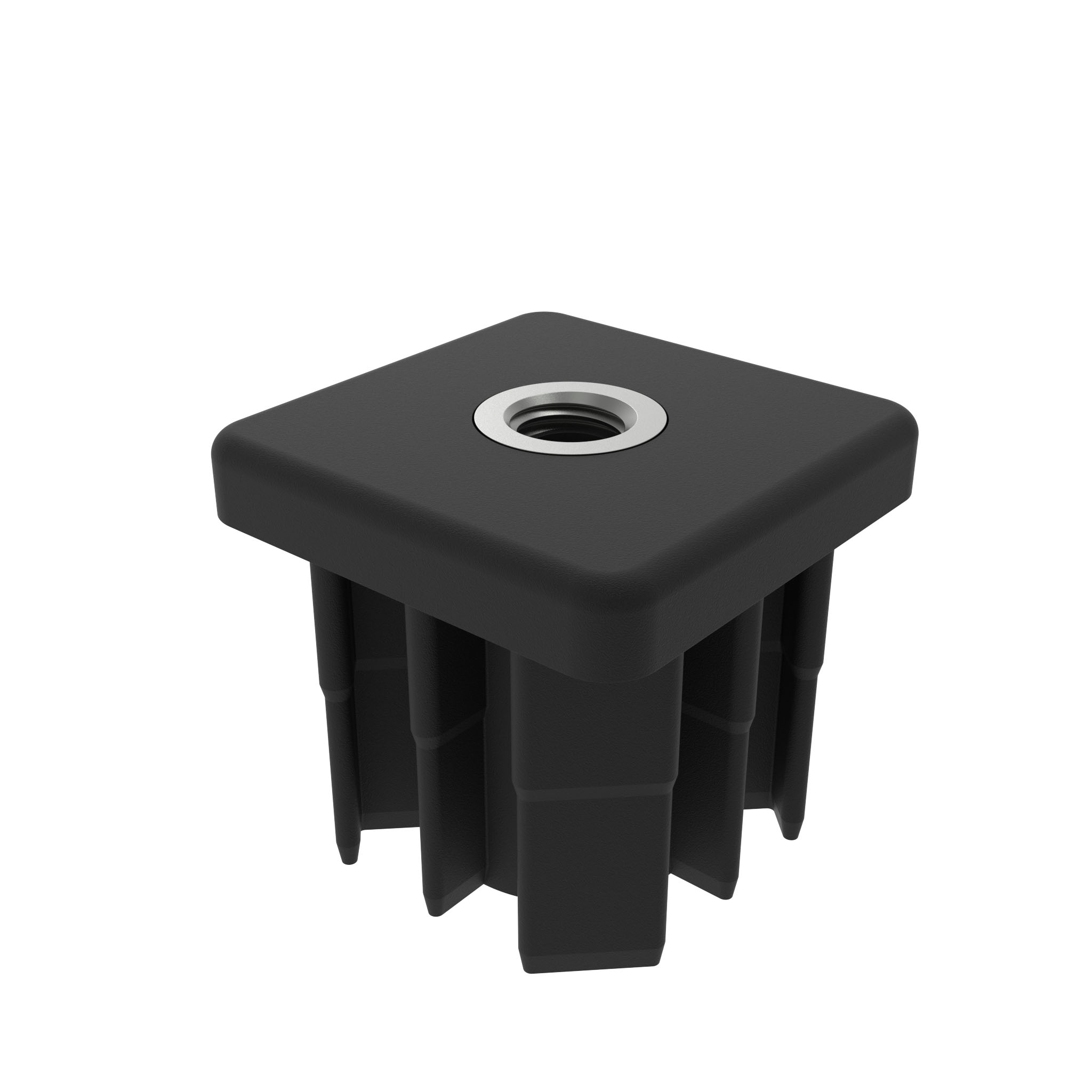

Threaded Bush for Square Tubes 60 x 60

Product information "Threaded Bush for Square Tubes 60 x 60"

Color:
Black

Delivery Countries:
Worldwide

Description:
To fit leveling feet to square, non-threaded tubes

Material:
Bush: Plastic PA, glass fiber reinforced
Threaded insert: Nickel plated brass

Specials:
ESD electrostatical discharging, other sizes, other colors on request

Pack Quantity:	10 pieces
Model:	Plastic PA, with brass threaded insert
Weight (g):	131.0
ECLASS 6.0:	23111190
ECLASS 7.0:	23111190
ECLASS 8.0:	23111190
ECLASS 9.0:	23111190
ECLASS 10.0:	23111190
ECLASS 11.0:	23111190
ECLASS 12.0:	23111190
ECLASS 13.0:	23111190
Zolltarifnummer:	39269097900
Customs Tariff Number Export:	39269097
ERP Number:	105063

Variants

Part #	Fmax (N)	Version	B (mm)	L (mm)	M	S (mm)	b (mm)	Square Tube (mm)
098V602010	11770	60 x 60, R7	60	55	M10	45	56.5	60 x 60 x 2.0
098V602012	11770	60 x 60, R7	60	55	M12	45	56.5	60 x 60 x 2.0
098V602014	11770	60 x 60, R7	60	55	M14	45	56.5	60 x 60 x 2.0
098V602016	11770	60 x 60, R7	60	55	M16	45	56.5	60 x 60 x 2.0
098V602020	11770	60 x 60, R7	60	55	M20	45	56.5	60 x 60 x 2.0
098V603010	11770	60 x 60, R7	60	55	M10	45	54.5	60 x 60 x 3.0
098V603012	11770	60 x 60, R7	60	55	M12	45	54.5	60 x 60 x 3.0
098V603014	11770	60 x 60, R7	60	55	M14	45	54.5	60 x 60 x 3.0
098V603016	11770	60 x 60, R7	60	55	M16	45	54.5	60 x 60 x 3.0
098V603020	11770	60 x 60, R7	60	55	M20	45	54.5	60 x 60 x 3.0
098V604010	11770	60 x 60, R7	60	55	M10	45	52.5	60 x 60 x 4.0
098V604012	11770	60 x 60, R7	60	55	M12	45	52.5	60 x 60 x 4.0
098V604014	11770	60 x 60, R7	60	55	M14	45	52.5	60 x 60 x 4.0
098V604016	11770	60 x 60, R7	60	55	M16	45	52.5	60 x 60 x 4.0
098V604020	11770	60 x 60, R7	60	55	M20	45	52.5	60 x 60 x 4.0
