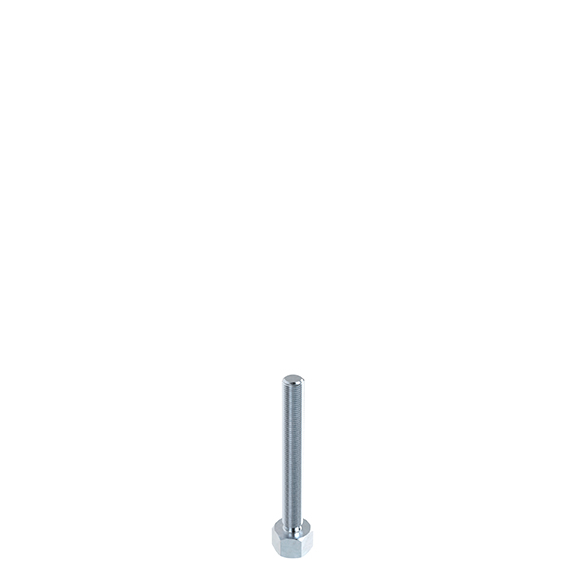

Threaded Rod ST UNC for Pivot Feet

Product information "Threaded Rod ST UNC for Pivot Feet"

Delivery Countries:
Worldwide

Description:
Threaded rod for pivot leveling feet

Material:
Steel

Specials:
Other lengths and sizes on request

Surface:
Zinc plated

Tip:
*2. For pivot feet: Assembly set 098XAMS03 included
* 2. For heavy-duty pivot feet: Assembly set 098XAUM included
Customs Tariff Number Export: 73181582
Model: Steel
Pack Quantity: 10 pieces
Screw Joint: Swiveling range ±4°
Weight (g): 128.0
Zolltarifnummer: 73181582900
pA Number: 103666

Variants

Product ID SW (mm) Material Fmax (N) UNC x L (in)
098AU1-4M 22 (7/8") Steel 35400 1-8 UNC x 4"
098AU1-6M 22 (7/8") Steel 35400 1-8 UNC x 6"
098AU1-8M 22 (7/8") Steel 35400 1-8 UNC x 8"
098AU1/2-3M 22 (7/8") Steel 7550
098AU1/2-4M 22 (7/8") Steel 7550
098AU1/2-5M 22 (7/8") Steel 7550
098AU1/2-6M 22 (7/8") Steel 7550
098AU11/4-4M 22 (7/8") Steel 56600 1 1/4-7 UNC x 4"
098AU11/4-6M 22 (7/8") Steel 56600 1 1/4-7 UNC x 6"
098AU11/4-8M 22 (7/8") Steel 56600 1 1/4-7 UNC x 8"
098AU3/4-4M 22 (7/8") Steel 23800 3/4-10 UNC x 4"
098AU3/4-5M 22 (7/8") Steel 23800 3/4-10 UNC x 5"
098AU3/4-6M 22 (7/8") Steel 23800 3/4-10 UNC x 6"
098AU3/4-8M 22 (7/8") Steel 23800 3/4-10 UNC x 8"
098AU5/8-3M 22 (7/8") Steel 14200
098AU5/8-4M 22 (7/8") Steel 14200
098AU5/8-5M 22 (7/8") Steel 14200
098AU5/8-6M 22 (7/8") Steel 14200
098AU5/8-8M 22 (7/8") Steel 14200
