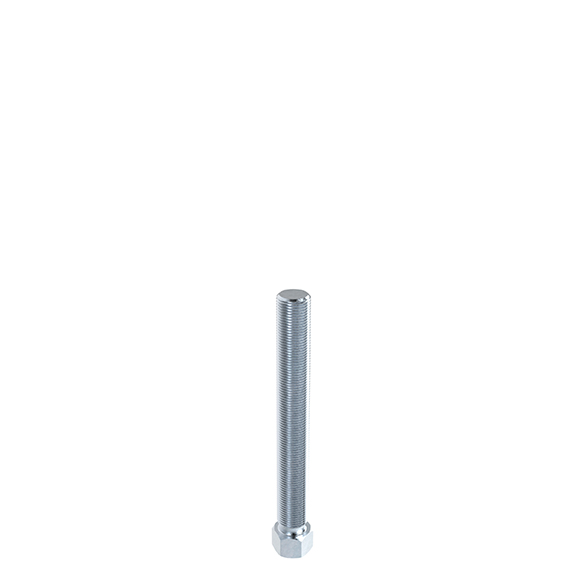

Threaded Rod ST UNC for Pivot Feet

Product information "Threaded Rod ST UNC for Pivot Feet"

Delivery Countries:
Worldwide

Description:
Threaded rod for pivot leveling feet

Material:
Steel

Specials:
Other lengths and sizes on request

Surface:
Zinc plated

Tip:
*1. For pivot feet: Assembly set 098XAMS03 included
*2. For heavy-duty pivot feet: Assembly set 098XAUM included

Model:	Steel
Pack Quantity:	10 pieces
Customs Tariff Number Export:	73181582
Screw Joint:	Swiveling range ±4°
Weight (g):	328.0
(ECLASS 6.0):	90900103
(ECLASS 7.0):	90900103
(ECLASS 8.0):	90900103
(ECLASS 9.0):	90900103
(ECLASS 10.0):	90900103
(ECLASS 11.0):	90900103
(ECLASS 12.0):	90900103
(ECLASS 13.0):	90900103
(ECLASS 14.0):	90900103
(ECLASS 15.0):	90900103
(ECLASS 16.0):	23010705
ERP Number:	103689
Zolltarifnummer:	73181582900

Variants

Part #	Fmax (N)	Material	SW (mm)	UNC x L (in)
098AU1-4M	35400	Steel	22 (7/8")	1-8 UNC x 4"
098AU1-6M	35400	Steel	22 (7/8")	1-8 UNC x 6"
098AU1-8M	35400	Steel	22 (7/8")	1-8 UNC x 8"
098AU1/2-3M	7550	Steel	22 (7/8")	-
098AU1/2-4M	7550	Steel	22 (7/8")	-
098AU1/2-5M	7550	Steel	22 (7/8")	-
098AU1/2-6M	7550	Steel	22 (7/8")	-
098AU11/4-4M	56600	Steel	22 (7/8")	1 1/4-7 UNC x 4"
098AU11/4-6M	56600	Steel	22 (7/8")	1 1/4-7 UNC x 6"
098AU11/4-8M	56600	Steel	22 (7/8")	1 1/4-7 UNC x 8"
098AU3/4-4M	23800	Steel	22 (7/8")	3/4-10 UNC x 4"
098AU3/4-5M	23800	Steel	22 (7/8")	3/4-10 UNC x 5"
098AU3/4-6M	23800	Steel	22 (7/8")	3/4-10 UNC x 6"
098AU3/4-8M	23800	Steel	22 (7/8")	3/4-10 UNC x 8"
098AU5/8-3M	14200	Steel	22 (7/8")	-
098AU5/8-4M	14200	Steel	22 (7/8")	-
098AU5/8-5M	14200	Steel	22 (7/8")	-
098AU5/8-6M	14200	Steel	22 (7/8")	-
098AU5/8-8M	14200	Steel	22 (7/8")	-
