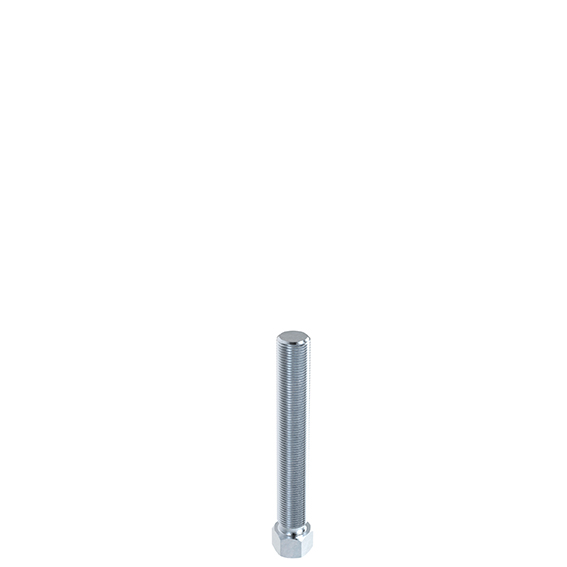

Threaded Rod ST UNC for Pivot Feet

Product information "Threaded Rod ST UNC for Pivot Feet"

Delivery Countries:
Worldwide

Description:
Threaded rod for pivot leveling feet

Material:
Steel

Specials:
Other lengths and sizes on request

Surface:
Zinc plated

Tip:
*2. For pivot feet: Assembly set 098XAMS03 included
* 2. For heavy-duty pivot feet: Assembly set 098XAUM included

Zolltarifnummer:
73181582900

Model:	Steel
Pack Quantity:	10 pieces
Screw Joint:	Swiveling range ±4°
Weight (g):	281.0

Variants

Product ID	SW (mm)	Material	Fmax (N)	UNC x L (in)
098AU1-4M	22 (7/8")	Steel	35400	1-8 UNC x 4"
098AU1-6M	22 (7/8")	Steel	35400	1-8 UNC x 6"
098AU1-8M	22 (7/8")	Steel	35400	1-8 UNC x 8"
098AU1/2-3M	22 (7/8")	Steel	7550
098AU1/2-4M	22 (7/8")	Steel	7550
098AU1/2-5M	22 (7/8")	Steel	7550
098AU1/2-6M	22 (7/8")	Steel	7550
098AU11/4-4M	22 (7/8")	Steel	56600	1 1/4-7 UNC x 4"
098AU11/4-6M	22 (7/8")	Steel	56600	1 1/4-7 UNC x 6"
098AU11/4-8M	22 (7/8")	Steel	56600	1 1/4-7 UNC x 8"
098AU3/4-4M	22 (7/8")	Steel	23800	3/4-10 UNC x 4"
098AU3/4-5M	22 (7/8")	Steel	23800	3/4-10 UNC x 5"
098AU3/4-6M	22 (7/8")	Steel	23800	3/4-10 UNC x 6"
098AU3/4-8M	22 (7/8")	Steel	23800	3/4-10 UNC x 8"
098AU5/8-3M	22 (7/8")	Steel	14200
098AU5/8-4M	22 (7/8")	Steel	14200
098AU5/8-5M	22 (7/8")	Steel	14200
098AU5/8-6M	22 (7/8")	Steel	14200
098AU5/8-8M	22 (7/8")	Steel	14200
