Turning Angles

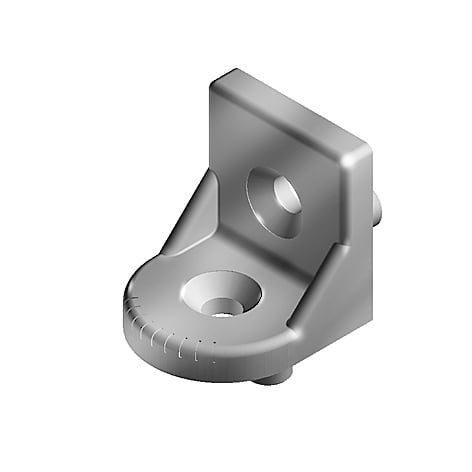

Turning Angle 30
€0.00*
Color:
Alu color
|
Slot N (mm):
8
|
Surface:
Powder coated
|
Version:
With assembly set 1
Assembly Set 1:1 screw DIN 7984 - M6 x 14, 1 screw DIN 7984 - M8 x 16, 1 washer DIN EN ISO 7089 (DIN 125) - M6, 1 hammer nut - slot 10 - M8, 1 hammer nut - slot 8 - M6, 2 centering pieces - slot 8 to slot 10Assembly Set 2:2 screws DIN 7984 - M8 x 16, 2 hammer nuts - slot 10 - M8, 4 centering pieces - slot 8 to slot 10Color:Turning angle: Alu color Centering piece: BlackDelivery Countries:WorldwideDescription:To connect aluminum profiles at various angles from 0° to 180°Material:Angle: Aluminum die-cast Centering piece: Plastic PA, glass fiber reinforced Assembly set: SteelSurface:Turning angle: Plain / powder coated Assembly set: Zinc platedTip:Compatible Centering Piece Widening Slot 8 to Slot 10 see 093W02Zolltarifnummer:76169910990

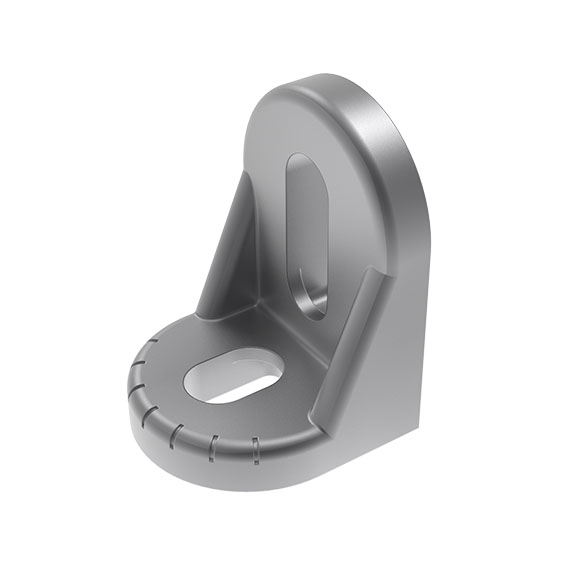

Turning Angle 45
€0.00*
Slot N (mm):
10
|
Version:
-
Assembly Set:2 screws DIN 7991 - M8 x 18, 2 hammer nuts - slot 10 - M8, 4 Centering bolt slot 8, 4 Centering bolt slot 10Color:Turning angle: Alu color Centering bolts: BlackDelivery Countries:WorldwideDescription:To connect aluminum profiles at various angles from 0° to 180°Material:Turning Angle: Aluminum die-cast Centering bolts: Plastic PA, glass fiber reinforced Assembly set: SteelSurface:Turning angle: Plain / powder coated Assembly set: Zinc platedTip:* With 4 centering bolts slot 8 and 4 centering bolts slot 10Zolltarifnummer:76169910990
