Universal Connectors
Roll-in Double T-slot Nut for Universal Connector I, Slot 6
Delivery Countries:WorldwideDescription:Roll-in double T-slot nutMaterial:SteelSpecials:Different lengths with multiple threads in different sizes available on requestSurface:Zinc plated

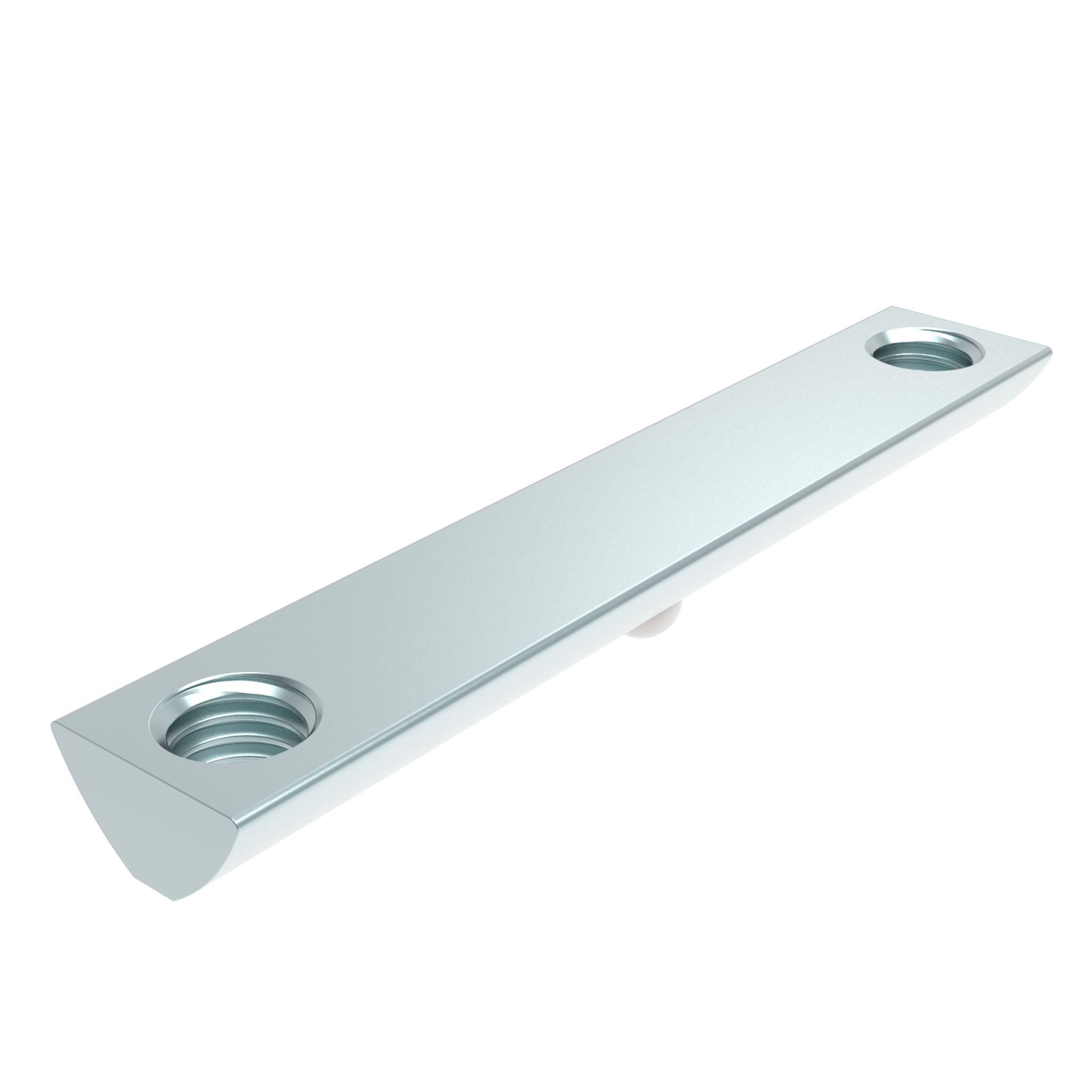

Roll-in Double T-slot Nut for Universal Connector I, Slot 8
Delivery Countries:WorldwideDescription:Roll-in double T-slot nutMaterial:Double T-slot nut: Steel Ball: Stainless steel Spring: Spring steelSpecials:Different lengths with multiple threads in different sizes available on requestSurface:Double T-slot nut: Zinc-plated Ball: Plain Spring: Plain

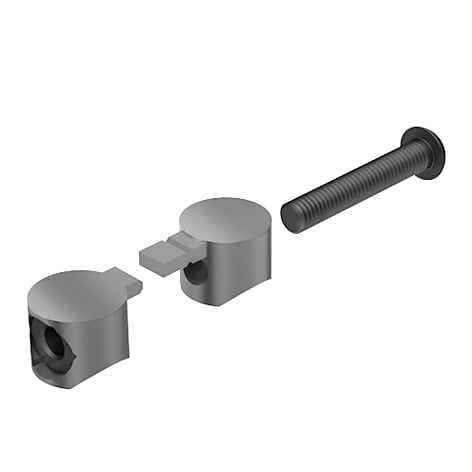

Universal Butt Connector I
Delivery Countries:WorldwideDescription:End-to-end connection of two aluminum profiles Of the same type; assembly set includedMaterial:Zinc die-castSurface:Zinc platedTip:*Without nut, thread integrated
Universal Connector B
Assembly Set:1 screw DIN EN ISO 4762 (DIN 912) -M8 x 30, 1 T-slot nut, slot 10, with spring leafDelivery Countries:WorldwideDescription:To connect two aluminum profilesMaterial:Universal connector: Zinc die-cast Assembly set: SteelSurface:Universal connector: Plain Assembly set: Zinc plated

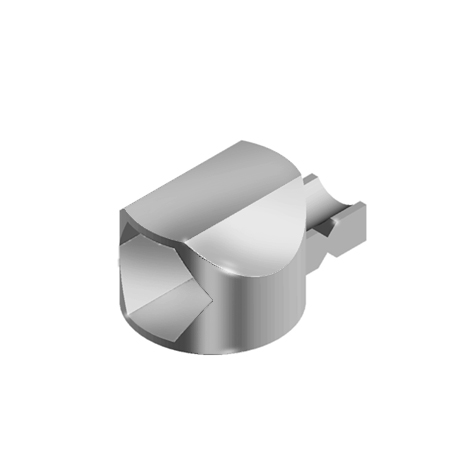

Universal Connector I
Assembly Set 1:1 T-slot nut - slot 5 - M4, 1 screw DIN EN ISO 4762 (DIN 912) - M4 x 14Assembly Set 2:1 T-slot nut - slot 6 - M6, 1 screw DIN EN ISO 7380 (DIN 34805) - M6 x 22Assembly Set 3:1 T-slot nut - slot 8 - M8, 1 screw DIN EN ISO 7380 (DIN 34805) - M8 x 30Assembly Set 4:Stainless steel: 1 T-slot nut - slot 8 - M8, 1 screw DIN EN ISO 7380 (DIN 34805) - M8 x 30Delivery Countries:WorldwideDescription:To connect two aluminum profilesMaterial:Zinc die-cast / stainless steelSurface:Zinc plated / plain
