System Hinges

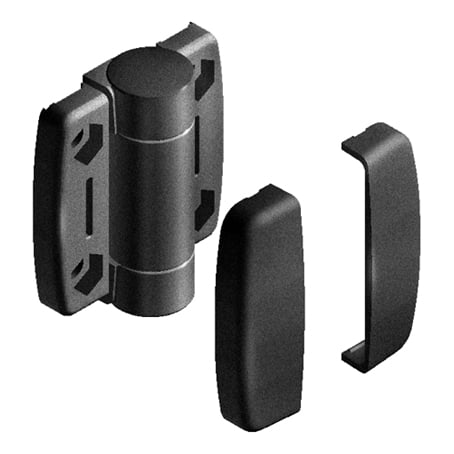

System Hinge 30
Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profiles, with cover capsFastening:From the front using M6 screws, from the back using hexagon nuts and boltsMaterial:Plastic PA, glass fiber reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors on requestTip:Combinations of different wing sizes are available on request
System Hinge 30 with Adjustable Friction
Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profiles; to hold a door open at an angle at any angle; infinitely variable from 0 - 5 Nm hinge moment; also supports lightweight doorsFastening:From the front using M6 screws, from the back using hexagon nuts and boltsMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelSpecials:ESD electrostatical discharging, other sizes, other colors on requestTip:Combinations of different wing sizes are available on request
System Hinge 30 with Positioning Function
Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profiles, with cover caps; to hold a door open at an angle at 85° or 175° or to keep it securely closedFastening:From the front using M6 screws, from the back using hexagon nuts and boltsMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelSpecials:ESD electrostatical discharging, other sizes, other colors on requestTip:Combinations of different wing sizes are available on request *+/- 25% of the setting value

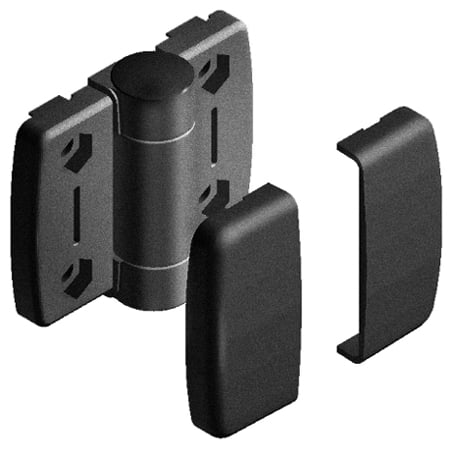

System Hinge 40
Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profiles; with cover capsFastening:From the front using M6 screws, from the back using hexagon nuts and boltsMaterial:Plastic PA, glass fiber reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors on requestTip:Combinations of different wing sizes are available on request
System Hinge 40 with Adjustable Friction
Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profiles; to hold a door open at an angle at any angle; infinitely variable from 0 - 5 Nm hinge moment; also supports lightweight doorsFastening:From the front using M6 screws, from the back using hexagon nuts and boltsMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelSpecials:ESD electrostatical discharging, other sizes, other colors on requestTip:Combinations of different wing sizes are available on request
System Hinge 40 with Positioning Function
Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profiles, with cover caps; to hold a door open at an angle at 85° or 175° or to keep it securely closedFastening:From the front using M6 screws, from the back using hexagon nuts and boltsMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelSpecials:ESD electrostatical discharging, other sizes, other colors on requestTip:Combinations of different wing sizes are available on request *+/- 25% of the setting value
