Uni Blocks

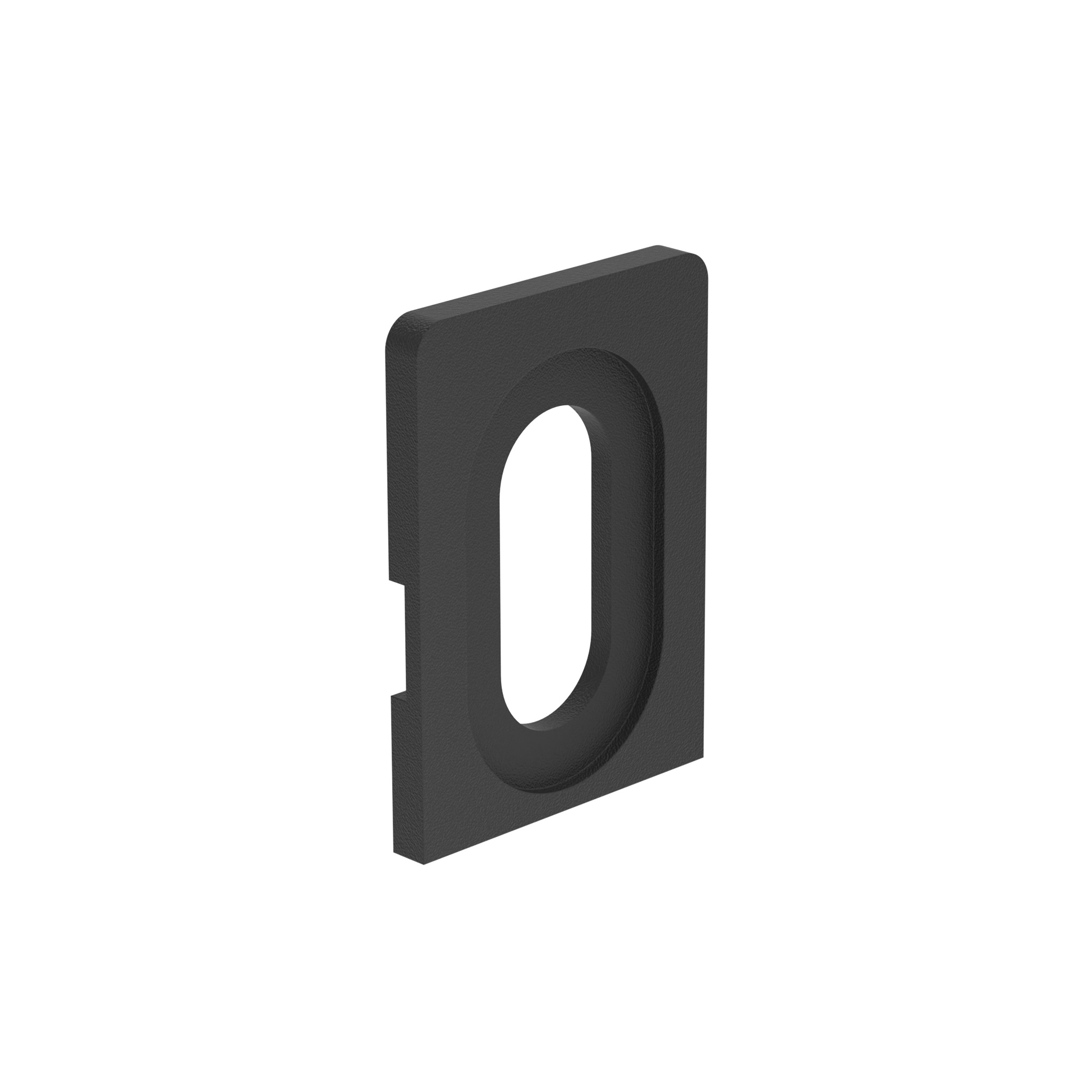

Spacer CS for Uni Blocks 18 / 25, Black

Color: Black D (mm): *2.0

Color:BlackDelivery Countries:WorldwideDescription:For height adjustment of the contact surfaces, for flush mounting of panelsMaterial:Plastic PA, glass fiber reinforcedTip:Compatible Uni Block see 094100M4, 094100CSM6, 094003M4, 094003CSM6, 094020CLIPM6, 094003GM6 and 094010M4Tip 2:* No further spacers can be added!

€0.00

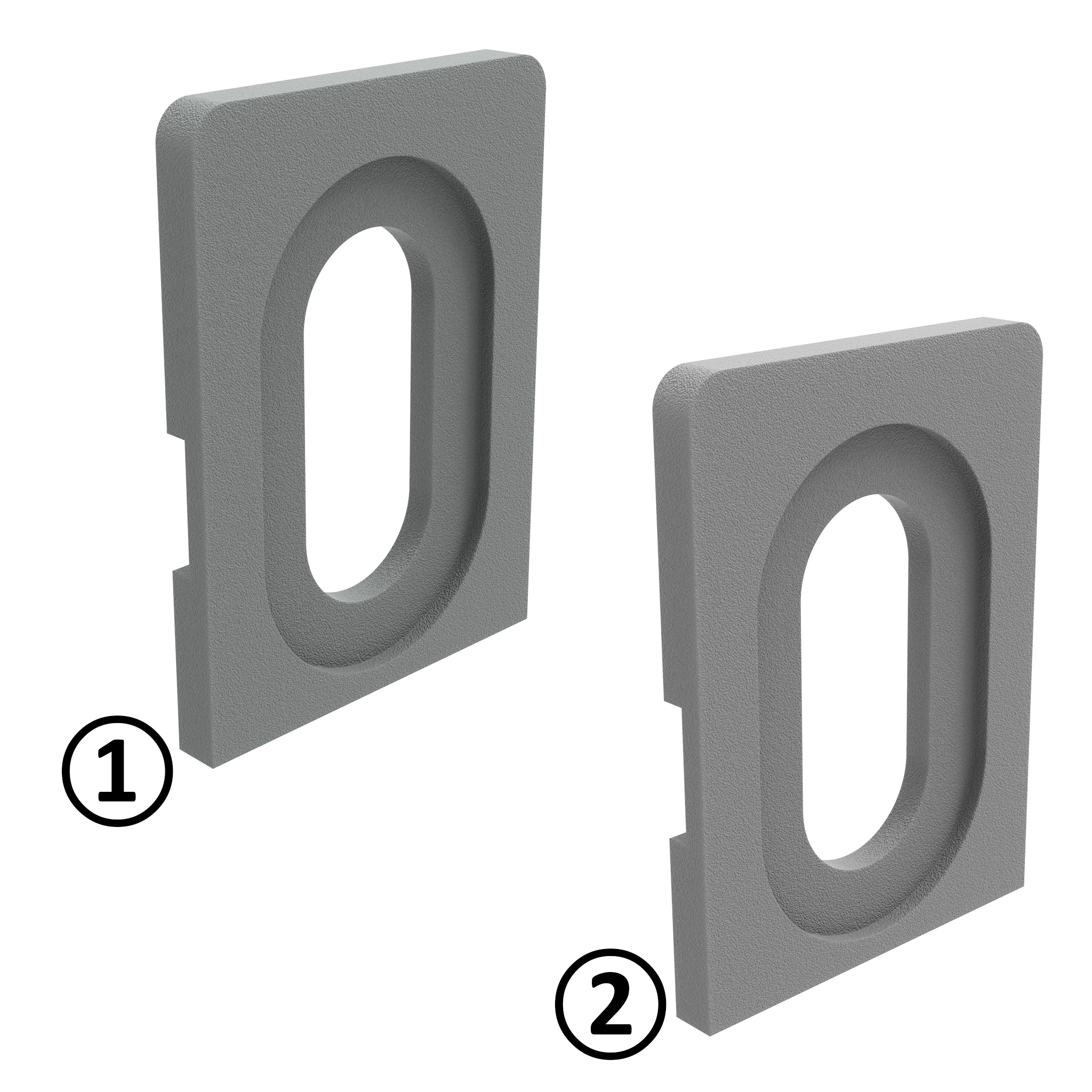

Spacer CS for Uni Blocks 18 / 25, Gray

Color: Gray ≈ RAL 7042 D (mm): 3.0 Fig.: ①

Color:GrayDelivery Countries:WorldwideDescription:For height adjustment of the contact surfaces, for flush mounting of panelsMaterial:Plastic PA, glass fiber reinforcedTip:Compatible Uni Block see 094100CSM6S01 and 094003CSM6S01Tip 2:* No further spacers can be added!

€0.00

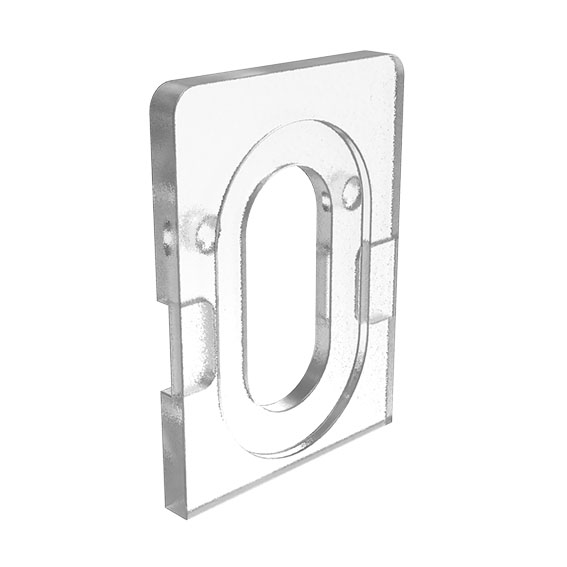

Spacer CS for Uni Blocks 25, transparent colorless

Color: Transparent (colorless) D (mm): *2.0

Color:Transparent (colorless)Delivery Countries:WorldwideDescription:For height adjustment of the contact surfaces, for flush mounting of panelsMaterial:Plastic PCTip:Compatible Uni Block see 094003GM6Tip 2:* No further spacers can be added!

€0.00

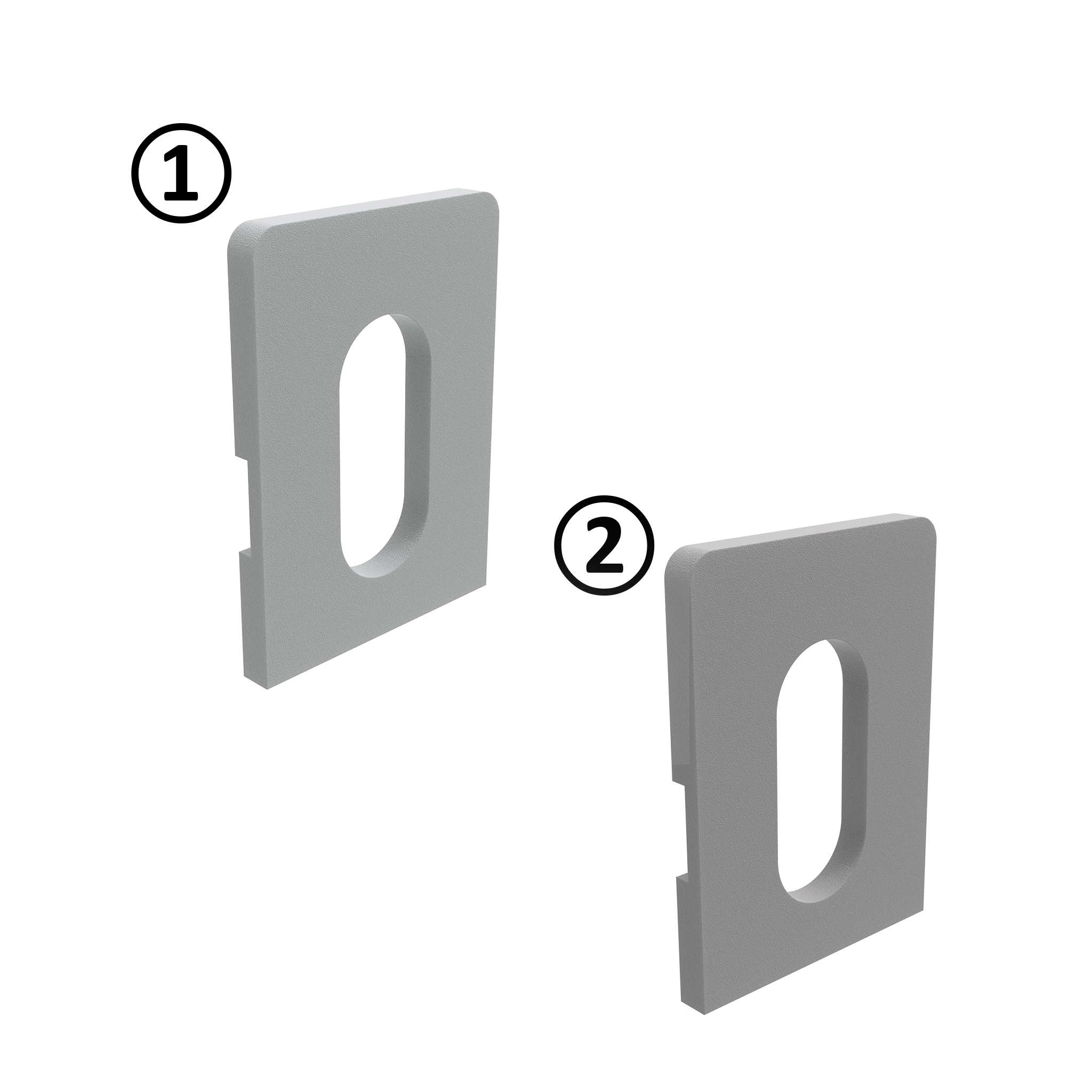

Spacer for Uni Blocks 18 / 25, Gray

Color: Gray ≈ RAL 7004 D (mm): 3.0 Fig.: ①

Color:GrayDelivery Countries:WorldwideDescription:For height adjustment of the contact surfaces, for flush mounting of panelsMaterial:Plastic PA, glass fiber reinforcedTip:Compatible Uni Block see 094100M4S01 and 094003M4S01Tip 2:* No further spacers can be added!

€0.00

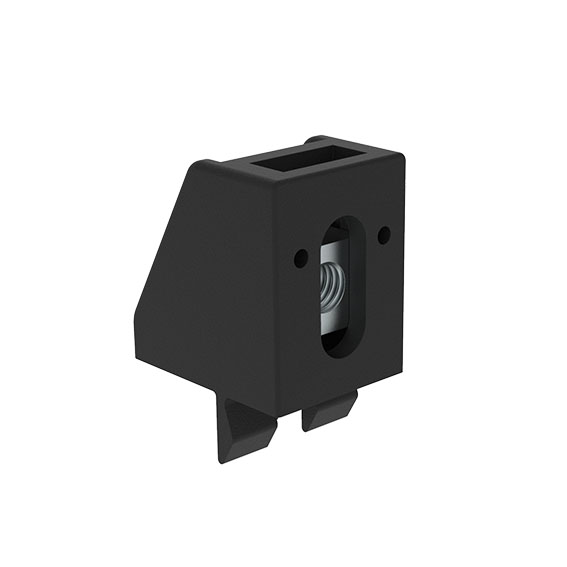

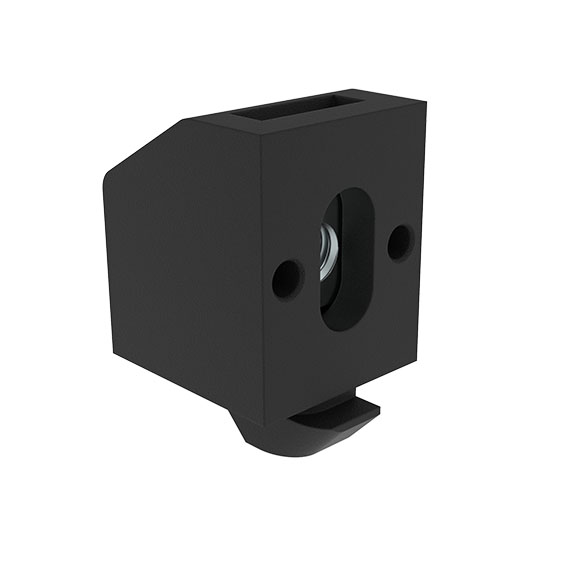

Uni Block 14, Black

A1 (mm): 4.0 A2 (Profile) (mm): 1.6 (1.8) M: M4 Profile: I Slot N (mm): 5

Color:BlackDelivery Countries:WorldwideDescription:To attach panels easily to aluminum profilesMaterial:Block: Plastic PA, glass fiber reinforced Nut: Zinc plated steelSpecials:Customized hammer, other colors on requestTip:Compatible Spacer see 094901

€0.00

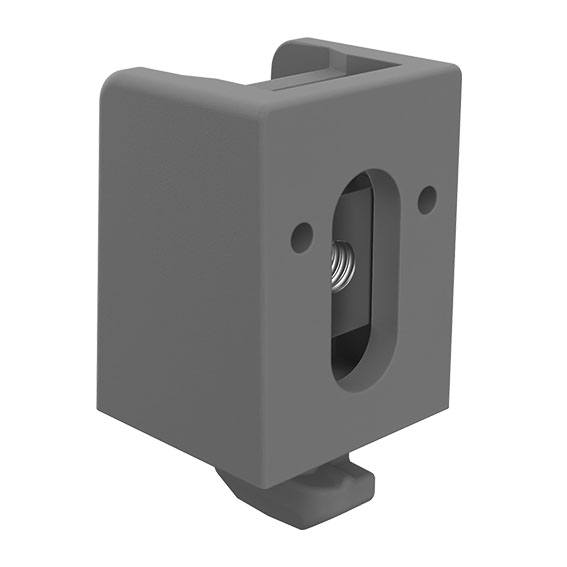

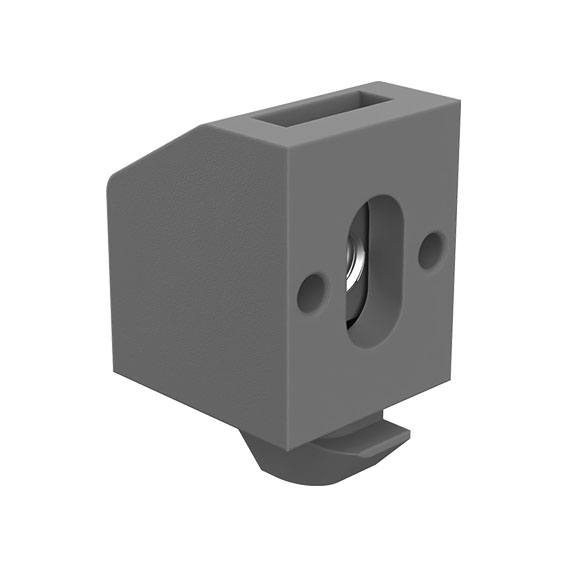

Uni Block 14, Gray

A1 (mm): 4.0 A2 (Profile) (mm): 1.6 (1.8) M: M4 Profile: I Slot N (mm): 5

Color:Gray ≈ RAL 7042Delivery Countries:WorldwideDescription:To attach panels easily to aluminum profilesMaterial:Block: Plastic PA, glass fiber reinforced Nut: Zinc plated steelSpecials:Customized hammer, other colors on requestTip:Compatible Spacer see 094901S03

€0.00

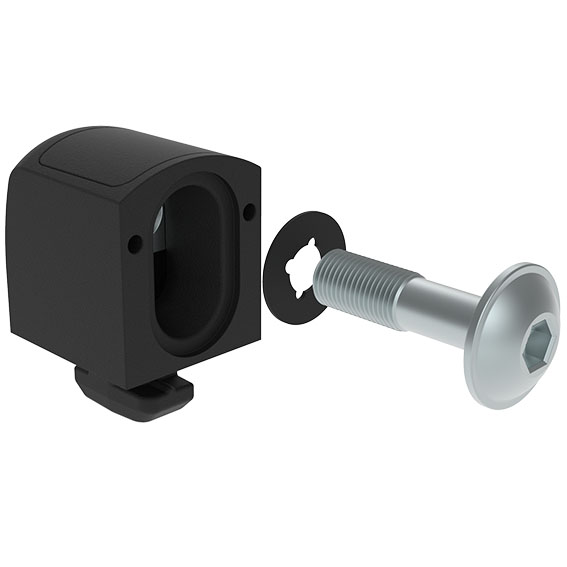

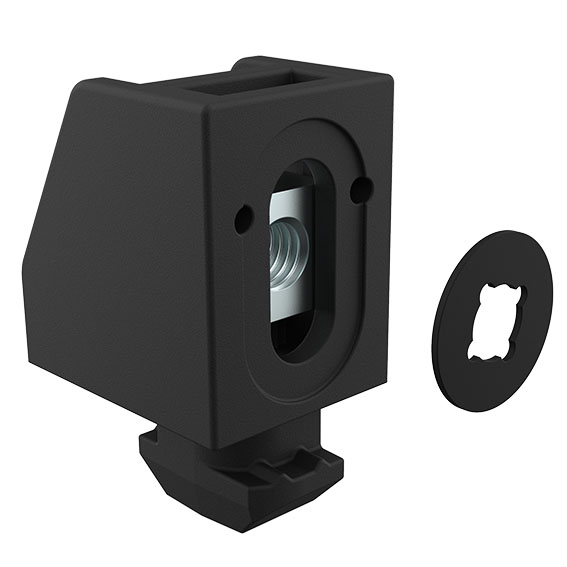

Uni Block 18 CS, Black

A1 (mm): 7.0 A2 (Profile) (mm): 2.7 (3.0) M: M6 Profile: I Slot N (mm): 6

Color:BlackDelivery Countries:WorldwideDescription:To attach panels safely to aluminum profiles; with screw reatiner to comply with Machinery Directive 2006/42/ECMaterial:Block: Plastic PA, glass fiber reinforced Nut: Zinc plated steelSpecials:Customized hammer, other colors on requestTip:Compatible Spacer see 094102CS

€0.00

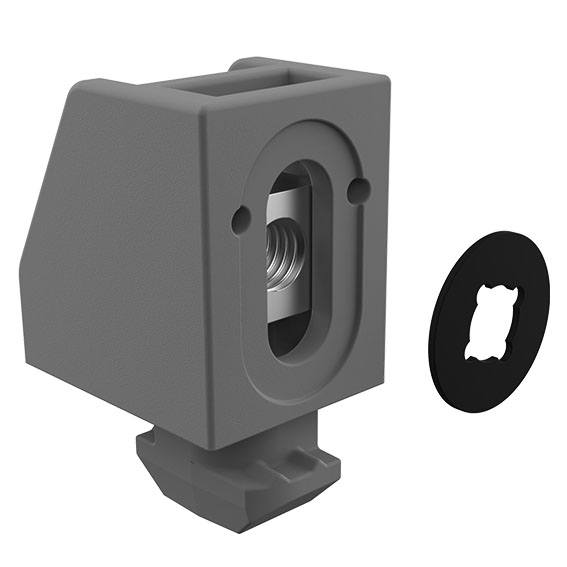

Uni Block 18 CS, Gray

A1 (mm): 7.0 A2 (Profile) (mm): 1.9 (2.2) Color: Gray ≈ RAL 7004 M: M6 Profile: B Slot N (mm): 8

Color:GrayDelivery Countries:WorldwideDescription:To attach panels safely to aluminum profiles; with screw reatiner to comply with Machinery Directive 2006/42/ECMaterial:Block: Plastic PA, glass fiber reinforced Nut: Zinc plated steelSpecials:Customized hammer, other colors on requestTip:Compatible Spacer see 094102CSS03

€0.00

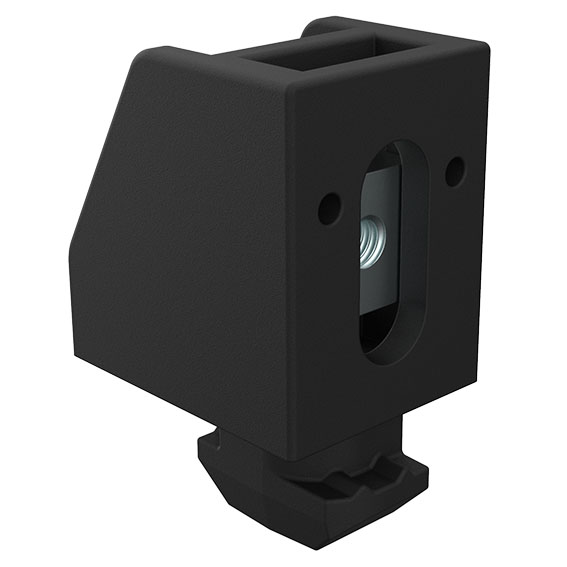

Uni Block 18, Black

A1 (mm): 7.0 A2 (Profile) (mm): 1.9 (2.2) M: M6 Profile: B Slot N (mm): 8

€0.00

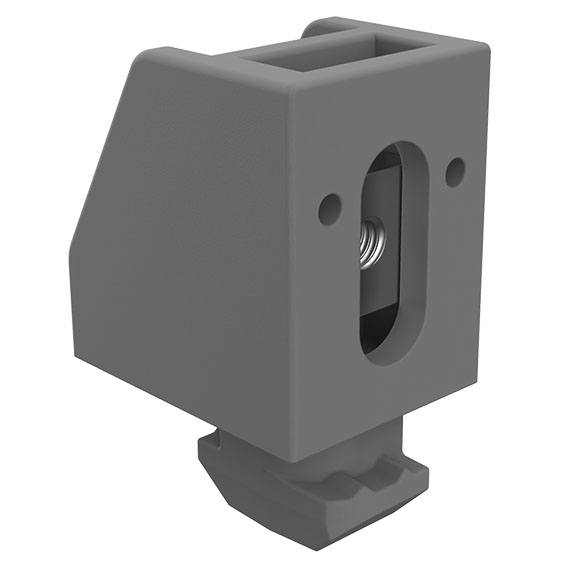

Uni Block 18, Gray

A1 (mm): 7.0 A2 (Profile) (mm): 2.7 (3.0) Color: Gray ≈ RAL 7042 M: M5 Profile: I Slot N (mm): 6

Color:GrayDelivery Countries:WorldwideDescription:To attach panels easily to aluminum profilesMaterial:Block: Plastic PA, glass fiber reinforced Nut: Zinc plated steelSpecials:Customized hammer, other colors on requestTip:Compatible Spacer see 094102S10

€0.00

Uni Block 25 Clip

A1 (mm): 12.0 A2 (Profile) (mm): 4.4 (4.5) M: M6 Profile: I Slot N (mm): 8

Color:BlackDelivery Countries:WorldwideDescription:To attach panels simply to aluminum profiles; the clip feature makes it possible to pre-mount the block to the panelMaterial:Block: Plastic PA, glass fiber reinforced Nut: Zinc plated steelSpecials:Customized clips, other colors on requestTip:Compatible Spacer see 094102CS

€0.00

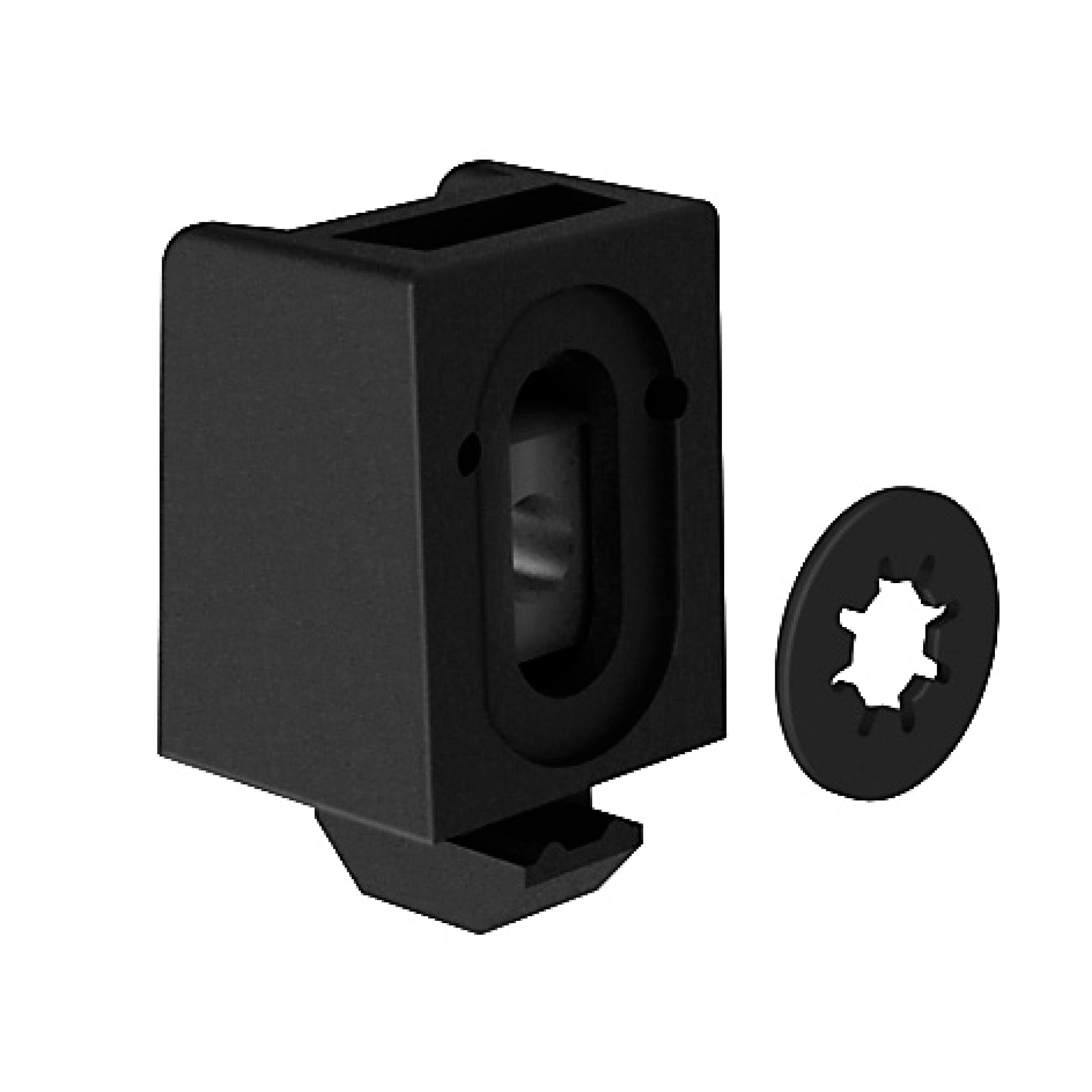

Uni Block 25 CS, Black

A1 (mm): 12.0 A2 (Profile) (mm): 4.4 (4.5) M: M6 Profile: I Slot N (mm): 8

€0.00

Uni Block 25 CS, Gray

A1 (mm): 14.0 A2 (Profile) (mm): 4.6 (4.5) Color: Gray ≈ RAL 7042 M: M6 Profile: I Slot N (mm): 8

€0.00

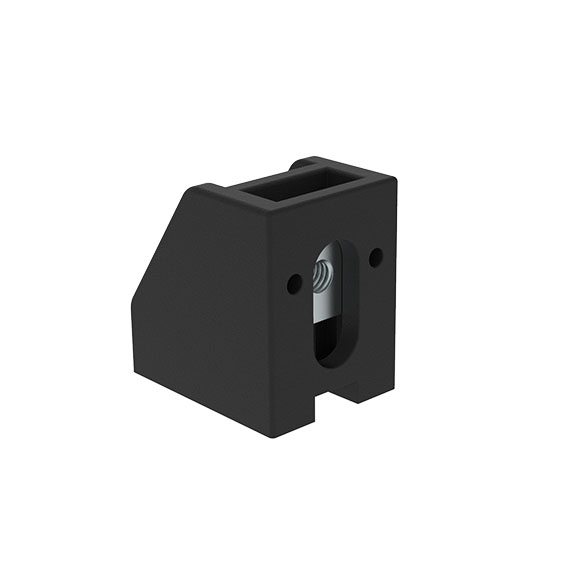

Uni Block 25 EH

M: M5

Color:BlackDelivery Countries:WorldwideDescription:To join panels and aluminum profiles of various dimensionsMaterial:Block: Plastic PA, glass fiber reinforced Nut: Zinc plated steelSpecials:ESD electrostatical discharging, other sizes, other colors on requestTip:Compatible Spacer see 094102CS

€0.00

Uni Block 25, Black

A1 (mm): 14.0 A2 (Profile) (mm): 4.6 (4.5) M: M5 Material: - Profile: I Slot N (mm): 8

€0.00

Uni Block 25, Gray

A1 (mm): 14.0 A2 (Profile) (mm): 4.6 (4.5) Color: Gray ≈ RAL 7042 M: M6 Profile: I Slot N (mm): 8

€0.00

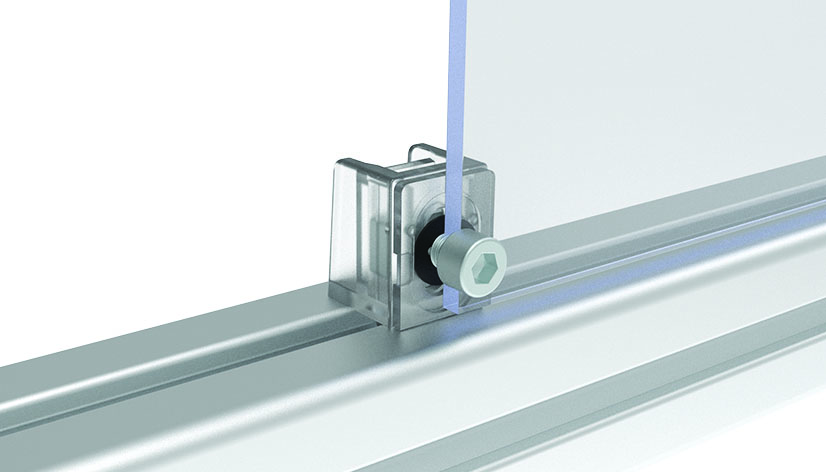

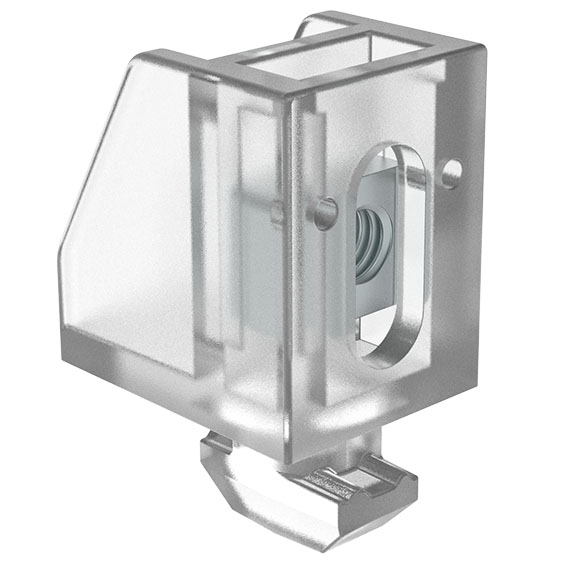

Uni Block 25, transparent colorless

A1 (mm): 14.0 A2 (Profile) (mm): 6.0 (6.0) M: M6 Profile: B Slot N (mm): 10

Color:Transparent (colorless)Delivery Countries:WorldwideDescription:To attach panels easily to aluminum profilesMaterial:Block: Plastic PC Nut: Zinc plated steelSpecials:Customized hammer on requestTip:Compatible Spacer see 094102CSG

€0.00

Uni Block 26 CS (Set)

A1 (mm): 14.0 A2 (Profile) (mm): 6.3 (6.0) Profile: B Slot N (mm): 10

Color:BlackDelivery Countries:WorldwideDescription:To attach panels with a thickness of 2 - 8 mm safely to aluminum profiles; with screw retainer to comply withMachinery Directive 2006/42/ECMaterial:Block: Plastic PA, glass fiber reinforced Nut: Zinc plated steelSpecials:Customized hammer, other colors on request

€0.00
