Sliding Door Guides
Bearing Kit 1 Roller Shaft Ø 14 for C-slide Profile I (Set)
€0.00*
Profile:
I
Color:Wiper and lubricators: BlackDelivery Countries:WorldwideDescription:For the construction of bearing units, assembly with machining to C-slide profile I To linearly guide loads, steel roller with ball bearings runs directly on shaft Ø 14 mmMaterial:Roller: Steel Carrier plate: Steel Screws: Steel Threaded sleeve: Steel Press nuts: Steel Tension pin: Steel Wiper and lubricators: Plastic PA / felt / spring steel Wood screws: SteelSet:1 roller 1 carrier plate 3 screws DIN EN ISO 10642 (DIN 7991) - M8 x 16 1 threaded sleeve - M8 2 press nuts - M8 1 tension pin 2 wiper and lubricators 2 wood screws - 3.5 x 20Surface:Roller: Zinc plated Carrier plate: Zinc plated Screws: Zinc plated Threaded sleeve: Zinc plated Press nuts: Zinc plated Tension pin: Zinc plated Wood screws: Zinc platedTip:Compatible Cover Cap for C-slide Profile I (Set) see 091401S01 Ready Bearing Unit 1 Roller Shaft Ø 14 for C-Rail-Profile I see 093CIUD141SA128S01
Bearing Kit 3 Rollers Shaft Ø 14 for C-slide Profile I (Set)
€0.00*
Profile:
I
Color:Wiper and lubricators: BlackDelivery Countries:WorldwideDescription:For the construction of bearing units, assembly with machining to C-slide profile I To linearly guide loads, steel rollers with ball bearings runs directly on shaft Ø 14 mm To tighten the eccentric screw, a pin spanner is needed for the four holes of the adjusting washerMaterial:Rollers: Steel Carrier plate: Steel Screws: Steel Threaded sleeves: Steel Press nuts: Steel Excentric screw: Steel Adjusting washer: Steel Tension pin: Steel Wiper and lubricators: Plastic PA / felt / spring steel Wood screws: SteelSet:3 rollers 1 carrier plate 3 screws DIN EN ISO 10642 (DIN 7991) - M8 x 16 2 threaded sleeve - M8 2 press nuts - M8 1 excentric screw M8 1 adjusting washer - M8 1 tension pin 2 wiper and lubricators 2 wood screws - 3.5 x 20Surface:Rollers: Zinc plated Carrier plate: Zinc plated Screws: Zinc plated Threaded sleeves: Zinc plated Press nuts: Zinc plated Excentric screw: Zinc plated Adjusting washer: Zinc plated Tension pin: Zinc plated Wood screws: Zinc platedTip:Compatible Cover Cap for C-slide Profile I (Set) see 091401S01 Ready Bearing Unit 3 Rollers Shaft Ø 14 for C-Rail-Profile I see 093CIUD141SA208S01
Bearing Kit PA 1 Roller Slot Ø 14 for C-slide Profile I (Set)
€0.00*
Profile:
I
Color:Roller: BlackDelivery Countries:WorldwideDescription:For the construction of bearing units, assembly with machining to C-slide profile I To linearly guide small loads, plastic roller with slide bearings runs directly on the aluminum of the slot with Ø 14 mmMaterial:Roller: Plastic PA Carrier plate: Steel Screws: Steel Threaded sleeve: Steel Press nuts: Steel Tension pin: SteelSet:1 roller 1 carrier plate 3 screws DIN EN ISO 10642 (DIN 7991) - M8 x 16 1 threaded sleeve - M8 2 press nuts - M8 1 tension pinSurface:Carrier plate: Zinc plated Screws: Zinc plated Threaded sleeve: Zinc plated Press nuts: Zinc platedTip:Compatible Cover Cap for C-slide Profile I (Set) see 091401S01 Ready Bearing Unit PA 1 Roller for C-Rail-Profile I Slot Ø 14 see 093CAU081A128S01
Bearing Unit 1 Roller Shaft Ø 14 for C-Rail-Profile I
€0.00*
Profile:
I
Color:Wiper and lubricators: Black Cover caps: BlackDelivery Countries:WorldwideDescription:To build sliding doors To linearly guide loads, steel roller with ball bearings runs directly on shaft Ø 14 mmMaterial:Roller: Steel Carrier plate: Steel Screws: Steel Threaded sleeve: Steel Press nuts: Steel Tension pin: Steel Wiper and lubricators: Plastic PA / felt / spring steel Wood screws: Steel Profile: Aluminum Cover caps: Plastic PA, glass fibre reinforcedSurface:Roller: Zinc plated Carrier plate: Zinc plated Screws: Zinc plated Threaded sleeve: Zinc plated Press nuts: Zinc plated Tension pin: Zinc plated Wood screws: Zinc plated Profile: Anodized
Bearing Unit 3 Rollers Shaft Ø 14 for C-Rail-Profile I
€0.00*
Profile:
I
Color:Wiper and lubricators: Black Cover caps: BlackDelivery Countries:WorldwideDescription:To build sliding doors To linearly guide loads, steel roller with ball bearings runs directly on shaft Ø 14 mm To tighten the eccentric screw, a pin spanner is needed for the four holes of the adjusting washerMaterial:Rollers: Steel Carrier plate: Steel Screws: Steel Threaded sleeves: Steel Press nuts: Steel Excentric screw: Steel Adjusting washer: Steel Tension pin: Steel Wiper and lubricators: Plastic PA / felt / spring steel Wood screws: Steel Profile: Aluminum Cover caps: Plastic PA, glass fibre reinforcedSurface:Rollers: Zinc plated Carrier plate: Zinc plated Screws: Zinc plated Threaded sleeves: Zinc plated Press nuts: Zinc plated Excentric screw: Zinc plated Adjusting washer: Zinc plated Wood screws: Zinc plated Profile: Anodized
Bearing Unit PA 1 Roller for C-Rail-Profile I Slot Ø 14
€0.00*
Profile:
I
Color:Roller: Black Cover caps: BlackDelivery Countries:WorldwideDescription:To build sliding doors To linearly guide small loads, plastic roller with slide bearings runs directly on the aluminum of the slot with Ø 14 mmMaterial:Roller: Plastic PA Carrier plate: Steel Screws: Steel Threaded sleeve: Steel Press nuts: Steel Tension pin: Steel Profile: Aluminum Cover caps: Plastic PA, glass fibre reinforcedSurface:Carrier plate: Zinc plated Screws: Zinc plated Threaded sleeve: Zinc plated Press nuts: Zinc plated Profile: Anodized

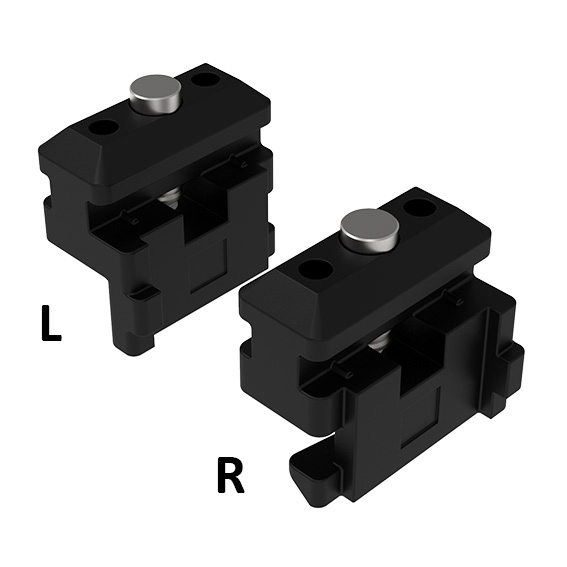

Sliding Door Guide for Clamp Profile
€0.00*
Profile:
I
|
Slot N (mm):
8
|
Version:
R: Right
|
Version:
(R) Right side version
Delivery Countries:WorldwideDescription:To assemble sliding doorsMaterial:Sliding door guide: Plastic POM Mechanism: SteelSet:2 Sliding door guides left 2 Sliding door guides rightSurface:Mechanism: Zinc plated Tip:Compatible Clamping Spring see 092090

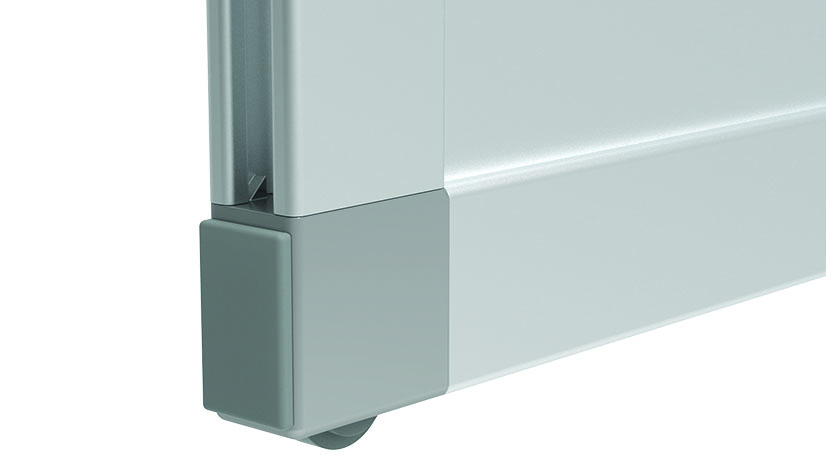

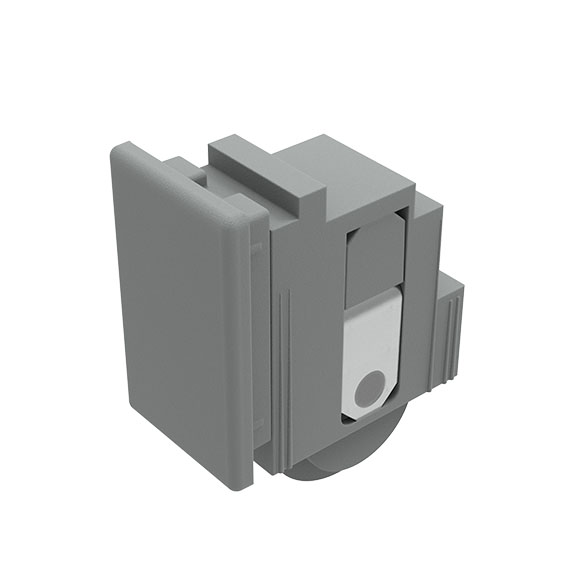

Sliding Door Guide Insert for Frame Corner Connector 18 x 32 (Set)
€0.00*
Profile:
I
Color:Guide insert: Gray ≈ RAL 7042Delivery Countries:WorldwideDescription:To guide lift or sliding doors in the slot of an aluminum profile, to insert in the frame corner connector 18 x 32 for clamp profileMaterial:Guide insert: Plastic PA, glass fiber reinforcedSet:1 guide insert, 1 cover cap, 1 stopperTip:Compatible Frame Corner Connector 18 x 32 for Clamp Profile (Set) see 093WWC18321N08S01

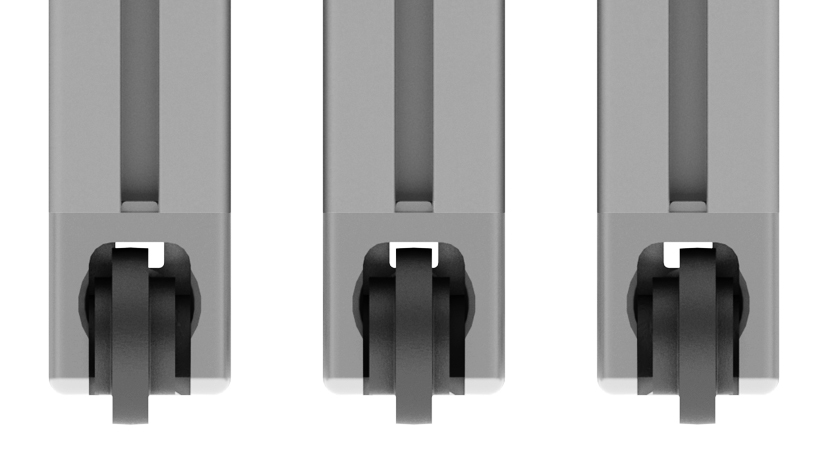

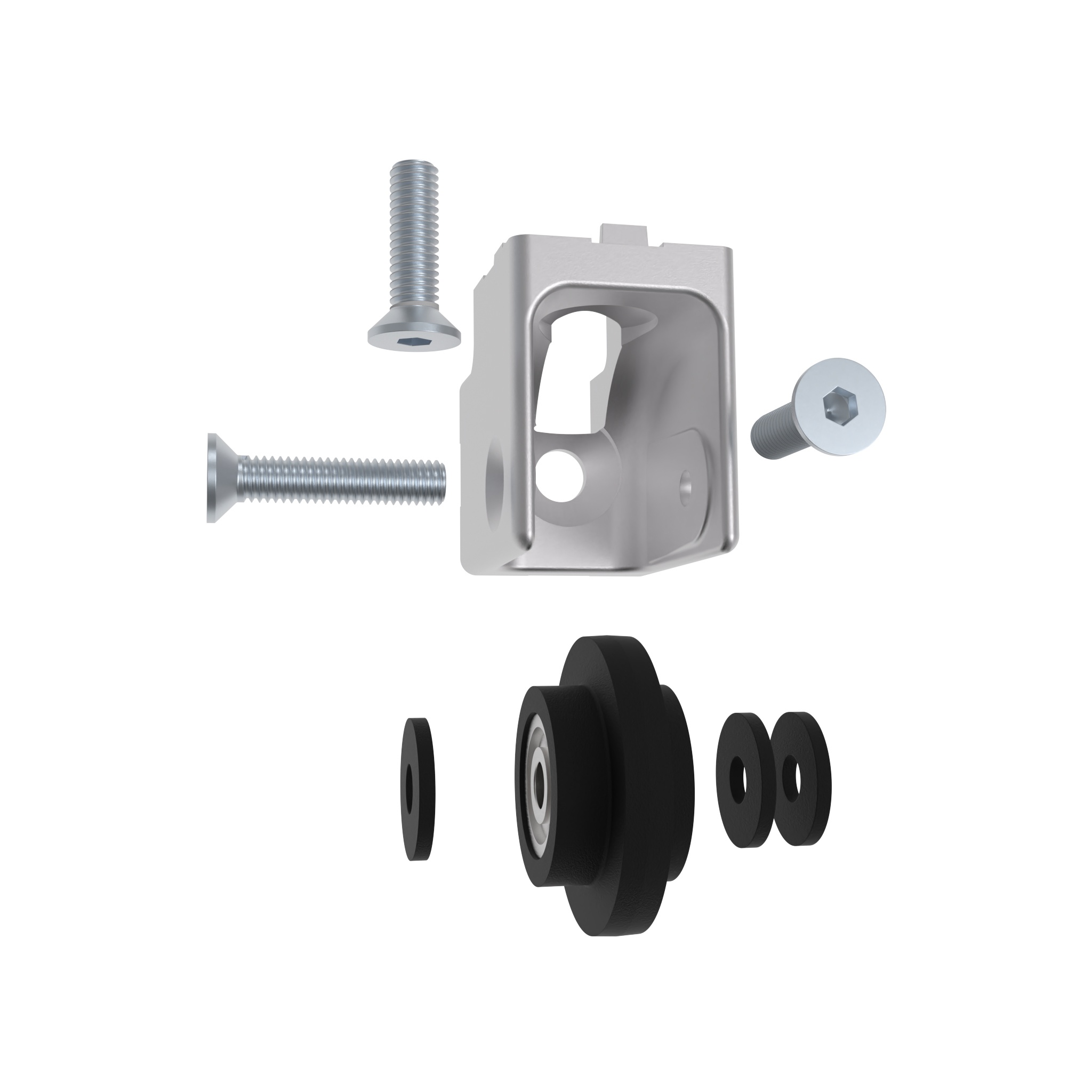

Sliding Door Guide Set 30
€0.00*
B (mm):
30
|
Profile:
I
|
Profile:
B
|
Set:
Set 2
|
Slot N (mm):
8
Color:Roller: Black Spacer: NaturalDelivery Countries:WorldwideDescription:To connect two aluminum profiles at right angles and to guide lift or sliding doors in the slot of an aluminum profile, with ball bearing; spacers can be changed: for a 2 mm distance between door and fixed profile or a 2 or 4 mm distance between two doorsMaterial:Casing: Aluminum die-cast Roller: Plastic PA, glass ball reinforced Spacer: Plastic PASet 1:1 casing, 1 roller slot 8, 1 screw as axle, 2 screws DIN EN ISO 10642 (DIN 7991) - M6 x 22 (for profile) 3 spacersSet 2:1 casing, 1 roller slot 8, 1 screw as axle, 2 screws DIN EN ISO 10642 (DIN 7991) - M8 x 20 (for profile) 3 spacersSurface:Casing: Plain

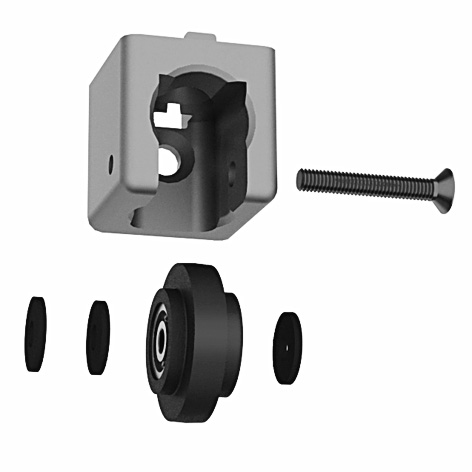

Sliding Door Guide Set 40 / 45
€0.00*
B (mm):
40
|
Profile:
B
|
Set:
Set 3
|
Set:
Set 2
|
Slot N (mm):
10
|
ØD (mm):
12.5
Color:Roller: Black Spacer: NaturalDelivery Countries:WorldwideDescription:To connect two aluminum profiles at right angles and to guide lift or sliding doors in the slot of an aluminum profile, with ball bearing; spacers can be changed: for a 2 mm distance between door and fixed profile or a 2 or 4 mm distance between two doorsMaterial:Casing: Aluminum die-cast Roller: Plastic PA, glass ball reinforced Spacer: Plastic PASet 1:1 casing, 1 roller, 1 screw as axle, 3 spacersSet 2:V_1 casing, 1 roller, 1 screw as axle, 4 spacers 2 self-forming screws S12 x 30 - hexalobular socket T50Set 3:1 casing, 1 roller, 1 screw as axle, 4 spacers 2 self-forming screws S12 x 30 - hexalobular socket T50Surface:Casing: Plain
