D28, Tubular Frame Components
T-Connector D28 - Slot 10 (Set)
Delivery Countries:WorldwideDescription:To connect a tubular frame profile with Ø 28 mm outer diameter with a slot 10 aluminum profileMaterial:Connector: Aluminum die-cast Cover cap: Plastic PA Assembly set: SteelSet:1 T-connector D28 - slot 10, 1 cover cap, 1 self-tapping screw S8 x 25 - hexalobular socket T40, 1 flange nut M8, 1 hammer head screw - Nut 10 - M8 x 20Surface:Connector: Plain Cover cap: Black Assembly set: Zinc plated
T-connector Plate D28
Delivery Countries:WorldwideDescription:To connect a tubular frame profile with Ø 28 mm outer diameter with an aluminum profile at right angles; screw connetion to the core hole of the Ø 28 mm profile or to the threaded sleeve for D28 M8 for Ø 28 mm tubular profilesFastening:With countersunk screws 1x M8 and 2x M6Material:SteelSurface:Zinc platedTip:Compatible Threaded Sleeve D28 M8 see 099RV28AS02
Threaded Sleeve D28L (Set)
Color:Sleeve: BlackDelivery Countries:WorldwideDescription:To fix leveling feet or swivel casters to the front of tubular frame profiles D28L with Ø 28 mm outer diameterMaterial:Sleeve: Plastic PA, carbon fiber reinforced Long nut: SteelSet 1:1 sleeve, two-part 1 long nut M8Set 2:1 sleeve, two-part 1 long nut M12Surface:Long nut: Zinc plated
Variable Holding Bracket AL D28
Assembly Set 1:5 self-drilling screws DIN EN ISO 15481 (DIN 7504) - 3.9 x 16Assembly Set 2:6 self-drilling screws DIN EN ISO 15481 (DIN 7504) - 3.9 x 16Delivery Countries:WorldwideDescription:Transition between roller track profiles with varying inclination, to mount roller track profiles AL at different angles to tubular frame profiles with Ø 28 mm outer diameter, preventing inserts from slipping outMaterial:SteelSpecials:Other surfaces, other colors on requestSurface:Zinc plated

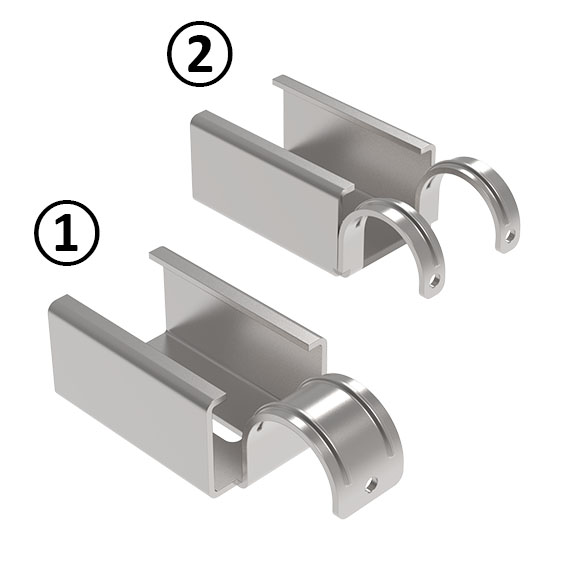

Variable Holding Bracket XST D28
Delivery Countries:WorldwideDescription:Transition between roller tracks with varying inclination, to mount roller tracks XST and guiding rails XST central, at different angles, to tubular frame profiles with Ø 28 mm outer diameter, preventing inserts from slipping outFastening:With 3 or 4 self-drilling screws DIN EN ISO 15481 (DIN 7504) - 3.9 x 16Material:SteelSpecials:Other surfaces, other colors on requestSurface:Zinc plated

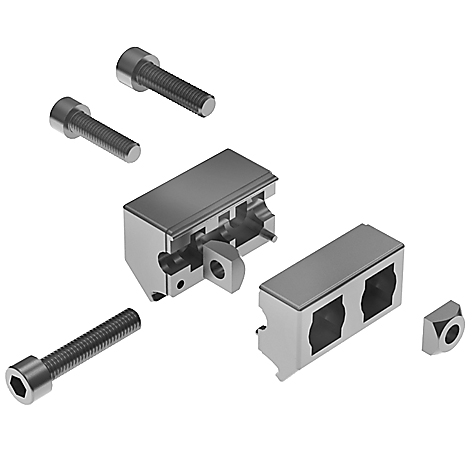

Vario Block AL D28 (Set)
Delivery Countries:WorldwideDescription:To attach panels firmly to tubular frame profiles with Ø 28 mm outer diameter, ESD electrostatical dischargingMaterial:AluminumSet:1 vario block AL - 2-part, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 30, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 22, 2 square nuts DIN 557 - M6Specials:Other surfaces, other colors on requestSurface:PlainTip:Compatible Slide Rail D28 see 092060S01

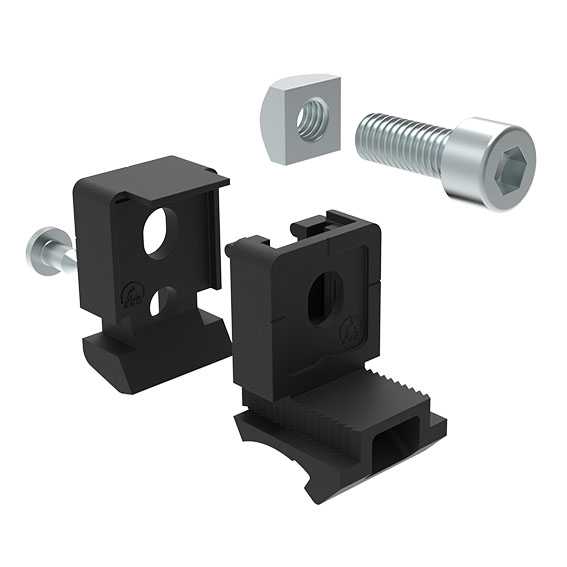

Vario Block D28 (Set)
Color:Block: BlackDelivery Countries:WorldwideDescription:To attach panels safely to tubular frame profiles with Ø 28 mm outer diameter; optional screwless mounting with clip clampMaterial:Block: Plastic PA, carbon fiber reinforced Screws and Nut: SteelSet:1 vario block AL - 2-part, 1 screw DIN EN ISO 7049 (DIN 7981) - 4.2 x 9.5, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 16, 1 square nut DIN 557 - M6Specials:Other colors on requestSurface:Screws and Nut: Zinc platedTip:Compatible Clip clamp see 09452RA20

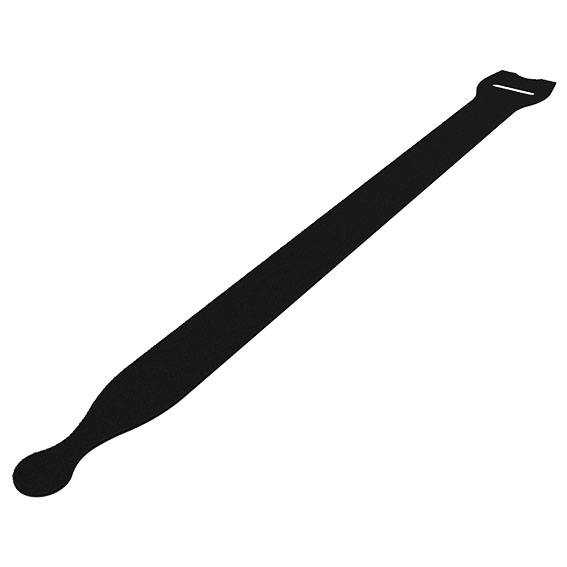

Velcro® strap for Cross Cable Binder Block D28
Color:BlackDelivery Countries:WorldwideDescription:To fasten cables and tubes parallel to the slotMaterial:Velcro® strap: Plastic PE (hook), Plastic PA (loop)Tip:Compatible Cross Cable Binder Block D28 see 093291
