Accessories

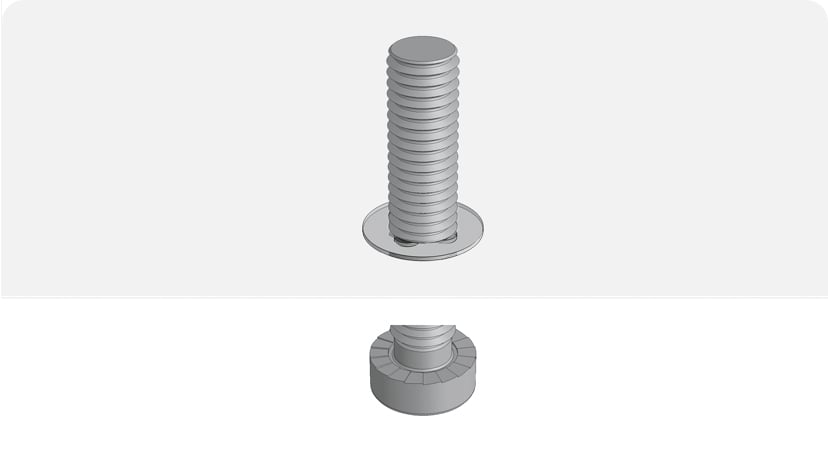

Anti-loss Washer
€0.00*
Color:
Natural
|
D1 (mm):
12.0
|
D2 (mm):
5.1
|
Fig.:
②
|
for Screw:
M6
Color:Natural / blackDelivery Countries:WorldwideDescription:To easily and fastly secure screwsMaterial:Plastic PASpecials:Other sizes on requestZolltarifnummer:39269097900

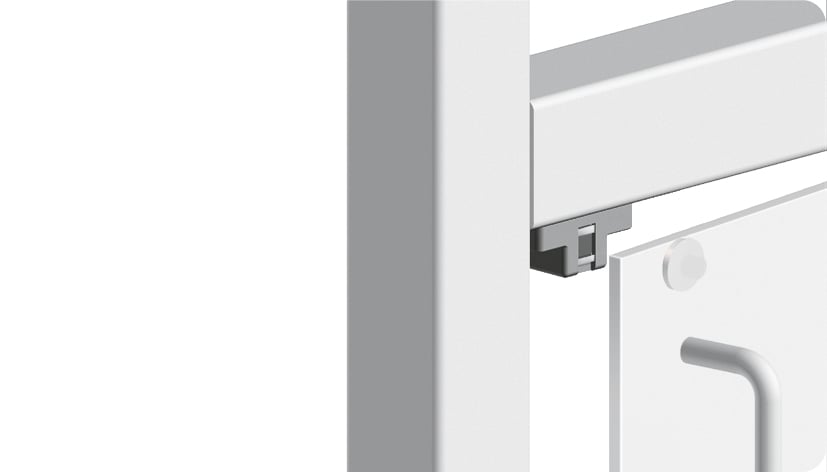

Ball Catch 30
€0.00*
Color:
Black
|
Counter Screw:
Stainless steel
|
Locking Force:
~ 40 N
|
Version:
Light
Color:Black, grayCounter Screw:M8 x 12, zinc plated steel / stainless steel SS 304Delivery Countries:WorldwideDescription:A quick locking device for doors, adaptable to the thickness of the panel unitsMaterial:Plastic PA, glass fiber reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors on requestZolltarifnummer:39269097900

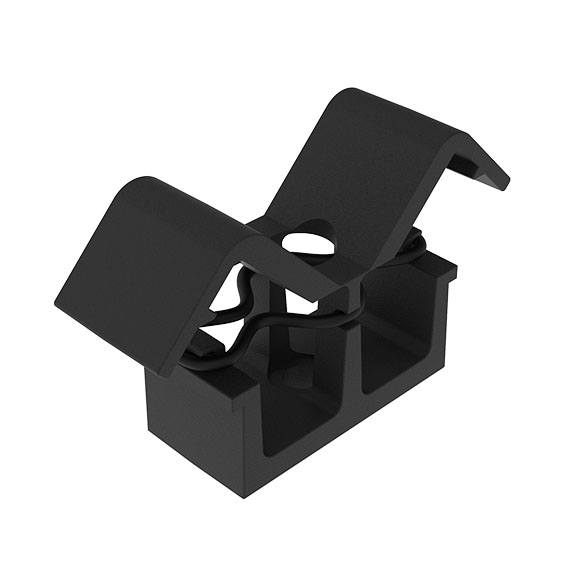

Clip Cable Binder - 2 chambers
€0.00*
H (mm):
2.5
|
Slot N (mm):
10
Color:BlackDelivery Countries:WorldwideDescription:To fix cables without the need for cable ties, can be opened and closed againMaterial:Clip: Plastic PA Rubber: FPM 70Specials:ESD electrostatical discharging, other sizes, other colors on requestZolltarifnummer:39269097900

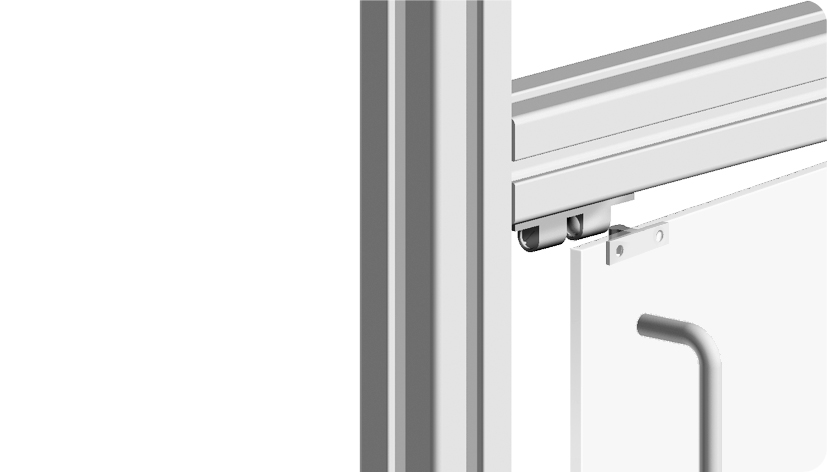

Double Ball Catch MS
€0.00*
A1 (mm):
49.0
|
A2 (mm):
29.5
|
B1 (mm):
8.8
|
B2 (mm):
7.9
|
C1 (mm):
40.0
|
C2 (mm):
20.0
|
D1 (mm):
13.0
|
D2 (mm):
10.8
|
Screw:
M3
Color:ChromeDelivery Countries:WorldwideDescription:Quick catch for doors, adjustable clamping force, 2 possible positions (sideways / from the front)Material:Body: Brass Threaded pin: Steel Spring: Stainless steel Ball: Stainless steelSurface:Chrome platedZolltarifnummer:74198090980

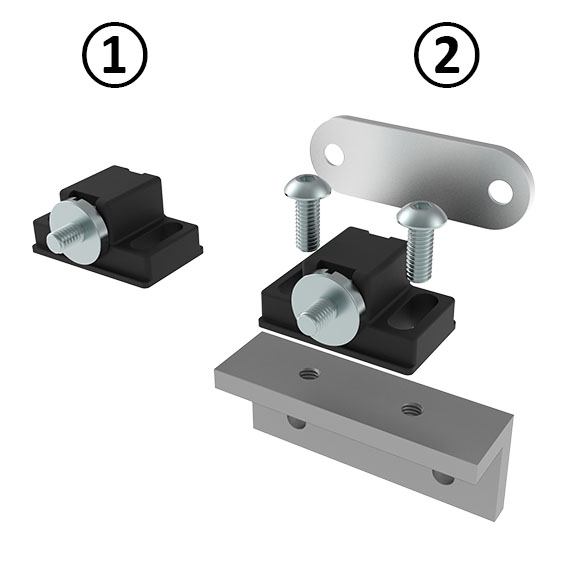

Magnetic Catch 20 (Set)
€0.00*
Fig.:
②
|
Locking Force:
Approx. 5 N front / 3 N back
|
Set:
Set 2
Color:Magnetic catch: BlackDelivery Countries:WorldwideDescription:A quick locking device for doors, adaptable to the thickness of the panel unitsMaterial:Magnetic catch: Plastic PA, glass fiber reinforced Assembly set: Steel Angle bracket: AluminumSet 1:1 magentic catch 20, 1 pan head screw DIN 921 - M4 x 5Set 2:1 magentic catch 20, 1 counter plate 14 x 41 x 2 mm, 2 screws ISO 7380 - M4 x 10, 1 angle bracketSpecials:ESD electrostatical discharging, other sizes, other colors on requestZolltarifnummer:39263000900

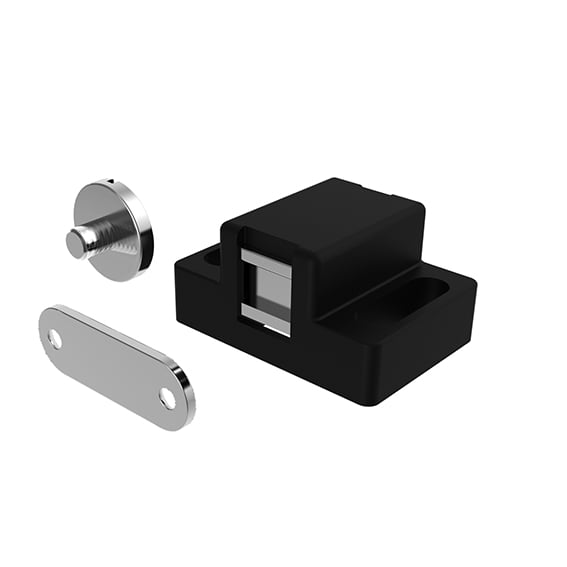

Magnetic Catch 30 (Set)
€0.00*
Color:
Black
|
Locking Force:
Approx. 20 N front / 10 N back
|
Set:
Set (2)
Color:Magnetic catch: Black, gray Delivery Countries:WorldwideDescription:A quick locking device for doors, adaptable to the thickness of the panel unitsMaterial:Magnetic catch: Plastic PA, glass fiber reinforced Assembly set: SteelSet 1:1 magnetic catch 30, 1 flat head screw DIN 921 - M5 x 6Set 2:1 magnetic catch 30, 1 flat head screw DIN 921 - M5 x 6, 1 counter plate 14 x 41 x 2 mmSpecials:ESD electrostatical discharging, other sizes, other colors on requestSurface:Assembly set: Zinc platedZolltarifnummer:39263000900

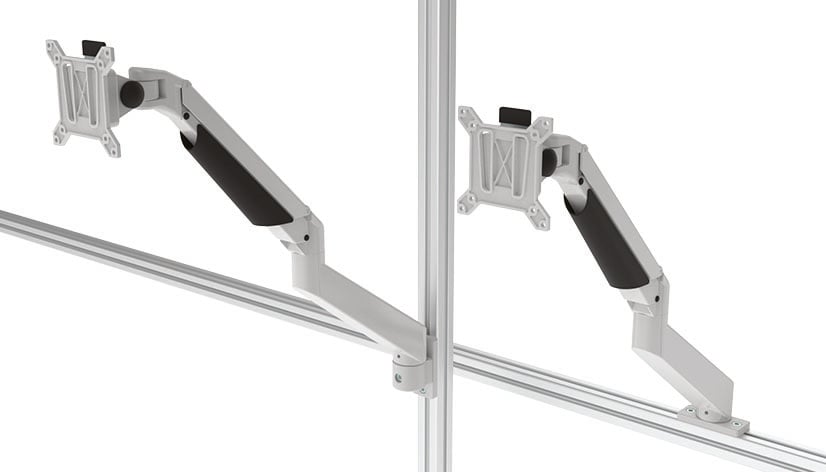

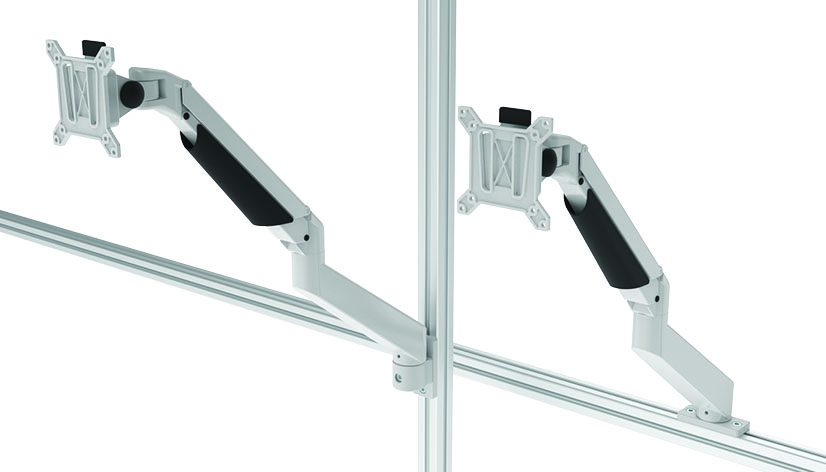

Monitor Support 4-axis, Height Adjustable (Set)
€0.00*
Fmax (N):
-
|
Version:
8 - 20 kg
Color:Mounting plate VESA, removable: Alu color / black Monitor mount: Alu color Cable management cover: Black Bearing shims and bushes: Black Mounting flange: Alu color Mounting adapter: alu colorDelivery Countries:WorldwideDescription:For removable mounting of monitors with 2 - 10 kg or 8 - 20 kg, mounting plate VESA MIS-D 75/100 compatible; Adjustable viewing angle and height, screen rotatable by 90°; 360° mounting flange for horizontal and vertical attachment with mounting adapterMaterial:Mounting plate VESA, removable: Steel / Plastic Monitor mount: Die-cast aluminum Cable management cover: Plastic Bearing shims and bushes: Plastic Mounting flange: Die-cast aluminum Mounting adapter: Die-cast aluminum Screws: SteelSet:1 mounting plate VESA with 4 screws – M4 × 12, Phillips 1 monitor support 4-axis with cable management cover 1 mounting flange 1 mounting screw DIN 6912 – M8 × 25 1 mounting adapter 2 mounting screws DIN 6912 – M8 × 16 1 hexagon key, AF 3 1 hexagon key, AF 4Surface:Mounting plate VESA, removable: Lacquered Monitor mount: Lacquered Mounting flange: Lacquered Mounting adapter: Lacquered Screws: Zinc platedZolltarifnummer:76169990990
Monitor Support 5-axis, Height Adjustable (Set)
€0.00*
Fmax (N):
196
|
Version:
8 - 20 kg
Color:Mounting plate VESA, removable: Alu color / black Monitor mount: Alu color Cable management cover: Black Bearing shims and bushes: Black Mounting flange: Alu color Mounting adapter: alu colorDelivery Countries:WorldwideDescription:For removable mounting of monitors with 2 - 10 kg or 8 - 20 kg, mounting plate VESA MIS-D 75/100 compatible; Adjustable viewing angle and height, screen rotatable by 90°; 360° mounting flange for horizontal and vertical attachment with mounting adapterMaterial:Mounting plate VESA, removable: Steel / Plastic Monitor mount: Die-cast aluminum Cable management cover: Plastic Bearing shims and bushes: Plastic Mounting flange: Die-cast aluminum Mounting adapter: Die-cast aluminum Screws: SteelSet:1 mounting plate VESA with 4 screws – M4 × 12, Phillips 1 monitor support 5-axis with cable management cover 1 mounting flange 1 mounting screw DIN 6912 – M8 × 25 1 mounting adapter 2 mounting screws DIN 6912 – M8 × 16 1 hexagon key, AF 3 1 hexagon key, AF 4Surface:Mounting plate VESA, removable: Lacquered Monitor mount: Lacquered Mounting flange: Lacquered Mounting adapter: Lacquered Screws: Zinc platedZolltarifnummer:76169990990

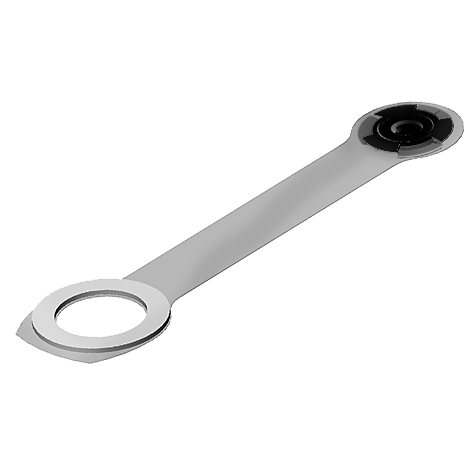

Safety Strip "Straptie"
€0.00*
B (mm):
18.2
|
F (mm):
32.0
|
L (mm):
100.0
|
M:
M8
|
R (mm):
39.5
|
Version:
With print
|
ØK (mm):
28.2
Color:Clear / blackDelivery Countries:WorldwideDescription:To easily and fastly secure screws, according to Machinery Directive 2006/42/ECMaterial:Strap: Plastic PVC Shim: Plastic PA, glass fiber reinforcedZolltarifnummer:39269097900

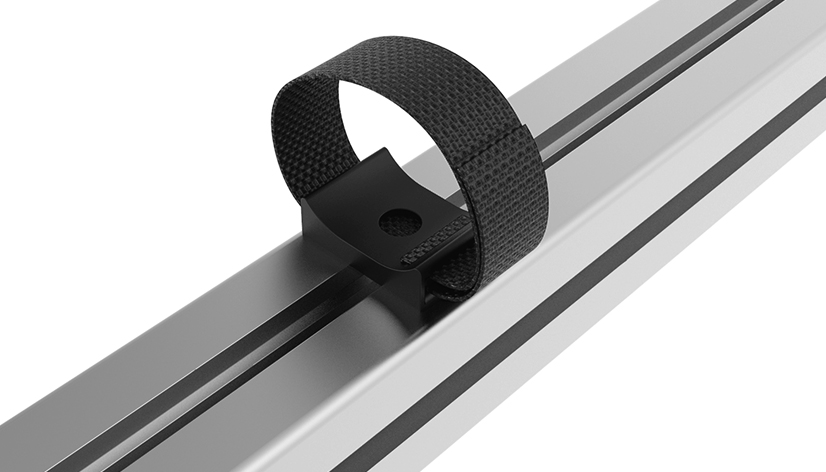

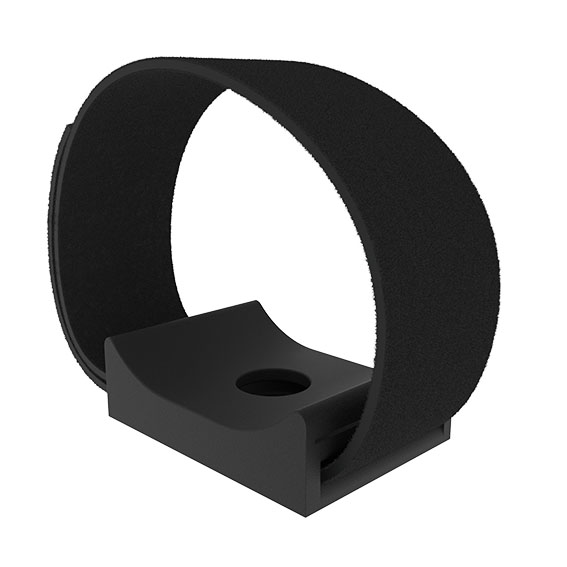

Universal Hook-and-loop Block
€0.00*
Color:Cable binding block: Black Hook-and-loop strap: BlackDelivery Countries:WorldwideDescription:To fix cables to aluminum profiles; to be mounted with a hammer nutMaterial:Cable binding block: Plastic PA, glass fiber reinforced Hook-and-loop strap: Plastic PP (UL94-V2)Tip:Compatible Hammer Nuts see 096H0610 et seq.Zolltarifnummer:39269097900
