CORNER CONNECTORS WITH CABLE PASSAGE (SET)

FATH Bearing Units: Easily design slide units and sliding doors yourself

With FATH Bearing Units for C-rail profiles, you can easily design slide units and sliding doors for an industrial environment. The different versions are equipped with hardened rollers inside in different materials and versions and offer you a high degree of flexibility for the construction of individual applications according to need and customer requirements.

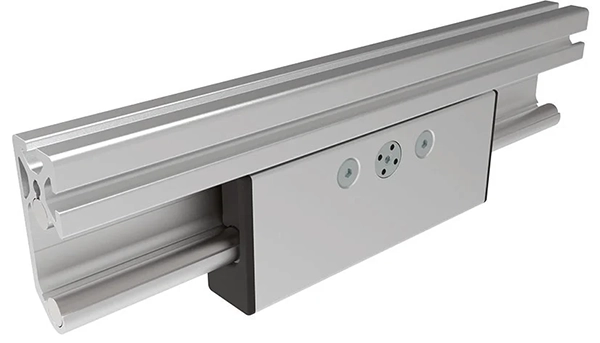

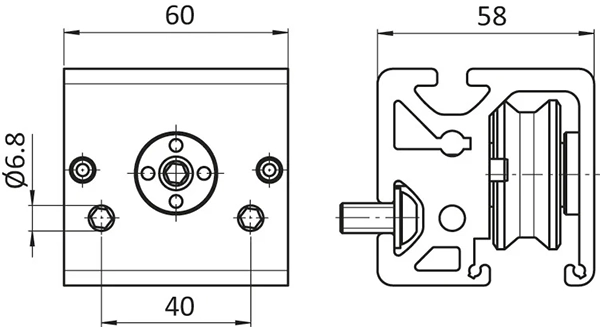

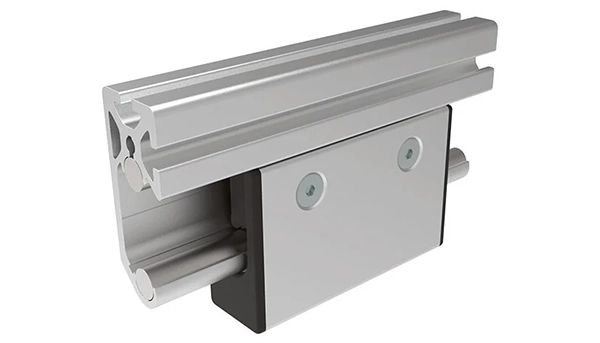

For the construction of guide carriages, the FATH Bearing Unit is combined with a suitable carriage plate. Centric and eccentric bearing units with different bolt geometries are available. As the eccentric bolts can also be adjusted afterward, you can build a guide unit free of play. The ideal result is achieved when two centric and two eccentric bearing units are installed.

In order to permanently ensure lubrication of guide rails and bearing units, FATH has a suitable stripping and lubrication system that protects against premature wear.

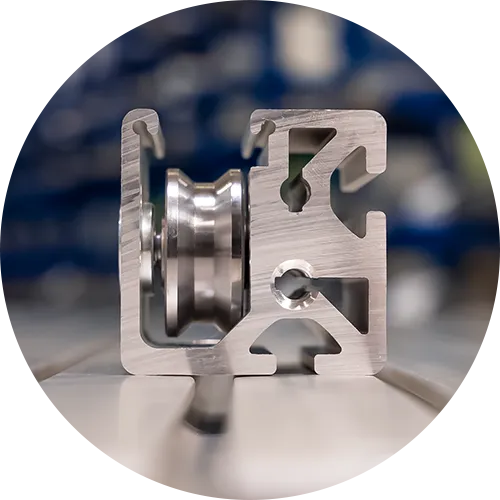

Icon-Plus-white.svg?ts=1743167971 HIGHLIGHTS

  • Individual design of slide units and sliding doors
  • Centric and eccentric versions available
  • Can be used offset by 180° for maximum flexibility
  • Rugged construction

Countless applications can be implemented

Slide unit or suspension for sliding doors: The application possibilities are virtually unlimited. Since the FATH Bearing Units can also be installed offset by 90°, a 3D printer, for example, can be moved vertically and horizontally by attaching the appropriate slide units.

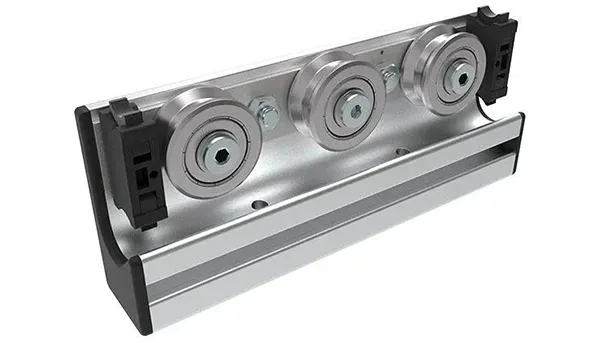

Sliding doors for a wide range of functions in production and assembly can be precisely constructed – whether simple construction for closing small areas or as part of a complex enclosure with practical access. The sliding doors are guided by mounting the FATH Bearing Units on a C-rail system and D14 shafts. For large structures, the guideway can be supported by rollers on the lower side if required.

Reduce wear and tear

To minimize wear and tear, FATH Bearing Units are equipped with a lubrication device. The cap is equipped with a felt lining, which in addition protects the lubrication unit against leakage. For lubrication, the lubricating oil is simply poured into the opening.

WOULD YOU LIKE TO DISCOVER ALL FATH PRODUCTS RELATING TO SLIDERS AND ROLLERS?

You can find all Sliders, Door Guides, Rollers and Linear Guides directly here.


See all Sliders and Rollers

Versions

Skip product gallery

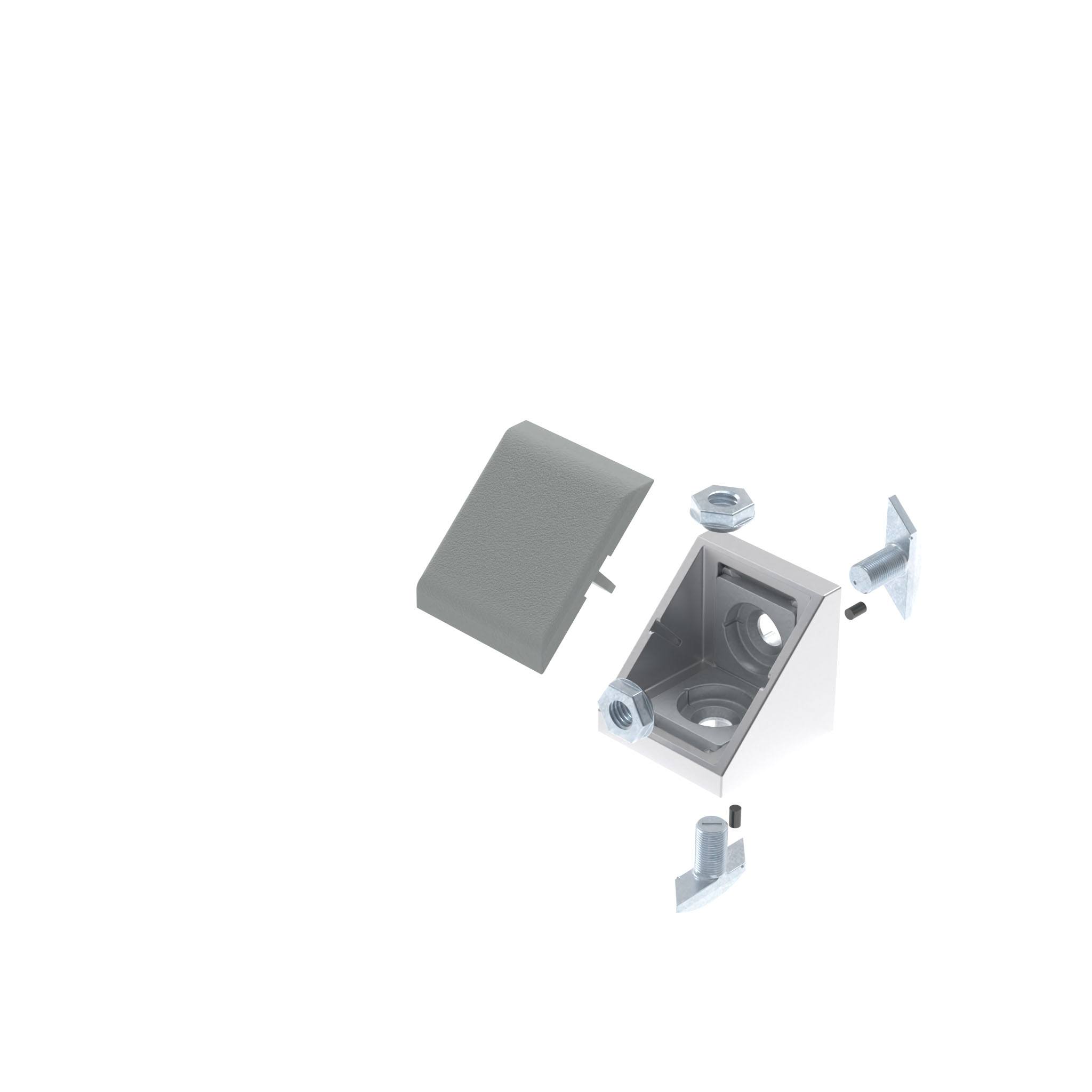

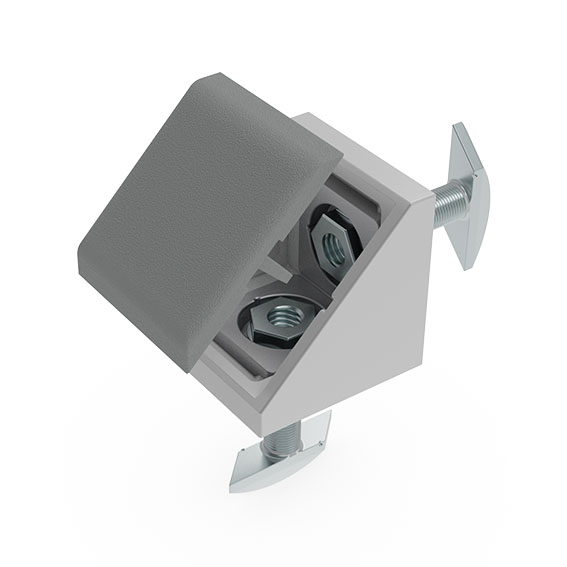

Alu Connection Angle I40 M Length/Cross (Set)
Profile: I | Slot N (mm): 8
Color:Angle: Alu color Cover cap: Gray≈ RAL 7042 Ring: BlackDelivery Countries:WorldwideDescription:To connect two aluminum profiles quickly at right angles lengthwise or crosswise, direct inserting into the profile slot thanks to correct positioning of the pre-assembled magnet rhombus screws and countersunk nuts; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Cover cap: Plastic PA, glass fiber reinforced, Magnet rhombus screws: Steel Countersunk nuts: Steel Insert: Zinc die-cast # Ring: Plastic PESet:1 angle 2 magnet rhombus screws 2 countersunk nuts M8 1 cover capSurface:Angle: Powder coated Magnet rhombus screws: Zinc plated Countersunk nuts: Zinc platedZolltarifnummer:76169910990

€0.00*
Alu Connection Angle I40 M Length/Cross (Set)
Color:Angle: Alu color Cover cap: Gray≈ RAL 7042 Ring: BlackDelivery Countries:WorldwideDescription:To connect two aluminum profiles quickly at right angles lengthwise or crosswise, direct inserting into the profile slot thanks to correct positioning of the pre-assembled magnet rhombus screws and countersunk nuts; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Cover cap: Plastic PA, glass fiber reinforced, Magnet rhombus screws: Steel Countersunk nuts: Steel Insert: Zinc die-cast # Ring: Plastic PESet:1 angle 2 magnet rhombus screws 2 countersunk nuts M8 1 cover capSurface:Angle: Powder coated Magnet rhombus screws: Zinc plated Countersunk nuts: Zinc platedZolltarifnummer:76169910990

€0.00*

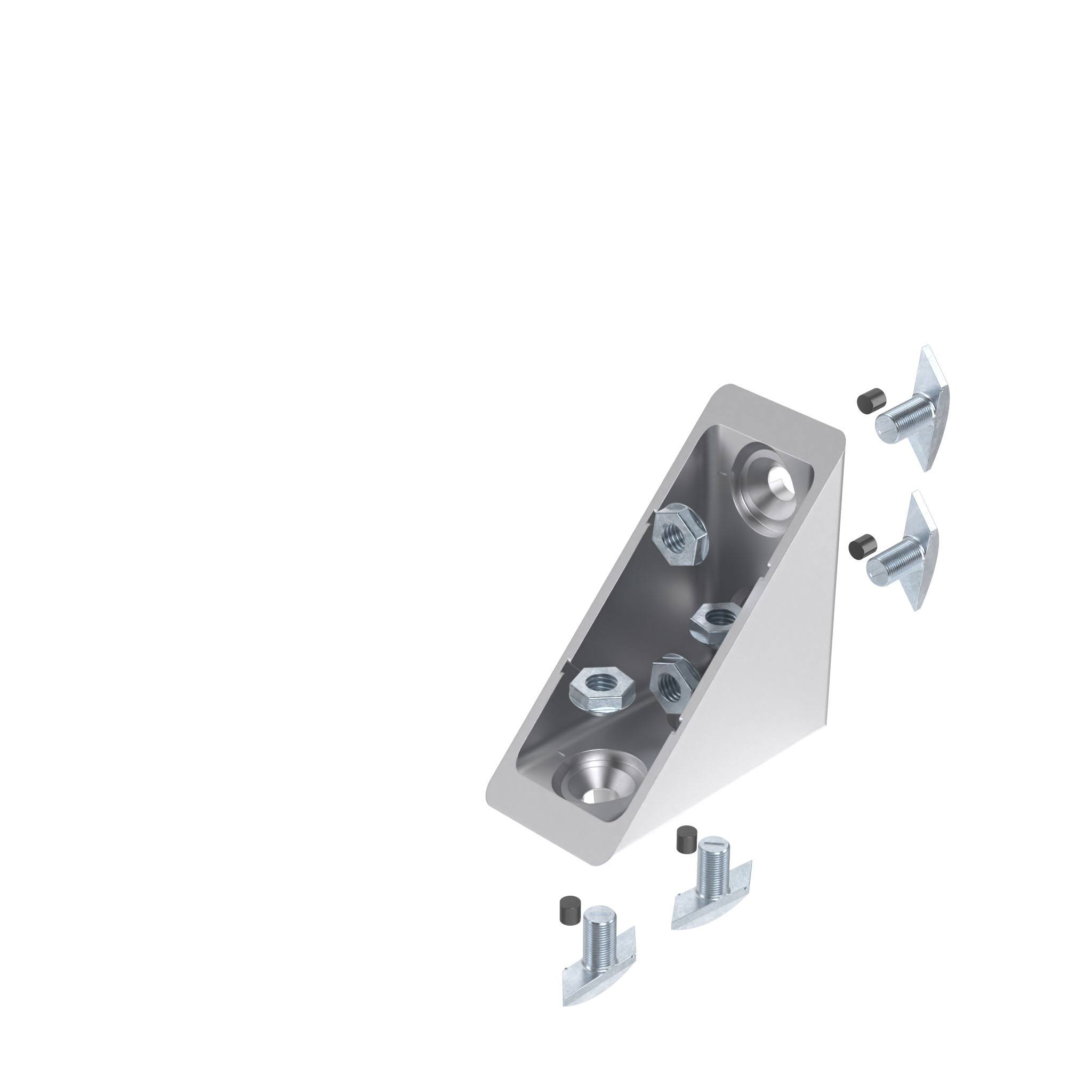

Alu Connection Angle I40 x 80 M (Set)
Profile: I | Slot N (mm): 8
Color:Alu colorDelivery Countries:WorldwideDescription:To connect two aluminum profiles quickly at right angles, direct inserting into the profile slot thanks to correct positioning of the pre-assembled magnet rhombus screws and countersunk nuts; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Magnet rhombus screws: Steel Countersunk nuts: SteelSpecials:Other surfaces, other colors on requestSurface:Angle: Powder coated Magnet rhombus screws: Zinc plated Countersunk nuts: Zinc platedTip:Compatible Cover Cap see 093WA809Zolltarifnummer:76169910990

€0.00*

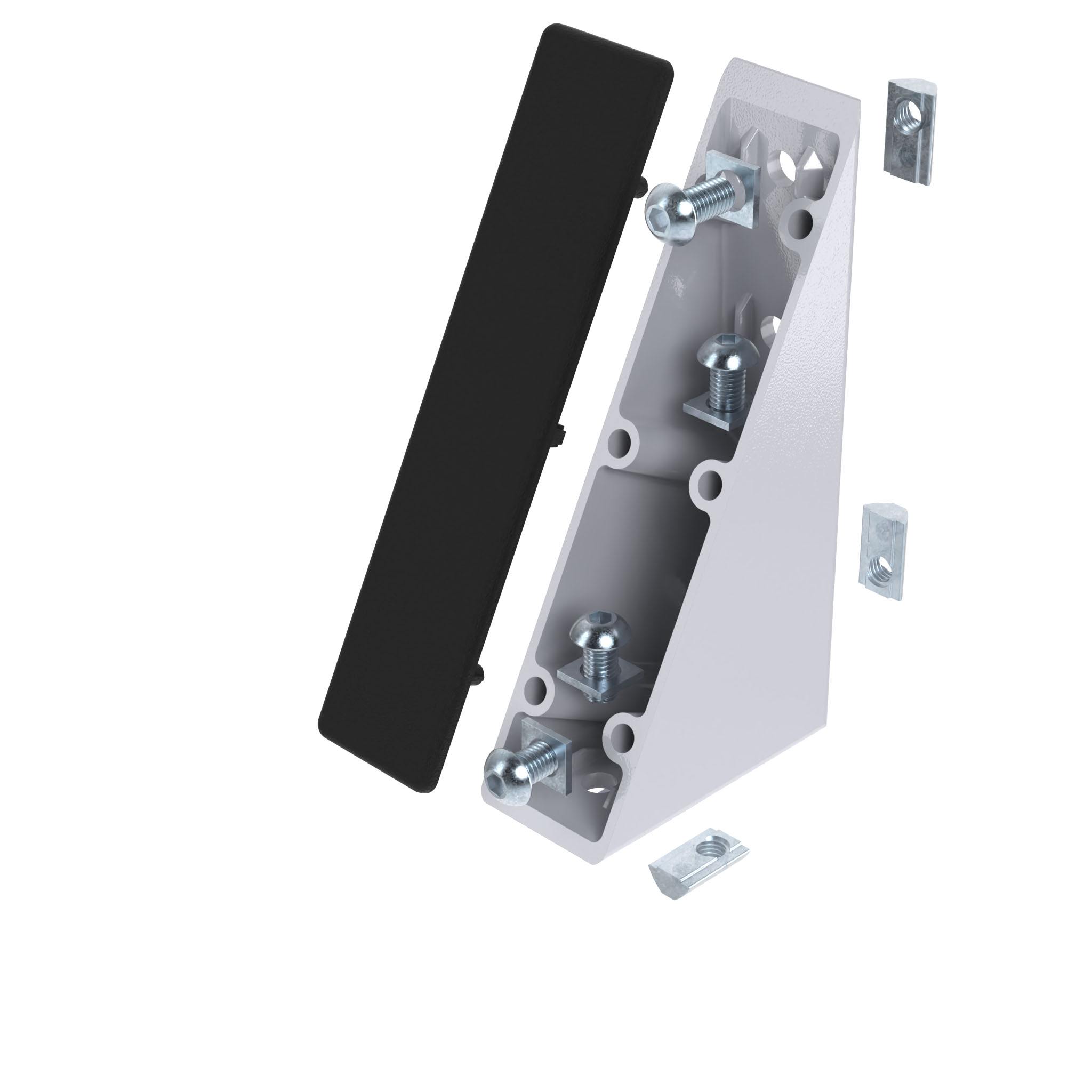

Alu Connection Angle 40 x 80 x 160 (Set)
Color:Angle: Alu color Cover cap: BlackDelivery Countries:WorldwideDescription:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Cover cap: Plastic PA, glass fiber reinforced Assembly set: SteelSet:1 angle, 1 cover cap - plastic PA - black, 4 T-slot nuts - slot 8 - M8, 4 screws ISO 7380 - M8 x 16 4 square washersSpecials:Other surfaces, other colors on requestSurface:Angle: Powder coated Screws and T-nuts: Zinc platedZolltarifnummer:76169910990

€0.00*

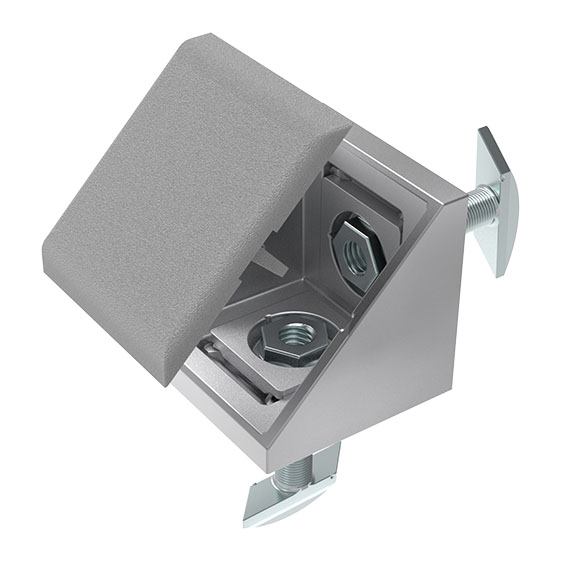

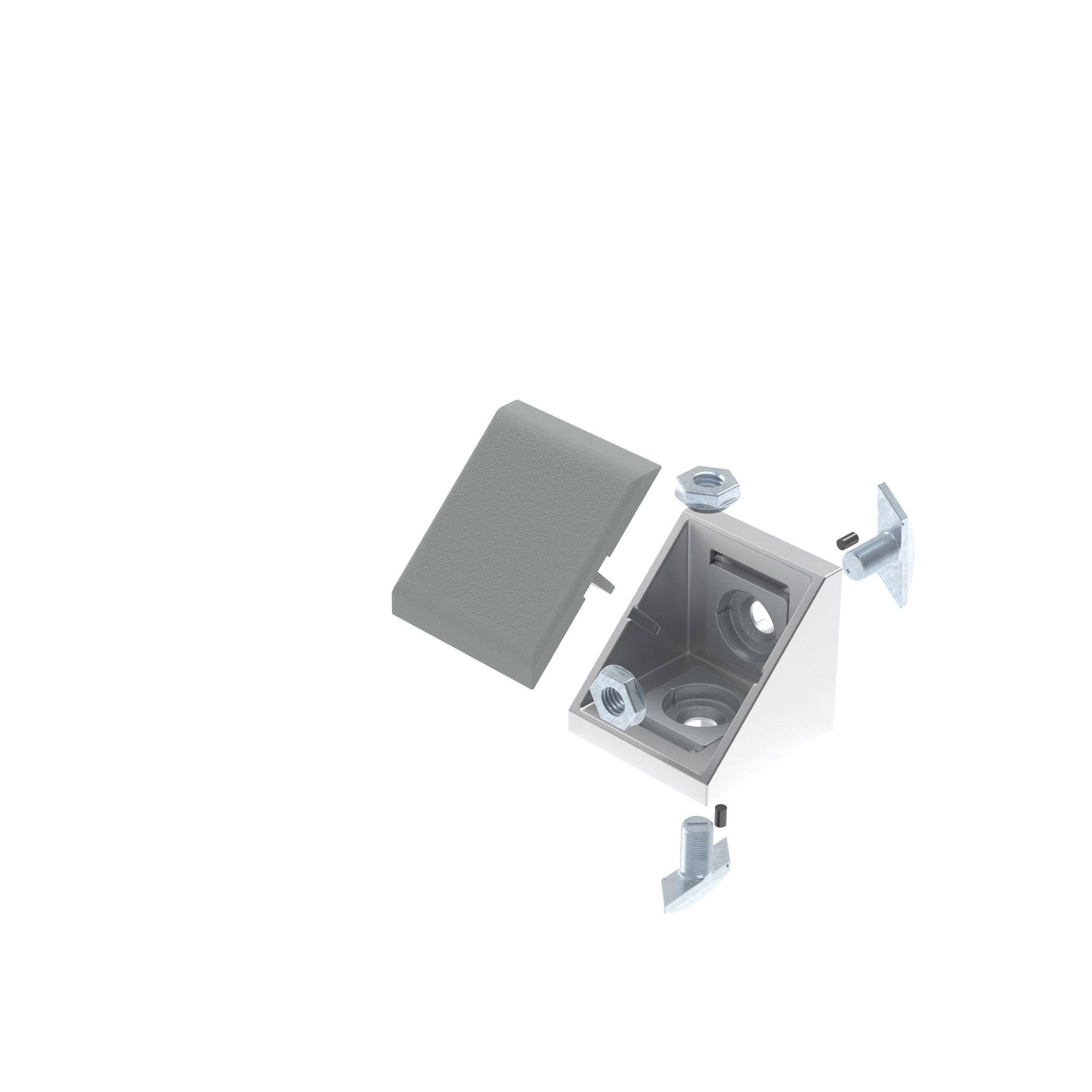

Alu Connection Angle B45 M Length/Cross (Set)
Profile: B | Slot N (mm): 10
Color:Angle: Alu color Cover cap: Gray≈ RAL 7004 Ring: BlackDelivery Countries:WorldwideDescription:To connect two aluminum profiles quickly at right angles lengthwise or crosswise, direct inserting into the profile slot thanks to correct positioning of the pre-assembled magnet rhombus screws and countersunk nuts; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Cover cap: Plastic PA, glass fiber reinforced, Magnet rhombus screws: Steel Countersunk nuts: Steel Insert: Zinc die-cast # Ring: Plastic PESet:1 angle 2 magnet rhombus screws 2 countersunk nuts M8 1 cover capSurface:Angle: Powder coated Magnet rhombus screws: Zinc plated Countersunk nuts: Zinc platedZolltarifnummer:76169910990

€0.00*

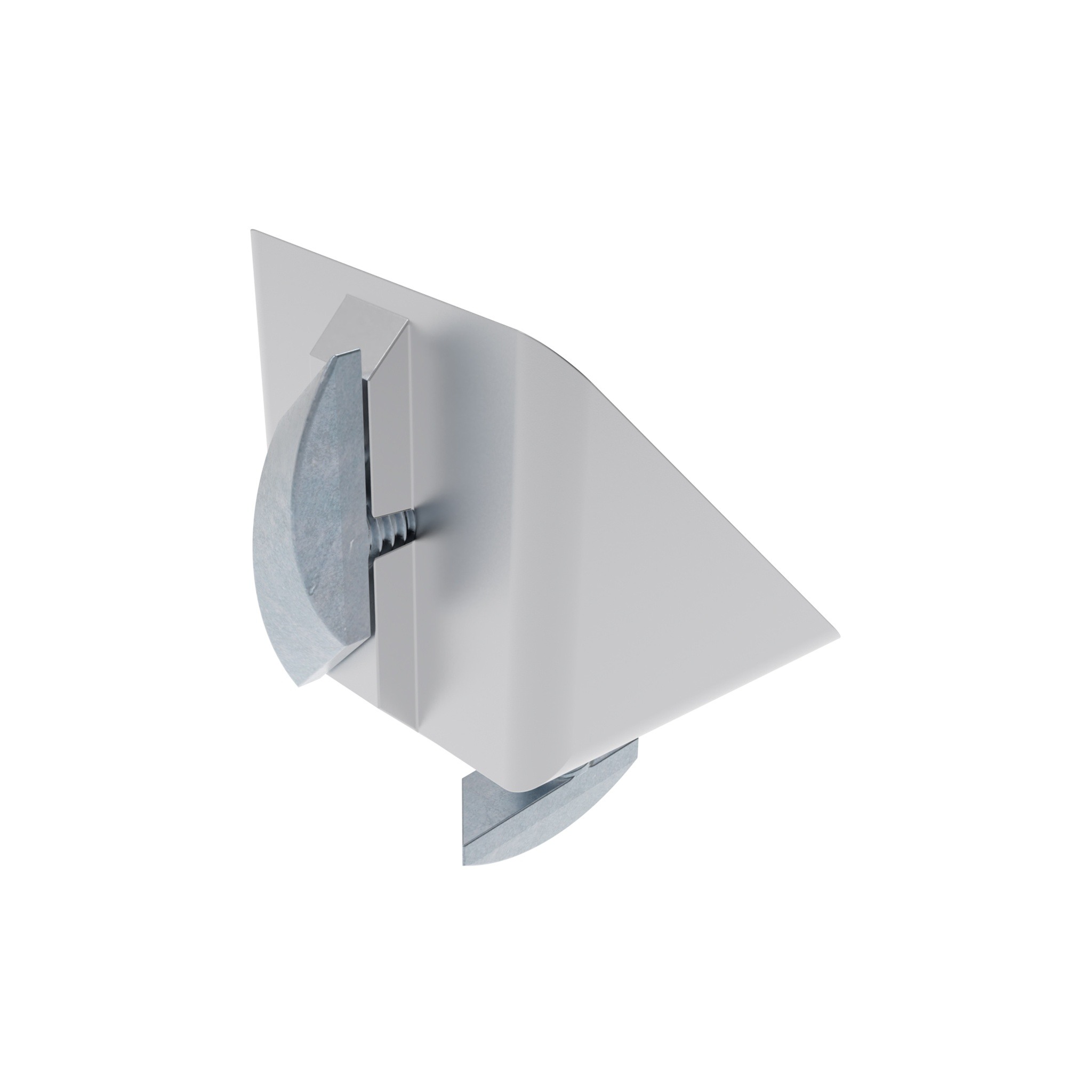

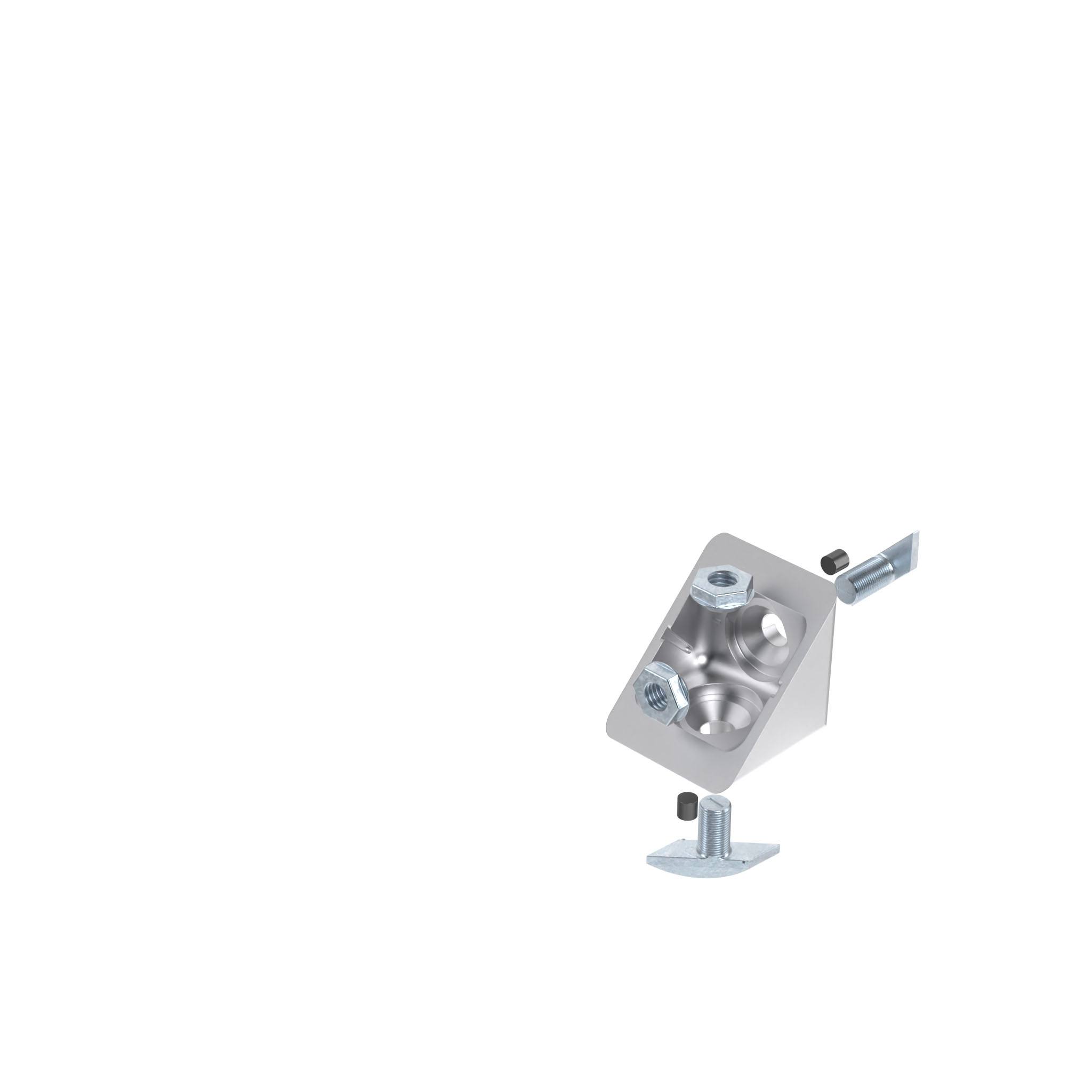

Alu Connection Angle I40 M (Set)
Profile: I | Slot N (mm): 8
Color:Alu colorDelivery Countries:WorldwideDescription:To connect two aluminum profiles quickly at right angles, direct inserting into the profile slot thanks to correct positioning of the pre-assembled magnet rhombus screws and countersunk nuts; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Magnet rhombus screws: Steel Countersunk nuts: SteelSpecials:Other surfaces, other colors on requestSurface:Angle: Powder coated Magnet rhombus screws: Zinc plated Countersunk nuts: Zinc platedTip:Compatible Cover Cap see 093WA406Zolltarifnummer:76169910990

€0.00*

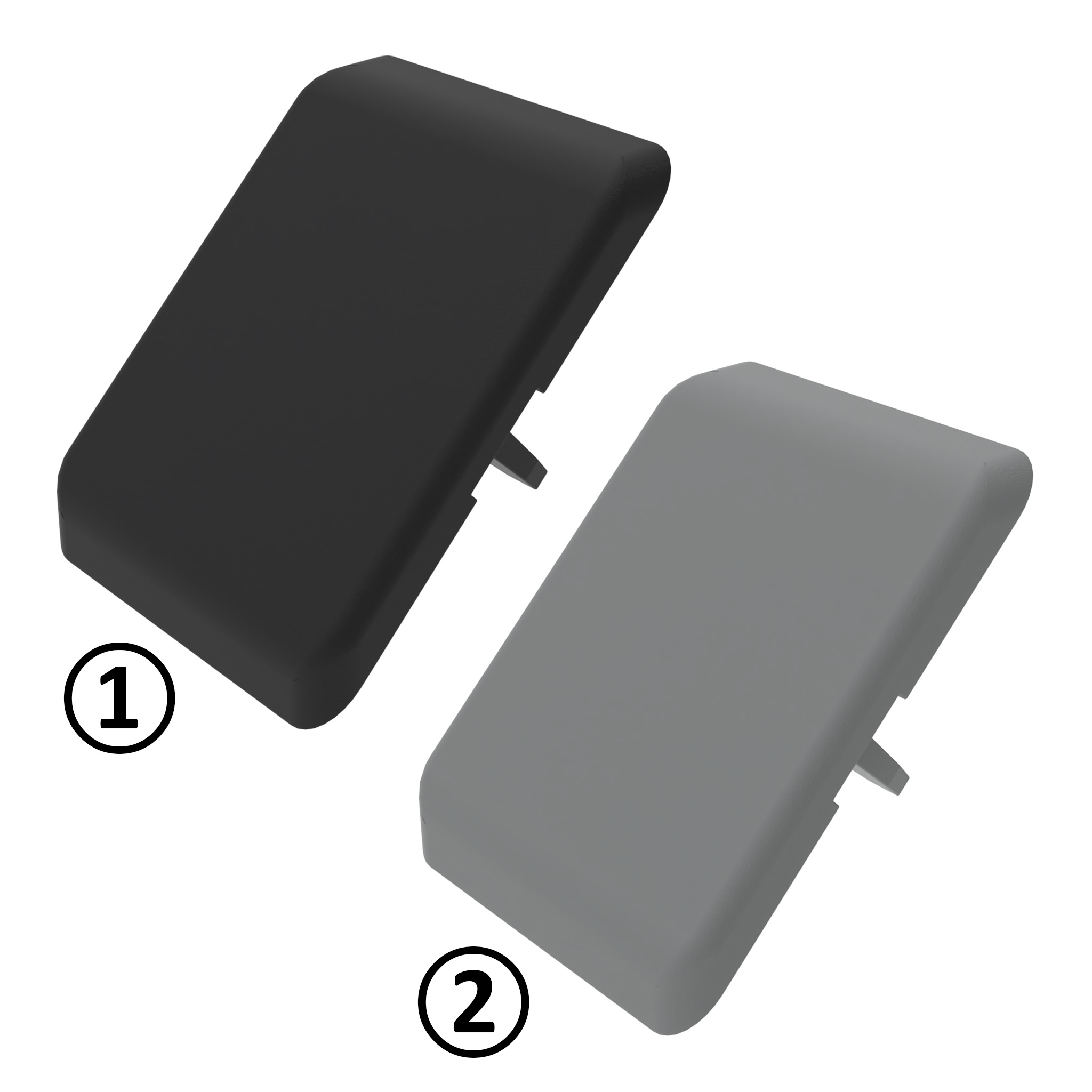

Cover Cap for Alu Connection Angle I40 M (Set)
Color:Black, grayDelivery Countries:WorldwideDescription:To cover the open side of the connection angleMaterial:Plastic PA, glass fiber reinforcedSpecials:Other colors on requestTip:Compatible Alu Connection Angle I40 M (Set) see 093W406N08S01Zolltarifnummer:39269097900

€0.00*

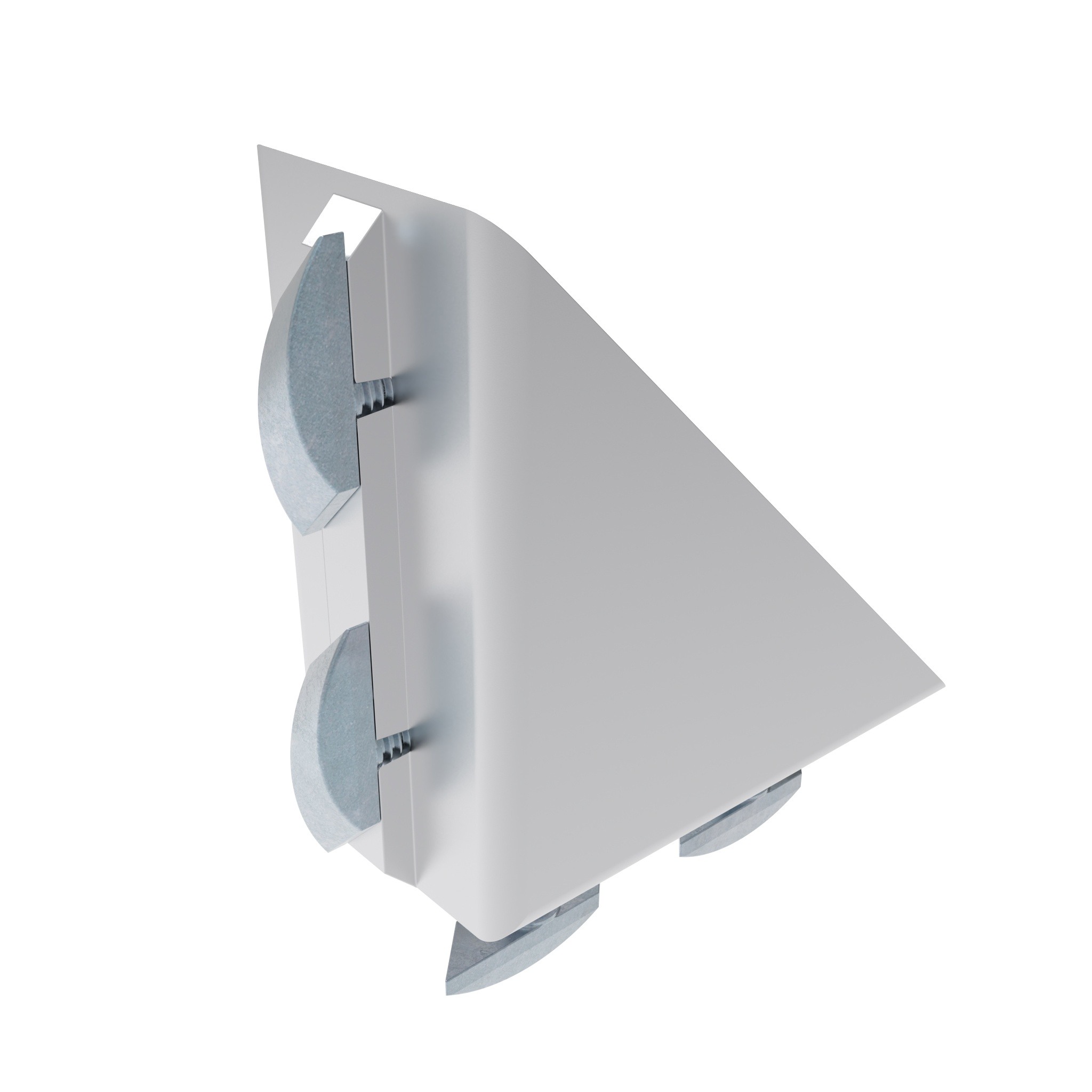

Alu Connection Angle I40 x 80 M (Set)
Color:Alu colorDelivery Countries:WorldwideDescription:To connect two aluminum profiles quickly at right angles, direct inserting into the profile slot thanks to correct positioning of the pre-assembled magnet rhombus screws and countersunk nuts; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Magnet rhombus screws: Steel Countersunk nuts: SteelSpecials:Other surfaces, other colors on requestSurface:Angle: Powder coated Magnet rhombus screws: Zinc plated Countersunk nuts: Zinc platedTip:Compatible Cover Cap see 093WA809Zolltarifnummer:76169910990

€0.00*

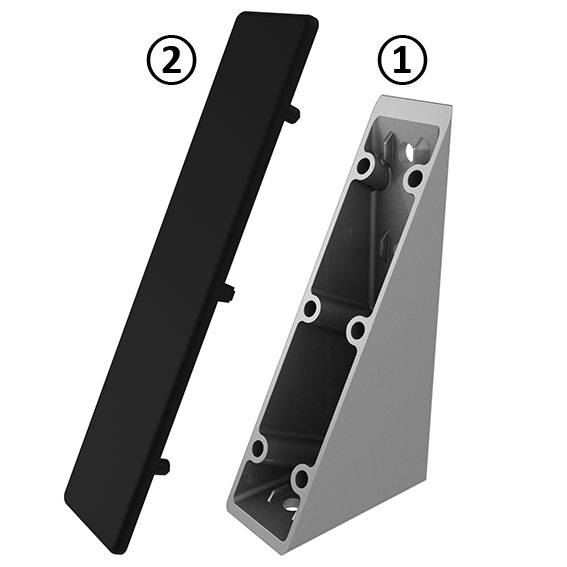

Alu Connection Angle 40 x 80 x 160 (Set)
Profile: I | Slot N (mm): 8
Color:Angle: Alu color Cover cap: BlackDelivery Countries:WorldwideDescription:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Cover cap: Plastic PA, glass fiber reinforced Assembly set: SteelSet:1 angle, 1 cover cap - plastic PA - black, 4 T-slot nuts - slot 8 - M8, 4 screws ISO 7380 - M8 x 16 4 square washersSpecials:Other surfaces, other colors on requestSurface:Angle: Powder coated Screws and T-nuts: Zinc platedZolltarifnummer:76169910990

€0.00*
Alu Connection Angle I40 M (Set)
Color:Alu colorDelivery Countries:WorldwideDescription:To connect two aluminum profiles quickly at right angles, direct inserting into the profile slot thanks to correct positioning of the pre-assembled magnet rhombus screws and countersunk nuts; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Magnet rhombus screws: Steel Countersunk nuts: SteelSpecials:Other surfaces, other colors on requestSurface:Angle: Powder coated Magnet rhombus screws: Zinc plated Countersunk nuts: Zinc platedTip:Compatible Cover Cap see 093WA406Zolltarifnummer:76169910990

€0.00*

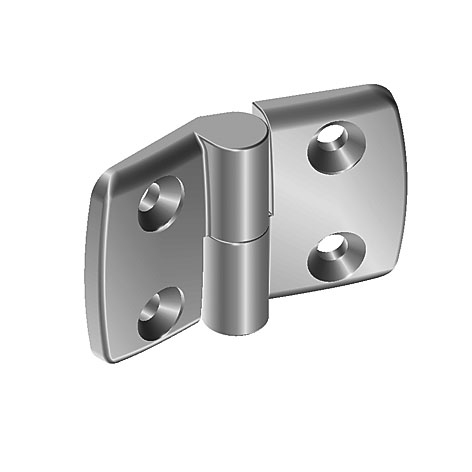

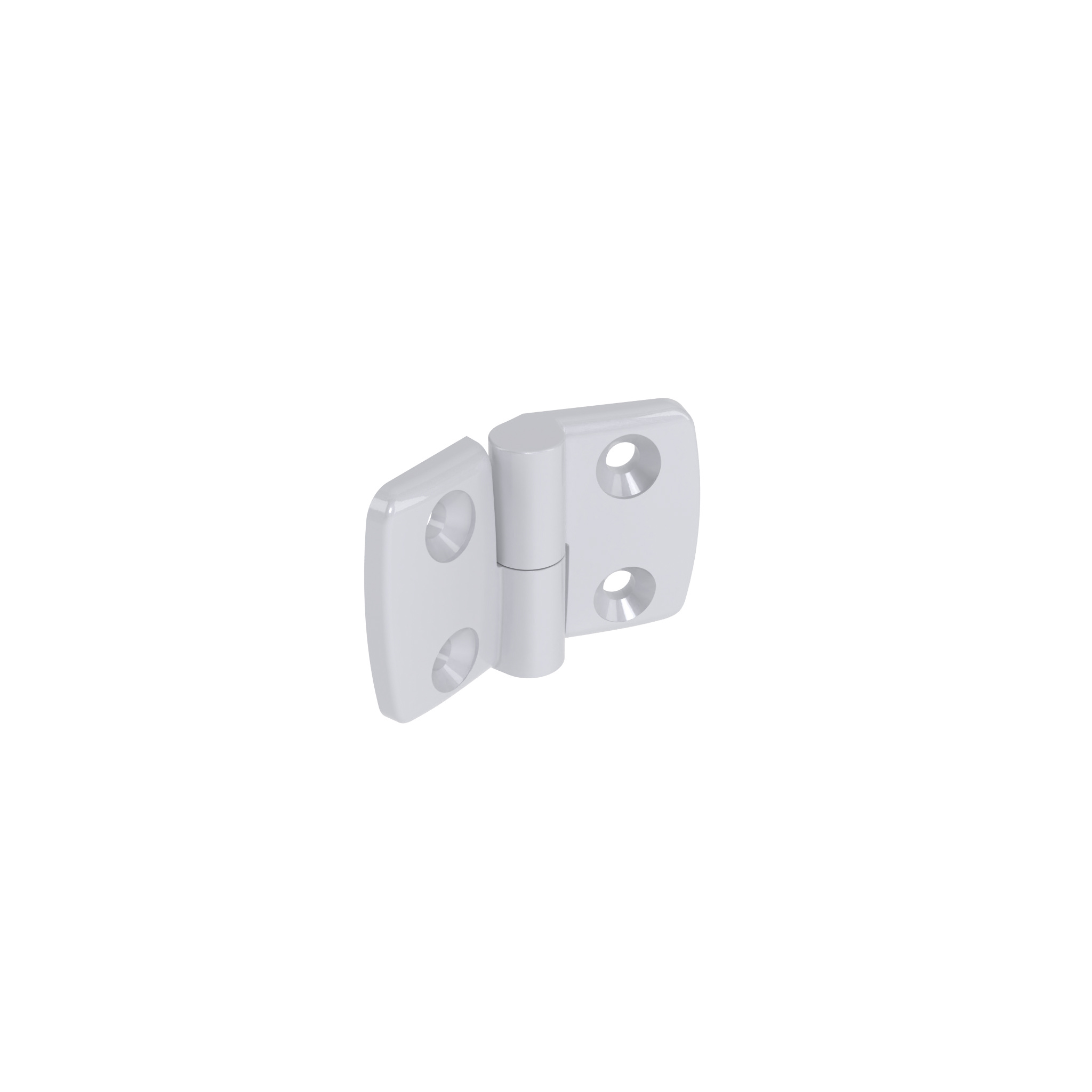

Aluminum Die-cast Combi Hinge 35, Detachable, Alu Color
A1 (mm): 20.0 | A2 (mm): 20.0 | B1 (mm): 36.0 | B2 (mm): 36.0 | Combination: 35 / 35 | FAmax (N): 250 | FRmax (N): - | Version: L: Left
Color:Wing: Alu colorDelivery Countries:WorldwideDescription:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainTip:Compatible Central Bolts see 095AN05Zolltarifnummer:83021000900

€0.00*

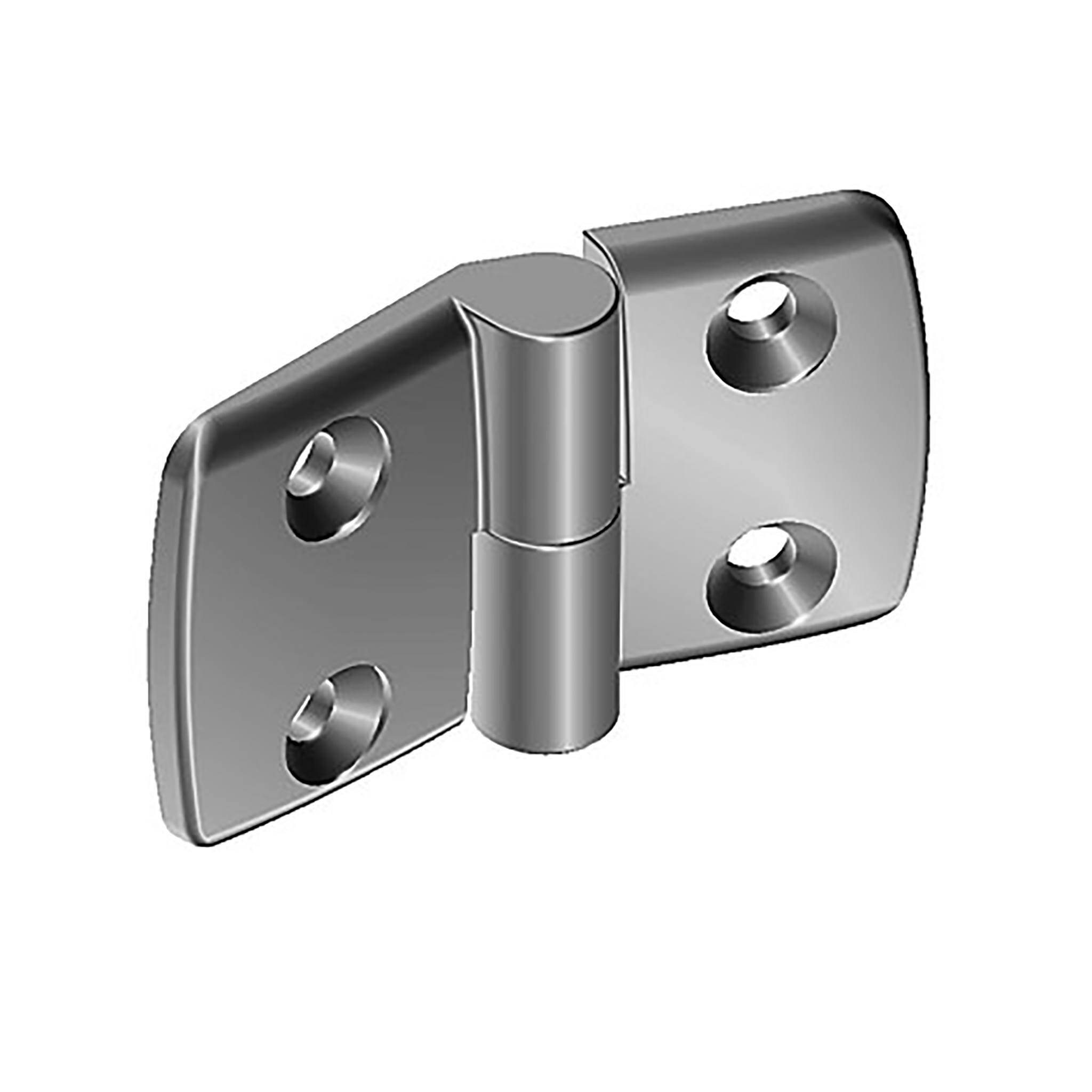

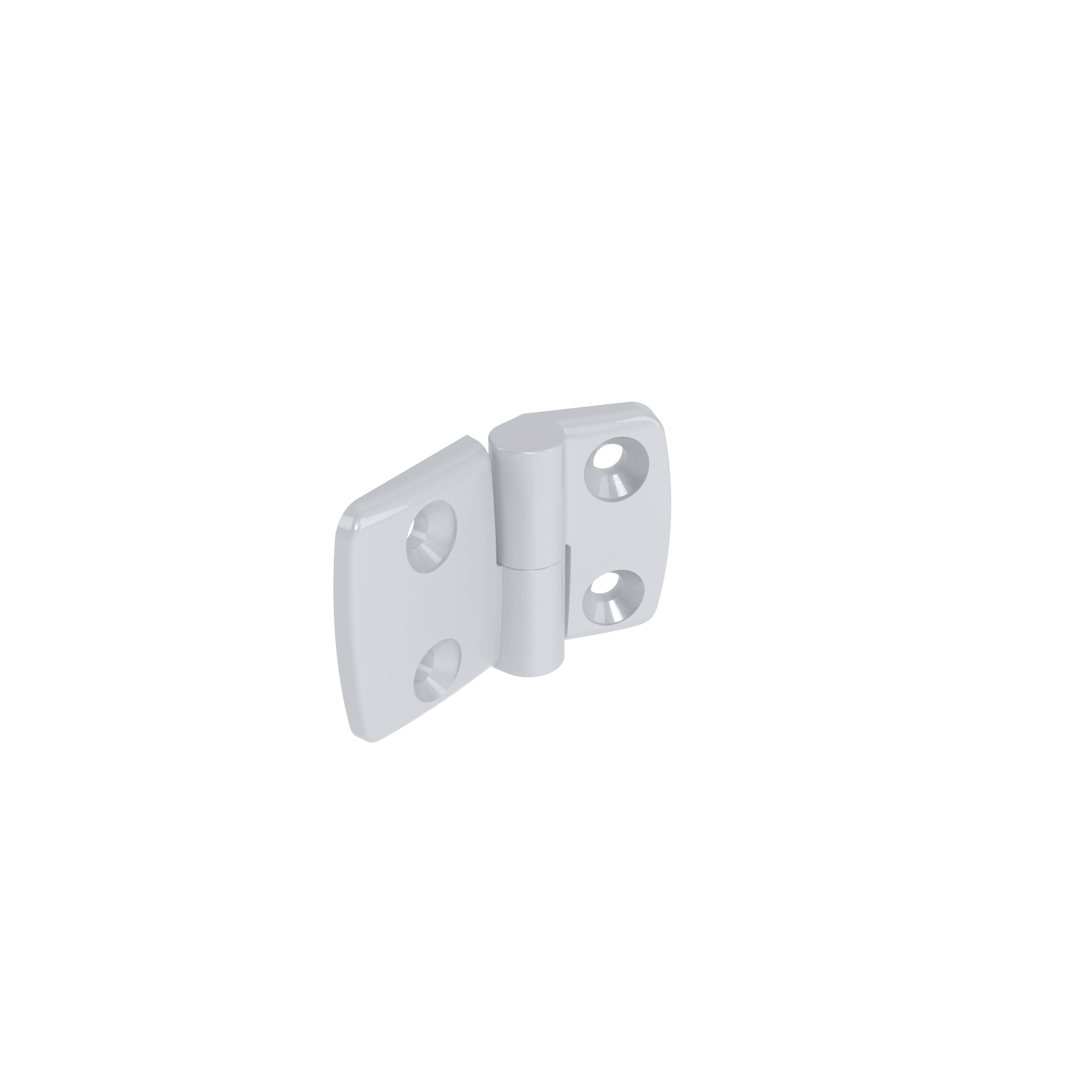

Aluminum Die-cast Combi Hinge 45, Detachable, Alu Color
A1 (mm): 25.0 | A2 (mm): 17.5 | B1 (mm): 43.5 | B2 (mm): 29.5 | Combination: 45 / 30 | FAmax (N): 280 | FRmax (N): 450 | Version: L: Left
Color:Wing: Alu colorDelivery Countries:WorldwideDescription:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainTip:Compatible Central Bolts see 095AN05Zolltarifnummer:83021000900

€0.00*

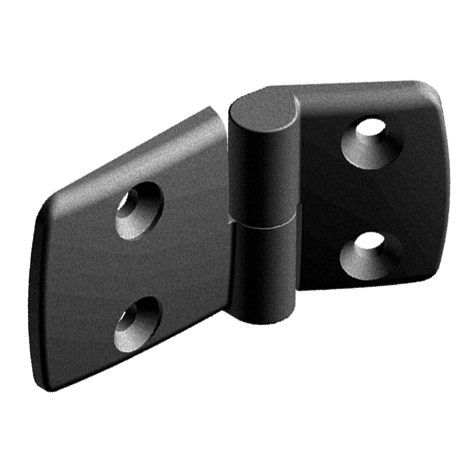

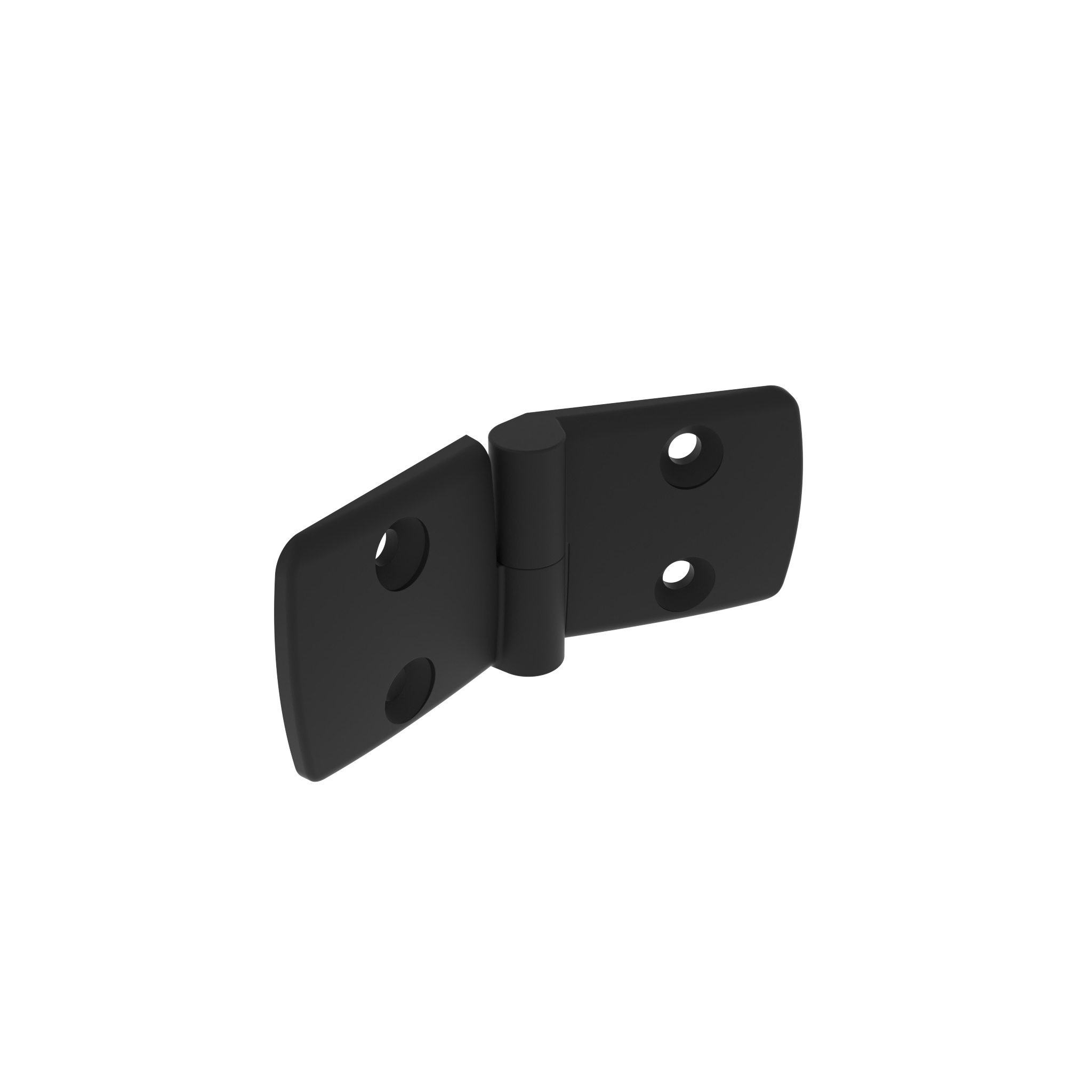

Plastic Combi Hinge 60, Detachable, Black
A1 (mm): 32.5 | A2 (mm): 32.5 | B1 (mm): 57.5 | B2 (mm): 57.5 | Combination: 60 / 60 | FAmax (N): - | FRmax (N): 900 | Slot N (mm): 10 | Version: L: Left
Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on requestZolltarifnummer:39263000900

€0.00*
