Sign Holders
Adjustable Friction Joint I40L for System Arm (Set)
€0.00*
B (mm):
40.0
|
MAmax (Nm):
45.0
|
Profile:
I
|
R (mm):
4.0
|
Slot N (mm):
8
Color:Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorDelivery Countries:WorldwideDescription:Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°, friction is continuously adjustable via clamping screw (or optional locking lever); End side can be attached lateral or transverse on the profile slot, friction axis is positioned at right angles to the profile; Friction joint side can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSet:1 friction joint 2 cover caps 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut) 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole) 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 35 (for clamping 2 washers 8-FSt 2 centering plates 2 T-slot nuts - slot 10 - M8Surface:Housing: Powder coated Centering plates: Powder coated Screws: Zinc plated Washers: Zinc plated T-slot nuts: Zinc platedTip:Compatible Locking Lever for Adjustable Friction Joint see 041LL065K91M0840MS01Zolltarifnummer:76169990990

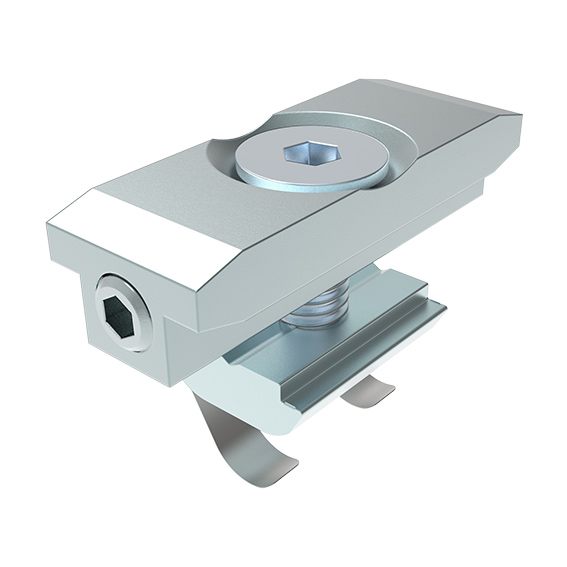

Direct Connector I / B, Slot 8 / 10
€0.00*
Profile:
B
|
Slot N (mm):
10
Delivery Countries:WorldwideDescription:To cross or parallely connect two aluminum profiles slot 8 with slot 10; assembly without machiningMaterial:SteelSurface:Zinc platedZolltarifnummer:73269098900

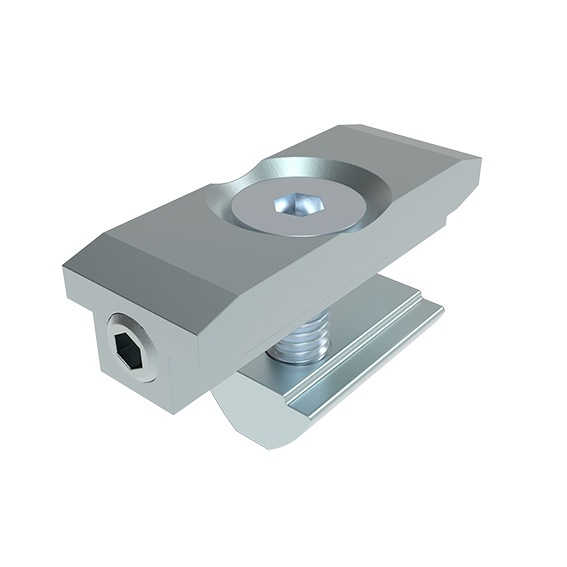

Direct Connector I, Slot 8
€0.00*
Profile:
I
|
Slot N (mm):
8
Delivery Countries:WorldwideDescription:To cross or parallely connect two aluminum profiles; assembly without machiningMaterial:SteelSurface:Zinc platedZolltarifnummer:73269098900
Friction Joint I40L for System Arm (Set)
€0.00*
B (mm):
40
|
MAmax (Nm):
45.0
|
Profile:
I
|
R (mm):
4.0
|
Slot N (mm):
8
|
W (Nm):
3.0
Color:Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorDelivery Countries:WorldwideDescription:Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°; Friction joint can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSet:1 friction joint 2 cover caps 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut) 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole) 2 washers 8-FSt 2 centering plates 2 T-slot nuts - slot 8 - M8Surface:Housing: Powder coated Centering plates: Powder coated Screws: Zinc plated Washers: Zinc plated T-slot nuts: Zinc platedZolltarifnummer:76169990990
Friction Joint I80H for System Arm (Set)
€0.00*
B (mm):
40
|
L x B (mm):
80 x 40
|
MAmax (Nm):
200.0
|
Profile:
I
|
R (mm):
4.0
|
Slot N (mm):
8
|
W (Nm):
2x 15.0
Color:Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorDelivery Countries:WorldwideDescription:Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°; Friction joint can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSet:1 friction joint 4 cover caps 4 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut) 4 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole) 4 washers 8-FSt 4 centering plates 4 T-slot nuts - slot 8 - M8Surface:Housing: Powder coated Centering plates: Powder coated Screws: Zinc plated Washers: Zinc plated T-slot nuts: Zinc platedZolltarifnummer:76169990990
Sign Holder AL (Set)
€0.00*
L (mm):
430
|
M:
DIN A3
|
Profile:
I
|
Slot N (mm):
8
|
Version:
Sign Holder AL DIN A3 - 11.7" x 16.5"
Color:Cover Caps: GrayDelivery Countries:WorldwideDescription:Durable mounting of signsMaterial:Sign holder: Aluminum Sign foil: Plastic PET Cover caps: Plastic PA, glass ball reinforced Screws: SteelSet:1 Sign Holder 1 Sign foil 2 Cover Caps 8 Screws 3.9 x 16Surface:Sign holder: Anodized Screws: Zinc platedTip:Compatible Direct Connector I, see 099DC084040N08 et sq., Compatible T-connector Plate see 093VAD28V Compatible Friction Joints I40H see 061FGZ40LN08 Compatible Friction Joints I80H see 061FGZ80HN08Zolltarifnummer:76169990990
Slot-on-Slot Connector SOS I8 360°
€0.00*
A2 (Profile) (mm):
4.4 (4.5)
|
Color:
Gray ≈ RAL 7042
|
Version:
I8 / I8
Color:GrayDelivery Countries:WorldwideDescription:To cross or parallel connect two aluminum profiles at various angles; fast, tool-free assembly without machiningMaterial:Plastic PA, glass fiber reinforcedSpecials:Customized hammer, other colors on requestTip:Compatible Power Strip see 6SBEU04I.264 Compatible LED Lamp see 6SL0040I.953 Compatible Shelf Board AL see 061AS300N08.788Tip 2:For one connection at least two Slot-on-Slot connectors SOS 360° are requiredZolltarifnummer:39269097900
T-connector Plate D28
€0.00*
Delivery Countries:WorldwideDescription:To connect a tubular frame profile with Ø 28 mm outer diameter with an aluminum profile at right angles; screw connetion to the core hole of the Ø 28 mm profile or to the threaded sleeve for D28 M8 for Ø 28 mm tubular profilesMaterial:SteelSurface:Zinc platedTip:Compatible Threaded Sleeve D28 M8 see 099RV28AS02Zolltarifnummer:73269098900
