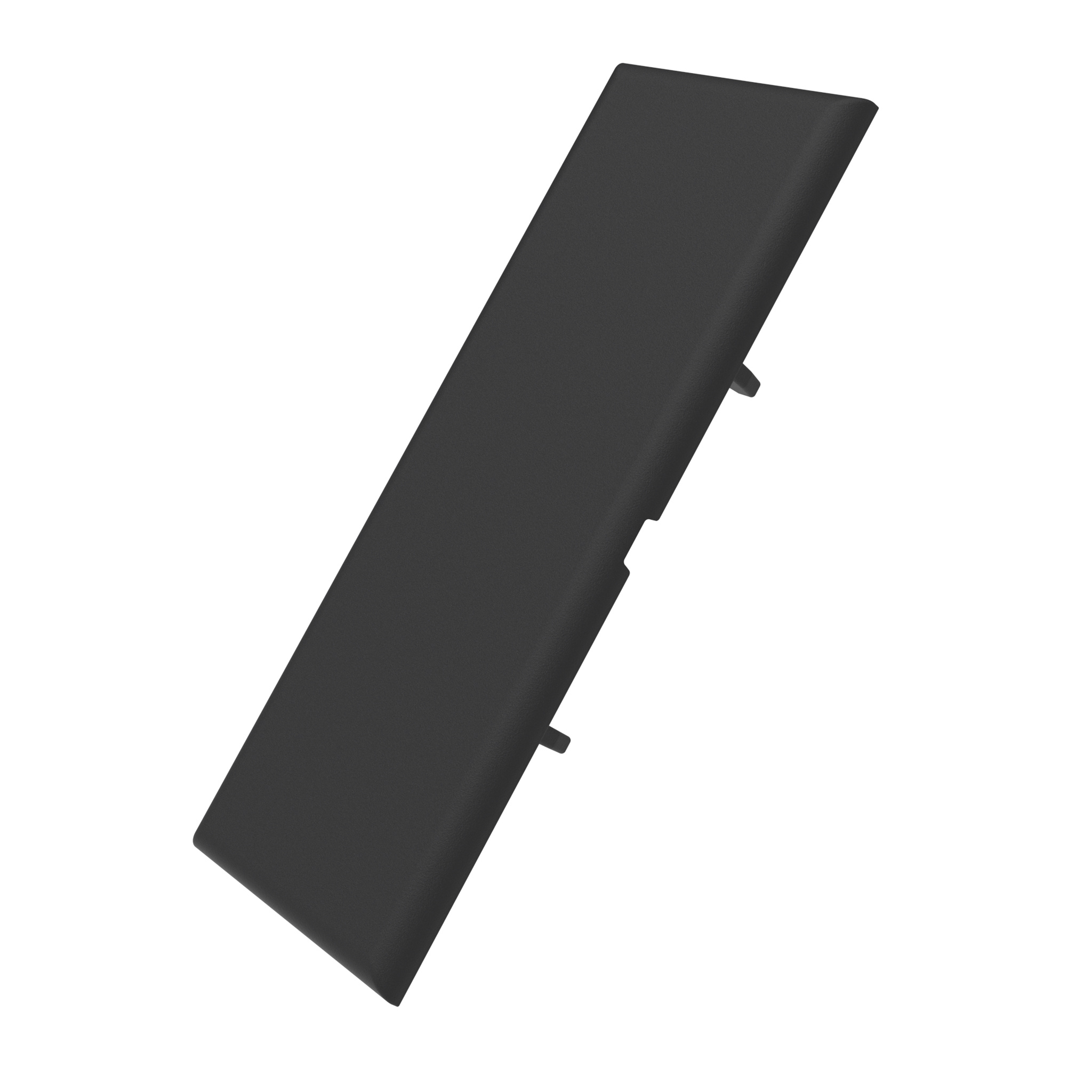

Color:BlackDelivery Countries:WorldwideDescription:To cover the open side of the connection angleMaterial:Plastic PA, glass fiber reinforcedSpecials:Other colors on requestTip:Compatible Zinc Connection Angle see 093W802R

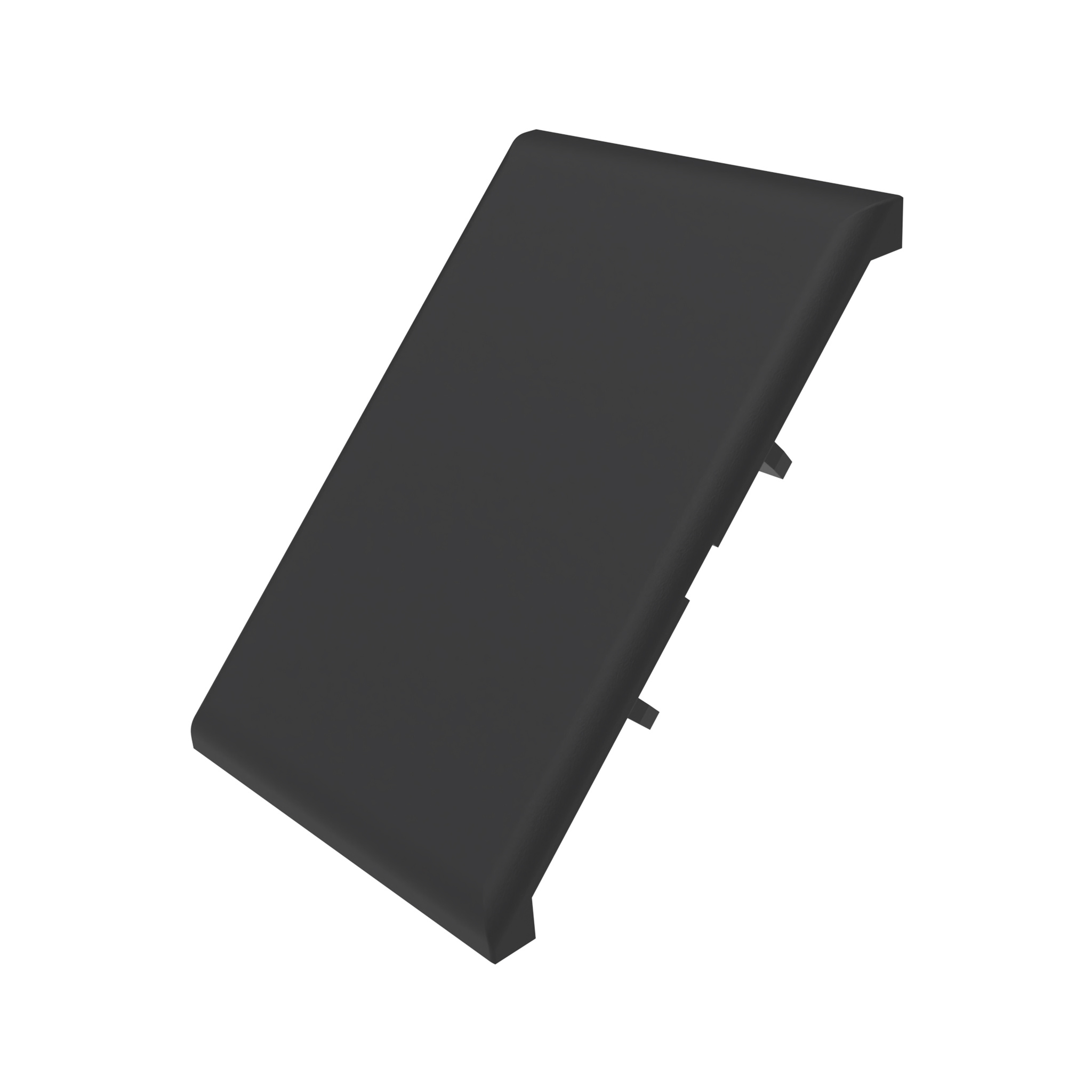

Color:BlackDelivery Countries:WorldwideDescription:To cover the open side of the connection angleMaterial:Plastic PA, glass fiber reinforcedSpecials:Other colors on requestTip:Compatible Zinc Connection Angle see 093W601R

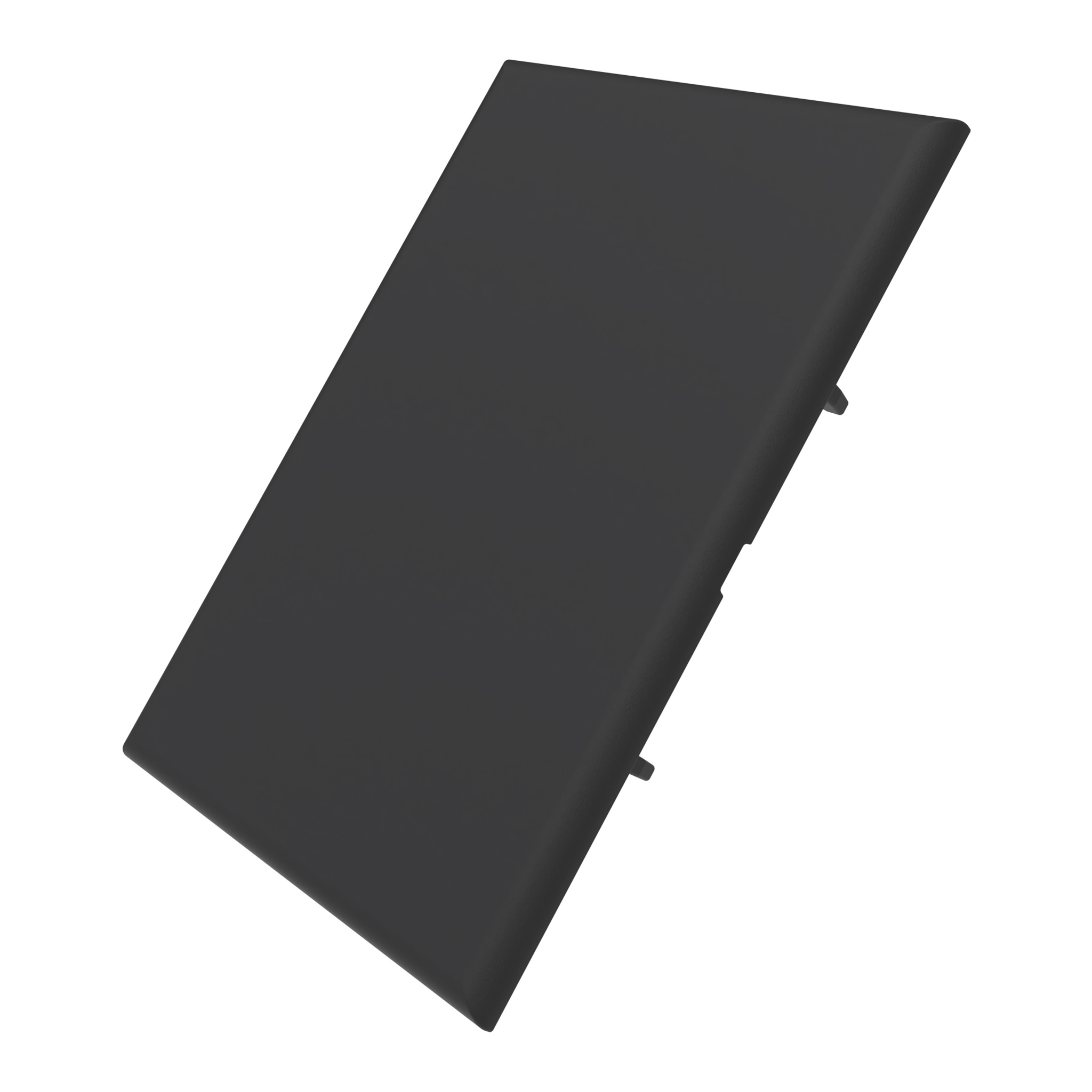

Color:BlackDelivery Countries:WorldwideDescription:To cover the open side of the connection angleMaterial:Plastic PA, glass fiber reinforcedSpecials:Other colors on requestTip:Compatible Zinc Connection Angle see 093W803R
Color:Black, grayDelivery Countries:WorldwideDescription:To cover the open side of the connection angleMaterial:Plastic PA, glass fiber reinforcedTip:Compatible Zinc Connection Angle I 40 see 093W407N08R
Color:BlackDelivery Countries:WorldwideDescription:Cover cap to cover three pole sockets of LED lamps and power strips Module F LineMaterial:Plastic PATip:Compatible Power Strip see 6SBEU24I.370 Compatible LED Lamp see 6SL1040DI.953
Color:BlackDelivery Countries:WorldwideDescription:Screw-on cover cap for the end of the aluminum profileFastening:With self forming countersunk screws S7 x 16*Material:Zinc die-castSpecials:Other sizes, other colors on requestSurface:Powder coatedTip:*Compatible Self Forming Countersunk Screw S7 x 16 see 093S0716C
Color:Black, grayDelivery Countries:WorldwideDescription:To cover the end of the profileFastening:Insert the locking pin flat into the profile using the plastic hammer. To remove the cover cap, punch through the locking pin with a 4 mm pin.Material:Plastic PA, glass ball reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors on request
Delivery Countries:WorldwideDescription:To cover T-Slots with 10 mm width and a 6 mm profile webMaterial:AluminumSurface:AnodizedTip:Please note: You are ordering in meters!
Delivery Countries:WorldwideDescription:To cover T-Slots with 8 mm width and a 4.5 mm profile webMaterial:AluminumSurface:AnodizedTip:Please note: You are ordering in meters!
Color:BlackDelivery Countries:WorldwideDescription:To cover aluminum profilesMaterial:Plastic EPDMTip:Please note: You are ordering in meters!
Color:BlackDelivery Countries:WorldwideDescription:To cover size 8 aluminum profile slotsMaterial:Plastic NBR, ≈ 80 Shore ATip:Please note: You are ordering in meters!
Color:Black, yellow, orange, red, blue, gray, green, white, natural, alu colorDelivery Countries:WorldwideDescription:To cover T-Slots with 10 mm width and a 6 mm profile webMaterial:Plastic PPSpecials:Other colors on requestTip:ESD electrostatical discharging version: Notch at the bottom side
Color:GrayDelivery Countries:WorldwideDescription:To cover size 15 profile slotsMaterial:Plastic PP

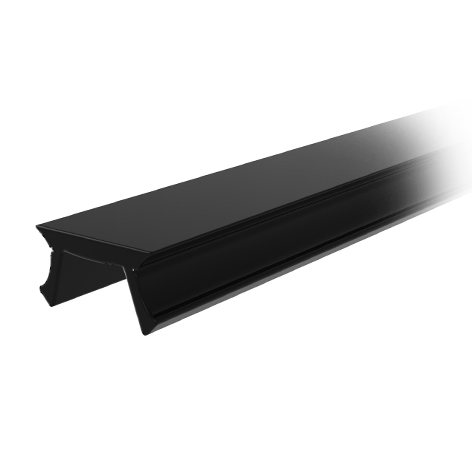

Color:Black, gray, natural, alu colorDelivery Countries:WorldwideDescription:To cover T-Slots with 6 mm width and a 3.0 mm profile webMaterial:Plastic PPSpecials:Other colors on request

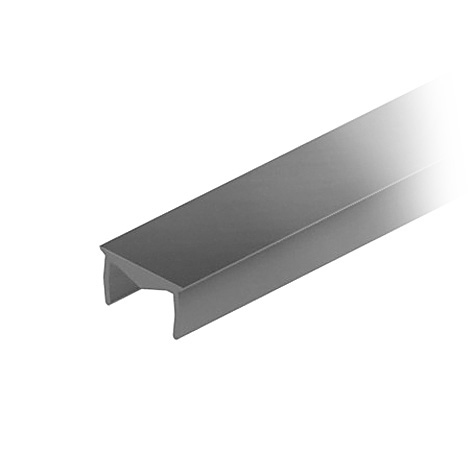

Color:Black, yellow, red, blue, gray, white, natural, alu colorDelivery Countries:WorldwideDescription:To cover T-Slots with 8 width and a 2.2 mm profile webMaterial:Plastic PPSpecials:Other colors on requestTip:ESD electrostatical discharging version: Notch at the bottom side
Color:Black, yellow, gray, natural, alu colorDelivery Countries:WorldwideDescription:To cover T-Slots with 8 mm width and a 4.5 mm profile webMaterial:Plastic PPSpecials:Other colors on request
Delivery Countries:WorldwideDescription:To cross connect two tubular frame profiles with Ø 30 mm outer diameter at variable angles, with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:4 cross ball connector D30, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 28, 2 self-locking nuts DIN EN ISO 4032 (DIN 934) - M6Surface:Assembly set: Zinc platedTip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06
Color:BlackDelivery Countries:WorldwideDescription:To fix cables to aluminum profiles in two directions; can be mounted into the slot by a quarter turnMaterial:Cable binding block: Plastic PA, glass fiber reinforced Velcro® strap: Plastic PE (hook), Plastic PA (loop)Specials:Customized hammer, other colors on request
Color:BlackDelivery Countries:WorldwideDescription:To fasten cables and tubes parallel to the slot, simple click-in assemblyMaterial:Plastic PA, glass fiber reinforcedTip:Compatible Velcro® strap for Cross Cable Binder Block D28 see 340ME8200KL
Color:BlackDelivery Countries:WorldwideDescription:To fix cables along and across aluminum profiles; can be clipped on the tubular frame profileMaterial:Plastic PA, carbon fiber reinforced
Color:Gray ≈ RAL 7042Delivery Countries:WorldwideDescription:To fix cables along and across aluminum profiles; can be clipped on the tubular frame profileMaterial:Plastic PP
Delivery Countries:WorldwideDescription:To cross connect two tubular frame profileswith Ø 28 mm outer diameter; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for cross connector D28, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 30, 1 self-locking nut DIN EN ISO 10511 (DIN 985) - M6Surface:Connector: Plain Assembly set: Zinc plated
Delivery Countries:WorldwideDescription:To cross connect two tubular frame profiles with Ø 30 mm outer diameter; Completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for cross connector D30, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 30, 1 self-locking nut DIN EN ISO 4032 (DIN 934) - M6Surface:Assembly set: Zinc platedTip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06

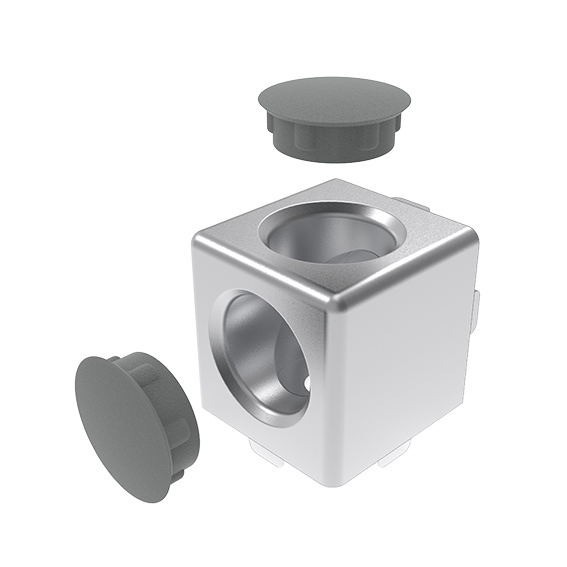

Assembly Set 1:2 screws DIN EN ISO 7380 (DIN 34805) - M5 x 14Assembly Set 2:2 self-forming screws S6 x 16 - AF 4Color:Cube connector: Alu color Cover caps: Black / alu colorDelivery Countries:WorldwideDescription:To connect two aluminium profiles at right angles; with cover caps to cover the boresMaterial:Cube connector: Zinc die-cast Cover caps: Plastic PA Assembly set: SteelSurface:Cube connector: Plain / powder coated Cover caps: Laquered Assembly set: Zinc plated
