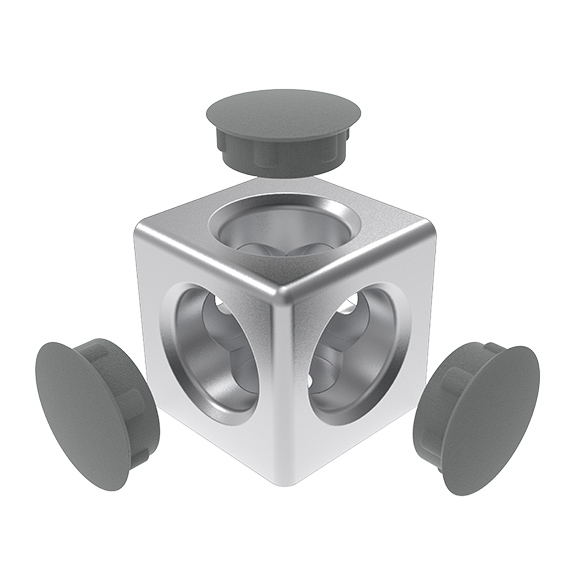

Cube Connector 20, 3D

Version: Cover cap: Black Assembly Set: - Color: - D1 (mm): 12.0 D2 (mm): 6.3 L (mm): 20.0 R (mm): 1.5 Slot N (mm): 6 Surface: Plain Profile: B

Assembly Set 1:3 screws DIN EN ISO 7380 (DIN 34805) - M5 x 14Assembly Set 2:3 self-forming screws S6 x 16 - AF 4Color:Cube connector: Alu color Cover caps: Black / alu colorDelivery Countries:WorldwideDescription:To connect three aluminum profiles at right angles; with cover caps to cover the boresMaterial:Cube connector: Zinc die-cast Cover caps: Plastic PA Assembly set: SteelSurface:Cube connector: Plain / powder coated Cover caps: Laquered Assembly set: Zinc plated

€0.00

Cube Connector 25 - 1", 2D

Version: Cover cap: alu color Assembly Set: - D1 (mm): 12.0 D2 (mm): 7.2 L (mm): 25.4 (1") R (mm): 2.0 Slot N (mm): 6

Assembly Set 1:2 screws DIN EN ISO 7380 (DIN 34805) - UNC 1/4-20x1"Color:Cube connector: Alu color Cover caps: Alu colorDelivery Countries:WorldwideDescription:To connect two aluminium profiles at right angles; with cover caps to cover the boresMaterial:Cube connector: Aluminum die-cast Cover caps: Plastic PA Assembly set: SteelSurface:Cube connector: Powder coated Cover caps: Laquered Assembly set: Zinc plated

€0.00

Cube Connector 25 - 1", 3D

Version: Cover cap: alu color Assembly Set: incl. assembly set D1 (mm): 12.0 D2 (mm): 7.2 L (mm): 25.4 (1") R (mm): 2.0 Slot N (mm): 6

Assembly Set:3 screws DIN EN ISO 7380 (DIN 34805) - UNC 1/4-20x1"Color:Cube connector: Alu color Cover caps: Alu colorDelivery Countries:WorldwideDescription:To connect three aluminum profiles at right angles; with cover caps to cover the boresMaterial:Cube connector: Aluminum die-cast Cover caps: Plastic PA Assembly set: SteelSurface:Cube connector: Powder coated Cover caps: Laquered Assembly set: Zinc plated

€0.00

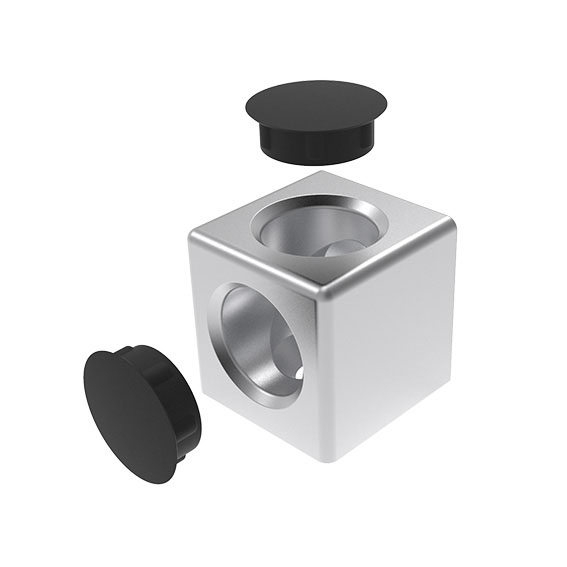

Cube Connector 30, 2D

Version: Cover cap: Black Assembly Set: incl. assembly set Color: - D1 (mm): 18.0 D2 (mm): 9.0 L (mm): 30.0 R (mm): 2.0 Slot N (mm): 8 Surface: Plain Profile: B

Assembly Set:2 self-forming screws S8 x 25 - AF 5Color:Cube connector: Alu color Cover caps: Black / alu colorDelivery Countries:WorldwideDescription:To connect two aluminium profiles at right angles; with cover caps to cover the boresMaterial:Cube connector: Aluminum die-cast Cover caps: Plastic PA Assembly set: SteelSurface:Cube connector: Plain / powder coated Cover caps: Laquered Assembly set: Zinc plated

€0.00

Cube Connector 30, 3D

Version: Cover cap: alu color Assembly Set: - Color: Alu color D1 (mm): 18.0 D2 (mm): 9.0 L (mm): 30.0 R (mm): 2.0 Slot N (mm): 8 Surface: Powder coated Profile: B

Assembly Set:3 self-forming screws S8 x 25 - hexagon socket AF 5Color:Cube connector: Alu color Cover caps: Black / alu colorDelivery Countries:WorldwideDescription:To connect three aluminum profiles at right angles; with cover caps to cover the boresMaterial:Cube connector: Aluminum die-cast Cover caps: Plastic PA Assembly set: SteelSurface:Cube connector: Plain / powder coated Cover caps: Laquered Assembly set: Zinc plated

€0.00

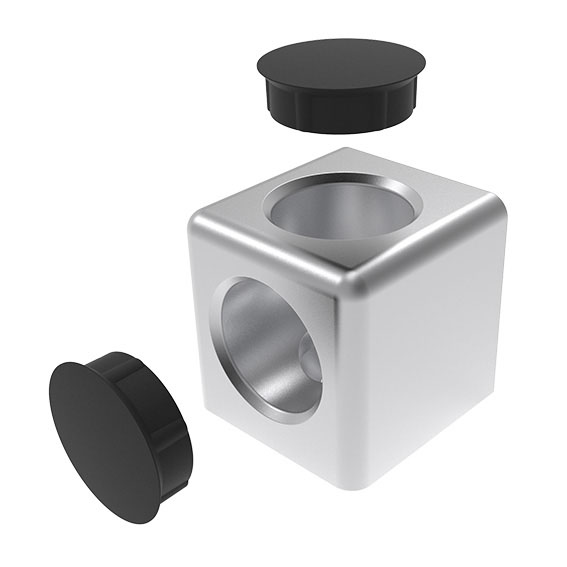

Cube Connector 40, 2D

Version: Cover cap: Black Assembly Set: incl. assembly set Color: - D1 (mm): 24.0 D2 (mm): 12.5 L (mm): 40.0 R (mm): 3.0 Slot N (mm): 10 Surface: Plain Profile: B

Assembly Set:2 self-forming screws S12 x 30 - hexalobular socket T50Color:Cube connector: Alu color Cover caps: Black / alu colorDelivery Countries:WorldwideDescription:To connect two aluminium profiles at right angles; with cover caps to cover the boresMaterial:Cube connector: Aluminum die-cast Cover caps: Plastic PA Assembly set: SteelSurface:Cube connector: Plain / powder coated Cover caps: Laquered Assembly set: Zinc plated

€0.00

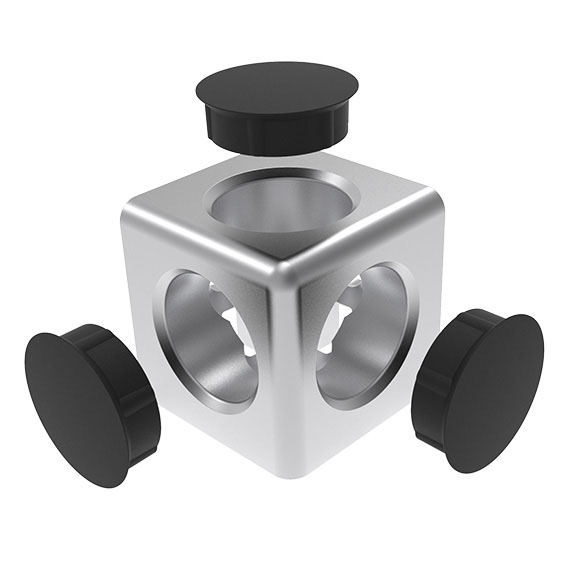

Cube Connector 40, 3D

Version: Cover cap: alu color Assembly Set: - Color: Alu color D1 (mm): 24.0 D2 (mm): 8.5 L (mm): 40.0 R (mm): 4.0 Slot N (mm): 8 Surface: Powder coated Profile: I

Assembly Set:3 self-forming screws S12 x 30 - hexalobular socket T50Color:Cube connector: Alu color Cover caps: Black / alu colorDelivery Countries:WorldwideDescription:To connect three aluminum profiles at right angles; with cover caps to cover the boresMaterial:Cube connector: Aluminum die-cast Cover caps: Plastic PA Assembly set: SteelSurface:Cube connector: Plain / powder coated Cover caps: Laquered Assembly set: Zinc plated

€0.00

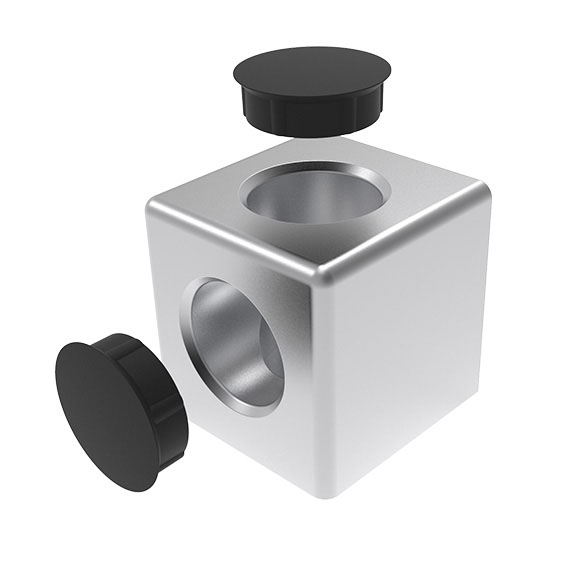

Cube Connector 45, 2D

Version: Cover cap: Black Assembly Set: - Color: - D1 (mm): 24.0 D2 (mm): 13.0 L (mm): 45.0 R (mm): 3.0 Slot N (mm): 10 Surface: Plain Profile: B

€0.00

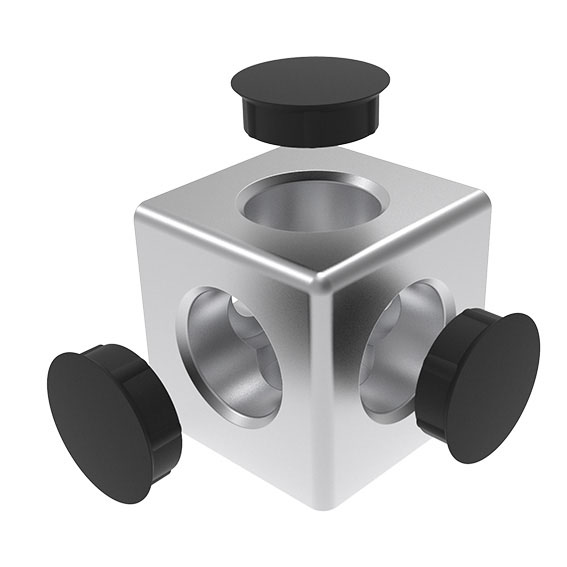

Cube Connector 45, 3D

Version: Cover cap: alu color Assembly Set: incl. assembly set Color: Alu color D1 (mm): 24.0 D2 (mm): 13.0 L (mm): 45.0 R (mm): 3.0 Slot N (mm): 10 Surface: Powder coated Profile: B

€0.00

Cup Holder

Fig.: ② Version: Open bottom Color: Red ≈ RAL 3002 ESD: -

Color:Black, redDelivery Countries:WorldwideDescription:To securely put down a bottle, can or cup, or to park a tool (e.g. a drill)Fastening:M5 countersunk screwsMaterial:Plastic PA, glass fiber reinforcedSpecials:Other colors on request

€0.00

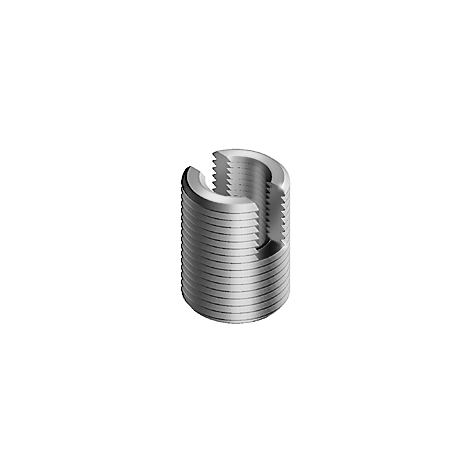

Cutting Bush

L (mm): 20 M: - Material: Steel Surface: Blue zinc plated

Delivery Countries:WorldwideDescription:To fix leveling feet or transport and base plates to the aluminum profileMaterial:SteelSurface:Blue zinc plated

€0.00

Cutting Bush with Shank

Material: Steel Surface: Zinc plated Profile: I / B

Delivery Countries:WorldwideDescription:For reduction from core hole 10.2 mm to M8 threadMaterial:SteelSurface:Zinc platedTip:Compatible Screw-in Tool for Cutting Bush with Shank see 09308802

€0.00

Direct Connector I / B, Slot 8 / 10

Slot N (mm): 10 Profile: B

Delivery Countries:WorldwideDescription:To cross or parallely connect two aluminum profiles slot 8 with slot 10; assembly without machiningMaterial:SteelSurface:Zinc plated

€0.00

Direct Connector I 90°, Slot 8

Slot N (mm): 8 Profile: I

Delivery Countries:WorldwideDescription:To connect two aluminum profiles at right angles, before the application one core hole must be M8 threaded (min. 18 mm deep)Material:Stainless steel

€0.00

Direct Connector I, Slot 8

Slot N (mm): 8 Profile: I

Delivery Countries:WorldwideDescription:To cross or parallely connect two aluminum profiles; assembly without machiningMaterial:SteelSurface:Zinc plated

€0.00

Docking Clip I 60x24

Color: Gray ≈ RAL 7042 A (mm): 3.0 (max. 4.0)

Color:GrayDelivery Countries:WorldwideDescription:For quick plug-in of roller tracks I 60x24 in the lateral connectors of flow beds of live storage shelvings, channel width can be adjusted horizontally in stepsMaterial:Plastic PASpecials:Other colors on request

€0.00

Dolly for SLC 600 x 400, with 2 Swivel and 2 Fixed Casters

Color of Roller: Gray ESD: - Fixed Caster Tread: Solid rubber Swivel Caster Tread: Solid rubber

Color:Caster: See tableDelivery Countries:WorldwideDescription:For highest flexibility for inner company material supply Fits SLC and euro container StackableMaterial:Dolly frame: Steel Roller housing: Steel Caster: See table Screws: SteelSurface:Dolly frame: Zinc plated Roller housing: Zinc plated Screws: Zinc plated

€0.00

Dolly for SLC 600 x 400, with 4 Swivel Casters

Color of Roller: Black ESD: - Swivel Caster Tread: Plastic PP

€0.00

Dolly for SLC 800 x 600, with 5 Swivel Castors

Color of Roller: Black ESD: ESD Swivel Caster Tread: Plastic PP

€0.00

Door Latch

Slot N (mm): 8 / 10

Color:Housing: Alu color Handle: BlackDelivery Countries:WorldwideDescription:For easy closing of doors and flaps, with spring-loaded clamp; including separate slot fixation stripsMaterial:Housing: Zinc die-cast Pull handle: Plastic PA, Bolt: Stainless steelSurface:Powder coated

€0.00

Door Latch (Set)

Locking Force: ≈ 50 N

Color:BlackCounter Screw:(not included in delivery) 1 cylinder head screw DIN EN ISO 4762 (DIN 912) - M6 - thread lengh depending on gap distance and slot depth, screw head dives competely into the door latchDelivery Countries:WorldwideDescription:Quick fastener for swing doors, to be mountend in a min. 12 mm gap between door and postMaterial:Door latch: Zinc die-cast Cover cap: Plastic PA, glass fiber reinforced 2 countersunk screws M4: SteelSet:1 door latch, 2 screws DIN EN ISO 10642 (DIN 7991) - M4 x 16Specials:Other materials, other colors on requestSurface:Door latch: Plain 2 countersunk screws M4: Zinc plated

€0.00

Door Lock (Set)

Lock: Universal*

Color:Housing: Alu color Cross: Lack Handle: BlackDelivery Countries:WorldwideDescription:For an easy and secure latching and locking of swing and sliding doors, no mechanical preparation needed for the assemblyMaterial:Housing: Aluminum die-cast Cross: Aluminum die-cast Handle: Zinc die-cast Fastening material: SteelSet:1 door lock, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 30, 1 washer 6-FSt, 1 anchor - M6, 1 nut DIN EN ISO 4032 (DIN 934) - M6, 1 washer DIN EN ISO 7093 (DIN 9021) - 6.4, 3 hammer nut - slot 8 - M6, 3 hammer nut - slot 10 - M6Surface:Housing: Lacquered Cross: Powder coated Handle: Plastic coated Fastening material: Zinc platedTip:*Universal: One key fits all slam latches Unique: Each door lock has a different key **With double-bitted key

€0.00

Door Sealing Profile 11 x 17

Color: Black

Color:BlackDelivery Countries:North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, BulgariaDescription:For sealing doors and flaps; installed by pressing into 10 mm slot or sealing channelMaterial:Plastic PVC, 57 Shore ASpecials:Other colors on request

€0.00

Door Sealing Profile 11 x 19.5

Color: Black

€0.00
