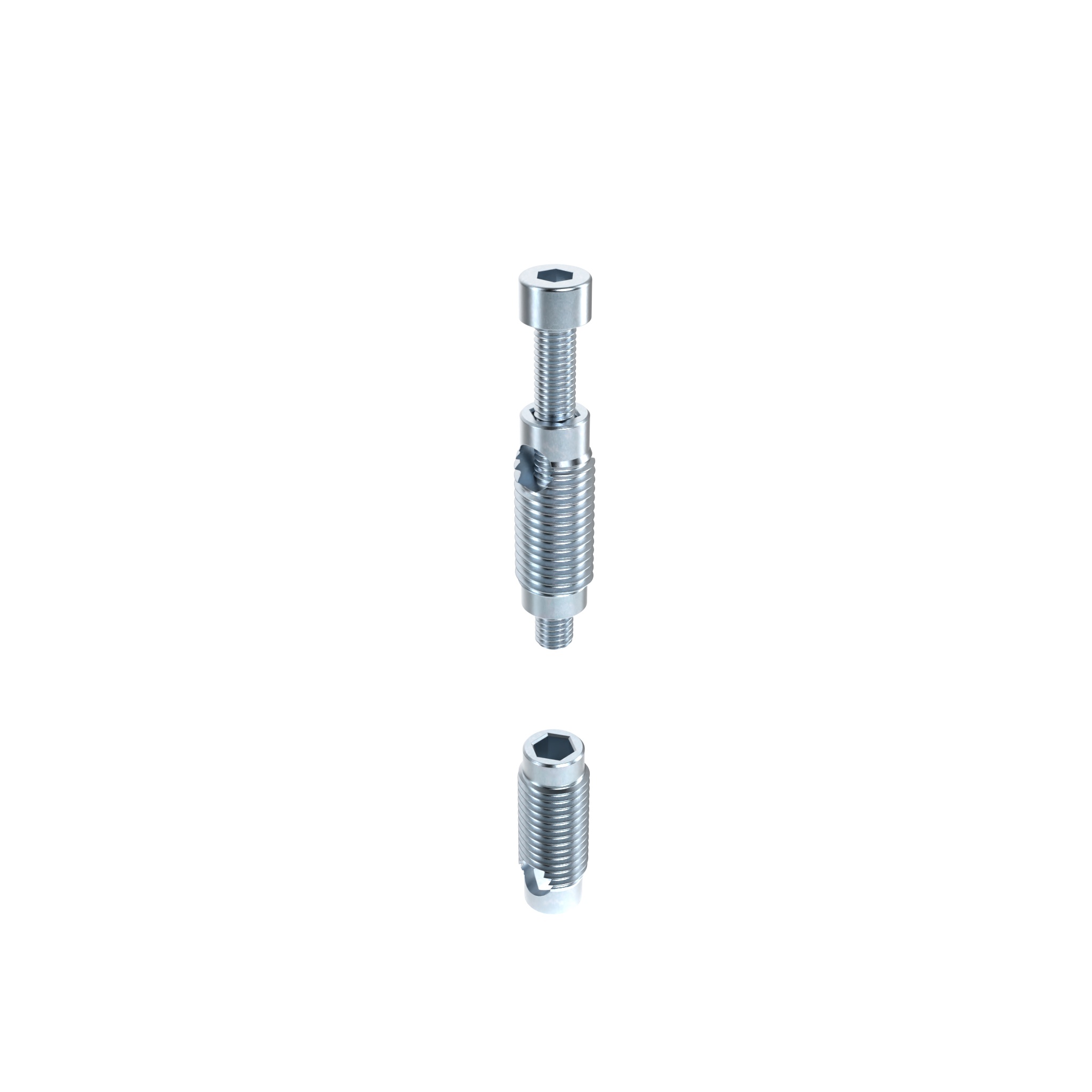

Automatic Butt Connector Steel

Product information "Automatic Butt Connector Steel"

Delivery Countries:
Worldwide

Description:
To face-to face connect two aluminum profiles fast, assembly without machining; self-cutting thread

Material:
Steel

Surface:
Zinc plated

Tip:
* Compatible Cover Cap see 099GA081K

(ECLASS 6.0):	23360290
(ECLASS 7.0):	23360290
(ECLASS 8.0):	23360290
(ECLASS 9.0):	23360290
(ECLASS 10.0):	23360290
(ECLASS 11.0):	23360290
(ECLASS 12.0):	23360290
(ECLASS 13.0):	23360290
Customs Tariff Number Export:	73181900
Model:	Steel
Pack Quantity:	10 / 100 pieces
Pack Quantity (1):	10
Pack Quantity (Stück):	10
Weight (g):	24.0
pA Number:	132535

Variants

Product ID	ESD	Version	Profile	SW 2	D (mm)	L (mm)	Slot N (mm)	Profile Width	Modular Dimension (mm)	Screw	SW 1
099G051M4	ESD electrostatical discharging	With assembly set, incl. screw andthreaded cutting sleeve	I	4	7.0	24.0	5	20	20	M4 x 40	3
099G061M5	ESD electrostatical discharging	With assembly set, incl. screw andthreaded cutting sleeve	I	5	10.0	27.0	6	30	30	M5 x 45	4
099G081M6	ESD electrostatical discharging	With assembly set, incl. screw andthreaded cutting sleeve	I	6	12.0	31.0	8	40	40	M6 x 50	5
099G084M5	ESD electrostatical discharging	With assembly set, incl. screw andthreaded cutting sleeve	B	5	10.7	24.0	8	30	30	M5 x 45	4
099G102M6	ESD electrostatical discharging	With assembly set, incl. screw andthreaded cutting sleeve	B	6	12.0	35.0	10	40, 45	40L, 45	M6 x 60	5
099G103M6	ESD electrostatical discharging	With assembly set, incl. screw andthreaded cutting sleeve	B	6	13.0	35.0	10	45	45L	M6 x 60	5
099GS051M4	ESD electrostatical discharging	Threaded cutting sleeve	I	4	7.0	24.0	5	20	20
099GS061M5	ESD electrostatical discharging	Threaded cutting sleeve	I	5	10.0	27.0	6	30	30
099GS081M6	ESD electrostatical discharging	Threaded cutting sleeve	I	6	12.0	31.0	8	40	40
099GS084M5	ESD electrostatical discharging	Threaded cutting sleeve	B	5	10.7	24.0	8	30	30
099GS102M6	ESD electrostatical discharging	Threaded cutting sleeve	B	6	12.0	35.0	10	40, 45	40L, 45
099GS103M6	ESD electrostatical discharging	Threaded cutting sleeve	B	6	13.0	35.0	10	45	45L
