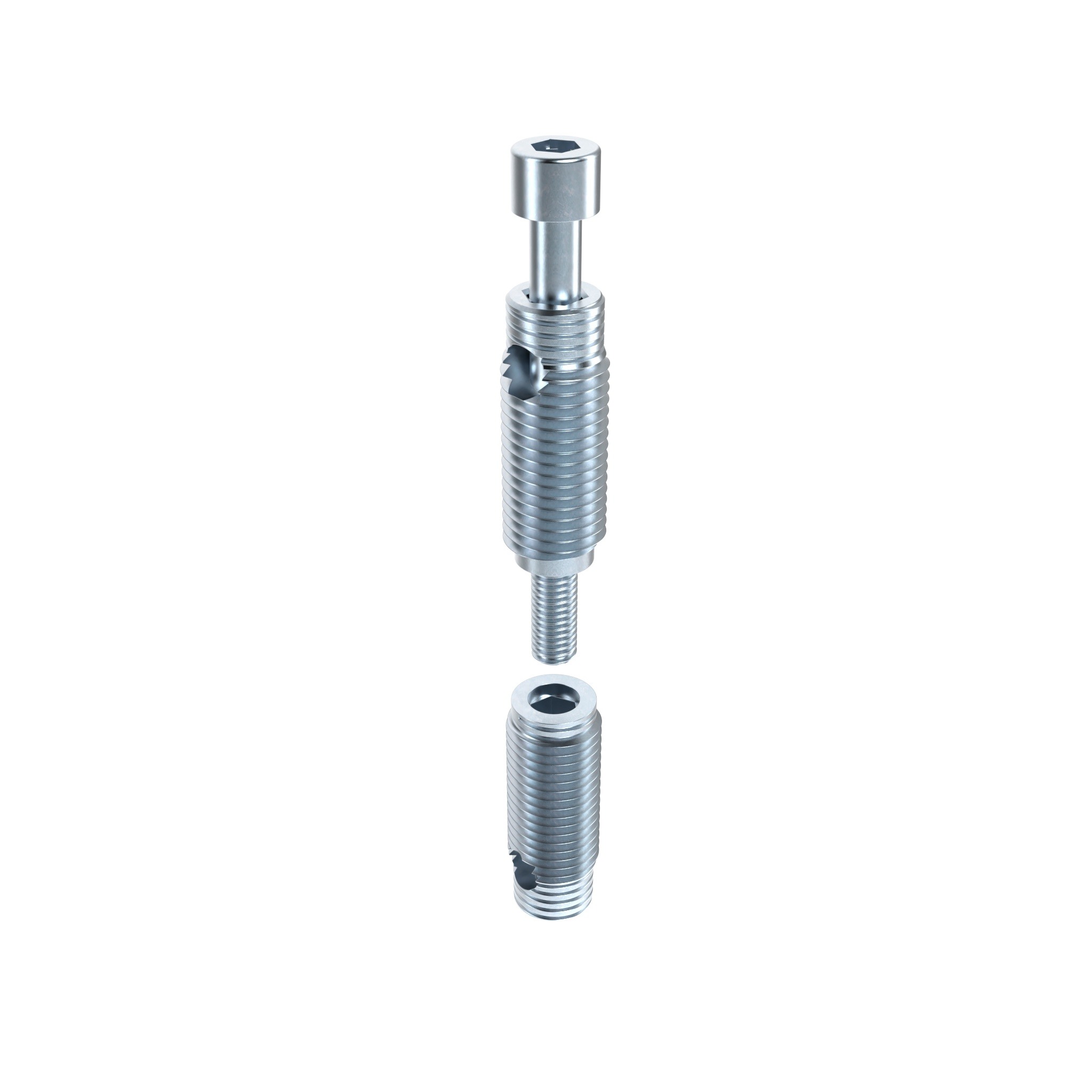

Automatic Butt Connector Steel

Skip image gallery

€0.00*

Prices excl. VAT plus shipping costs

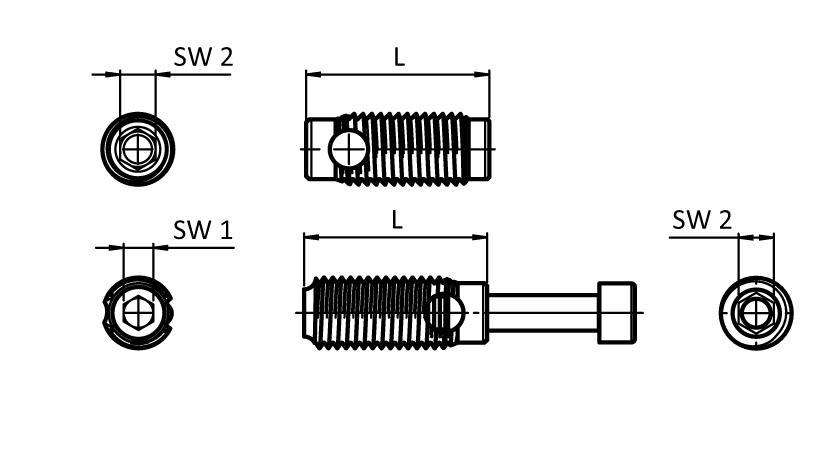

D (mm)
ESD
L (mm)
Modular Dimension (mm)
Profile
Profile Width
SW 1
SW 2
Screw
Slot N (mm)
Version
Part #: 099G103M6

Product information "Automatic Butt Connector Steel"

Delivery Countries:
Worldwide

Description:
V_To face-to face connect two aluminum profiles fast, assembly without machining; self-cutting thread

Material:
Steel

Surface:
Zinc plated

Tip:
* Compatible Cover Cap see 099GA081K
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Customs Tariff Number Export: 73181900
Model: Steel
Pack Quantity: 10 / 100 pieces
Pack Quantity (1): 10
Pack Quantity (Stück): 10
Weight (g): 56.0
pA Number: 132232

Variants

Product ID ESD Version Profile SW 2 D (mm) L (mm) Slot N (mm) Profile Width Modular Dimension (mm) Screw SW 1
099G051M4 ESD electrostatical discharging With assembly set, incl. screw andthreaded cutting sleeve I 4 7.0 24.0 5 20 20 M4 x 40 3
099G061M5 ESD electrostatical discharging With assembly set, incl. screw andthreaded cutting sleeve I 5 10.0 27.0 6 30 30 M5 x 45 4
099G081M6 ESD electrostatical discharging With assembly set, incl. screw andthreaded cutting sleeve I 6 12.0 31.0 8 40 40 M6 x 50 5
099G084M5 ESD electrostatical discharging With assembly set, incl. screw andthreaded cutting sleeve B 5 10.7 24.0 8 30 30 M5 x 45 4
099G102M6 ESD electrostatical discharging With assembly set, incl. screw andthreaded cutting sleeve B 6 12.0 35.0 10 40, 45 40L, 45 M6 x 60 5
099G103M6 ESD electrostatical discharging With assembly set, incl. screw andthreaded cutting sleeve B 6 13.0 35.0 10 45 45L M6 x 60 5
099GS051M4 ESD electrostatical discharging Threaded cutting sleeve I 4 7.0 24.0 5 20 20
099GS061M5 ESD electrostatical discharging Threaded cutting sleeve I 5 10.0 27.0 6 30 30
099GS081M6 ESD electrostatical discharging Threaded cutting sleeve I 6 12.0 31.0 8 40 40
099GS084M5 ESD electrostatical discharging Threaded cutting sleeve B 5 10.7 24.0 8 30 30
099GS102M6 ESD electrostatical discharging Threaded cutting sleeve B 6 12.0 35.0 10 40, 45 40L, 45
099GS103M6 ESD electrostatical discharging Threaded cutting sleeve B 6 13.0 35.0 10 45 45L
