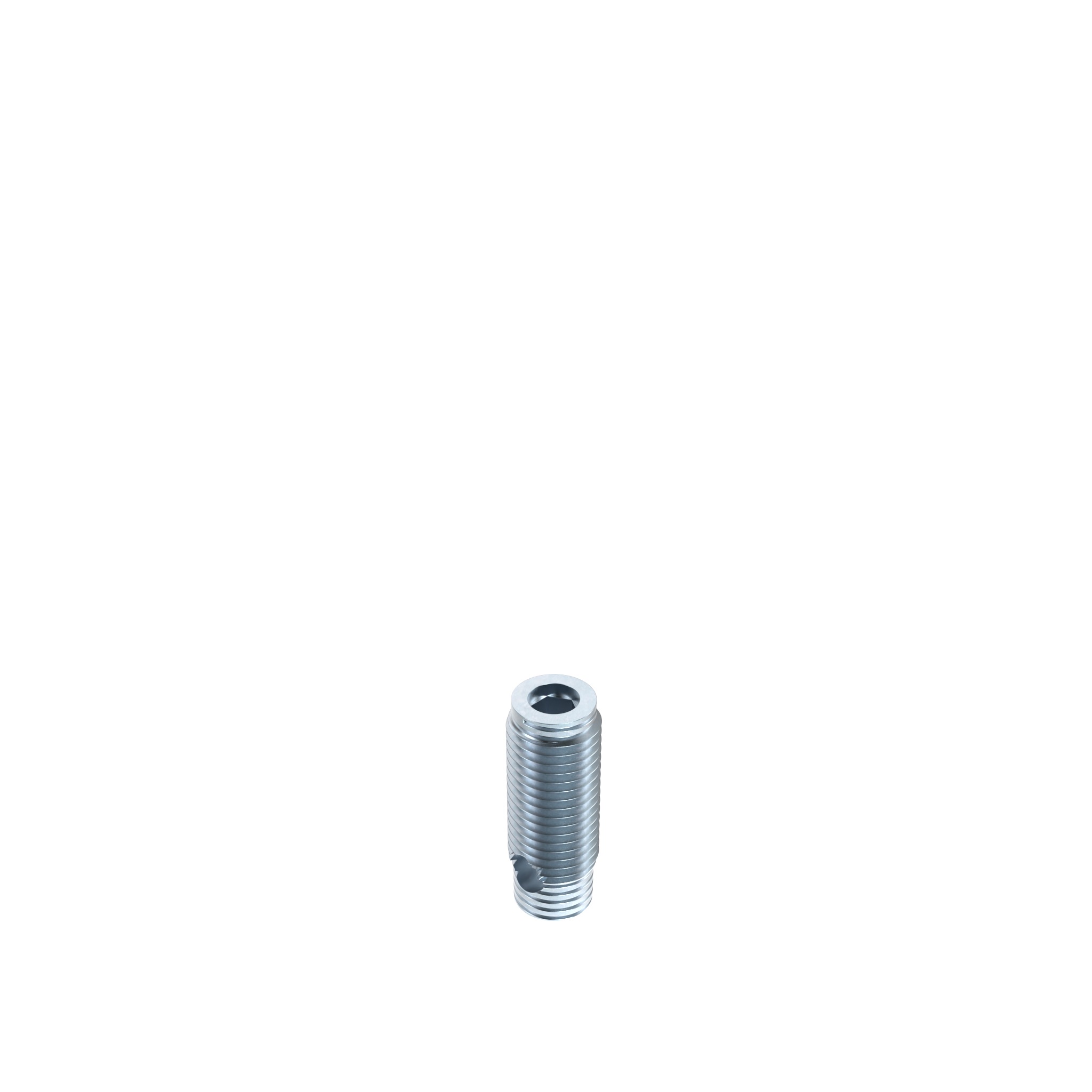

Automatic Butt Connector Steel
Product number:
099GS103M6
Product information "Automatic Butt Connector Steel"
Delivery Countries:
Worldwide
Description:
To face-to face connect two aluminum profiles fast, assembly without machining; self-cutting thread
Material:
Steel
Surface:
Zinc plated
Tip:
* Compatible Cover Cap see 099GA081K
Worldwide
Description:
To face-to face connect two aluminum profiles fast, assembly without machining; self-cutting thread
Material:
Steel
Surface:
Zinc plated
Tip:
* Compatible Cover Cap see 099GA081K
(ECLASS 6.0): | 23360290 |
---|---|
(ECLASS 7.0): | 23360290 |
(ECLASS 8.0): | 23360290 |
(ECLASS 9.0): | 23360290 |
(ECLASS 10.0): | 23360290 |
(ECLASS 11.0): | 23360290 |
(ECLASS 12.0): | 23360290 |
(ECLASS 13.0): | 23360290 |
Model: | Steel |
Pack Quantity: | 10 / 100 pieces |
Pack Quantity (1): | 100 |
Pack Quantity (Stück): | 100 |
Weight (g): | 18.5 |
Variants
Product ID | ESD | Version | Profile | SW 2 | D (mm) | L (mm) | Slot N (mm) | Profile Width | Modular Dimension (mm) | Screw | SW 1 |
---|---|---|---|---|---|---|---|---|---|---|---|
099G051M4 | ESD electrostatical discharging | With assembly set, incl. screw andthreaded cutting sleeve | I | 4 | 7.0 | 24.0 | 5 | 20 | 20 | M4 x 40 | 3 |
099G061M5 | ESD electrostatical discharging | With assembly set, incl. screw andthreaded cutting sleeve | I | 5 | 10.0 | 27.0 | 6 | 30 | 30 | M5 x 45 | 4 |
099G081M6 | ESD electrostatical discharging | With assembly set, incl. screw andthreaded cutting sleeve | I | 6 | 12.0 | 31.0 | 8 | 40 | 40 | M6 x 50 | 5 |
099G084M5 | ESD electrostatical discharging | With assembly set, incl. screw andthreaded cutting sleeve | B | 5 | 10.7 | 24.0 | 8 | 30 | 30 | M5 x 45 | 4 |
099G102M6 | ESD electrostatical discharging | With assembly set, incl. screw andthreaded cutting sleeve | B | 6 | 12.0 | 35.0 | 10 | 40, 45 | 40L, 45 | M6 x 60 | 5 |
099G103M6 | ESD electrostatical discharging | With assembly set, incl. screw andthreaded cutting sleeve | B | 6 | 13.0 | 35.0 | 10 | 45 | 45L | M6 x 60 | 5 |
099GS051M4 | ESD electrostatical discharging | Threaded cutting sleeve | I | 4 | 7.0 | 24.0 | 5 | 20 | 20 | ||
099GS061M5 | ESD electrostatical discharging | Threaded cutting sleeve | I | 5 | 10.0 | 27.0 | 6 | 30 | 30 | ||
099GS081M6 | ESD electrostatical discharging | Threaded cutting sleeve | I | 6 | 12.0 | 31.0 | 8 | 40 | 40 | ||
099GS084M5 | ESD electrostatical discharging | Threaded cutting sleeve | B | 5 | 10.7 | 24.0 | 8 | 30 | 30 | ||
099GS102M6 | ESD electrostatical discharging | Threaded cutting sleeve | B | 6 | 12.0 | 35.0 | 10 | 40, 45 | 40L, 45 | ||
099GS103M6 | ESD electrostatical discharging | Threaded cutting sleeve | B | 6 | 13.0 | 35.0 | 10 | 45 | 45L |
