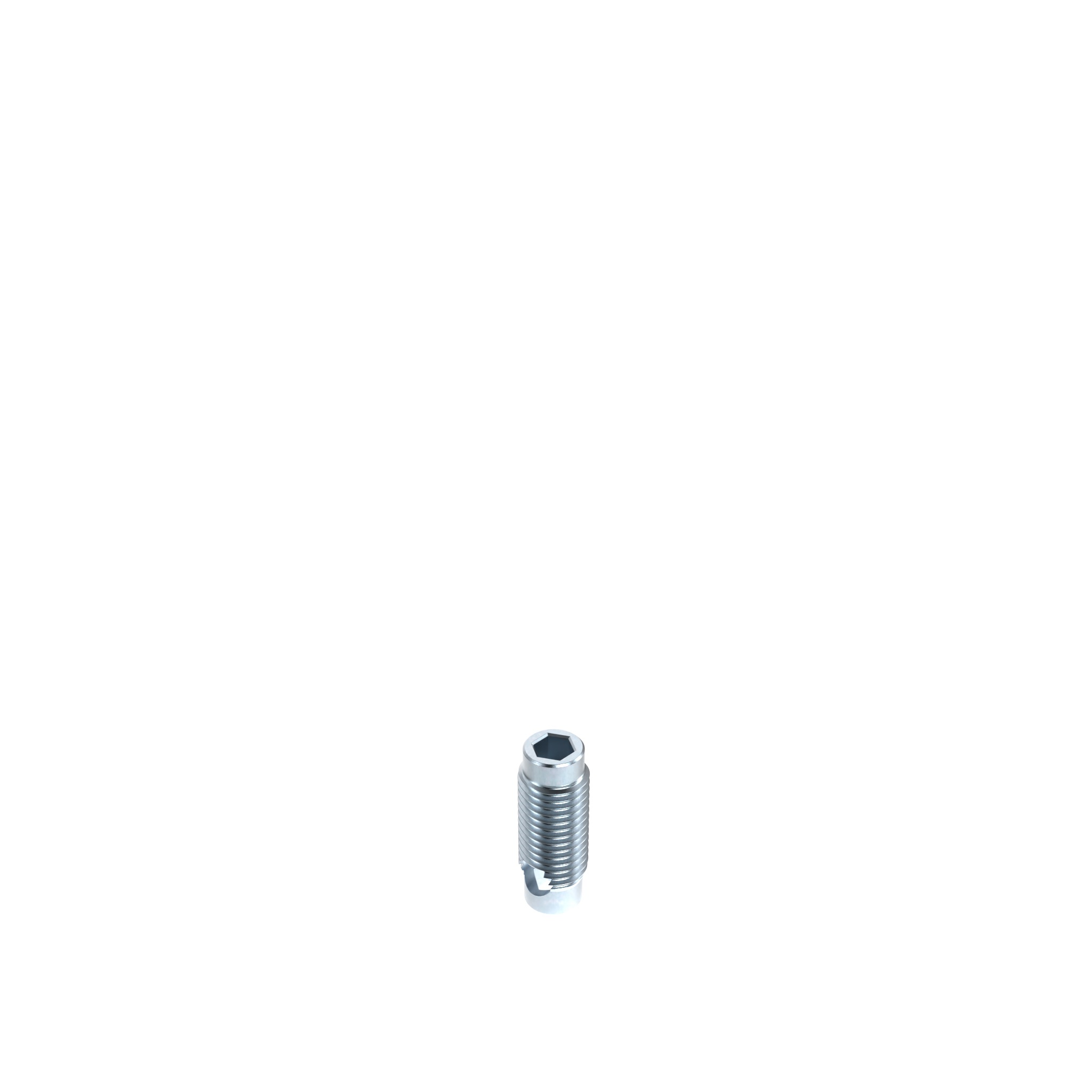

Automatic Butt Connector Steel

Product information "Automatic Butt Connector Steel"

Delivery Countries:
Worldwide

Description:
To face-to face connect two aluminum profiles fast, assembly without machining; self-cutting thread

Material:
Steel

Surface:
Zinc plated

Tip:
*Compatible Cover Cap see 099GA081K

Model:	Steel
Pack Quantity:	100 pieces
Customs Tariff Number Export:	73181499
Weight (g):	7.4
(ECLASS 6.0):	23360290
(ECLASS 7.0):	23360290
(ECLASS 8.0):	23360290
(ECLASS 9.0):	23360290
(ECLASS 10.0):	23360290
(ECLASS 11.0):	23360290
(ECLASS 12.0):	23360290
(ECLASS 13.0):	23360290
ERP Number:	132374

Variants

Part #	Version	ESD	D (mm)	L (mm)	Modular Dimension (mm)	Screw	Slot N (mm)	SW 1	SW 2	Profile	Profile Width	Pack Quantity
099G051M4	With assembly set, incl. screw andthreaded cutting sleeve	ESD electrostatical discharging	7.0	24.0	20	M4 x 40	5	3	4	I	20	10 pieces
099G061M5	With assembly set, incl. screw andthreaded cutting sleeve	ESD electrostatical discharging	10.0	27.0	30	M5 x 45	6	4	5	I	30	10 pieces
099G081M6	With assembly set, incl. screw andthreaded cutting sleeve	ESD electrostatical discharging	12.0	31.0	40	M6 x 50	8	5	6	I	40	10 pieces
099G084M5	With assembly set, incl. screw andthreaded cutting sleeve	ESD electrostatical discharging	10.7	24.0	30	M5 x 45	8	4	5	B	30	10 pieces
099G102M6	With assembly set, incl. screw andthreaded cutting sleeve	ESD electrostatical discharging	12.0	35.0	40L, 45	M6 x 60	10	5	6	B	40, 45	10 pieces
099G103M6	With assembly set, incl. screw andthreaded cutting sleeve	ESD electrostatical discharging	13.0	35.0	45L	M6 x 60	10	5	6	B	45	10 pieces
099GS051M4	Threaded cutting sleeve	ESD electrostatical discharging	7.0	24.0	20	-	5	-	4	I	20	100 pieces
099GS061M5	Threaded cutting sleeve	ESD electrostatical discharging	10.0	27.0	30	-	6	-	5	I	30	100 pieces
099GS081M6	Threaded cutting sleeve	ESD electrostatical discharging	12.0	31.0	40	-	8	-	6	I	40	100 pieces
099GS084M5	Threaded cutting sleeve	ESD electrostatical discharging	10.7	24.0	30	-	8	-	5	B	30	100 pieces
099GS102M6	Threaded cutting sleeve	ESD electrostatical discharging	12.0	35.0	40L, 45	-	10	-	6	B	40, 45	100 pieces
099GS103M6	Threaded cutting sleeve	ESD electrostatical discharging	13.0	35.0	45L	-	10	-	6	B	45	100 pieces
