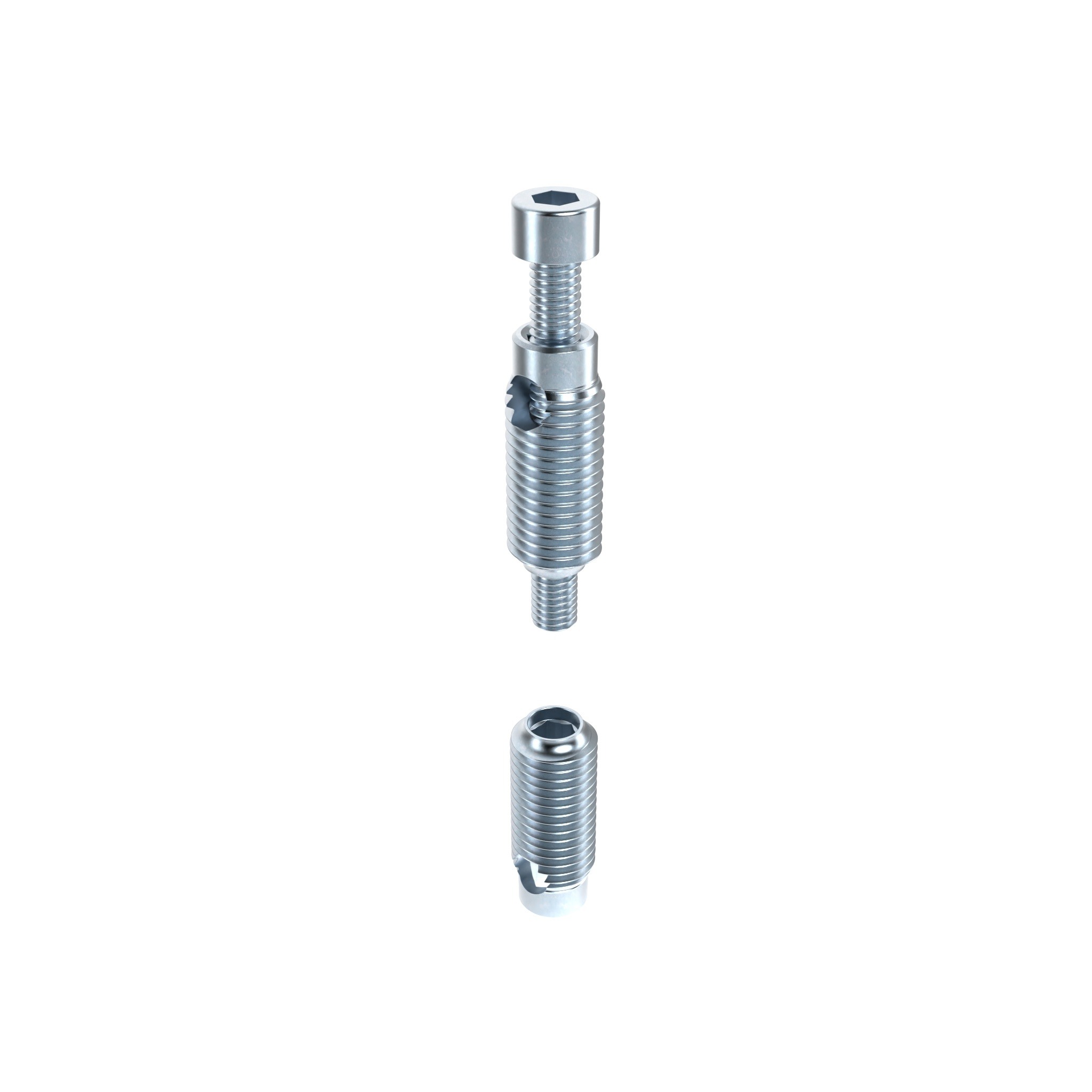

Automatic Butt Connector Steel

Product information "Automatic Butt Connector Steel"

Delivery Countries:
Worldwide

Description:
To face-to face connect two aluminum profiles fast, assembly without machining; self-cutting thread

Material:
Steel

Surface:
Zinc plated

Tip:
*Compatible Cover Cap see 099GA081K

Pack Quantity:	10 pieces
Model:	Steel
Weight (g):	43.0
ECLASS 6.0:	23360290
ECLASS 7.0:	23360290
ECLASS 8.0:	23360290
ECLASS 9.0:	23360290
ECLASS 10.0:	23360290
ECLASS 11.0:	23360290
ECLASS 12.0:	23360290
ECLASS 13.0:	23360290
Customs Tariff Number Export:	73181900
ERP Number:	129784

Variants

Part #	D (mm)	Version	Profile	L (mm)	ESD	Slot N (mm)	Profile Width	SW 1	SW 2	Screw	Modular Dimension (mm)	Pack Quantity
099G051M4	7.0	With assembly set, incl. screw and threaded cutting sleeve	I	24.0	ESD electrostatical discharging	5	20	3	4	M4 x 40	20	10 pieces
099G061M5	10.0	With assembly set, incl. screw and threaded cutting sleeve	I	27.0	ESD electrostatical discharging	6	30	4	5	M5 x 45	30	10 pieces
099G081M6	12.0	With assembly set, incl. screw and threaded cutting sleeve	I	31.0	ESD electrostatical discharging	8	40	5	6	M6 x 50	40	10 pieces
099G084M5	10.7	With assembly set, incl. screw and threaded cutting sleeve	B	24.0	ESD electrostatical discharging	8	30	4	5	M5 x 45	30	10 pieces
099G102M6	12.0	With assembly set, incl. screw and threaded cutting sleeve	B	35.0	ESD electrostatical discharging	10	40, 45	5	6	M6 x 60	40L, 45	10 pieces
099G103M6	13.0	With assembly set, incl. screw and threaded cutting sleeve	B	35.0	ESD electrostatical discharging	10	45	5	6	M6 x 60	45L	10 pieces
099GS051M4	7.0	Threaded cutting sleeve	I	24.0	ESD electrostatical discharging	5	20	-	4	-	20	100 pieces
099GS061M5	10.0	Threaded cutting sleeve	I	27.0	ESD electrostatical discharging	6	30	-	5	-	30	100 pieces
099GS081M6	12.0	Threaded cutting sleeve	I	31.0	ESD electrostatical discharging	8	40	-	6	-	40	100 pieces
099GS084M5	10.7	Threaded cutting sleeve	B	24.0	ESD electrostatical discharging	8	30	-	5	-	30	100 pieces
099GS102M6	12.0	Threaded cutting sleeve	B	35.0	ESD electrostatical discharging	10	40, 45	-	6	-	40L, 45	100 pieces
099GS103M6	13.0	Threaded cutting sleeve	B	35.0	ESD electrostatical discharging	10	45	-	6	-	45L	100 pieces
