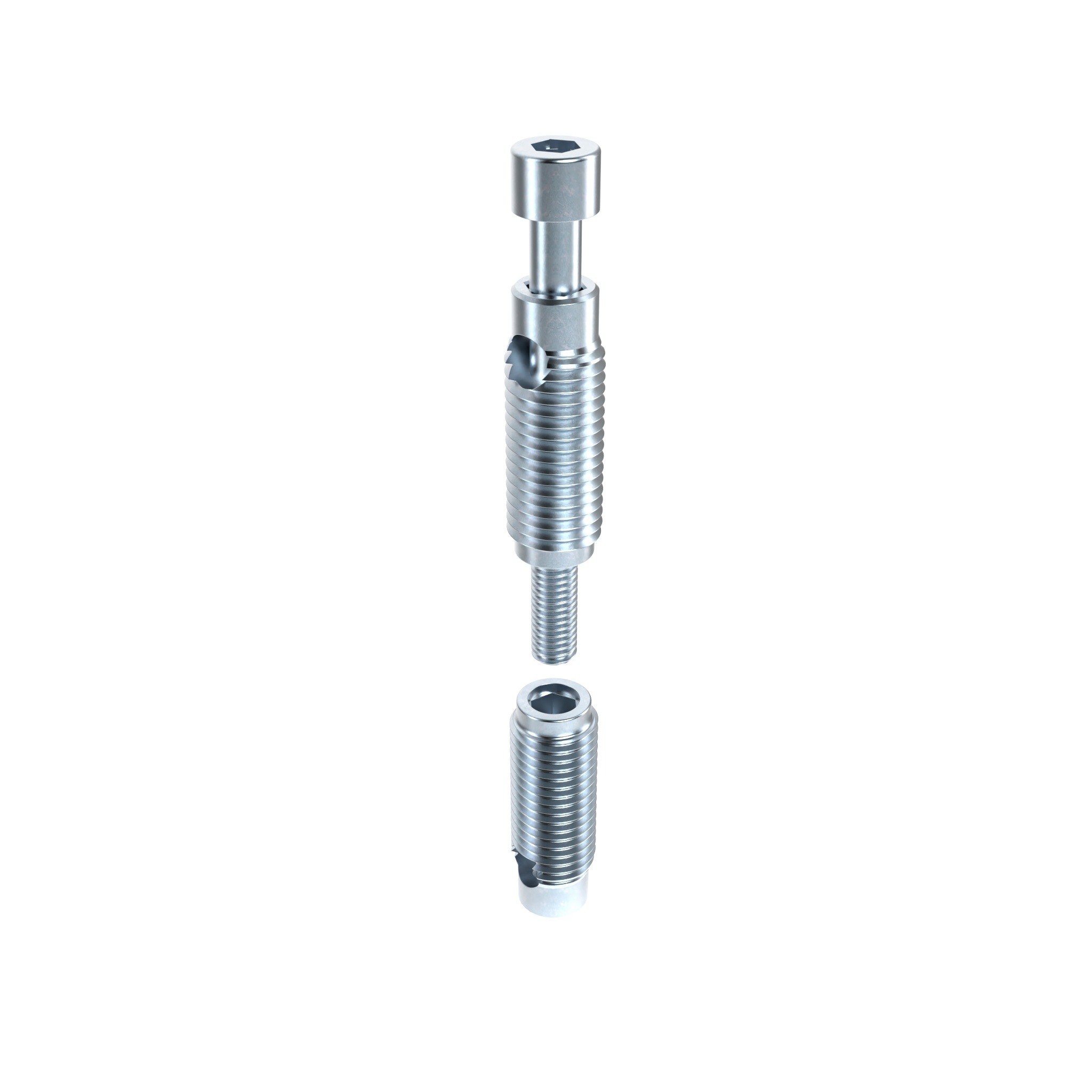

Automatic Butt Connector Steel

Product information "Automatic Butt Connector Steel"

Delivery Countries:
Worldwide

Description:
To face-to face connect two aluminum profiles fast, assembly without machining; self-cutting thread

Material:
Steel

Surface:
Zinc plated

Tip:
*Compatible Cover Cap see 099GA081K

Pack Quantity:	10 pieces
Model:	Steel
Weight (g):	49.0
ERP Number:	136217

Global keywords / tags:

Profile Type	Profile Type B
Slot Size	Slot 10
Modular Dimension	Modular Dimension 40, Modular Dimension 45
Product Feature	ESD
Profile Form	T-slot Profiles

Variants

Part #	D (mm)	Version	Profile	L (mm)	ESD	Slot N (mm)	Modular Dimension (mm)	Profile Width	SW 1	SW 2	Tip	Screw	Pack Quantity
099G051M4	7.0	With assembly set, incl. screw and threaded cutting sleeve	I	24.0	ESD electrostatical discharging	5	20	20	3	4	-	M4 x 40	10 pieces
099G061M5	10.0	With assembly set, incl. screw and threaded cutting sleeve	I	27.0	ESD electrostatical discharging	6	30	30	4	5	-	M5 x 45	10 pieces
099G081M6	12.0	With assembly set, incl. screw and threaded cutting sleeve	I	31.0	ESD electrostatical discharging	8	40	40	5	6	*	M6 x 50	10 pieces
099G084M5	10.7	With assembly set, incl. screw and threaded cutting sleeve	B	24.0	ESD electrostatical discharging	8	30	30	4	5	-	M5 x 45	10 pieces
099G102M6	12.0	With assembly set, incl. screw and threaded cutting sleeve	B	35.0	ESD electrostatical discharging	10	40L, 45	40, 45	5	6	-	M6 x 60	10 pieces
099G103M6	13.0	With assembly set, incl. screw and threaded cutting sleeve	B	35.0	ESD electrostatical discharging	10	45L	45	5	6	-	M6 x 60	10 pieces
099GS051M4	7.0	Threaded cutting sleeve	I	24.0	ESD electrostatical discharging	5	20	20	-	4	-	-	100 pieces
099GS061M5	10.0	Threaded cutting sleeve	I	27.0	ESD electrostatical discharging	6	30	30	-	5	-	-	100 pieces
099GS081M6	12.0	Threaded cutting sleeve	I	31.0	ESD electrostatical discharging	8	40	40	-	6	*	-	100 pieces
099GS084M5	10.7	Threaded cutting sleeve	B	24.0	ESD electrostatical discharging	8	30	30	-	5	-	-	100 pieces
099GS102M6	12.0	Threaded cutting sleeve	B	35.0	ESD electrostatical discharging	10	40L, 45	40, 45	-	6	-	-	100 pieces
099GS103M6	13.0	Threaded cutting sleeve	B	35.0	ESD electrostatical discharging	10	45L	45	-	6	-	-	100 pieces

CAD Downloads

Classifications

ECLASS 6.0: 23360290
ECLASS 7.0: 23360290
ECLASS 8.0: 23360290
ECLASS 9.0: 23360290
ECLASS 10.0: 23360290
ECLASS 11.0: 23360290
ECLASS 12.0: 23360290
ECLASS 13.0: 23360290
Customs Tariff Number Export: 73181900

Certificates

RoHS Certificate

REACH Certificate

POP Certificate

Conflict Minerals Certificate
