Monitor Attachments

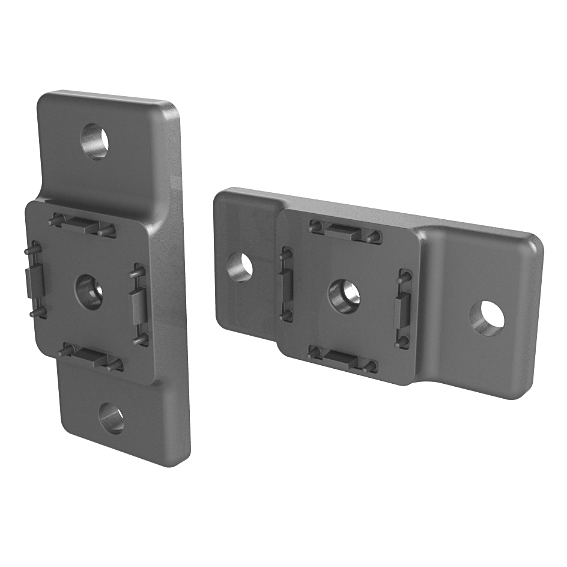

Adapter Plate 40 Height Adjustable
Color:Alu colorDelivery Countries:WorldwideDescription:To connect a monitor mount or an aluminum profile at right angles, as well to tee connect two aluminum profiles; accessible mounting holes allow to adjust the position laterMaterial:Adapter plate: Die cast aluminum Pressed nut: SteelSurface:Adapter plate: Powder coated Pressed nut: Zinc platedTip:Compatible Monitor Mount see 061SM7510040

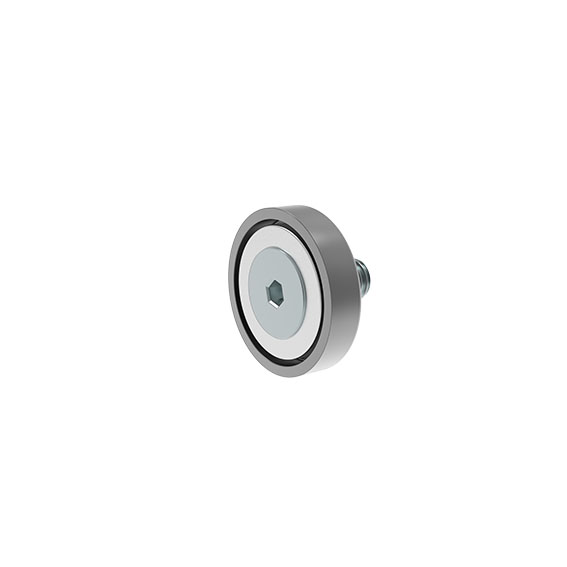

Magnet for Tablet Mount FRAME (Set)
Delivery Countries:WorldwideDescription:To fix table mounts to magnetic surfacesMaterial:Magnets: Neodym Screws: SteelSet:4 magnets Ø 20 mm 4 screws M4x12Surface:Screws: Zinc platedTip:Compatible Tablet Mount FRAME se 6THSAM105S4

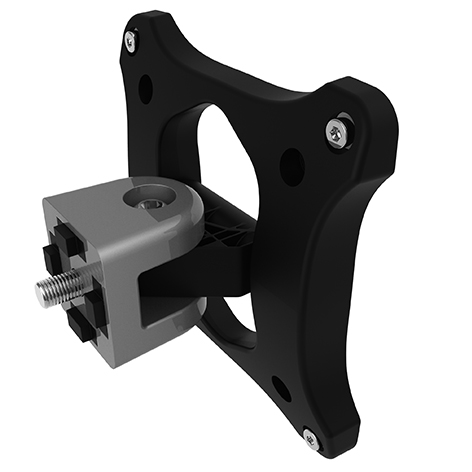

Monitor Mount
Color:Monitor bracket: Black Articulation piece: Gray Centering piece: PlainDelivery Countries:WorldwideDescription:To fix flat screens to aluminum profile structures, VESA MIS-D 75/100 compatible, can be adjusted horizontally and vertically for optimum visibilityMaterial:Monitor bracket: Plastic PA, glass fiber reinforced Articulation piece: Plastic PA, glass fiber reinforced Centering piece: Plastic PA, glass fiber reinforced Mounting material: SteelSpecials:Other colors, other sizes on requestSurface:Mounting material: Zinc platedTip:Compatible Adapter Plate see 061SAP40H

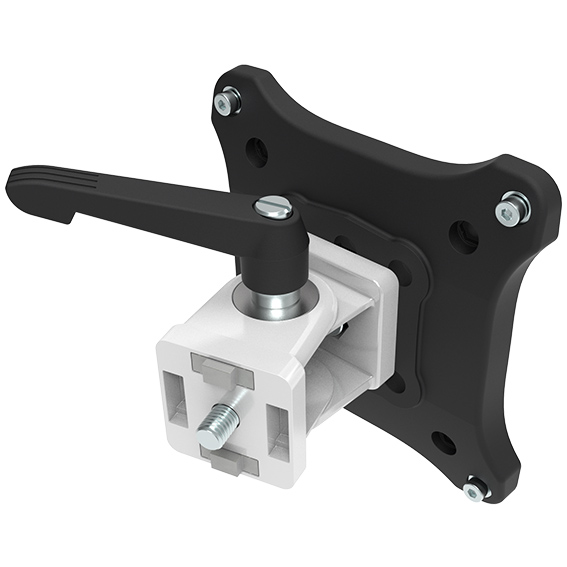

Monitor Mount ZN with Locking Lever (Set)
Color:Monitor mounting plate: Black Pivot joint: Alu colored Locking lever: BlackDelivery Countries:WorldwideDescription:To fix flat screens to aluminum profile structures, VESA MIS-D 75/100 compatible, can be adjusted horizontally or vertically for optimum visibility, can be fixed with KIPP locking lever at any angle; with separate locating pins for slot 8 and slot 10Material:Monitor mounting plate: Plastic PA, glas fiber reinforced Pivot joint: Zinc die-cast KIPP locking lever: Plastic PA, glas fiber reinforcedSet 1:1 monitor mounting plate 1 assembly set for monitor: 4 cylinder head screws M4 x 12, 4 washers 1 pivot joint 40 with locking lever 1 assembly set for profile: 1 screw M8 x 25 (frontal), 1 screw M8 x 16 (lateral), 2 locating pinsSet 2:1 monitor mounting plate 1 assembly set for monitor: 4 cylinder head screws M4 x 12, 4 washers 1 pivot joint 45 with locking lever 1 assembly set for profile: 1 screw M8 x 25 (frontal), 1 screw M8 x 16 (lateral), 2 locating pins 1 cutting bush for the reduction of the Ø 10.2 mm core hole to thread size M8Specials:Other colors on requestSurface:Pivot joint: LaqueredTip:Cutting bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801

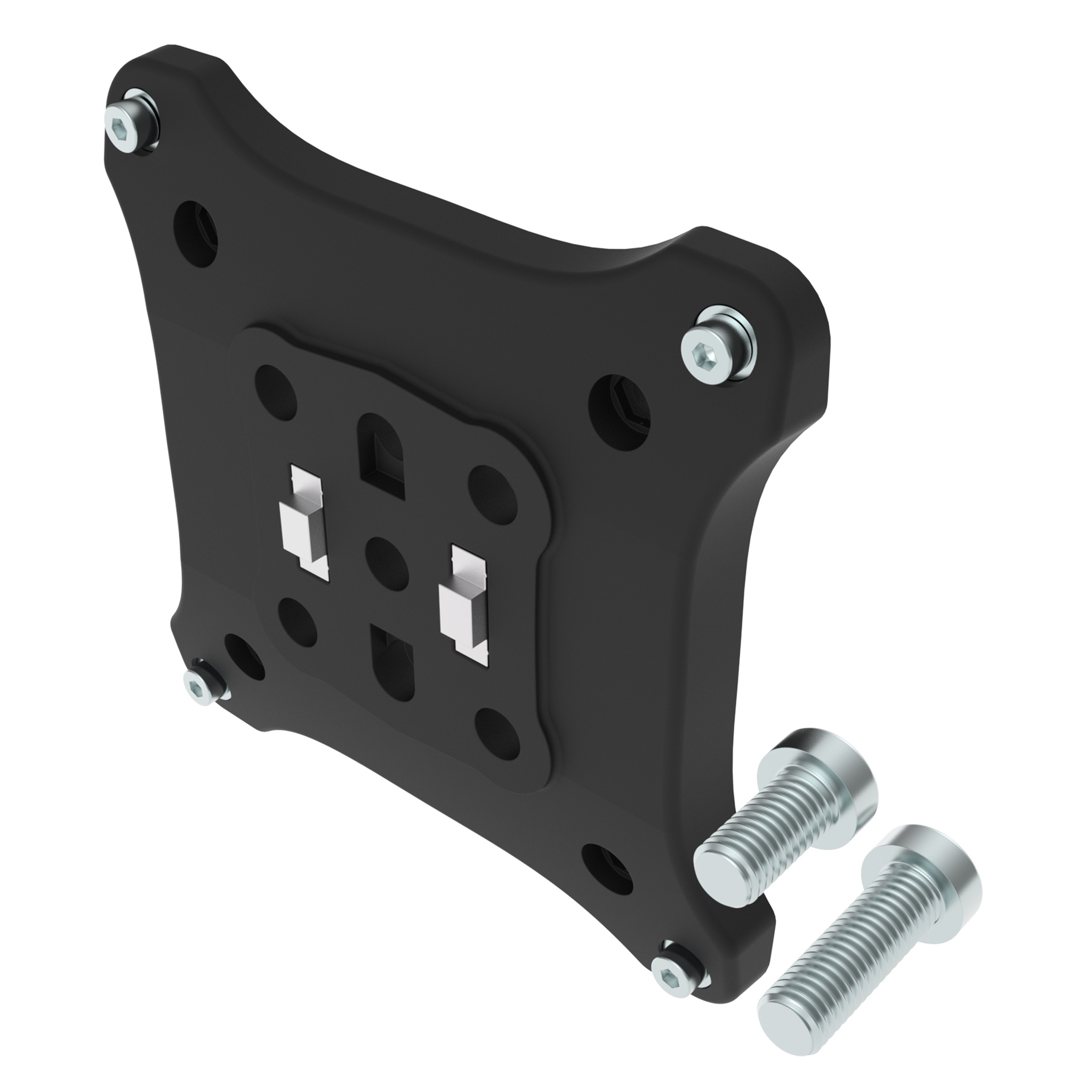

Monitor Mounting Plate
Color:Monitor mounting plate: BlackDelivery Countries:WorldwideDescription:To fix flat screens to aluminum profile structures, VESA MIS-D 75/100 compatible; with separate locating pins for slot 8 and slot 10Material:Monitor mounting plate: Plastic PA, glass fiber reinforcedSet:1 monitor mounting plate 1 assembly set for monitor: 4 cylinder head screws M4x12, 4 washers assembly set for profile: M8x25 frontal and M8x16 slot side, 2 centering piecesSpecials:Other colors on requestTip:Cutting bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801

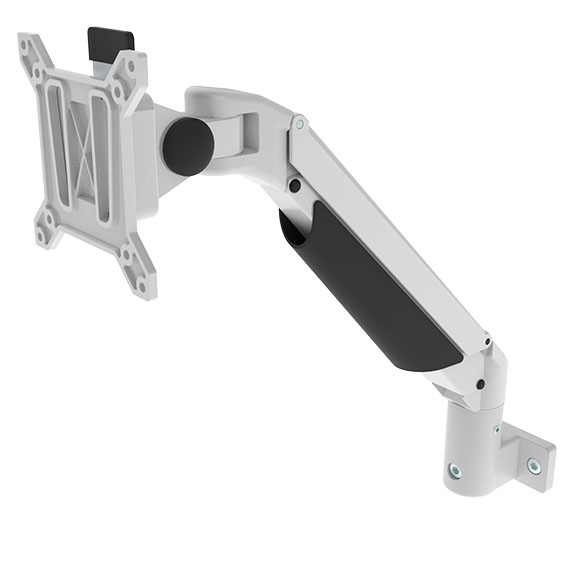

Monitor Support 4-axis, Height Adjustable (Set)
Color:Mounting plate VESA, removable: Alu color / black Monitor mount: Alu color Cable management cover: Black Bearing shims and bushes: Black Mounting flange: Alu color Mounting adapter: Alu colorDelivery Countries:WorldwideDescription:For removable mounting of monitors with 2 - 10 kg or 8 - 20 kg, mounting plate VESA MIS-D 75/100 compatible; Adjustable viewing angle and height, screen rotatable by 90°; 360° mounting flange for horizontal and vertical attachment with mounting adapterMaterial:Mounting plate VESA, removable: Steel / Plastic Monitor mount: Die-cast aluminum Cable management cover: Plastic Bearing shims and bushes: Plastic Mounting flange: Die-cast aluminum Mounting adapter: Die-cast aluminum Screws: SteelSet:1 mounting plate VESA with 4 screws – M4 × 12, Phillips 1 monitor support 4-axis with cable management cover 1 mounting flange 1 mounting screw DIN 6912 – M8 × 25 1 mounting adapter 2 mounting screws DIN 6912 – M8 × 16 1 hexagon key, AF 3 1 hexagon key, AF 4Surface:Mounting plate VESA, removable: Lacquered Monitor mount: Lacquered Mounting flange: Lacquered Mounting adapter: Lacquered Screws: Zinc plated

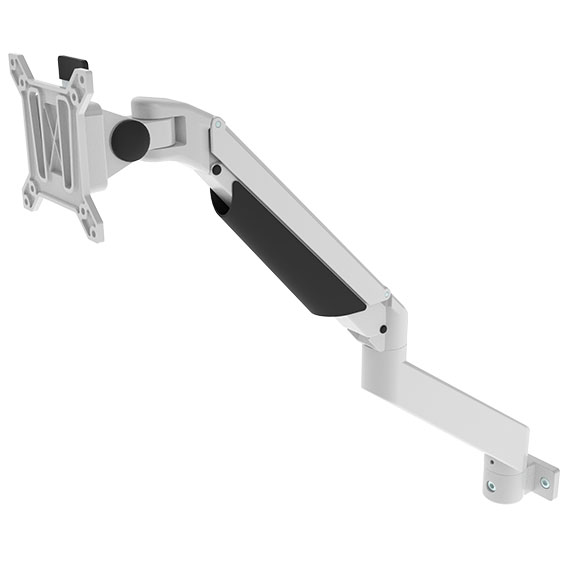

Monitor Support 5-axis, Height Adjustable (Set)
Color:Mounting plate VESA, removable: Alu color / black Monitor mount: Alu color Cable management cover: Black Bearing shims and bushes: Black Mounting flange: Alu color Mounting adapter: Alu colorDelivery Countries:WorldwideDescription:For removable mounting of monitors with 2 - 10 kg or 8 - 20 kg, mounting plate VESA MIS-D 75/100 compatible; Adjustable viewing angle and height, screen rotatable by 90°; 360° mounting flange for horizontal and vertical attachment with mounting adapterMaterial:Mounting plate VESA, removable: Steel / Plastic Monitor mount: Die-cast aluminum Cable management cover: Plastic Bearing shims and bushes: Plastic Mounting flange: Die-cast aluminum Mounting adapter: Die-cast aluminum Screws: SteelSet:1 mounting plate VESA with 4 screws – M4 × 12, Phillips 1 monitor support 5-axis with cable management cover 1 mounting flange 1 mounting screw DIN 6912 – M8 × 25 1 mounting adapter 2 mounting screws DIN 6912 – M8 × 16 1 hexagon key, AF 3 1 hexagon key, AF 4Surface:Mounting plate VESA, removable: Lacquered Monitor mount: Lacquered Mounting flange: Lacquered Mounting adapter: Lacquered Screws: Zinc plated

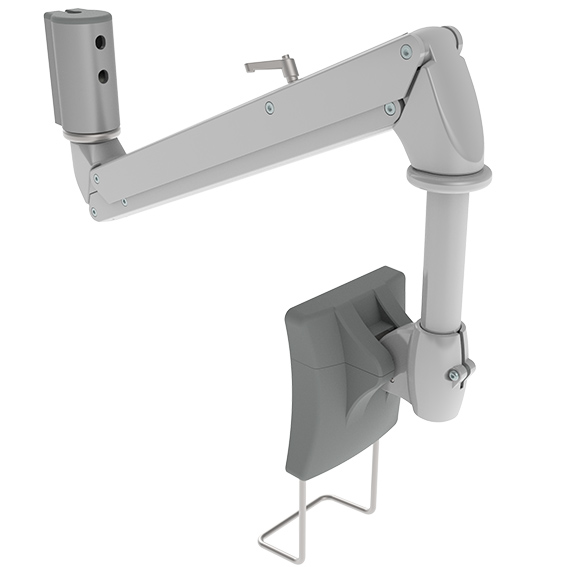

Monitor Suspension Arm SKY 600, Height Adjustable with Locking (Set)
Color:Monitor suspension arm: Gray Cable management cover: Gray Mounting flange: Alu colorDelivery Countries:WorldwideDescription:For mounting of heavy monitors with 6 - 12 kg, mounting plate VESA MIS-D 75/100 compatible, adjustable viewing angle and height; 360° mounting flange can be attached lateral or transverse to the profileMaterial:Monitor suspension arm: Steel / aluminum / plastic Cable management cover: Plastic Mounting flange: Aluminum die-cast Screws: SteelSet:1 monitor suspension arm incl. cable management cover 1 mounting flange incl. bolt and cover cap 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 30 (for T-slot nut) 2 centering plates - slot 8 2 centering plates - slot 10 2 anti-loss washers for screws M8 2 T-slot nuts - slot 8 - M8 2 T-slot nuts - slot 10 - M8 1 connecting ring 1 washer 4 screws DIN 799 - M4 x 16Surface:Monitor suspension arm: Lacquered Mounting flange: Lacquered Screws: Zinc plated

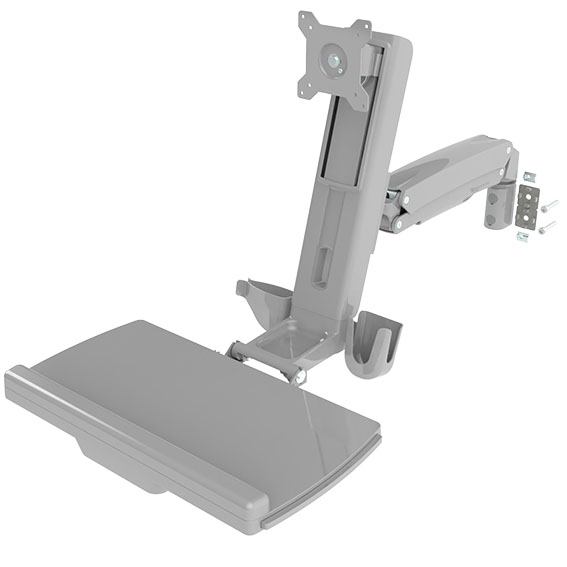

Monitor Work Station SIT / STAND 4-axis, Profile Attachment (Set)
Color:Monitor Work Station: Gray Cable management cover: Gray Mounting flange: Alu colorDelivery Countries:WorldwideDescription:For mounting of monitors with 2 - 8 kg, mounting plate VESA MIS-D 75/100 compatible, adjustable viewing angle and height; Fold-up holder with wrist rest for keyboard up to 2.5 kg, incl. left or right pull-out shelf for mouse, as well as holders for hand scanner and mouse; 360° mounting flange can be attached lateral, transverse, or on the face of the profile, if attached on the front face, the core hole of the respective profile must be M8 threadedMaterial:Monitor Work Station: Steel / aluminum / plastic Cable management cover: Plastic Mounting flange: Aluminum die-cast Screws: SteelSet:1 monitor work station incl. keyboard holder and cable management cover 1 mounting flange incl. bolt and cover cap 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut) 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole) 2 washers 8-FSt 2 centering plates - slot 8 2 centering plats - slot 10 2 T-slot nuts - slot 8 - M8 2 T-slot nuts - slot 10 - M8Surface:Monitor Work Station: Powder coated Mounting flange: Powder coated Screws: Zinc plated

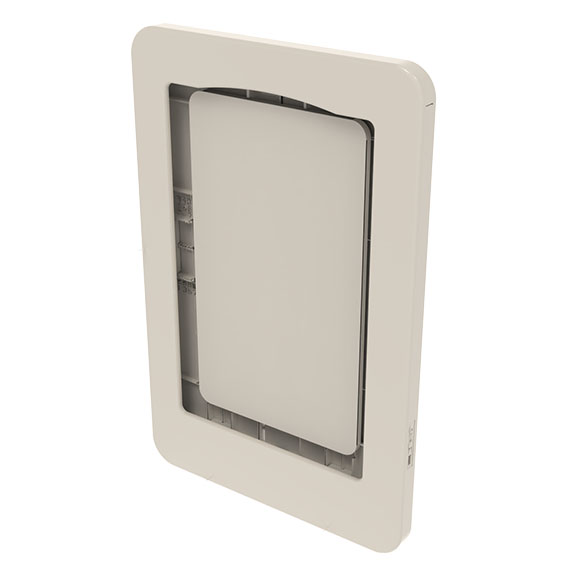

Tablet Mount FRAME
Color:Frontside: White ≈ RAL 9001 Backside: GrayDelivery Countries:WorldwideDescription:To fix flat screens to aluminum profile structures or magnetic surfaces, VESA MIS-D 75/100 compatibleFastening:From the back, using M4 screws or magneticMaterial:Plastic PCTip:Compatible Magnet for Tablet Mount FRAME see 6THM20 Compatible Monitor Mounting Plate see 061SM751004045 Compatible Monitor Mount see 061SM7510040 Compatible Monitor Mount ZN with Locking Lever see 061SM7510040FS03
