Automatic Connectors

Automatic Butt Connector Stainless Steel

D (mm): 10.0 ESD: ESD electrostatical discharging L (mm): 27.0 Profile: I Profile Width: 30 SW 1: 4 SW 2: 5 Screw: M5 x 45 Slot N (mm): 6 Version: With assembly set, incl. screw andthreaded cutting sleeve

Delivery Countries:WorldwideDescription:To face-to face connect two aluminum profiles fast, assembly without machining; self-cutting threadMaterial:Stainless steelSurface:PlainTip:*Compatible Cover Cap see 099GA081K

€0.00

Automatic Butt Connector Steel

D (mm): 13.0 ESD: ESD electrostatical discharging L (mm): 35.0 Modular Dimension (mm): 45L Profile: B Profile Width: 45 SW 1: 5 SW 2: 6 Screw: M6 x 60 Slot N (mm): 10 Version: With assembly set, incl. screw andthreaded cutting sleeve

Delivery Countries:WorldwideDescription:To face-to face connect two aluminum profiles fast, assembly without machining; self-cutting threadMaterial:SteelSurface:Zinc platedTip:*Compatible Cover Cap see 099GA081K

€0.00

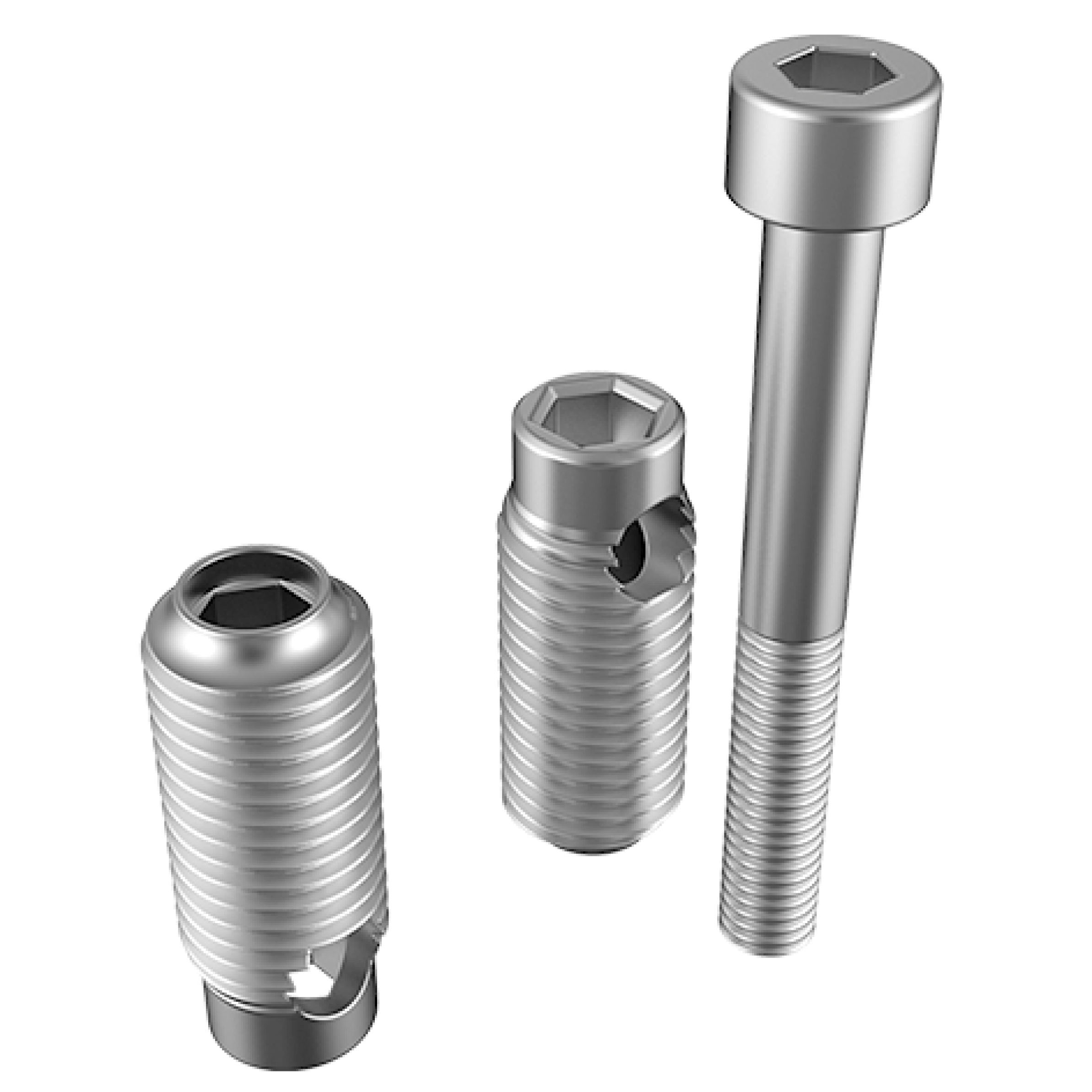

Automatic Connector Stainless Steel

D (mm): 7.0 L (mm): 24.0 Profile: I Profile Width: 20 SW 1: 3 SW 2: 4 Screw: M4 x 30 Slot N (mm): 5 Version: With assembly set, incl. screw and T-slot nut

Delivery Countries:WorldwideDescription:To connect two aluminum profiles fast and solid, assembly without machining; self-cutting threadMaterial:Stainless steelSurface:PlainTip:*Compatible Cover Cap see 099GA081K

€0.00

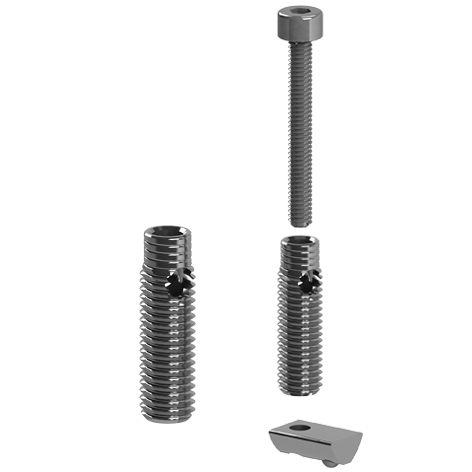

Automatic Connector Steel

D (mm): 14.4 L (mm): 35.0 Profile: - Profile Width: 45 SW 1: 5 SW 2: - Screw: M6 x 45 Slot N (mm): 8 Version: With assembly set, incl. screw and T-slot nut**

Delivery Countries:WorldwideDescription:To connect two aluminum profiles fast and solid, assembly without machining; self-cutting threadMaterial:SteelSurface:Zinc platedTip:*Compatible Cover Cap see 099GA081KTip 2:** Automatic connector with assembly set for profil B incl. hammer nut instead of T-slot nut

€0.00

Automatic Double Connector I, Slot 8 (Set)

A (mm): 66.4 D (mm): 12.0 ESD: ESD electrostatical discharging L (mm): 31.0 Profile: I Profile Width: 80 SW 1: 6 SW 2: 5 Screw: M6 x 40 Slot N (mm): 8

€0.00

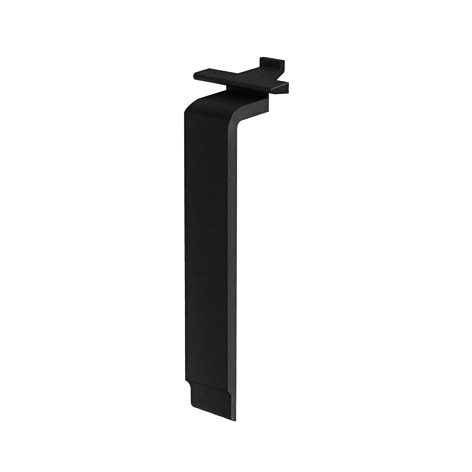

Cover Cap for Automatic Connector I, Slot 8

Profile: I

Color:BlackDelivery Countries:WorldwideDescription:To cover the 31 mm-sleeve Automatic Connector within a slot 8Material:Plastic PA, glass fiber reinforced

€0.00

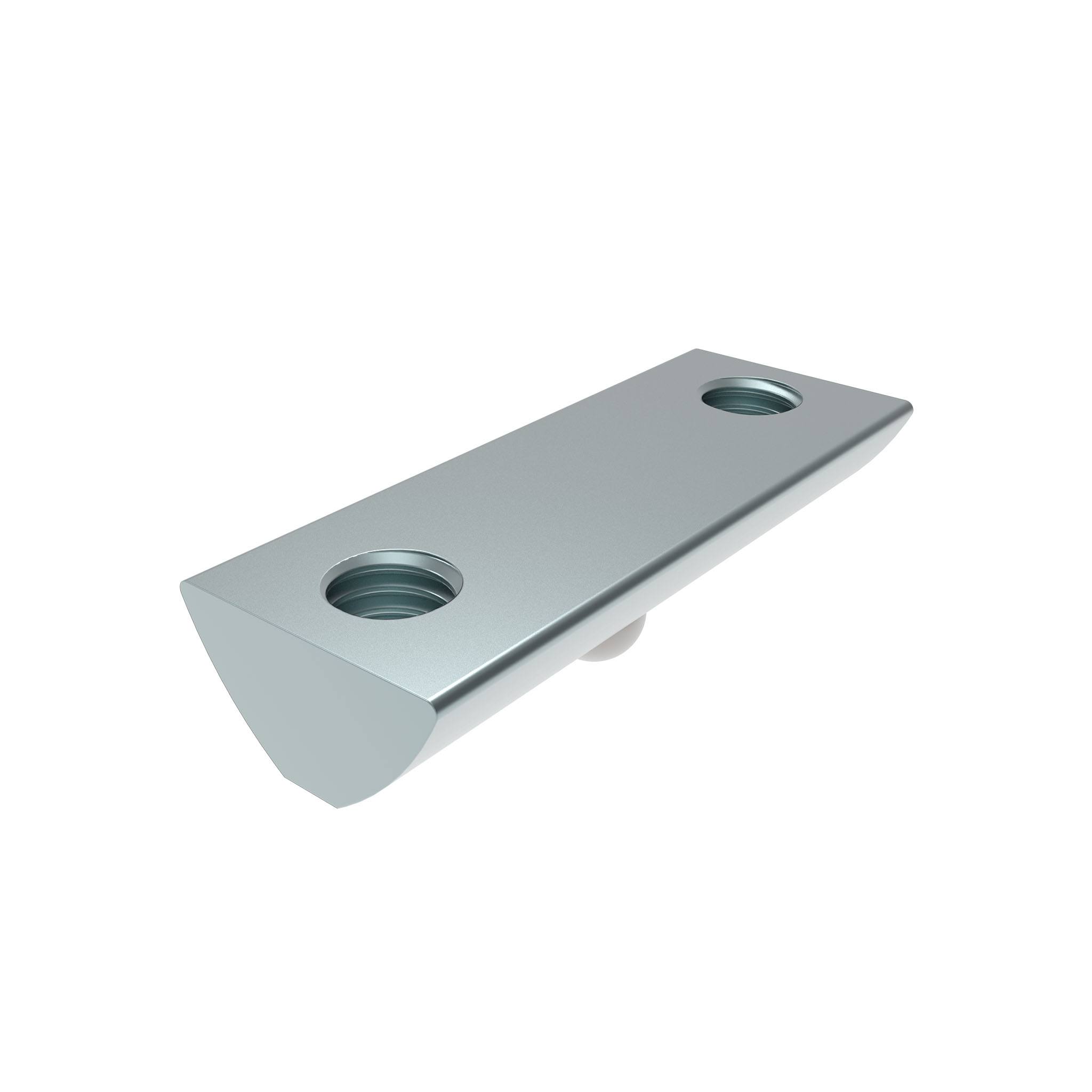

Roll-in Double T-slot Nut for Automatic Connector I, Slot 6

A (mm): 49.0 L (mm): 58.0 M: M5 Profile: I

Delivery Countries:WorldwideDescription:Roll-in double T-slot nutMaterial:Double T-slot nut: Steel Ball: Stainless steel Spring: Spring steelSpecials:Different lengths with multiple threads in different sizes available on requestSurface:Double T-slot nut: Zinc-plated Ball: Plain Spring: Plain

€0.00

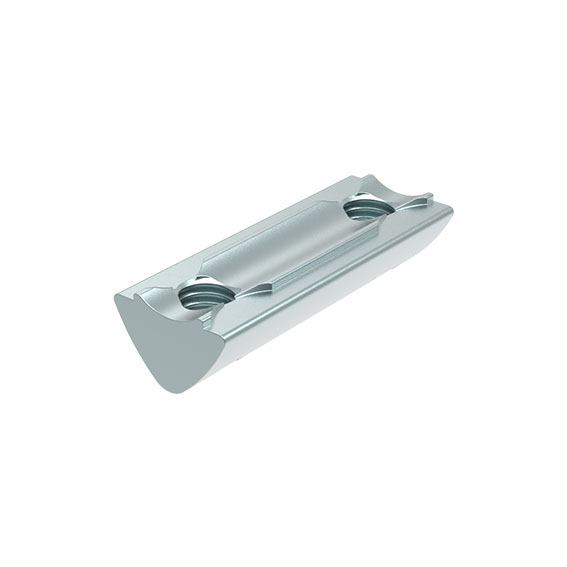

Roll-in Double T-slot Nut for Automatic Connector I, Slot 8

A (mm): 26.4 Fig.: ① L (mm): 36.0 M: M6 Profile: I

€0.00
