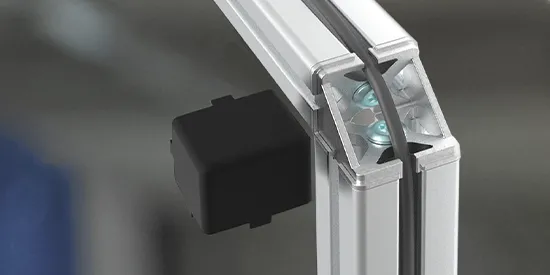

Corner Connectors with Cable Passage

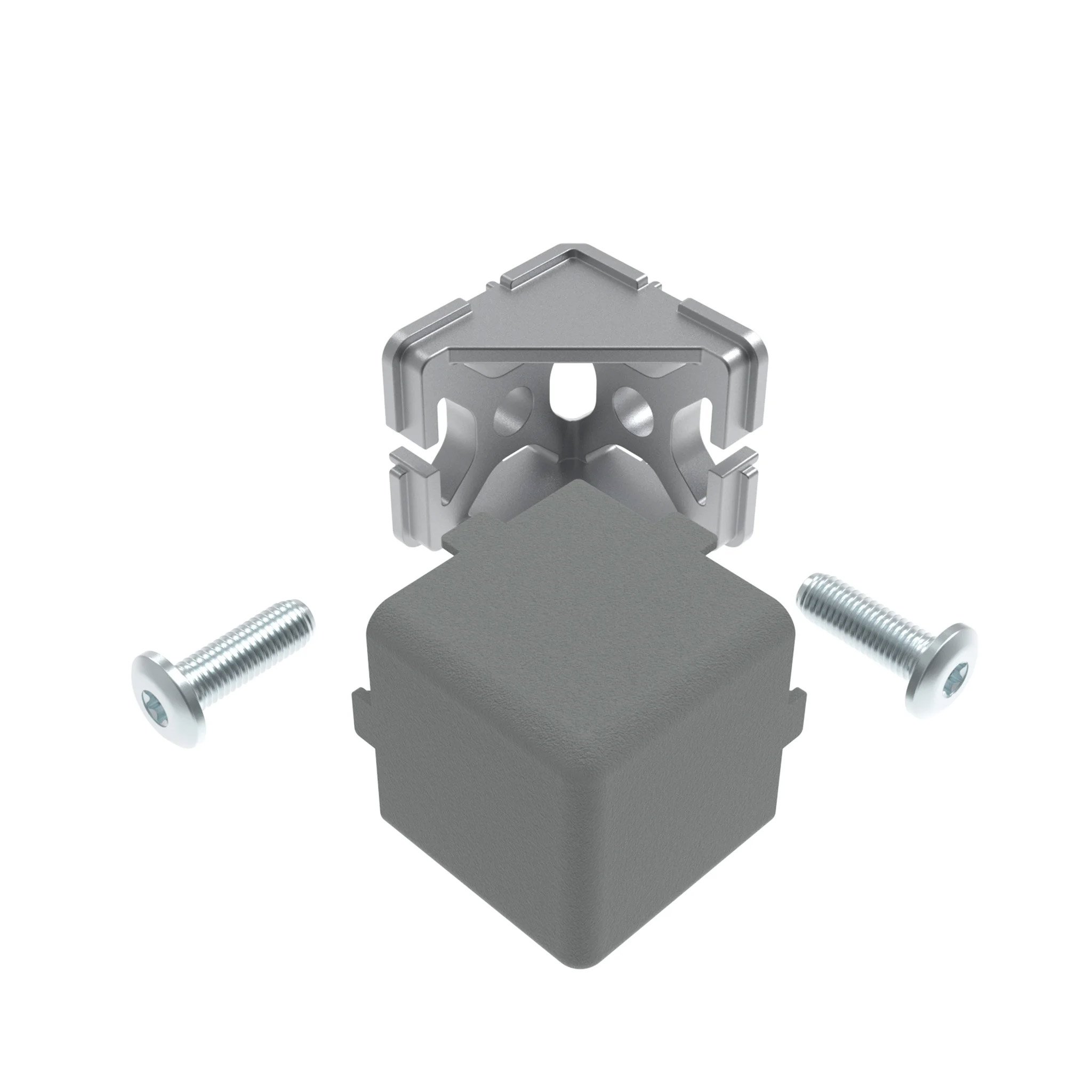

Corner Connector 40, 2D with Cable Passage (Set)
€0.00*
Profile:
I
|
Slot N (mm):
8

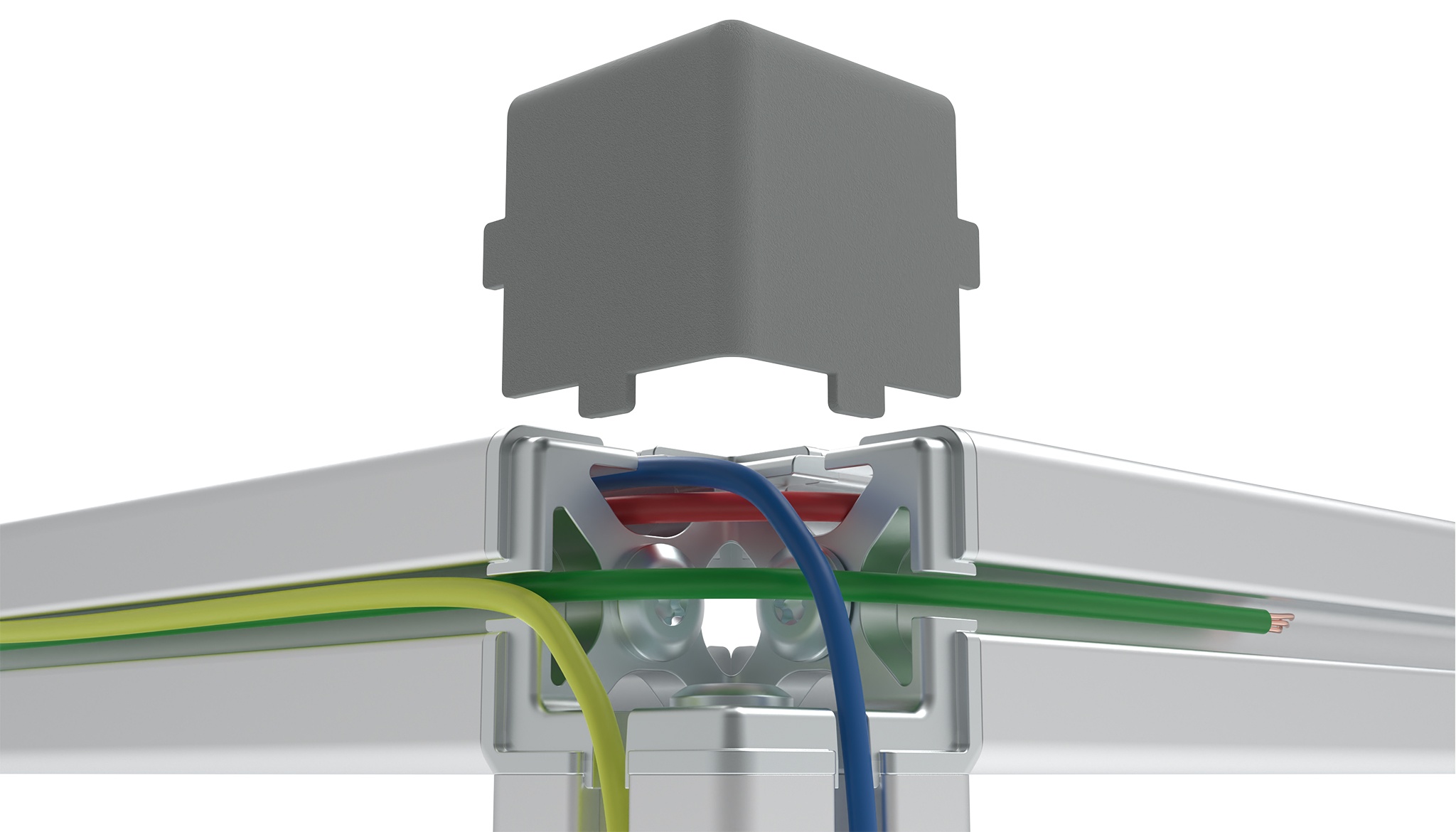

Color:Cover cap: gray ≈ RAL 7042Delivery Countries:WorldwideDescription:To connect two aluminum profiles at right angles, with opening in slot geometry for passage of cables; With cover cap to cover the open side of the corner connectorMaterial:Corner connector: Zinc die-cast Cover cap: Plastic PA, glass ball reinforced Self forming screw: SteelSet:1 corner connector 40, 2D with cable passage 1 cover cap 2 self forming screws - S7 x 22Specials:Other materials, other surfaces, other colors on requestSurface:Corner connector: Zinc plated Self forming screw: Zinc platedTip:The maximum number of cables which can be passed through the opening in the slot geometry depends on the outer cable diameter: Max. 6 cabels with an outer diameter of 3 mm Max. 4 cabels with an outer diameter of 4 mm Max. 3 cabels with an outer diameter of 5 mm Max. 2 cabels with an outer diameter of 6 mmZolltarifnummer:79070000900

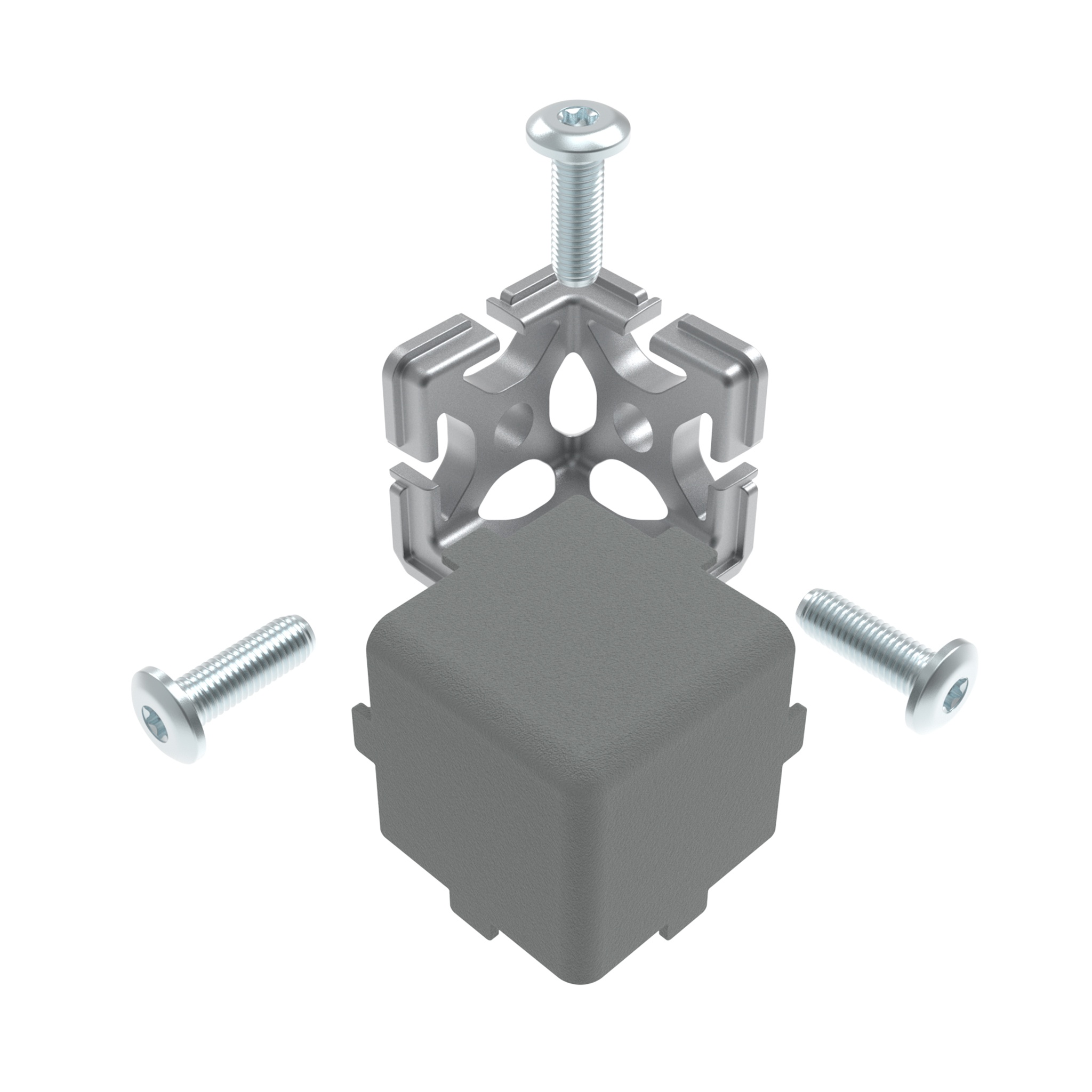

Corner Connector 40, 3D with Cable Passage (Set)
€0.00*
Profile:
I
|
Slot N (mm):
8
Color:Cover cap: gray ≈ RAL 7042Delivery Countries:WorldwideDescription:To connect three aluminum profiles at right angles, with opening in slot geometry for passage of cables; With cover cap to cover the open side of the corner connectorMaterial:Corner connector: Zinc die-cast Cover cap: Plastic PA, glass ball reinforced Self forming screw: SteelSet:1 corner connector 40, 3D with cable passage 1 cover cap 3 self forming screws - S7 x 22Specials:Other materials, other surfaces, other colors on requestSurface:Corner connector: Zinc plated Self forming screw: Zinc platedTip:The maximum number of cables which can be passed through the opening in the slot geometry depends on the outer cable diameter: Max. 6 cabels with an outer diameter of 3 mm Max. 4 cabels with an outer diameter of 4 mm Max. 3 cabels with an outer diameter of 5 mm Max. 2 cabels with an outer diameter of 6 mmZolltarifnummer:79070000900

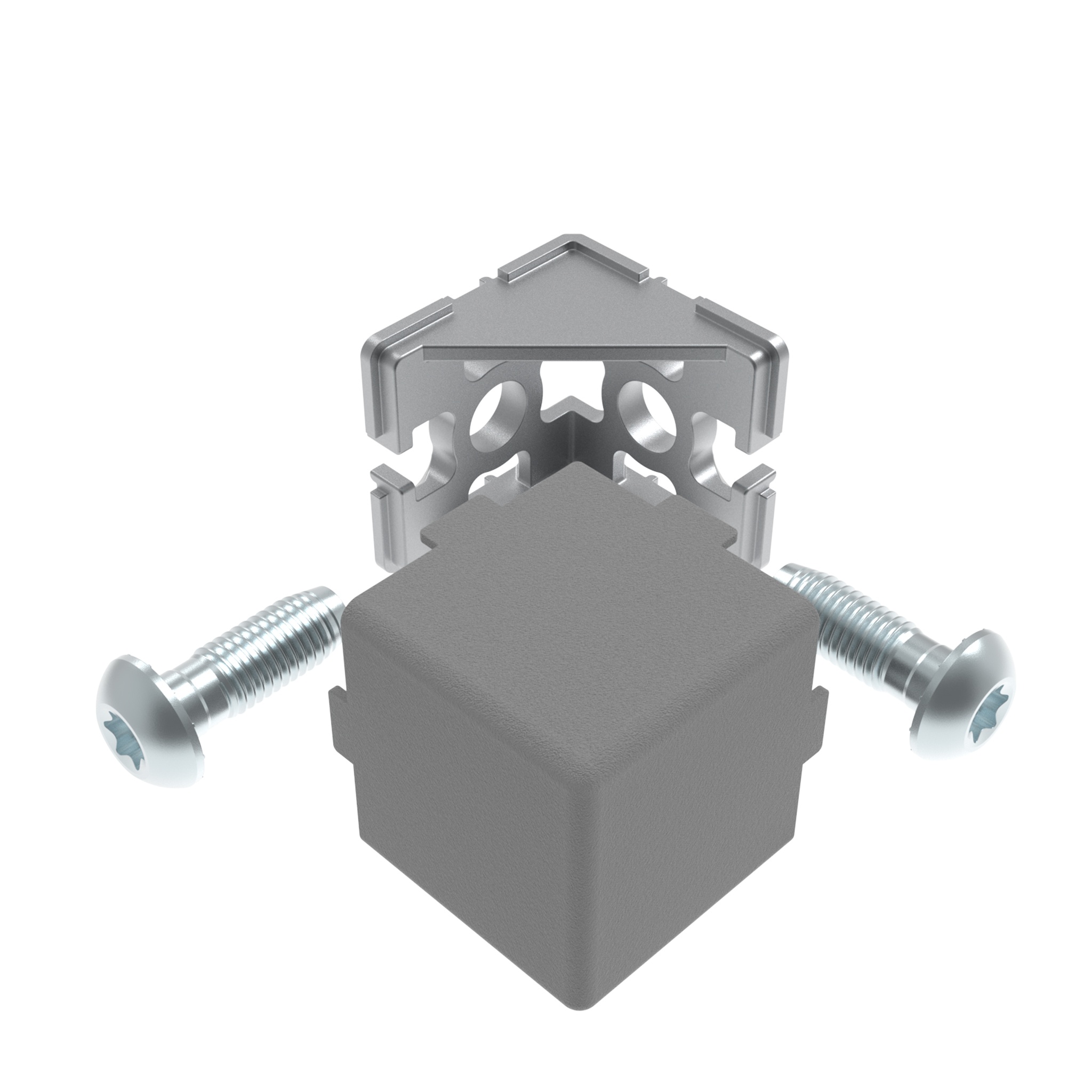

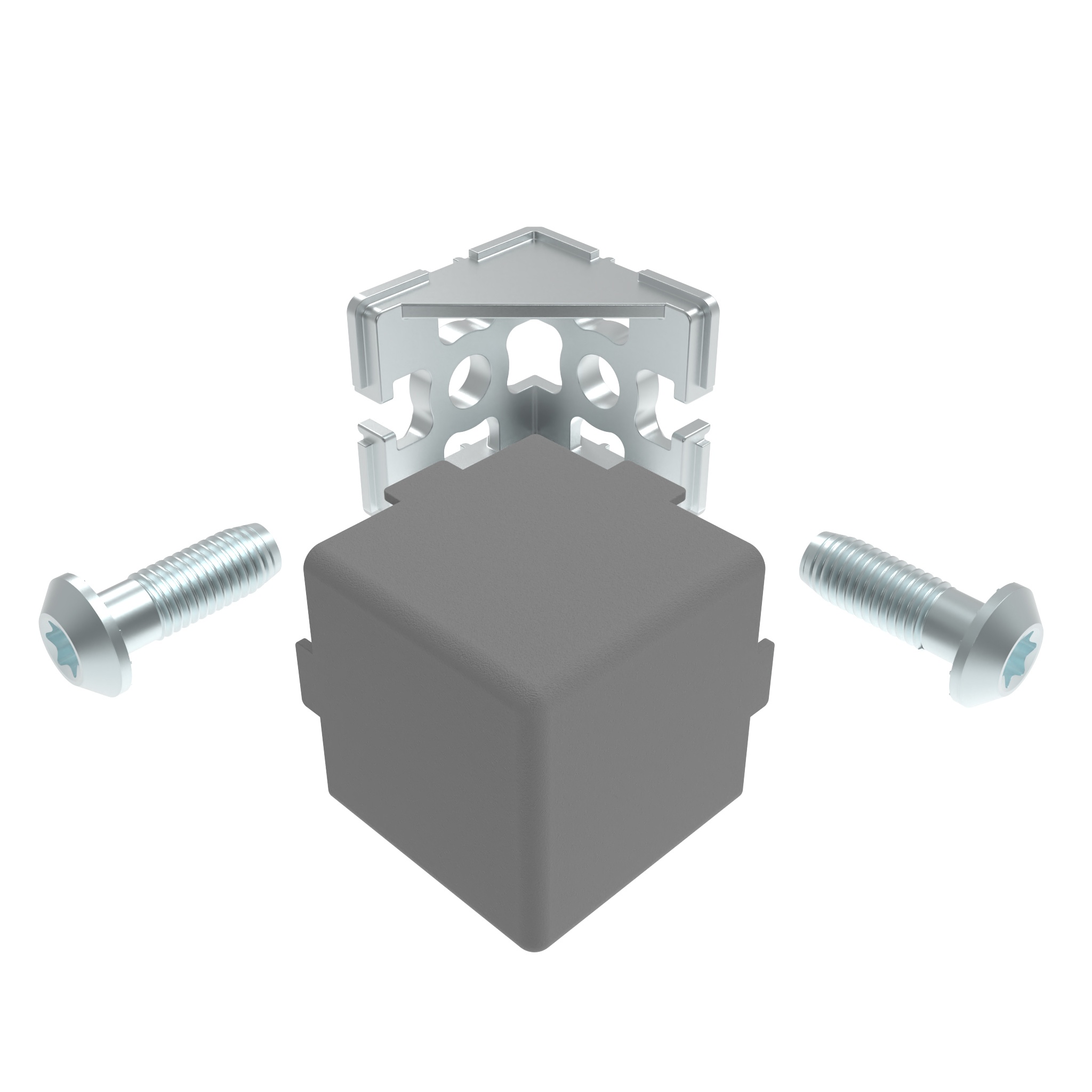

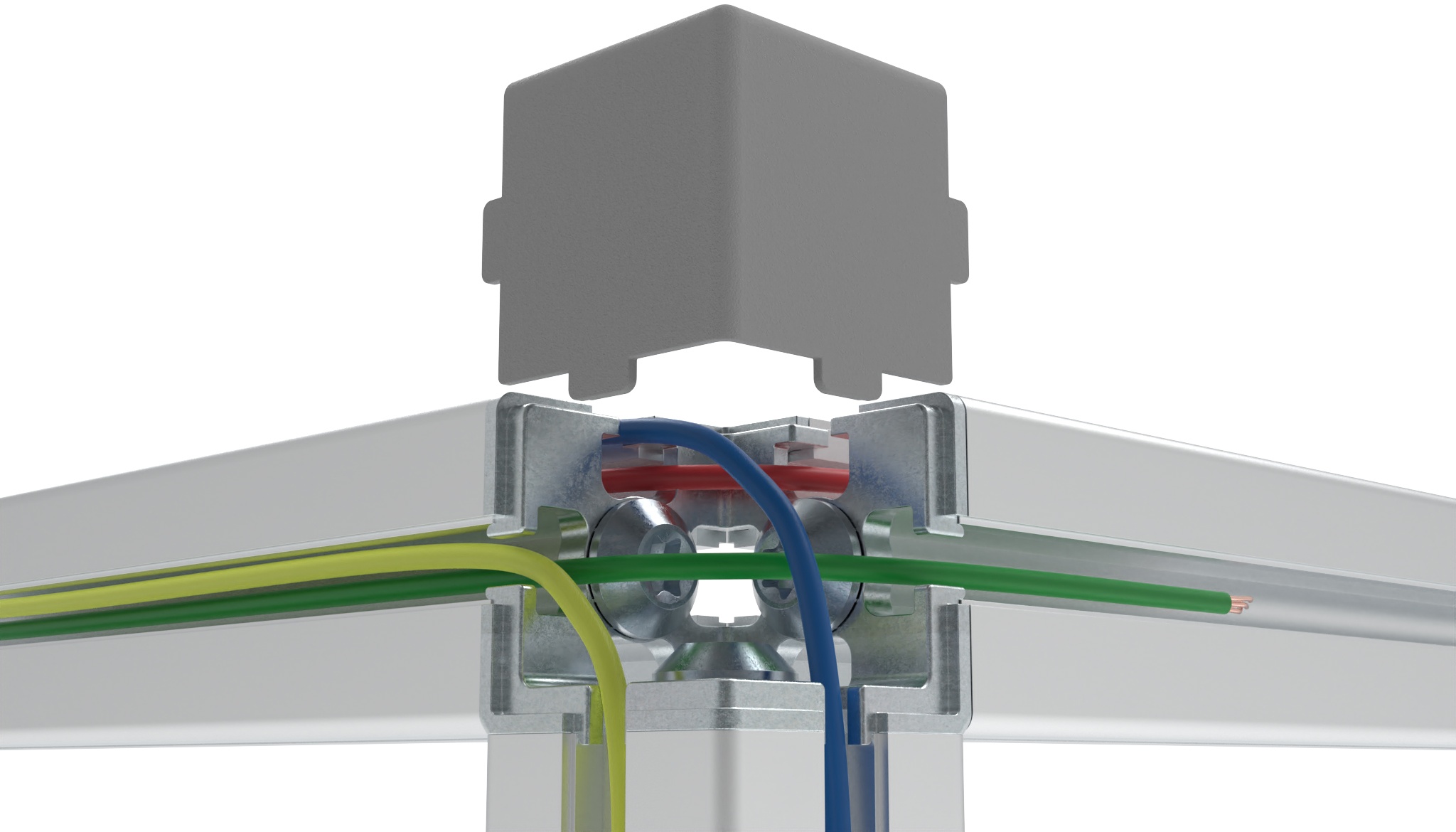

Corner Connector 45, 2D with Cable Passage (Set)
€0.00*
Profile:
B
|
Slot N (mm):
10

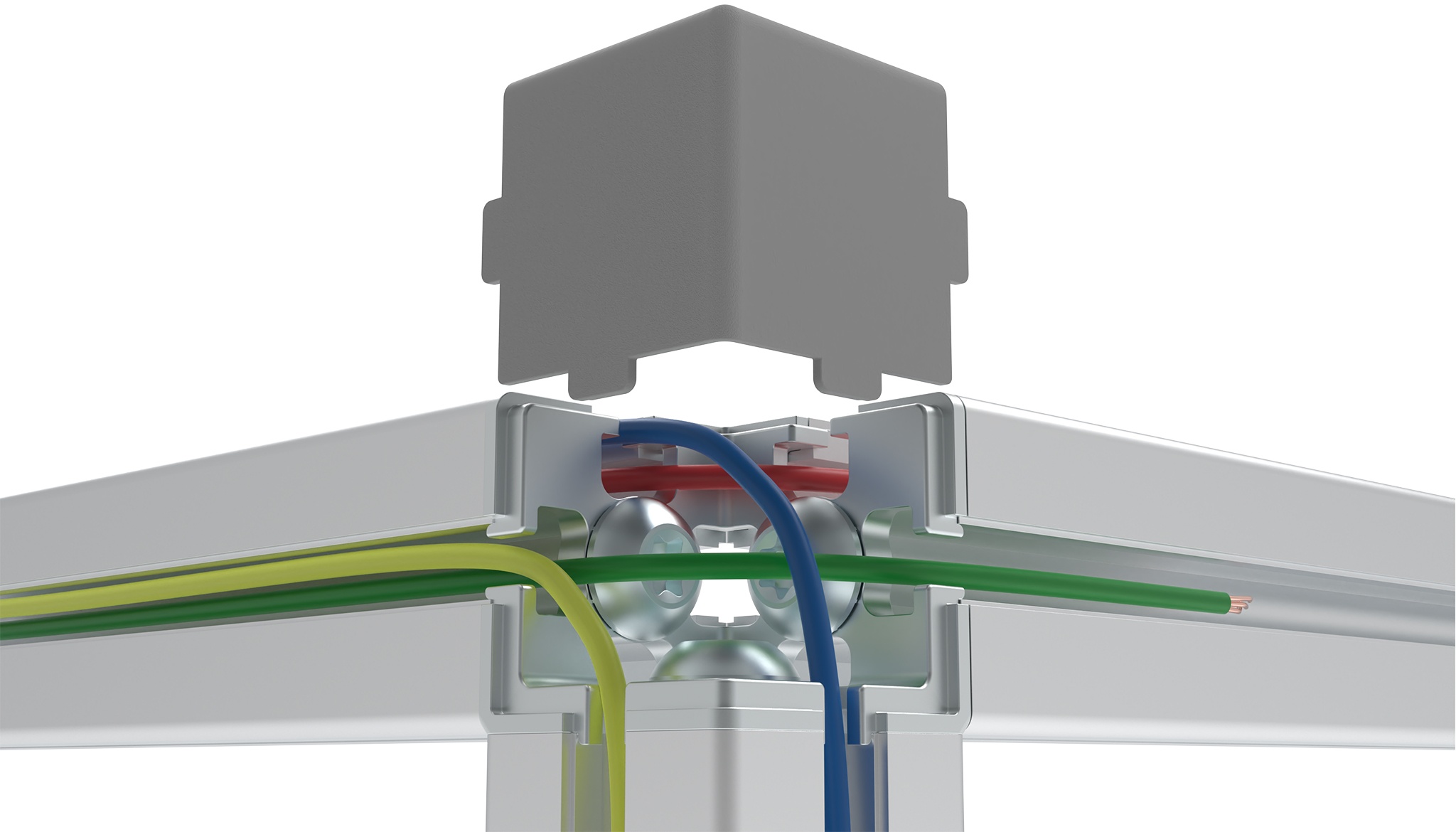

Color:Cover cap: gray ≈ RAL 7004Delivery Countries:WorldwideDescription:To connect two aluminum profiles at right angles, with opening in slot geometry for passage of cables; With cover cap to cover the open side of the corner connectorMaterial:Corner connector: Zinc die-cast Cover cap: Plastic PA, glass ball reinforced Self forming screw: SteelSet:1 corner connector 45, 2D with cable passage 1 cover cap 2 self forming screws - S12 x 30Specials:Other materials, other surfaces, other colors on requestSurface:Corner connector: Zinc plated Self forming screw: Zinc platedTip:The maximum number of cables which can be passed through the opening in the slot geometry depends on the outer cable diameter: Max. 6 cabels with an outer diameter of 3 mm Max. 4 cabels with an outer diameter of 4 mm Max. 3 cabels with an outer diameter of 5 mm Max. 2 cabels with an outer diameter of 6 mmZolltarifnummer:79070000900

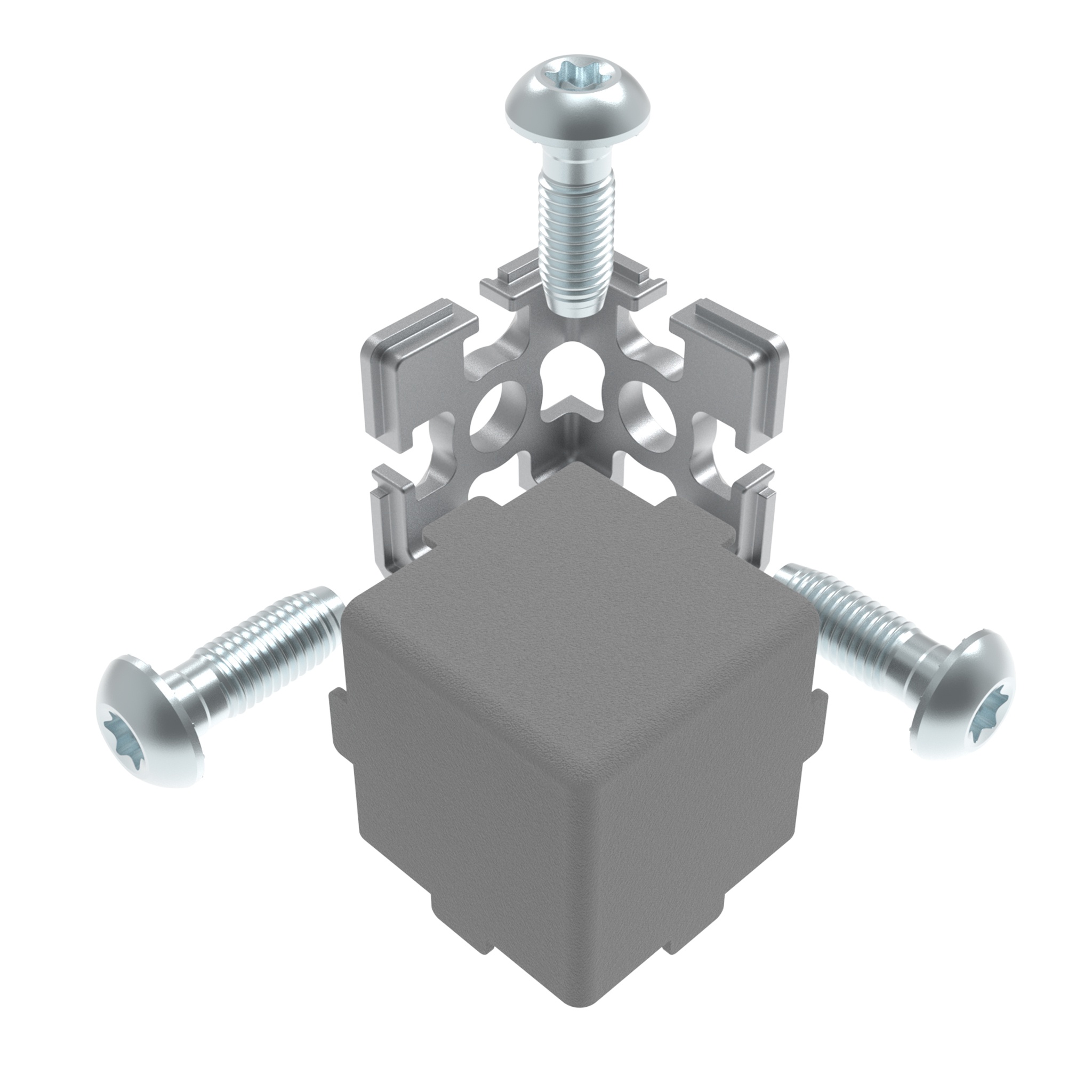

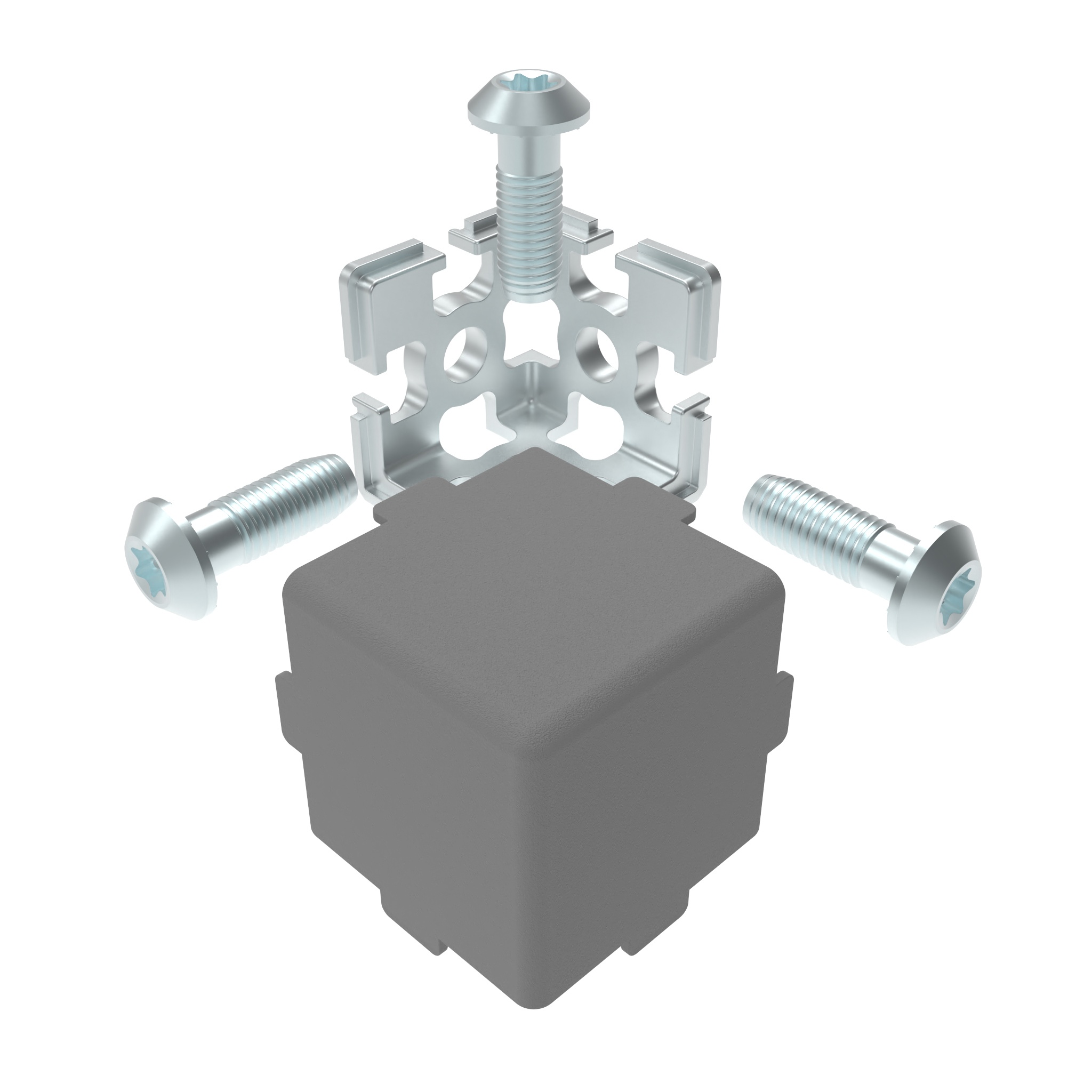

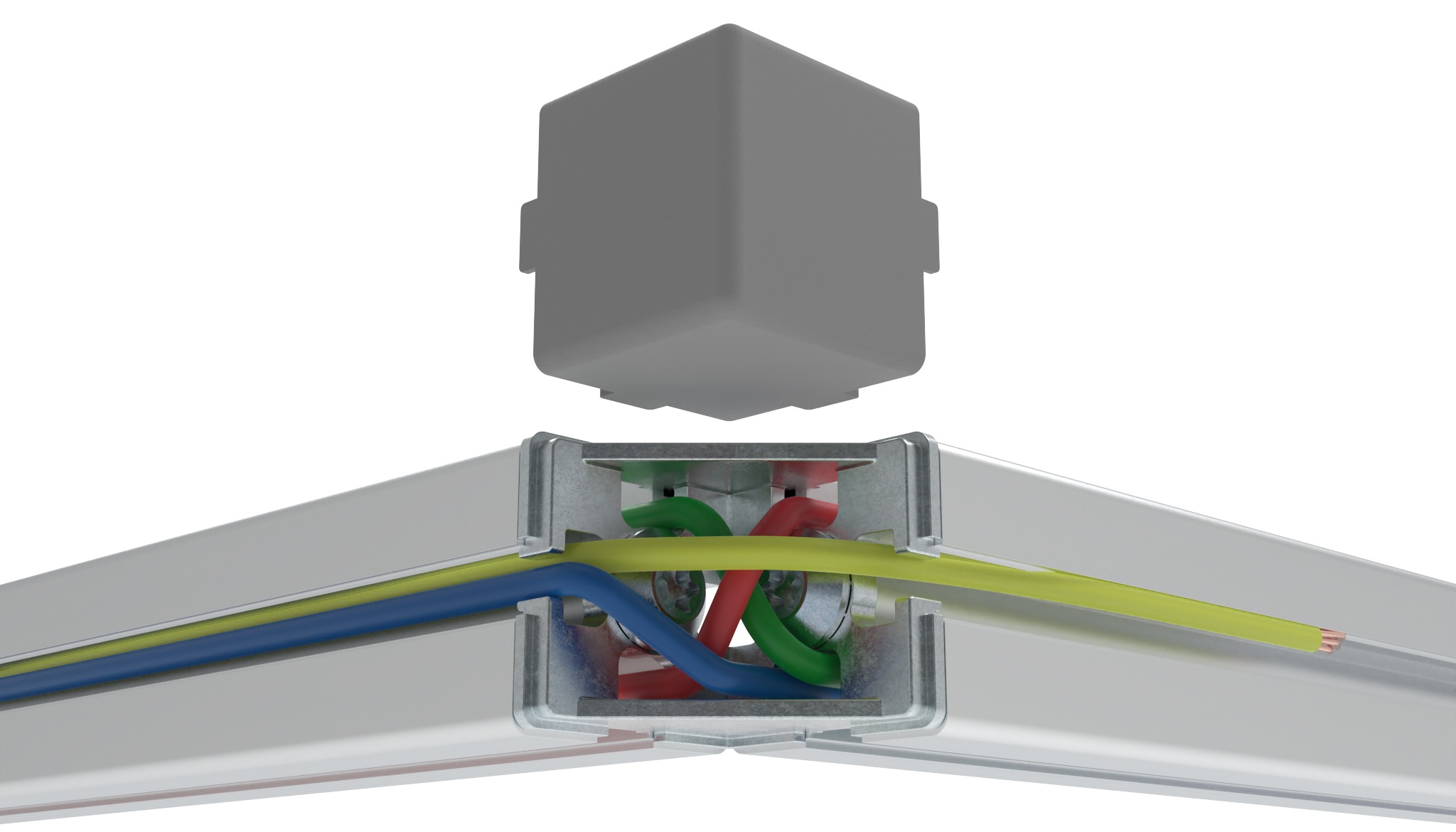

Corner Connector 45, 3D with Cable Passage (Set)
€0.00*
Profile:
B
|
Slot N (mm):
10
Color:Cover cap: gray ≈ RAL 7004Delivery Countries:WorldwideDescription:To connect three aluminum profiles at right angles, with opening in slot geometry for passage of cables; With cover cap to cover the open side of the corner connectorMaterial:Corner connector: Zinc die-cast Cover cap: Plastic PA, glass ball reinforced Self forming screw: SteelSet:1 corner connector 45, 3D with cable passage 1 cover cap 3 self forming screws - S12 x 30Specials:Other materials, other surfaces, other colors on requestSurface:Corner connector: Zinc plated Self forming screw: Zinc platedTip:The maximum number of cables which can be passed through the opening in the slot geometry depends on the outer cable diameter: Max. 6 cabels with an outer diameter of 3 mm Max. 4 cabels with an outer diameter of 4 mm Max. 3 cabels with an outer diameter of 5 mm Max. 2 cabels with an outer diameter of 6 mmZolltarifnummer:79070000900
