Frame Corner Connectors

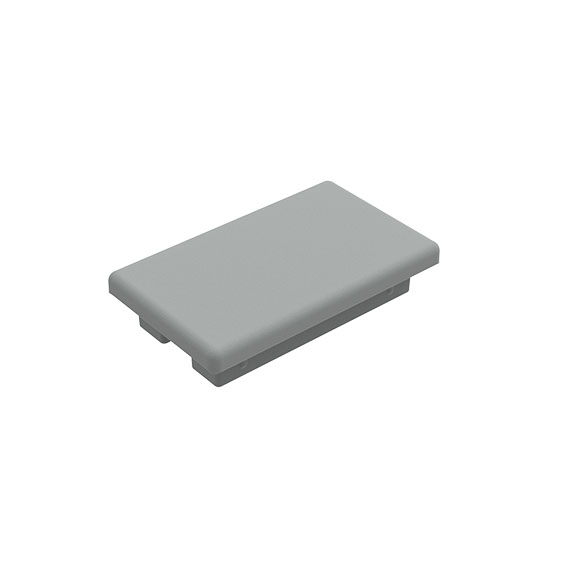

Cover Cap for Frame Corner Connector 18 x 32
Color:Gray ≈ RAL 7042Delivery Countries:WorldwideDescription:To cover the open sides of the frame corner connector 18 x 32Material:Plastic PA

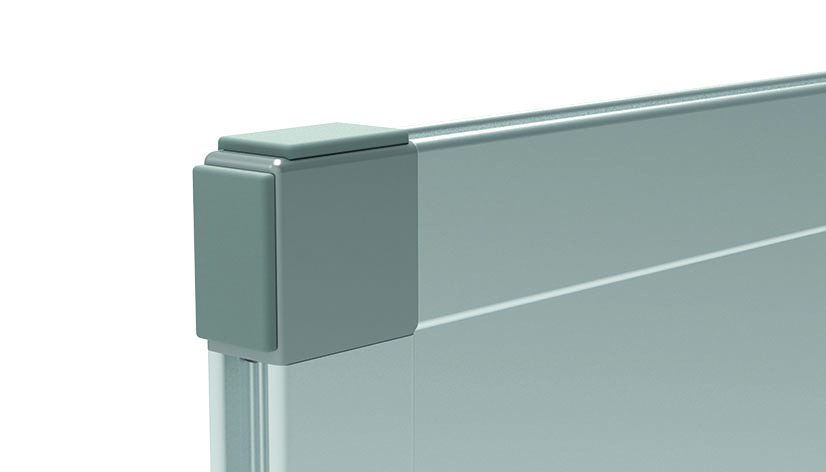

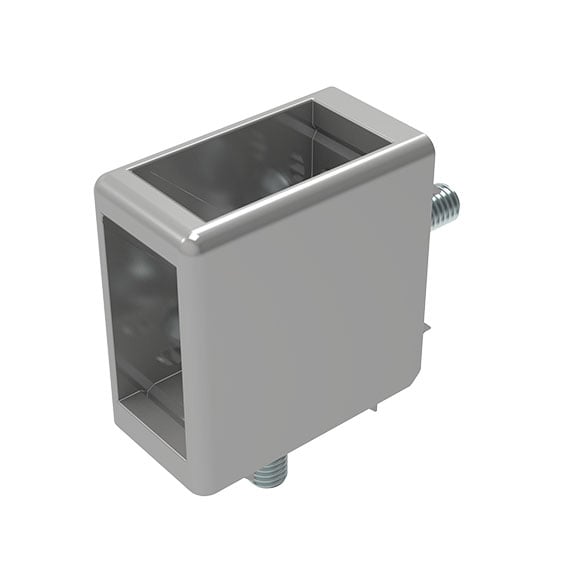

Frame Corner Connector 18 x 32 for Clamp Profile (Set)
Color:Frame Corner Connector: Alu colorDelivery Countries:WorldwideDescription:To connect two clamp profiles 18 x 32 at right anglesMaterial:Frame corner connector: Aluminum die-cast Screws: SteelSet:1 Frame Corner Connector, 2 screws DIN EN ISO 7380 (DIN 34805) - M5 x 16Surface:Frame corner connector: Powder coated Screws: Zinc platedTip:Compatible Sliding Door Guide Insert for Frame Corner Connector 18 x 32 (Set) see 093WWCI18321S01

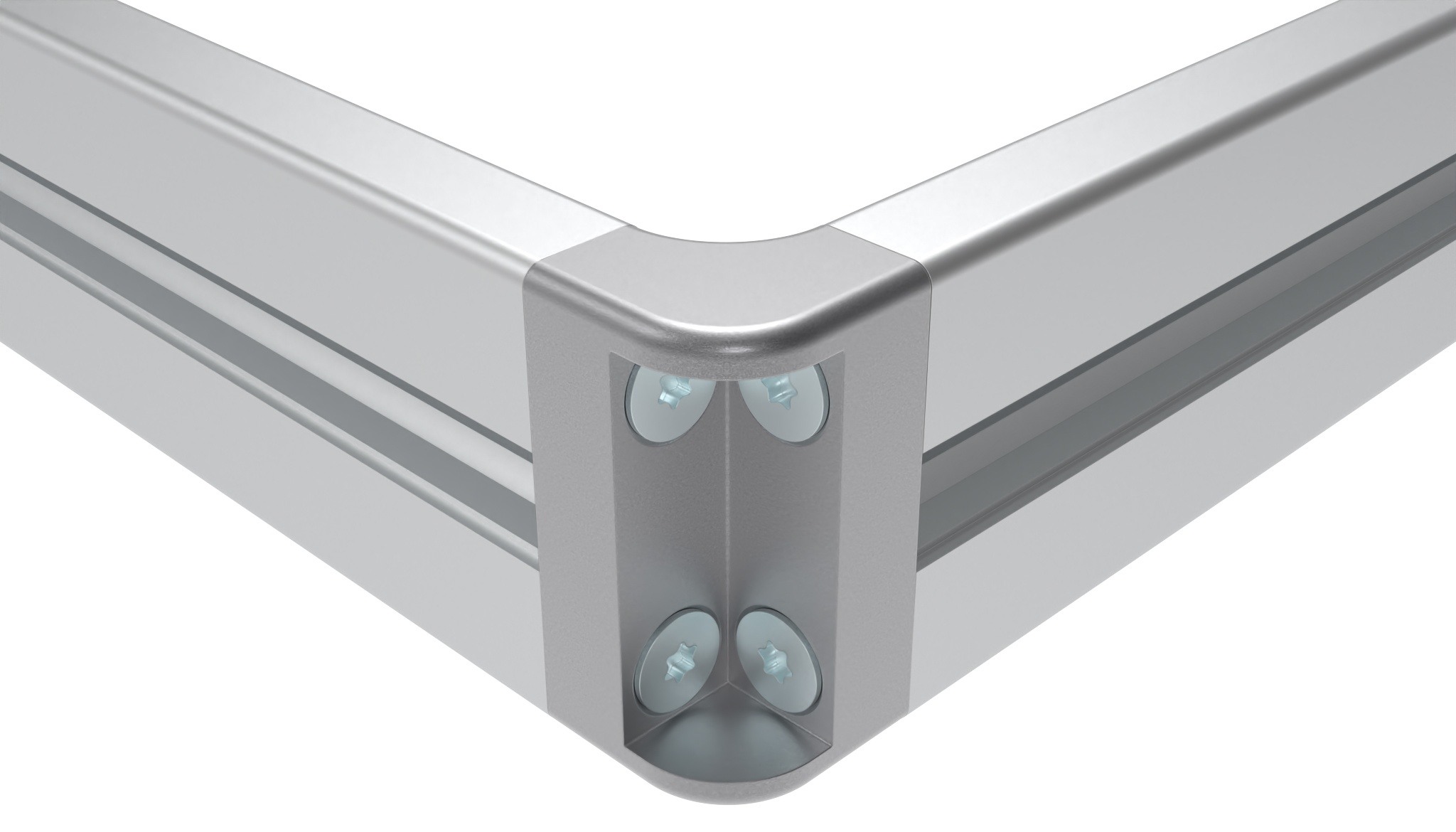

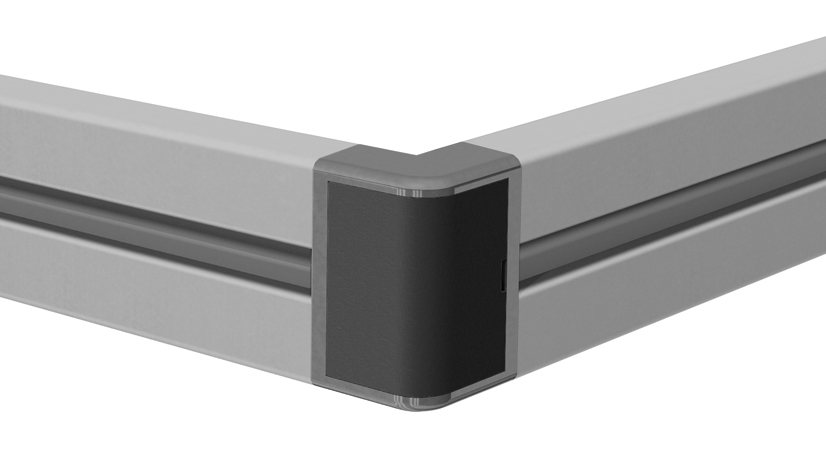

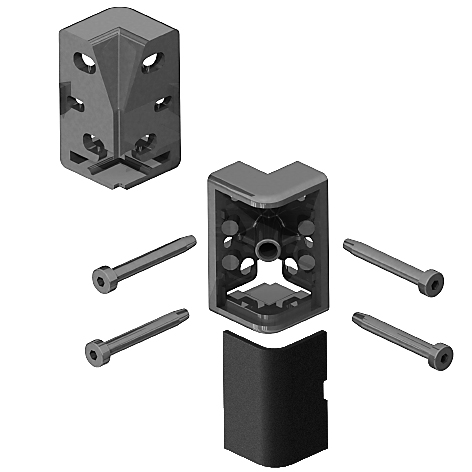

Frame Corner Connector 20 x 40 (Set)
Color:Frame corner connector: Alu color Screws: Steel Cover cap: Gray ≈ RAL 7042Delivery Countries:WorldwideDescription:To connect two aluminum frame profiles 20 x 40 at right anglesMaterial:Frame corner connector: Aluminum die-cast Screws: Steel Cover cap: Plastic PA, glass fiber reinforcedSet:1 frame corner connector 20 x 40 - slot 8, 4 self-tapping screws - M4 x 20, 1 cover capSurface:Frame corner connector: Powder coated Screws: Zinc plated

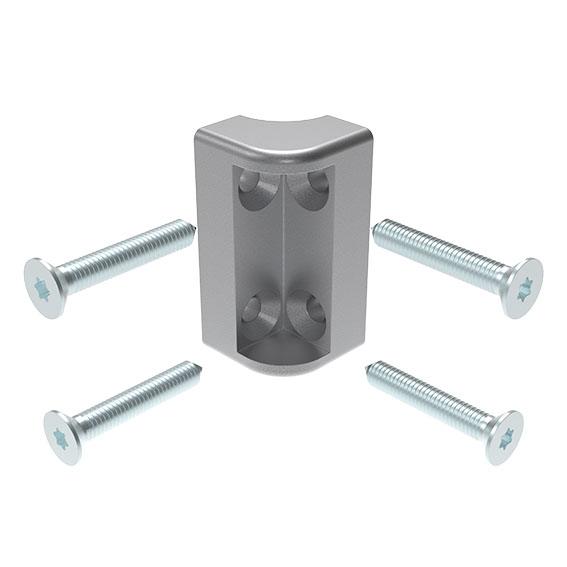

Frame Corner Connector 22.5 x 45 (Set)
Delivery Countries:WorldwideDescription:To connect two aluminum frame profiles 22.5 x 45 at right anglesMaterial:Frame corner connector: Aluminum die-cast Screws: Stainless steel SS 304Set:1 frame corner connector 22.5 x 45 - slot 10, 4 screws DIN EN ISO 7050 (DIN 7982) - 4.8 x 30 - hexalobular socket T25Specials:Other surfaces, other colors on requestSurface:Frame corner connector: Plain Screws: Zinc plated

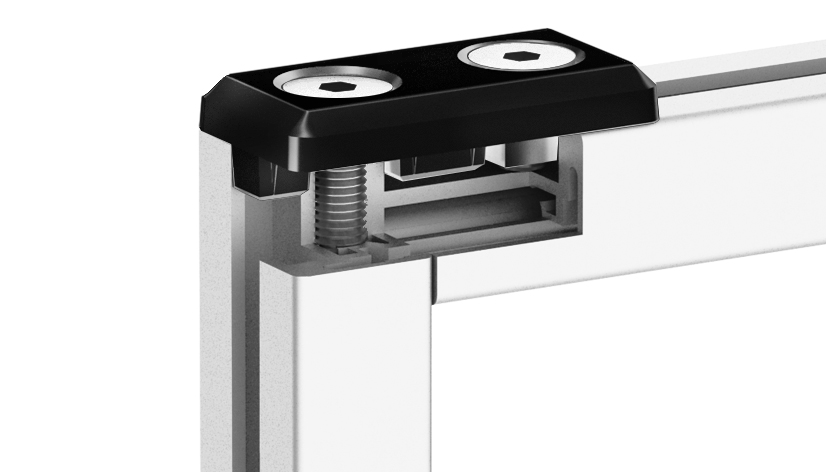

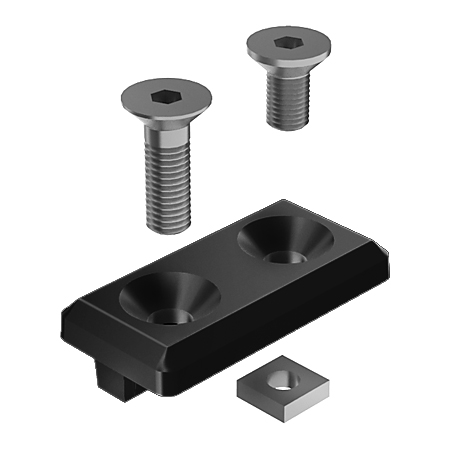

Frame Corner Connector Plate
Assembly Set:1 self forming countersunk screw S8 x 25, 1 countersunk screw DIN EN ISO 10642 (DIN 7991) - M8 x 16, 1 square nut DIN 562 - M8Color:Corner connector plate: BlackDelivery Countries:WorldwideDescription:To connect two frame profiles 22.5 x 30 at right angles; ESD electrostatical dischargingMaterial:Corner connector plate: Plastic PA, carbon fiber reinforced Assembly set: SteelSurface:Assembly set: Zinc platedTip:*Compatible Self Forming Countersunk Screw S8 x 25 see 093S0825C

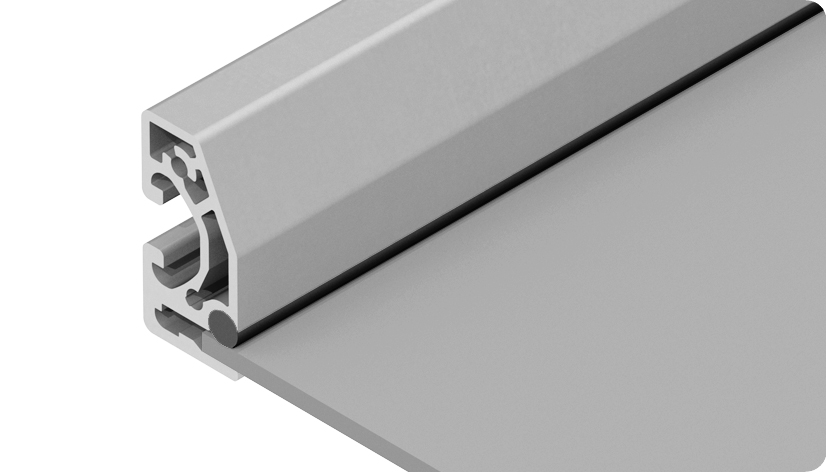

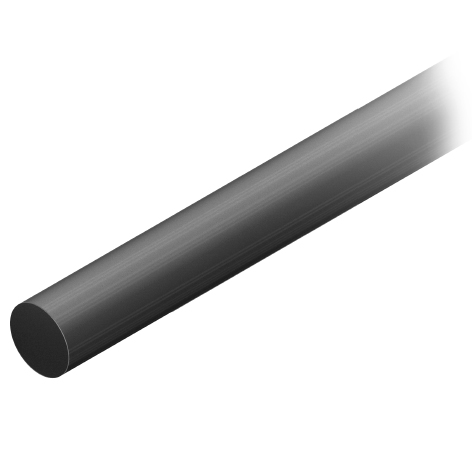

Sealing Cord
Color:GrayDelivery Countries:WorldwideDescription:To seal panels in frame profiles without clearanceMaterial:Rubber NBR
