Panel Fasteners

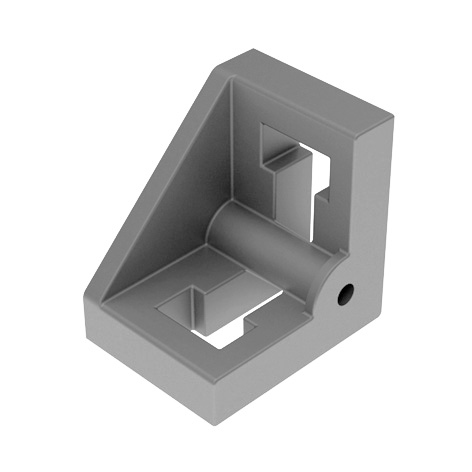

Angle Block 40/45
€0.00*
Dimensions (mm):
M5
|
Profile:
B
|
Set:
incl. assembly set
|
Slot N (mm):
10
Assembly Set:2 hammer screws M8 x 25, 2 flange nuts M8Delivery Countries:WorldwideDescription:To attach panels to aluminum profiles; especially for high load bearing on the panelsMaterial:Aluminum die-castSpecials:Other surfaces, other colors on requestSurface:Plain

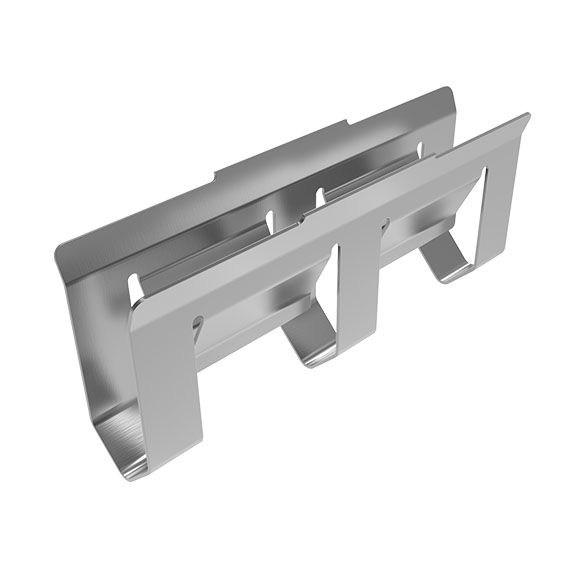

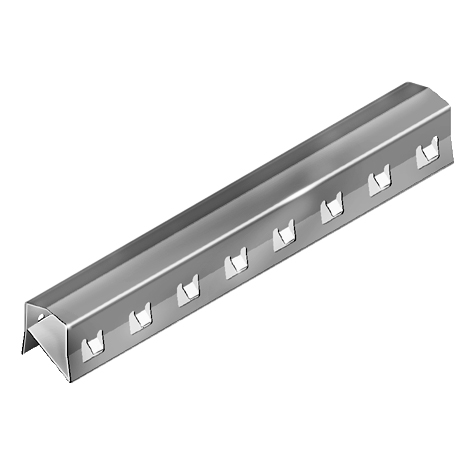

Clamping Spring for Clamp Profil 18 x 32
€0.00*
Profile:
I
Delivery Countries:WorldwideDescription:To fix panels 2 - 9 mm in the slotMaterial:Stainless steel SS303Surface:PlainTip:Compatible Sliding Door Guide see 093084S01 et seq.

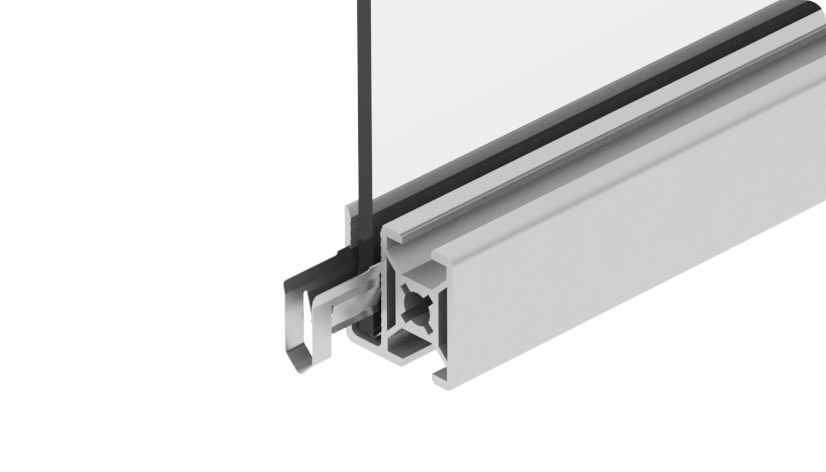

Clamping Spring for Protective Fence Profiles 30 x 30 WG
€0.00*
Profile:
B
Delivery Countries:WorldwideDescription:To fix panels 2 - 4 mm in a clamp slot for Ø 3 mm wire mesh frames, or panels 4 - 5 mm in a clamp slot for Ø 4 mm wire mesh frames; recommended number: ca. 4 pcs. per 1 mMaterial:Spring steel C60SSurface:Plain
Clip Block 13, Black
€0.00*
Color:
-
|
D (mm):
-
|
Profile:
I
|
Slot N (mm):
5
Color:BlackDelivery Countries:WorldwideDescription:To attach panels to aluminum profiles without screws or toolsMaterial:Plastic PA, glass fiber reinforcedSpecials:Customized hammer, other colors on requestTip:Compatible Spacer see 094901
Clip Block 13, Gray
€0.00*
Color:
-
|
D (mm):
-
|
Profile:
I
|
Slot N (mm):
5
Color:Gray ≈ RAL 7042Delivery Countries:WorldwideDescription:To attach panels to aluminum profiles without screws or toolsMaterial:Plastic PA, glass fiber reinforcedSpecials:Customized hammer, other colors on requestTip:Compatible Spacer see 094901S03
Clip Block 14 SL
€0.00*
A1 (mm):
7.0
|
A2 (Profile) (mm):
2.2 (2.2)
|
Color:
-
|
D (mm):
-
|
L (mm):
19.5
|
Profile:
B
|
Slot N (mm):
8
Color:BlackDelivery Countries:WorldwideDescription:To attach panels easily to aluminum profiles without screws or tools; can only be opened with the special tool SLMaterial:Plastic PA, glass fiber reinforcedSpecials:Customized hammer, other colors on requestTip:Tool SL for Clip Block 14 SL see 0942SLTip 2:Compatible Spacer see 094102K
Clip Block 14, Black
€0.00*
A1 (mm):
11.5
|
A2 (Profile) (mm):
4.5 (4.5)
|
Color:
-
|
D (mm):
-
|
L (mm):
26.0
|
Profile:
I
|
Slot N (mm):
8
Color:BlackDelivery Countries:WorldwideDescription:To attach panels to aluminum profiles without screws or toolsMaterial:Plastic PA, glass fiber reinforcedSpecials:Customized hammer, other colors on requestTip:Compatible Spacer see 094102K

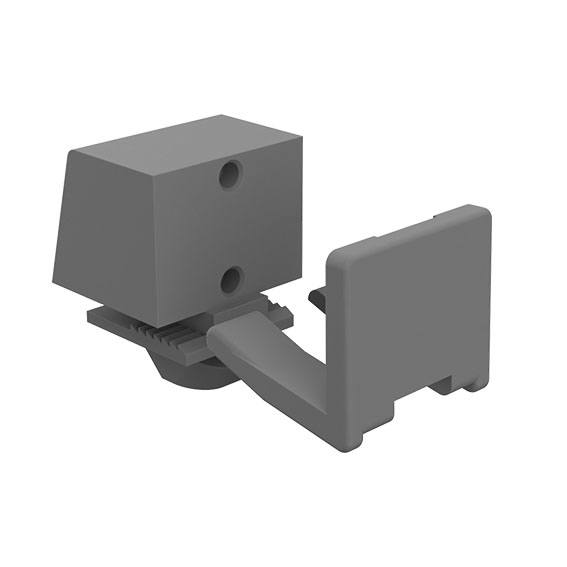

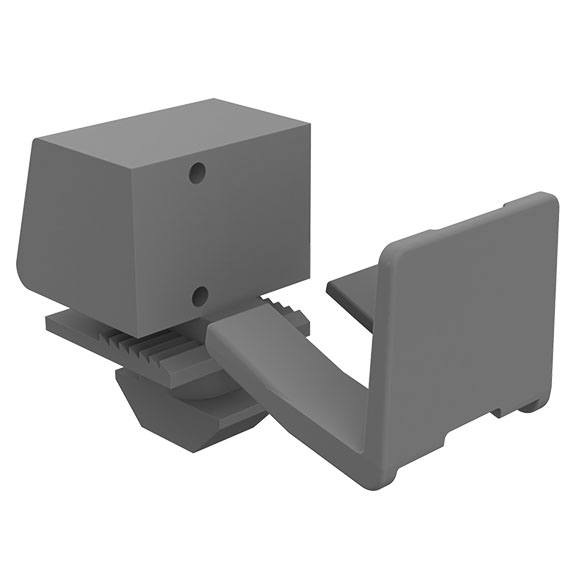

Clip Block 14, Gray
€0.00*
A1 (mm):
7.0
|
A2 (Profile) (mm):
2.2 (2.2)
|
Color:
Gray ≈ RAL 7004
|
D (mm):
-
|
Fig.:
-
|
L (mm):
19.5
|
Profile:
B
|
Slot N (mm):
8
Color:GrayDelivery Countries:WorldwideDescription:To attach panels to aluminum profiles without screws or toolsMaterial:Plastic PA, glass fiber reinforcedSpecials:Customized hammer, other colors on requestTip:Compatible Spacer see 094102KS01

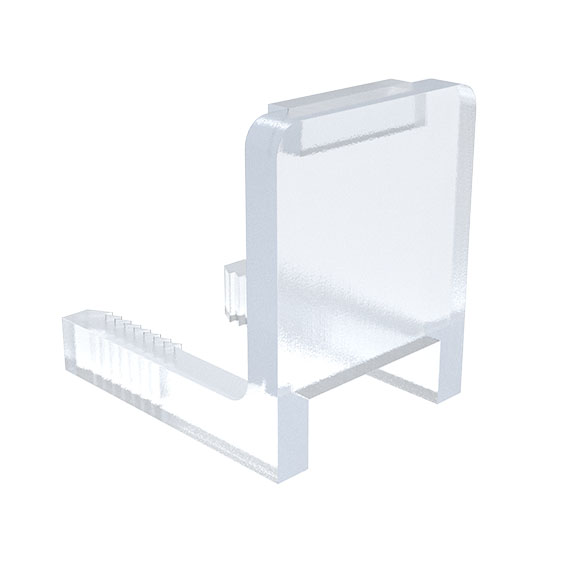

Clip clamp , for Vario Clamping Blocks
€0.00*
Color:Transparent (colorless)Delivery Countries:WorldwideDescription:For height adjustment of the contact surfaces, for flush mounting of panelsMaterial:Plastic PCTip:Compatible Vario Clamping Blocks see 094523M6, 094522M6CS and 094524M6

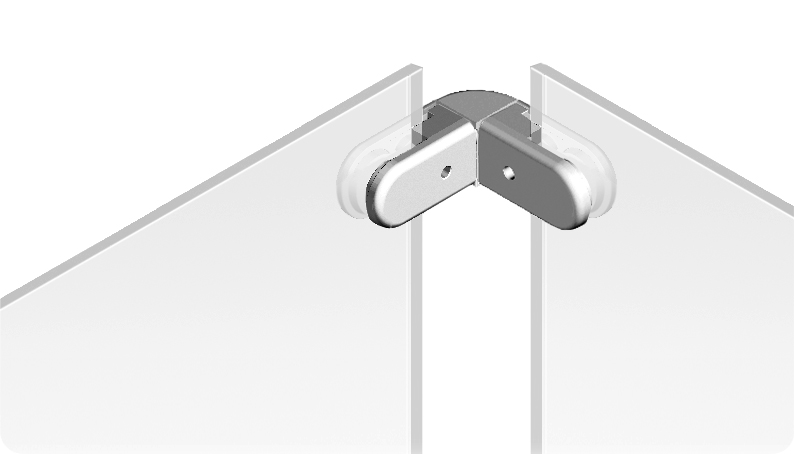

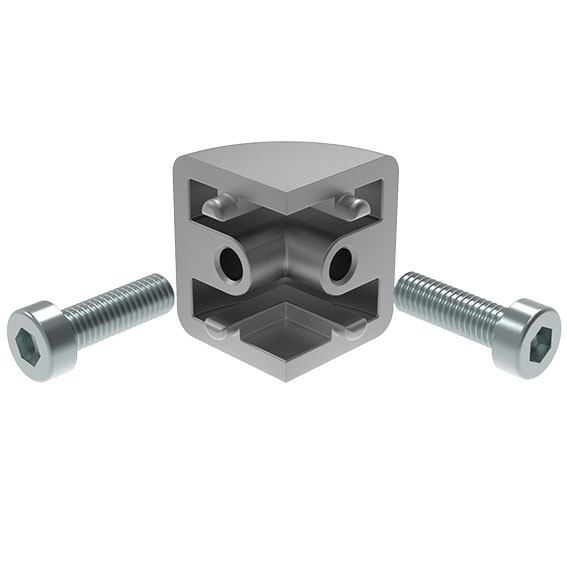

Corner Connector for Glass Panel Clamp (Set)
€0.00*
Color:Alu colorDelivery Countries:WorldwideDescription:To make a corner connection with two panels using two glass panel clamps (2 sets)Material:Zinc die-castSet:1 corner connector, 2 screws M5 x 12Specials:Other surfaces, other colors on requestSurface:Powder coated

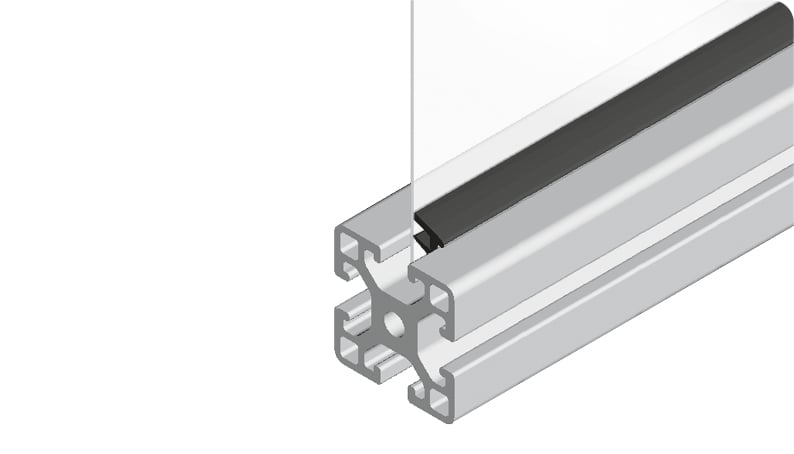

Cover and Reduction Profile B Slot 10 deep
€0.00*
Color:
Gray ≈ RAL 7004
|
Fig.:
②
|
Profile:
B
|
Slot N (mm):
10
Color:Profile: Black, gray Sealing lip: BlackDelivery Countries:WorldwideDescription:To cover size 10 profile slots and to secure panels with a thickness of 2 - 6 mmMaterial:Profile: Plastic PP Sealing lip: Plastic TPESpecials:Other colors on request

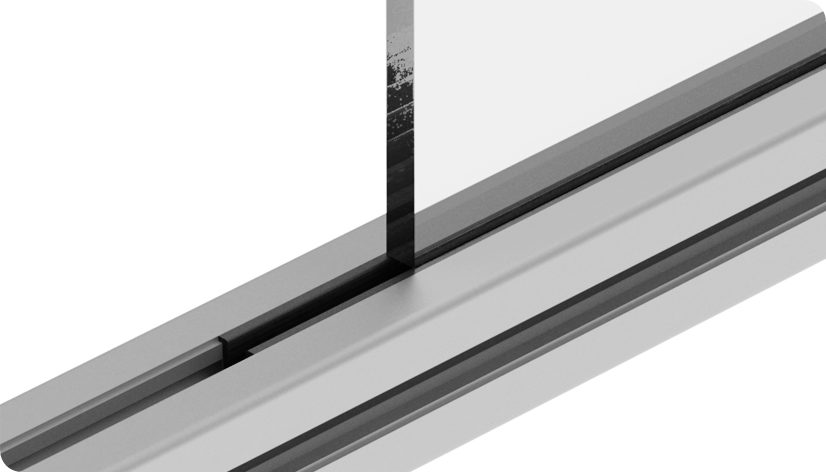

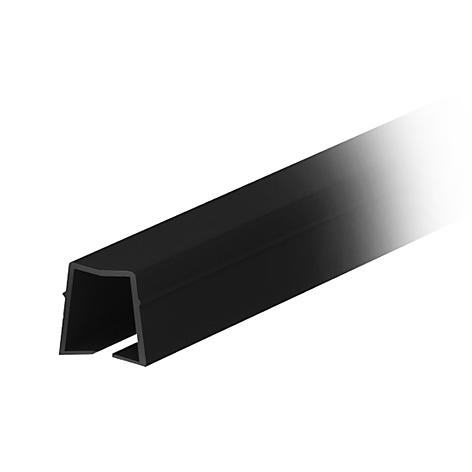

Cover and Reduction Profile B Slot 10 flat
€0.00*
Profile:
B
|
Slot N (mm):
10
Color:BlackDelivery Countries:WorldwideDescription:To secure panels with a thickness of 4 - 6 mm Material:Plastic PP + TPE, ≈ 78 Shore ASpecials:Other colors on requestTip:Please note: You are ordering in meters!

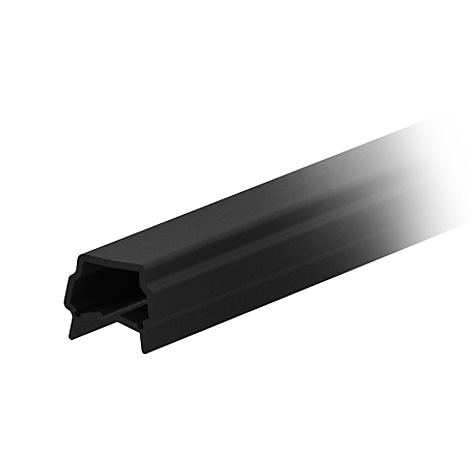

Cover and Reduction Profile B Slot 6
€0.00*
Profile:
B
|
Slot N (mm):
6
Color:BlackDelivery Countries:WorldwideDescription:To cover size 6 profile slots and to secure panels with a thickness of 1 - 4 mmMaterial:Plastic PPSpecials:Other colors on requestTip:Please note: You are ordering in meters!

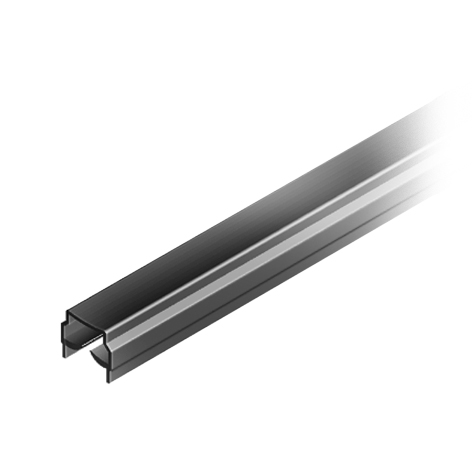

Cover and Reduction Profile B Slot 8
€0.00*
Profile:
B
|
Slot N (mm):
8
Color:BlackDelivery Countries:WorldwideDescription:To cover size 8 profile slots and to secure panels with a thickness of 4 - 6 mmMaterial:Plastic PP + TPE, ≈ 78 Shore ASpecials:Other colors on requestTip:Please note: You are ordering in meters!

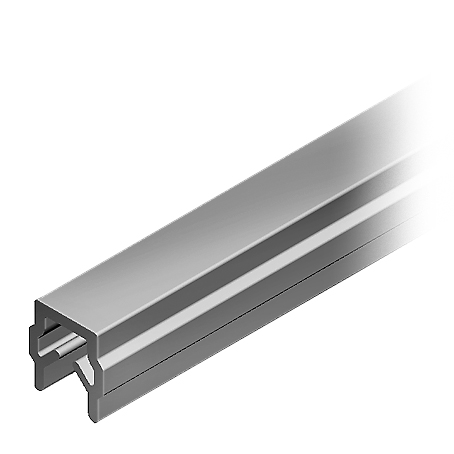

Cover and Reduction Profile I Slot 5
€0.00*
Color:
Black
|
Profile:
I
|
Slot N (mm):
5
Color:Black, gray, natural Delivery Countries:WorldwideDescription:To cover size 5 profile slots and to secure panels with a thickness of 2 - 3 mmMaterial:Plastic PPSpecials:Other colors on request

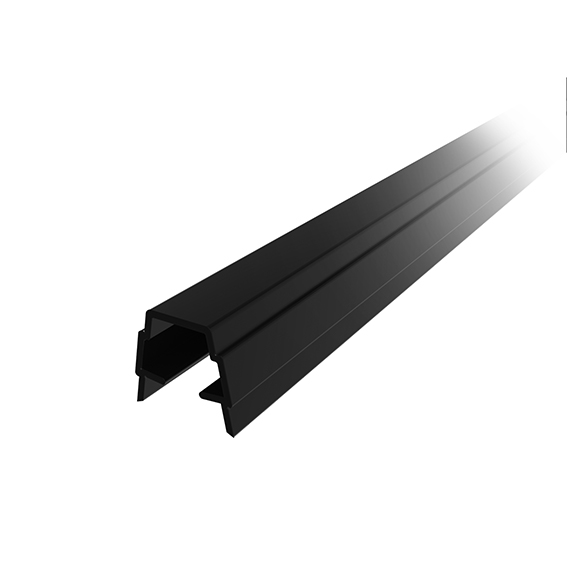

Cover and Reduction Profile I Slot 6
€0.00*
Color:
Black
|
Profile:
I
|
Slot N (mm):
6
Color:Black, gray, natural Delivery Countries:WorldwideDescription:To cover size 6 profile slots and to secure panels with a thickness of 2 - 3.5 mmMaterial:Plastic PPSpecials:Other colors on request
Cover and Reduction Profile I Slot 8
€0.00*
Color:
Orange ≈ RAL 2008
|
Profile:
I
|
Slot N (mm):
8
Color:Black, yellow, orange, red, blue, gray, white aluminum, naturalDelivery Countries:WorldwideDescription:To cover size 8 profile slots and to secure panels with a thickness of 4 - 6 mmMaterial:Plastic PPSpecials:Other colors on request
Cover and Reduction Profile M45 Slot 8
€0.00*
Color:
Gray ≈ RAL 7035
|
Slot N (mm):
8
Color:Black, grayDelivery Countries:WorldwideDescription:To cover size 8 profile slots and to secure panels with a thickness of 4 - 6 mmMaterial:Plastic PPSpecials:Other colors on request

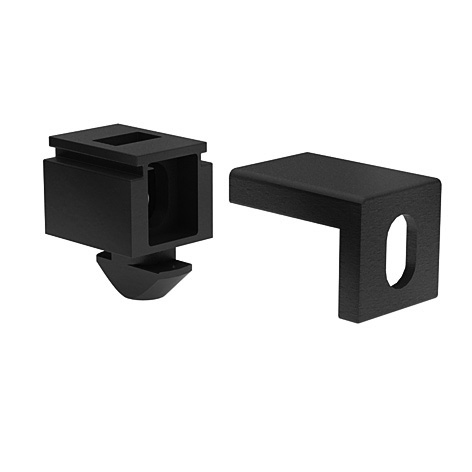

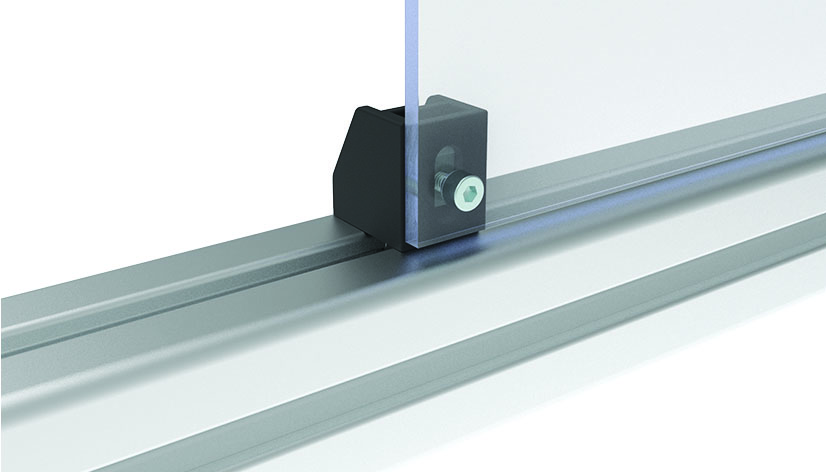

Fixation Block 18, Black
€0.00*
A1 (mm):
6.0 / 9.0* / 12.0 / 15.0*
|
A2 (Profile) (mm):
2.7 (3.0)
|
M:
M5
|
Profile:
I
|
Slot N (mm):
6
Color:BlackDelivery Countries:WorldwideDescription:To attach panels easily to aluminum profilesMaterial:Block: Plastic PA, glass fiber reinforced Nut: Zinc plated steelSpecials:Customized hammer, other colors on requestTip:* A1 size with spacer!

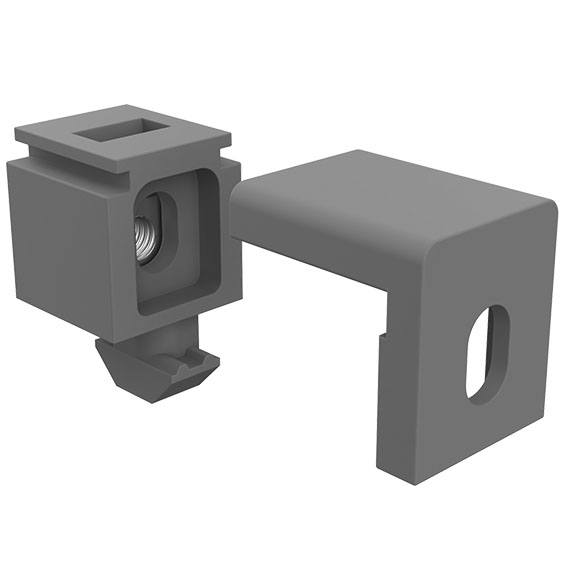

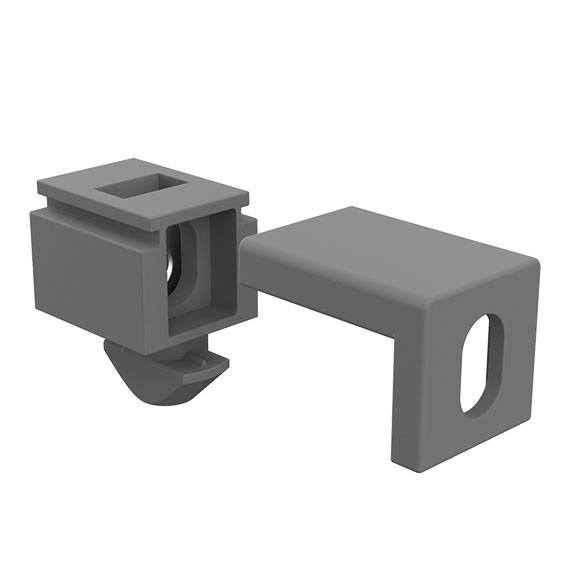

Fixation Block 18, Gray
€0.00*
A1 (mm):
6.0 / 9.0* / 12.0 / 15.0*
|
A2 (Profile) (mm):
2.7 (3.0)
|
M:
M5
|
Profile:
I
|
Slot N (mm):
6
Color:Gray ≈ RAL 7042Delivery Countries:WorldwideDescription:To attach panels easily to aluminum profilesMaterial:Block: Plastic PA, glass fiber reinforced Nut: Zinc plated steelSpecials:Customized hammer, other colors on requestTip:* A1 size with spacer!

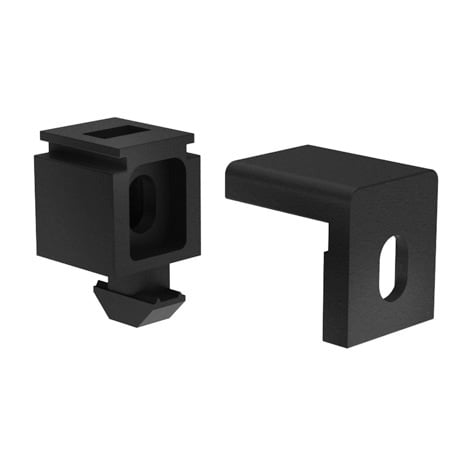

Fixation Block 25, Black
€0.00*
A1 (mm):
5.0 / 10.0* / 15.0 / 20.0*
|
A2 (Profile) (mm):
4.35 (4.5)
|
M:
M6
|
Profile:
I
|
Slot N (mm):
8
Color:BlackDelivery Countries:WorldwideDescription:To attach panels easily to aluminum profilesMaterial:Block: Plastic PA, glass fiber reinforced Nut: Zinc plated steelSpecials:Customized hammer, other colors on requestTip:* A1 size with spacer!
Fixation Block 25, Gray
€0.00*
A1 (mm):
5.0 / 10.0* / 15.0 / 20.0*
|
A2 (Profile) (mm):
4.35 (4.5)
|
M:
M6
|
Profile:
I
|
Slot N (mm):
8
Color:Gray ≈ RAL 7042Delivery Countries:WorldwideDescription:To attach panels easily to aluminum profilesMaterial:Block: Plastic PA, glass fiber reinforced Nut: Zinc plated steelSpecials:Customized hammer, other colors on requestTip:* A1 size with spacer!

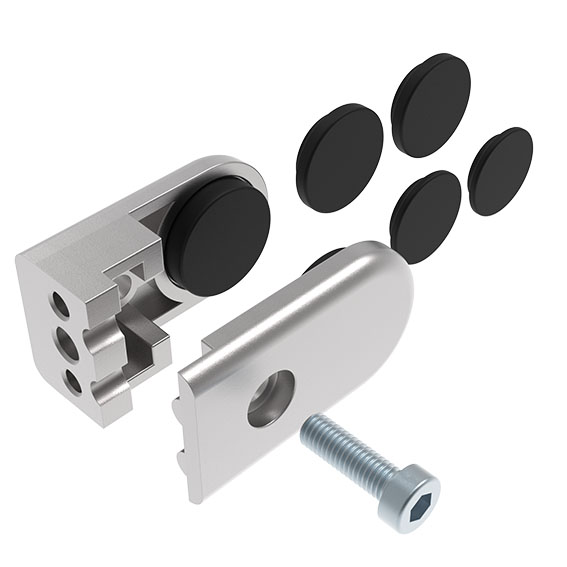

Glass Panel Clamp (Set)
€0.00*
Color:Alu colorDelivery Countries:WorldwideDescription:To fix glass and other panelsMaterial:Zinc die-castSet:1 glass panel clamp, 1 screw M5 x 16, 5 rubber pads for panels 2 - 9 mmSpecials:Other surfaces, other colors on requestSurface:Powder coated

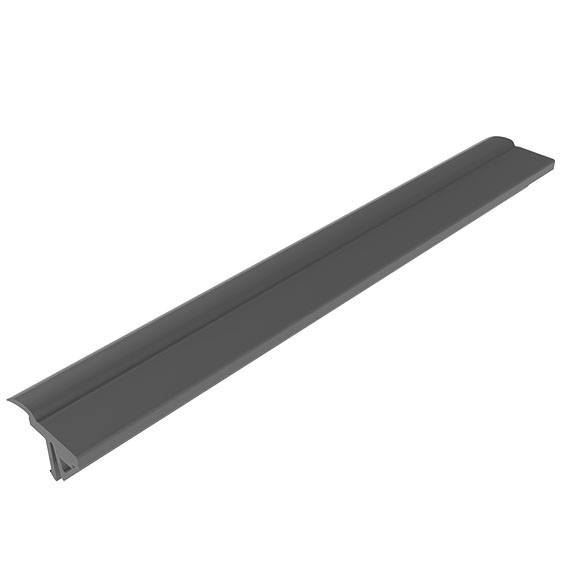

Glazing Strip for Insert Profile I AL
€0.00*
A (mm):
26.0
|
Color:
Gray ≈ RAL 7042
|
Profile:
I
|
Slot N (mm):
8
|
for Panel:
6 - 8 mm
Color:GrayDelivery Countries:WorldwideDescription:To insert panels with 2.0 to 8.0 mm thickness subsequently into assebled structuresMaterial:Plastic PP + TPE, ≈ 78 Shore ATip:Please note: You are ordering in meters!Tip 2:For a complete insert profile a suitable support strip I AL is required.
