Connection Angles

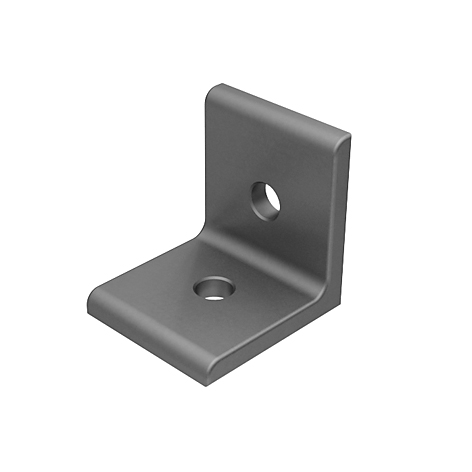

Connection Angle AL 2 Hole, 1 Slot Version
€0.00*
B (mm):
38.1 (1.5")
|
C (mm):
19.0 (0.75")
|
H (mm):
6.0
|
L (mm):
38.1 (1.5")
|
Version:
38.1 - 1.5"
|
ØD (mm):
9.0
Delivery Countries:WorldwideDescription:To connect two aluminum profiles at right anglesMaterial:AluminumSurface:AnodizedZolltarifnummer:76169990990

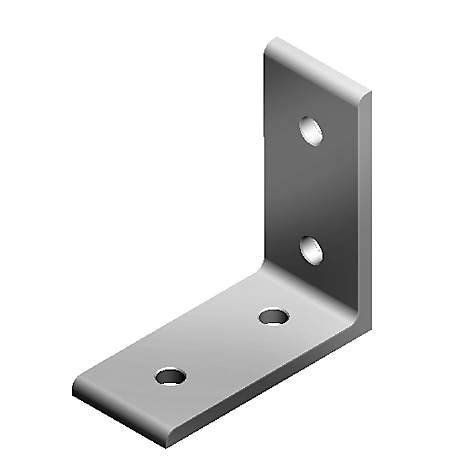

Connection Angle AL 4 Hole, 1 Slot Version
€0.00*
A (mm):
40.0
|
B (mm):
36.0
|
C (mm):
20.0
|
H (mm):
6.0
|
L (mm):
80.0
|
Version:
40 / 80
|
ØD (mm):
9.0
Delivery Countries:WorldwideDescription:To connect two aluminum profiles at right anglesMaterial:AluminumSurface:AnodizedZolltarifnummer:76169990990

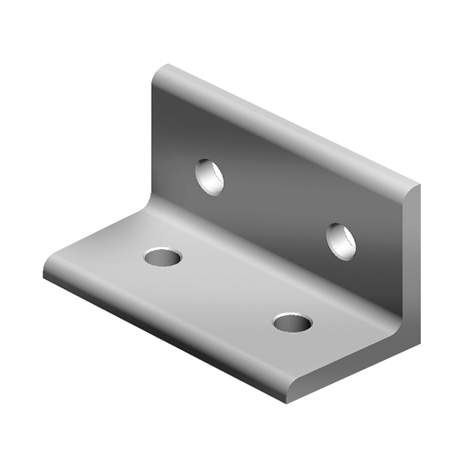

Connection Angle AL 4 Hole, 2 Slots Version
€0.00*
A (mm):
40.0
|
B (mm):
76.0
|
C (mm):
20.0
|
H (mm):
6.0
|
L (mm):
40.0
|
Version:
80 / 40
|
ØD (mm):
9.0
Delivery Countries:WorldwideDescription:To connect two aluminum profiles at right anglesMaterial:AluminumSurface:AnodizedZolltarifnummer:76169990990

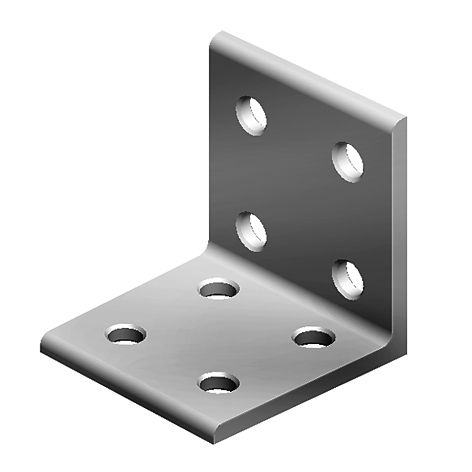

Connection Angle AL 8 Hole, 2 Slots Version
€0.00*
A (mm):
30.0
|
B (mm):
57.0
|
C (mm):
15.0
|
H (mm):
5.0
|
L (mm):
60.0
|
Version:
60 / 60
|
ØD (mm):
7.0
Delivery Countries:WorldwideDescription:To connect two aluminum profiles at right anglesMaterial:AluminumSurface:AnodizedZolltarifnummer:76169990990

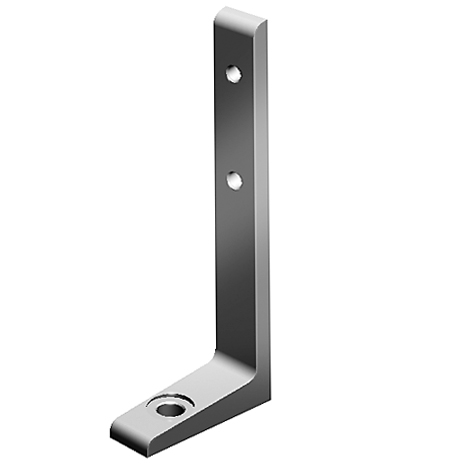

Floor Bracket AL 140, 1 Slot Version
€0.00*
B (mm):
36.0
|
Grid:
40
|
ØD (mm):
9.0
|
ØD1 (mm):
13.5
|
ØD2 (mm):
28.0
Delivery Countries:WorldwideDescription:To securely fix aluminum profiles to the floorMaterial:AluminumSurface:AnodizedZolltarifnummer:76169910990

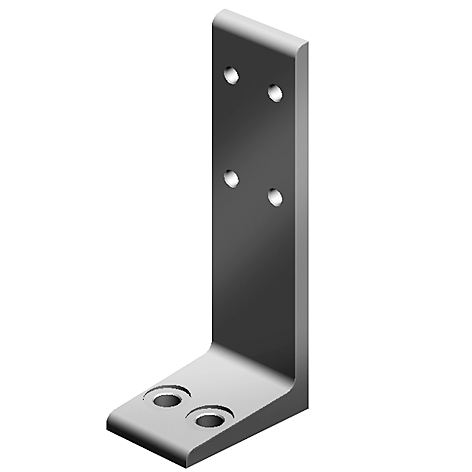

Floor Bracket AL 140, 2 Slots Version
€0.00*
A (mm):
30.0
|
B (mm):
57.0
|
Grid:
30
|
ØD (mm):
7.0
|
ØD1 (mm):
-
|
ØD2 (mm):
22.0
Delivery Countries:WorldwideDescription:To securely fix aluminum profiles to the floorMaterial:AluminumSurface:AnodizedZolltarifnummer:76169910990

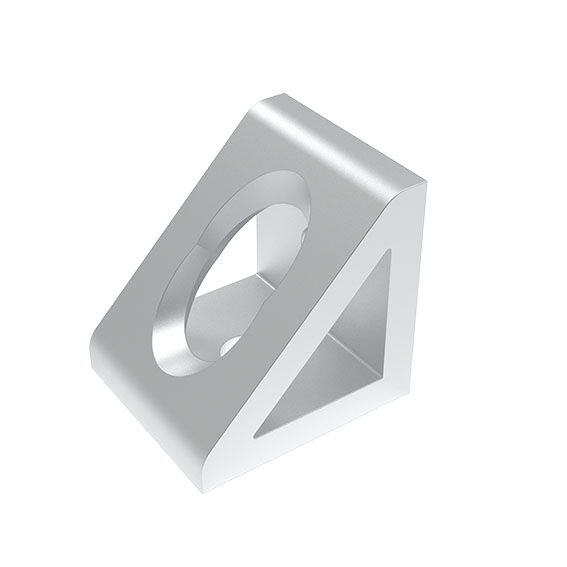

Gusseted Connection Angle AL 2 Hole, 1 Slot Version
€0.00*
A (mm):
25.4 (1")
|
B (mm):
25.4 (1")
|
C (mm):
4.8 (0.19")
|
D (mm):
11.2 (0.44")
|
E (mm):
12.7 (0.50")
|
F (mm):
22.4 (0.88")
|
G (mm):
12.7 (0.50")
|
Grid:
25.4 (1")
|
H (mm):
6.9 (0.27")
Color:Alu colorDelivery Countries:North AmericaDescription:To connect two aluminum profiles at right anglesMaterial:AluminumSurface:Anodized

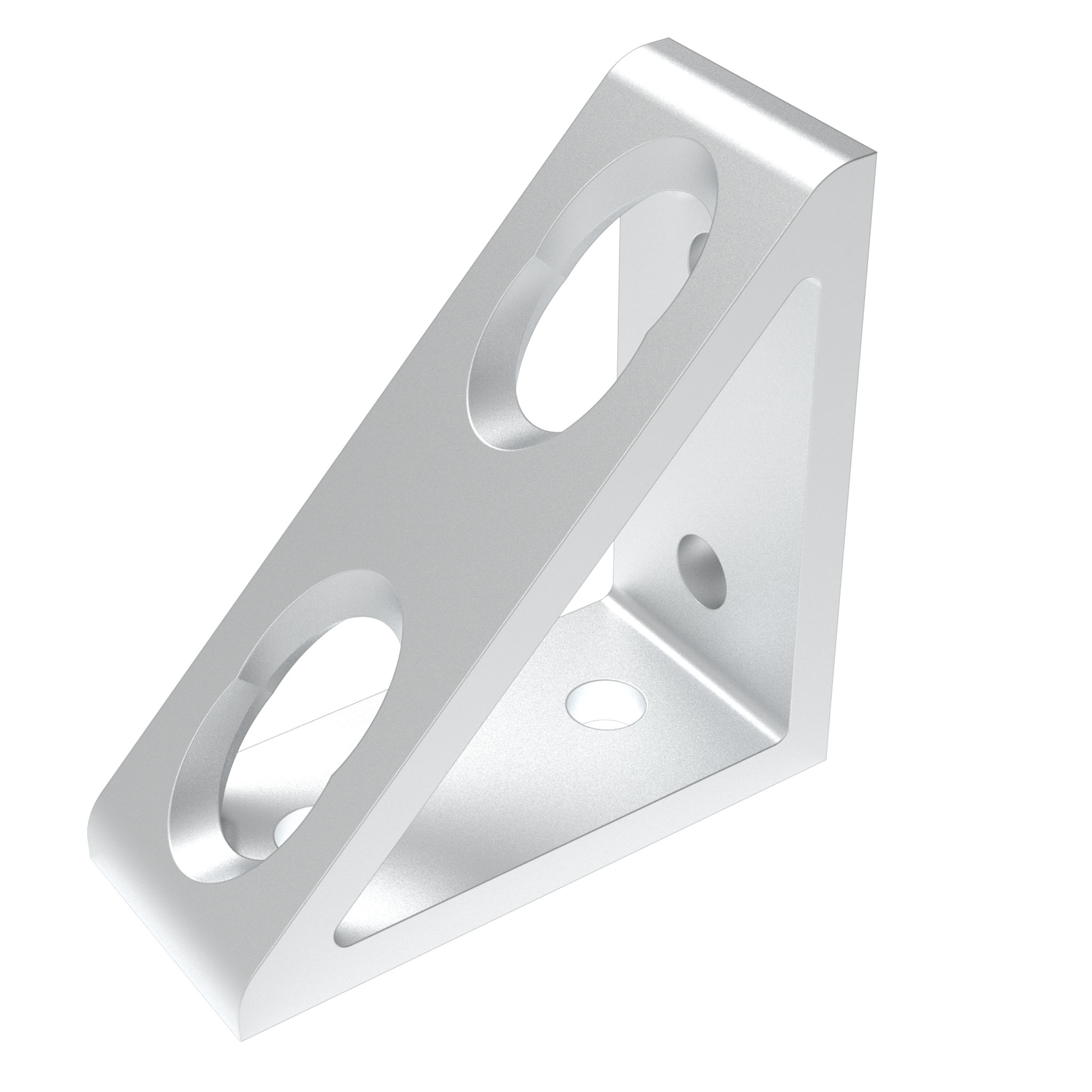

Gusseted Connection Angle AL 4 Hole, 1 Slot Version
€0.00*
A (mm):
90.0
|
B (mm):
90.0
|
C (mm):
6.0
|
Color:
Black
|
D (mm):
20.5
|
E (mm):
20.0
|
F (mm):
41.0
|
G (mm):
22.5
|
Grid:
45
|
H (mm):
45.0
|
J (mm):
9.0
Color:Alu color, blackDelivery Countries:North AmericaDescription:To connect two aluminum profiles at right anglesMaterial:AluminumSurface:Anodized
