Connection Plates

Version: 20 / 40 | H (mm): 4.0 | A (mm): 20.0 | B (mm): 18.0 | L (mm): 38.0 | ØD (mm): 5.5

Version: 20 / 80 | H (mm): 4.0 | A (mm): 20.0 | B (mm): 18.0 | L (mm): 78.0 | ØD (mm): 5.5

Version: 40 / 40 | H (mm): 4.0 | A (mm): 20.0 | L (mm): 38.0 | ØD (mm): 5.5

Version: 40 / 80 | H (mm): 4.0 | A (mm): 20.0 | B (mm): 36.0 | L (mm): 76.0 | ØD (mm): 5.5

Version: 60 / 60 | H (mm): 4.0 | A (mm): 20.0 | L (mm): 59.0 | ØD (mm): 5.5

Version: 102 / 102 - 4" / 4" | H (mm): 4.0 | A (mm): 25.4 (1") | L (mm): 99.0 (3.9") | ØD (mm): 7.0

Version: 60 / 60 | H (mm): 4.0 | A (mm): 20.0 | L (mm): 58.0 | K (mm): 18.0 | ØD (mm): 5.5

Version: 80 / 80 | H (mm): 4.0 | A (mm): 20.0 | L (mm): 78.0 | K (mm): 38.0 | ØD (mm): 5.5

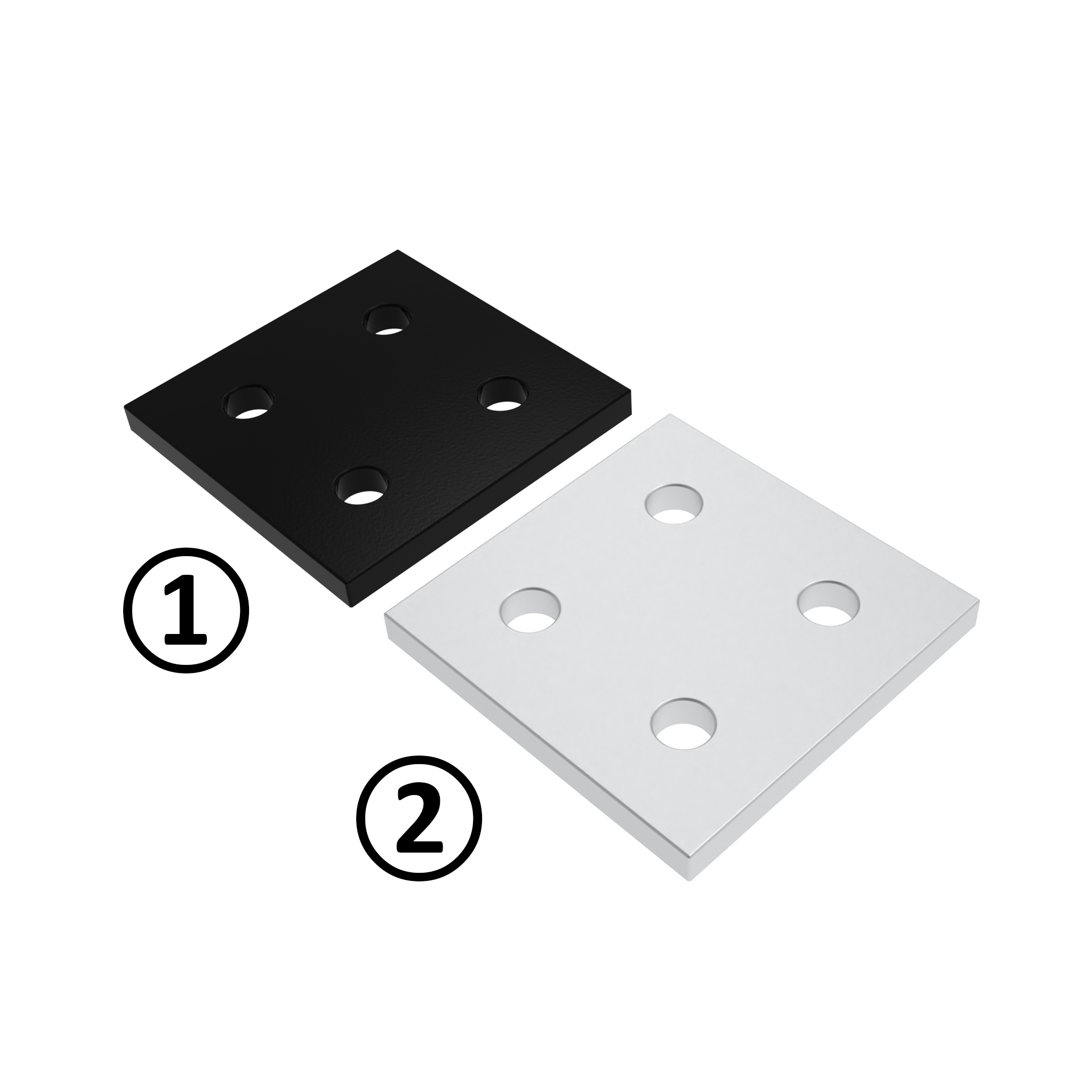

Version: 25 / 51 - 1" / 2" | H (mm): 4.8 (0.19") | A (mm): 25.4 (1") | B (mm): 22.2 (0.88") | L (mm): 51.0 (2.01") | Fig.: ① | Surface: Powder coated | Color: Black | ØD (mm): 7.0 (0.27")

Version: 38 / 114 - 1.5" / 4.5" | H (mm): 4.8 (0.19") | A (mm): 25.4 (1") | B (mm): 22.2 (0.88") | L (mm): 76.2 (3") | Fig.: ① | Surface: Powder coated | Color: Black | ØD (mm): 7.0 (0.27")

Version: 25 / 101 - 1" / 4" | H (mm): 4.8 (0.19") | A (mm): 25.4 (1") | B (mm): 22.2 (0.88") | L (mm): 101.6 (4") | Fig.: ① | Surface: Powder coated | Color: Black | ØD (mm): 7.0 (0.27")

Version: 50.8 / 50.8 - 2" / 2" | H (mm): 4.8 (0.19") | A (mm): 25.4 (1") | B (mm): 50.8 (2") | L (mm): 50.8 (2") | Fig.: ① | Surface: Powder coated | Color: Black | ØD (mm): 7.0 (0.27")

Version: 50.8 / 76.2 - 2" / 3" | H (mm): 4.8 (0.19") | A (mm): 25.4 (1") | B (mm): 50.8 (2") | L (mm): 76.2 (3") | Fig.: ① | Surface: Powder coated | Color: Black | ØD (mm): 7.0 (0.27")

Version: 50.8 / 101.6 - 2" / 4" | H (mm): 4.8 (0.19") | A (mm): 25.4 (1") | B (mm): 50.8 (2") | L (mm): 101.6 (4") | Fig.: ① | Surface: Powder coated | Color: Black | ØD (mm): 7.0 (0.27")

Version: 50.8 / 76.2 - 2" / 3" | H (mm): 4.8 (0.19") | A (mm): 25.4 (1") | B (mm): 50.8 (2") | L (mm): 76.2 (3") | Fig.: ① | K (mm): 25.0 (0.98") | Surface: Powder coated | Color: Black | ØD (mm): 7.0 (0.27")

Version: 76.2 / 76.2 - 3" / 3" | H (mm): 4.8 (0.19") | A (mm): 25.4 (1") | B (mm): 76.2 (3") | L (mm): 76.2 (3") | Fig.: ① | K (mm): 25.0 (0.98") | Surface: Powder coated | Color: Black | ØD (mm): 7.0 (0.27")

Version: 76.2 / 76.2 - 3" / 3" | H (mm): 4.8 (0.19") | A (mm): 25.4 (1") | B (mm): 76.2 (3") | L (mm): 76.2 (3") | Fig.: ① | K (mm): 25.0 (0.98") | Surface: Powder coated | Color: Black | ØD (mm): 7.0 (0.27")

Version: 102 / 102 - 4" / 4" | H (mm): 4.8 (0.19") | A (mm): 25.4 (1") | B (mm): 101.6 (4") | L (mm): 101.6 (4") | K (mm): 25.0 (0.98") | ØD (mm): 7.0 (0.27")

Version: 76.2 / 76.2 - 3" / 3" | H (mm): 4.8 (0.19") | A (mm): 25.4 (1") | B (mm): 76.2 (3") | L (mm): 76.2 (3") | ØD (mm): 7.0 (0.27") | K (mm): 51.0 (2") | K (mm): 25.0 (0.98")

Version: 102 / 102 - 4" / 4" | H (mm): 4.8 (0.19") | A (mm): 25.4 (1") | B (mm): 101.6 (4") | L (mm): 101.6 (4") | K (mm): 51.0 (2.00") | ØD (mm): 7.0 (0.27")

Version: 50.8 / 76.2 - 2" / 3" | H (mm): 4.8 (0.19") | A (mm): 25.4 (1") | B (mm): 50.8 (2") | L (mm): 76.2 (3") | Fig.: ① | K (mm): 25.0 (0.98") | Surface: Powder coated | Color: Black | ØD (mm): 7.0 (0.27")

Version: 76.2 / 76.2 - 3" / 3" | H (mm): 4.8 (0.19") | A (mm): 25.4 (1") | B (mm): 76.2 (3") | L (mm): 76.2 (3") | Fig.: ① | K (mm): 25.4 (1") | Surface: Powder coated | Color: Black | ØD (mm): 7.0 (0.27")

Version: 76.2 / 76.2 - 3" / 3" | H (mm): 4.8 (0.19") | A (mm): 25.4 (1") | B (mm): 76.2 (3") | L (mm): 76.2 (3") | Fig.: ① | K (mm): 25.0 (0.98") | Surface: Powder coated | Color: Black | ØD (mm): 7.0 (0.27")

Version: 50.8 / 127 - 2" / 5" | H (mm): 4.8 (0.19") | A (mm): 25.4 (1") | B (mm): 127 (5") | L (mm): 50.8 (2") | K (mm): 25.0 (0.98") | ØD (mm): 7.0 (0.27")
