Hinges

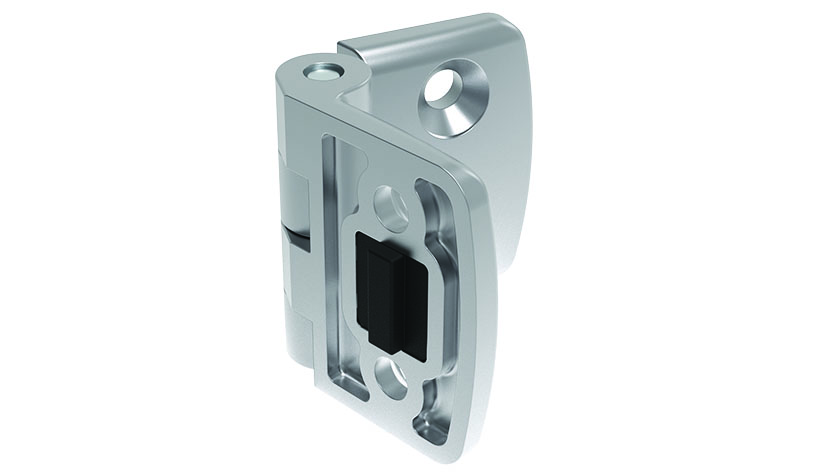

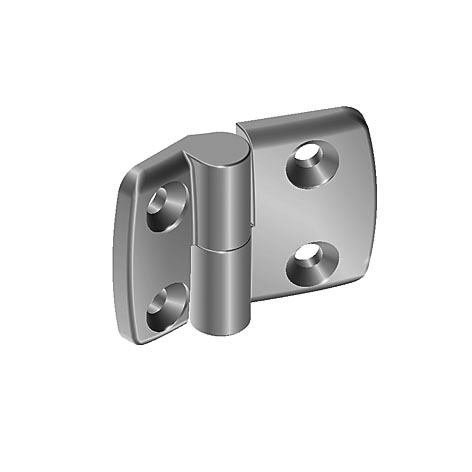

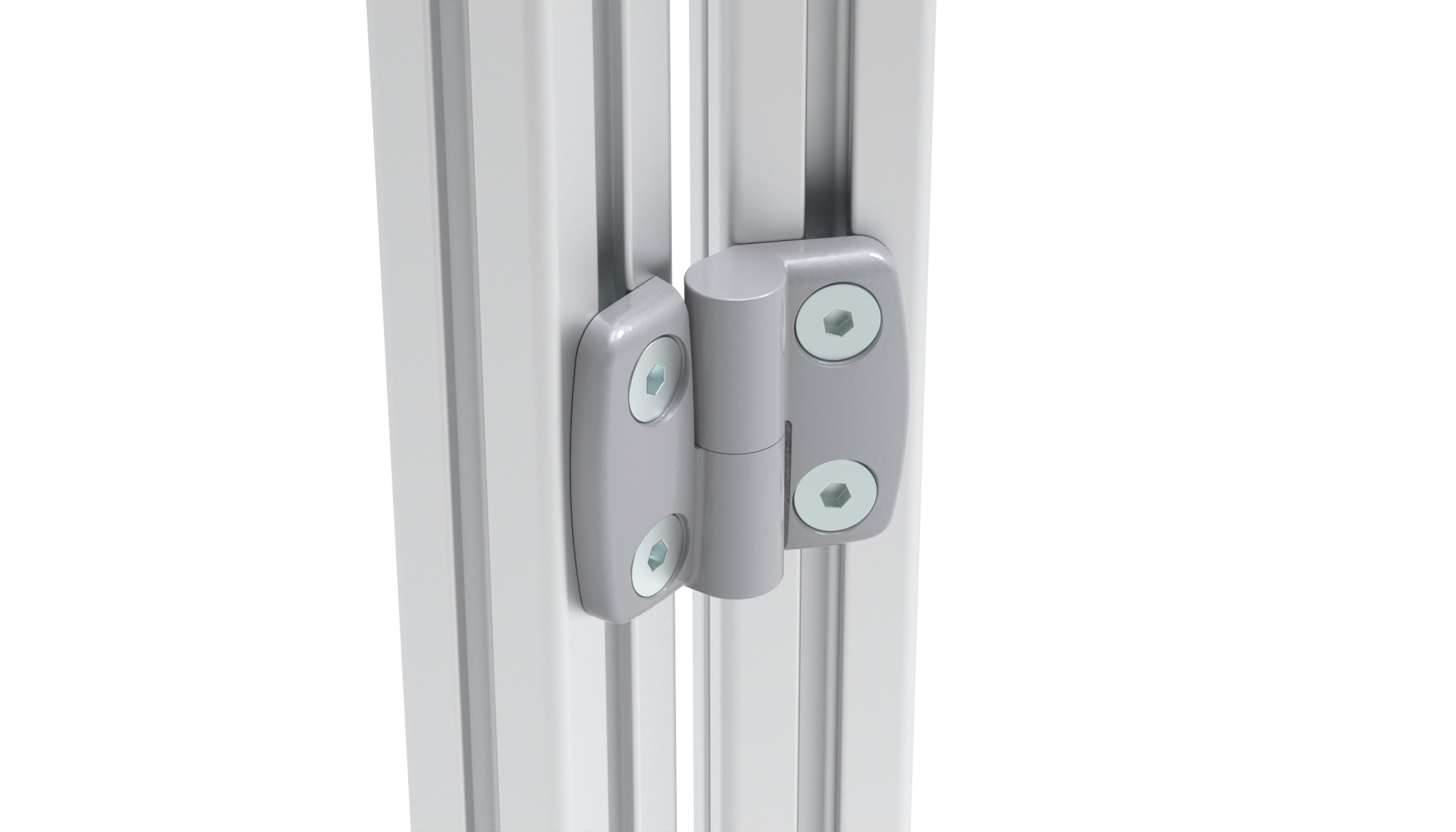

Aluminum Die-cast Combi Hinge 25, Detachable, Alu Color
€0.00*
A1 (mm):
15.0
|
A2 (mm):
15.0
|
B1 (mm):
26.0
|
B2 (mm):
26.0
|
Combination:
25 / 25
|
FAmax (N):
250
|
FRmax (N):
410
|
Version:
R: Right
Color:Wing: Alu colorDelivery Countries:WorldwideDescription:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainTip:Compatible Central Bolts see 095AN05Zolltarifnummer:83021000900

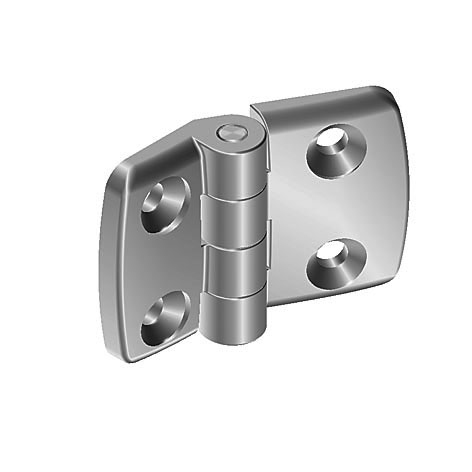

Aluminum Die-cast Combi Hinge 25, Non-detachable, Alu Color
€0.00*
A1 (mm):
15.0
|
A2 (mm):
17.5
|
B1 (mm):
26.0
|
B2 (mm):
29.5
|
Combination:
25 / 30
|
FAmax (N):
225
|
FRmax (N):
325
|
Version:
Non-detachable
Color:Wing: Alu colorDelivery Countries:WorldwideDescription:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainTip:Compatible Central Bolts see 095AN05Zolltarifnummer:83021000900

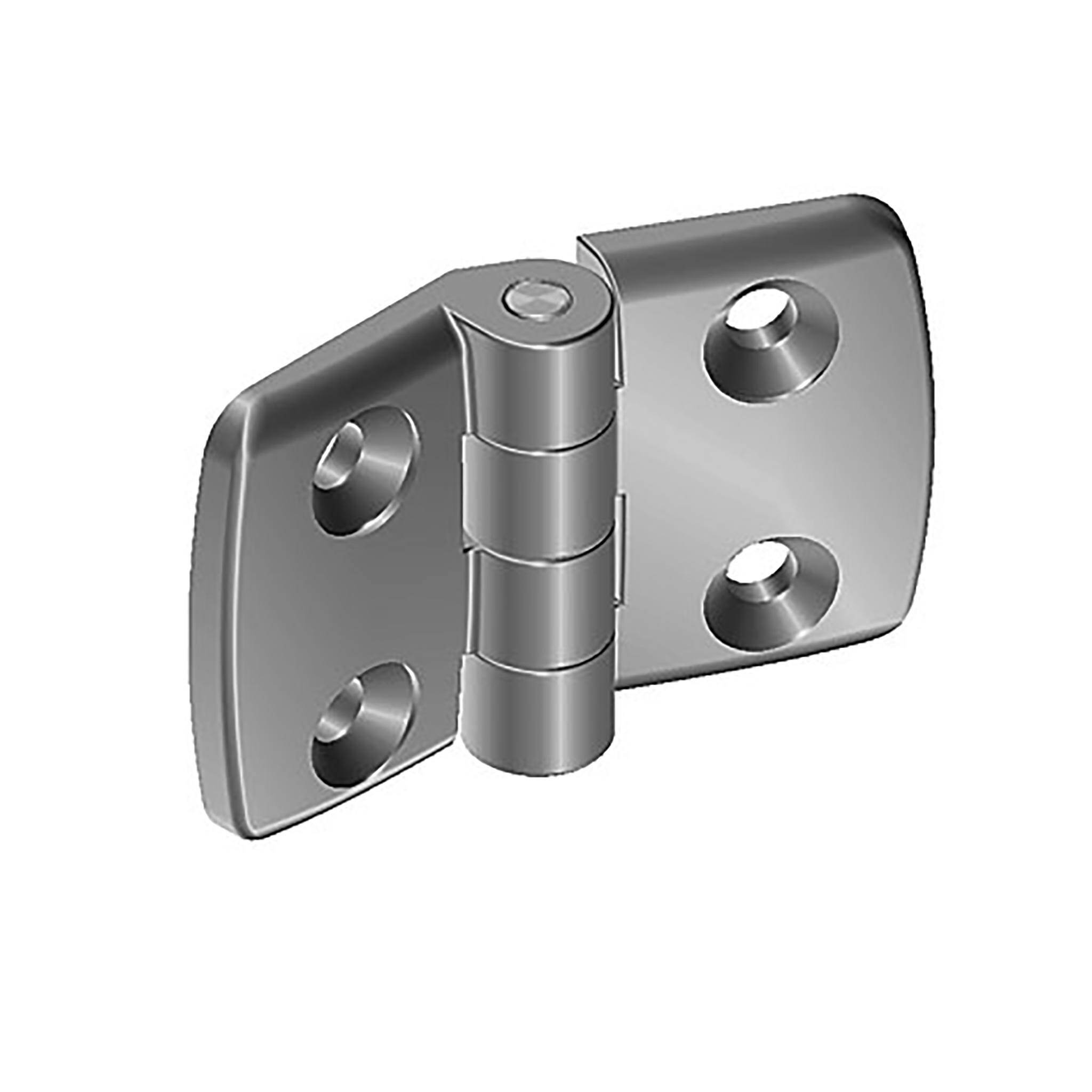

Aluminum Die-cast Combi Hinge 38 - 1.5", Non-detachable, Alu Color
€0.00*
A1 (mm):
21.5
|
A2 (mm):
21.5
|
B1 (mm):
38.5
|
B2 (mm):
38.5
|
Combination:
38 - 1.5" / 38 - 1.5"
|
FAmax (N):
250
|
FRmax (N):
400
Color:Wing: Alu colorDelivery Countries:North AmericaDescription:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Aluminum die-cast Pin: Stainless steelSurface:Wings: Powder coated Pin: PlainZolltarifnummer:83021000900

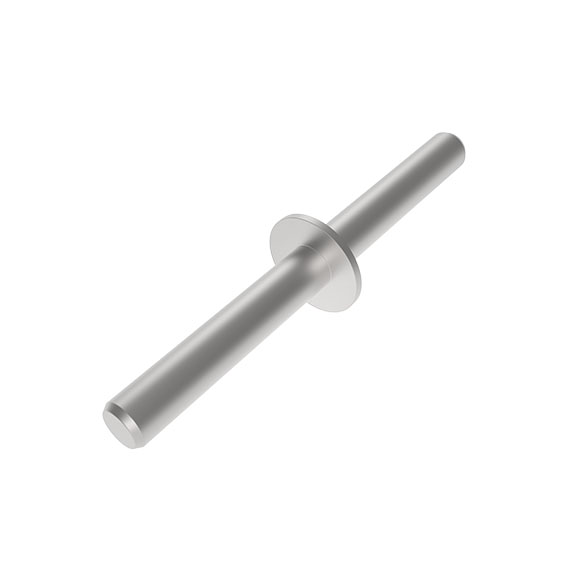

Bolt for Concealed and External Hinge Components
€0.00*
Delivery Countries:WorldwideDescription:To assemble hingesMaterial:Stainless steelSurface:PlainTip:Compatible Concealed Hinge Components see 095AI20 Compatible External Hinge Components see 095AH20Zolltarifnummer:73182900900

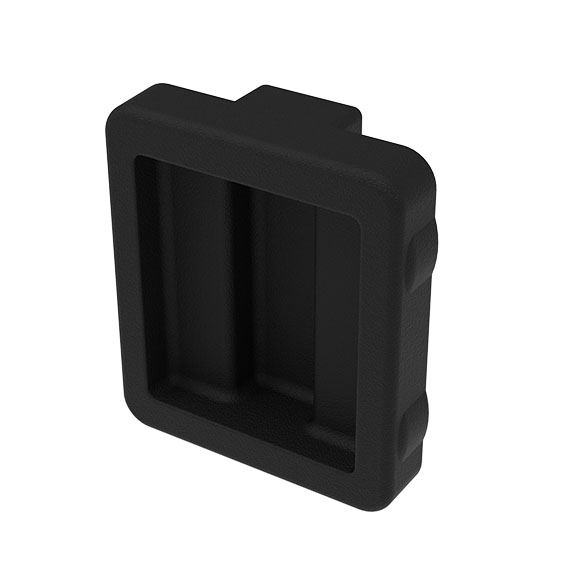

Centering Bolt for Aluminum Die-Cast Combi Hinge
€0.00*
Slot N (mm):
8
Color:BlackDelivery Countries:WorldwideDescription:For aluminum die-cast combi hinges, each wing with a hole for centering boltsMaterial:Plastic PA, glass fiber reinforcedTip:Compatible Aluminum Die-cast Combi Hinge see 095A2525L et sq.Zolltarifnummer:39269097900

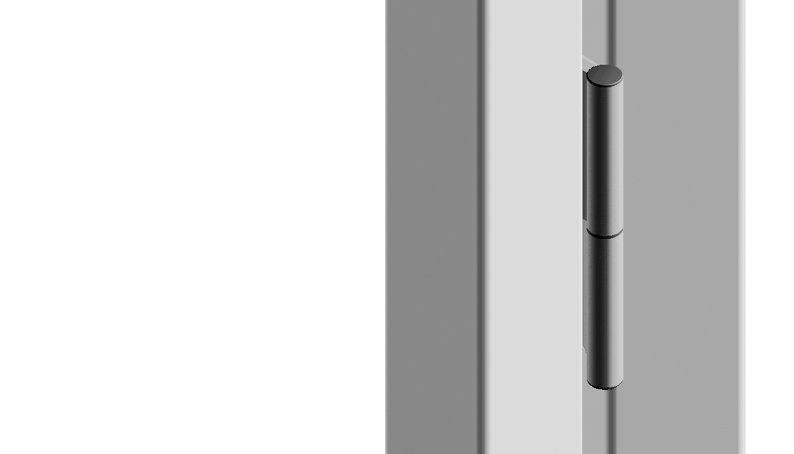

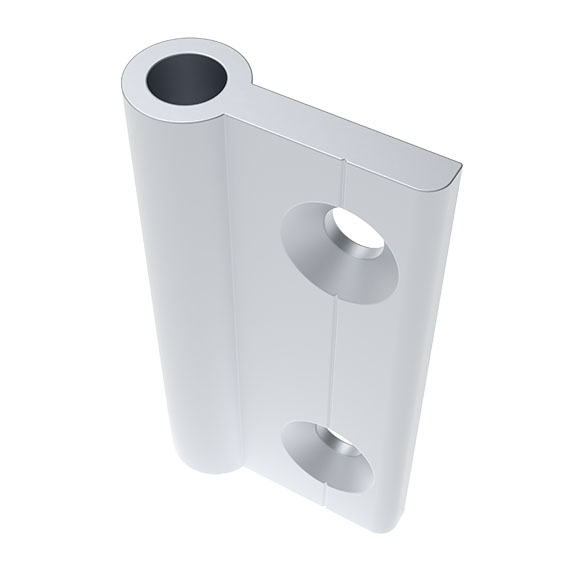

Concealed Hinge Component
€0.00*
A (mm):
17.5
|
B (mm):
28.0
|
C (mm):
Ø 6.4
|
FAmax (N):
150
|
Version:
25
Delivery Countries:WorldwideDescription:For panels and aluminum profiles, for individual assembly of concealed hingesMaterial:AluminumSurface:AnodizedTip:Compatible Axle for Hinge Component see 095AIR01 Compatible Cover Cap for Hinge Component see 095AIAZolltarifnummer:83021000900

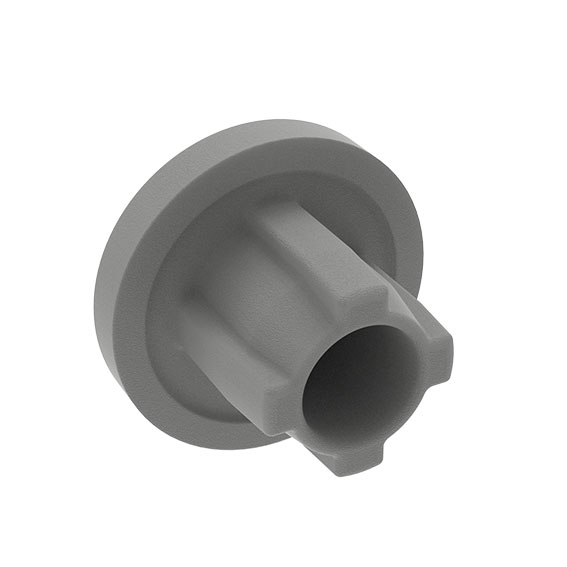

Cover Cap for Concealed and External Hinge Components
€0.00*
Color:Alu colorDelivery Countries:WorldwideDescription:To cover HingesMaterial:Plastic PA, glass fiber reinforcedSurface:CoatedTip:Compatible Concealed Hinge Components see 095AI20 Compatible External Hinge Components see 095AH20Zolltarifnummer:39269097900

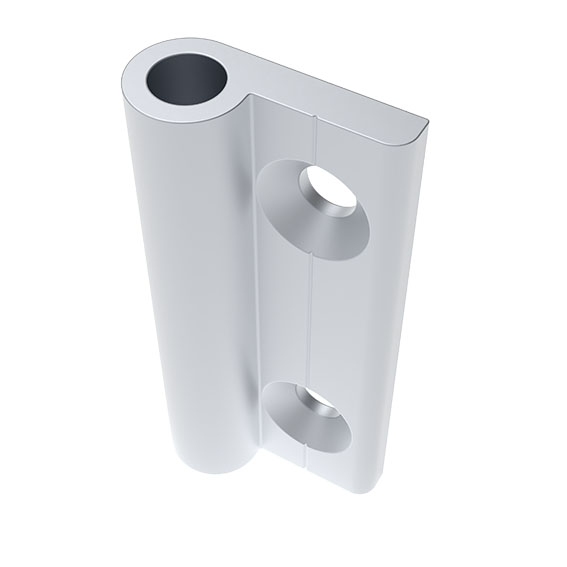

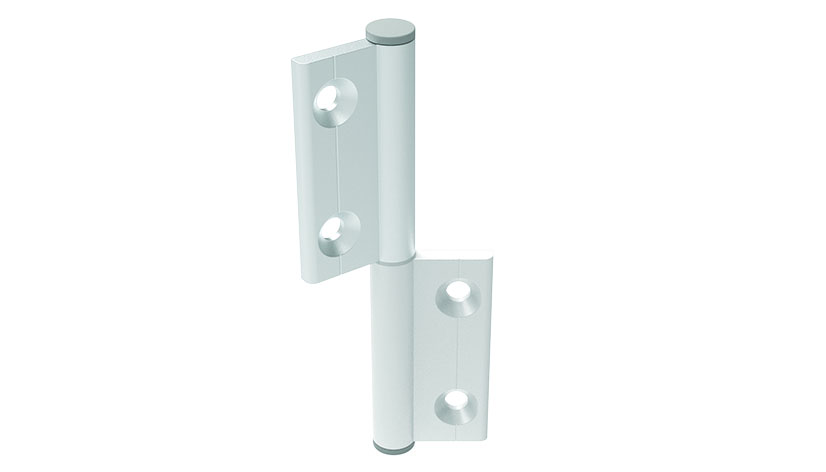

External Hinge Component
€0.00*
A (mm):
30.2
|
B (mm):
57.7
|
C (mm):
Ø 6.4
|
FAmax (N):
150
|
Version:
60
Delivery Countries:WorldwideDescription:For panels and aluminum profiles, for individual assembly of semi-concealed hingesMaterial:AluminumSurface:AnodizedTip:Compatible Axle for Hinge Component see 095AIR01 Compatible Cover Cap for Hinge Component see 095AIAZolltarifnummer:83021000900

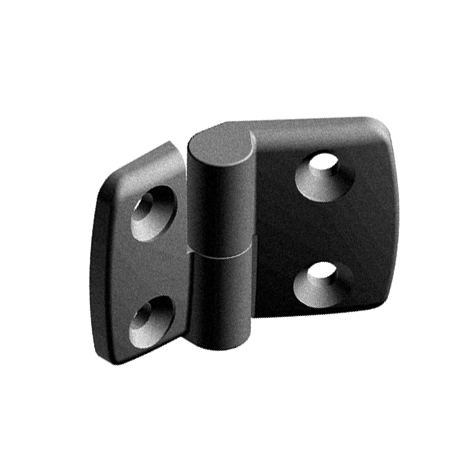

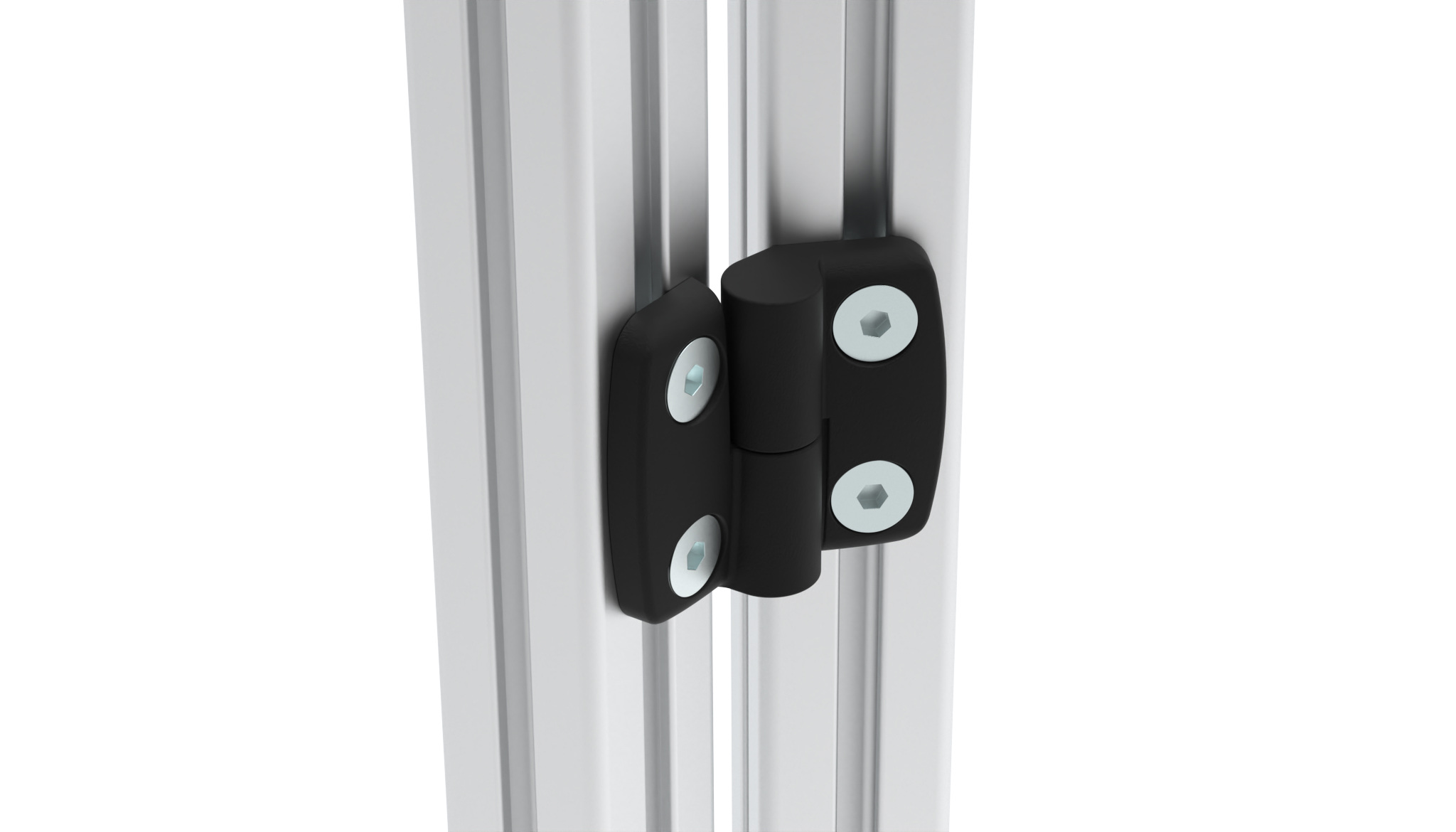

Plastic Combi Hinge 25, Detachable, Black
€0.00*
A1 (mm):
15.0
|
A2 (mm):
22.5
|
B1 (mm):
26.0
|
B2 (mm):
38.5
|
Combination:
25 / 40
|
FAmax (N):
350
|
FRmax (N):
-
|
Slot N (mm):
-
|
Version:
L: Left
Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on requestZolltarifnummer:39263000900

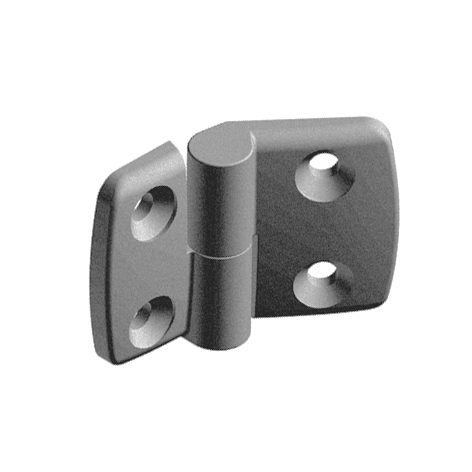

Plastic Combi Hinge 25, Detachable, Gray
€0.00*
A1 (mm):
15.0
|
A2 (mm):
15.0
|
B1 (mm):
26.0
|
B2 (mm):
26.0
|
Combination:
25 / 25
|
FAmax (N):
425
|
FRmax (N):
625
|
Slot N (mm):
-
|
Version:
L: Left
Color:Gray ≈ RAL 7042Delivery Countries:WorldwideDescription:To hinge panels or aluminum profilesMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelSpecials:Further colors, centering pins for installation on aluminum profiles available on requestZolltarifnummer:39263000900

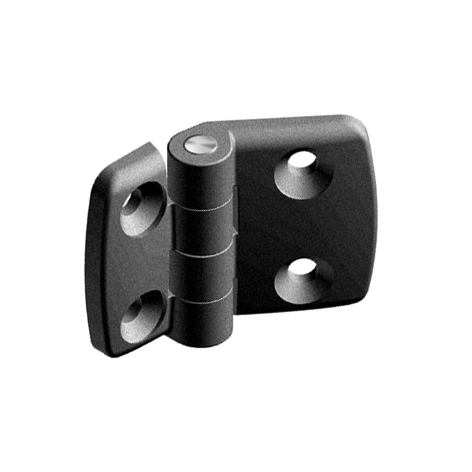

Plastic Combi Hinge 25, Non-detachable, Black
€0.00*
A1 (mm):
17.5
|
A2 (mm):
15.0
|
B1 (mm):
29.5
|
B2 (mm):
26.0
|
Combination:
30 / 25
|
FAmax (N):
400
|
FRmax (N):
-
|
Slot N (mm):
-
|
Version:
Non-detachable
Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on requestZolltarifnummer:39263000900

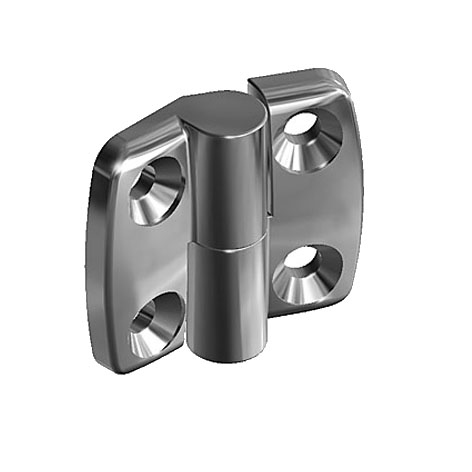

Stainless Steel Combi Hinge 25, Detachable
€0.00*
A1 (mm):
15.0
|
A2 (mm):
15.0
|
B1 (mm):
26.0
|
B2 (mm):
26.0
|
Combination:
25 / 25
|
FAmax (N):
625
|
FRmax (N):
900
|
Version:
L: Left
Delivery Countries:WorldwideDescription:To hinge panels or aluminum profilesMaterial:Wing: Stainless steel SS316 Bolt: Stainless steel SS430 FSurface:PlainZolltarifnummer:83021000900

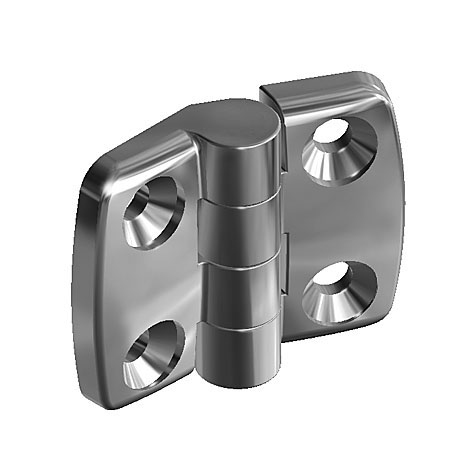

Stainless Steel Combi Hinge 25, Non-detachable
€0.00*
A1 (mm):
15.0
|
A2 (mm):
15.0
|
B1 (mm):
26.0
|
B2 (mm):
26.0
|
Combination:
25 / 25
|
FAmax (N):
560
|
Version:
Non-detachable
Delivery Countries:WorldwideDescription:To hinge panels or aluminum profilesMaterial:Wing: Stainless steel SS316 Bolt: Stainless steel SS430 FSurface:PlainZolltarifnummer:83021000900

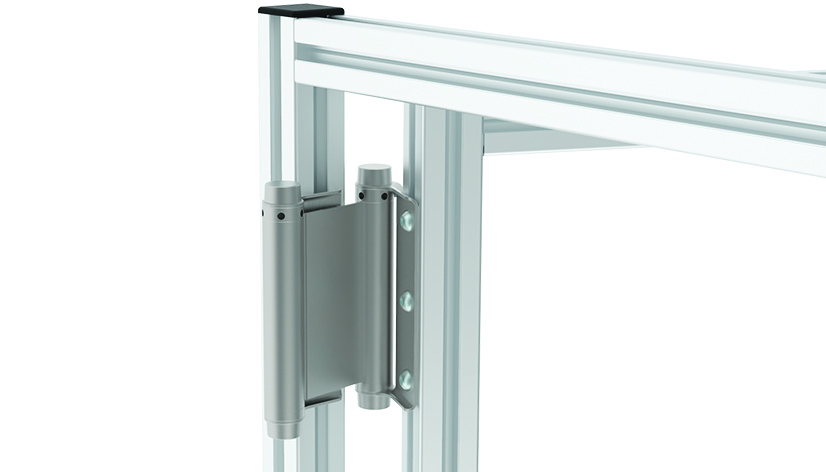

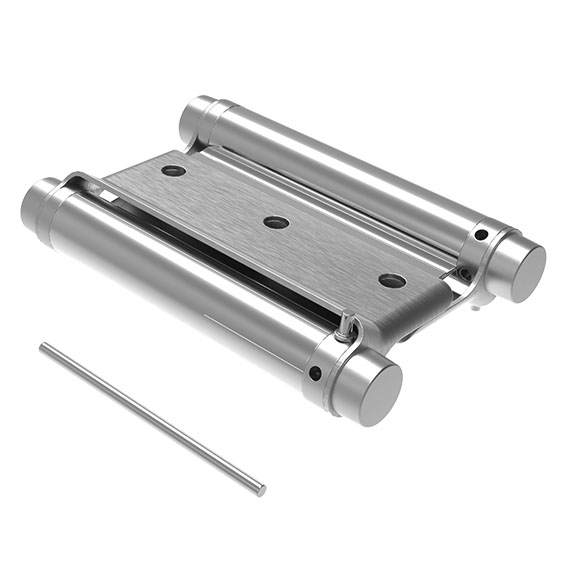

Swing Door Hinge SS 40 / 38 - 1.5"
€0.00*
Delivery Countries:WorldwideDescription:To build self-closing passage doors, double action; use tension pin to adjust spring load and set it with retaining pinsMaterial:Hinge: Stainless steel SS201 Caps: Zinc die-cast Tension pin: Steel Retaining pins: SteelSurface:Caps: Chrome plated Tension pin: Zinc plated Retaining pins: Nickel platedZolltarifnummer:83021000900
