Material Supply

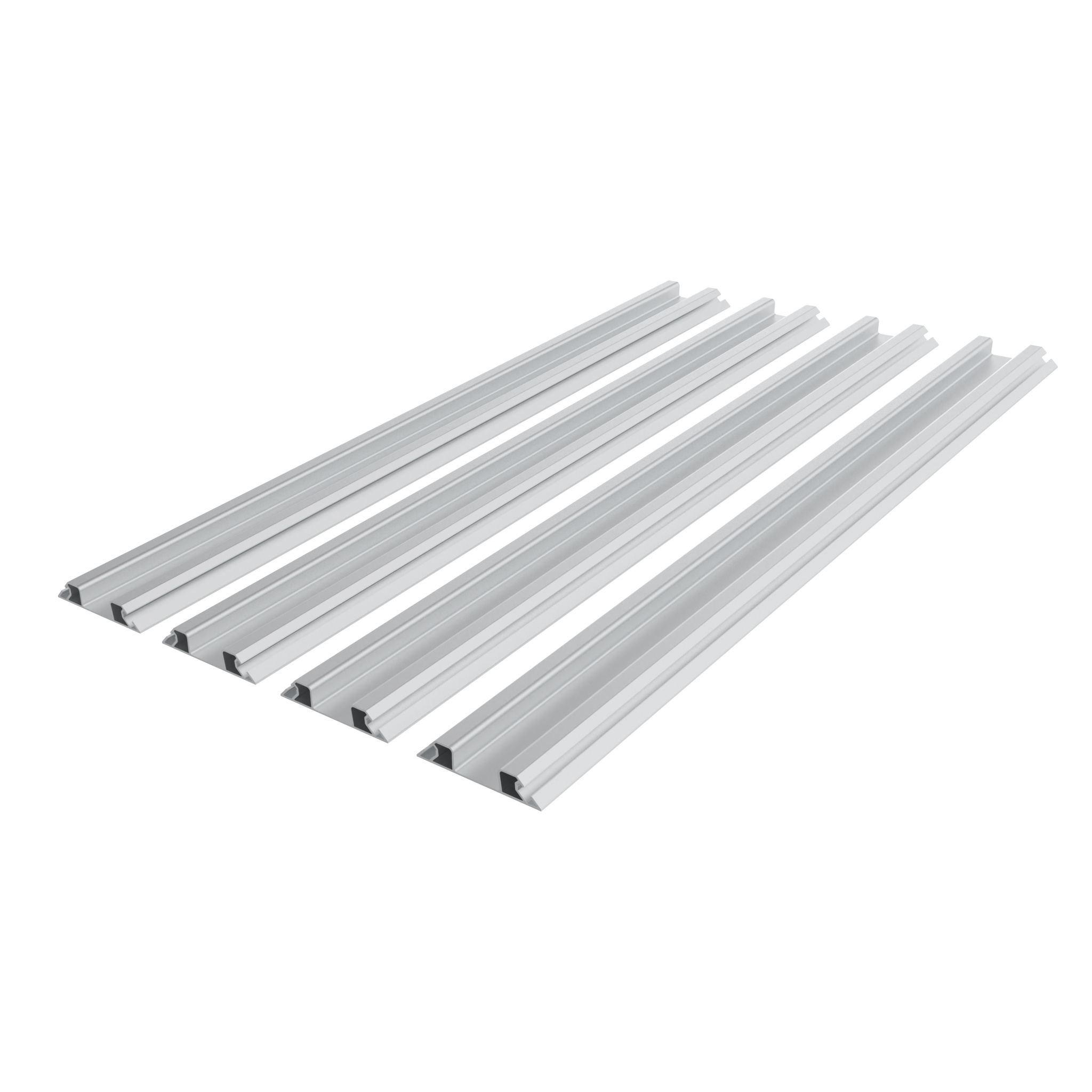

FIFO Monorail Rail 40
Delivery Countries:WorldwideDescription:For guiding floor dollies on one side in FIFO stations, with a wheel width of up to 40 mm 2 slots at the top, set at 45°; closed back side for optional full-surface adhesion to the floor To extend two guiding rails, connect them face to face with connecting strip in the slots; Posts can be mounted in the slot from above; To securely fix to the floor, use the optional mounting set; Mounting of a brush brake or an end stop with 2 optional mounting sets as a support baseMaterial:AluminumSurface:AnodizedTip:Compatible Connecting Strip see 096010S61 Compatible Infeed Cap for FIFO Monorail Rail (Set) see 02082CCS02 Compatible Monorail Angle Connector for Post see 093WS30145S01 Compatible Mounting Set for Posts Support Struts see 093WS30145S02 Compatible Cover Profiles see 092050; Compatible Mounting for FIFO Monorail Rail 40 and 55 (Set) see 02082MB

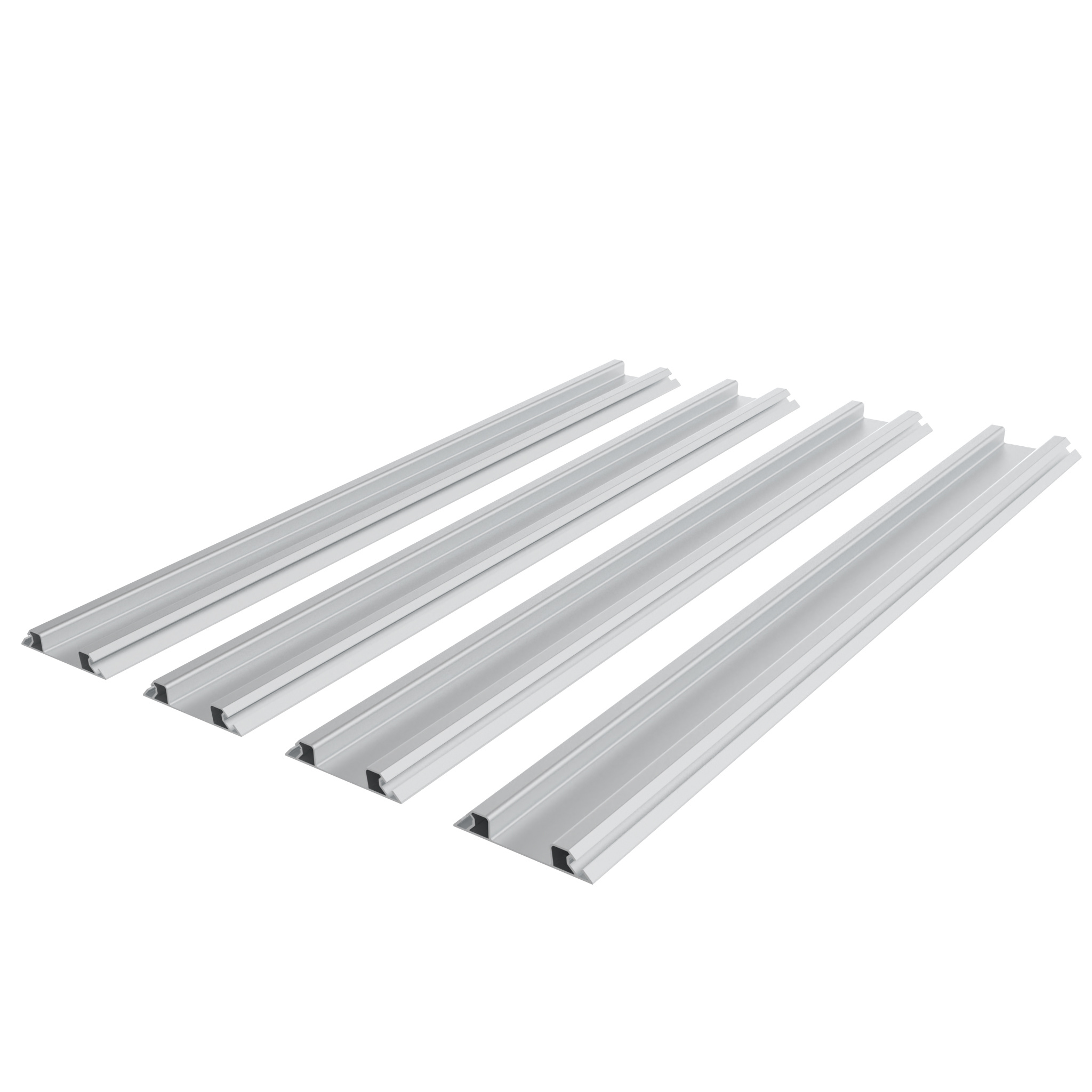

FIFO Monorail Rail 55
Delivery Countries:WorldwideDescription:For guiding floor dollies on one side in FIFO stations, with a wheel width of up to 55 mm 2 slots at the top, set at 45°; closed back side for optional full-surface adhesion to the floor To extend two guiding rails, connect them face to face with connecting strip in the slots; Posts can be mounted in the slot from above; To securely fix to the floor, use the optional mounting set; Mounting of a brush brake or an end stop with 2 optional mounting sets as a support baseMaterial:AluminumSurface:AnodizedTip:Compatible Connecting Strip see 096010S61 Compatible Infeed Cap for FIFO Monorail Rail (Set) see 02082CCS02 Compatible Monorail Angle Connector for Post see 093WS30145S01 Compatible Mounting Set for Posts Support Struts see 093WS30145S02 Compatible Cover Profiles see 092050; Compatible Mounting for FIFO Monorail Rail 40 and 55 (Set) see 02082MB
FIFO Monorail Station 40 (Set)
Color:Infeed caps: BlackDelivery Countries:WorldwideDescription:Fast mounting FIFO station for guiding floor dollies on one side in FIFO stations, with a wheel width of up to 40 mm; To extend guiding rails, connect them face to face with connecting strip in the slots; To widen, connect further parallel guided guiding rails and end caps with connecting elements Posts can be mounted in the slot from above; To securely fix to the floor, use the optional mounting set; Mounting of a brush brake or an end stop with 2 optional mounting sets as a support baseMaterial:Rails: Aluminum Infeed caps: Aluminum die-cast Hexagon socket set screws: Steel Connecting elements: Stainless steel Screws: SteelSet:5 FIFO Monorail Rails 40, 10 infeed caps, 20 hexagon socket set screws DIN EN ISO 4027 (DIN 914) - M6 x 8, 8 connecting elements, 32 screws DIN EN ISO 10642 (DIN 7991) - M6 x 16Surface:Rails: Anodized Infeed caps: Powder coated Hexagon socket set screws: Zinc plated Screws: Zinc platedTip:Compatible Connecting Strip see 096010S61 Compatible Monorail Angle Connector for Post see 093WS30145S01 Compatible Mounting Set for Posts Support Struts see 093WS30145S02 Compatible Cover Profiles see 092050; Compatible Mounting for FIFO Monorail Rail 40 and 55 (Set) see 02082MB

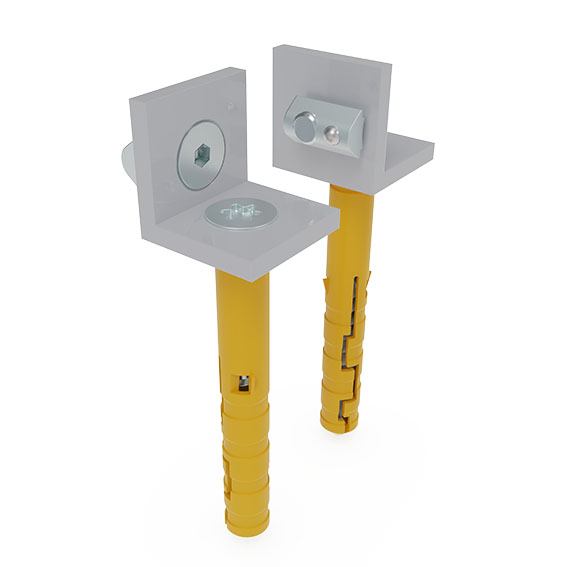

Floor Mounting for Guiding Rail FIFO (Set)
Color:Angle: Alu color Anchors: YellowDelivery Countries:WorldwideDescription:To additionally mount guiding rails FIFO to the floorMaterial:Angle: Steel Screw: Steel T-slot nut: Steel Anchors: PlasticSet:2 steel connection angle 20, 2 screws DIN EN ISO 10642 (DIN 7991) - M5 x 8; 2 T-slot nuts - slot 5 - M5, 2 screws 5 x 60, 2 anchors 8 x 60Surface:Angle: Powder coated Screws: Zinc plated T-slot nuts: Zinc plated

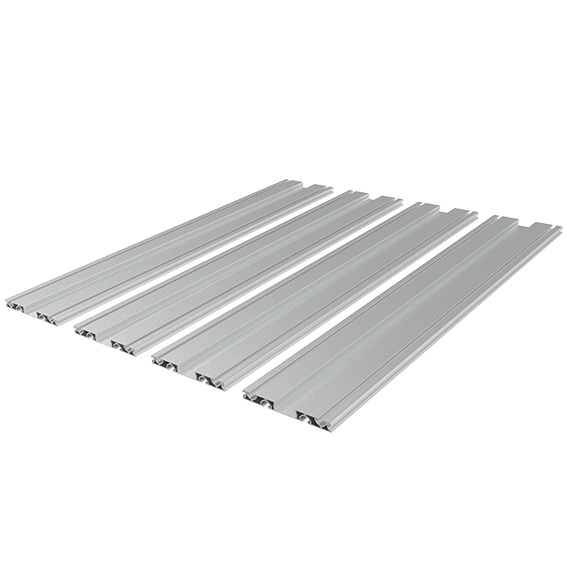

Guiding Rail FIFO (Set)
Delivery Countries:WorldwideDescription:For guiding floor dollys on one side in FIFO stations, with a wheel width of up to 40 mm with 2 slots at the top, bottom and sides; to extend two guiding rails, connect them face to face with connecting strip in the slots; sign posts can be mounted in the slot from aboveMaterial:AluminumSurface:AnodizedTip:For cut: To order, please replace "xxxx" in the part number by the required length in mm, e.g. "0350" for 350 mm or "2000" for 2000 mm Compatible connecting strip see 096060S20 Compatible infeed cap for FIFO monorail rail (set) see 2082CCS02 Compatible monorail angle connector for post see 093WS30145S01 Compatible mounting set for posts support struts see 93WS30145S02 Compatible cover profiles see 092080

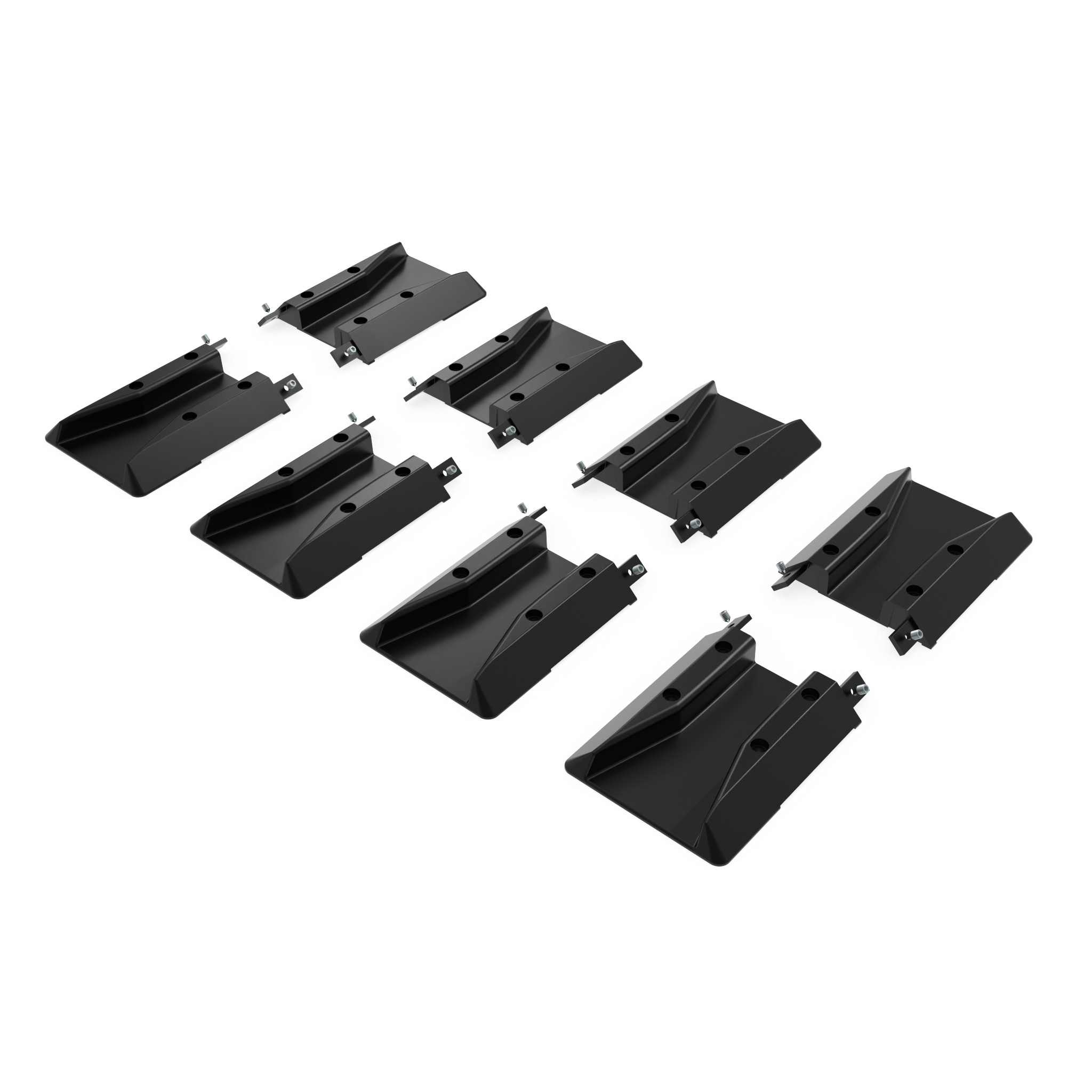

Infeed cap for FIFO Monorail Rail 40 (Set)
Color:Infeed caps: BlackDelivery Countries:WorldwideDescription:For easier loading and unloading of FIFO stations with floor dollies; Robust design, mounting directly in the slot of FIFO monorail rail with enclosed hexagon socket set screwsFastening:From the front, using M6 countersunk screwsMaterial:Infeed caps: Aluminum die-cast Hexagon socket set screws: SteelSet:8 infeed caps 16 hexagon socket set screws DIN EN ISO 4027 (DIN 914) - M6 x 8Surface:Infeed caps: Powder coated Hexagon socket set screws: Zinc platedTip:Compatible FIFO Monorail Rail 40 see 02082PO.1200

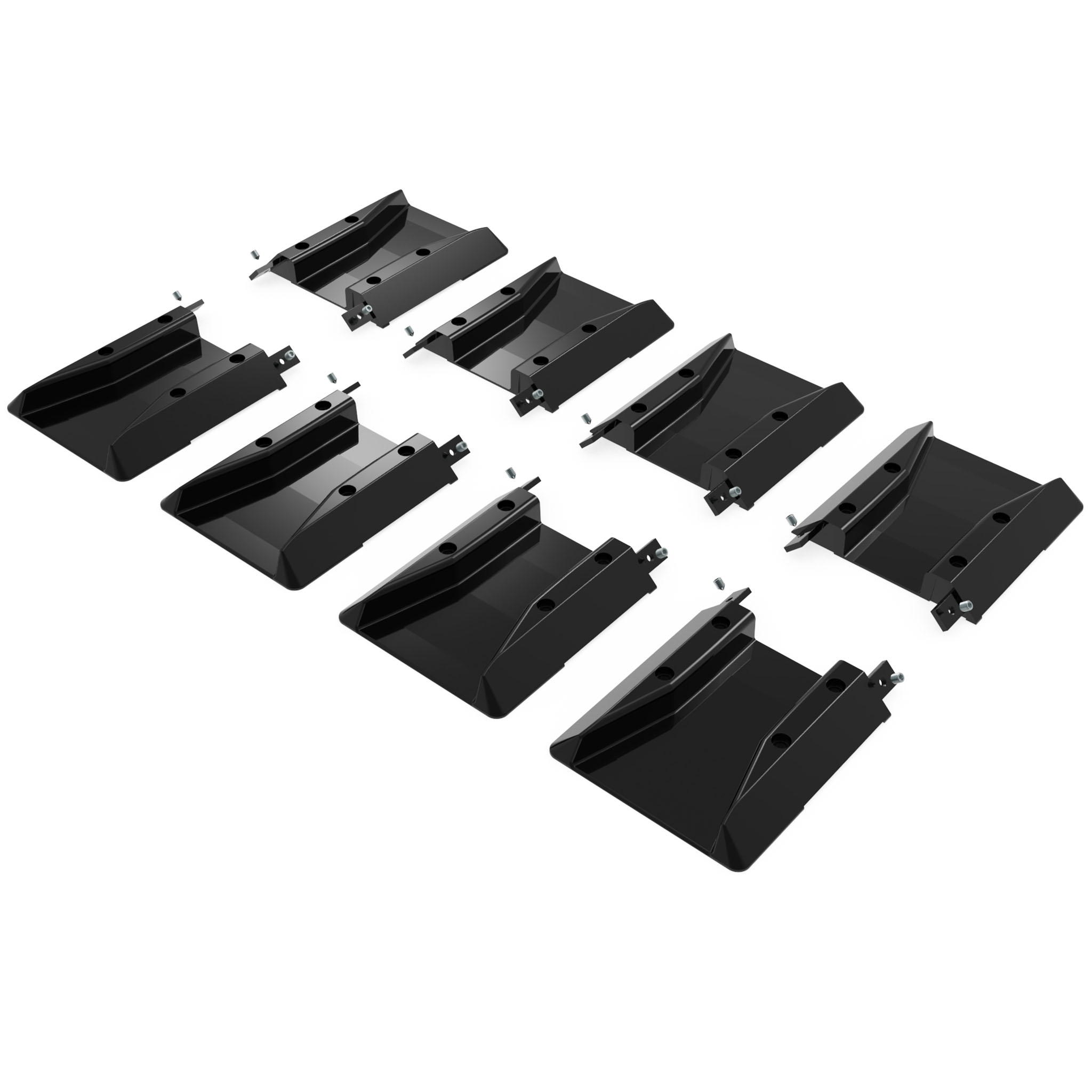

Infeed cap for FIFO Monorail Rail 55 (Set)
Color:Infeed caps: BlackDelivery Countries:WorldwideDescription:For easier loading and unloading of FIFO stations with floor dollies; Robust design, mounting directly in the slot of FIFO monorail rail with enclosed hexagon socket set screwsFastening:From the front, using M6 countersunk screwsMaterial:Infeed caps: Aluminum die-cast Hexagon socket set screws: SteelSet:8 infeed caps 16 hexagon socket set screws DIN EN ISO 4027 (DIN 914) - M6 x 8Surface:Infeed caps: Powder coated Hexagon socket set screws: Zinc platedTip:Compatible FIFO monorail rail 55 see 02082PO55.1200

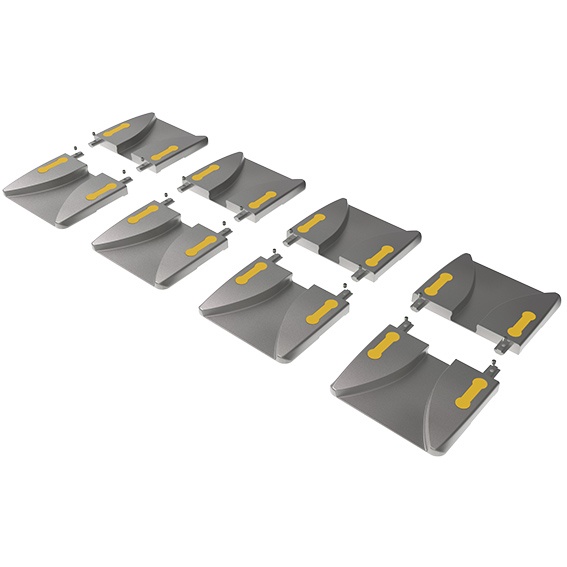

Infeed Cap for Guiding Rail FIFO (Set)
Color:Screw Covers: Yellow ≈ RAL 1003Delivery Countries:WorldwideDescription:For easier loading and unloading of a FIFO stations with floor dollys; Robust design, mounting directly in the slot of guiding rails FIFO with enclosed hexagon socket set screws Yellow screw cover with signal effect to indicate the infeed position for the wheels of floor dollysFastening:From the front, using M6 countersunk screwsMaterial:Infeed caps: Aluminum die-cast Screw covers: Plastic PC Hexagon socket set screws: SteelSet:8 infeed caps 16 screw covers 16 hexagon socket set screws DIN EN ISO 4027 (DIN 914) - M6 x 8Surface:Infeed caps: Alu color powder coated Hexagon socket set screws: Zinc platedTip:Compatible Guiding Rails FIFO see 02082P.1200 Compatible Connecting Element for Guiding Rail FIFO see 02082D Compatible Fastening Set see 02082FS Compatible Screw Cover Infeed Cap for Guiding Rail FIFO as spare part see 02082S.15
Milling Connector B, Slot 8
Delivery Countries:WorldwideDescription:To connect two aluminum profiles fast and solid; assembly without machiningMaterial:SteelSet:1 milling connector, 1 screw DIN EN ISO 4762 (DIN 912) - M5 x 14, 1 hammer nut

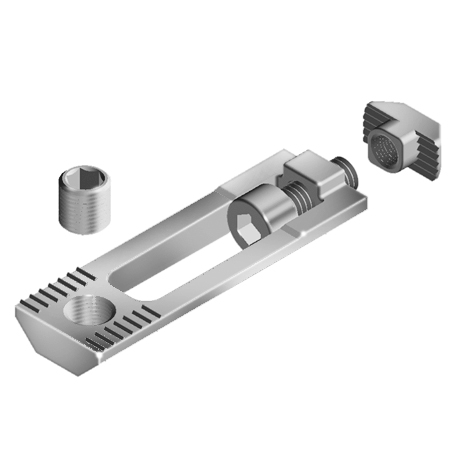

Milling Connector I, Slot 8 (Set)
Delivery Countries:WorldwideDescription:To connect two aluminum profiles fast and solid; assembly without machiningMaterial:SteelSet:1 milling connector, 1 screw DIN EN ISO 4762 (DIN 912) - M5 x 18, 1 hammer nut

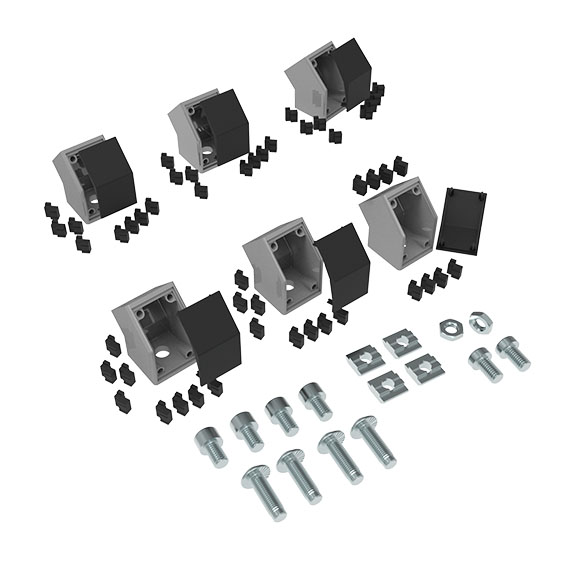

Monorail Angle Connector for Post Support Struts (Set)
Delivery Countries:WorldwideDescription:For mounting diagonal struts to support posts in the upper slot of FIFO monorail rails 40Material:AluminumSet:6 angle connectors 45° 30 x 30, 4 screws DIN EN ISO 4762 (DIN 912) - M8 x 12, 4 T-slot nut- M8, 4 self-tapping screws - S8 x 25, 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 14, 2 hexagon nuts DIN EN ISO 4035 (DIN 439) - M8Tip:Compatible FIFO Monorail Rail see 02082PO.1200

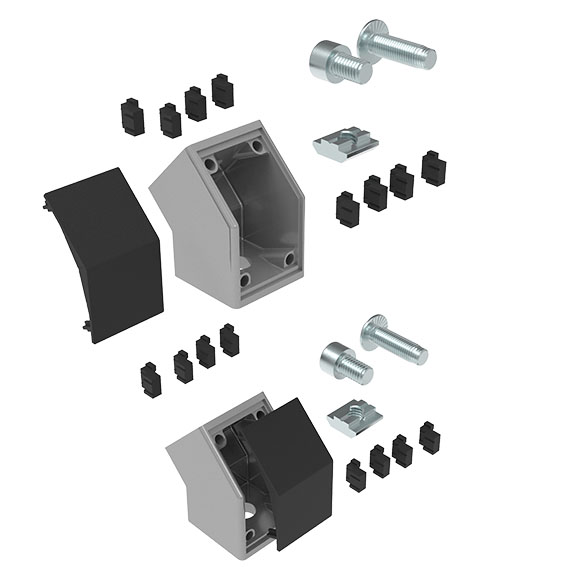

Monorail Angle Connector for Posts (Set)
Delivery Countries:WorldwideDescription:To mount posts in the upper slot of FIFO monorail rail 40Material:AluminumSet:2 angle connector 45° 30 x 30, 2 screw DIN EN ISO 4762 (DIN 912) - M8 x 12, 2 T-slot nuts - M8, 2 self-tapping screw - S8 x 25Tip:Compatible FIFO Monorail Rail see 02082PO.1200

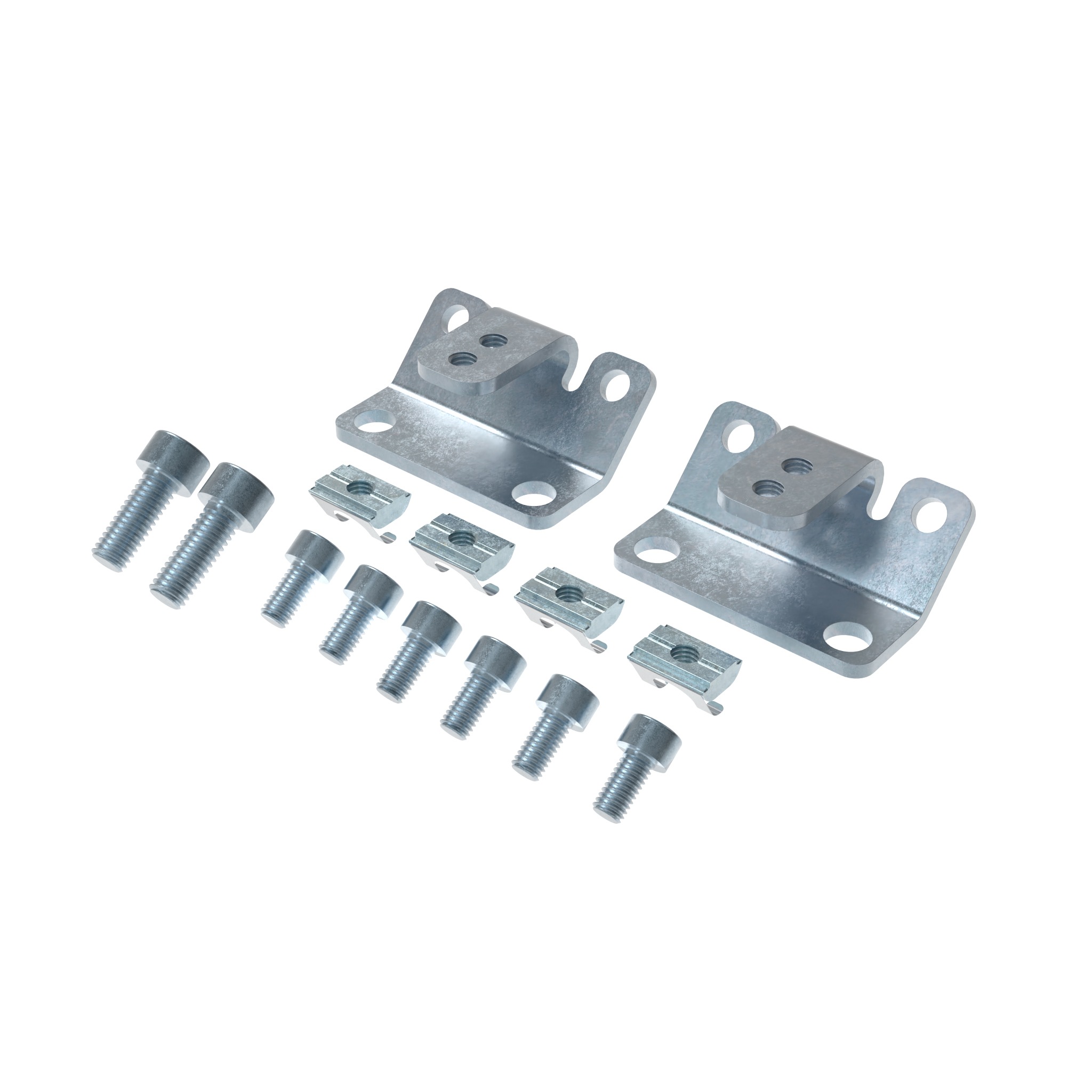

Mounting for FIFO Monorail Rail 40 and 55 (Set)
Delivery Countries:WorldwideDescription:To securely fix FIFO Monorail Rails to the floor; For use as a support base to mount a brush brake or an end stopMaterial:SteelSet:2 Mounting, 4 T-slot nuts - slot 8 - M6, 6 screws DIN EN ISO 4762 (DIN 912) - M6 x 12, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 16Surface:Zinc platedTip:Compatible Brush Brake see 02082BB Compatible variable End Stop for FIFO Monorail Rail 40 see 096030S52 Compatible variable End Stop for FIFO Monorail Rail 55 see 096030S12

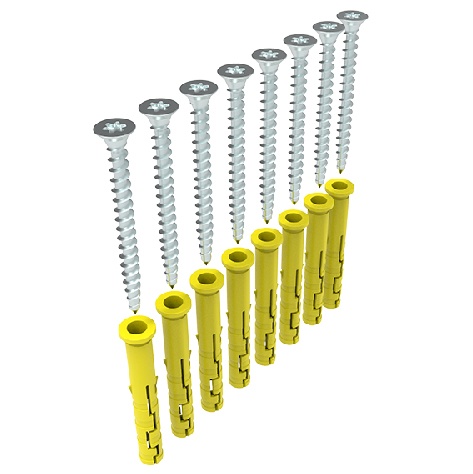

Mounting Set Infeed Cap for Guiding Rail FIFO
Color:Anchor: YellowDelivery Countries:WorldwideDescription:To mount infeed caps for guiding rails FIFO to the floorMaterial:Anchor: Plastic Screws: SteelSet:8 anchors 8 x 60 8 screws 5 x 60Surface:Screws: Galvanized
Parking Rail Flat - Flat (Set)
Delivery Countries:WorldwideDescription:For precise positioning of dollys or material trolleys, suitable for different wheel diameters, no brakes needed; self-adhesive, for tool-free assembly, no screwing required, immediately ready for useFastening:Self-adhesive surface on the backsideMaterial:AluminumSurface:PlainTip:When ordering, please note: Replace "1200" in the part no. with the required length in mm, e.g. "0350" for 350 mm or "2000" for 2000 mmTip 2:Compatible End Cap for Wheel Diameter ≤ 100 mm see 02084LLS01
Parking Rail Flat - High (Set)
Delivery Countries:WorldwideDescription:For precise positioning of dollys or material trolleys, suitable for different wheel diameters, no brakes needed; self-adhesive, for tool-free assembly, no screwing required, immediately ready for useFastening:Self-adhesive surface on the backsideMaterial:AluminumSurface:PlainTip:When ordering, please note: Replace "1200" in the part no. with the required length in mm, e.g. "0350" for 350 mm or "2000" for 2000 mmTip 2:Compatible End Cap for Wheel Diameter ≤ 100 mm see 02084LHS01 Compatible End Cap XL for Wheel Diameter > 100 mm see 02084LHXLS01
Parking Rail High - High (Set)
Delivery Countries:WorldwideDescription:For precise positioning of dollys or material trolleys, suitable for different wheel diameters, no brakes needed; self-adhesive, for tool-free assembly, no screwing required, immediately ready for useFastening:Self-adhesive surface on the backsideMaterial:AluminumSurface:PlainTip:When ordering, please note: Replace "1200" in the part no. with the required length in mm, e.g. "0350" for 350 mm or "2000" for 2000 mmTip 2:Compatible End Cap for Wheel Diameter ≤ 100 mm see 02084HHS01 Compatible End Cap XL for Wheel Diameter > 100 mm see 02084HHXLS01
Plate Connector B AL (Set)
Assembly Set 1:1 screw DIN 7984 - M8 x 30, 2 screws DIN 7984 - M5 x 16, 2 hammer nuts - slot 8 - M5Assembly Set 2:1 self forming screw S12 x 30 - hexalobular socket T50, 2 screws DIN 7984 - M6 x 20, 2 hammer nuts - slot 10 - M6Color:Alu colorDelivery Countries:WorldwideDescription:To tee connect two aluminum profilesMaterial:Plate connector: Aluminum die-cast Assembly set: SteelSpecials:Other surfaces on requestSurface:Plate connector: Plain / powder coated Assembly set: Zinc plated

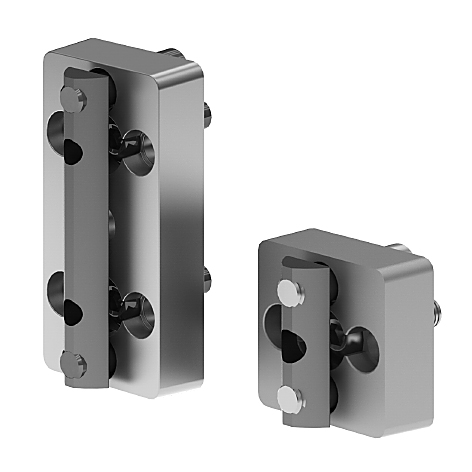

Plate Connector I ZN 40 (Set)
Color:Alu colorDelivery Countries:WorldwideDescription:To tee connect two aluminum profilesMaterial:Plate Connector: Zinc die-cast Assembly set: SteelSet 1:1 self-tapping screw SF7 x 22, 1 double T-slot nut - Nut 8 - M8, 2 shaft screws M8Set 2:2 self-tapping screws SF7 x 22, 1 double T-slot nut - Nut 8 - M8, 2 shaft screws M8Set 3:2 self-tapping screws SF7 x 22, 2 double T-slot nut - Nut 8 - M8, 4 shaft screws M8Surface:Plate Connector: Plain / powder coated Assembly set: Zinc plated

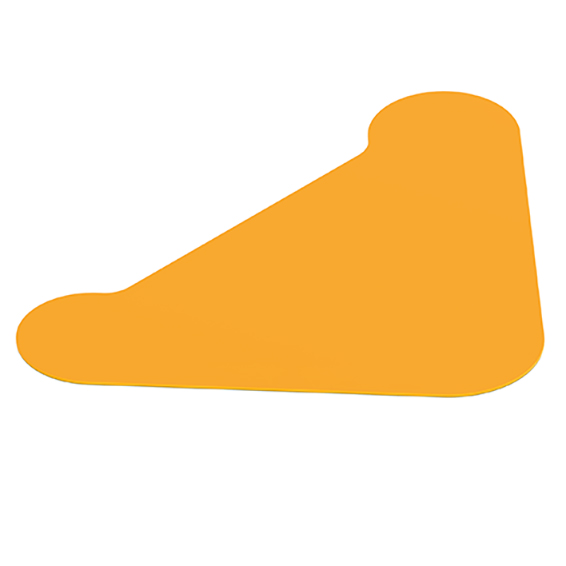

Position Marking End Cap for Parking Rail
Color:Yellow ≈ RAL 1003Delivery Countries:WorldwideDescription:To cover the screw holes of end caps for parking rail; Yellow position markings with signal effect to indicate the position of the wheels from floor dollys or material trolleys in the parking rail; Included in the end cap sets, here separately available as replacementFastening:Self-adhesive surface on the backsideMaterial:Plastic PET

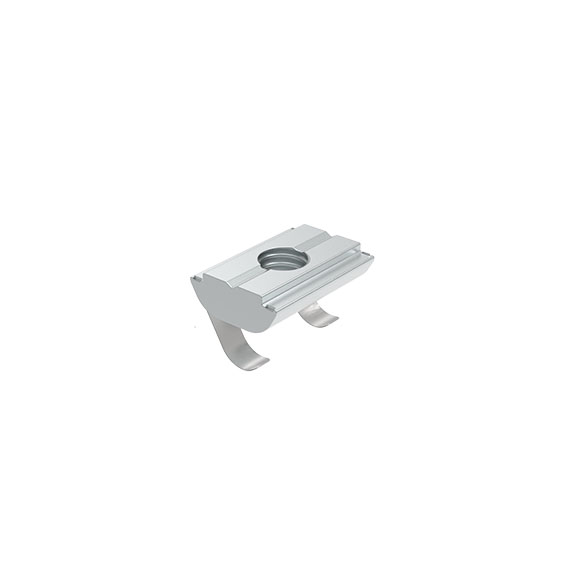

Roll-in T-slot Nut 11.6 x 4.6 mm with Spring Leaf
Delivery Countries:WorldwideDescription:Self-aligning roll-in T-slot nut with spring leaf, ESD electrostatical dischargingMaterial:T-slot nut: Steel / stainless steel Spring leaf: Spring steelSpecials:Different lengths with multiple threads in different sizes available on requestSurface:T-slot nut: Zinc-plated / plain Spring leaf: Plain

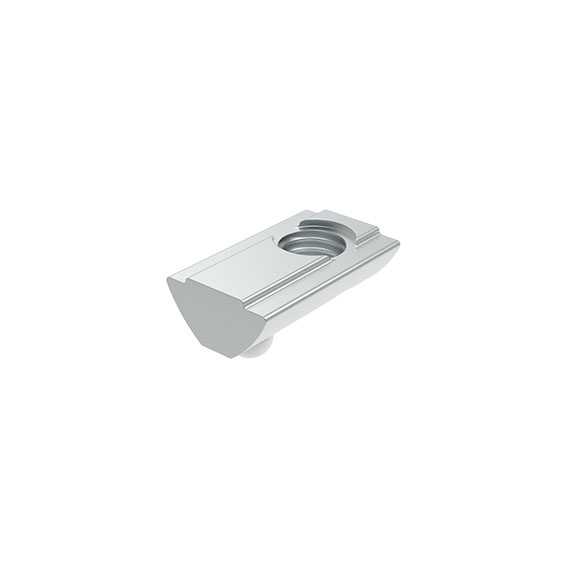

Roll-in T-slot Nut 13.5 x 7.2 mm with Spring Loaded Ball
Delivery Countries:WorldwideDescription:Self-aligning roll-in T-slot nut with spring loaded ballMaterial:T-slot nut: Steel / stainless steel Ball: Stainless steel Spring: Spring steelSpecials:ESD electrostatical discharging, different lengths with multiple threads in different sizes available on requestSurface:T-slot nut: Zinc-plated / plain Ball: Plain Spring: Plain

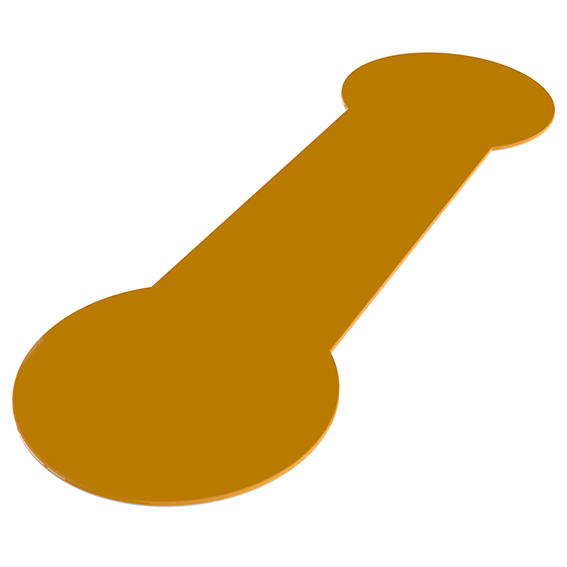

Screw Cover Infeed Cap for Guiding Rail FIFO
Color:Yellow ≈ RAL 1003Delivery Countries:WorldwideDescription:To cover the screw holes of infeed caps for guiding rail FIFO; Yellow screw cover with signal effect to indicate the infeed position for the wheels of floor dollys; Included in the infeed cap set, here separately available as replacementFastening:Self-adhesive surface on the backsideMaterial:Plastic PC
Screw-on Set for End Caps Parking Rail High / High
Color:Plastic anchor: Yellow Position marking: Yellow ≈ RAL 1003Delivery Countries:WorldwideDescription:To screw on end caps for parking rail high / high for heavy-duty use With position marking for covering the screw-on points afterwardsMaterial:Screw: Steel Plastic anchor: Plastic Position marking: Plastic PETSet:4 board screws, 4 plastic anchors, 2 position markingsSurface:Screw: Zinc plated
