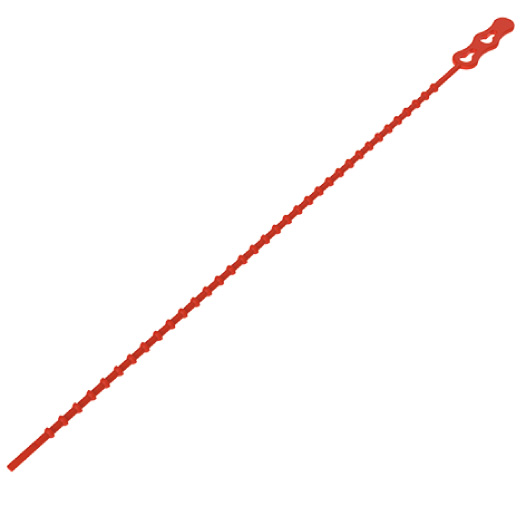

Plastic Tie for Visual Pocket

Color:RedDelivery Countries:WorldwideDescription:To bind and unbind attachable visual pockets easily to pipes, cables profiles etc.Material:Plastic PETip:Compatible Attached Visual Pockets see 02011A5LH15, 02011A4PH15 and 02011A1/3H15

€0.00

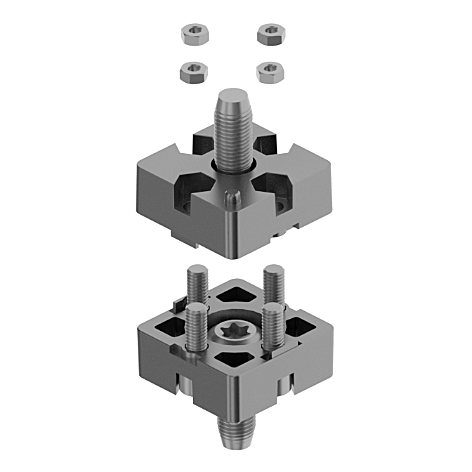

Plate Butt Connector B AL (Set)

Color: - B (mm): 40 L (mm): 22.0 Set: Set 2 Slot N (mm): 10 Surface: Plain Profile: B

Color:Alu colorDelivery Countries:WorldwideDescription:End-to-end connection of two aluminum profiles of the same typeMaterial:Plate connector: Aluminum die-cast Screws / hammer nuts: SteelSet 1:2 plate connectors, 2 screws DIN 7984 - M8 x30, 4 screws DIN 7984 - M5 x 20, 4 hexagon nuts DIN EN ISO 4032 (DIN 934) - M5Set 2:2 plate connectors, 2 self forming screws S12 x 30 - hexalobular socket T50, 4 screws DIN 7984 - M6 x 20, 4 hexagon nuts DIN EN ISO 4035 (DIN 439) - M6Set 3:2 plate connectors, 2 self forming screws S12 x 30 - hexalobular socket T50, 4 screws DIN 7984 - M6 x 20, 4 hexagon nuts DIN EN ISO 4032 (DIN 934) - M6Surface:Plate connector: Plain / powder coated Screws / hammer nuts: Zinc platedTip:Individual Plate Connector, not as part of a set, see 099EA30300808R

€0.00

Plate Connector B AL

Assembly Set: - Color: Alu color A (mm): 30.0 B (mm): 40 d (mm): 6.2 D1 (mm): 20.0 D2 (mm): 12.4 T (mm): 6.5 Slot N (mm): 10 Surface: Powder coated SW (mm): 10 Profile: -

Assembly Set 1:1 screw DIN 7984 - M8 x 30, 2 screws DIN 7984 - M5 x 16, 2 hammer nuts - slot 8 - M5Assembly Set 2:1 self forming screw S12 x 30 - hexalobular socket T50, 2 screws DIN 7984 - M6 x 20, 2 hammer nuts - slot 10 - M6Color:Alu colorDelivery Countries:WorldwideDescription:To tee connect two aluminum profilesMaterial:Plate connector: Aluminum die-cast Assembly set: SteelSpecials:Other surfaces on requestSurface:Plate connector: Plain / powder coated Assembly set: Zinc plated

€0.00

Plate Connector B AL (Set)

Assembly Set: With assembly set 1 Color: Alu color A (mm): 21.6 B (mm): 30 d (mm): 5.5 D1 (mm): 13.6 D2 (mm): 8.5 T (mm): 6.0 Slot N (mm): 8 Surface: Powder coated SW (mm): 8.9 Profile: B

€0.00

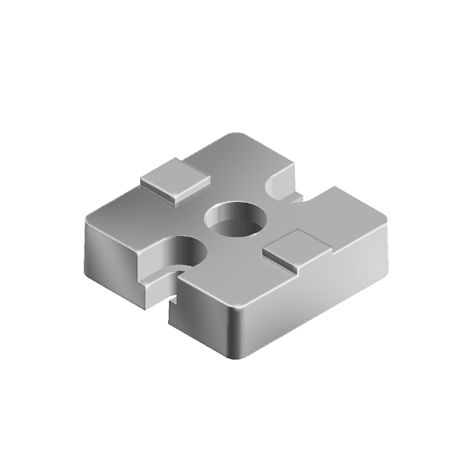

Plate Connector B ZN 45, Slot 10

Color: - Surface: Plain

Color:Alu colorDelivery Countries:WorldwideDescription:To tee connect two aluminum profilesFastening:For screws: 1 x M12 x 30, 2 x M6 x 18 and 2 T-slot nuts or hammer nutsMaterial:Zinc die-castSurface:Plain / powder coated

€0.00

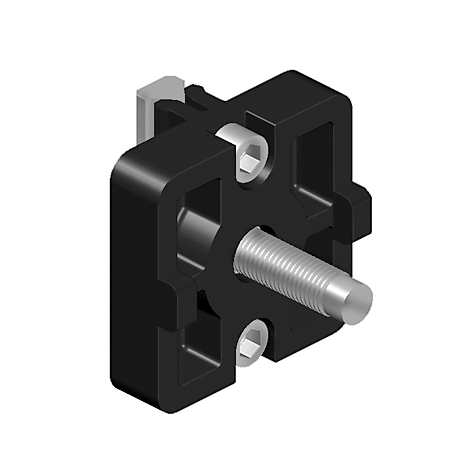

Plate Connector I PA 40, Slot 8 (Set)

Slot N (mm): 8 Profile: I

Color:BlackDelivery Countries:WorldwideDescription:To tee connect two aluminum profilesMaterial:Plastic PA, glass fiber reinforcedSet:1 plate connector, 1 wedge, zinc plated steel, 2 cylinder head screws, M4 x 14, zinc plated steel, 1 self tapping screw, SF7 x 22, zinc plated steelSpecials:Other surfaces, other colors on request

€0.00

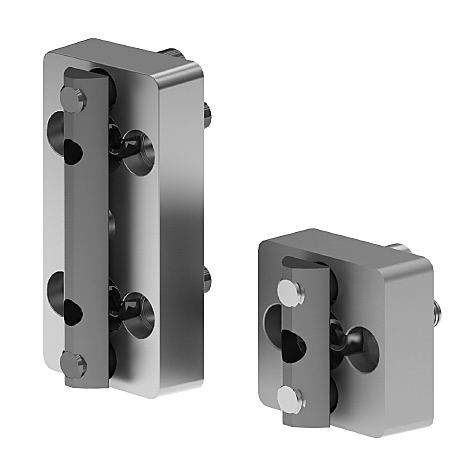

Plate Connector I ZN 40 (Set)

Assembly Set: With assembly set 2 Color: - A x B (mm): 40 x 80 Slot N (mm): 8 Surface: Plain Profile: I

Color:Alu colorDelivery Countries:WorldwideDescription:To tee connect two aluminum profilesMaterial:Plate Connector: Zinc die-cast Assembly set: SteelSet 1:1 self-tapping screw SF7 x 22, 1 double T-slot nut - Nut 8 - M8, 2 shaft screws M8Set 2:2 self-tapping screws SF7 x 22, 1 double T-slot nut - Nut 8 - M8, 2 shaft screws M8Set 3:2 self-tapping screws SF7 x 22, 2 double T-slot nut - Nut 8 - M8, 4 shaft screws M8Surface:Plate Connector: Plain / powder coated Assembly set: Zinc plated

€0.00

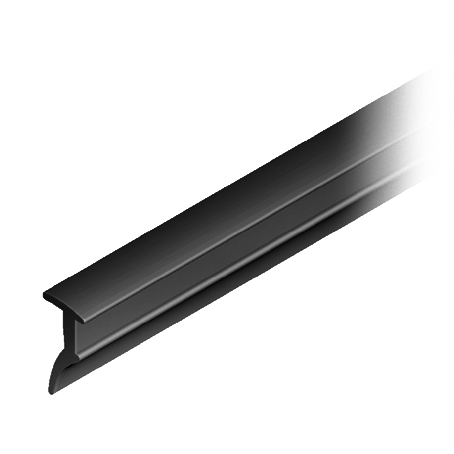

Plug-in Profil 1.9 / 3 - 2

for Panel: 2 - 3 mm A (mm): 7.6 B (mm): 6.2 C (mm): 1.9 Slot N (mm): 5 Profile: I

Color:BlackDelivery Countries:WorldwideDescription:To secure panels in the slot and fill the slotMaterial:Plastic TPESpecials:Other colors on requestTip:*Best wetted with soapy water prior to assembly

€0.00

Plug-in Profil 3.0 / 4 - 2

for Panel: 2 - 3 (4*) mm A (mm): 8.7 B (mm): 7.0 C (mm): 3.0 Slot N (mm): 6 Profile: I

Color:BlackDescription:To secure panels in the slot and fill the slotMaterial:Plastic TPESpecials:Other colors on requestTip:*Best wetted with soapy water prior to assembly

€0.00

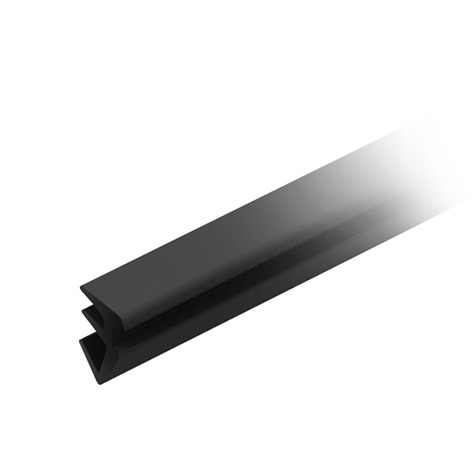

Plug-in Profil 3.0 / 4 - 5

for Panel: 4 – 5 (6*) mm A (mm): 11.6 B (mm): 7.0 C (mm): 3.0 Slot N (mm): 8 Profile: B

Color:BlackDelivery Countries:WorldwideDescription:To secure panels in the slot and fill the slot; with reduced surface friction to ease the applicationMaterial:Plastic EPDM coated with sliding polymerTip:Please note: You are ordering in meters! *Best wetted with soapy water prior to assembly

€0.00

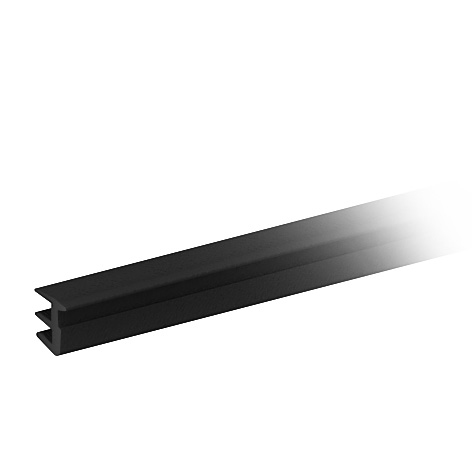

Plug-in Profil 4.2 / 6 - 4

Color: Gray ≈ RAL 7042 for Panel: 2 - 4 mm / 4 - 5 (6*) mm A (mm): 14.6 B (mm): 10.1 C (mm): 4.2 Slot N (mm): 8 / 10 Profile: I

Color:Black, grayDelivery Countries:WorldwideDescription:To secure panels in the slot and fill the slotMaterial:Plastic TPESpecials:Other colors on requestTip:Please note: You are ordering in meters! *Best wetted with soapy water prior to assembly

€0.00

Plug-in Profil 4.7 / 4 - 2

for Panel: 4 - 6 mm / 6 - 7 (8*) mm A (mm): 14.0 B (mm): 7.0 C (mm): 4.7 Slot N (mm): 8 / 10 Profile: I / I

Color:BlackDescription:To secure panels in the slot and fill the slotMaterial:Plastic TPESpecials:Other colors on requestTip:*Best wetted with soapy water prior to assembly

€0.00

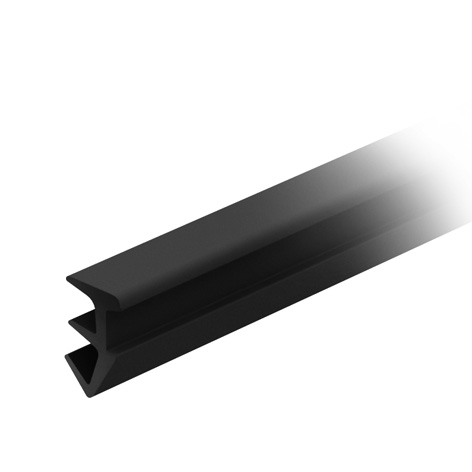

Plug-in Profil 5.0 / 6 - 4

for Panel: 2 – 4 mm / 4 - 6 mm A (mm): 14.7 B (mm): 8.6 C (mm): 5.0 Slot N (mm): 8 / 10 Profile: I

€0.00

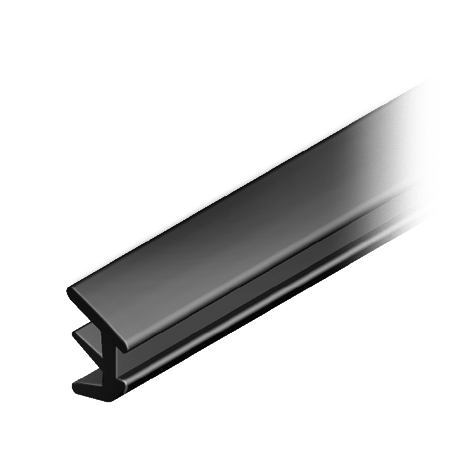

Plug-in Profil 6.9 / 6 - 4

for Panel: 2 - 4 mm / 4 - 6 mm / 4 (5*) mm A (mm): 18.0 B (mm): 11.8 C (mm): 4.5 Slot N (mm): 8 / 10 Profile: I / B

Color:BlackDelivery Countries:WorldwideDescription:To secure panels in the slot and fill the slotMaterial:Plastic TPESpecials:Other colors on requestTip:Please note: You are ordering in meters! *Best wetted with soapy water prior to assembly

€0.00

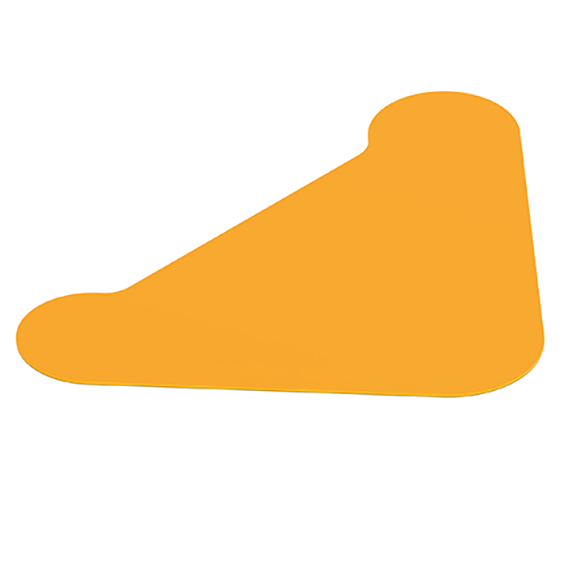

Position Marking End Cap for Parking Rail

Color:Yellow ≈ RAL 1003Delivery Countries:WorldwideDescription:To cover the screw holes of end caps for parking rail; Yellow position markings with signal effect to indicate the position of the wheels from floor dollys or material trolleys in the parking rail; Included in the end cap sets, here separately available as replacementFastening:Self-adhesive surface on the backsideMaterial:Plastic PET

€0.00

Potential Equalizer (Set)

ESD: ESD electrostatical discharging Slot N (mm): 10 Profile: B

Delivery Countries:WorldwideDescription:To make an ESD electrostatical discharging connection between panel and aluminum profileMaterial:Stainless steel SS304Set:1 potential equalizer, 1 pan-head screw DIN EN ISO 7380 (DIN 34805) - M6 x 12, 1 -slot nut with spring, Nut 10 mit Steg, M6, 3 washers DIN EN ISO 7093 (DIN 9021) - 6.4, 1 flange nut DIN 9023 - M6, 1 pan-head screw DIN EN ISO 7380 (DIN 34805) - M6 x 20Surface:Plain

€0.00

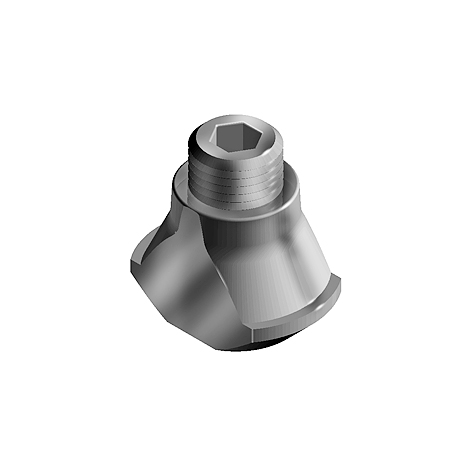

Potential Equalizer for T-slot

ESD: ESD electrostatical discharging Slot N (mm): 8 Profile: I

Delivery Countries:WorldwideDescription:To make an ESD electrostatical discharging connection between two slot 8 aluminum profilesMaterial:SteelSurface:Zinc plated

€0.00

Power Strip Module F Line 264 4x

Fig.: ① ESD: - Slot N (mm): 8 Socket Type: Type F: CEE 7/3 Profile: I

Color:Housing standard version: - Housing ESD electrostatical discharging version: Black End caps: Black Socket inserts: BlackDelivery Countries:WorldwideDescription:Power strip with sockets for power supply at workstations; On the backside with slot 8 for mounting on aluminum profilesMaterial:Housing: Aluminum End caps: Plastic PA, carbon fiber reinforced Socket inserts: Plastic PASpecials:Further colors, individually configurated power strips on requestSurface:Housing standard version: Anodized Housing ESD electrostatical discharging version: Powder coatedTip:Compatible LED Lamp see 6SL1040DI.953 Compatible Main Power Cable see 6SAME4J316B.2000 Compatible Connection Cable see 6SACP3J316B.2000 Compatible Connection Coupling see 6SAKP3J316BS01 Compatible Cover Cap for 3 pole female connector see 063SGF3S01 Compatible Direct Connector I, Slot 8 see 099DC084040N08 Compatible Direct Connector I / B, Slot 8 / 10 see 099DC084045N10Tip 2:Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules Connected load max. 3500 watts

€0.00

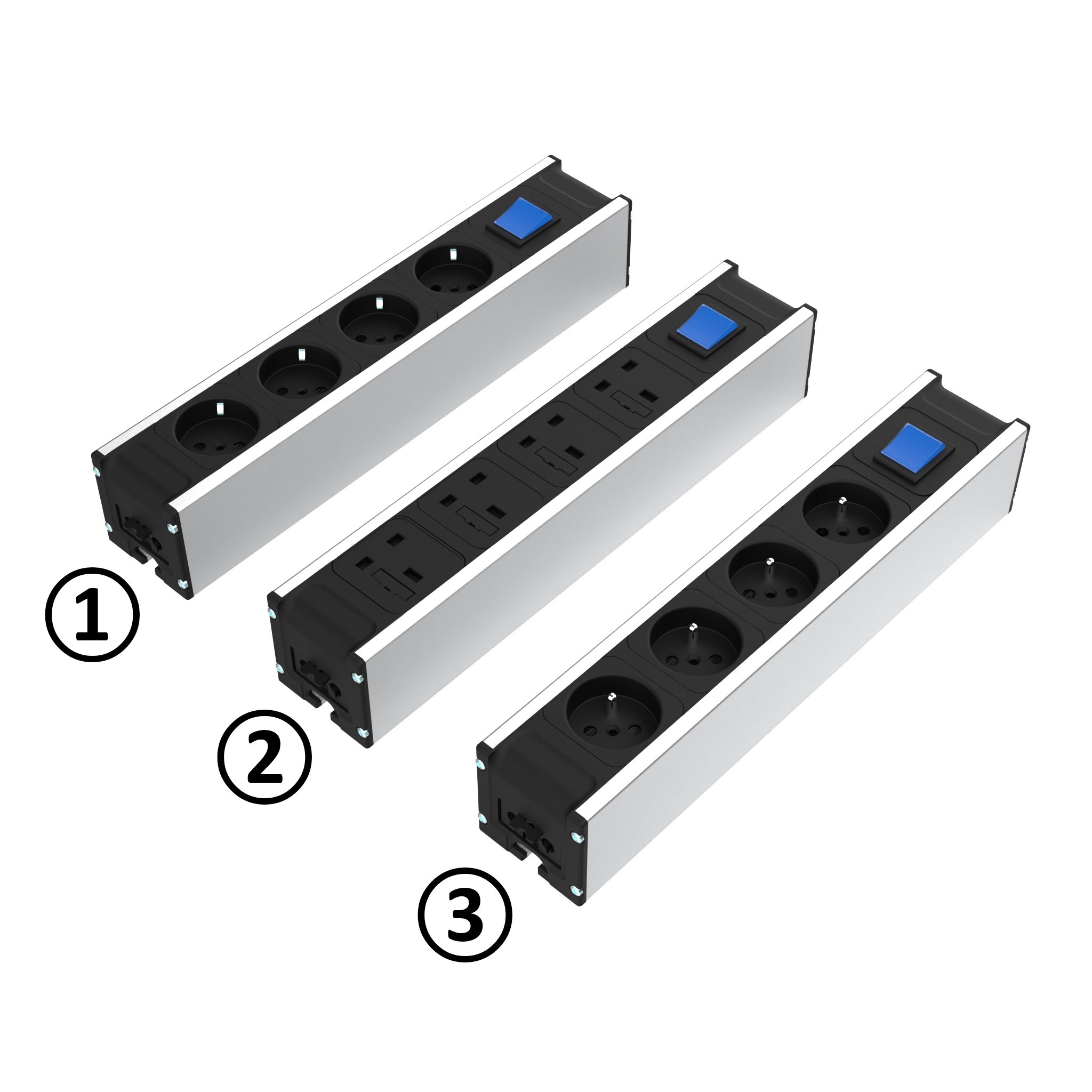

Power Strip Module F Line 317 4x, with Dimmer Button, for Series Connection

Fig.: ② ESD: - Slot N (mm): 8 Socket Type: Type G: BS 1363 Profile: I

Color:Housing standard version: - Housing ESD electrostatical discharging version: Black End caps: Black Socket inserts: Black Dimmer button standard version: Blue Dimmer button ESD electrostatical discharging version: OrangeDelivery Countries:WorldwideDescription:Power strip with sockets for power supply at workstations; With remote dimming for series-connected LED lamps Modul F Line; Combination on output side only possible with remote dimmable LED lamp Modul F Line; On the backside with slot 8 for mounting on aluminum profilesMaterial:Housing: Aluminum End caps: Plastic PA, carbon fiber reinforced Socket inserts: Plastic PA Button: Plastic ABS / PASpecials:Further colors, individually configurated power strips on requestSurface:Housing standard version: Anodized Housing ESD electrostatical discharging version: Powder coatedTip:Compatible LED lamp see 6SL0040I.953 Compatible main power cable see 6SAME4J316B.2000 Compatible connection cable see 6SACP3J316B.2000 Compatible connection cable see 6SACP5J516B.2000 Compatible Connection Coupling see 6SAKP3J316BS01 Compatible direct connector I, slot 8 see 099DC084040N08 Compatible direct connector I / B, Slot 8 / 10 see 099DC084045N10Tip 2:Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules Connected load max. 3500 watts

€0.00

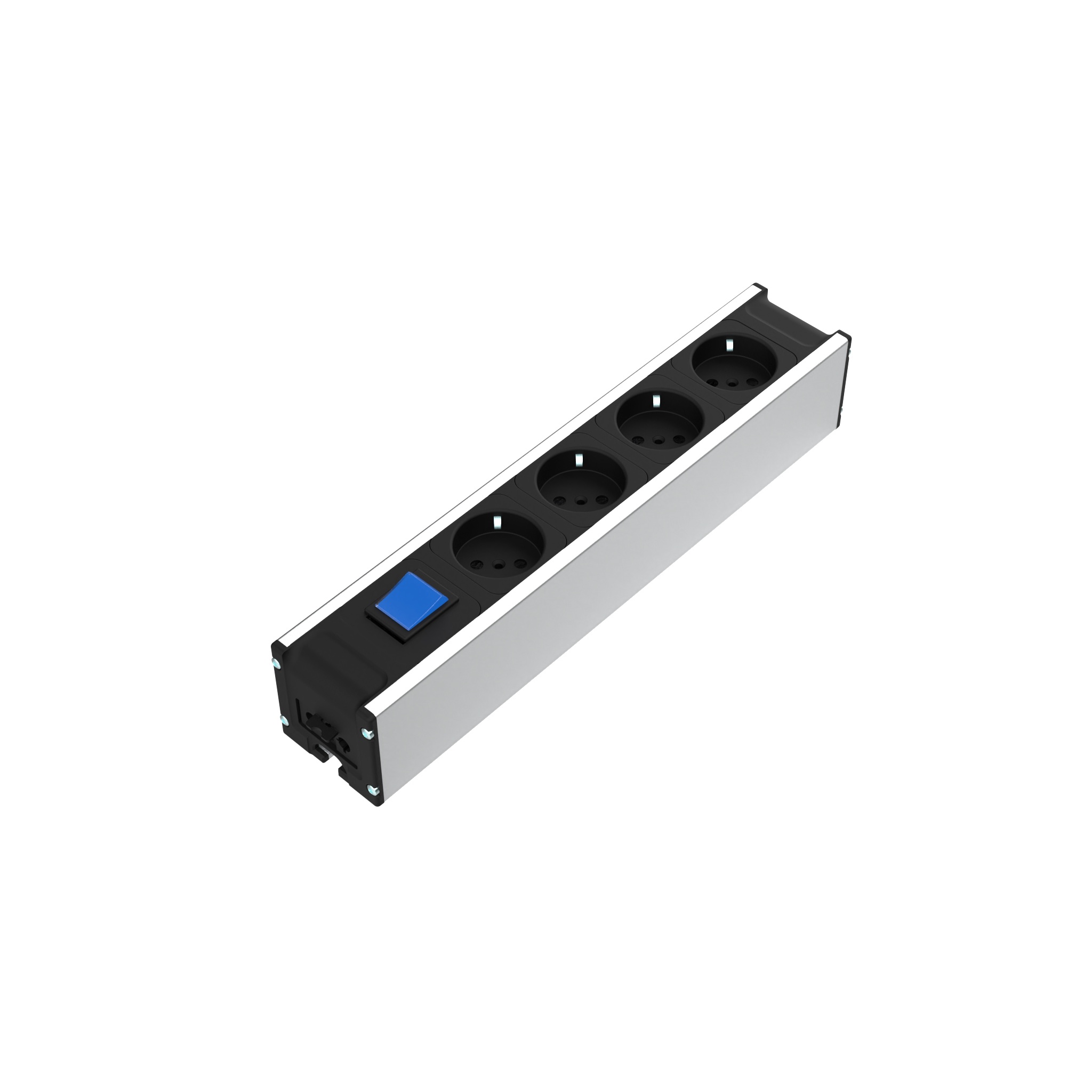

Power Strip Module F Line 317 4x, with Switch, for Series Connection

ESD: ESD Slot N (mm): 8 Socket Type: Type F: CEE 7/3 Profile: I

Color:Housing standard version: - Housing ESD electrostatical discharging version: Black End caps: Black Socket inserts: Black Switch standard version: Blue Switch ESD electrostatical discharging version: OrangeDelivery Countries:WorldwideDescription:Switchable power strip with sockets for power supply at workstations; On the backside with slot 8 for mounting on aluminum profilesMaterial:Housing: Aluminum End caps: Plastic PA, carbon fiber reinforced Socket inserts: Plastic PA Switches: Plastic ABS / PASpecials:Other lengths, other colors on requestSurface:Housing standard version: Anodized Housing ESD electrostatical discharging version: Powder coatedTip:Compatible LED Lamp see 6SL1040DI.953 Compatible Main Power Cable see 6SAME4J316B.2000 Compatible Connection Cable see 6SACP3J316B.2000 Compatible Connection Coupling see 6SAKP3J316BS01 Compatible Cover Cap for 3 pole female connector see 063SGF3S01 Compatible Direct Connector I, Slot 8 see 099DC084040N08 Compatible Direct Connector I / B, Slot 8 / 10 see 099DC084045N10Tip 2:Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules Connected load max. 3500 watts

€0.00

Power Strip Module F Line 370 4x + USB, with Switch

Fig.: ① ESD: ESD Slot N (mm): 8 Socket Type: Type F: CEE 7/3 Profile: I

Color:Housing standard version: - Housing ESD electrostatical discharging version: Black End caps: Black Socket inserts: Black Switch button standard version: Blue Switch ESD electrostatical discharging version: OrangeDelivery Countries:WorldwideDescription:Switchable power strip with sockets for power supply at workstations, with 2x USB charging sockets USB 2.0 Typ A with smart IC; On the backside with slot 8 for mounting on aluminum profilesMaterial:Housing: Aluminum End caps: Plastic PA, carbon fiber reinforced Socket inserts: Plastic PA USB sockets: Plastic ABS Switch: Plastic ABS / PASpecials:Further colors, individually configurated power strips on requestSurface:Housing standard version: Anodized Housing ESD electrostatical discharging version: Powder coatedTip:Compatible LED Lamp see 6SL1040DI.953 Compatible Main Power Cable see 6SAME4J316B.2000 Compatible Connection Cable see 6SACP3J316B.2000 Compatible Connection Coupling see 6SAKP3J316BS01 Compatible Cover Cap for 3 pole female connector see 063SGF3S01 Compatible Direct Connector I, Slot 8 see 099DC084040N08 Compatible Direct Connector I / B, Slot 8 / 10 see 099DC084045N10Tip 2:Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules Connected load max. 3500 watts

€0.00

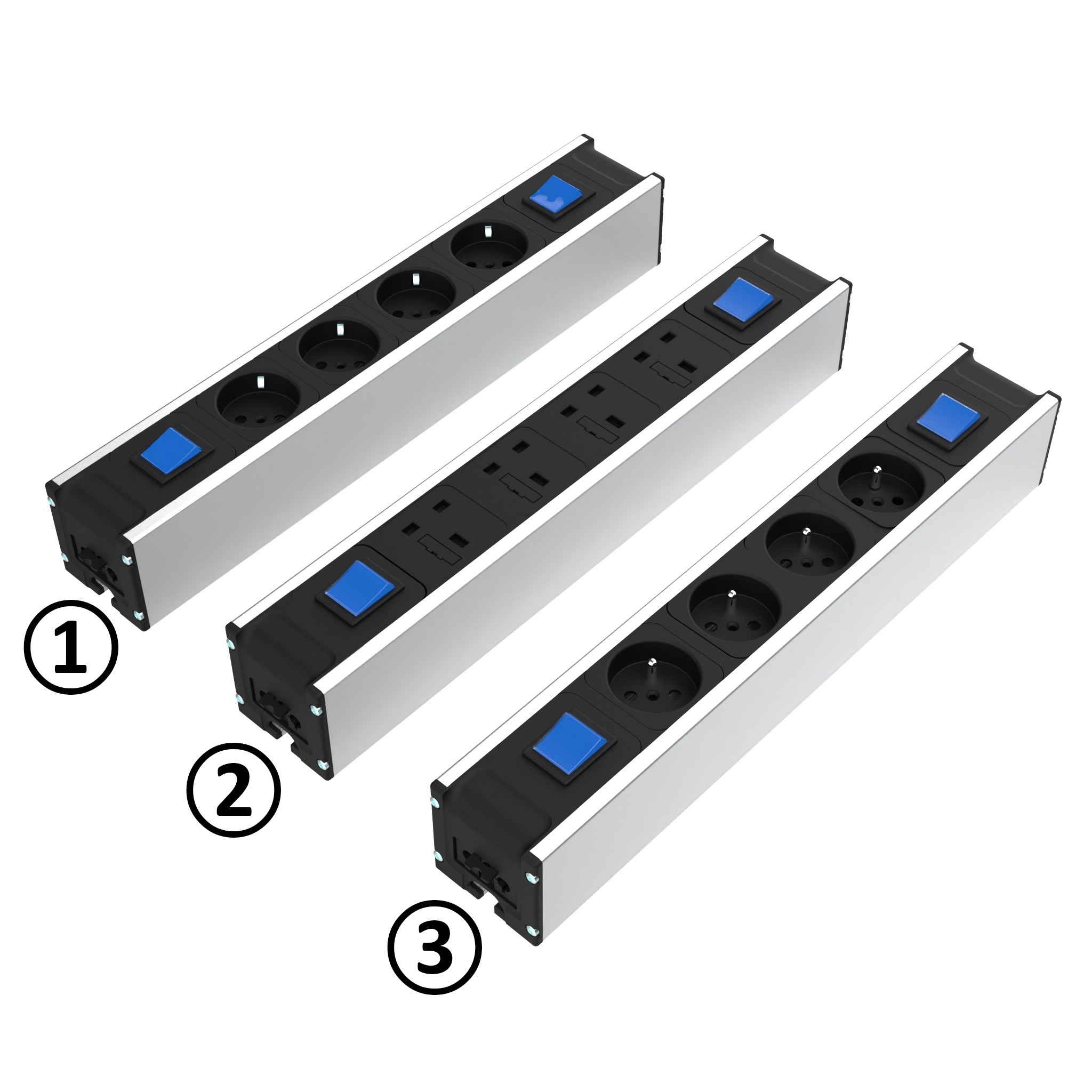

Power Strip Module F Line 370 4x, with 2 Switches

Fig.: ① ESD: - Slot N (mm): 8 Socket Type: Type F: CEE 7/3 Profile: I

Color:Housing standard version: - Housing ESD electrostatical discharging version: Black End caps: Black Socket inserts: Black Switch standard version: Blue Switch ESD electrostatical discharging version: OrangeDelivery Countries:WorldwideDescription:Switchable power strip with sockets for power supply at workstations; Switchable output of power strip; On the backside with slot 8 for mounting on aluminum profilesMaterial:Housing: Aluminum End caps: Plastic PA, carbon fiber reinforced Socket inserts: Plastic PA Switches: Plastic ABS / PASpecials:Further colors, individually configurated power strips on requestSurface:Housing standard version: Anodized Housing ESD electrostatical discharging version: Powder coatedTip:Compatible LED Lamp see 6SL1040DI.953 Compatible Main Power Cable see 6SAME4J316B.2000 Compatible Connection Cable see 6SACP3J316B.2000 Compatible Connection Coupling see 6SAKP3J316BS01 Compatible Cover Cap for 3 pole female connector see 063SGF3S01 Compatible Direct Connector I, Slot 8 see 099DC084040N08 Compatible Direct Connector I / B, Slot 8 / 10 see 099DC084045N10Tip 2:Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules Connected load max. 3500 watts

€0.00

Power Strip Module F Line 370 4x, with Switch and Dimmer Button, for Series Connection

Fig.: ③ ESD: - Slot N (mm): 8 Socket Type: Type E: CEE 7/5 Profile: I

Color:Housing standard version: - Housing ESD electrostatical discharging version: Black End caps: Black Socket inserts: Black Switch and dimmer button standard version: Blue Switch and dimmer button ESD electrostatical discharging version: OrangeDelivery Countries:WorldwideDescription:Switchable power strip with sockets for power supply at workstations; With remote dimmer for series-connected LED lamps Modul F Line; Combination on output side only possible with remote dimmable LED lamp module F Line; On the backside with slot 8 for mounting on aluminum profilesMaterial:Housing: Aluminum End caps: Plastic PA, carbon fiber reinforced Socket inserts: Plastic PA Switch / Button: Plastic ABS / PASpecials:Further colors, individually configurated power strips on requestSurface:Housing standard version: Anodized Housing ESD electrostatical discharging version: Powder coatedTip:Compatible LED lamp see 6SL0040I.953 Compatible main power cable see 6SAME4J316B.2000 Compatible connection cable see 6SACP3J316B.2000 Compatible connection cable see 6SACP5J516B.2000 Compatible Connection Coupling see 6SAKP3J316BS01 Compatible direct connector I, slot 8 see 099DC084040N08 Compatible direct connector I / B, Slot 8 / 10 see 099DC084045N10Tip 2:Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules Connected load max. 3500 watts

€0.00

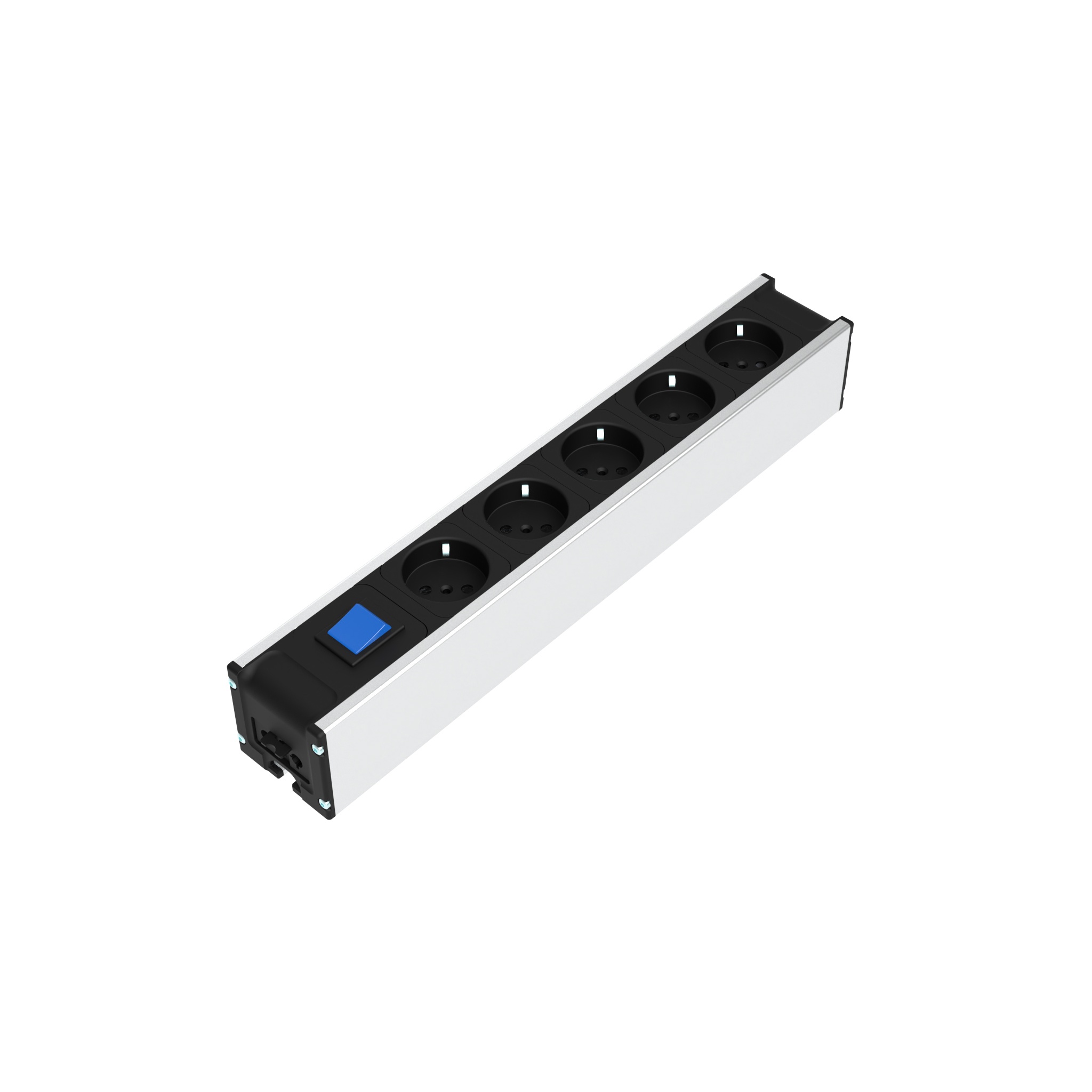

Power Strip Module F Line 370 5x with Switch

Slot N (mm): 8 Socket Type: Type F: CEE 7/3 Profile: I

Color:Housing: - End caps: Black Socket inserts: Black Switch: BlueDelivery Countries:WorldwideDescription:Switchable power strip with sockets for power supply at workstations; On the backside with slot 8 for mounting on aluminum profilesMaterial:Housing: Aluminum End caps: Plastic PA, carbon fiber reinforced Socket inserts: Plastic PA Switches: Plastic ABS / PASpecials:Further colors, individually configurated power strips on requestSurface:Housing: AnodizedTip:Compatible LED Lamp see 6SL1040DI.953 Compatible Main Power Cable see 6SAME4J316B.2000 Compatible Connection Cable see 6SACP3J316B.2000 Compatible Connection Coupling see 6SAKP3J316BS01 Compatible Cover Cap for 3 pole female connector see 063SGF3S01 Compatible Direct Connector I, Slot 8 see 099DC084040N08 Compatible Direct Connector I / B, Slot 8 / 10 see 099DC084045N10Tip 2:Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules Connected load max. 3500 watts

€0.00
