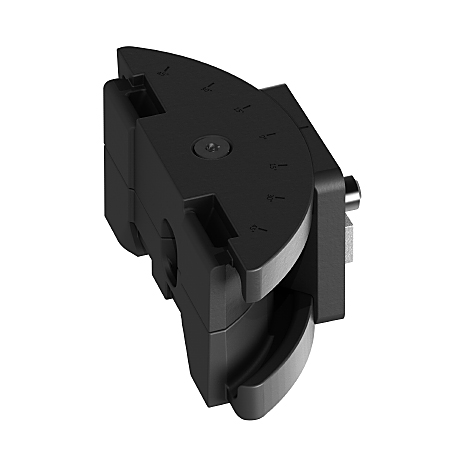

Pivoting Adapter for Containers

ESD: - Profile: I / B

Color:Housing: Black Adapter: BlackDelivery Countries:WorldwideDescription:To fix grab containers and grab trays on profile slots; with separate slot fixing for slot 8 and slot 10; pivotable in two directions up to 45°; with locking screw for enabling or disabling horizontal pivotingMaterial:Housing standard version: Plastic PA, glass fiber reinforced Housing ESD electrostatical discharging version: Plastic PA, carbon fiber reinforced Adapter standard version: Plastic PA, glass ball reinforced Adapter ESD electrostatical discharging version: Plastic PA, carbon fiber reinforced Centering pieces: Zinc die-cast Mounting material: SteelSpecials:Other colors on requestSurface:Centering pieces: Plain Mounting material: Zinc platedTip:Compatible Grab Container see 061MGC2K291H; Compatible Tray Container see 061MGT2K291H

€0.00

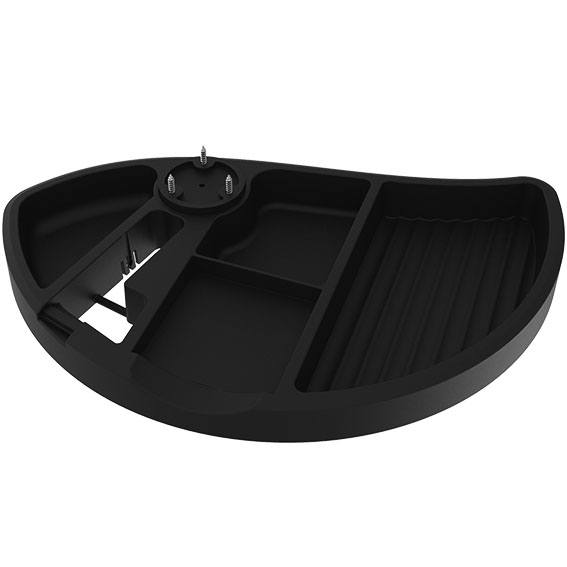

Pivoting Under-table Storage Tray

Color:BlackDelivery Countries:WorldwideDescription:For hidden storage of office supplies within reach under the counter top, with holder for adhesive tape dispenser with core diameter 25.4 mm and compartment for sticky notes up to size of 78 x 78 mmFastening:Under the table top, using the 3 pan head wood screws 4 x 16 (included in delivery)Material:Plastic ABSSpecials:Color gray on requestTip:Recommended table top thickness: min. 20 mm

€0.00

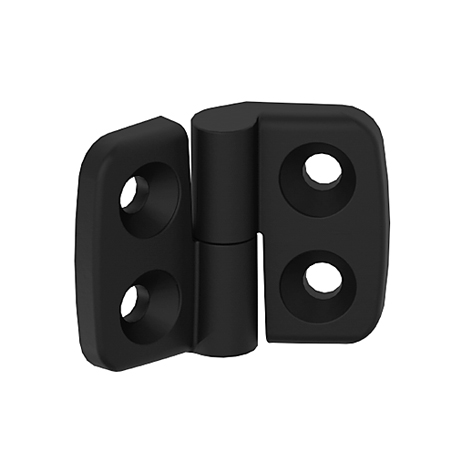

Plastic Combi Hinge 20 MINI, Detachable

Version: R: Right Combination: 20 / 20

Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesFastening:From the front, using M4 countersunk screwsMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request

€0.00

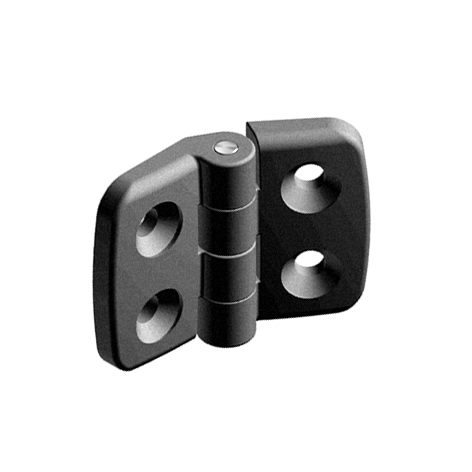

Plastic Combi Hinge 20 MINI, Non-detachable

Version: Non-detachable Combination: 20 / 20 FRmax (N): 400

€0.00

Plastic Combi Hinge 25, Detachable, Black

Version: L: Left Combination: 25 / 40 FAmax (N): 350 FRmax (N): - A1 (mm): 15.0 A2 (mm): 22.5 B1 (mm): 26.0 B2 (mm): 38.5 Slot N (mm): -

Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesFastening:From the front, using M6 countersunk screwsMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request

€0.00

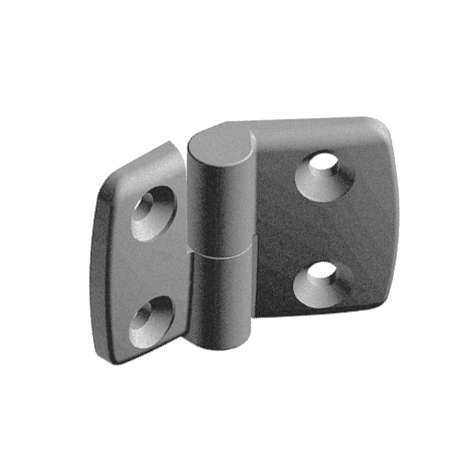

Plastic Combi Hinge 25, Detachable, Gray

Version: L: Left Combination: 25 / 25 FAmax (N): 425 FRmax (N): 625 A1 (mm): 15.0 A2 (mm): 15.0 B1 (mm): 26.0 B2 (mm): 26.0 Slot N (mm): -

Color:Gray ≈ RAL 7042Delivery Countries:WorldwideDescription:To hinge panels or aluminum profilesFastening:From the front, using M6 countersunk screwsMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelSpecials:Further colors, centering pins for installation on aluminum profiles available on request

€0.00

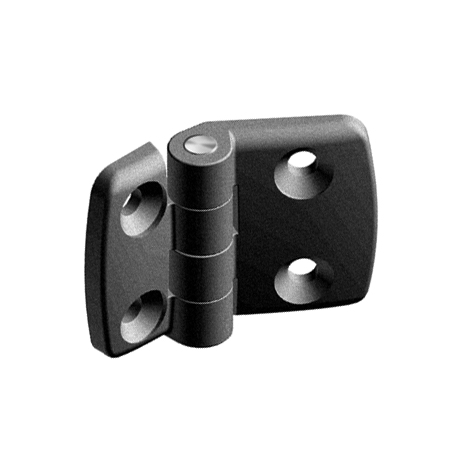

Plastic Combi Hinge 25, Non-detachable, Black

Version: Non-detachable Combination: 30 / 25 FAmax (N): 400 FRmax (N): - A1 (mm): 17.5 A2 (mm): 15.0 B1 (mm): 29.5 B2 (mm): 26.0 Slot N (mm): -

€0.00

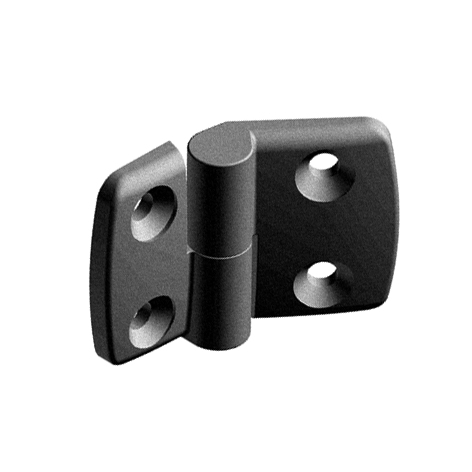

Plastic Combi Hinge 30, Detachable, Black

Version: L: Left Combination: 30 / 30 FAmax (N): - FRmax (N): 750 A1 (mm): 17.5 A2 (mm): 17.5 B1 (mm): 29.5 B2 (mm): 29.5 Slot N (mm): -

Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesFastening:From the front, using M6 countersunk screwsMaterial:Wings: Plastic PA, glass fiber reinforced; Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request

€0.00

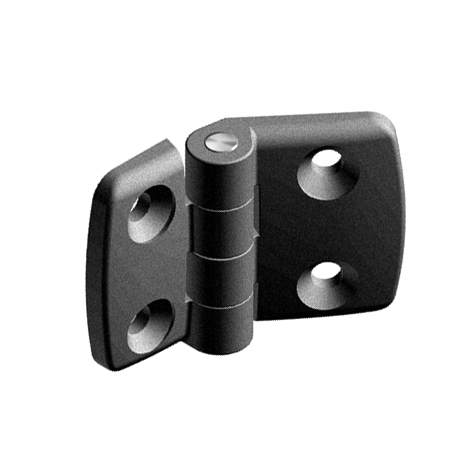

Plastic Combi Hinge 30, Non-detachable, Black

Version: Non-detachable Combination: 30 / 30 FAmax (N): 400 FRmax (N): - A1 (mm): 17.5 A2 (mm): 17.5 B1 (mm): 29.5 B2 (mm): 29.5 Slot N (mm): 8

Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesFastening:From the front, using M6 countersunk screwsMaterial:Wings: Plastic PA, glass fiber reinforced; Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request

€0.00

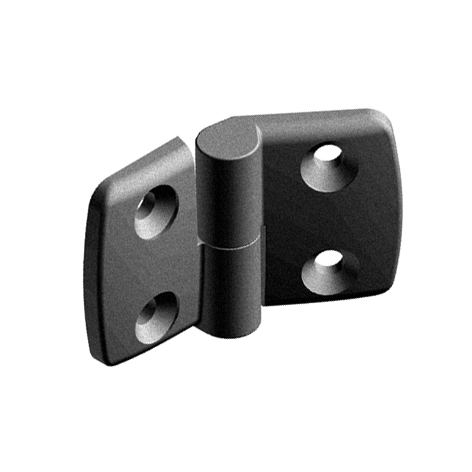

Plastic Combi Hinge 35, Detachable, Black

Version: R: Right Combination: 35 / 35 FAmax (N): 400 FRmax (N): 750 A1 (mm): 20.0 A2 (mm): 20.0 B1 (mm): 36.0 B2 (mm): 36.0 Slot N (mm): 8

Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesFastening:From the front, using M6 countersunk screwsMaterial:Wings: Plastic PA, glass fiber reinforced; Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request

€0.00

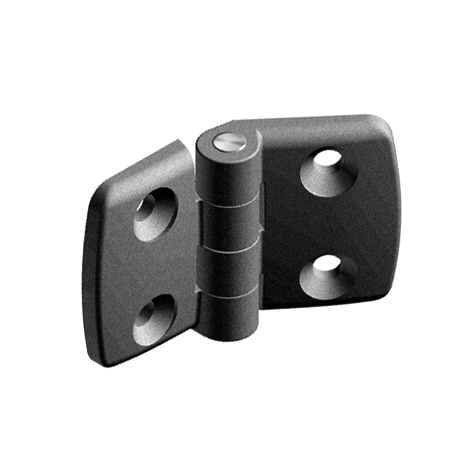

Plastic Combi Hinge 35, Non-detachable, Black

Version: Non-detachable Combination: 35 / 40 FAmax (N): 450 FRmax (N): 750 A1 (mm): 20.0 A2 (mm): 22.5 B1 (mm): 36.0 B2 (mm): 38.5 Slot N (mm): -

Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesFastening:From the front, using M6 countersunk screwsMaterial:Wings: Plastic PA, glass fiber reinforced; Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request

€0.00

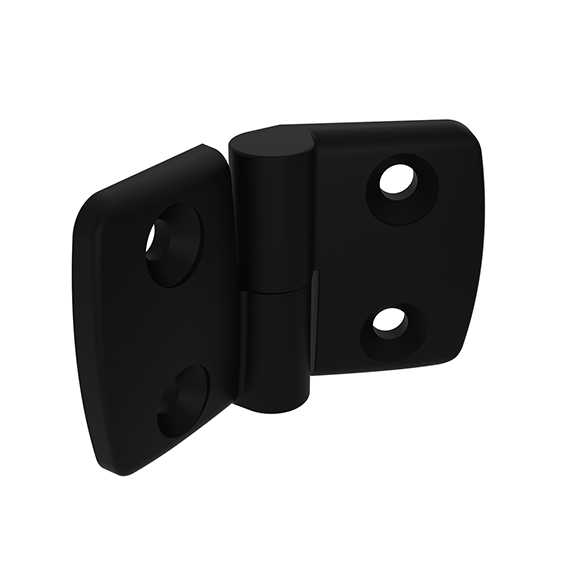

Plastic Combi Hinge 40, Detachable, Black

Version: R: Right Combination: 40 / 40 FAmax (N): 350 FRmax (N): - A1 (mm): 22.5 A2 (mm): 22.5 B1 (mm): 38.5 B2 (mm): 38.5 Slot N (mm): -

Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesFastening:From the front, using M6 countersunk screwsMaterial:Wings: Plastic PA, glass fiber reinforced; Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request

€0.00

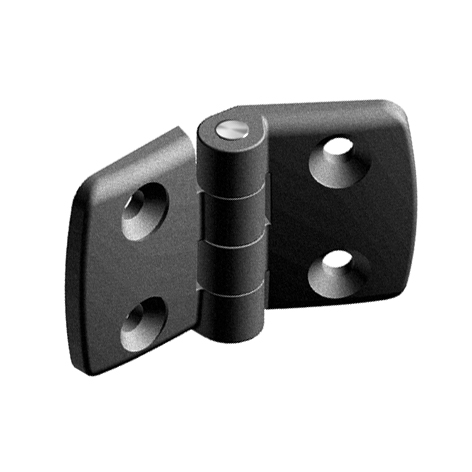

Plastic Combi Hinge 40, Non-detachable, Black

Version: Non-detachable Combination: 40 / 40 FAmax (N): 450 FRmax (N): 750 A1 (mm): 22.5 A2 (mm): 22.5 B1 (mm): 38.5 B2 (mm): 38.5 Slot N (mm): -

Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesFastening:From the front, using M6 countersunk screwsMaterial:Wings: Plastic PA, glass fiber reinforced; Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request

€0.00

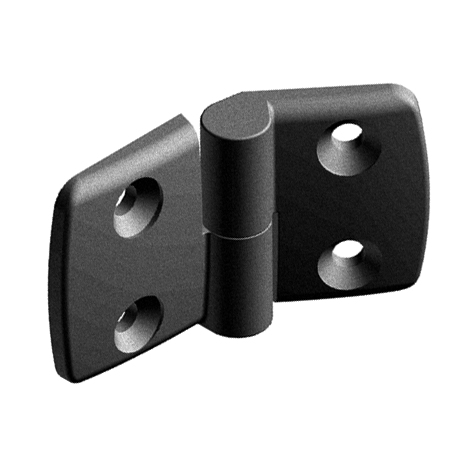

Plastic Combi Hinge 45, Detachable, Black

Version: L: Left Combination: 45 / 60 FAmax (N): - FRmax (N): - A1 (mm): 25.0 A2 (mm): 32.5 B1 (mm): 43.5 B2 (mm): 57.5 Slot N (mm): -

€0.00

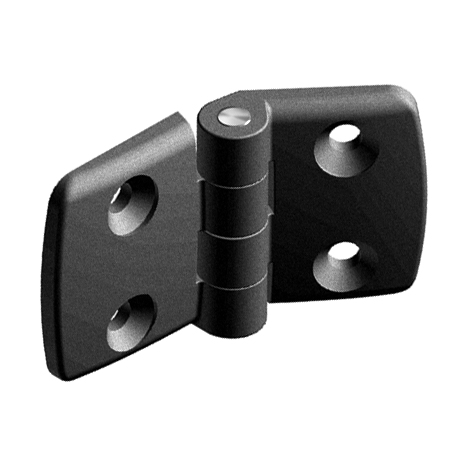

Plastic Combi Hinge 45, Non-detachable, Black

Version: Non-detachable Combination: 45 / 45 FAmax (N): 450 FRmax (N): 750 A1 (mm): 25.0 A2 (mm): 25.0 B1 (mm): 43.5 B2 (mm): 43.5 Slot N (mm): 10

€0.00

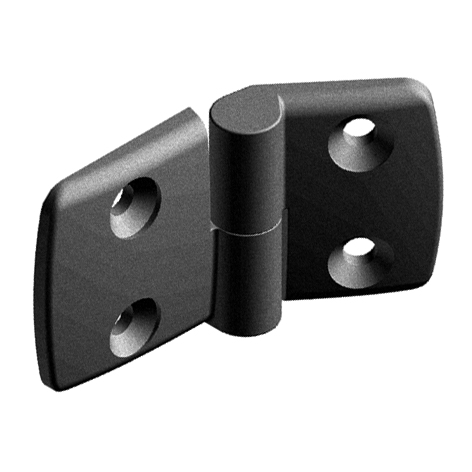

Plastic Combi Hinge 50, Detachable, Black

Version: L: Left Combination: 50 / 50 FAmax (N): 320 FRmax (N): - A1 (mm): 27.5 A2 (mm): 27.5 B1 (mm): 48.5 B2 (mm): 48.5 Slot N (mm): -

€0.00

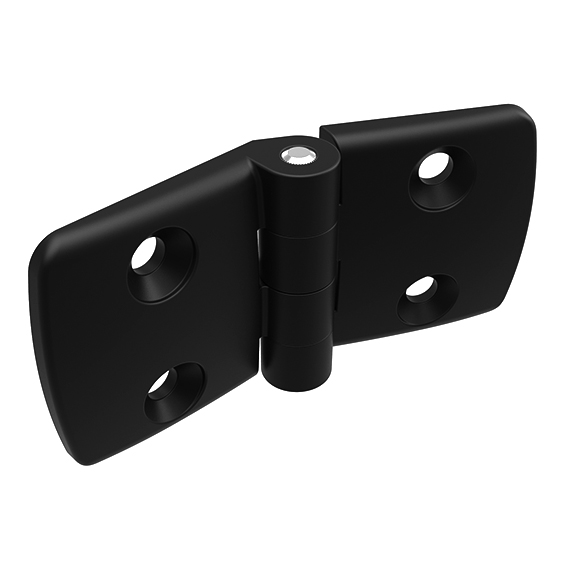

Plastic Combi Hinge 50, Non-detachable, Black

Version: Non-detachable Combination: 50 / 60 FAmax (N): - FRmax (N): 850 A1 (mm): 27.5 A2 (mm): 32.5 B1 (mm): 48.5 B2 (mm): 57.5 Slot N (mm): -

€0.00

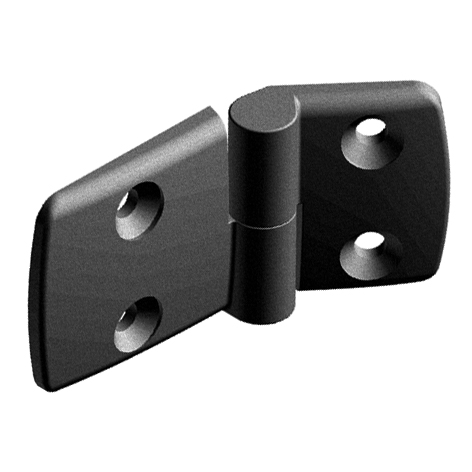

Plastic Combi Hinge 60, Detachable, Black

Version: L: Left Combination: 60 / 60 FAmax (N): - FRmax (N): 900 A1 (mm): 32.5 A2 (mm): 32.5 B1 (mm): 57.5 B2 (mm): 57.5 Slot N (mm): 10

€0.00

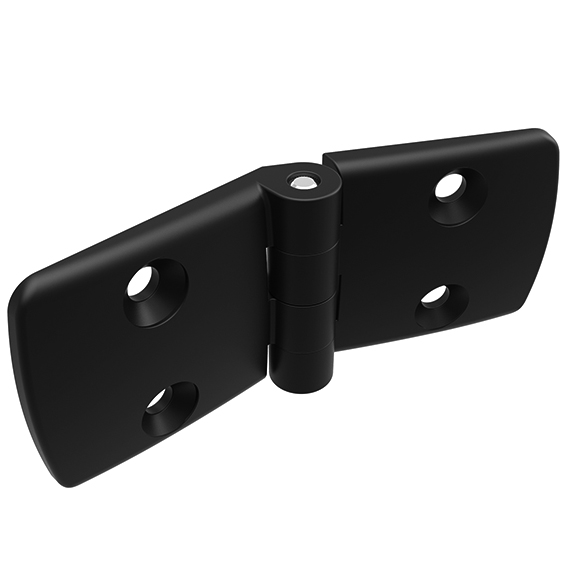

Plastic Combi Hinge 60, Non-detachable, Black

Version: Non-detachable Combination: 60 / 60 FAmax (N): 175 FRmax (N): 850 A1 (mm): 32.5 A2 (mm): 32.5 B1 (mm): 57.5 B2 (mm): 57.5 Slot N (mm): 10

€0.00

Plastic Combi Hinge with Locking Lever

Version: Non-detachable Combination: 40 / 40 FAmax (N): 450 FRmax (N): 750 A1 (mm): 22.5 A2 (mm): 22.5 B1 (mm): 38.5 B2 (mm): 38.5 Slot N (mm): 8

Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profiles; can be locked at any positionFastening:From the front, using M6 countersunk screwsMaterial:Hinge: Plastic PA, glass fiber reinforced KIPP locking lever: Plastic PA, glass fiber reinforced Mechanism: Steel, zinc plated (RoHS conform)Specials:ESD electrostatical discharging, other sizes, other colors on requestTip:Combinations of different wing sizes are available on request

€0.00

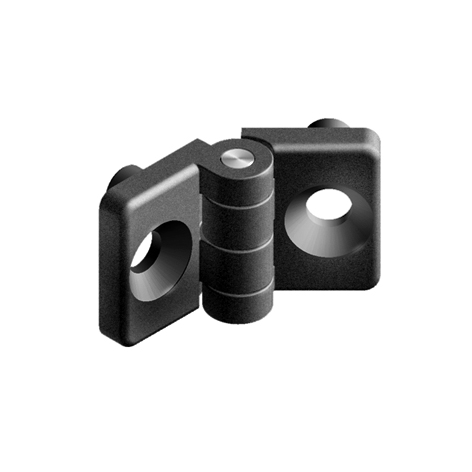

Plastic Hinge 20 MINI, Black

FRmax (N): 300 Slot N (mm): 6

Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesFastening:From the front, using M5 countersunk screwsMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelSpecials:ESD electrostatical discharging, other sizes, other colors on request

€0.00

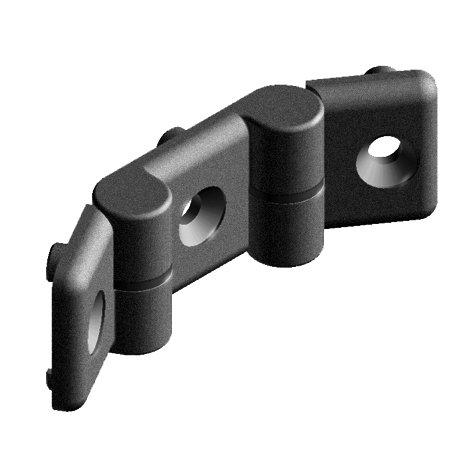

Plastic Hinge 32 x 100, Double, Black

Slot N (mm): 8

Color:BlackDelivery Countries:WorldwideDescription:To connect aluminum profilesFastening:From the front, using M6 countersunk screwsMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelSpecials:ESD electrostatical discharging, other sizes, other colors on request

€0.00

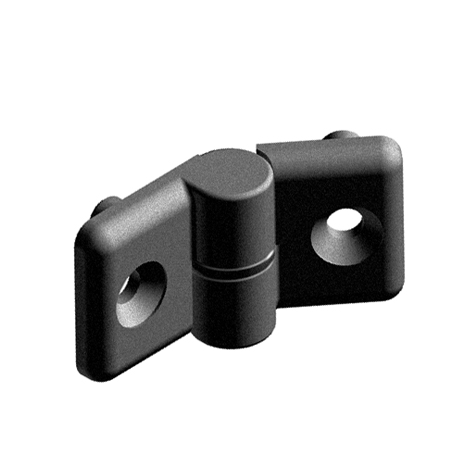

Plastic Hinge 32 x 60, Black

Version: R: Right Slot N (mm): 8

€0.00

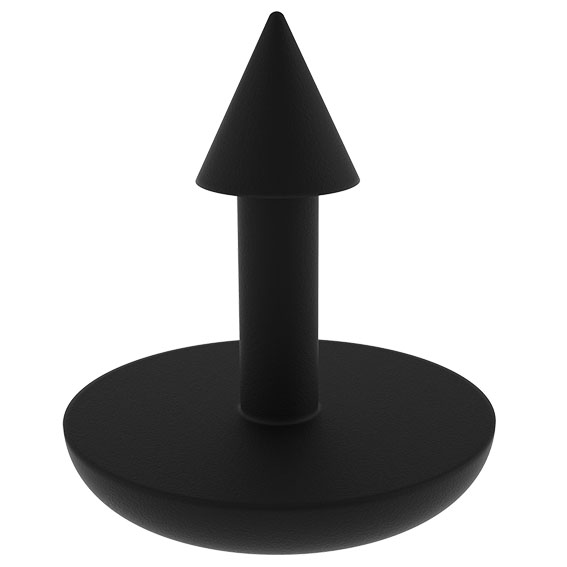

Plastic Pin for Visual Pocket

Color:BlackDelivery Countries:WorldwideDescription:For quick pinning of attached visual pockets on cartons and other outer packaging made of foil or textileMaterial:Plastic PPTip:Compatible Attached Visual Pockets see 02011A5LH15, 02011A4PH15 and 02011A1/3H15

€0.00
