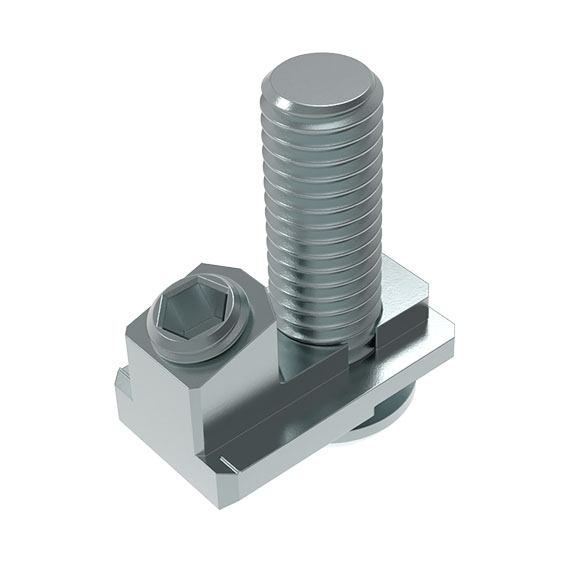

Delivery Countries:WorldwideDescription:To connect two aluminum profiles at right anglesMaterial:SteelSet:1 Profile Connector 90° B / M30 1 self forming screw S8 x 25Surface:Zinc plated

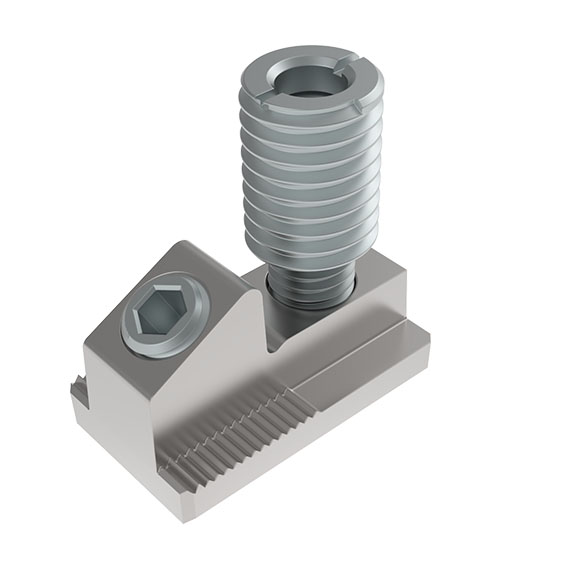

Delivery Countries:WorldwideDescription:To connect two aluminum profiles at right anglesMaterial:SteelSet 1:1 profile connector 90° B 1 threaded bush M12 1 screw M8 x 25Set 2:1 profile connector 90° B 1 cutting bush S12 1 screw M8 x 25Surface:Zinc platedTip:Assembly with threaded bush M12: Cut thread M12 in core hole Ø 10.2 mm, apply bush to screw and screw in together Assembly with cutting bush S12: Turn cutting bush in core hole Ø 10.2 mm, fasten screw in bush

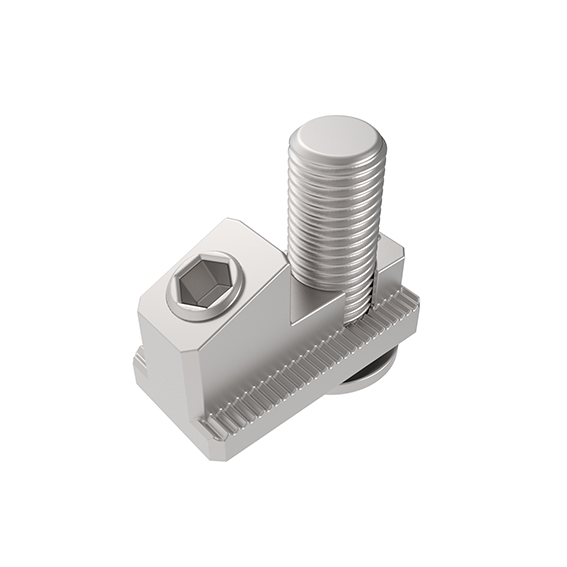

Delivery Countries:WorldwideDescription:To connect two aluminum profiles at right anglesMaterial:SteelSet 1:1 profile connector 90° I 1 screw M8 x 22Set 2:1 profile connector 90° I 1 self-forming screw S7 x 22Surface:Zinc plated

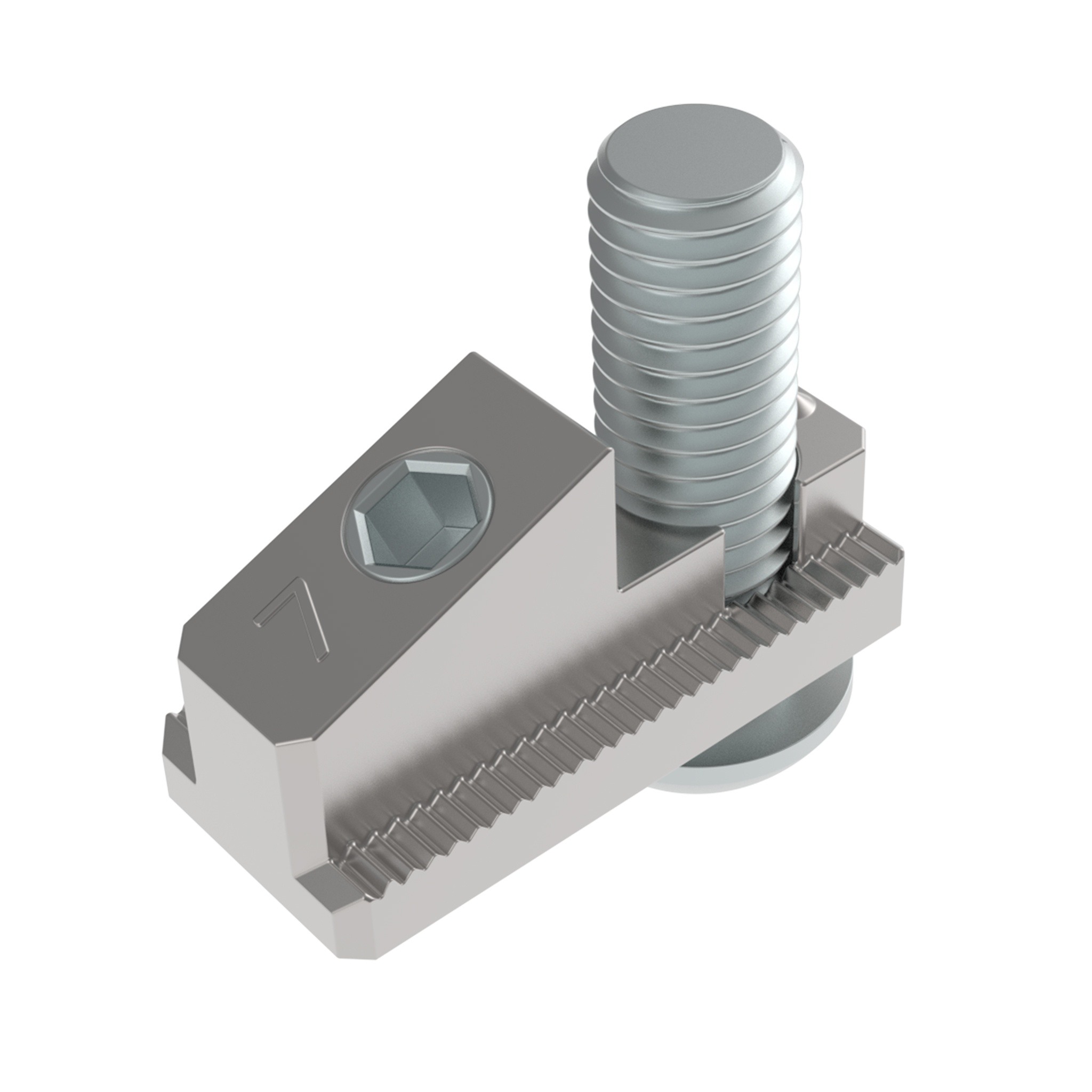

Delivery Countries:WorldwideDescription:To connect two aluminum profilesMaterial:SteelSet 1:1 profile connector 90° M45 / N45 1 screw M8 x 25Set 2:1 profile connector 90° M45 / N45 1 self-forming screw S8 x 25Surface:Zinc plated

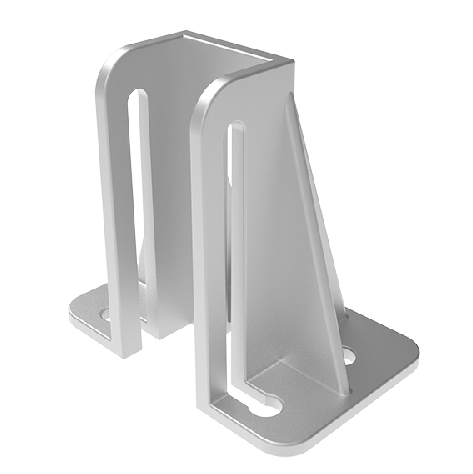

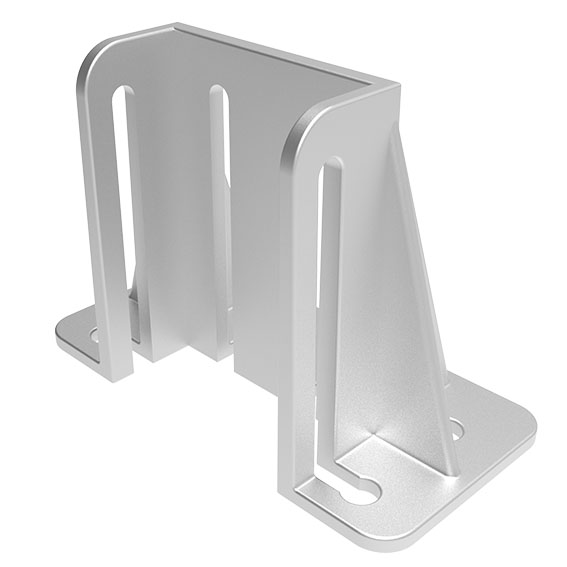

Color:Alu colorDelivery Countries:WorldwideDescription:To mount aluminum profiles as posts or shelf beamsMaterial:Aluminum die-castSurface:Powder coatedTip:Compatible Hammer Screw Slot 8 see 096HK0830M0820 Compatible Hammer Screw Slot 10 see 096HK1030M0820 Compatible Flange Nut M8 see 340ME154
Color:Alu colorDelivery Countries:WorldwideDescription:To mount aluminum profiles as posts or shelf beamsMaterial:Aluminum die-castSurface:Powder coatedTip:Compatible Hammer Screw Slot 8 see 096HK0830M0820 Compatible Hammer Screw Slot 10 see 096HK1030M0820 Compatible Flange Nut M8 see 340ME154

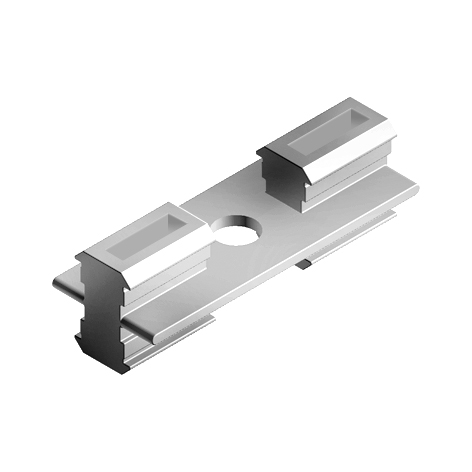

Color:NaturalDelivery Countries:WorldwideDescription:To guide slidingly profiles with slots 8 and 10, also combinable; economical and wear-resistant solution, for example for sliding doorsFastening:Slot 8 with DIN EN ISO 4027 (DIN 914), M8 x 12 Slot 10 with DIN EN ISO 4027 (DIN 914), M8 x 20Material:Plastic POM

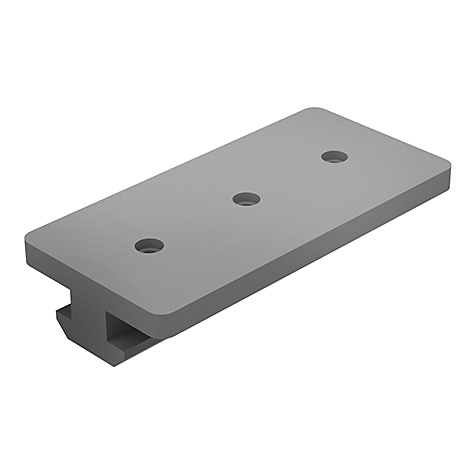

Delivery Countries:WorldwideDescription:To guide slidingly profiles with slot 10; economic and wear-resistant solution, e.g. for sliding doorsFastening:With sheet-metal screwsMaterial:Plastic POMSurface:Natural

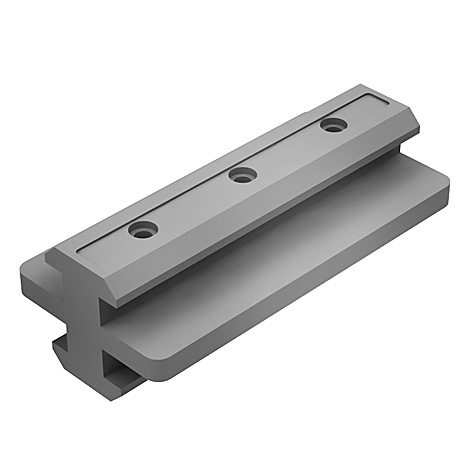

Delivery Countries:WorldwideDescription:To guide slidingly profiles with slot; economic and wear-resistant solution, e.g. for sliding doorsFastening:With sheet-metal screwsMaterial:Plastic POMSurface:Natural

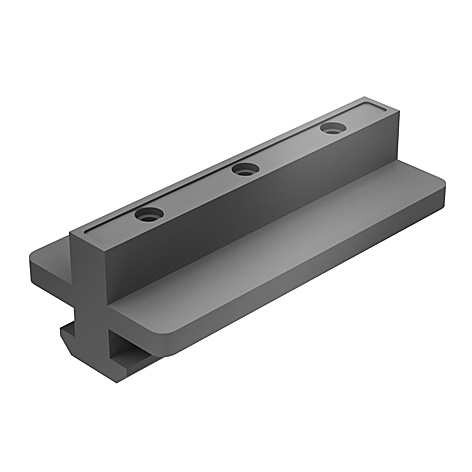

Delivery Countries:WorldwideDescription:To guide slidingly profiles with slot; economic and wear-resistant solution, e.g. for panelsFastening:With sheet-metal screwsMaterial:Plastic POMSurface:Natural

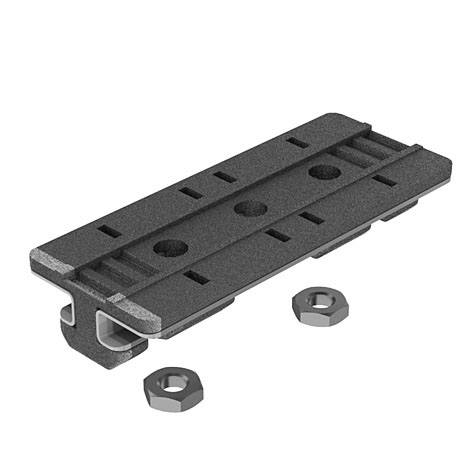

Color:Slide shoe: NaturalDelivery Countries:WorldwideDescription:To guide slidingly profiles with slot 8, delivered with hexagon nuts M6 forthe fixation of add-on elementsMaterial:Sliding carriage: Zinc die-cast Slide shoe: Plastic POM Fixation: SteelSet:1 sliding carriage, 2 slide shoes, 2 hexagon nuts DIN EN ISO 4035 (DIN 439) - M6Surface:Sliding carriage: Zinc plated Fixation: Zinc platedTip:Compatible Profile Sliders ZN 40 x 80 sets with assembly set for loose bearing and fixed bearing see 093PS0840L and 093PS0840F

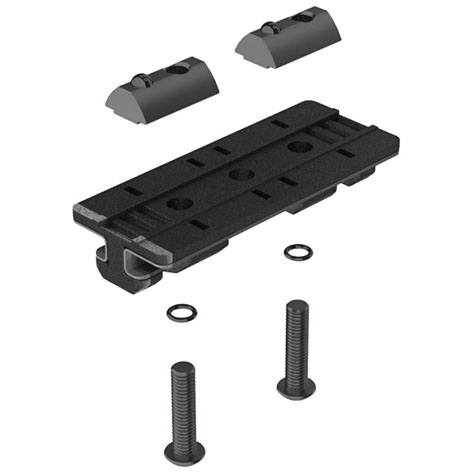

Color:Slide shoe: Natural O-ring: BlackDelivery Countries:WorldwideDescription:To guide slidingly profiles with slot 8, fixed bearing*Material:Sliding carriage: Zinc die-cast Slide shoe: Plastic POM Fixation: Steel O-ring: EPDMSet:1 sliding carriage, 2 slide shoes, 2 button head screws DIN EN ISO 7380 (DIN 34805) - M6 x 25, 2 O-rings DIN EN ISO 3601 (DIN 3771) - 5 x 1.5, 2 T-slot nuts - slot 8 - M6Surface:Sliding carriage: Zinc plated Fixation: Zinc platedTip:*Profile tracks with several profile sliders ZN 40 x 80 need to be executed as a combination of a loose bearing (L) and a fixed bearing (F). This way, shape tolerances can be compensated and easy movability is provided.; Compatible Profile Slider ZN 40 x 80 loose bearing see 093PS0840L
Color:Slide shoe: Natural Cam lever handle: Black O-ring: BlackDelivery Countries:WorldwideDescription:To guide slidingly profiles with slot 8, fixed bearing*, the additional clamping feature for the slide carriage extends the range of applications, e.g as quickly adjustable end stopMaterial:Sliding carriage: Zinc die-cast Slide shoe: Plastic POM Fixation: Steel Cam lever handle: Plastic, glass fiber reinforced Cam lever mechanics: Steel O-ring: EPDMSet:1 sliding carriage, 2 slide shoes, 1 cam lever with external thread M6 x 55**, 1 special T-slot nut - slot 8 - M6, 2 button head screws DIN EN ISO 7380 (DIN 34805) - M6 x 25, 2 O-rings DIN EN ISO 3601 (DIN 3771) - 5 x 1.5, 2 T-slot nuts - slot 8 - M6Surface:Sliding carriage: Zinc plated Slide shoe: Zinc plated Cam lever mechanics: Zinc platedTip:*Profile tracks with several profile slides: ZN 40 x 80 need to be executed as a combination of a loose bearing (L) and a fixed bearing (F). This way, shape tolerances can be compensated and easy movability is provided, Compatible Profile Slider ZN 40 x 80 Loose bearing see 093PS0840L, Loose bearing with cam lever see 093PS0840LS02Tip 2:**Use of the M6 cam lever: 40 mm profile + 40 mm profile, thread length: 55 mm Cut to length of the M6 cam lever, e.g.: 40 mm profile + 20 mm profile, cut thread length to: 35 mm 40 mm profile + 10 mm panel, cut thread length to: 25 mm

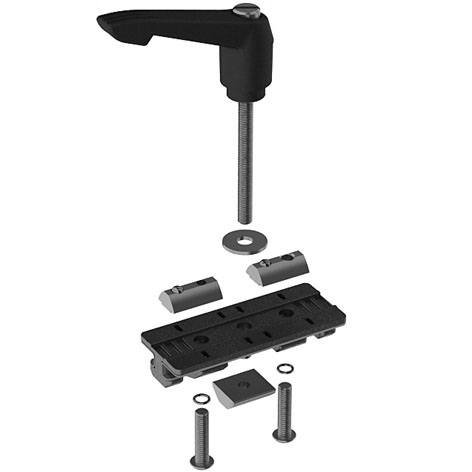

Color:Slide shoe: Natural Clamp lever handle: Black O-ring: BlackDelivery Countries:WorldwideDescription:To guide slidingly profiles with slot 8,fixed bearing*; the additional clamping feature for the slide carriage extends the range of applications, e.g as adjustable end stop; retention force at maximum tightening torque (15 Nm) 600 NMaterial:Sliding carriage: Zinc die-cast Slide shoe: Plastic POM Fixation: Steel Clamp lever handle: Plastic, glass fiber reinforced Clamp lever mechanics: Steel O-ring: EPDMSet:1 sliding carriage, 2 slide shoes, 1 clamp lever with external thread M6 x 55**, 1 special T-slot nut - slot 8 - M6, 1 shim DIN EN ISO 7093 (DIN 9021) 6.4 mm, 2 button head screws DIN EN ISO 7380 (DIN 34805) - M6 x 25, 2 O-rings DIN EN ISO 3601 (DIN 3771) - 5 x 1.5, 2 T-slot nuts - slot 8 - M6Surface:Sliding carriage: Zinc plated Slide shoe: Zinc plated Clamp lever mechanics: Oxide finishTip:*Profile tracks with several profile slides ZN 40 x 80 need to be executed as a combination of a loose bearing (L) and a fixed bearing (F). This way, shape tolerances can be compensated and easy movability is provided. Compatible Profile Slider ZN 40 x 80 Loose bearing see 093PS0840L Loose bearing with clamp lever see 093PS0840LS01Tip 2:**Use of the M6 clamp lever: 40 mm profile + 40 mm profile, thread length: 55 mm Cut to length of the M6 clamp lever, e.g.: 40 mm profile + 20 mm profile, cut thread length to: 35 mm 40 mm profile + 10 mm panel, cut thread length to: 25 mm

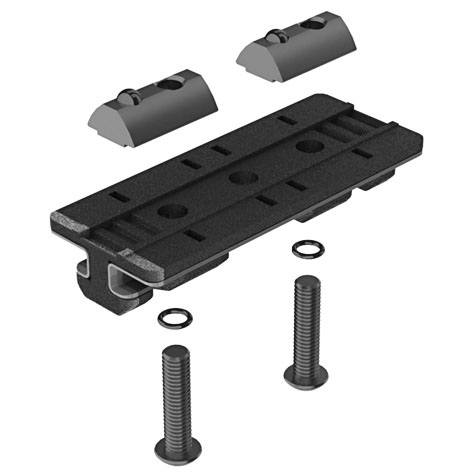

Color:Slide shoe: Natural O-ring: BlackDelivery Countries:WorldwideDescription:To guide slidingly profiles with slot 8, loose bearing*Material:Sliding carriage: Zinc die-cast Slide shoe: Plastic POM Fixation: Steel O-ring: EPDMSet:1 sliding carriage, 2 slide shoes, 2 button head screws DIN EN ISO 7380 (DIN 34805) - M5 x 25, 2 O-rings DIN EN ISO 3601 (DIN 3771) - 5 x 1.5, 2 T-slot nuts - slot 8 - M5Surface:Sliding carriage: Zinc plated Fixation: Zinc platedTip:*Profile tracks with several profile slides ZN 40 x 80 need to be executed as a combination of a loose bearing (L) and a fixed bearing (F). This way, shape tolerances can be compensated and easy movability is provided.; Compatible Profile Slider ZN 40 x 80 Fixed Bearing see 093PS0840F

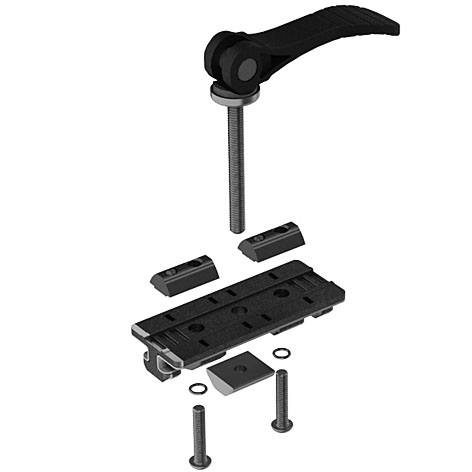

Color:Slide shoe: Natural Cam lever handle: Black O-ring: BlackDelivery Countries:WorldwideDescription:To guide slidingly profiles with slot 8, loose bearing*, the additional clamping feature for the slide carriage extends the range of applications, e.g as quickly adjustable end stopMaterial:Sliding carriage: Zinc die-cast Slide shoe: Plastic POM Fixation: Steel Cam lever handle: Plastic, glass fiber reinforced Cam lever mechanics: Steel O-ring: EPDMSet:1 sliding carriage, 2 slide shoes, 1 cam lever with external thread M6 x 55**, 1 special T-slot nut - slot 8 - M6, 2 button head screws DIN EN ISO 7380 (DIN 34805) - M5 x 25, 2 O-rings DIN EN ISO 3601 (DIN 3771) - 5 x 1.5, 2 T-slot nuts - slot 8 - M5Surface:Sliding carriage: Zinc plated Slide shoe: Zinc plated Cam lever mechanics: Zinc platedTip:*Profile tracks with several profile slides ZN 40 x 80 need to be executed as a combination of a loose bearing (L) and a fixed bearing (F). This way, shape tolerances can be compensated and easy movability is provided. Compatible Profile Slider ZN 40 x 80 Fixed Bearing see 093PS0840F Fixed bearing with cam lever see 093PS0840FS02Tip 2:**Use of the M6 cam lever: 40 mm profile + 40 mm profile, thread length: 55 mm Cut to length of the M6 cam lever, e.g.: 40 mm profile + 20 mm profile, cut thread length to: 35 mm 40 mm profile + 10 mm panel, cut thread length to: 25 mm

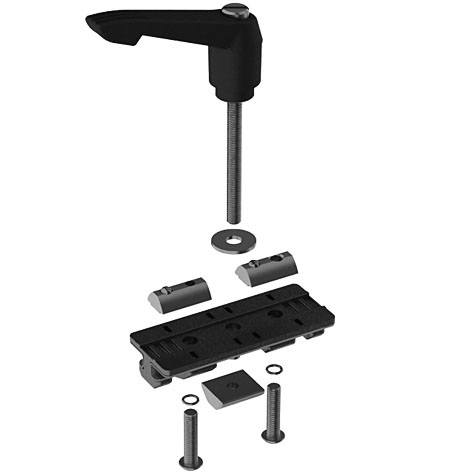

Color:Slide shoe: Natural Clamp lever handle: Black O-ring: BlackDelivery Countries:WorldwideDescription:To guide slidingly profiles with slot 8, loose bearing*, the additional clamping feature for the slide carriage extends the range of applications, e.g as adjustable end stop; retention force at maximum tightening torque (15 Nm) 600 NMaterial:Sliding carriage: Zinc die-cast Slide shoe: Plastic POM Fixation: Steel Clamp lever handle: Plastic, glass fiber reinforced Clamp lever mechanics: Steel O-ring: EPDMSet:1 sliding carriage, 2 slide shoes, 1 clamp lever with external thread M6 x 55**, 1 special T-slot nut - slot 8 - M6, 1 shim DIN EN ISO 7093 (DIN 9021) 6.4 mm, 2 button head screws DIN EN ISO 7380 (DIN 34805) - M5 x 25, 2 O-rings DIN EN ISO 3601 (DIN 3771) - 5 x 1.5, 2 T-slot nuts - slot 8 - M5Surface:Sliding carriage: Zinc plated Slide shoe: Zinc plated Clamp lever mechanics: Oxide finishTip:*Profile tracks with several profile slides ZN 40 x 80 need to be executed as a combination of a loose bearing (L) and a fixed bearing (F). This way, shape tolerances can be compensated and easy movability is provided. Compatible Profile Slider ZN 40 x 80 Loose bearing see 093PS0840L Fixed bearing with clamp lever see 093PS0840FS01Tip 2:**Use of the M6 clamp lever: 40 mm profile + 40 mm profile, thread length: 55 mm Cut to length of the M6 clamp lever, e.g.: 40 mm profile + 20 mm profile, cut thread length to: 35 mm 40 mm profile + 10 mm panel, cut thread length to: 25 mm

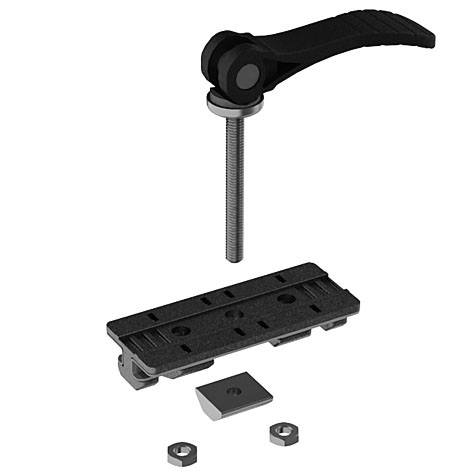

Color:Slide shoe: Natural Cam lever handle: BlackDelivery Countries:WorldwideDescription:To guide slidingly profiles with slot 8, the additional clamping feature for the slide carriage extends the range of applications, e.g as quickly adjustable end stop; including hexagon nuts M6 for the attachment of additional componentsMaterial:Sliding carriage: Zinc die-cast Slide shoe: Plastic POM Fixation: Steel Cam lever handle: Plastic, glass fiber reinforced Cam lever mechanics: SteelSet:1 sliding carriage, 2 slide shoes, 1 cam lever with external thread M6 x 55*, 1 special T-slot nut - slot 8 - M6, 2 hexagon nuts DIN EN ISO 4035 (DIN 439) - M6Surface:Sliding carriage: Zinc plated Slide shoe: Zinc plated Cam lever mechanics: Zinc platedTip:*Use of the M6 cam lever: 40 mm profile + 40 mm profile, thread length: 55 mm Cut to length of the M6 cam lever, e.g.: 40 mm profile + 20 mm profile, cut thread lenghth to: 35 mm 40 mm profile + 10 mm panel, cut thread lenghth to: 25 mm
Color:Slide shoe: Natural Clamp lever handle: BlackDelivery Countries:WorldwideDescription:To guide slidingly profiles with slot 8; the additional clamping feature for the slide carriage extends the range of applications, e.g as adjustable end stop; Retention force at maximum tightening torque(15 Nm) 600 N; including hexagon nuts M6 for the attachment of additional componentsMaterial:Sliding carriage: Zinc die-cast Slide shoe: Plastic POM Fixation: Steel Clamp lever handle: Plastic, glass fiber reinforced Clamp lever mechanics: SteelSet:1 sliding carriage, 2 slide shoes, 1 clamp lever with external thread M6 x 55*, 1 special T-slot nut - slot 8 - M6, 1 shim DIN EN ISO 7093 (DIN 9021) 6.4 mm, 2 hexagon nuts DIN EN ISO 4035 (DIN 439) - M6Surface:Sliding carriage: Zinc plated Slide shoe: Zinc plated Clamp lever mechanics: Oxide finishTip:*Use of the M6 clamp lever: 40 mm profile + 40 mm profile, thread length: 55 mm Cut to length of the M6 clamp lever, e.g.: 40 mm profile + 20 mm profile, cut thread lenghth to: 35 mm 40 mm profile + 10 mm panel, cut thread lenghth to: 25 mm

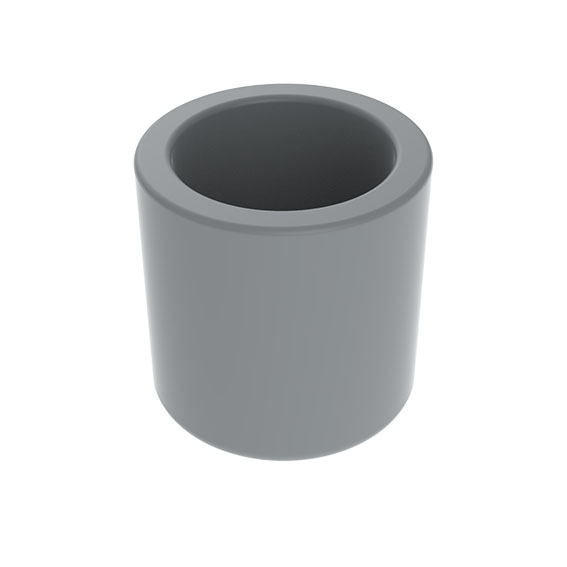

Color:Gray ≈ RAL 7042Delivery Countries:WorldwideDescription:To prevent damages, scratches or injuries by the end of tubular frame profiles with Ø 30 mm outer diameter; End-position damping in Karakuri/LCA applications; Prevents movement of tubular frame profiles on slippery surfaces and absorbs some vibration; Punch through safe due to added steel inlay, elastic and surrounding designMaterial:Protection cap: Plastic TPE Inlay: SteelSpecials:Other colors, other sizes on requestSurface:Inlay: Zinc plated

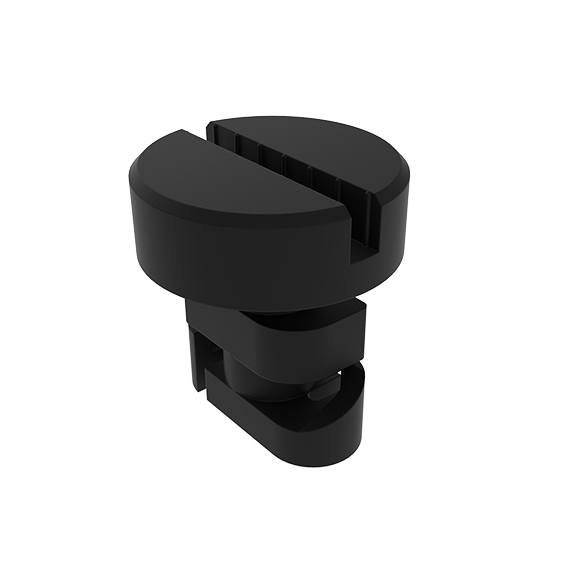

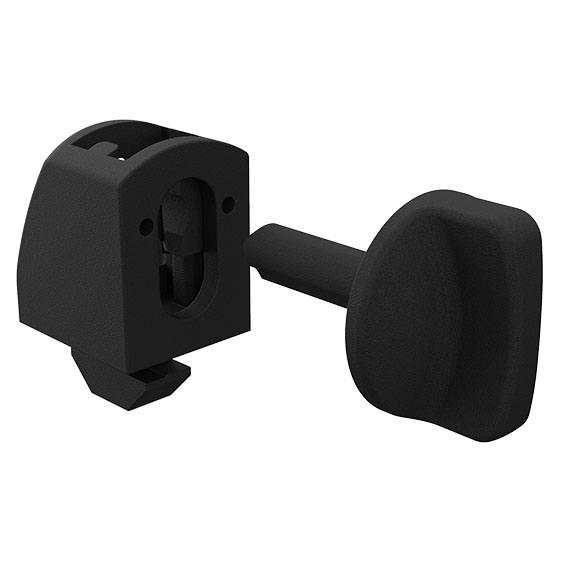

Color:BlackDelivery Countries:WorldwideDescription:To attach panels quickly 1- 12 mm to aluminum profilesMaterial:Plastic PA, glass fiber reinforcedSpecials:Customized hammer, other colors on request
Color:BlackDelivery Countries:WorldwideDescription:To fasten cable ducts to aluminum profilesMaterial:Plastic PA, glass fiber reinforced

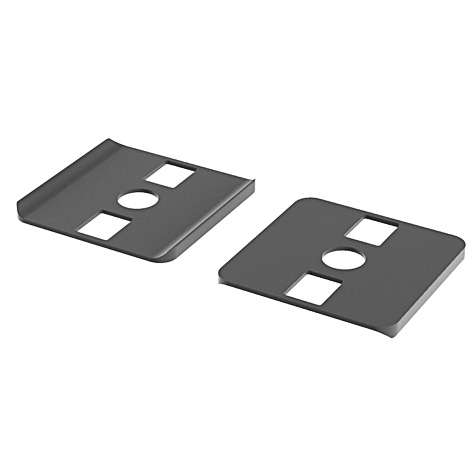

Color:Gray ≈ RAL 7042Delivery Countries:WorldwideDescription:To seal the transition between two profiles at a tee connection, especially for clean room applicationsMaterial:Plastic PA, glass fiber reinforcedSpecials:Other colors on request

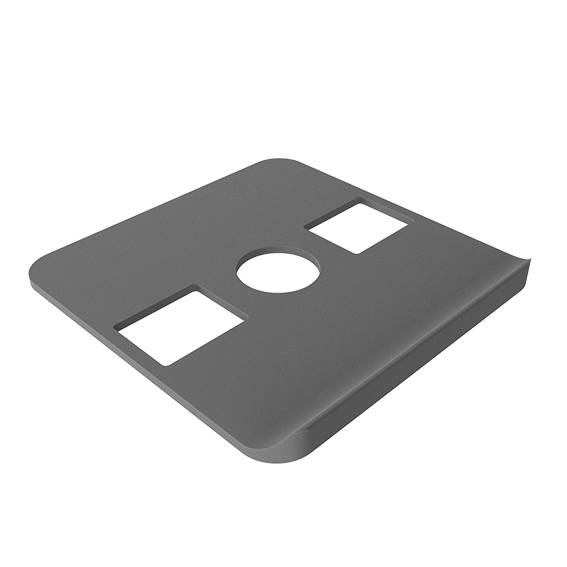

Color:Gray ≈ RAL 7042Delivery Countries:WorldwideDescription:To seal the transition between two profiles at a tee connection, especially for clean room applicationsMaterial:Plastic PA, glass fiber reinforcedSpecials:Other colors on request
