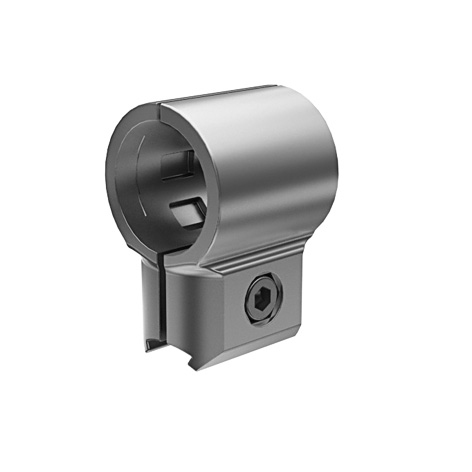

Delivery Countries:WorldwideDescription:To parallelly connect a tube or a tubular frame profile to a tubular frame profile with Ø 28 mm outer diameter; with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for parallel clamp D28, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 25, 1 self-locking nut DIN EN ISO 10511 (DIN 985) - M6Surface:Connector: Plain Assembly set: Zinc plated

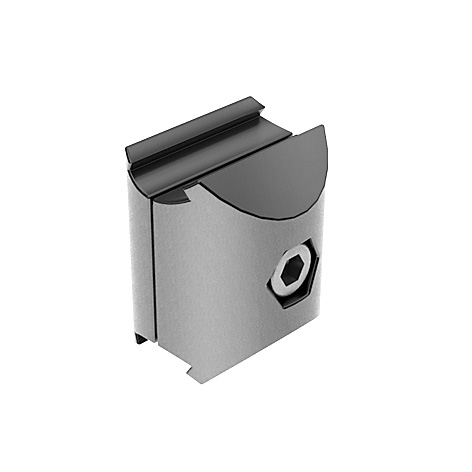

Delivery Countries:WorldwideDescription:To parallelly connect two tubular frame profileswith Ø 28 mm outer diameter; with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for parallel connector D28, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 25, 1 self-locking nut DIN EN ISO 10511 (DIN 985) - M6Surface:Connector: Plain Assembly set: Zinc plated

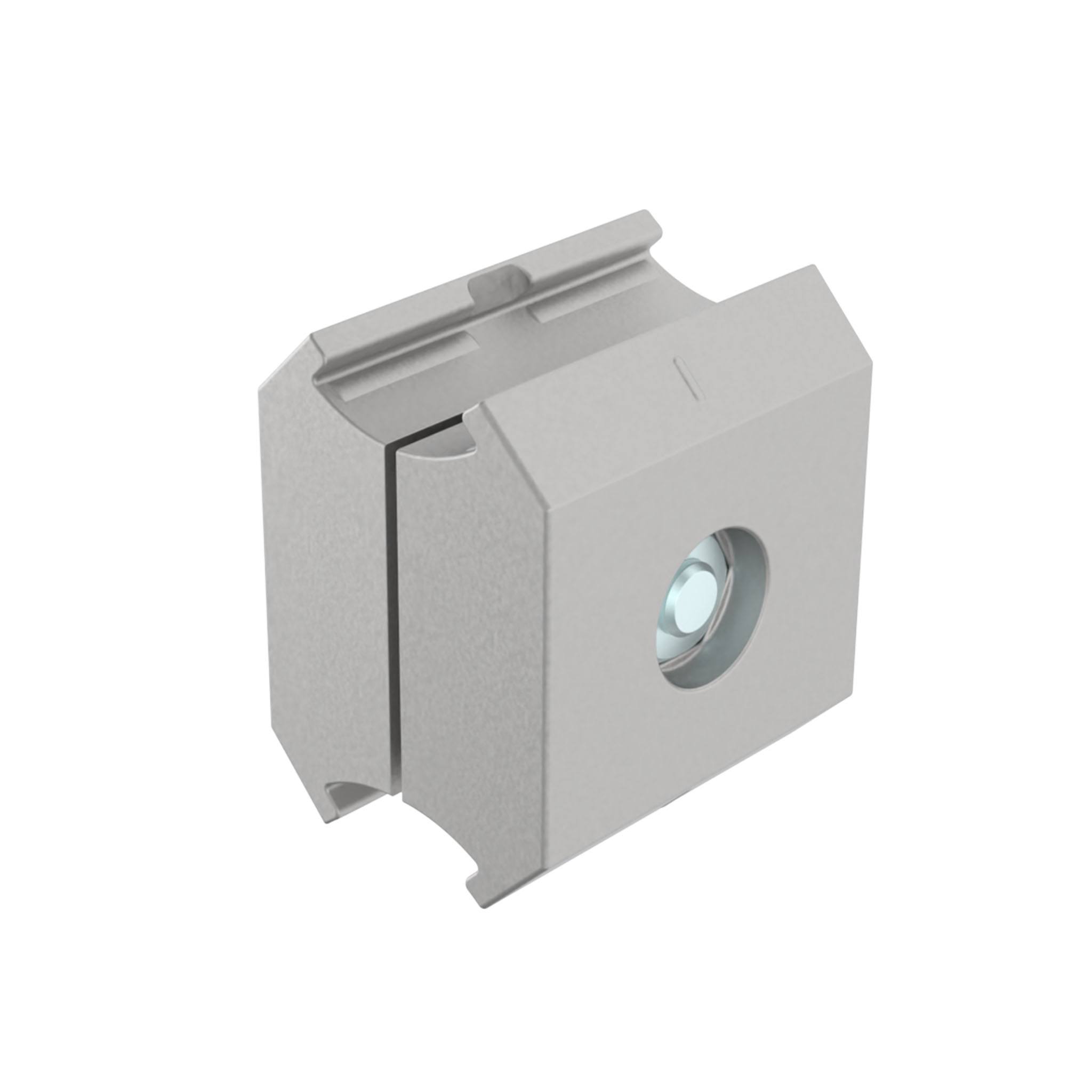

Delivery Countries:WorldwideDescription:To parallelly connect two tubular frame profiles with Ø 30 mm outer diameter; with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for parallel connector D30, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 20, 1 self-locking nut DIN EN ISO 4032 (DIN 934) - M6Surface:Assembly set: Zinc platedTip:Compatible Cover Caps for Tubular Frame Connectors D30 see 099RV30CC07

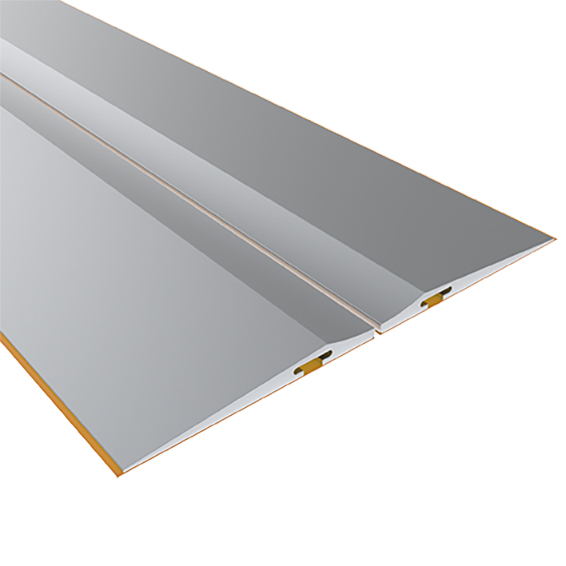

Delivery Countries:WorldwideDescription:For precise positioning of dollys or material trolleys, suitable for different wheel diameters, no brakes needed; self-adhesive, for tool-free assembly, no screwing required, immediately ready for useFastening:Self-adhesive surface on the backsideMaterial:AluminumSurface:PlainTip:When ordering, please note: Replace "1200" in the part no. with the required length in mm, e.g. "0350" for 350 mm or "2000" for 2000 mmTip 2:Compatible End Cap for Wheel Diameter ≤ 100 mm see 02084LLS01

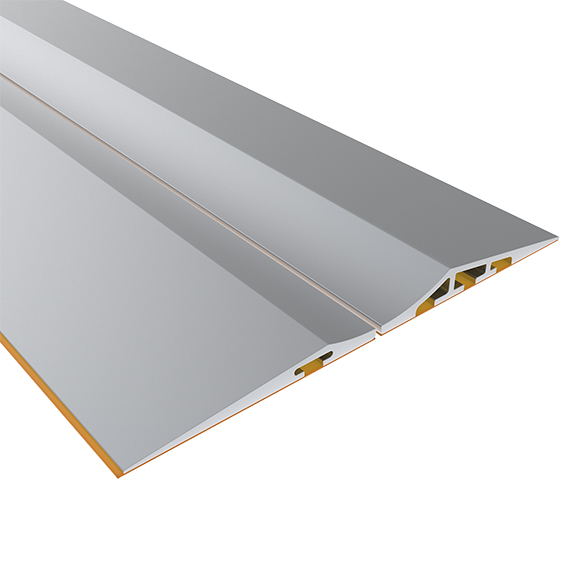

Delivery Countries:WorldwideDescription:For precise positioning of dollys or material trolleys, suitable for different wheel diameters, no brakes needed; self-adhesive, for tool-free assembly, no screwing required, immediately ready for useFastening:Self-adhesive surface on the backsideMaterial:AluminumSurface:PlainTip:When ordering, please note: Replace "1200" in the part no. with the required length in mm, e.g. "0350" for 350 mm or "2000" for 2000 mmTip 2:Compatible End Cap for Wheel Diameter ≤ 100 mm see 02084LHS01 Compatible End Cap XL for Wheel Diameter > 100 mm see 02084LHXLS01

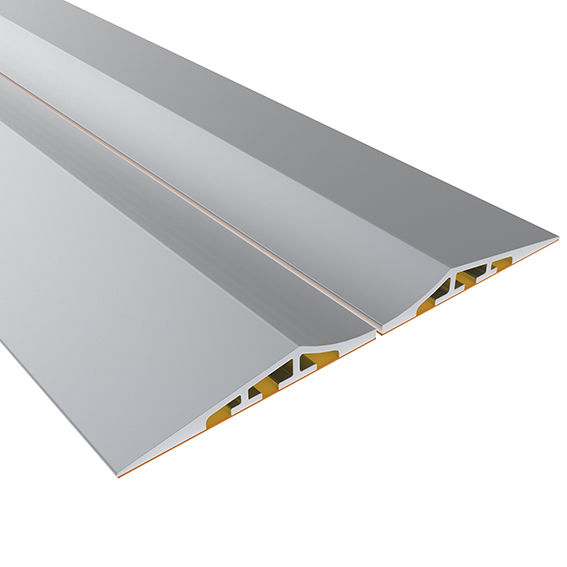

Delivery Countries:WorldwideDescription:For precise positioning of dollys or material trolleys, suitable for different wheel diameters, no brakes needed; self-adhesive, for tool-free assembly, no screwing required, immediately ready for useFastening:Self-adhesive surface on the backsideMaterial:AluminumSurface:PlainTip:When ordering, please note: Replace "1200" in the part no. with the required length in mm, e.g. "0350" for 350 mm or "2000" for 2000 mmTip 2:Compatible End Cap for Wheel Diameter ≤ 100 mm see 02084HHS01 Compatible End Cap XL for Wheel Diameter > 100 mm see 02084HHXLS01

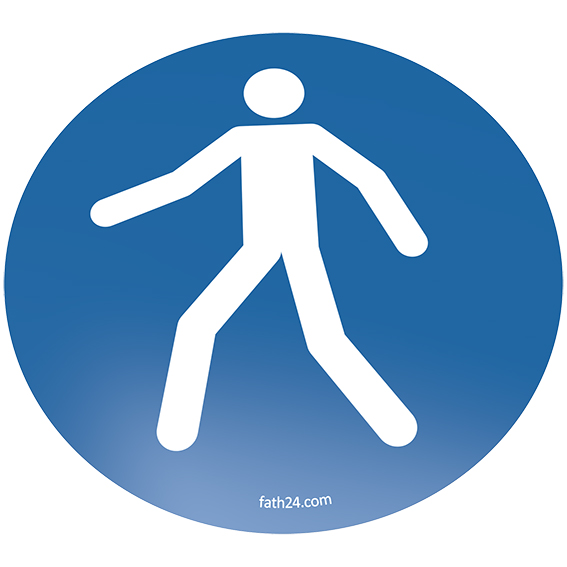

Color:Blue / whiteDelivery Countries:WorldwideDescription:For fast and reliable safety marking according to ASR A1.3 / DIN EN ISO 7010, self-adhesive; Easy recognition from long distance; Forklift-resistant and slip-proof floor sign with outstanding adhesive strength, suitable for almost all industrial floorsFastening:Self-adhesive surface on the backsideMaterial:Plastic PVC

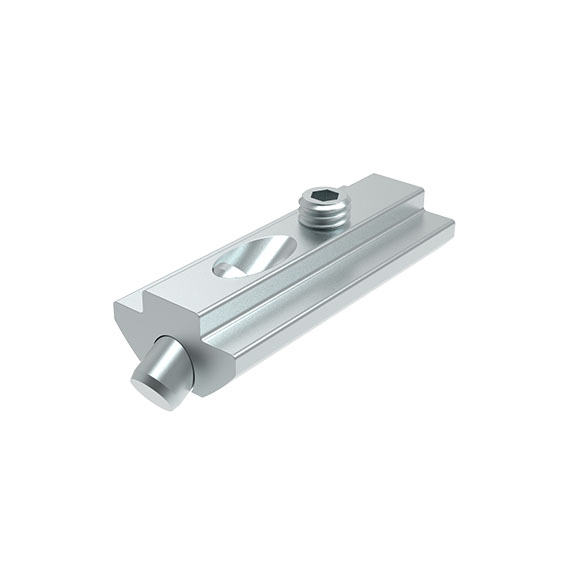

Delivery Countries:WorldwideDescription:To enhance the stability of a connection against displacement; a Ø 5.9 mm hole must be drilled into one profileMaterial:Pin T-slot nut: Steel Straight pin DIN EN ISO 8735 (DIN 7979) D6 m6 x 16: Steel Hexagon socket set screw DIN EN ISO 4029 (DIN 916) M6 x 12: SteelSurface:Zinc plated

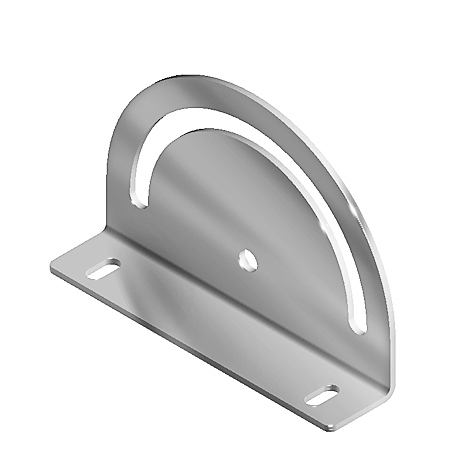

Delivery Countries:WorldwideDescription:To connect aluminum profiles at an adjustable angle; can be fixed with a locking leverMaterial:SteelSpecials:Other surfaces, other colors on requestSurface:Zinc plated

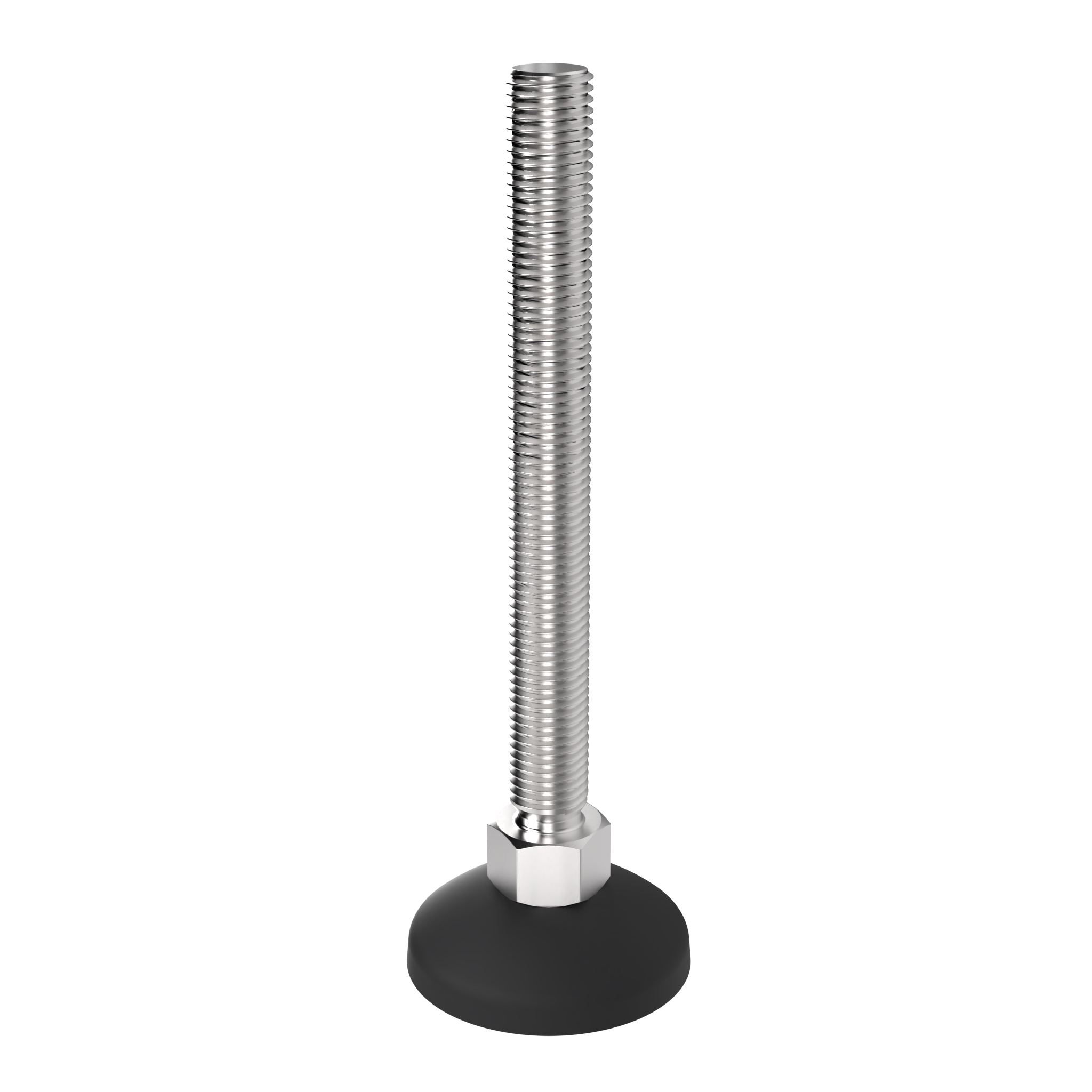

Color:Base: BlackDelivery Countries:WorldwideDescription:A leveling foot for strong positioning on slightly uneven floorsMaterial:Base: Plastic PA, glass ball reinforced Threaded rod: Stainless steelSpecials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request Other lengths and other sizes on requestSurface:Threaded rod: PlainTip:Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098AG050 et sq.

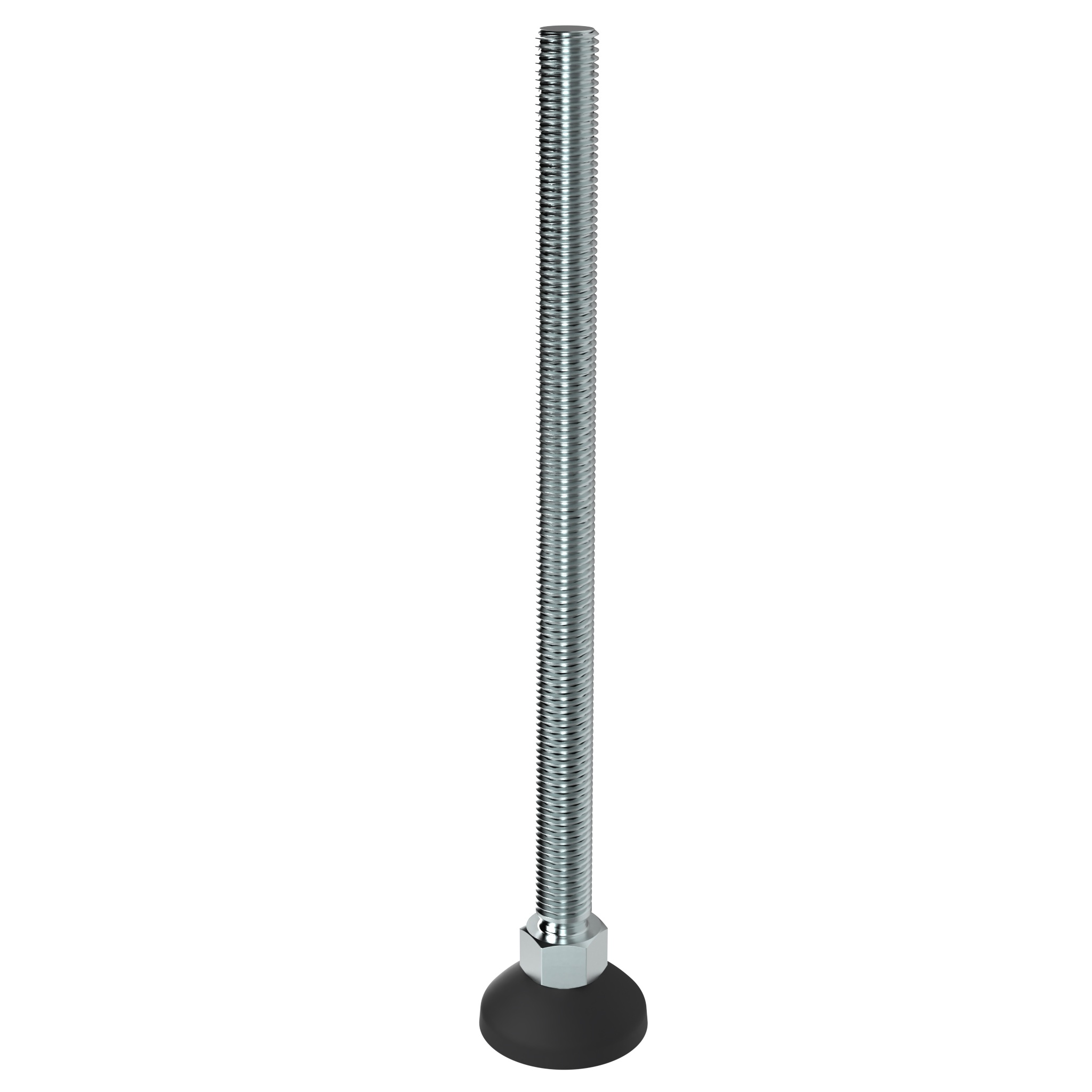

Color:Base: BlackDelivery Countries:WorldwideDescription:A leveling foot for strong positioning on slightly uneven floorsMaterial:Base: Plastic PA, glass ball reinforced Threaded rod: SteelSpecials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request Other lengths and other sizes on requestSurface:Threaded rod: Zinc platedTip:Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098AG050 et sq.

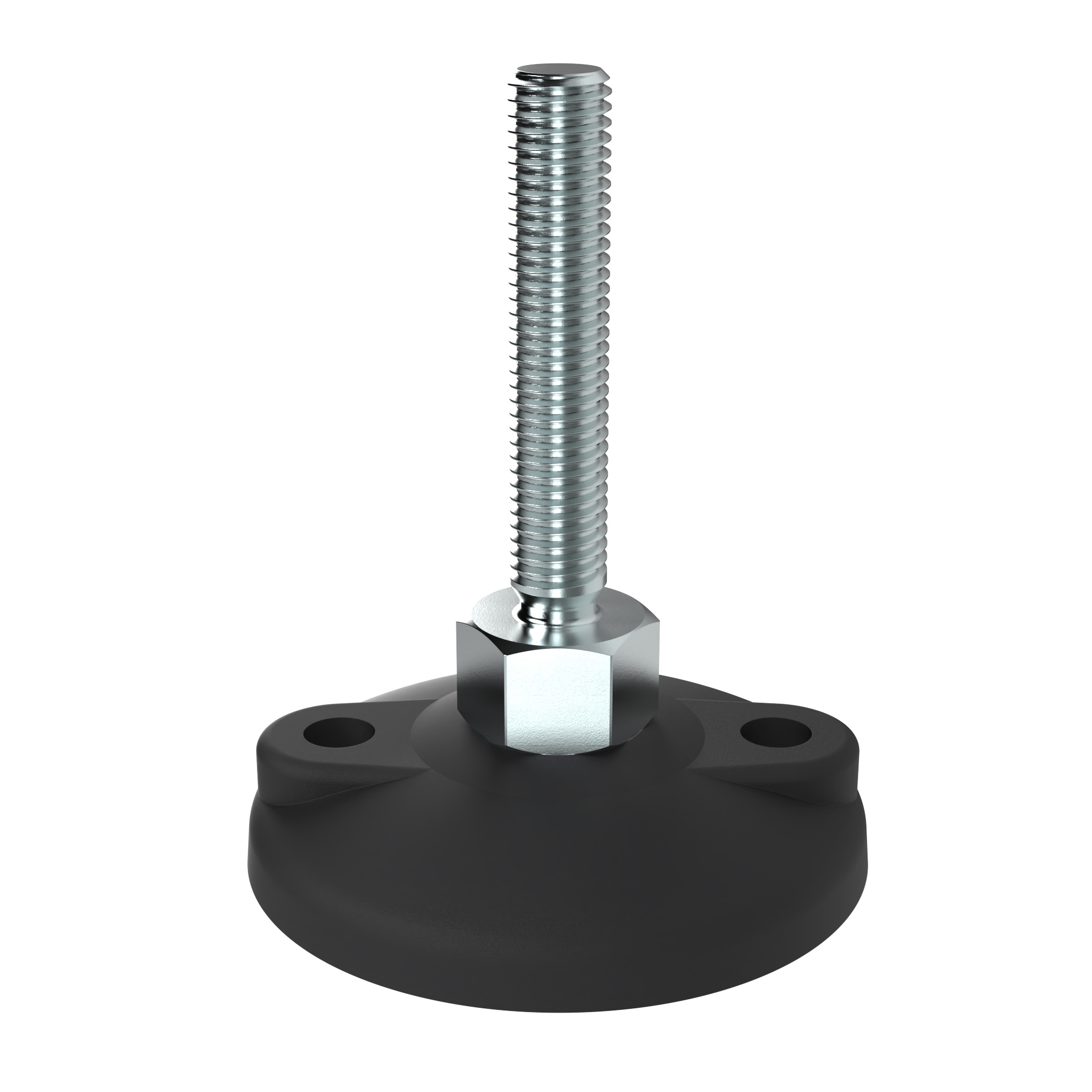

Color:Base: BlackDelivery Countries:WorldwideDescription:A leveling foot which can be fixed to the floorMaterial:Base: Plastic PA, glass ball reinforced Threaded rod: SteelSpecials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request Stainless steel, other lengths and other sizes on requestSurface:Threaded rod: Zinc platedTip:Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098AG050 et sq., *Bolt-down holes closed

Delivery Countries:WorldwideDescription:A leveling foot for strong positioning on slightly uneven floorsMaterial:Base: Stainless steel Threaded rod: Stainless steelSpecials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request Other lengths and other sizes on requestSurface:Base: Plain Threaded rod: Plain Tip:Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098AG050 et sq.

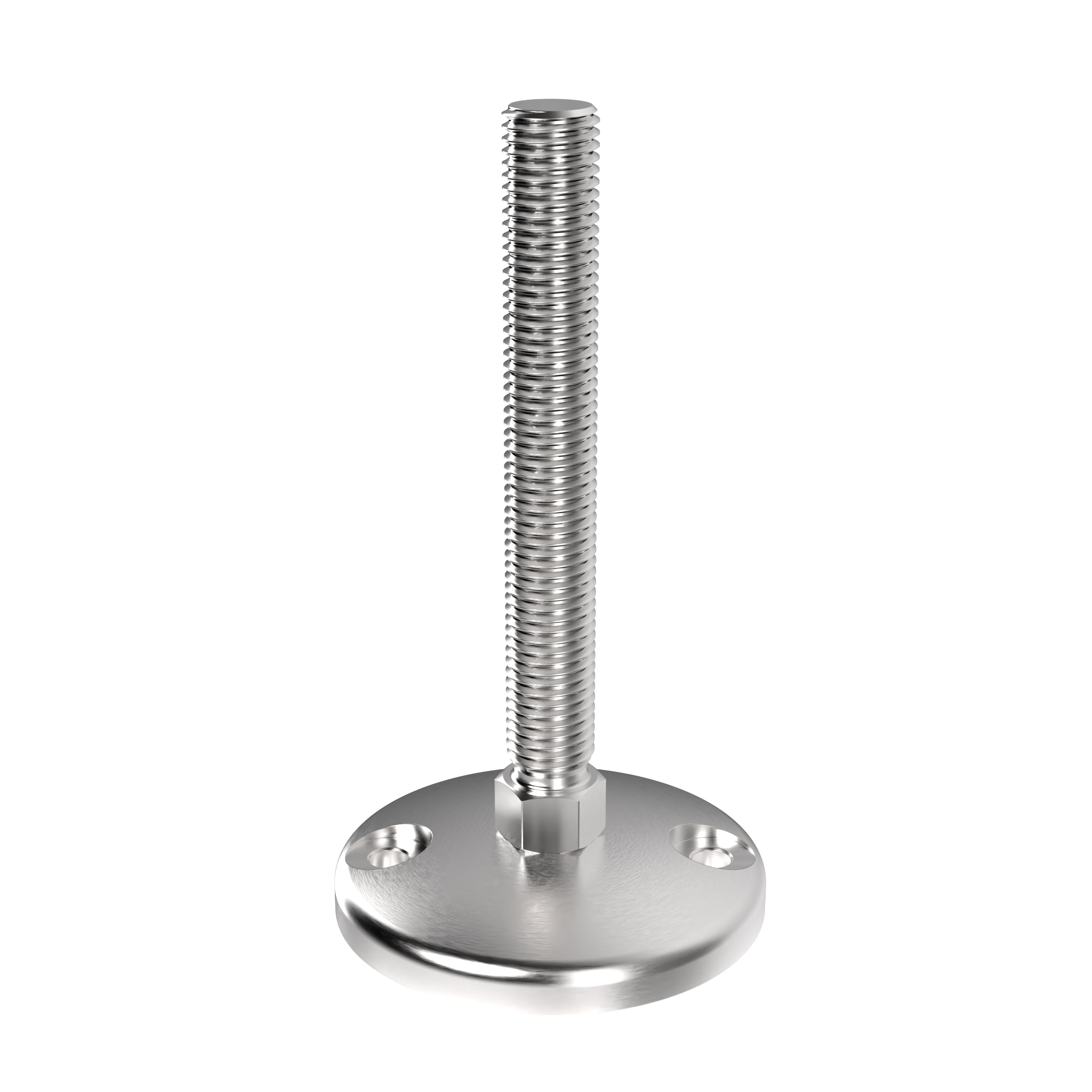

Delivery Countries:WorldwideDescription:A leveling foot which can be fixed to the floorMaterial:Base: Stainless steel Threaded rod: Stainless steelSpecials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request Other lengths and other sizes on requestSurface:Base: Plain Threaded rod: Plain Tip:Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098AG050 et sq.

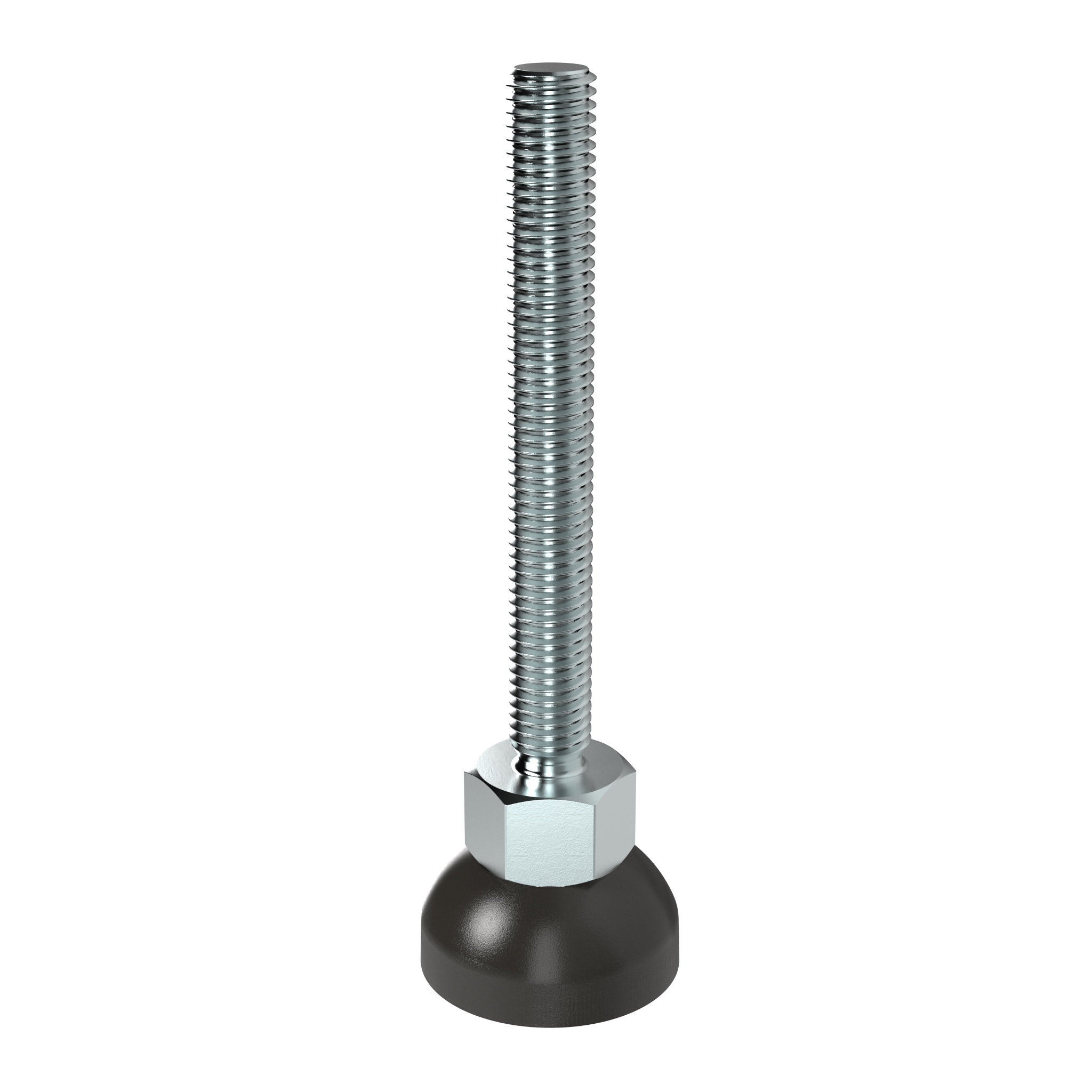

Color:Base: BlackDelivery Countries:WorldwideDescription:A leveling foot for strong positioning on slightly uneven floorsMaterial:Base: Zinc die-cast Threaded rod: SteelSpecials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request Other lengths and other sizes on requestSurface:Base: Powder coated Threaded rod: Zinc platedTip:Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098AG050 et sq.

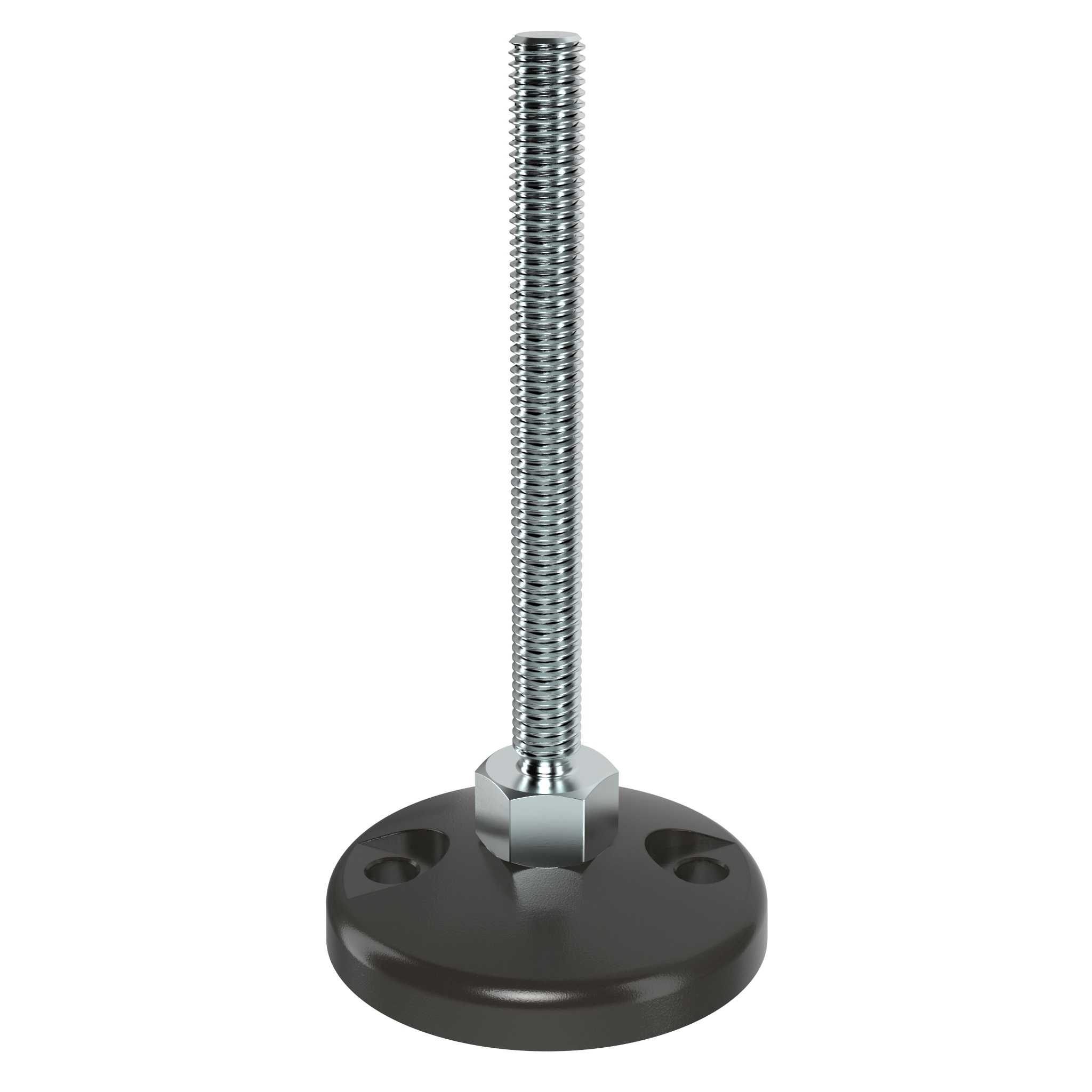

Color:Base: BlackDelivery Countries:WorldwideDescription:A leveling foot which can be fixed to the floorMaterial:Base: Zinc die-cast Threaded rod: SteelSpecials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request Stainless steel, other lengths and other sizes on requestSurface:Base: Powder coated Threaded rod: Zinc platedTip:Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098AG050 et sq.

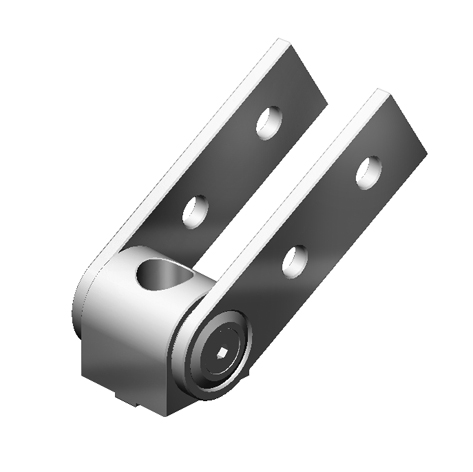

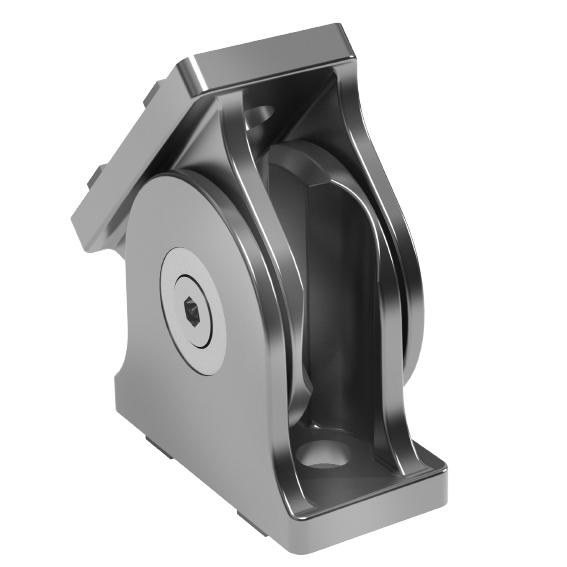

Color:Alu colorDelivery Countries:WorldwideDescription:To make a pivoting connection between two profiles, with separate locating pinsMaterial:Joint: Aluminum die-cast Centering piece 5/6 and 6/8: Plastic PA Centering piece 8/10: Zinc die-castSpecials:Other surfaces, other colors on requestSurface:Joint: Powder coated Centering piece: Plain

Color:Alu colorDelivery Countries:WorldwideDescription:To make a pivoting connection between two profiles, with separate locating pinsMaterial:Joint: Aluminum die-cast Centering piece 5/6 and 6/8: Plastic PA Centering piece 8/10: Zinc die-castSpecials:Other surfaces, other colors on requestSurface:Joint: Powder coated Centering piece: Plain

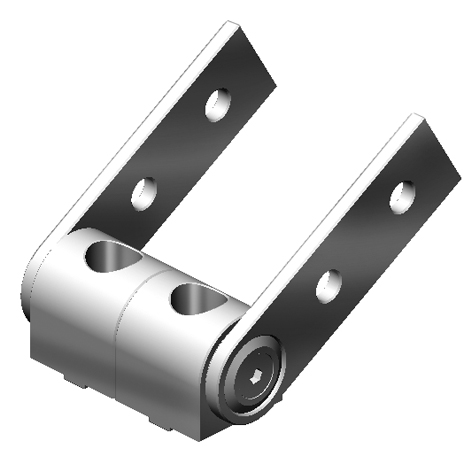

Color:Alu colorDelivery Countries:WorldwideDescription:To make a pivoting connection between two profiles or panels; with separate locating pins for slot 5 and slot 6; by tightening or loosening the screws you can seamlessly regulate the functionality of the joint or you can fix it in one positionMaterial:Aluminum die-castSurface:Powder coated

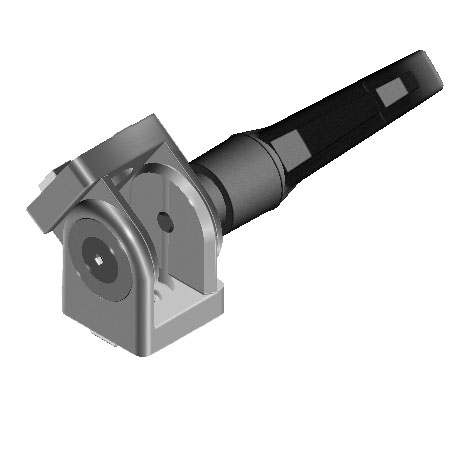

Color:Alu colorDelivery Countries:WorldwideDescription:For connection of two profiles or panels, with attachment at any angle, with separate slot fixing for slot 5 and slot 6; by tightening or loosening the screws and the KIPP-locking lever you can seamlessly regulate the functionality of the joint or you can fix it in one positionMaterial:Joint: Aluminum die-cast KIPP-locking lever: Plastic PA, glass fiber reinforcedSurface:Powder coated

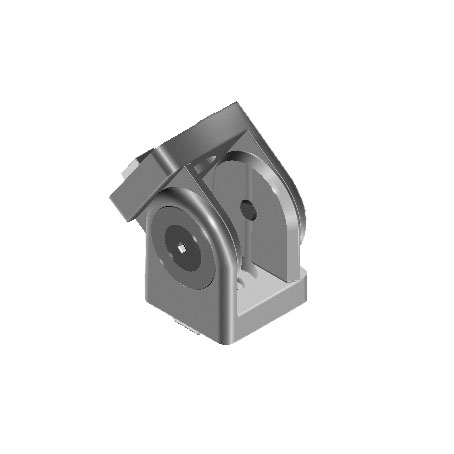

Color:Alu colorDelivery Countries:WorldwideDescription:To make a pivoting connection between two profiles or panels; with separate locating pins for slot 5 and slot 6; by tightening or loosening the screws you can seamlessly regulate the functionality of the joint or you can fix it in one positionMaterial:Aluminum die-castSpecials:Other surfaces, other colors on requestSurface:Powder coated

Color:Alu colorDelivery Countries:WorldwideDescription:To make a pivoting connection between two profiles or panels; fixed locating pins for slot 6 optional; by tightening or loosening the screws you can seamlessly regulate the functionality of the joint or you can fix it in one positionMaterial:Zinc die-castSpecials:Other surfaces, other colors on requestSurface:Powder coated

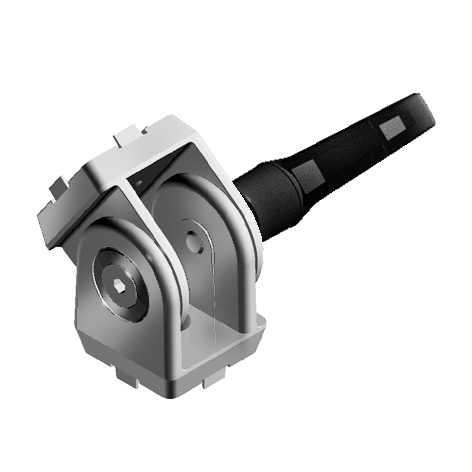

Color:Alu colorDelivery Countries:WorldwideDescription:To make a pivoting connection between 2 profiles or panels which can be fixed at any angle; fixed locating pins for slot 6 optional; by tightening or loosening the screws and the KIPP-locking lever you can seamlessly regulate the functionality of the joint or you can fix it in one positionMaterial:Joint: Zinc die-cast KIPP-locking lever: Plastic PA, glass fiber reinforcedSpecials:Other surfaces, other colors on requestSurface:Powder coated

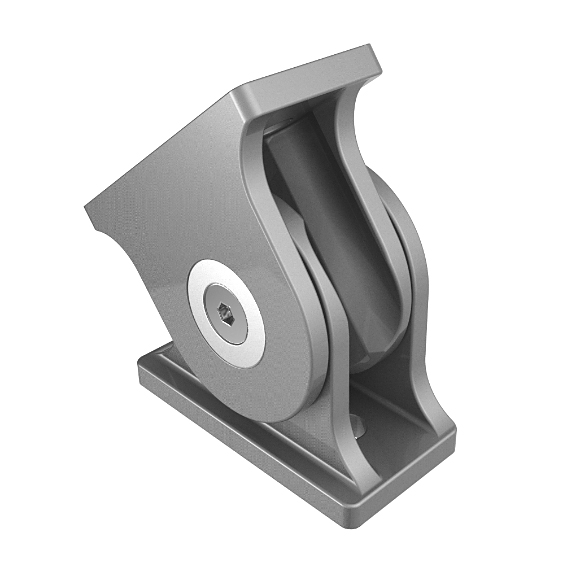

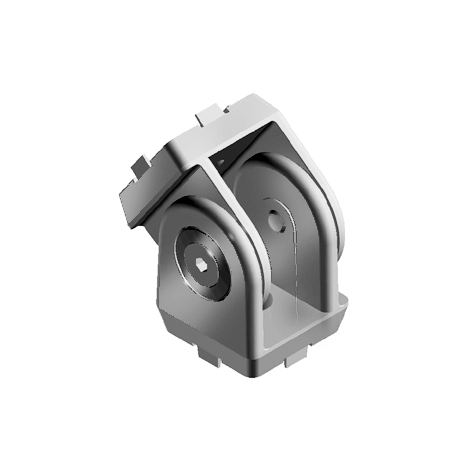

Color:Alu colorDelivery Countries:WorldwideDescription:To make a pivoting connection between two profiles or panels; by tightening or loosening the screws you can seamlessly regulate the functionality of the joint or you can fix it in one positionMaterial:Aluminum die-castSpecials:Other surfaces, other colors on requestSurface:Powder coated
