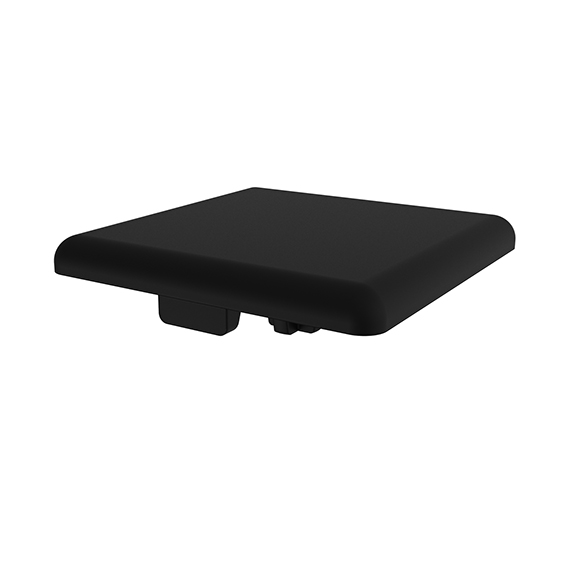

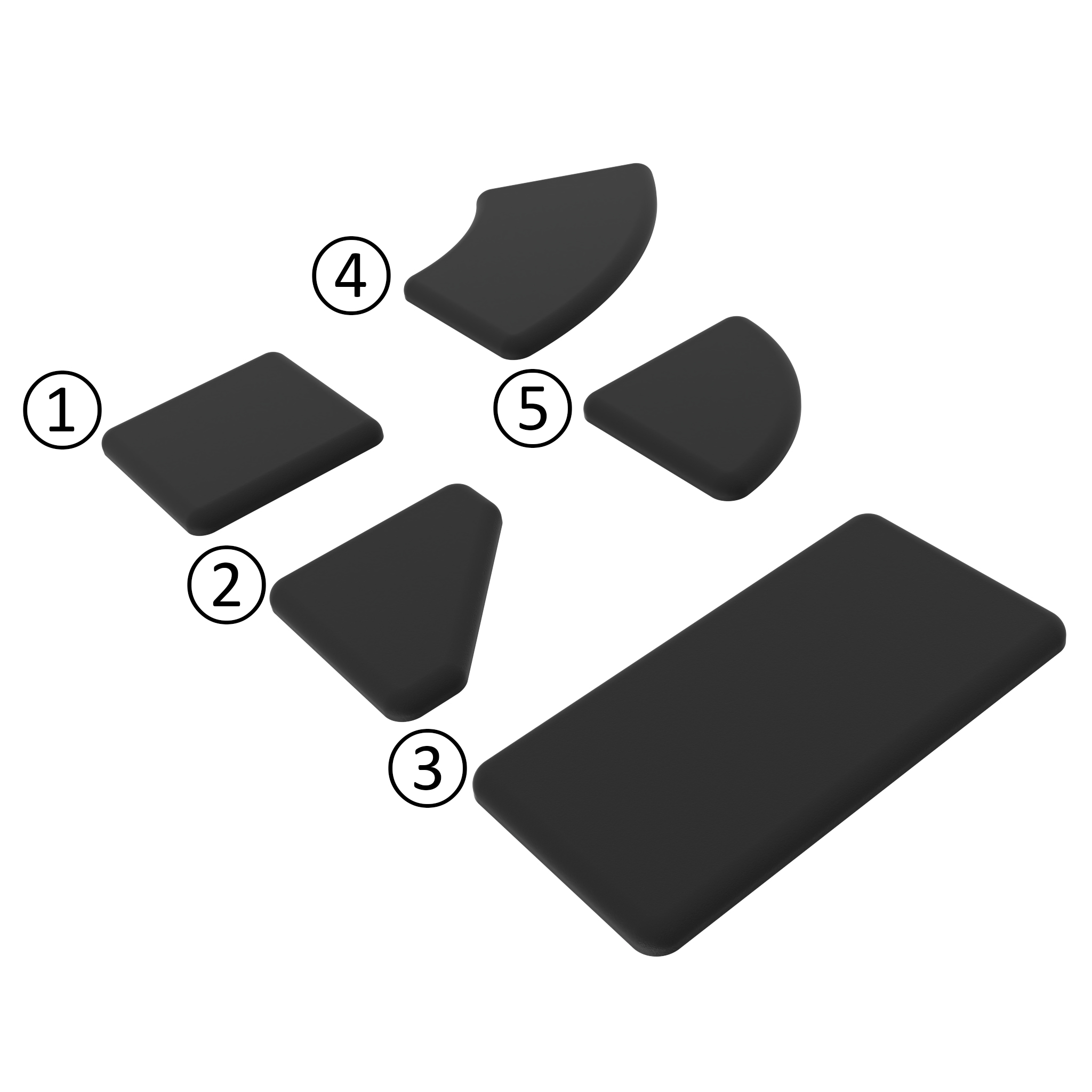

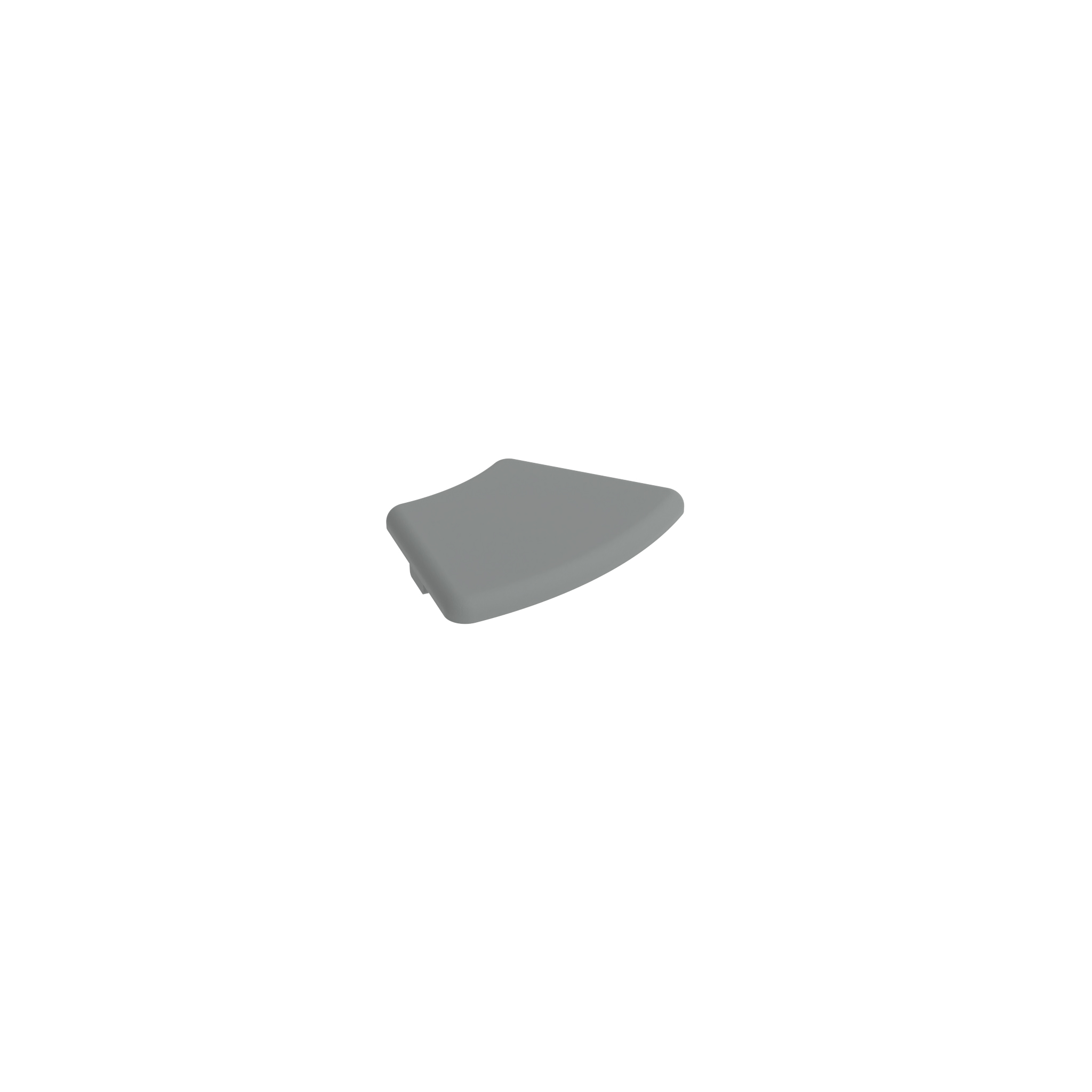

Cover Cap for 40 mm Modular Dimension
Cover Cap for 40 mm Modular Dimension
Color: Black | Dimensions A x B (mm): 40 x 40 R40 - 90° | Feature: 1 cross | Profile: I | R (mm): 2.5 | Slot N (mm): 8 | T (mm): 4.0 | ØD (mm): 7.2 (6.8)
Color:Black, grayDelivery Countries:WorldwideDescription:To cover the end of the profileMaterial:Plastic PA, glass fiber reinforced, * glass ball reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors on request

€0.00*

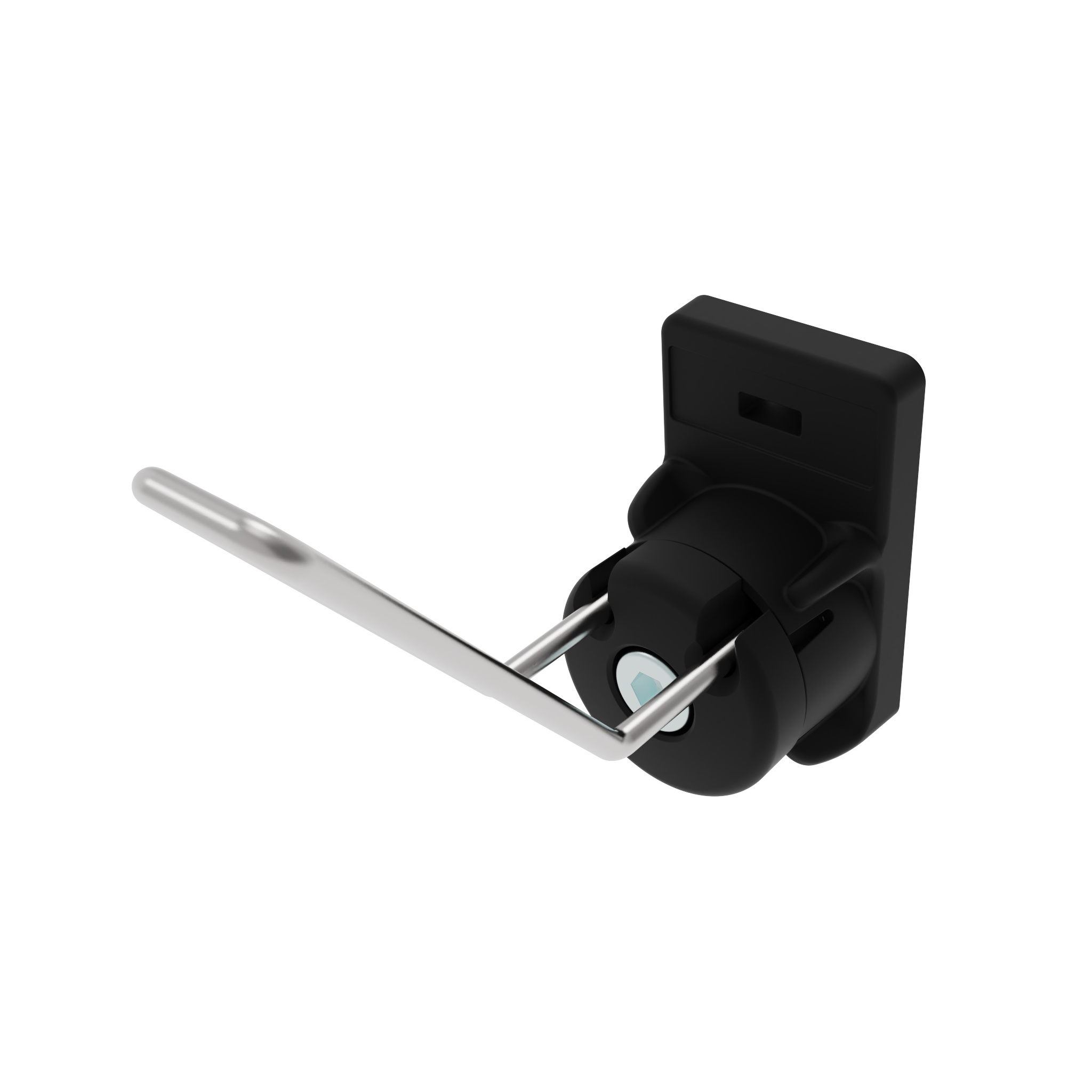

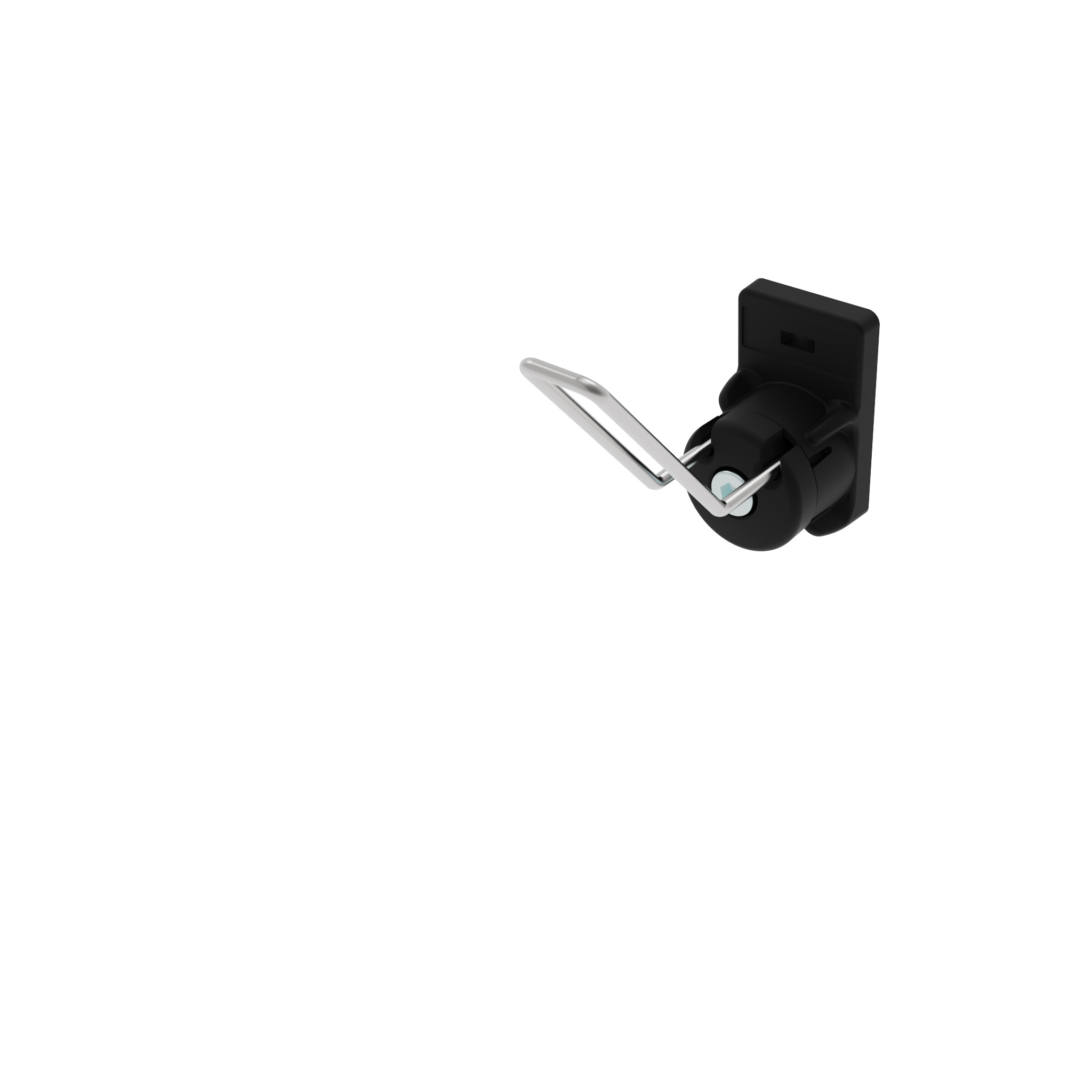

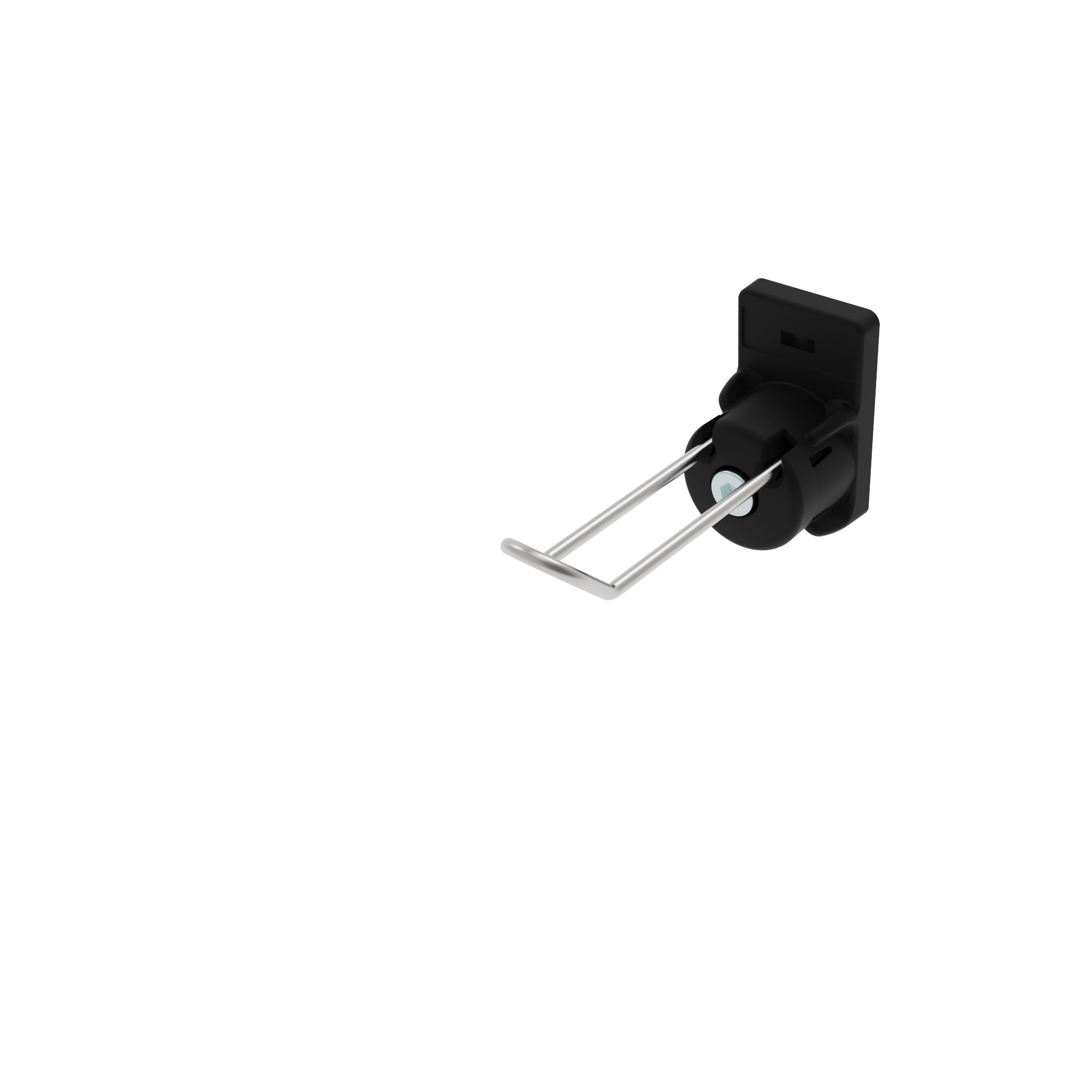

Tool Hook FX 17/57 - 24 for Square Holes 9 x 9 (8.7 x 8.7)
Tool Hook FX 17/57 - 24 for Square Holes 9 x 9 (8.7 x 8.7)
Color: Black | ESD: ESD electrostatical discharging
Color:Rear mounting holder: Black Front locking holder: BlackDelivery Countries:WorldwideDescription:Ready to use tool hook, 360° turnable, for perforated metals up to 1.4 mm thick; To organize workstations, with labeling area for standard labelsMaterial:Rear mounting holder ESD electrostatical discharging version: Plastic PA, carbon fibre reinforced Front locking holder ESD electrostatical discharging: Plastic PA, glass ball reinforced with carbon Wire: Stainless steel SS304 Spring: Spring steel SS313 Screw: Steel Nut: SteelSpecials:Other colors on request, For other sheet metal thicknesses on requestSurface:Screw: Zinc plated Nut: Zinc platedTip:For profiles 40 / 45, slot 8 / 10 see 6TH240NA4060S01 For round tubes D28 / D30 see 6TH2D283A4060EDS1-

€0.00*

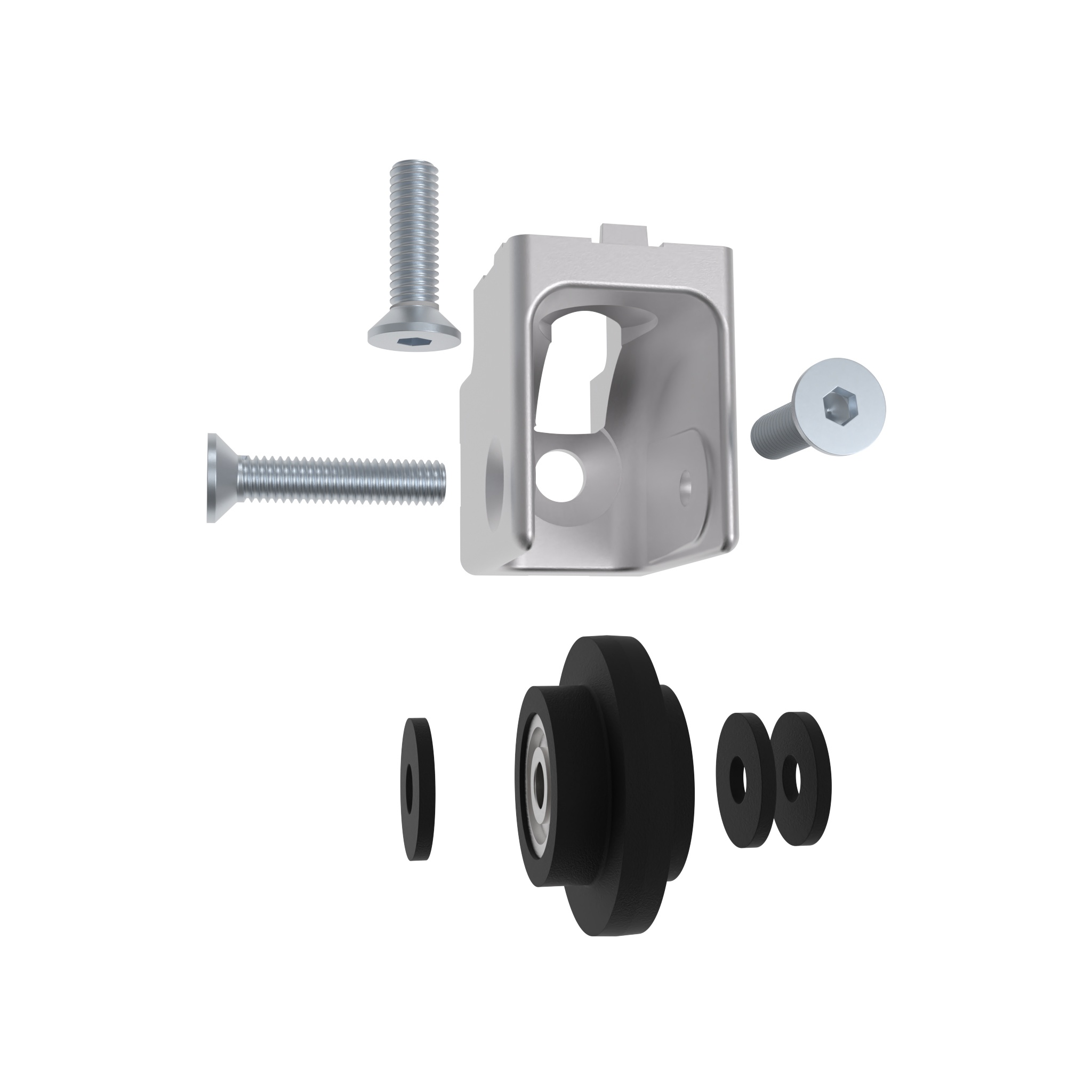

Sliding Door Guide Set 30
Sliding Door Guide Set 30
B (mm): 30 | Profile: I | Profile: B | Set: Set 2 | Slot N (mm): 8
Color:Roller: Black Spacer: NaturalDelivery Countries:WorldwideDescription:To connect two aluminum profiles at right angles and to guide lift or sliding doors in the slot of an aluminum profile, with ball bearing; spacers can be changed: for a 2 mm distance between door and fixed profile or a 2 or 4 mm distance between two doorsMaterial:Casing: Aluminum die-cast Roller: Plastic PA, glass ball reinforced Spacer: Plastic PASet 1:1 casing, 1 roller slot 8, 1 screw as axle, 2 screws DIN 7991 (ISO 10642) - M6 x 22 (for profile) 3 spacersSet 2:1 casing, 1 roller slot 8, 1 screw as axle, 2 screws DIN 7991 (ISO 10642) - M8 x 20 (for profile) 3 spacersSurface:Casing: Plain

€0.00*

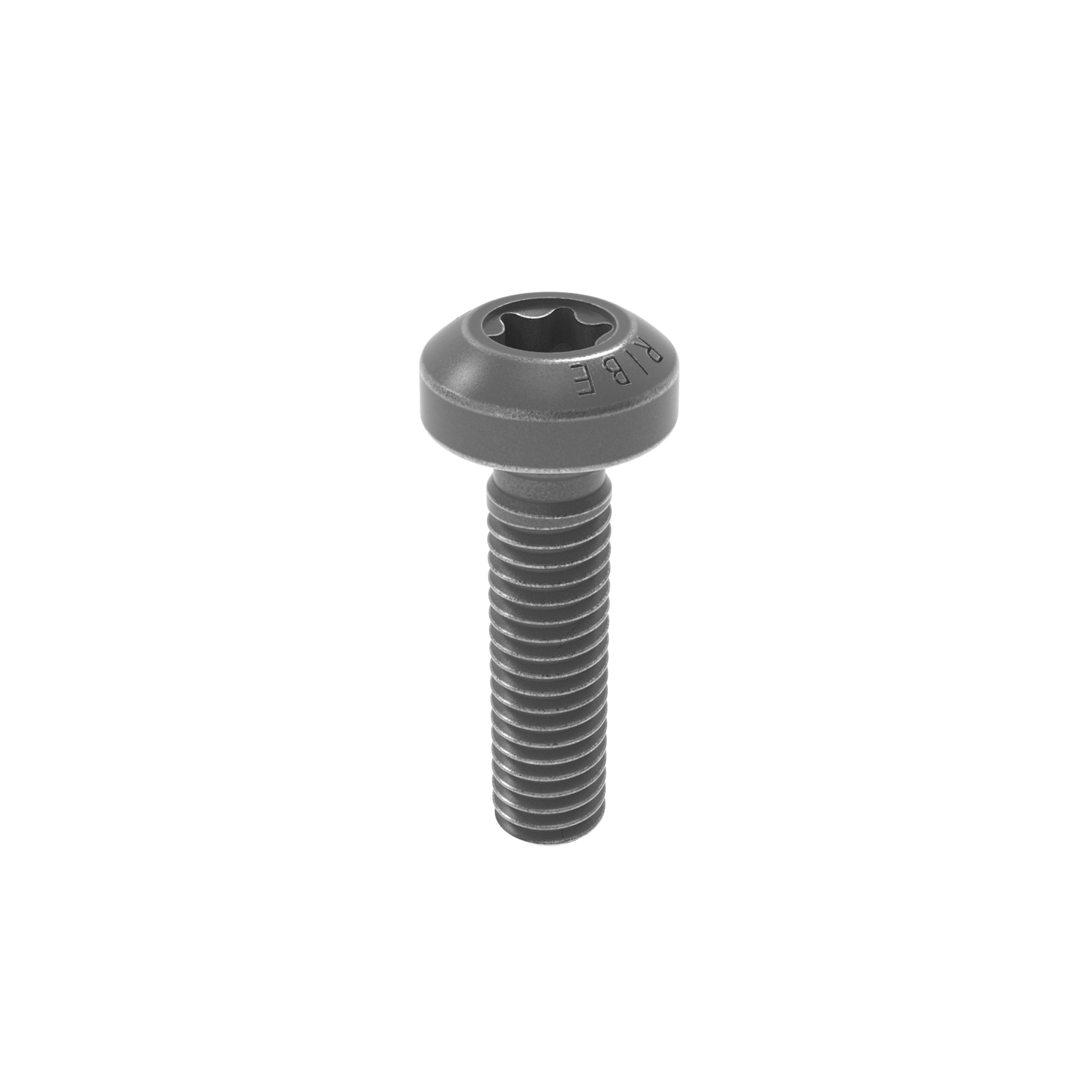

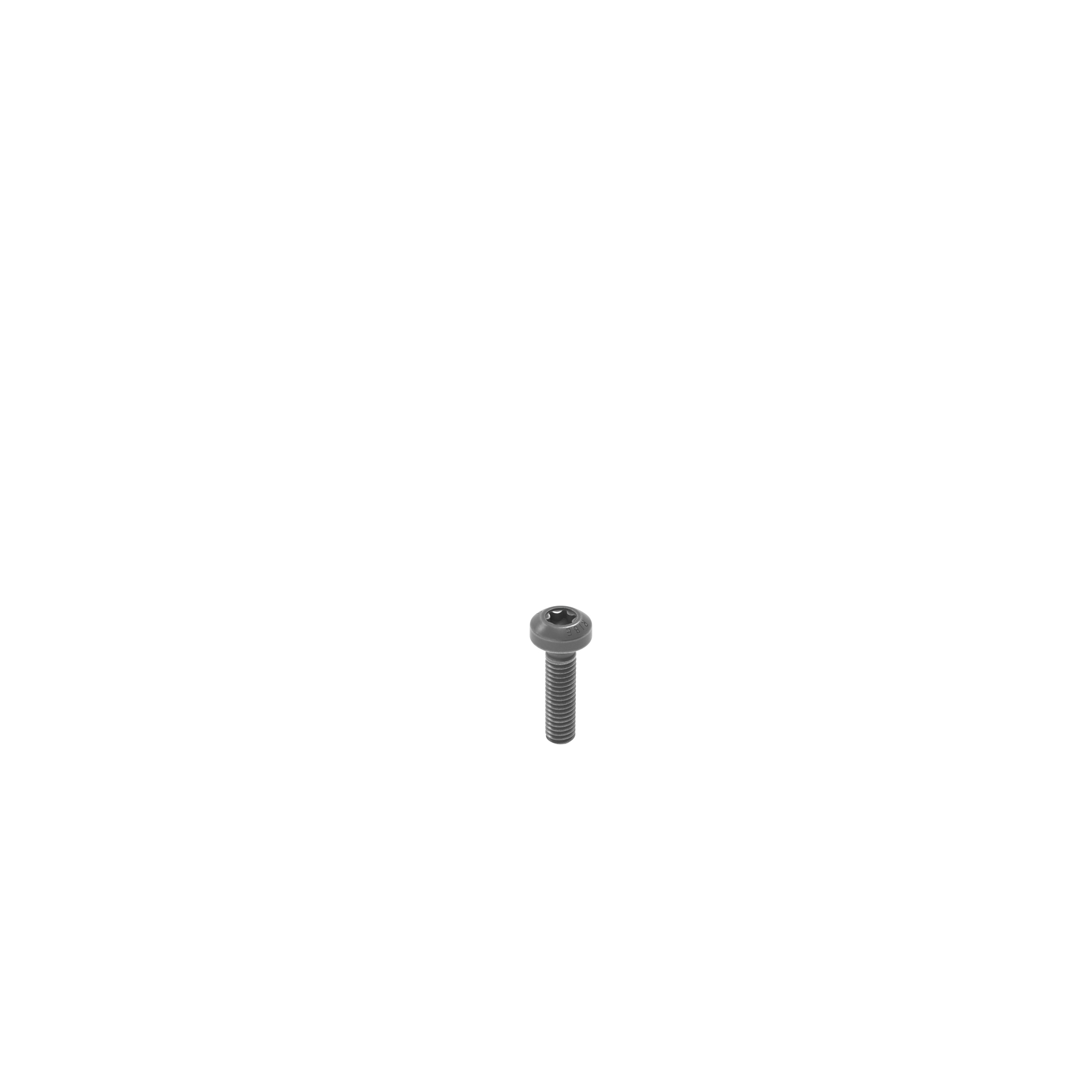

RIBE® Aluform Bolt
RIBE® Aluform Bolt
Size M x L (mm): M4 x 16 | TX: T20 | h (mm): 3.1 | ØD (mm): 8.0
Delivery Countries:WorldwideDescription:For the material-matched connection of aluminum componentsand for electrical contact screw connections; Corrosion-resistant, easy to recycle, approx. 2/3 weight saving compared to similar steel screws; Reduced electrical contact resistanceMaterial:AluminumSurface:With dry film lubrication

€0.00*

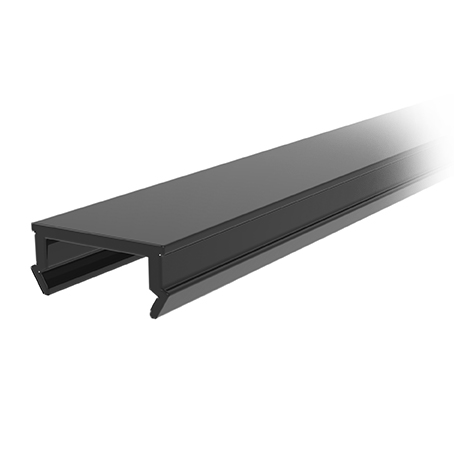

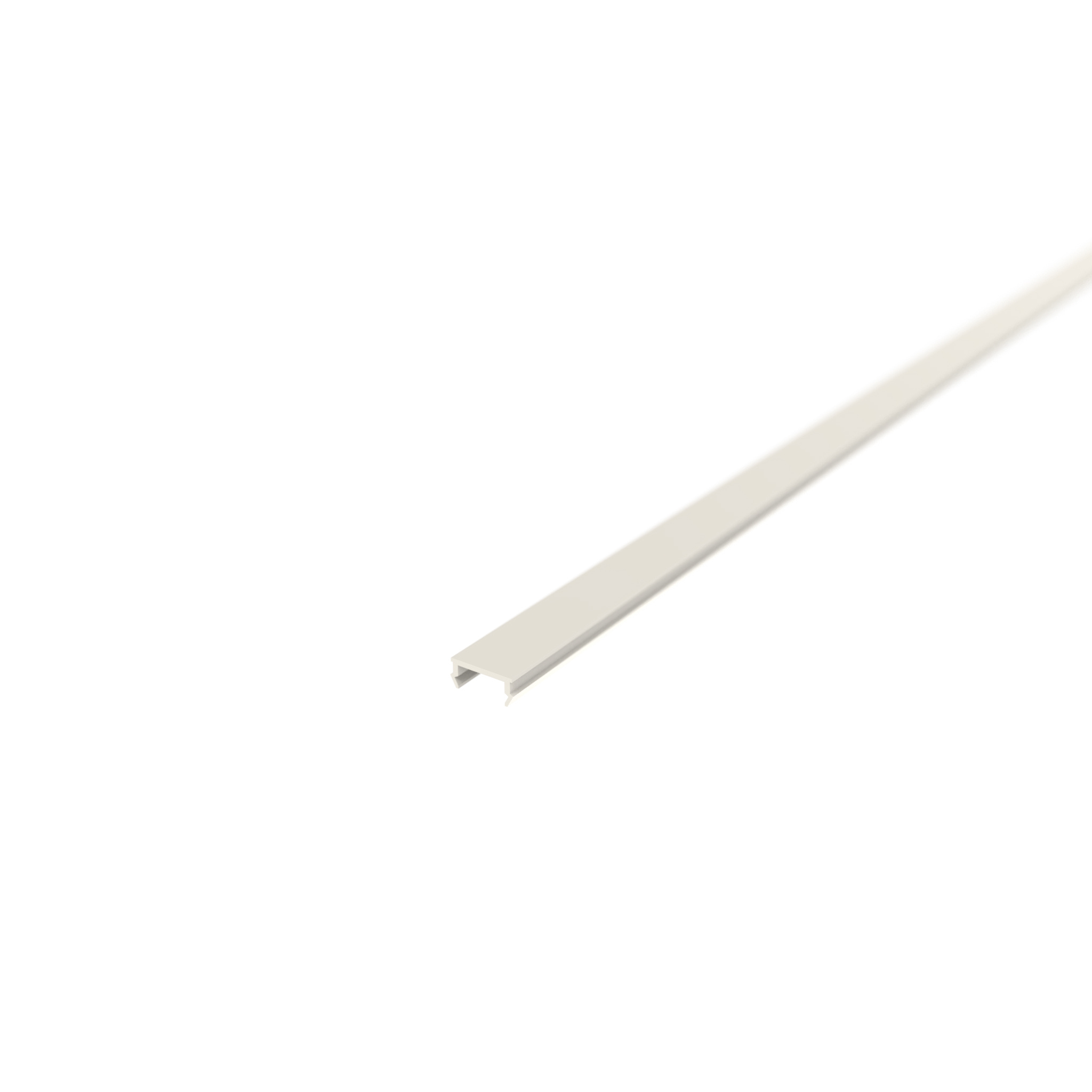

Cover Profile Slot 8 - 2.2
Cover Profile Slot 8 - 2.2
Color: Yellow ≈ RAL 1018 | ESD: - | Profile: B | Slot N (mm): 8
Color:Black, yellow, red, blue, gray, white, natural, aluminum colorDelivery Countries:WorldwideDescription:To cover T-Slots with 8 width and a 2.2 mm profile webMaterial:Plastic PPSpecials:Other colors on requestTip:ESD electrostatical discharging version: Notch at the bottom side

€0.00*

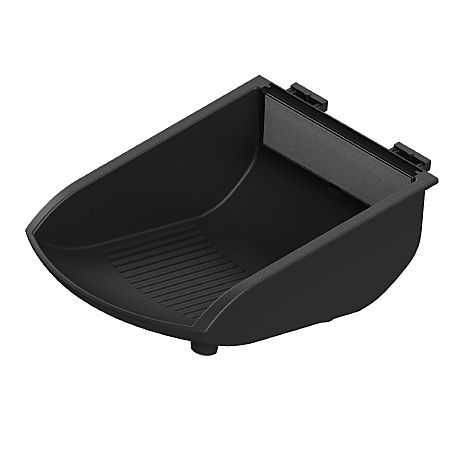

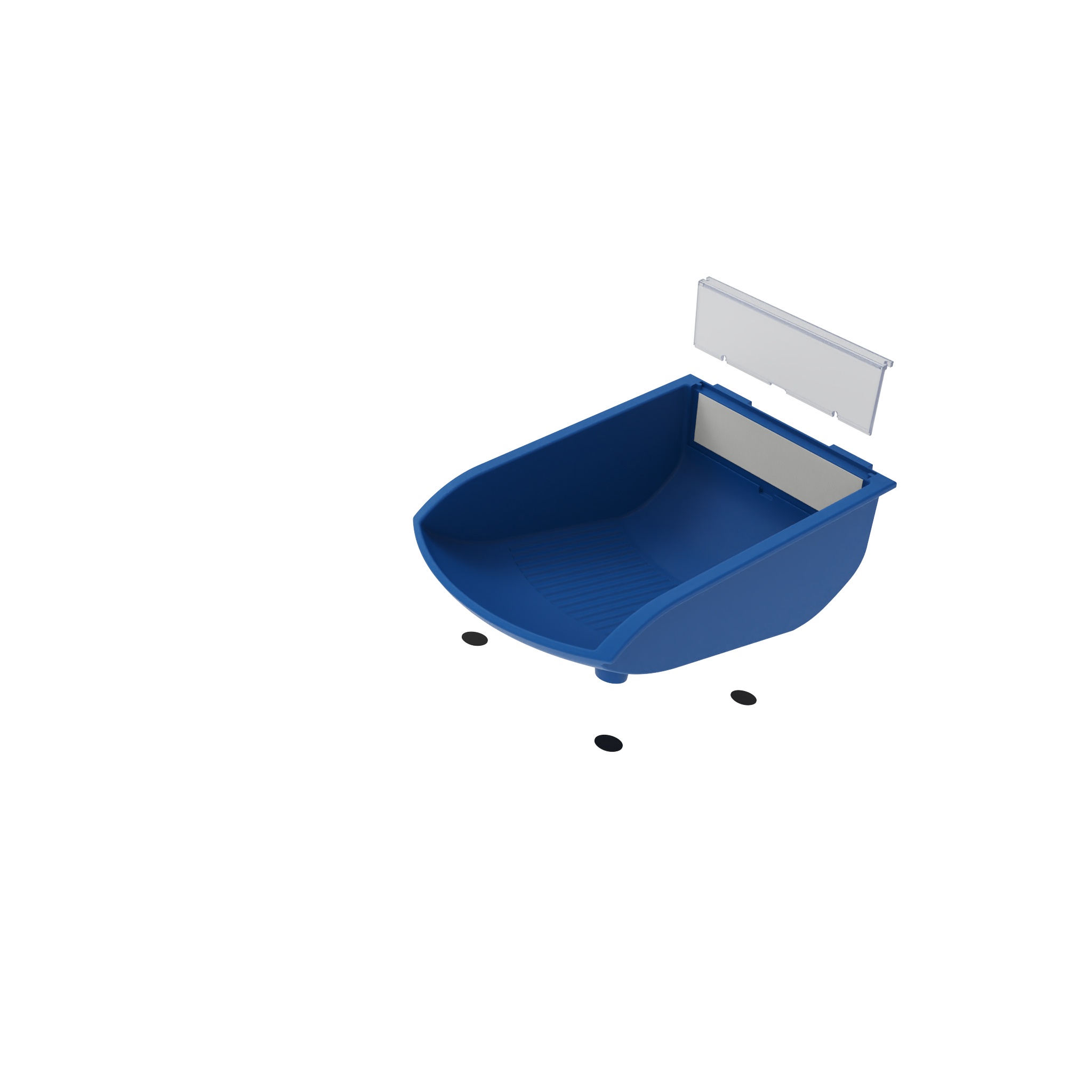

Grab Tray 105 x 130 x 50 for Profil Slot (Set)
Grab Tray 105 x 130 x 50 for Profil Slot (Set)
Color: Black | ESD: - | Slot N (mm): 8
Color:Grab tray: Black, yellow, red, blue, green, gray Label window: TransparentDelivery Countries:WorldwideDescription:To provide hardware and small parts on sorting area for selective grabbing of smallest components; simple assembly by swiveling into the profile slot; the clearly visible label area enables secure part identificationMaterial:Grab tray standard version: Plastic PA, glass fiber reinforced Grab tray ESD electrostatical discharging version: Plastic PA, carbon fiber reinforced Label window: Plastic PC Label: Carton 250 g/m² Bumper: Plastic PU, ≈ 65-70 Shore ASet:1 grab tray, 1 label window, 1 label, 4 bumper, self-adhesiveSpecials:Other colors on request

€0.00*

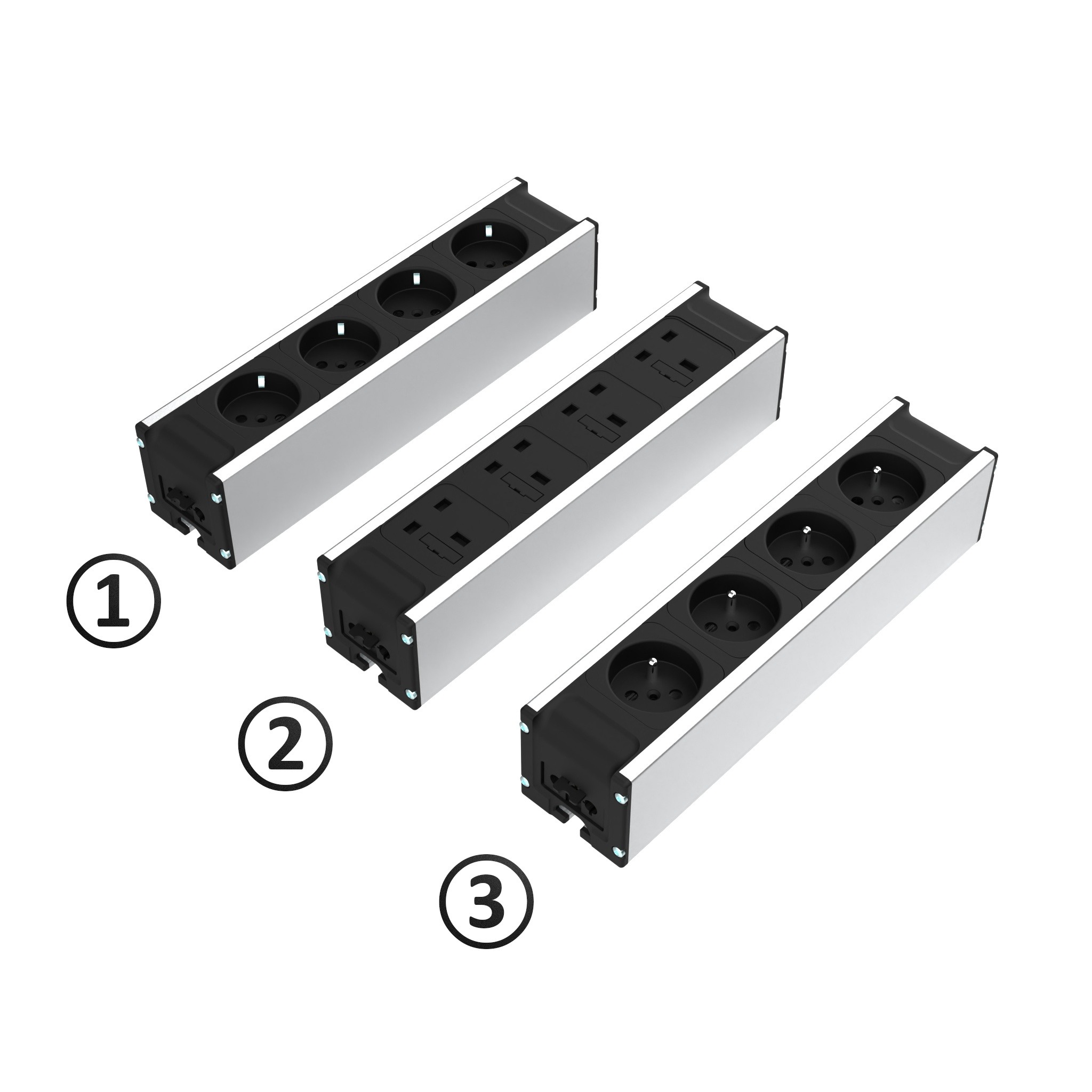

Power Strip Module F Line 264 4x
Power Strip Module F Line 264 4x
ESD: - | Fig.: ① | Profile: I | Slot N (mm): 8 | Socket Type: Type F: CEE 7/3
Color:Housing standard version: - Housing ESD electrostatical discharging version: Black End caps: Black Socket inserts: BlackDelivery Countries:WorldwideDescription:Power strip with sockets for power supply at workstations; On the backside with slot 8 for mounting on aluminum profilesMaterial:Housing: Aluminum End caps: Plastic PA, carbon fibre reinforced Socket inserts: Plastic PASpecials:Further colors, individually configurated power strips on requestSurface:Housing standard version: Anodized Housing ESD electrostatical discharging version: Powder coatedTip:Compatible LED Lamp see 6SL1040DI.953 Compatible Main Power Cable see 6SAME4J316B.2000 Compatible Connection Cable see 6SACP3J316B.2000 Compatible Connection Coupling see 6SAKP3J316BS01 Compatible Cover Cap for 3 pole female connector see 063SGF3S01 Compatible Direct Connector I, Slot 8 see 099DC084040N08 Compatible Direct Connector I / B, Slot 8 / 10 see 099DC084045N10Tip 2:Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules Connected load max. 3500 watts

€0.00*

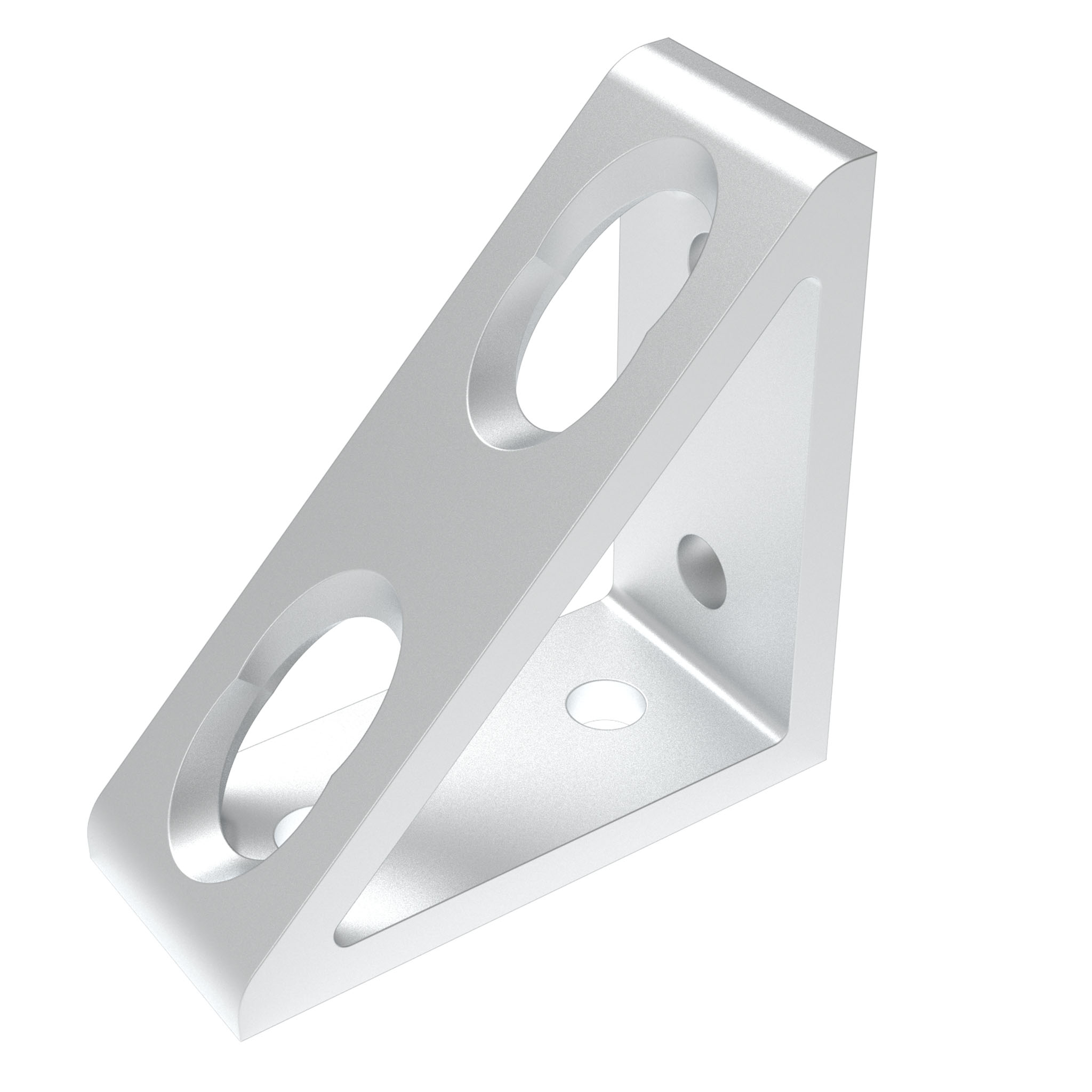

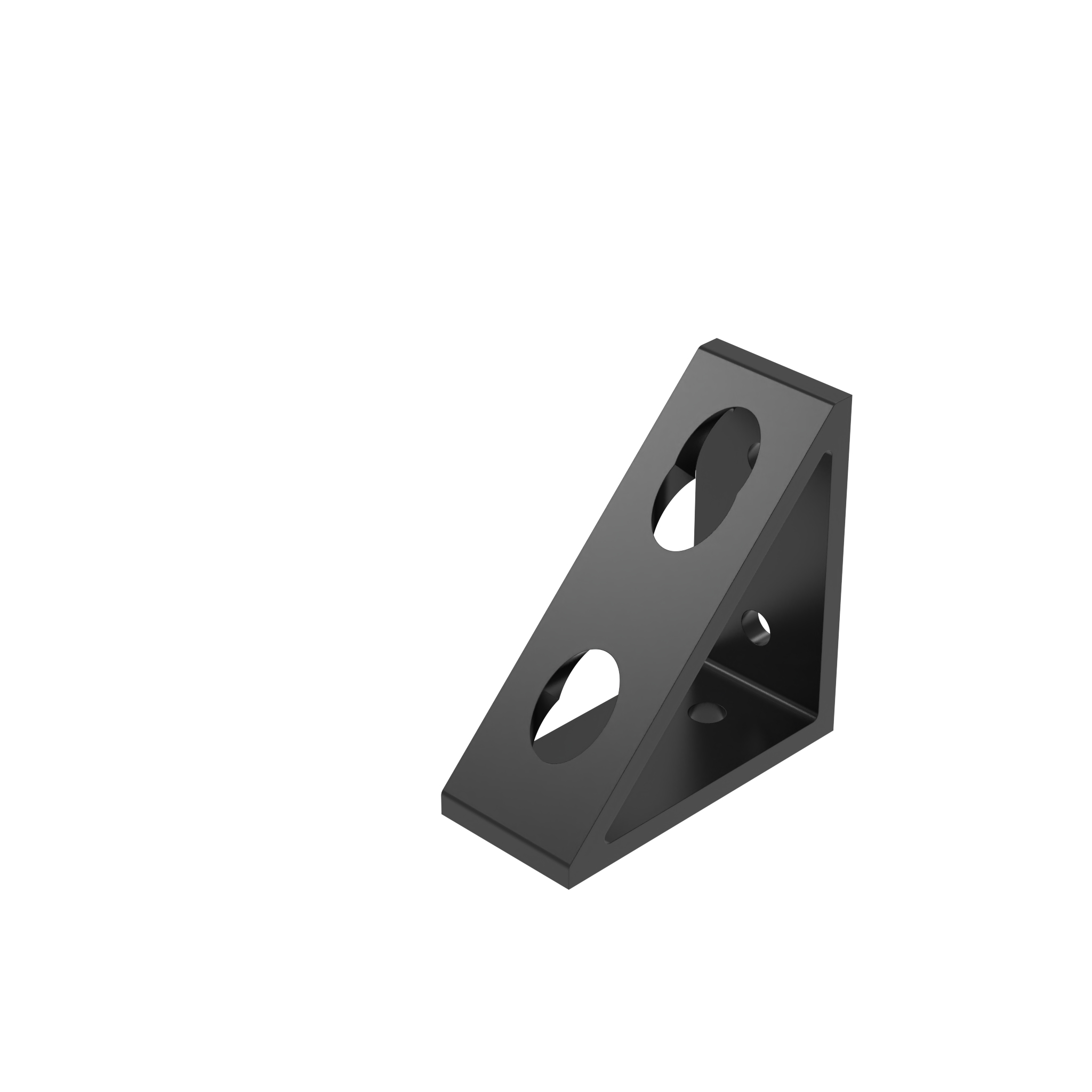

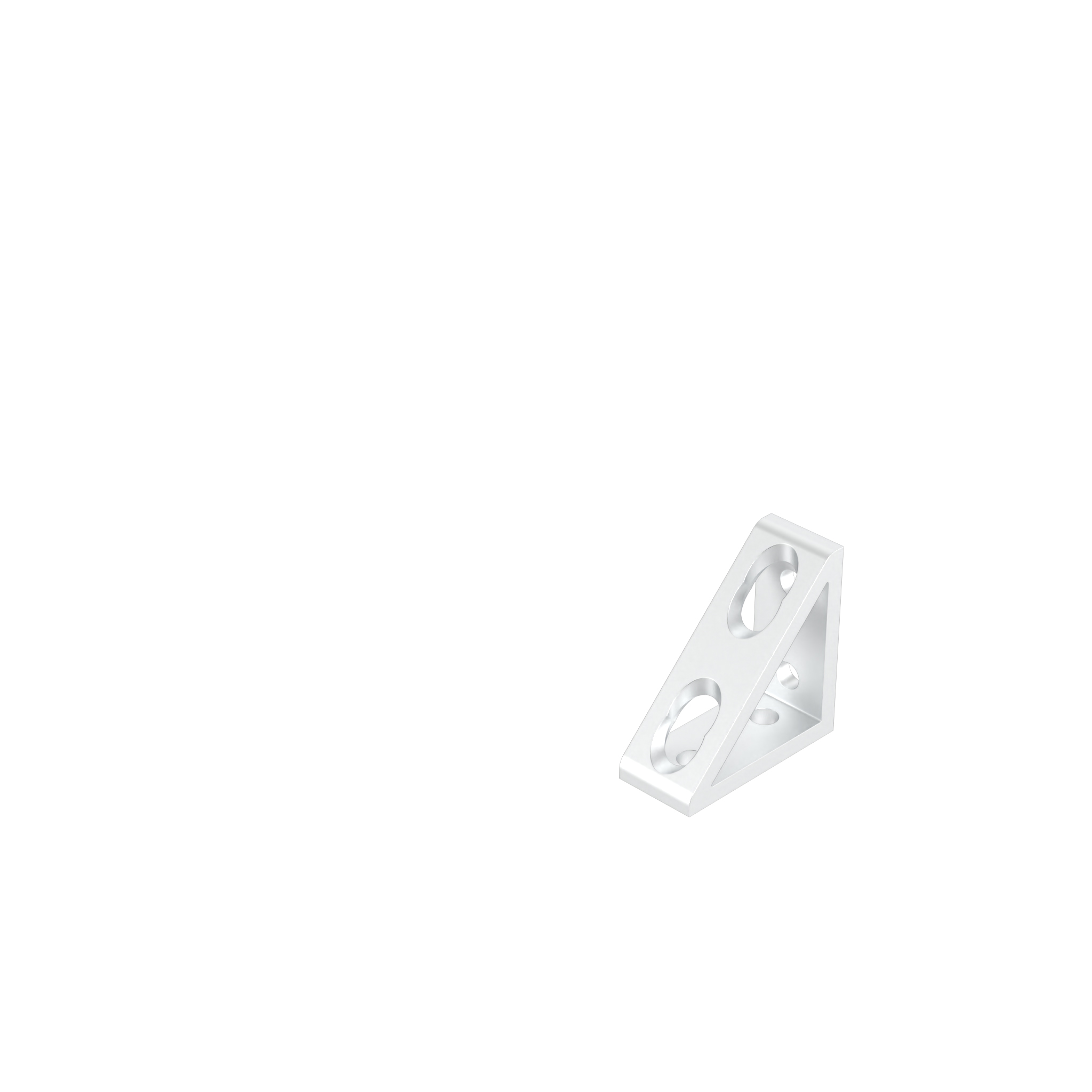

Gusseted Connection Angle AL 4 Hole, 1 Slot Version
Gusseted Connection Angle AL 4 Hole, 1 Slot Version
A (mm): 90.0 | B (mm): 90.0 | C (mm): 6.0 | Color: Black | D (mm): 20.5 | E (mm): 20.0 | F (mm): 41.0 | G (mm): 22.5 | Grid: 45 | H (mm): 45.0 | J (mm): 9.0
Color:Alu color, blackDelivery Countries:North AmericaDescription:To connect two aluminum profiles at right anglesMaterial:AluminumSurface:Anodized

€0.00*

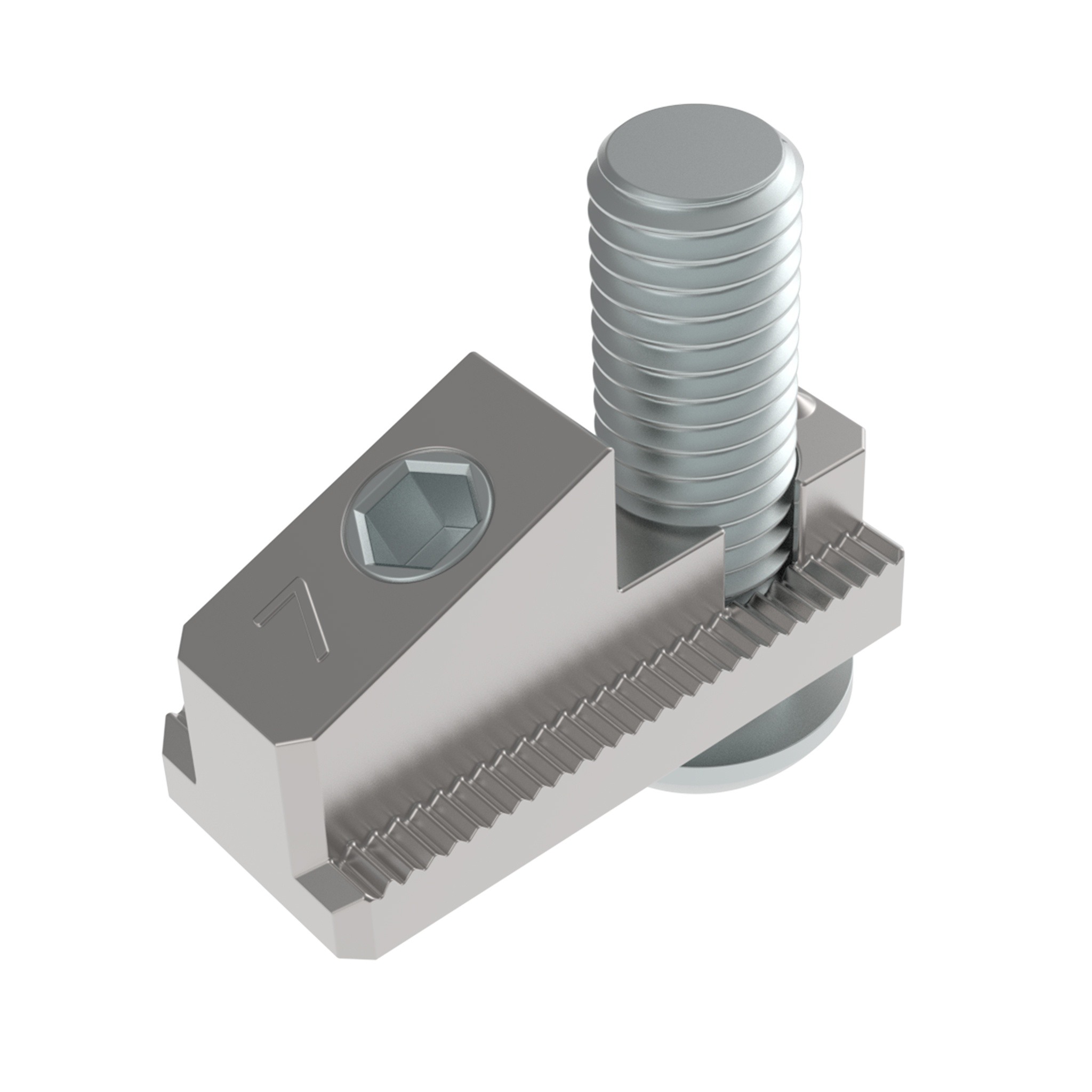

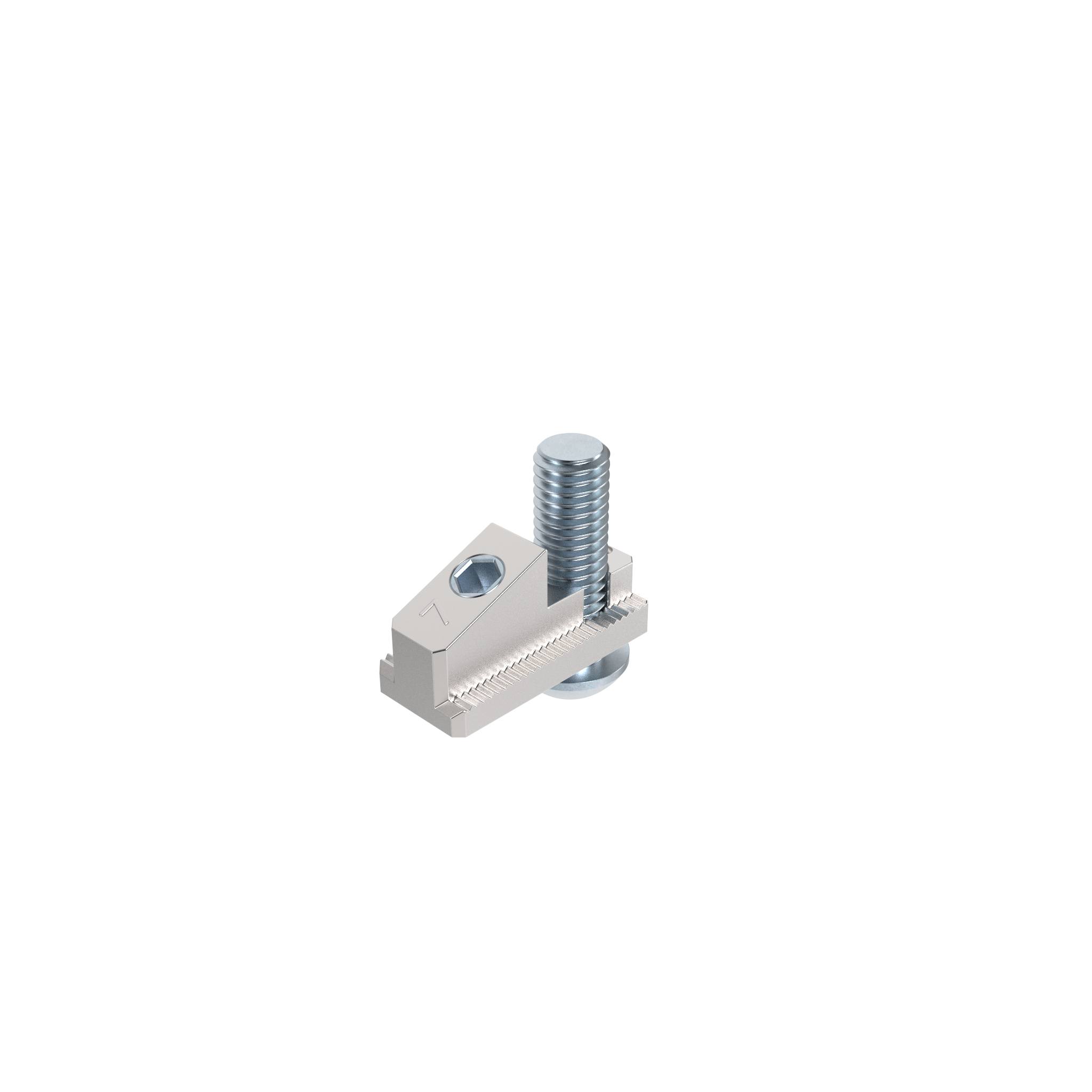

Profile Connector 90° M45 / N45, Slot 8 (Set)
Profile Connector 90° M45 / N45, Slot 8 (Set)
Set: Set 1
Delivery Countries:WorldwideDescription:To connect two aluminum profilesMaterial:SteelSet 1:1 profile connector 90° M45 / N45 1 screw M8 x 25Set 2:1 profile connector 90° M45 / N45 1 self-forming screw S8 x 25Surface:Zinc plated

€0.00*

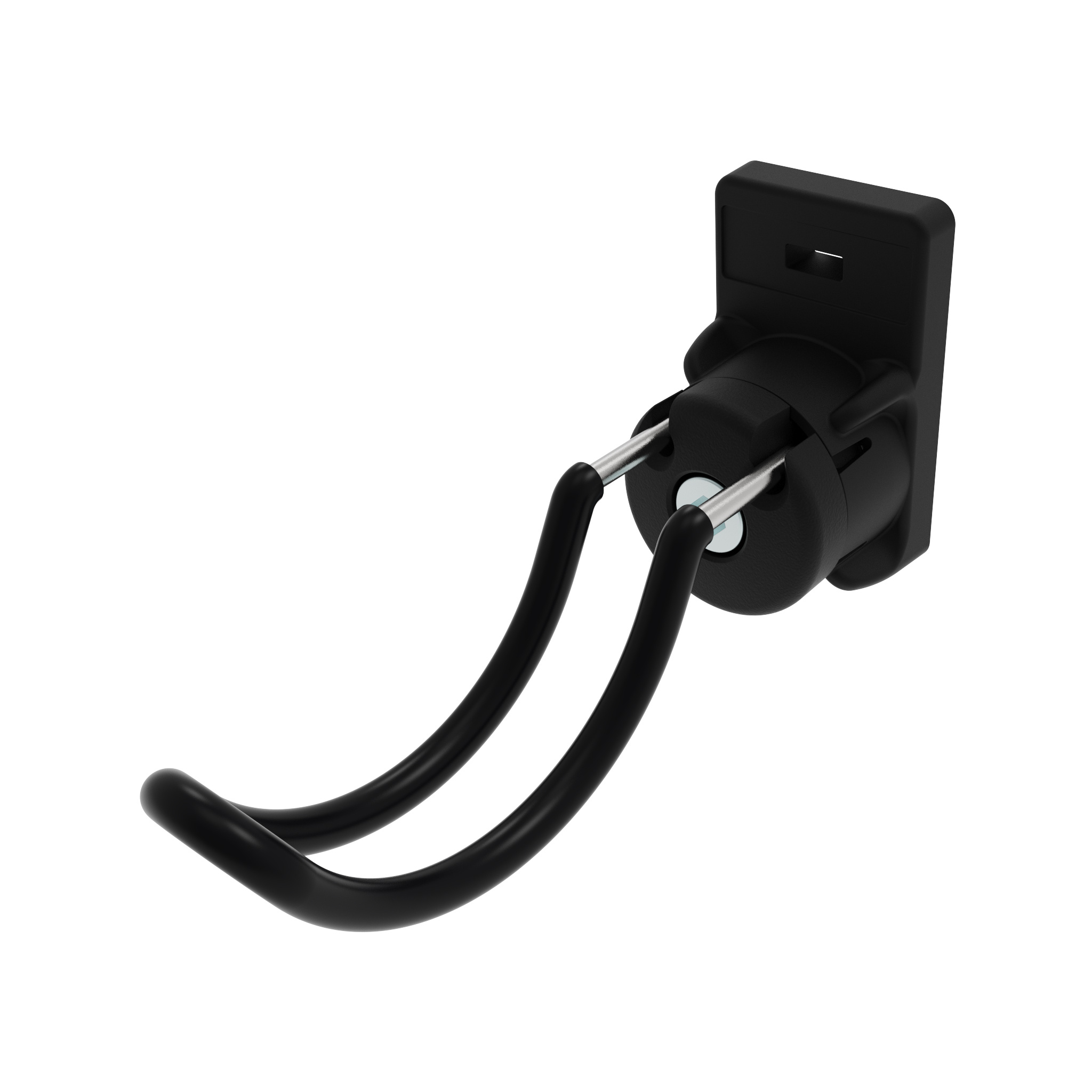

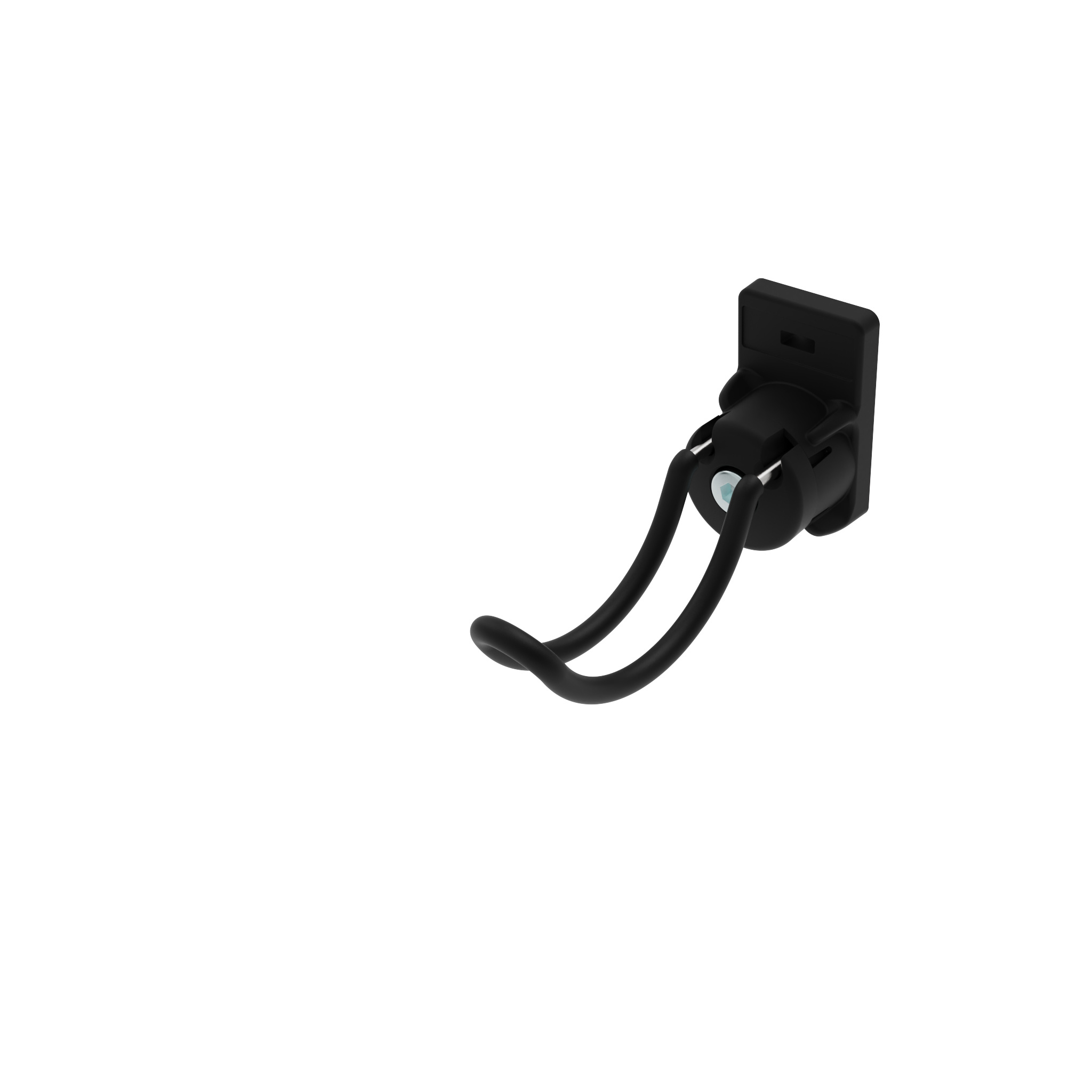

Tool Hook FX R35 - 27, Rubberized for Square Holes 9 x 9 (8.7 x 8.7)
Tool Hook FX R35 - 27, Rubberized for Square Holes 9 x 9 (8.7 x 8.7)
Color: Black
Color:Wire: Black coated Rear mounting holder: Black Front locking holder: BlackDelivery Countries:WorldwideDescription:Ready to use tool hook, 360° turnable, for perforated metals up to 1.4 mm thick; Rubber coated wire to prevent tools from slipping; To organize workstations, with labeling area for standard labelsMaterial:Rear mounting holder: Plastic PA, carbon fibre reinforced Front locking holder: Plastic PA, glass ball reinforced Wire: Stainless steel SS304 Spring: Spring steel SS313 Screw: Steel Nut: SteelSpecials:Other colors on request, For other sheet metal thicknesses on requestSurface:Wire: PVC coated Screw: Zinc plated Nut: Zinc platedTip:For profiles 40 / 45, slot 8 / 10 see 6TH240NR4091S01 For round tubes D28 / D30 see 6TH2D283R4091S01

€0.00*

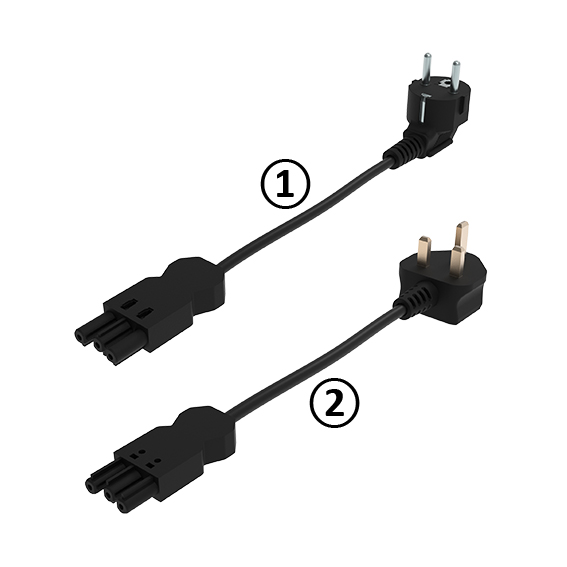

Main Power Cable GST18i3 for Module F Line
Main Power Cable GST18i3 for Module F Line
Fig.: ① | L (mm): 2000.0 | Socket Type: Typ E + Typ F: CEE 7/4
Color:BlackDelivery Countries:WorldwideDescription:3 wire cable for power supply of LED lamps and power strips Module F LineMaterial:Cable insulation: Plastic PVC Plugs: Plastic PATip:Compatible power strip see 6SBGB24I.370 Compatible LED lamp see 6SL0040I.953Tip 2:Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules Connected load max. 3500 watts

€0.00*

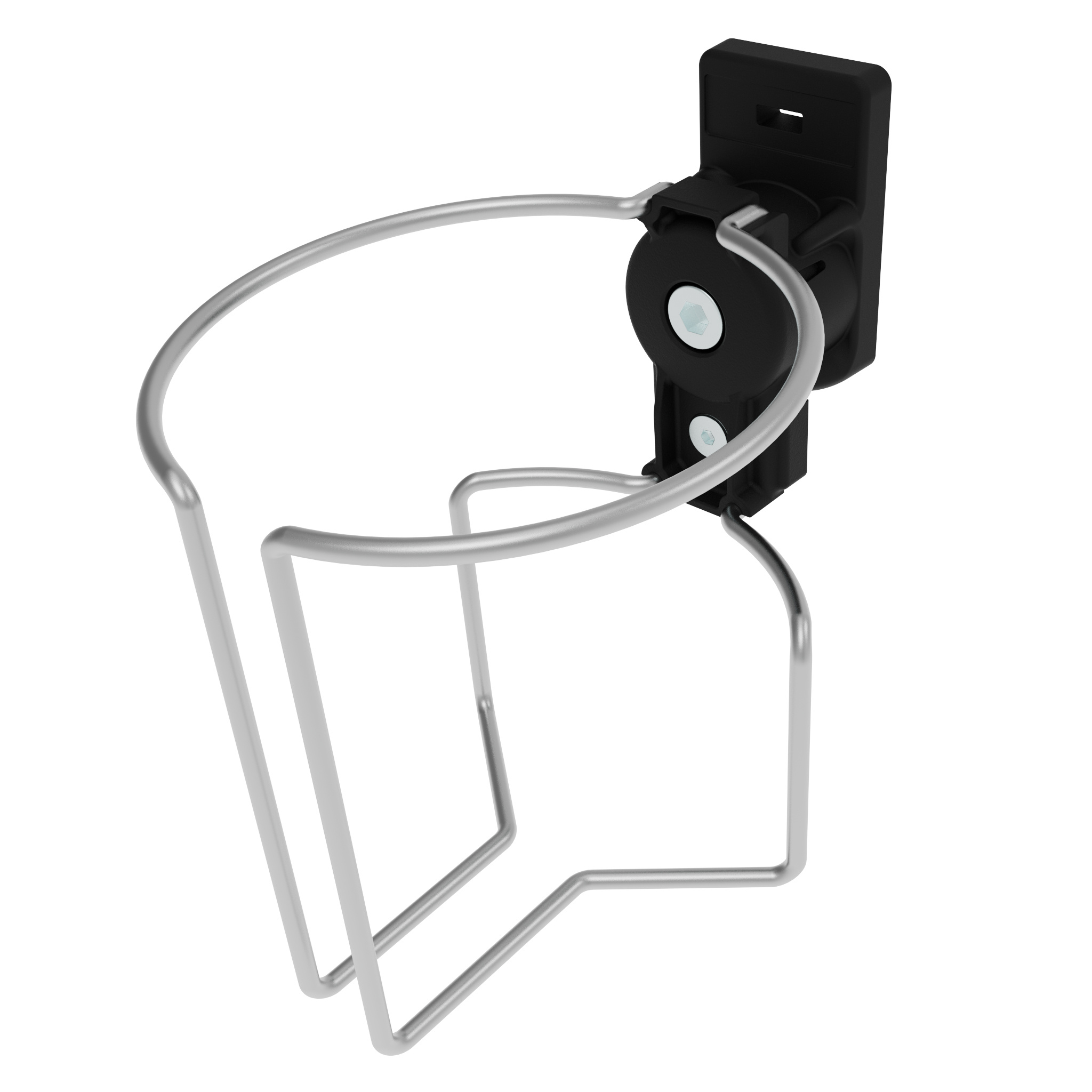

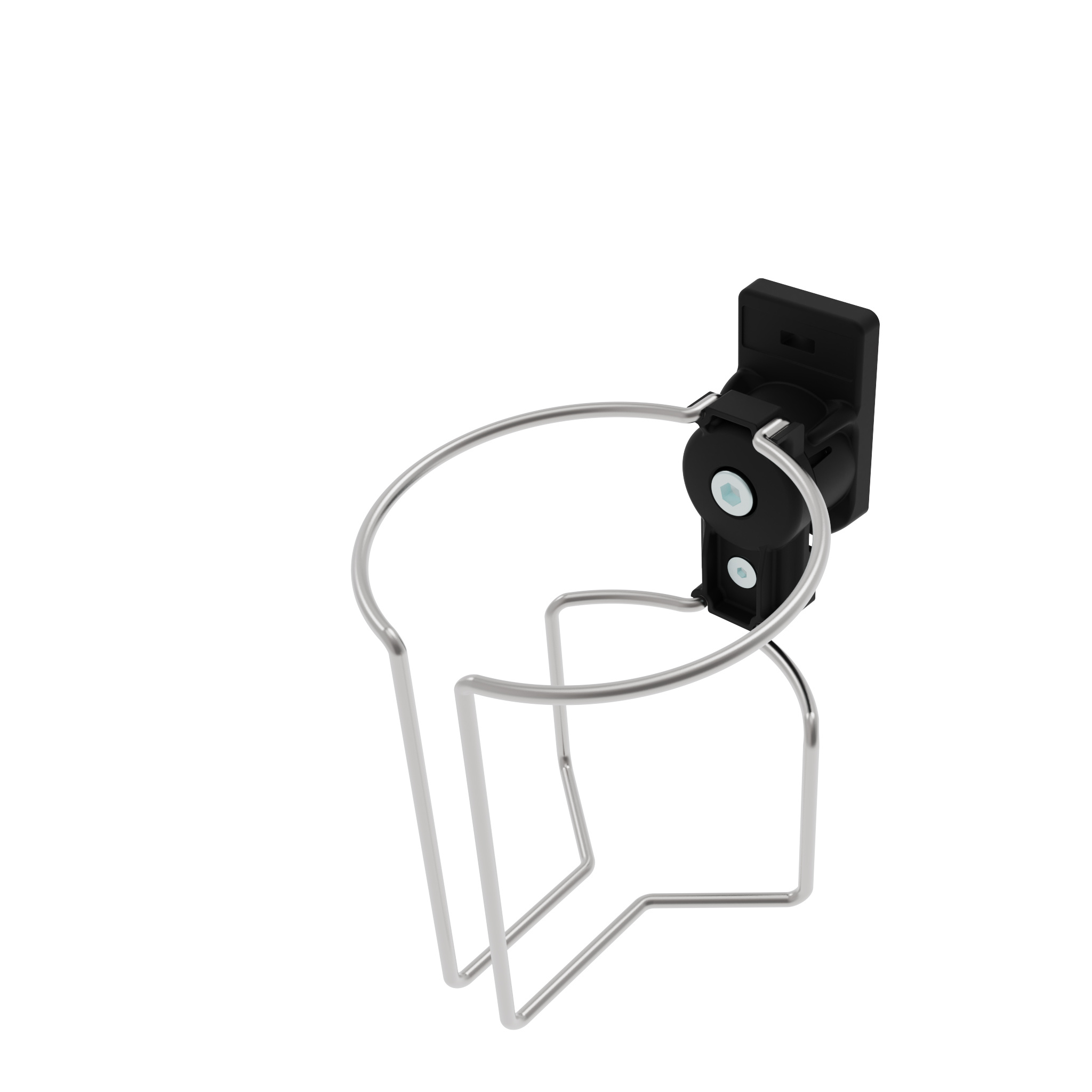

Bottle Holder FX for Square Holes 9 x 9 (8.7 x 8.7)
Bottle Holder FX for Square Holes 9 x 9 (8.7 x 8.7)
Color: Black
Color:Rear mounting holder: Black Front locking holder: BlackDelivery Countries:WorldwideDescription:Ready to use bottle holder, 360° turnable, for perforated metals up to 1.4 mm thick; To organize workstations, with labeling area for standard labelsMaterial:Rear mounting holder: Plastic PA, carbon fibre reinforced Front locking holder: Plastic PA, glass ball reinforced Wire: Stainless steel SS304 Spring: Spring steel SS313 Screw: Steel Nut: SteelSpecials:Other colors on request, For other sheet metal thicknesses on requestSurface:Screw: Zinc plated Nut: Zinc platedTip:For profiles 40 / 45, slot 8 / 10 see 6TM840ND100S01 For round tubes D28 / D30 see 6TM8D283D100S01

€0.00*

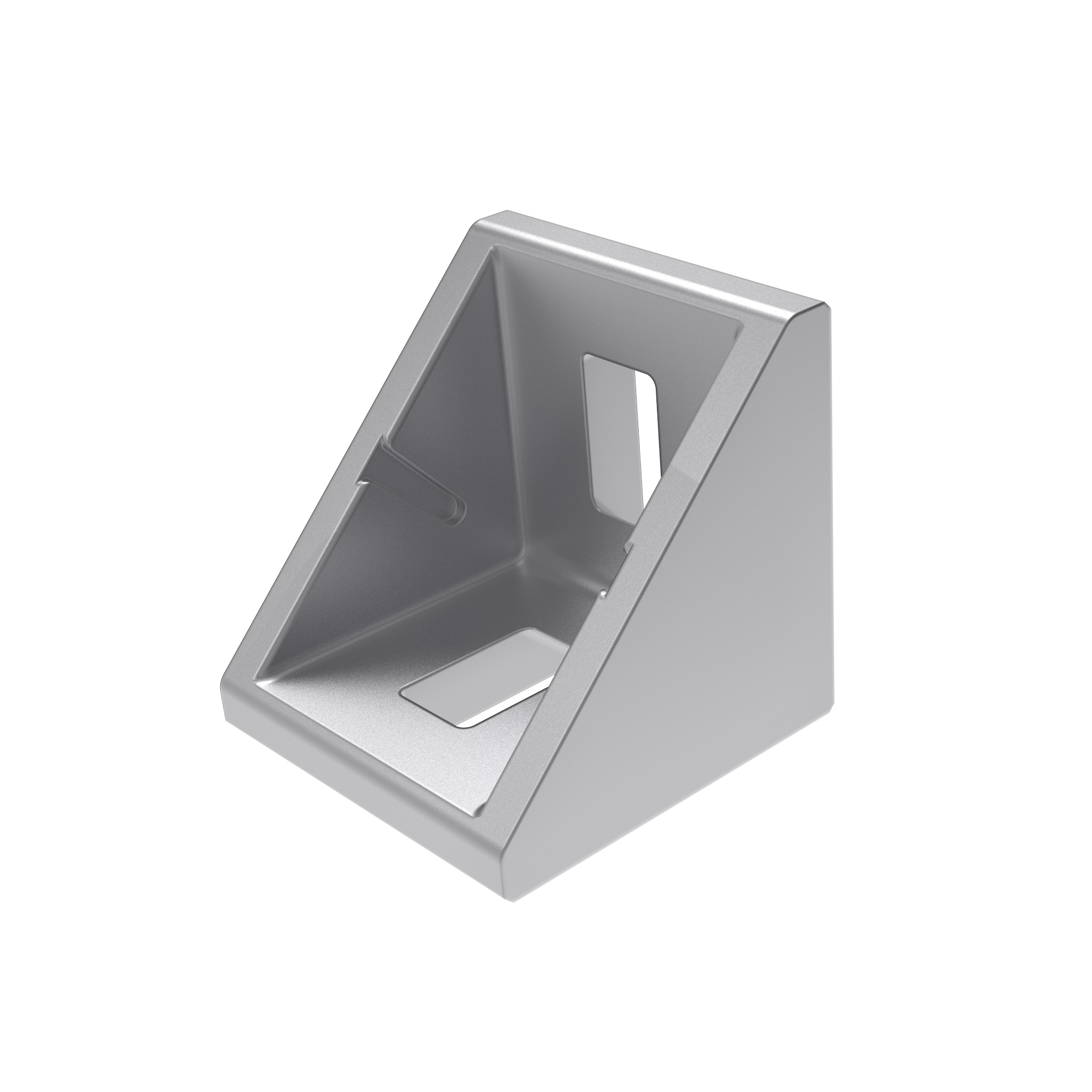

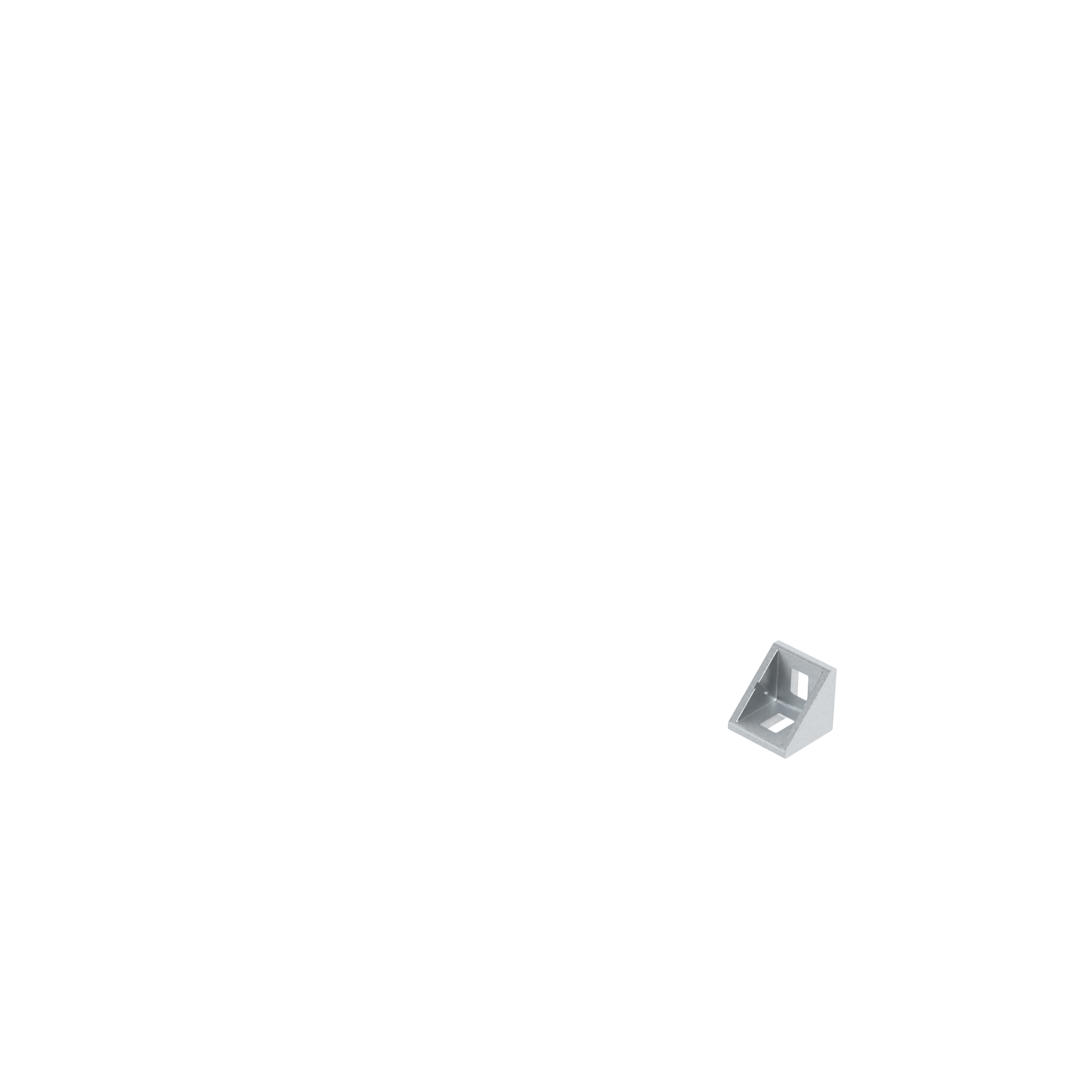

Alu Connection Angle 20
Alu Connection Angle 20
B (mm): 5.3 | Color: - | Profile: - | Slot N (mm): 5 | Surface: Plain | Version: -
Assembly Set:2 hammer nuts - slot 6 - M4, 2 screws DIN 7984 - M4 x 8Color:Angle: Alu colorDelivery Countries:WorldwideDescription:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Assembly set: SteelSpecials:Other surfaces, other colors on requestSurface:Angle: Plain / Powder coated Assembly set: Zinc platedTip:Compatible Cover Cap see 093WA203

€0.00*

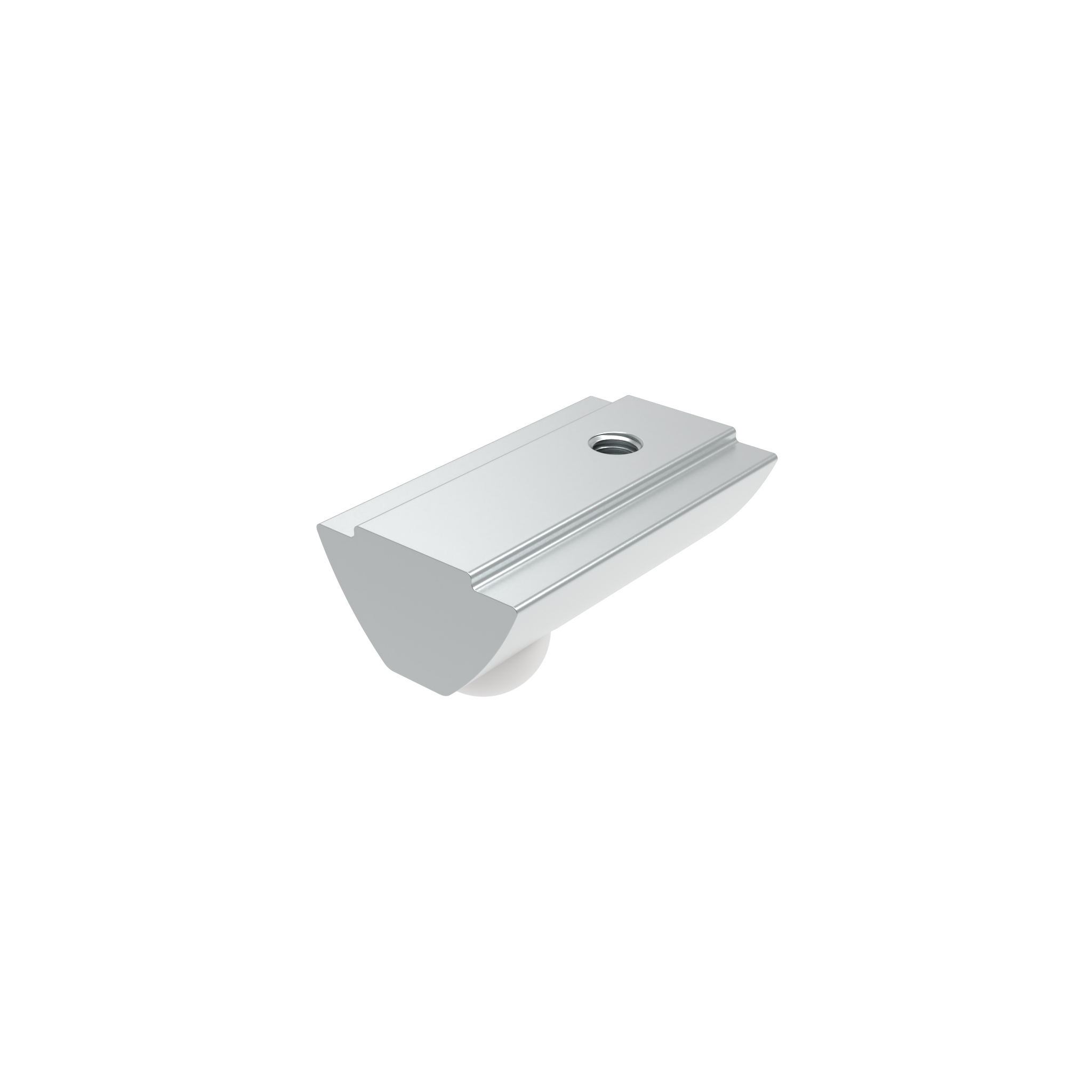

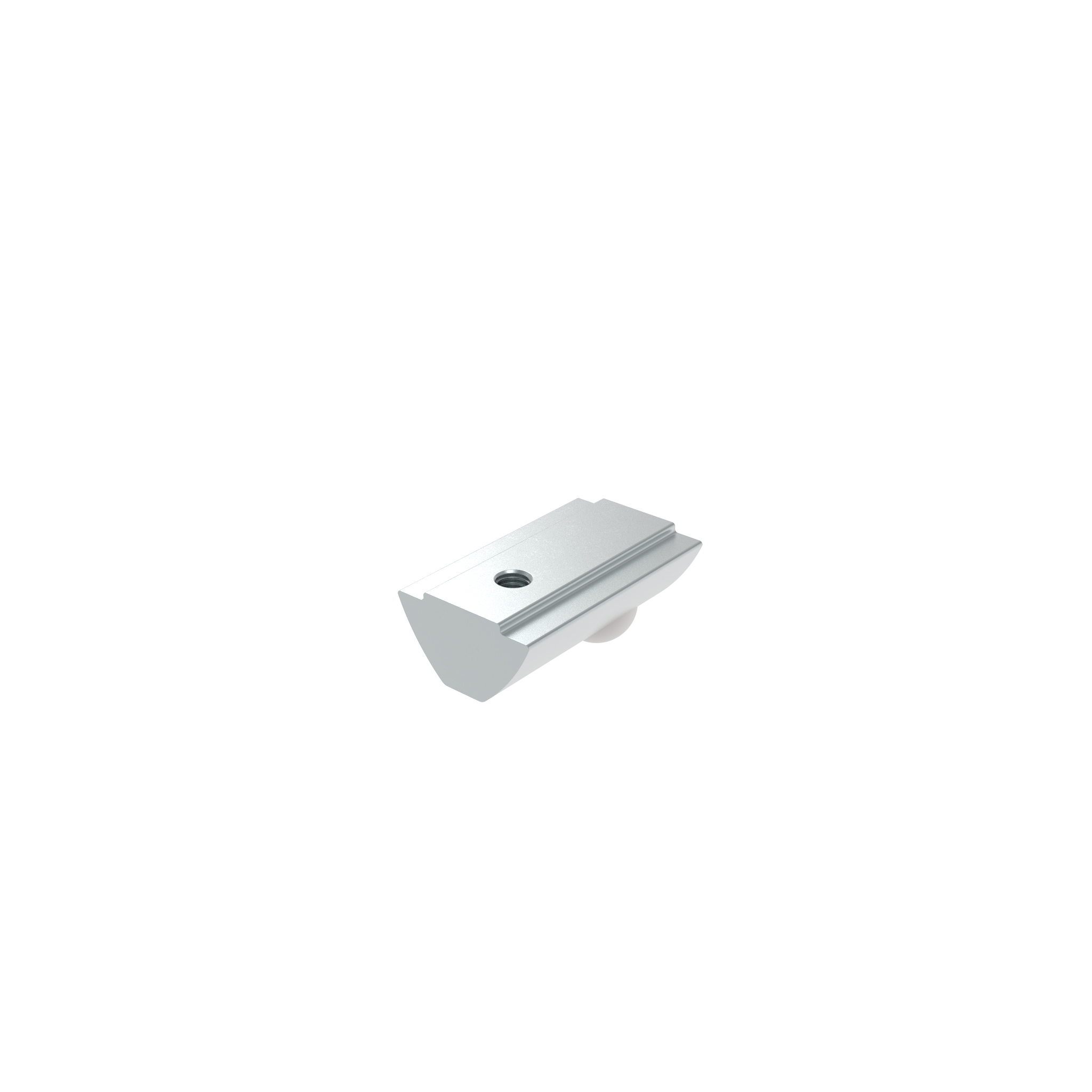

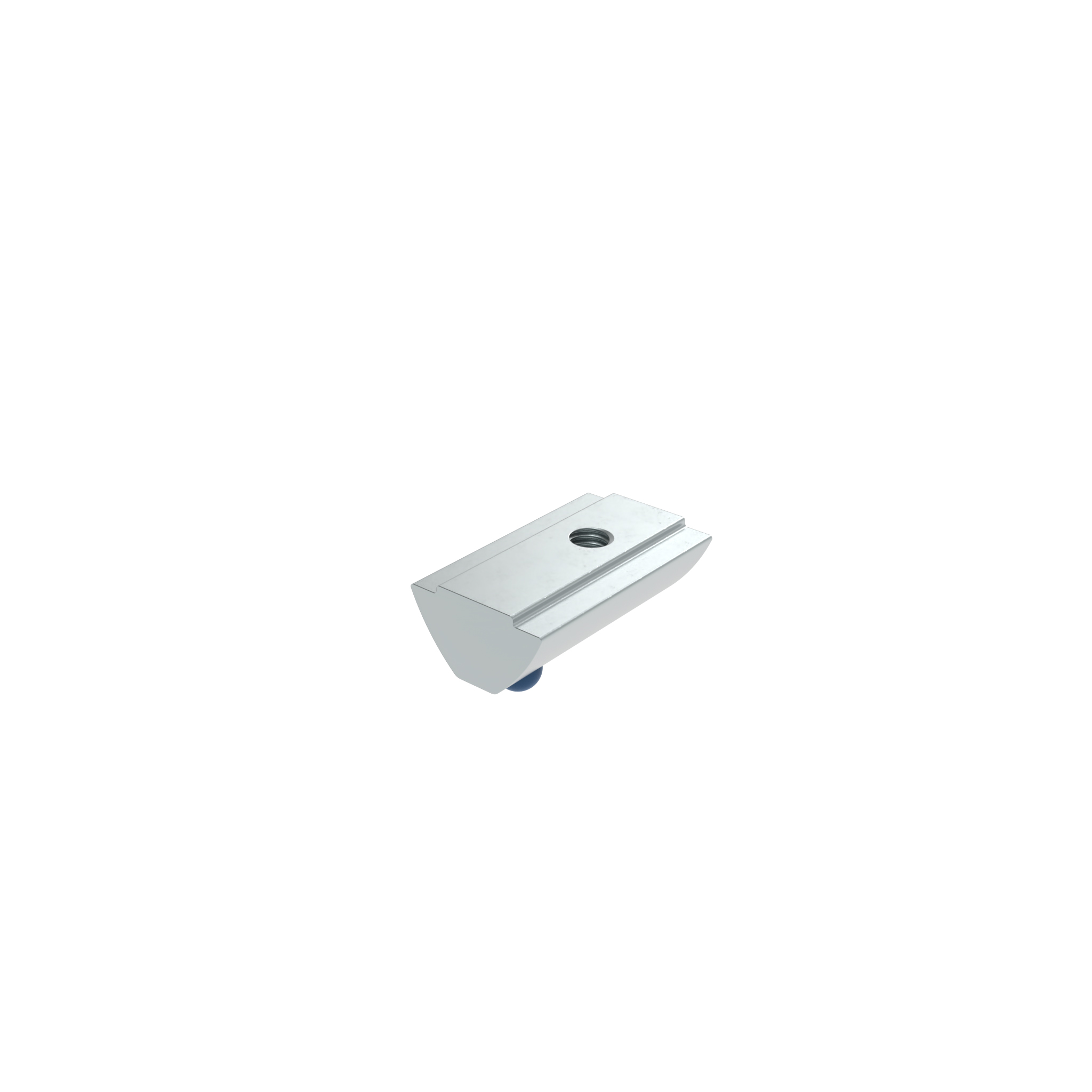

Roll-in T-slot Nut 13.4 x 7.6 mm with Large Spring Loaded Ball
Roll-in T-slot Nut 13.4 x 7.6 mm with Large Spring Loaded Ball
M: M4
Delivery Countries:WorldwideDescription:Self-aligning roll-in T-slot nut with spring loaded ballMaterial:SteelSpecials:ESD electrostatical discharging, different lengths with multiple threads in different sizes available on requestSurface:Zinc plated

€0.00*

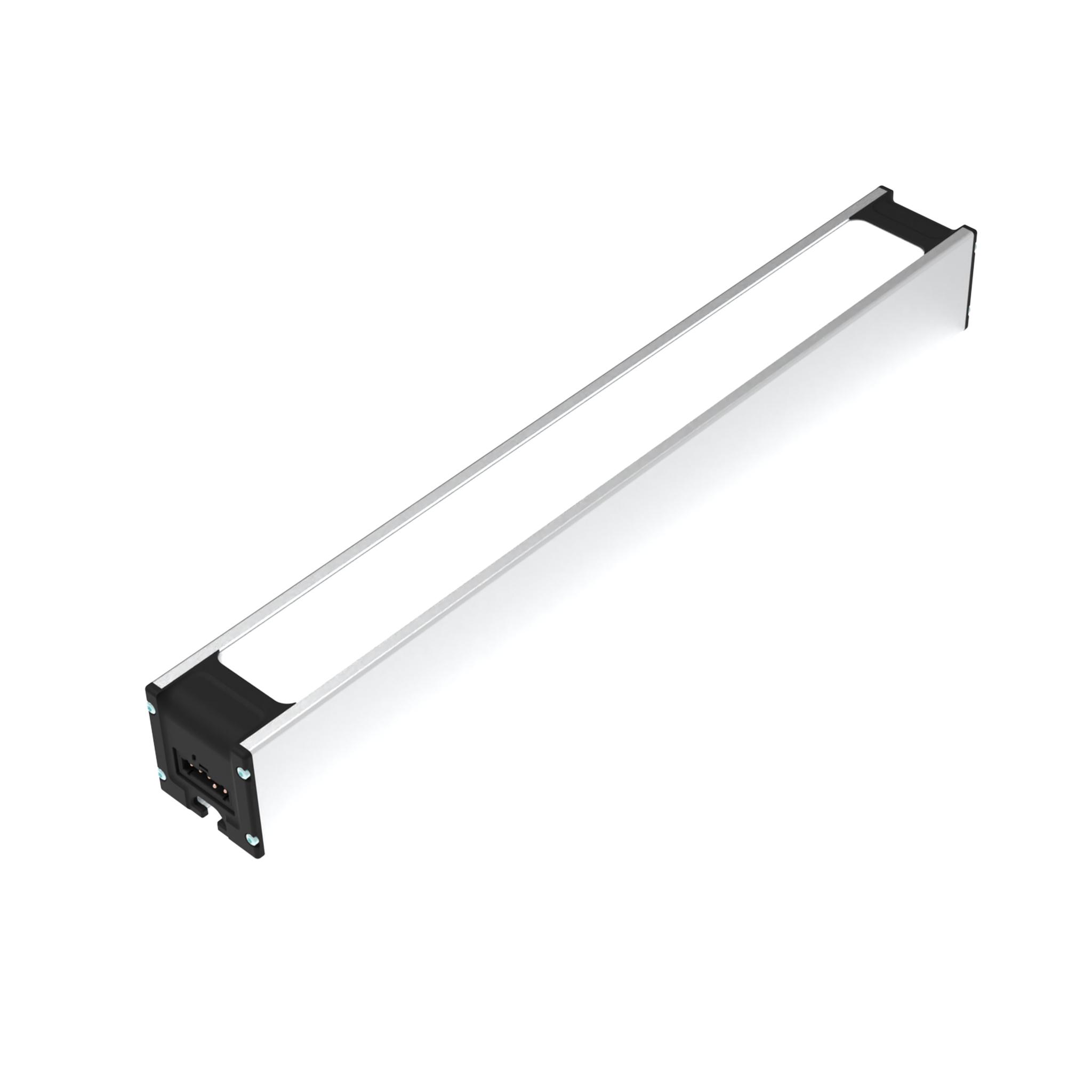

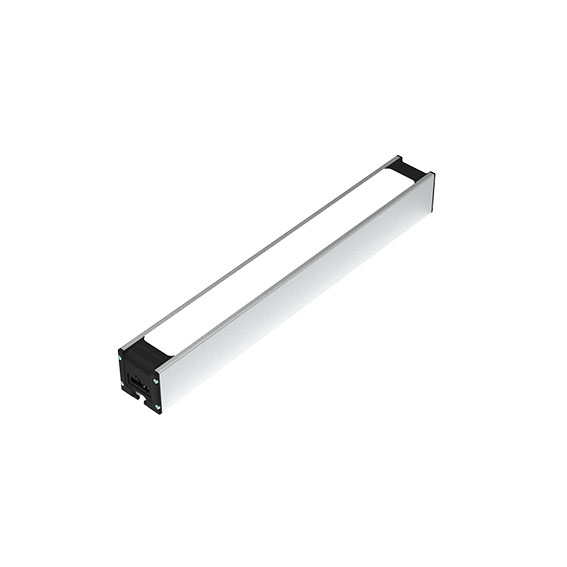

LED Lamp Module F Line 476 Dimmable, for Series Connection
LED Lamp Module F Line 476 Dimmable, for Series Connection
Profile: I | Slot N (mm): 8
Color:Housing: - End caps: Black Diffusing screen: TransparentDelivery Countries:WorldwideDescription:Remotely dimmable LED Lamp for power and light supply at work stations On the backside with slot 8 for mounting on aluminum profiles Can be dimmed in series if the upstream Power Strip or LED Lamp for Series Connection has a dimmer switchMaterial:Housing: Aluminum End caps: Plastic PA, carbon fibre reinforced Diffusing screen: PolycarbonateSpecials:Other lengths, other colors on requestSurface:Housing standard version: AnodizedTip:Compatible LED Lamp Module F Line 476 Dimmable, with Button, for Series Connection see 6SL1040RDI.476 Compatible Power Strip Module F Line 370 4xEU with Switch and Dimmer Button, for Series Connection see 6SBEU24DI.370 Compatible Connection Cable GST15i5 for 5-pole output connector see 6SACP5J516B.2000 Compatible Connection Coupling GST15i5 for 5-pole output connector see 6SAKP5J516BS01 Compatible Direct Connector I, slot 8 see 099DC084040N08 Compatible Direct Connector I / B, Slot 8 / 10 see 099DC084045N10Tip 2:Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules Connected load max. 3500 watts

€0.00*

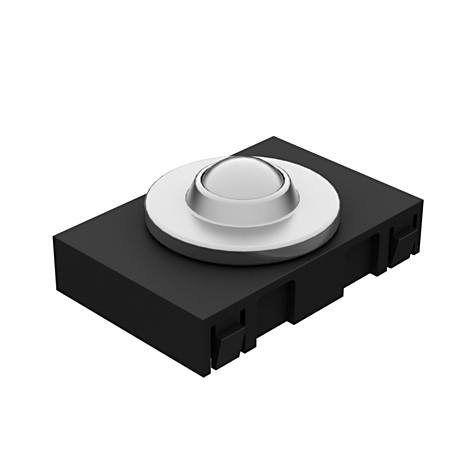

Ball Unit
Ball Unit
ESD: - | Version: Stainless steel ball
Color:Cage: BlackDelivery Countries:WorldwideDescription:A preassembled ball unit for roller track profiles AL, with low-wear, low friction ball caster for flexible movements in two directions, for example at track switches and material locksMaterial:Ball: Steel, stainless steel Ball chassis: Steel Cage: Plastic PA, carbon fiber reinforcedSpecials:Other materials, other surfaces on requestSurface:Ball steel: Chrome plated / Ball stainless steel: Plain Ball housing: Chrome plated Housing Attachment Clip: Zinc platedTip:Brush unit consisting of: – Ball insert, see 062AQ; – Cage for ball insert, see 062ACD2491ESD.50; Compatible Slide Rail AL see 062AS91ESD.2000;

€0.00*

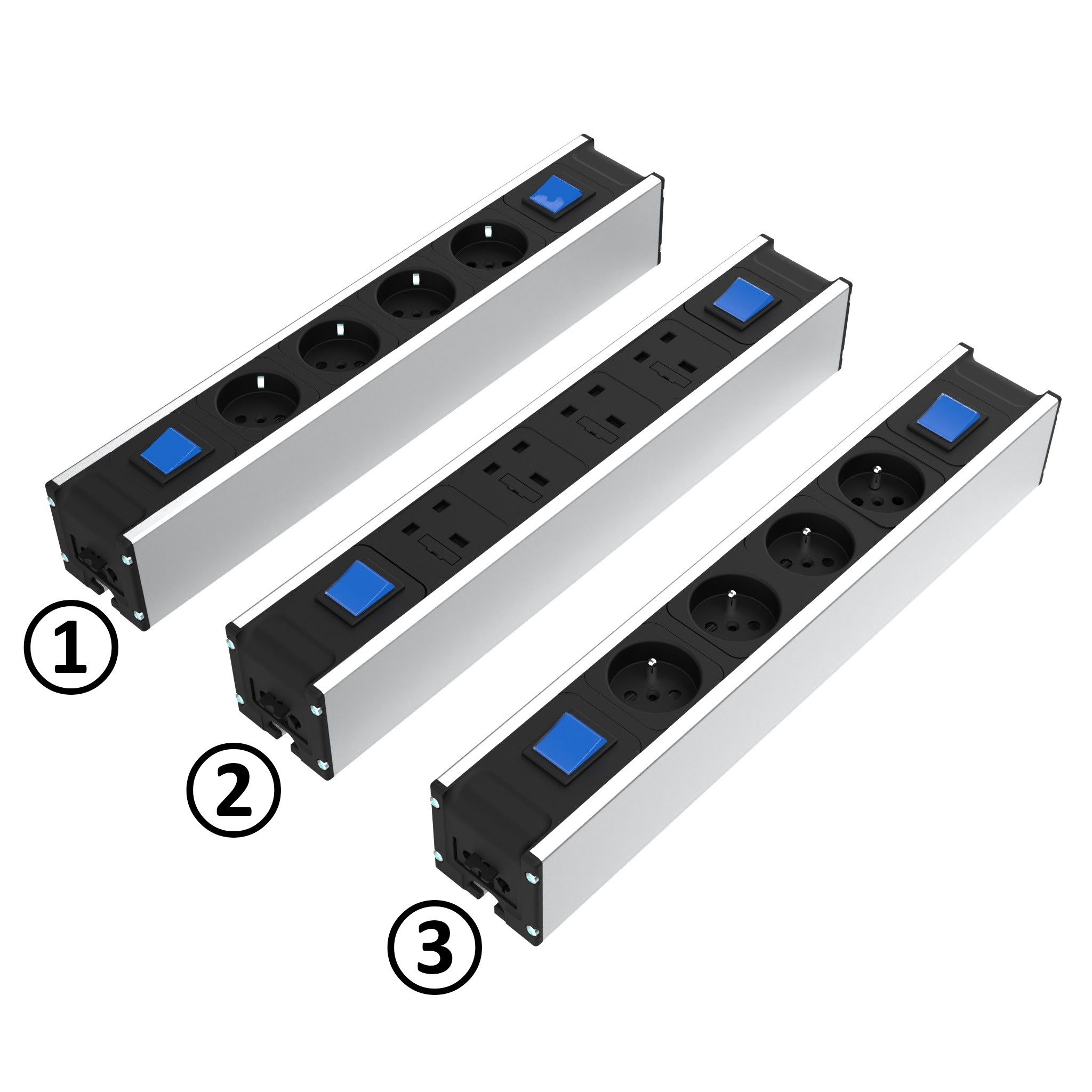

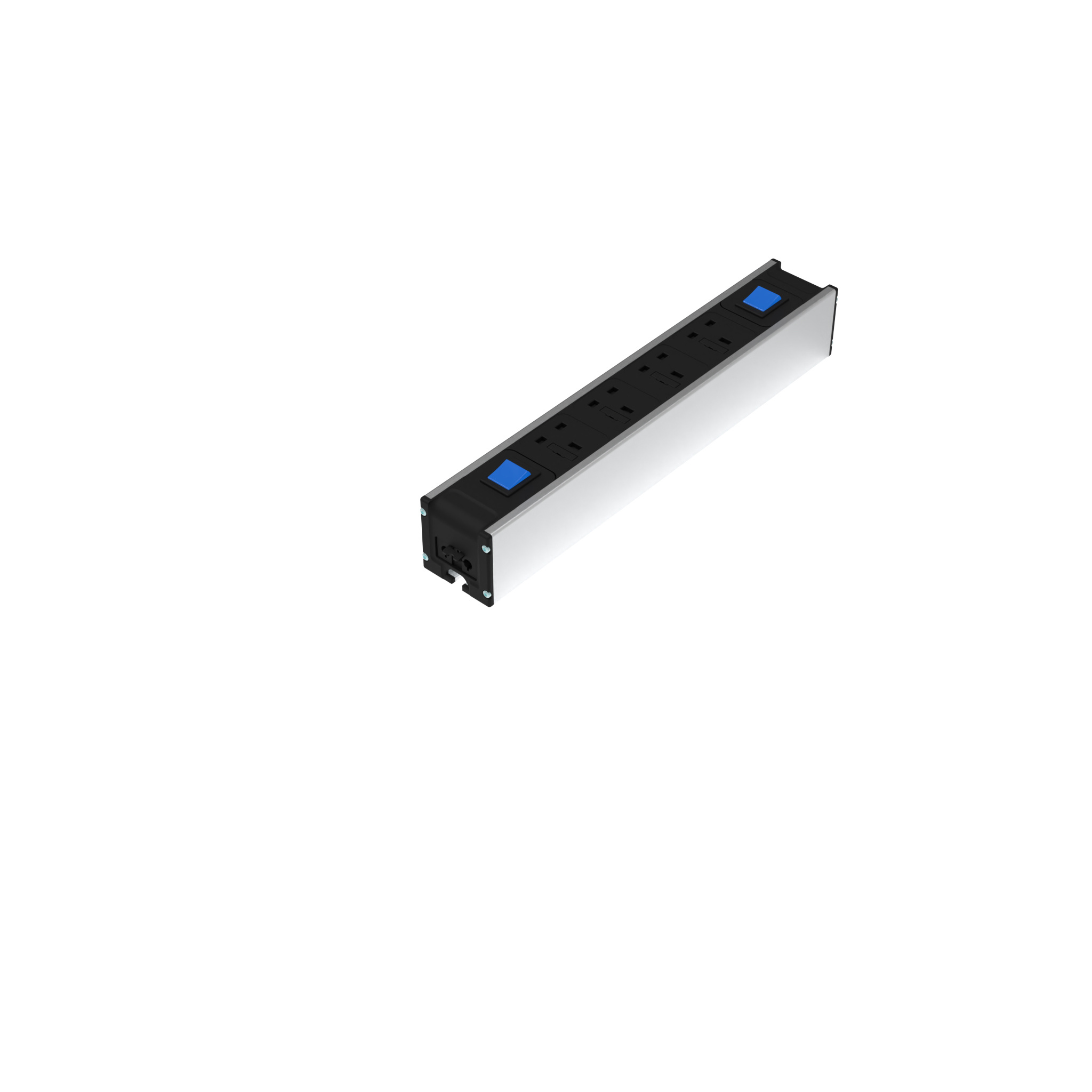

Power Strip Module F Line 370 4x, with 2 Switches
Power Strip Module F Line 370 4x, with 2 Switches
ESD: - | Fig.: ① | Profile: I | Slot N (mm): 8 | Socket Type: Type F: CEE 7/3 | Socket Type: EU: CEE 7/3 (Type F)
Color:Housing standard version: - Housing ESD electrostatical discharging version: Black End caps: Black Socket inserts: Black Switch standard version: Blue Switch ESD electrostatical discharging version: OrangeDelivery Countries:WorldwideDescription:Switchable power strip with sockets for power supply at workstations; Switchable output of power strip; On the backside with slot 8 for mounting on aluminum profilesMaterial:Housing: Aluminum End caps: Plastic PA, carbon fibre reinforced Socket inserts: Plastic PA Switches: Plastic ABS / PASpecials:Further colors, individually configurated power strips on requestSurface:Housing standard version: Anodized Housing ESD electrostatical discharging version: Powder coatedTip:Compatible LED Lamp see 6SL1040DI.953 Compatible Main Power Cable see 6SAME4J316B.2000 Compatible Connection Cable see 6SACP3J316B.2000 Compatible Connection Coupling see 6SAKP3J316BS01 Compatible Cover Cap for 3 pole female connector see 063SGF3S01 Compatible Direct Connector I, Slot 8 see 099DC084040N08 Compatible Direct Connector I / B, Slot 8 / 10 see 099DC084045N10Tip 2:Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules Connected load max. 3500 watts

€0.00*

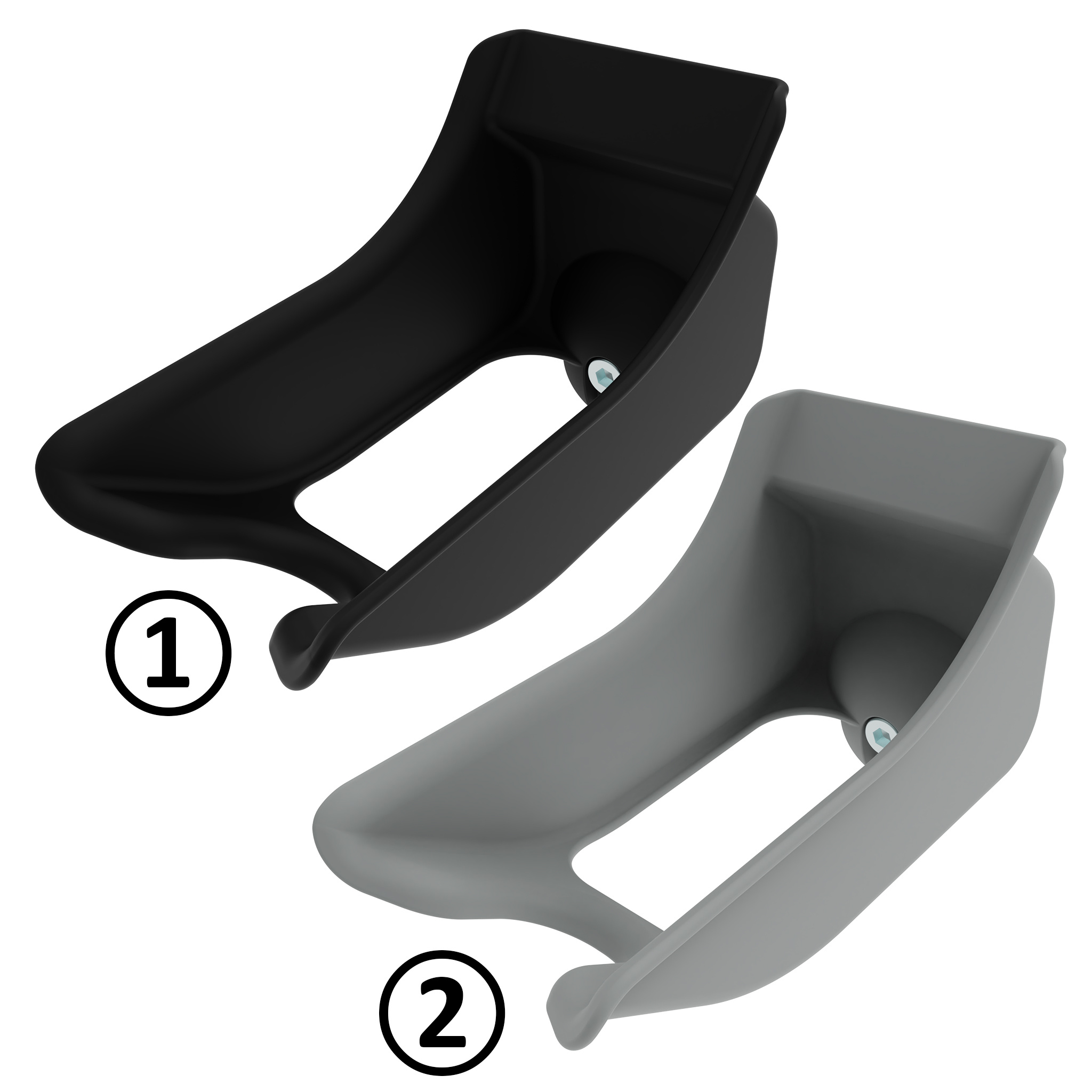

Packing Tape Hand Dispenser Holder FX for Square Holes 9 x 9 (8.7 x 8.7)
Packing Tape Hand Dispenser Holder FX for Square Holes 9 x 9 (8.7 x 8.7)
Color: Black | Fig.: ①
Color:Holder: Black, gray Packing Tape Hand Dispenser: Black, grayDelivery Countries:WorldwideDescription:Ready to use tool Holder for Packing Tape Hand Dispenser, 360° turnable, for perforated metals up to 1.4 mm thick; To organize workstations, with labeling area for standard labelsMaterial:Holder black version: Plastic PA, carbon fibre reinforced Holder gray version: Plastic PA, glass fibre reinforced Packing Tape Hand Dispenser: Plastic PA, glass fibre reinforced Spring: Spring steel SS313 Screw: Steel Nut: SteelSpecials:Other colors on request, For other sheet metal thicknesses on requestSurface:Screw: Zinc plated Nut: Zinc platedTip:For profiles 40 / 45, slot 8 / 10 see 6TM840NPT91 For round tubes D28 / D30 see 6TD283PT91

€0.00*

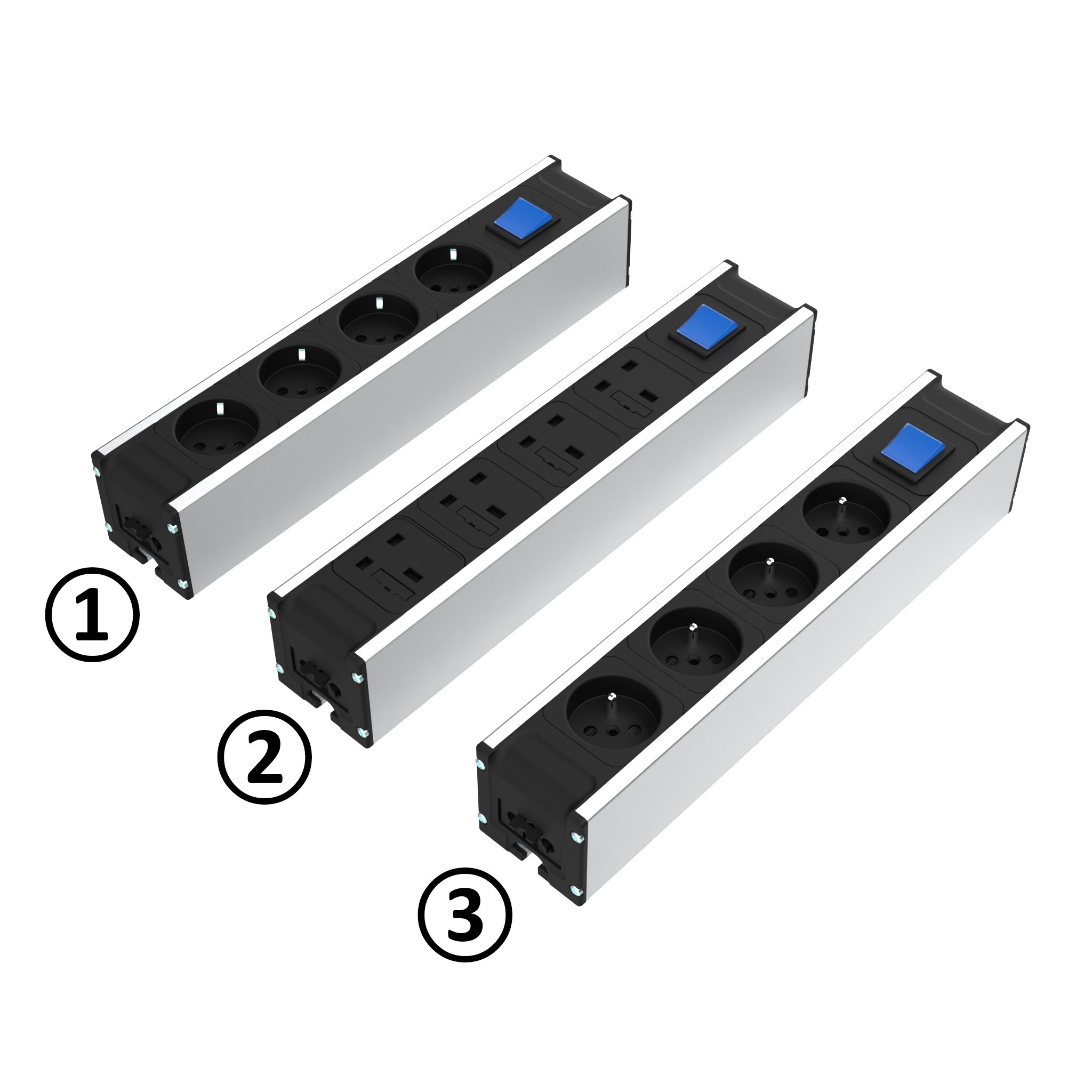

Power Strip Module F Line 317 4x, with Dimmer Button, for Series Connection
Power Strip Module F Line 317 4x, with Dimmer Button, for Series Connection
ESD: - | Fig.: ② | Profile: I | Slot N (mm): 8 | Socket Type: Type G: BS 1363
Color:Housing standard version: - Housing ESD electrostatical discharging version: Black End caps: Black Socket inserts: Black Dimmer button standard version: Blue Dimmer button ESD electrostatical discharging version: OrangeDelivery Countries:WorldwideDescription:Power strip with sockets for power supply at workstations; With remote dimming for series-connected LED lamps Modul F Line; Combination on output side only possible with remote dimmable LED lamp Modul F Line; On the backside with slot 8 for mounting on aluminum profilesMaterial:Housing: Aluminum End caps: Plastic PA, carbon fibre reinforced Socket inserts: Plastic PA Button: Plastic ABS / PASpecials:Further colors, individually configurated power strips on requestSurface:Housing standard version: Anodized Housing ESD electrostatical discharging version: Powder coatedTip:Compatible LED lamp see 6SL0040I.953 Compatible main power cable see 6SAME4J316B.2000 Compatible connection cable see 6SACP3J316B.2000 Compatible connection cable see 6SACP5J516B.2000 Compatible Connection Coupling see 6SAKP3J316BS01 Compatible direct connector I, slot 8 see 099DC084040N08 Compatible direct connector I / B, Slot 8 / 10 see 099DC084045N10Tip 2:Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules Connected load max. 3500 watts

€0.00*

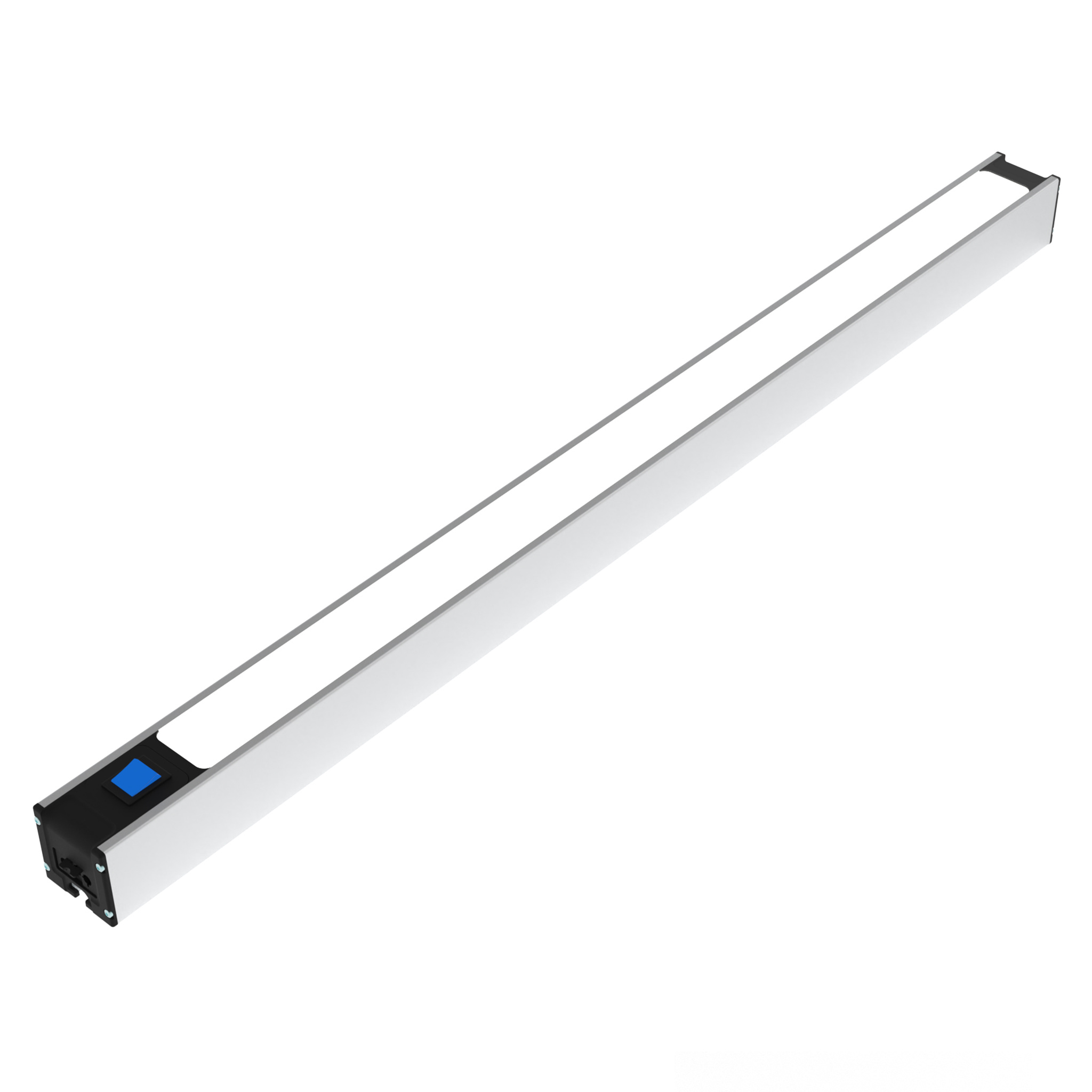

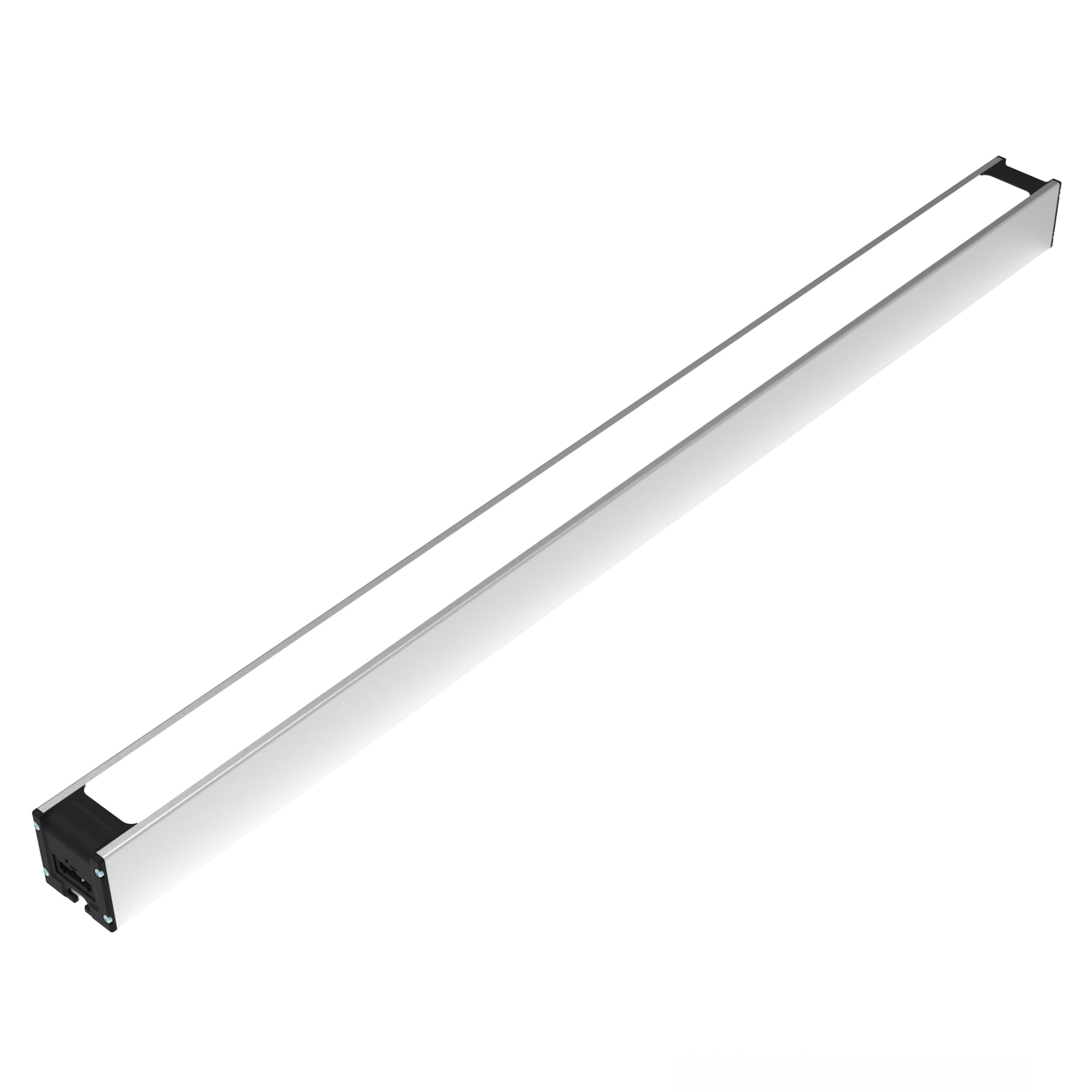

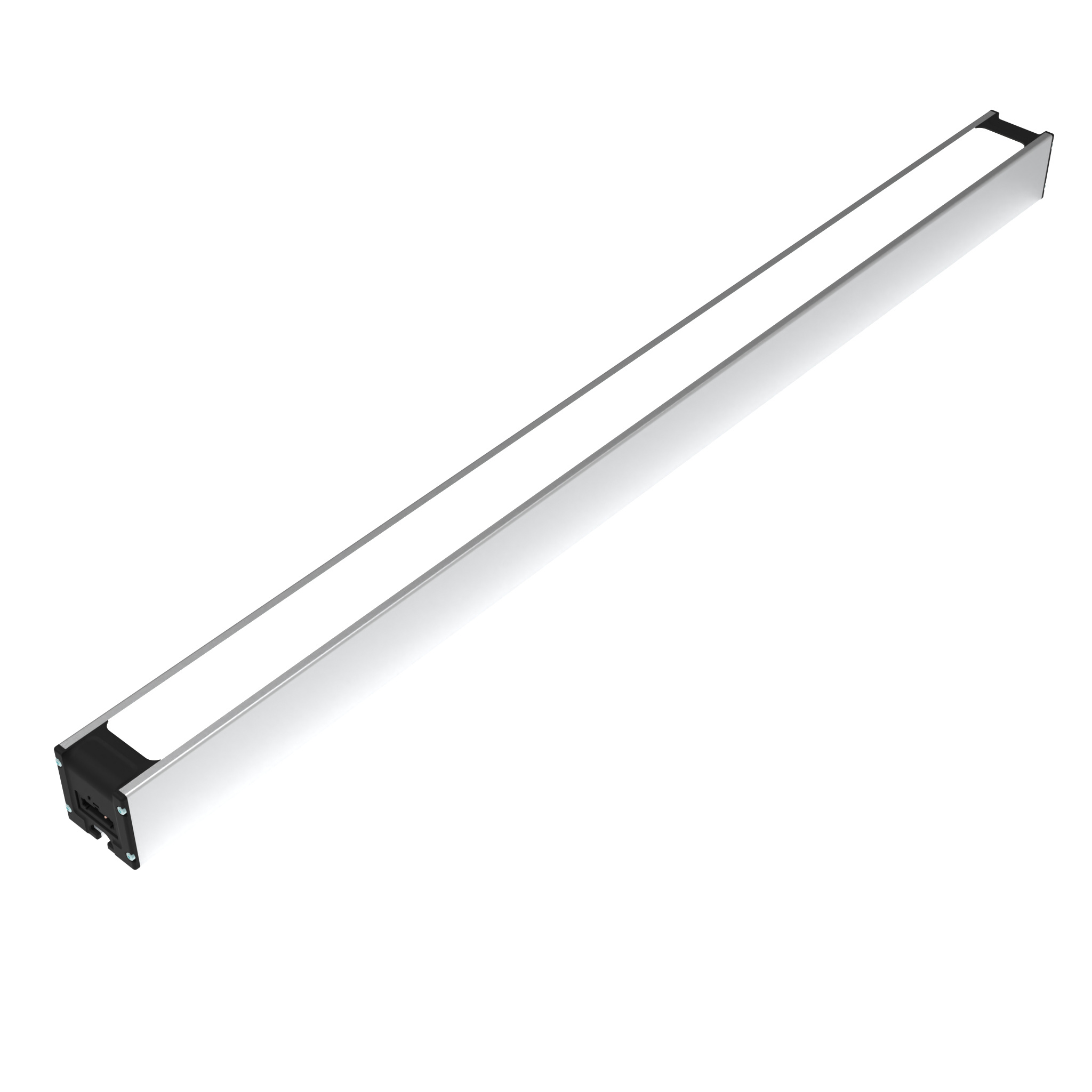

LED Lamp Module F Line 953 Dimmable, with Button, for Series Connection
LED Lamp Module F Line 953 Dimmable, with Button, for Series Connection
Profile: I | Slot N (mm): 8
Color:Housing standard version: - End caps: Black Diffusing screen: Transparent Dimmer button standard version: BlueDelivery Countries:WorldwideDescription:LED Lamp with dimmer button for power and light supply at work stations On the backside with slot 8 for mounting on aluminum profiles Can be dimmed in series if the downstream LED Lamp for Series Connection is dimmableMaterial:Housing: Aluminum End caps: Plastic PA, carbon fibre reinforced Diffusing screen: Polycarbonate Dimmer button: Plastic ABS/PASpecials:Other lengths, other colors on requestSurface:Housing standard version: AnodizedTip:Compatible LED Lamp Module F Line 953 Dimmable, for Series Connection see 6SL0040RI.953 Compatible Power Strip Module F Line 264 4xEU see 6SBEU04I.264 Compatible Main Power Cable GST18i3 for 3-pole input connector see 6SAME4J316B.2000 Compatible Connection Cable GST18i3 for 3-pole output connector see 6SACP3J316B.2000 Compatible Connection Cable GST15i5 for 5-pole output connector see 6SACP5J516B.2000 Compatible Connection Coupling GST18i3 for 3-pole output connector see 6SAKP3J316BS01 Compatible Connection Coupling GST15i5 for 5-pole output connector see 6SAKP5J516BS01 Compatible Direct Connector I, slot 8 see 099DC084040N08 Compatible Direct Connector I / B, Slot 8 / 10 see 099DC084045N10Tip 2:Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules Connected load max. 3500 watts

€0.00*

CATALOG ENGINEERING COMPONENTS

Flip PDF PDF Download

EN | icon-download-white.svg?ts=1738761470 113 MB | February 2024

GEOMETRY OF ALUMINUM PROFILES

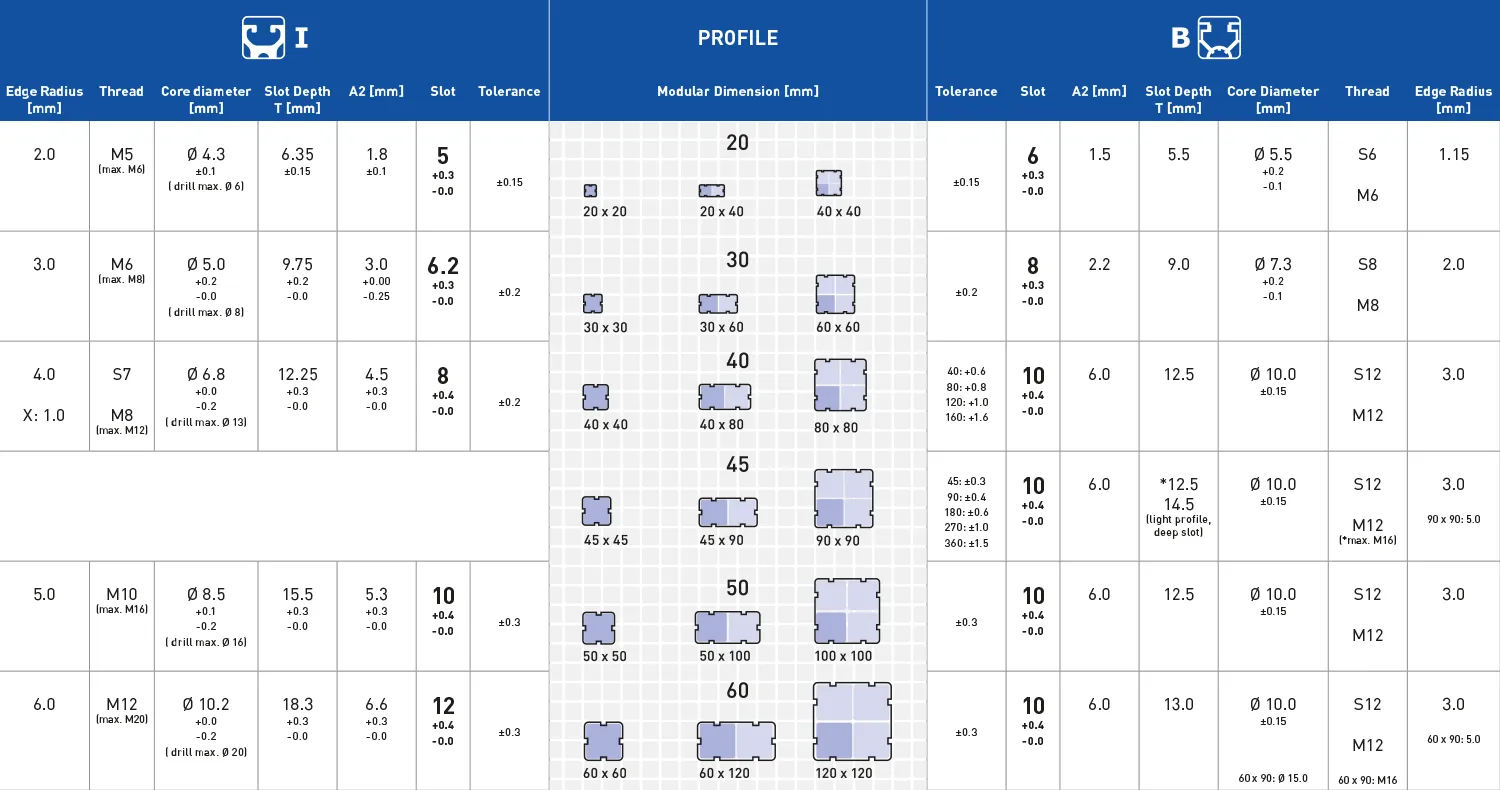

To make orientation easier for you, we have specified the geometry of the respective compatible aluminum profile where appropriate.In addition, you will find detailed dimensions and tolerances of the most important profile shapes in the table.
