Mitre Connectors

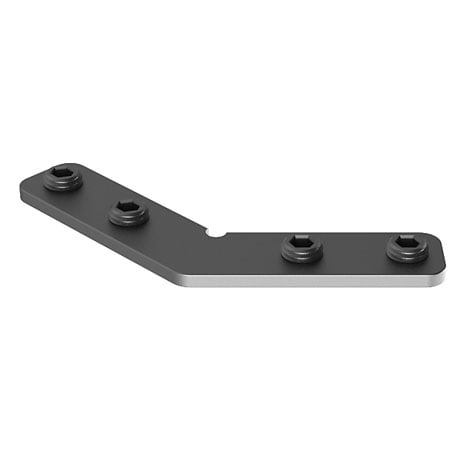

Mitre Connector 45°
€0.00*
A (mm):
20.2
|
B (mm):
60.0
|
C (mm):
3.0
|
Hexagon socket set screw:
M10
|
L (mm):
10.0
|
SW:
5
Delivery Countries:WorldwideDescription:To connect two aluminum profilesMaterial:SteelSurface:Zinc platedZolltarifnummer:73269098900

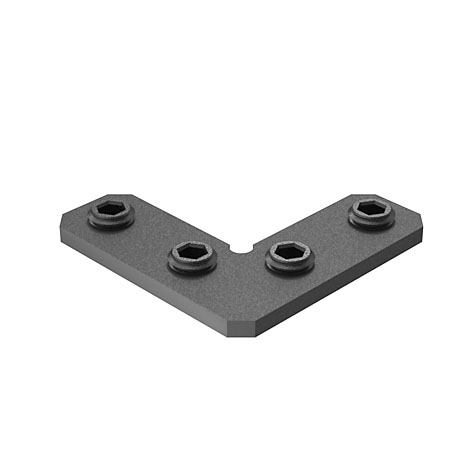

Mitre Connector 90°
€0.00*
A (mm):
20.2
|
B (mm):
60.0
|
C (mm):
3.0
|
Hexagon socket set screw:
M10
|
L (mm):
10.0
|
SW:
5
Delivery Countries:WorldwideDescription:To connect two aluminum profilesMaterial:SteelSurface:Zinc platedZolltarifnummer:73269098900

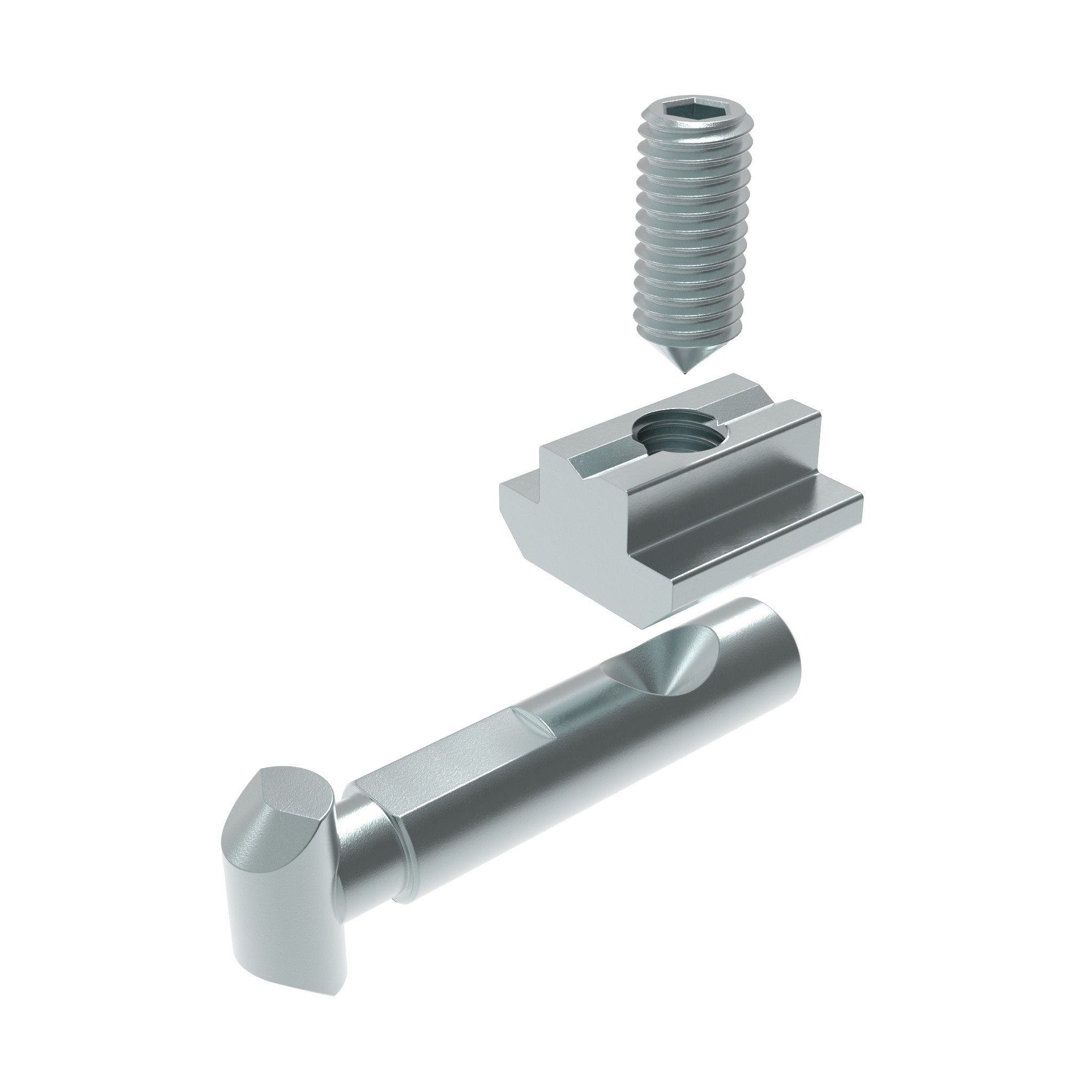

Mitre Connector B 45°-90°, Slot 10
€0.00*
Profile:
B
|
Slot N (mm):
10
Delivery Countries:WorldwideDescription:End-to-end connection of an aluminum profile with a mitre cut (cut γ = 45° - 90°) to another aluminum profile; before the application a hole with Ø 8.2 mm lateral must be drilled; with T-slot nut and threaded pin with AF 4Material:Zinc plated / plainSurface:Zinc platedZolltarifnummer:73269098900

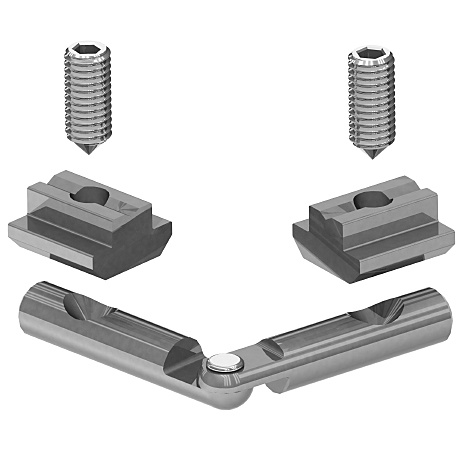

Mitre Connector B 60°-180°, Slot 10
€0.00*
Profile:
B
|
Slot N (mm):
10
Delivery Countries:WorldwideDescription:End-to-end connection of two aluminum profiles with a mitre cut (cut each γ = 60° - 90°); before the application a hole with Ø 8.2 mm in a distance of 34 mm of the profile end must be drilled; with T-slot nut and threaded pin with AF 4Material:SteelSurface:Zinc platedZolltarifnummer:73269098900

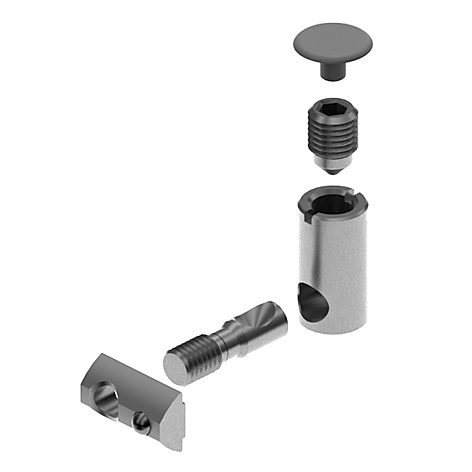

Mitre Connector I 30°-90°, Slot 8
€0.00*
Profile:
I
|
Slot N (mm):
8
Color:Cover cap: gray ≈ RAL 7042Delivery Countries:WorldwideDescription:End-to-end connection of an aluminum profile with a mitre cut (cut γ = 30° - 90°) to another aluminum profile; before the application each a hole with Ø 14.2 mm lateral and Ø 9.0 mm frontal must be drilled; with T-slot nut and cover capMaterial:Connector and T-slot nut: Steel Cover caps: Plastic PPSurface:Connector and T-slot nut: Zinc platedZolltarifnummer:73269098900

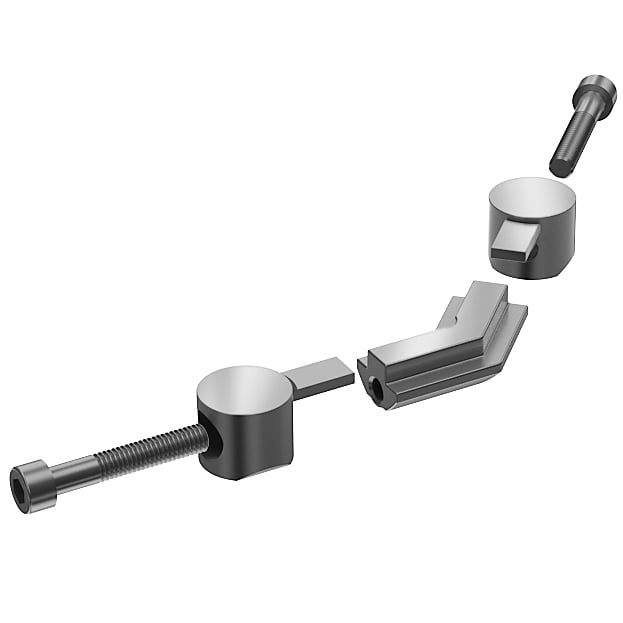

Universal Mitre Connector I (Set)
€0.00*
Slot N (mm):
8
Delivery Countries:WorldwideDescription:End-to-end connection of two aluminum profiles with a mitre cutMaterial:Zinc die-castSet:1 mitre connector, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 35Surface:Zinc platedZolltarifnummer:79070000900
