Pivot Joints 180°
Filter products
–

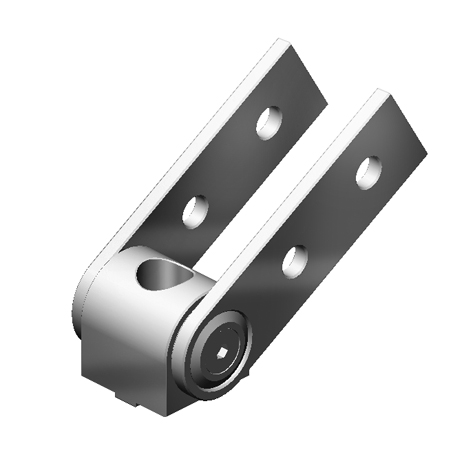

Pivot Joint 180°, 1 Slot
€0.00*
B (mm):
45.6
|
D (mm):
45.0
|
E (mm):
42.0
|
G (mm):
45.0
|
Grid:
45
|
H (mm):
141.5
|
Slot N (mm):
8 / 10
|
ØF (mm):
8.5
|
ØS (mm):
8.5
Color:Alu colorDelivery Countries:WorldwideDescription:To make a pivoting connection between two profiles, with separate locating pinsMaterial:Joint: Aluminum die-cast Centering piece 5/6 and 6/8: Plastic PA Centering piece 8/10: Zinc die-castSpecials:Other surfaces, other colors on requestSurface:Joint: Powder coated Centering piece: PlainZolltarifnummer:76169910990

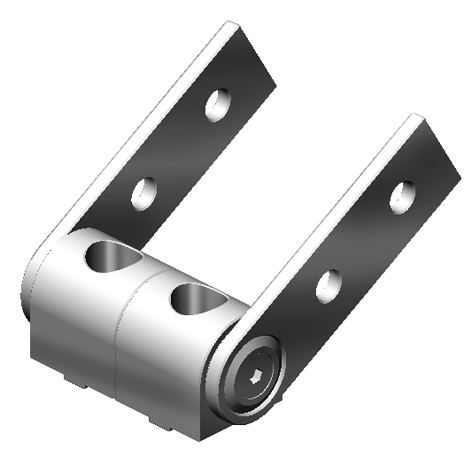

Pivot Joint 180°, 2 Slots
€0.00*
B (mm):
60.4
|
D (mm):
30.0
|
E (mm):
28.0
|
G (mm):
30.0
|
Grid:
30
|
H (mm):
86.0
|
Slot N (mm):
6 / 8
|
ØF (mm):
6.5
|
ØS (mm):
6.4
Color:Alu colorDelivery Countries:WorldwideDescription:To make a pivoting connection between two profiles, with separate locating pinsMaterial:Joint: Aluminum die-cast Centering piece 5/6 and 6/8: Plastic PA Centering piece 8/10: Zinc die-castSpecials:Other surfaces, other colors on requestSurface:Joint: Powder coated Centering piece: PlainZolltarifnummer:76169910990
