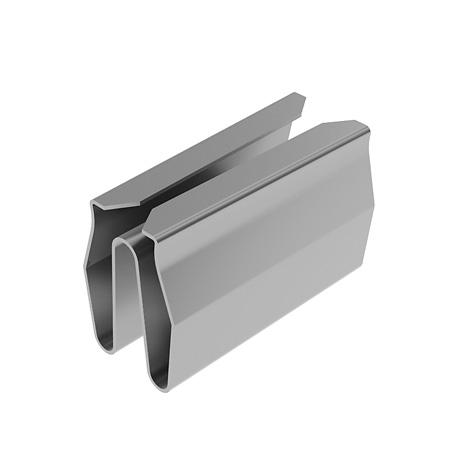

Clip 8

Profile: I

Delivery Countries:WorldwideDescription:To fix pieces of aluminum cover profiles to aluminum profiles, slot 8; recommended number: 5 pcs. per 1 mMaterial:Spring steelSurface:PlainTip:Compatible Cover Cap for Piece of Aluminum Cover Profile see 091333Zolltarifnummer:73170080000

€0.00*

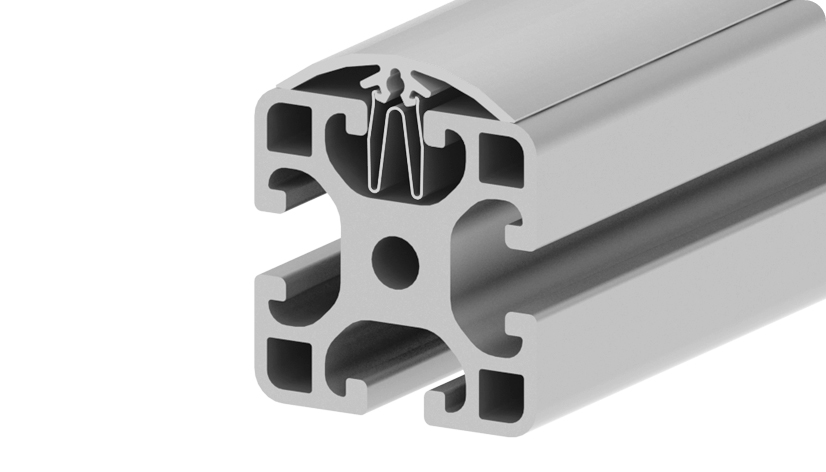

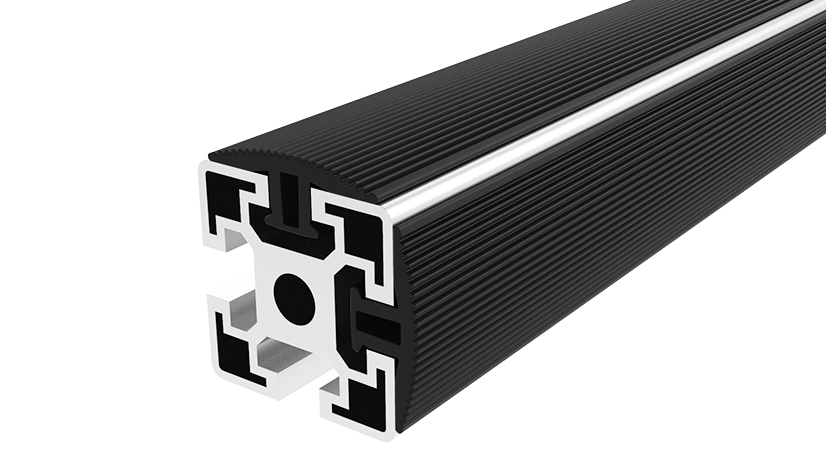

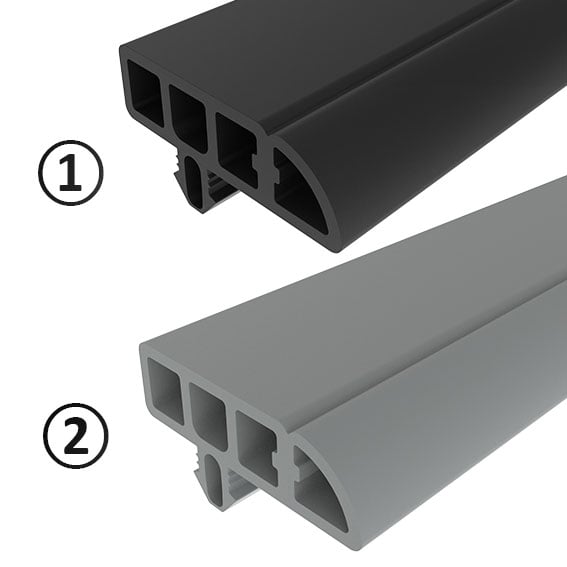

Corner Protection Profile 40, Slot 8

A (mm): 28.0 | A2 (Profile) (mm): 5.7 (4.5) | B (mm): 56.0 | Color: Gray ≈ RAL 7042 | D (mm): 16.0 | Fig.: ② | Profile: I | Slot N (mm): 8

Color:Black, grayDelivery Countries:WorldwideDescription:To prevent damages and injuries - also on the outer edge, impact protection by hollow chamber profile on aluminum profilesMaterial:Plastic TPE, ≈ 70 Shore ATip:Compatible Cover Cap for Side and Corner Protection Profile 40 see 091385 and 091386 Compatible Side Protection Profile 40, Slot 8 see 092324S01Tip 2:Please note: You are ordering in meters!Zolltarifnummer:40082900900

€0.00*

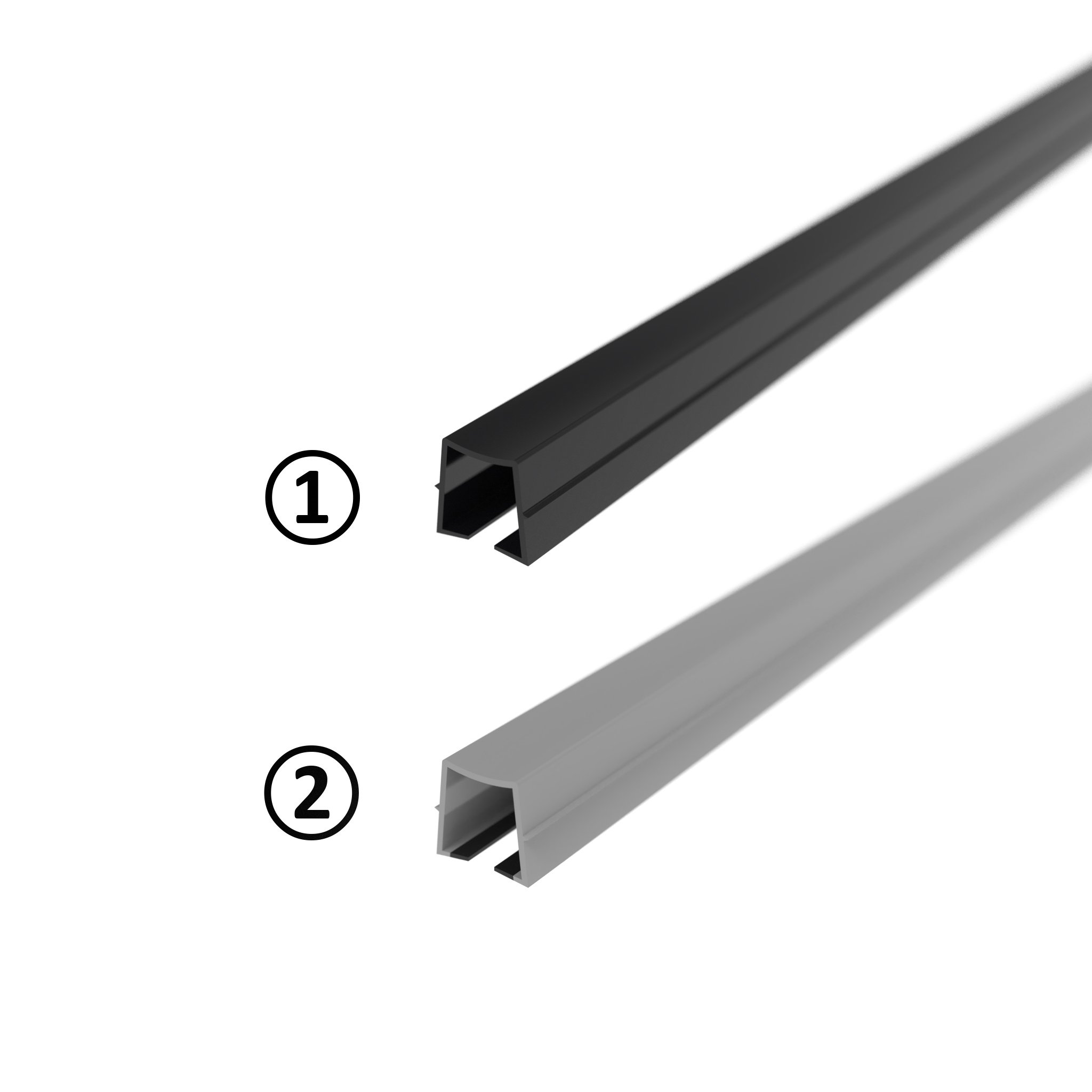

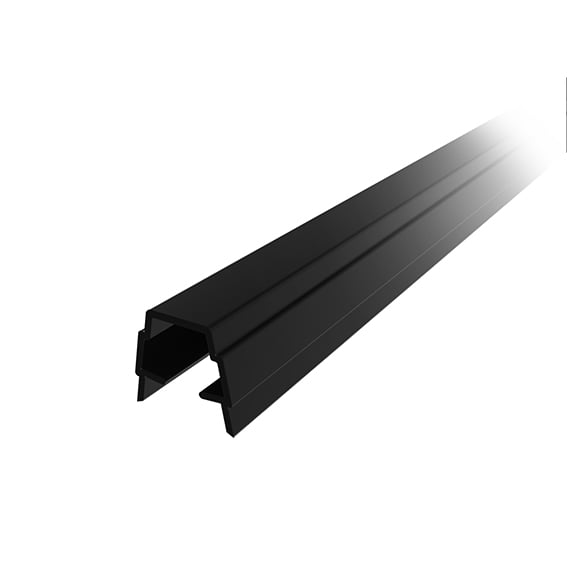

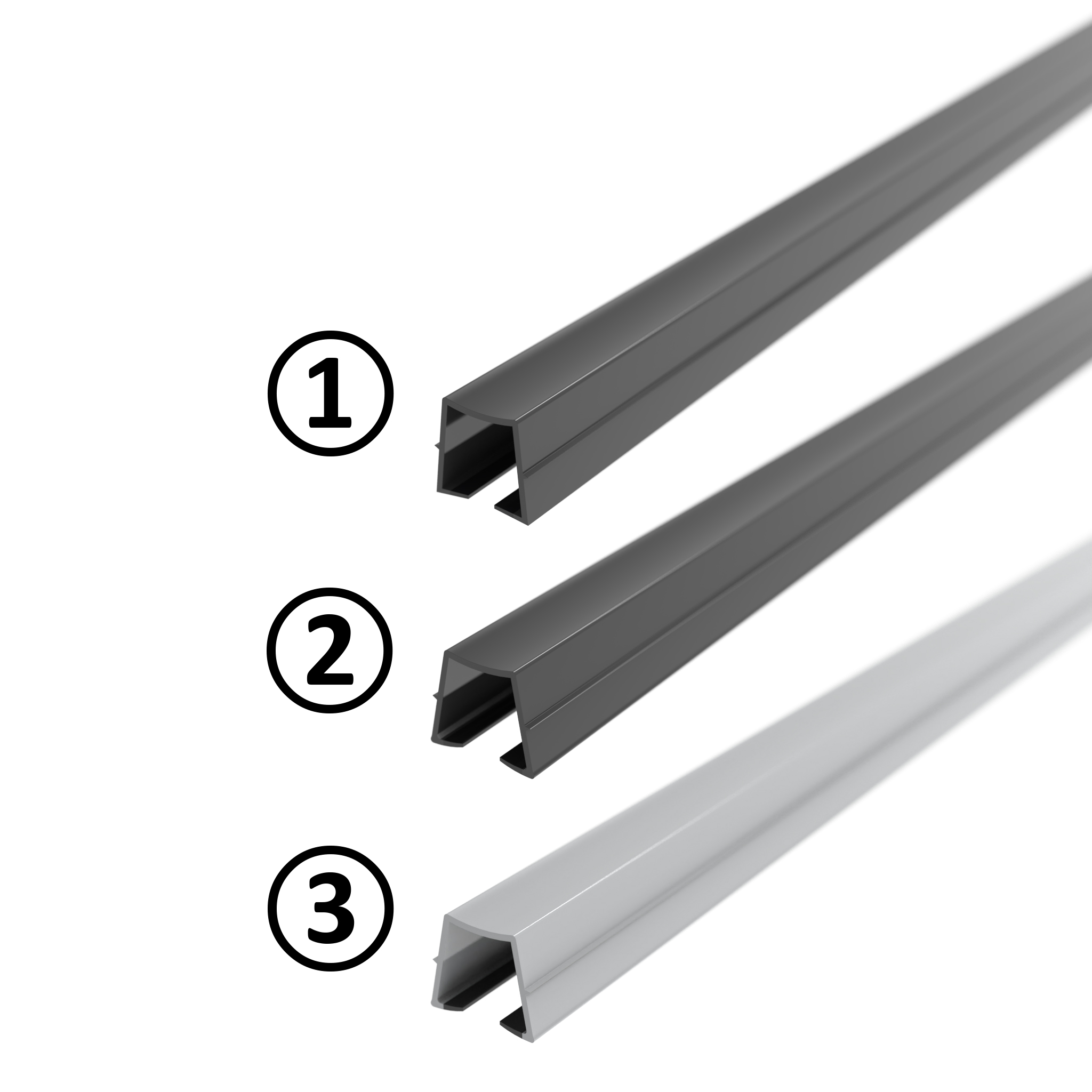

Cover and Reduction Profile B Slot 10 deep

Color: Gray ≈ RAL 7004 | Fig.: ② | Profile: B | Slot N (mm): 10

Color:Profile: Black, gray Sealing lip: BlackDelivery Countries:WorldwideDescription:To cover size 10 profile slots and to secure panels with a thickness of 2 - 6 mmMaterial:Profile: Plastic PP Sealing lip: Plastic TPESpecials:Other colors on requestZolltarifnummer:39169050900

€0.00*

Cover and Reduction Profile B Slot 10 flat

Profile: B | Slot N (mm): 10

Color:BlackDelivery Countries:WorldwideDescription:To secure panels with a thickness of 4 - 6 mm Material:Plastic PP + TPE, ≈ 78 Shore ASpecials:Other colors on requestTip:Please note: You are ordering in meters!Zolltarifnummer:39169050900

€0.00*

Cover and Reduction Profile B Slot 6

Profile: B | Slot N (mm): 6

Color:BlackDelivery Countries:WorldwideDescription:To cover size 6 profile slots and to secure panels with a thickness of 1 - 4 mmMaterial:Plastic PPSpecials:Other colors on requestTip:Please note: You are ordering in meters!Zolltarifnummer:39169050900

€0.00*

Cover and Reduction Profile B Slot 8

Profile: B | Slot N (mm): 8

Color:BlackDelivery Countries:WorldwideDescription:To cover size 8 profile slots and to secure panels with a thickness of 4 - 6 mmMaterial:Plastic PP + TPE, ≈ 78 Shore ASpecials:Other colors on requestTip:Please note: You are ordering in meters!Zolltarifnummer:39169050900

€0.00*

Cover and Reduction Profile I Slot 5

Color: Black | Profile: I | Slot N (mm): 5

Color:Black, gray, natural Delivery Countries:WorldwideDescription:To cover size 5 profile slots and to secure panels with a thickness of 2 - 3 mmMaterial:Plastic PPSpecials:Other colors on requestZolltarifnummer:39169050900

€0.00*

Cover and Reduction Profile I Slot 6

Color: Black | Profile: I | Slot N (mm): 6

Color:Black, gray, natural Delivery Countries:WorldwideDescription:To cover size 6 profile slots and to secure panels with a thickness of 2 - 3.5 mmMaterial:Plastic PPSpecials:Other colors on requestZolltarifnummer:39169050900

€0.00*

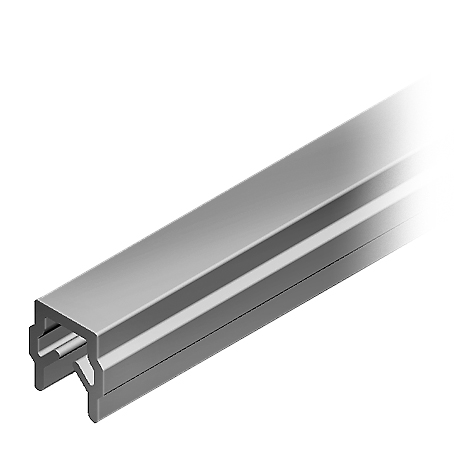

Cover and Reduction Profile I Slot 8

Color: Orange ≈ RAL 2008 | Profile: I | Slot N (mm): 8

Color:Black, yellow, orange, red, blue, gray, white aluminum, naturalDelivery Countries:WorldwideDescription:To cover size 8 profile slots and to secure panels with a thickness of 4 - 6 mmMaterial:Plastic PPSpecials:Other colors on requestZolltarifnummer:39169050900

€0.00*

Cover and Reduction Profile M45 Slot 8

Color: Gray ≈ RAL 7035 | Slot N (mm): 8

Color:Black, grayDelivery Countries:WorldwideDescription:To cover size 8 profile slots and to secure panels with a thickness of 4 - 6 mmMaterial:Plastic PPSpecials:Other colors on requestZolltarifnummer:39169050900

€0.00*

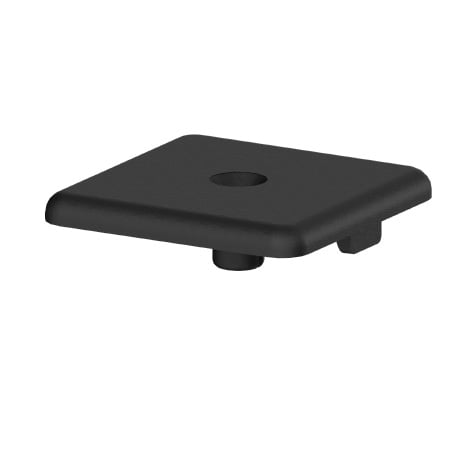

Cover Cap Fixable

D (mm): 10.5 | Dimensions A x B (mm): 60 x 60 | Feature: 1 pin for core hole | R (mm): 3.0 | Screw: 1 screw | T (mm): 4.0

Color:BlackDelivery Countries:WorldwideDescription:Screw-on cover cap for the end of the aluminum profileMaterial:Plastic PA, glass fiber reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors on requestTip:Compatible screw see 4DIN7991M0416MZolltarifnummer:39269097900

€0.00*

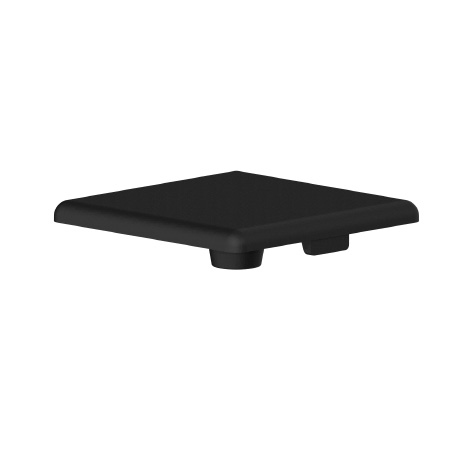

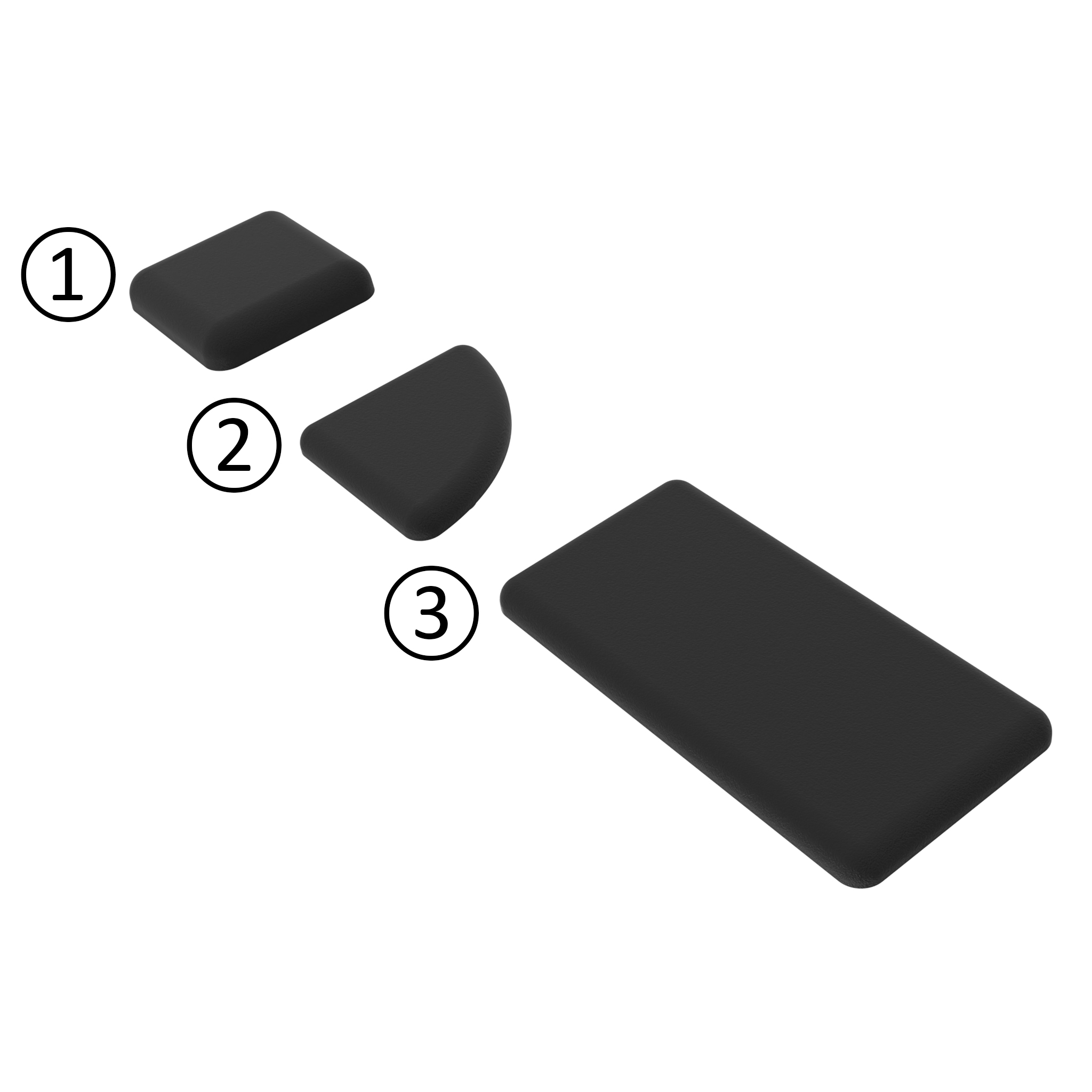

Cover Cap for 20 mm Modular Dimension

Color:Black, grayDelivery Countries:WorldwideDescription:To cover the end of the profileMaterial:Plastic PA, glass fiber reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors on requestZolltarifnummer:39269097900

€0.00*

Cover Cap for 30 mm Modular Dimension

€0.00*

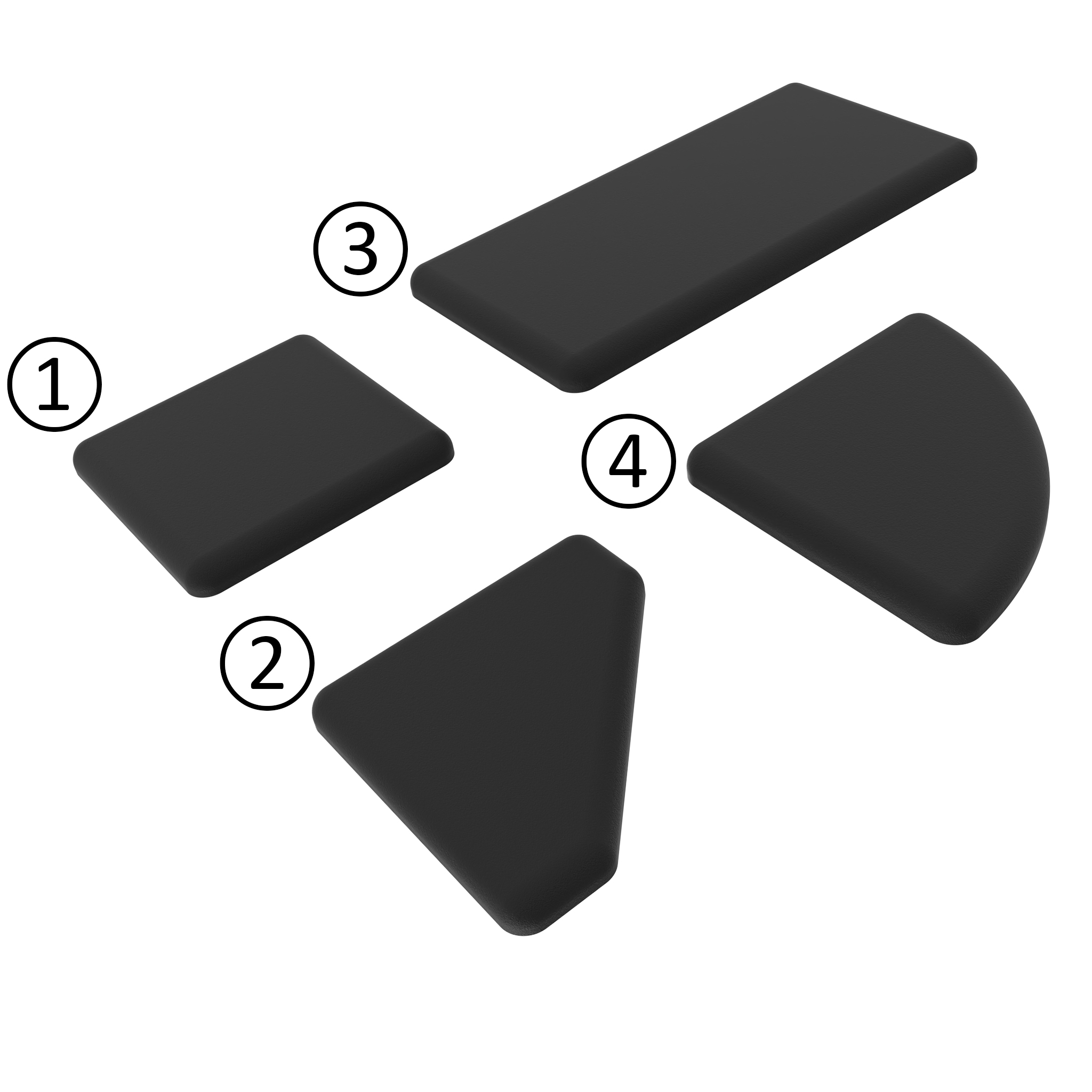

Cover Cap for 38 mm - 1.5" Modular Dimension

Dimensions A x B (mm): 38.1 x 19 - 1.5" x 3/4" | Feature: 2 crosses off center | R (mm): 3.0 | T (mm): 4.0 | ØD (mm): 6.8

Color:BlackDelivery Countries:WorldwideDescription:To cover the end of the profileMaterial:Plastic PA, glass fiber reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors on requestZolltarifnummer:39269097900

€0.00*

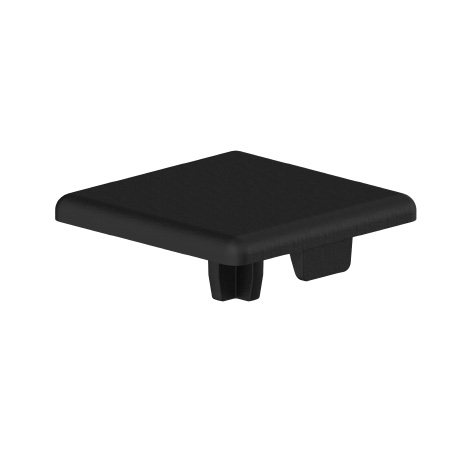

Cover Cap for 40 mm Modular Dimension

Color:Black, grayDelivery Countries:WorldwideDescription:To cover the end of the profileMaterial:Plastic PA, glass fiber reinforced, * glass ball reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors on requestZolltarifnummer:39269097900

€0.00*

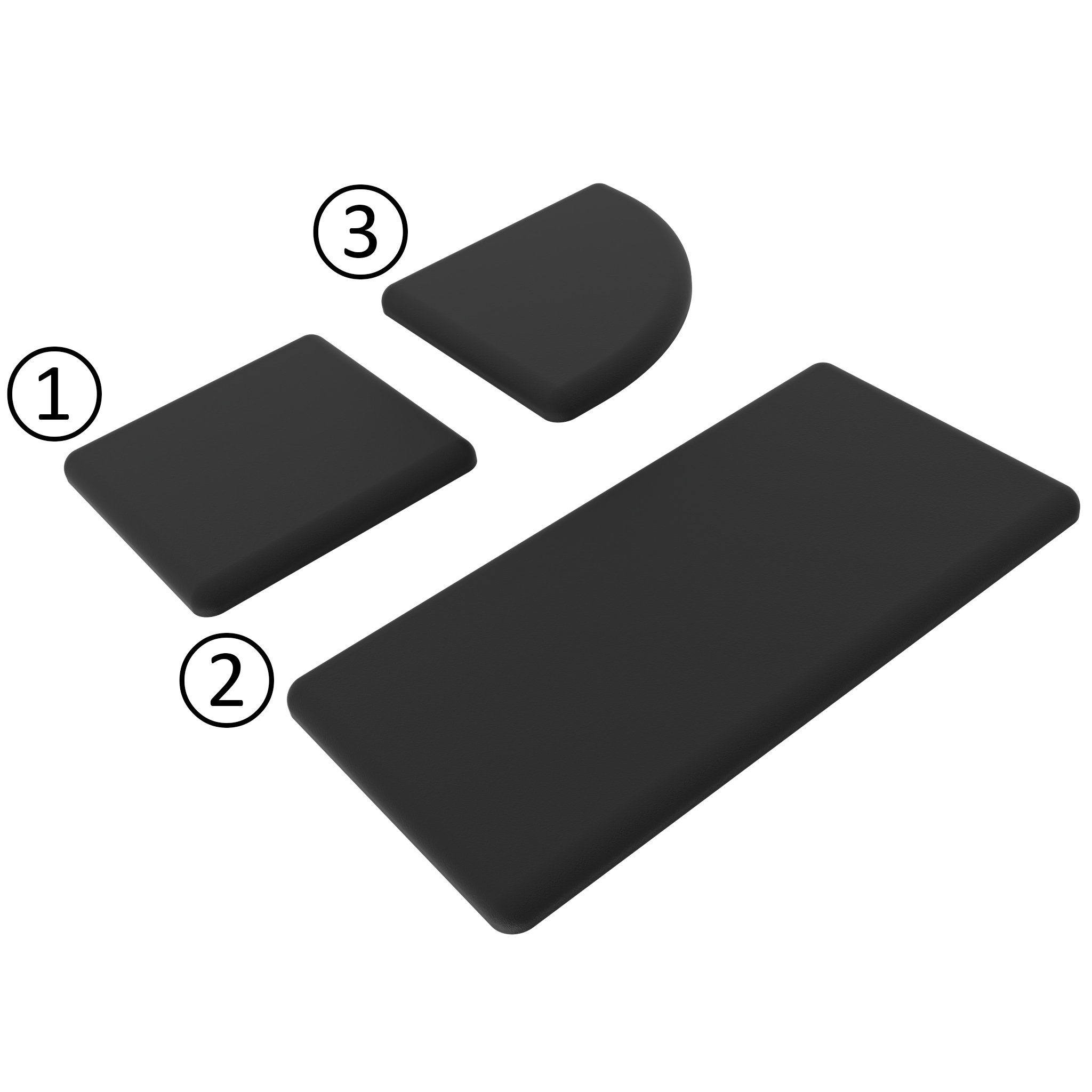

Cover Cap for 45 mm Modular Dimension

€0.00*

Cover Cap for 50 mm Modular Dimension

€0.00*

Cover Cap for 60 mm Modular Dimension

€0.00*

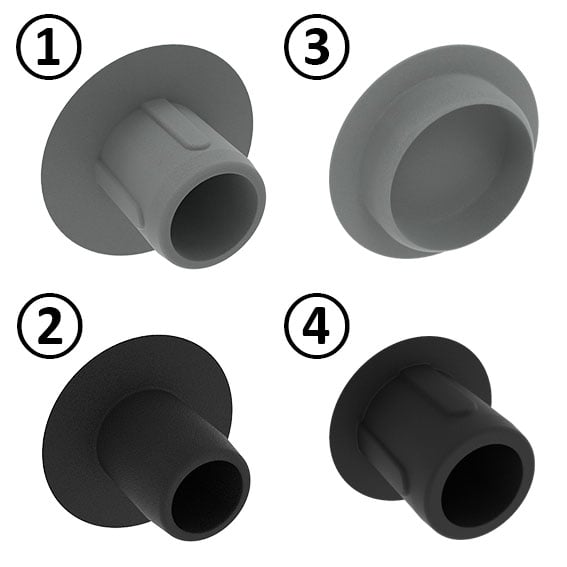

Cover Cap for Boreholes

Color:Black, grayDelivery Countries:WorldwideDescription:To cover boreholesMaterial:Plastic PATip:Other colors on requestZolltarifnummer:39269097900

€0.00*

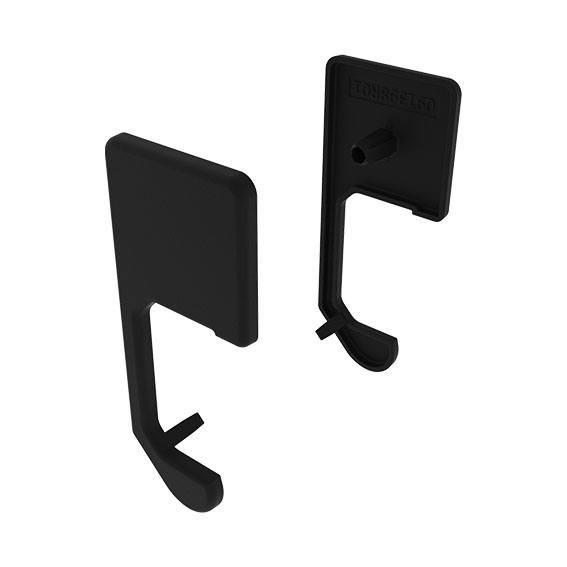

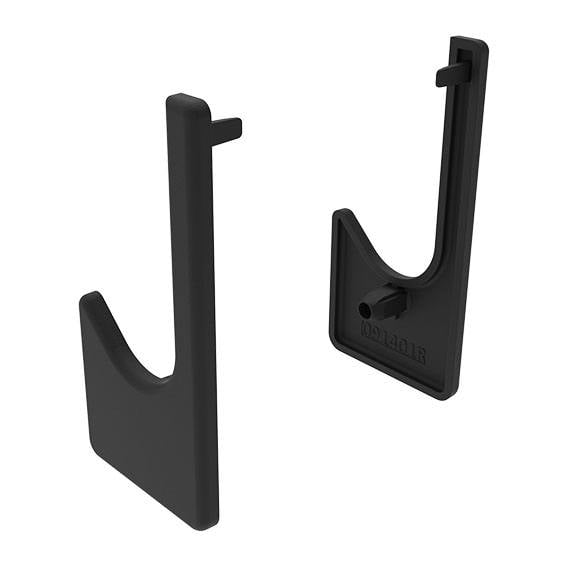

Cover Cap for C-rail Profile I (Set)

A x B (mm): 92.6 x 38.6 | Profile: I | Slot N (mm): 8 | T (mm): 4.0

Color:BlackDelivery Countries:WorldwideDescription:To cover the end of the profileMaterial:Plastic PA, glass fiber reinforcedSet:1 cover cap left, 1 cover cap rightZolltarifnummer:39269097900

€0.00*

Cover Cap for C-slide Profile I (Set)

A x B (mm): 81.5 x 38.8 | Slot N (mm): 8 | T (mm): 4.0

Color:BlackDelivery Countries:WorldwideDescription:To cover the end of the profileMaterial:Plastic PA, glass fiber reinforcedSet:1 cover cap left, 1 cover cap rightZolltarifnummer:39269097900

€0.00*

Cover Cap for Clamp Profile

€0.00*

Cover Cap for Conduit Profile

Color:BlackDelivery Countries:WorldwideDescription:To seal the end openings of conduit systems; Fastening with screw M 4Material:Plastic PA, glass fiber reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors on requestZolltarifnummer:39269097900

€0.00*

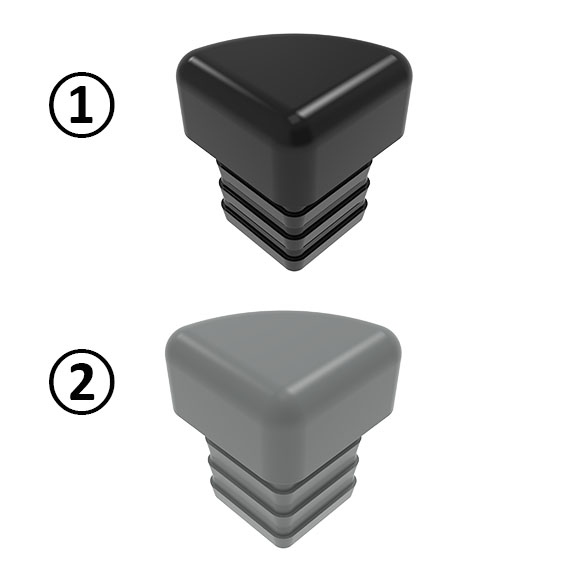

Cover Cap for Corner Protection Profile 40

A (mm): 8.0 | Color: Gray ≈ RAL 7042 | D (mm): 15.0 | Fig.: ②

Color:Black, grayDelivery Countries:WorldwideDescription:To cover the end of the corner protection profile 40, slot 8Material:Plastic TPE, ≈ 70 Shore ATip:Compatible Corner Protection Profile 40, Slot 8 see 092325Tip 2:Other colors on requestZolltarifnummer:39269097900

€0.00*
